Model Maytag FCG20100R GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

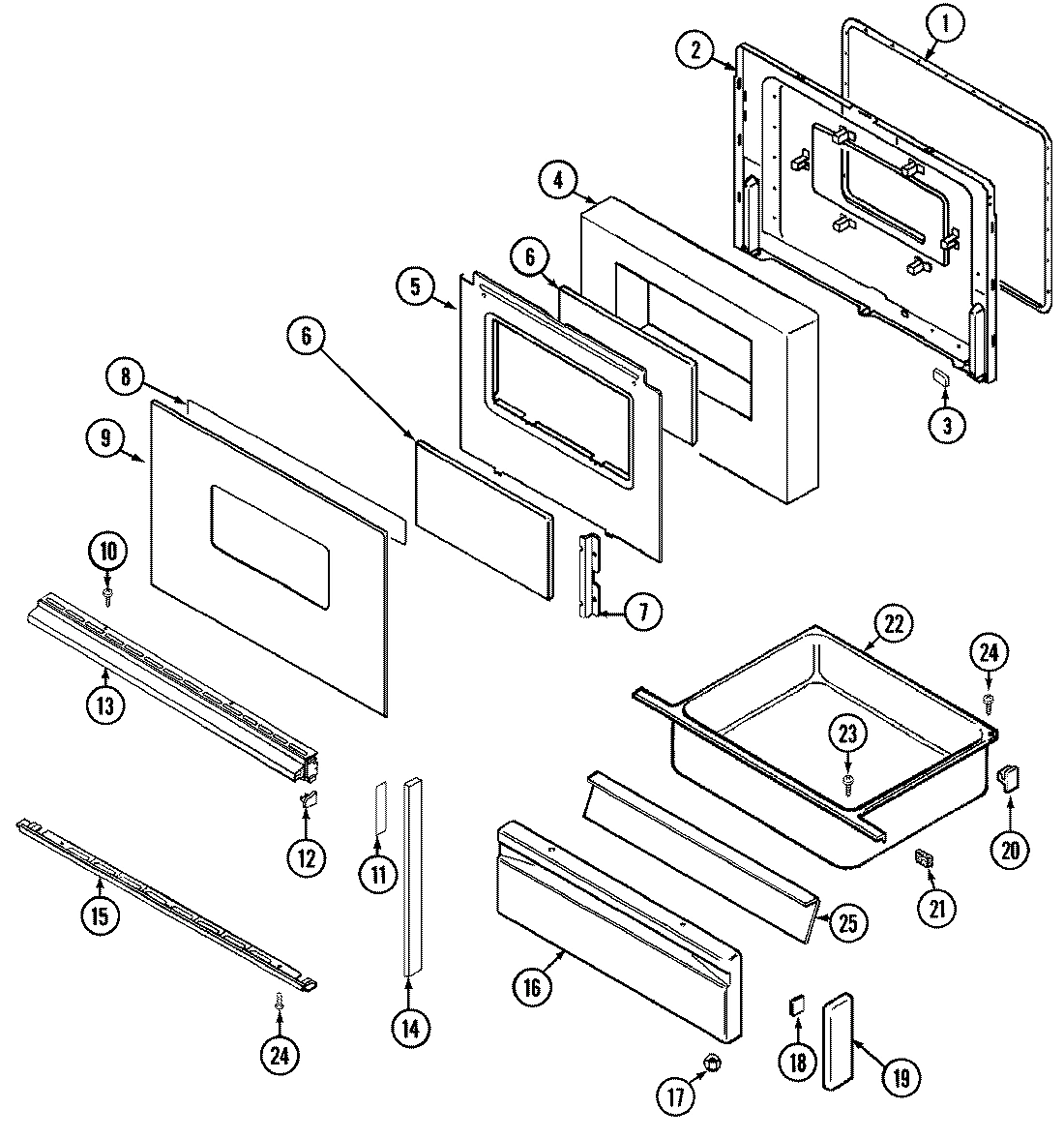

03 - DOOR/DRAWER

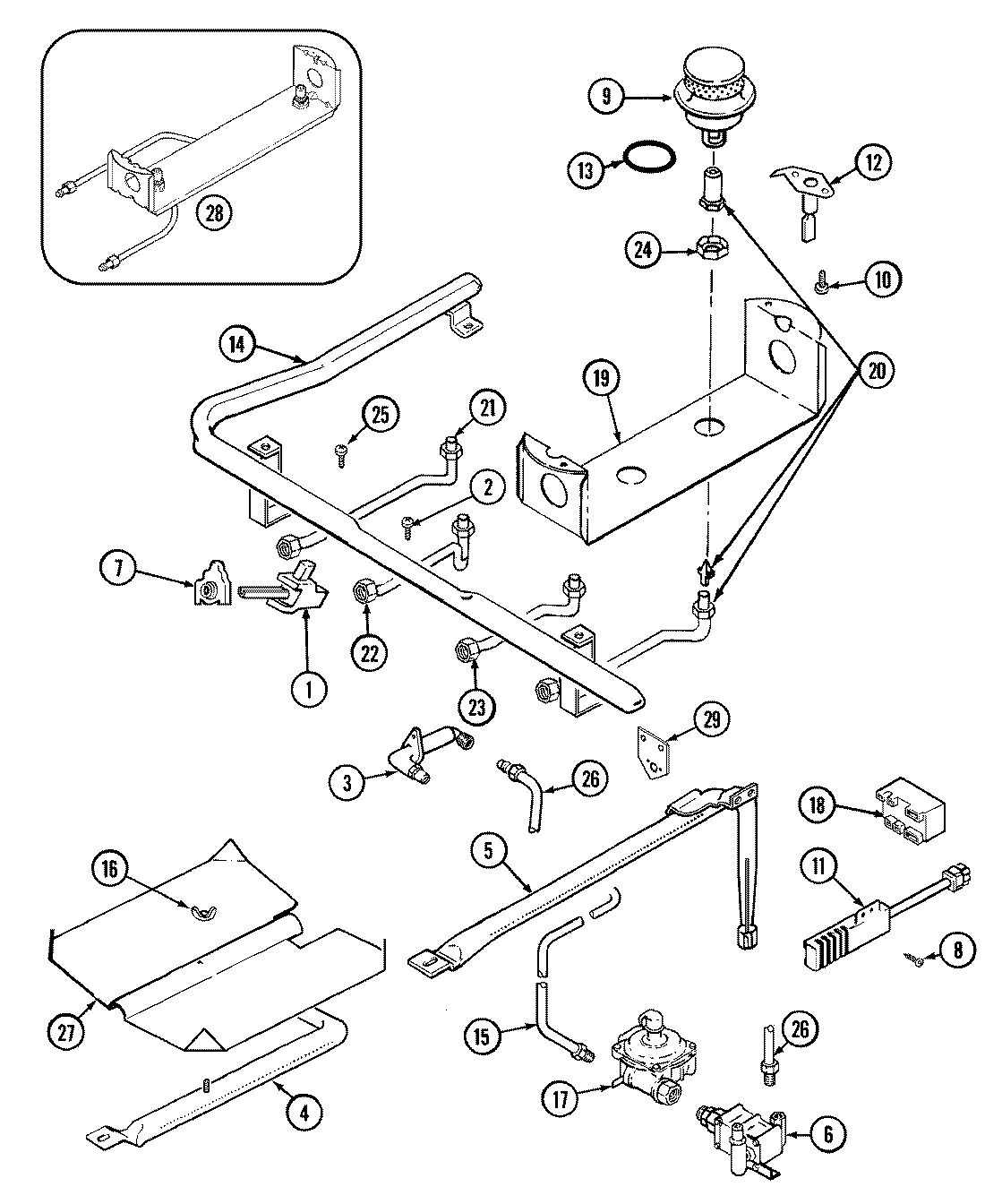

04 - GAS CONTROLS

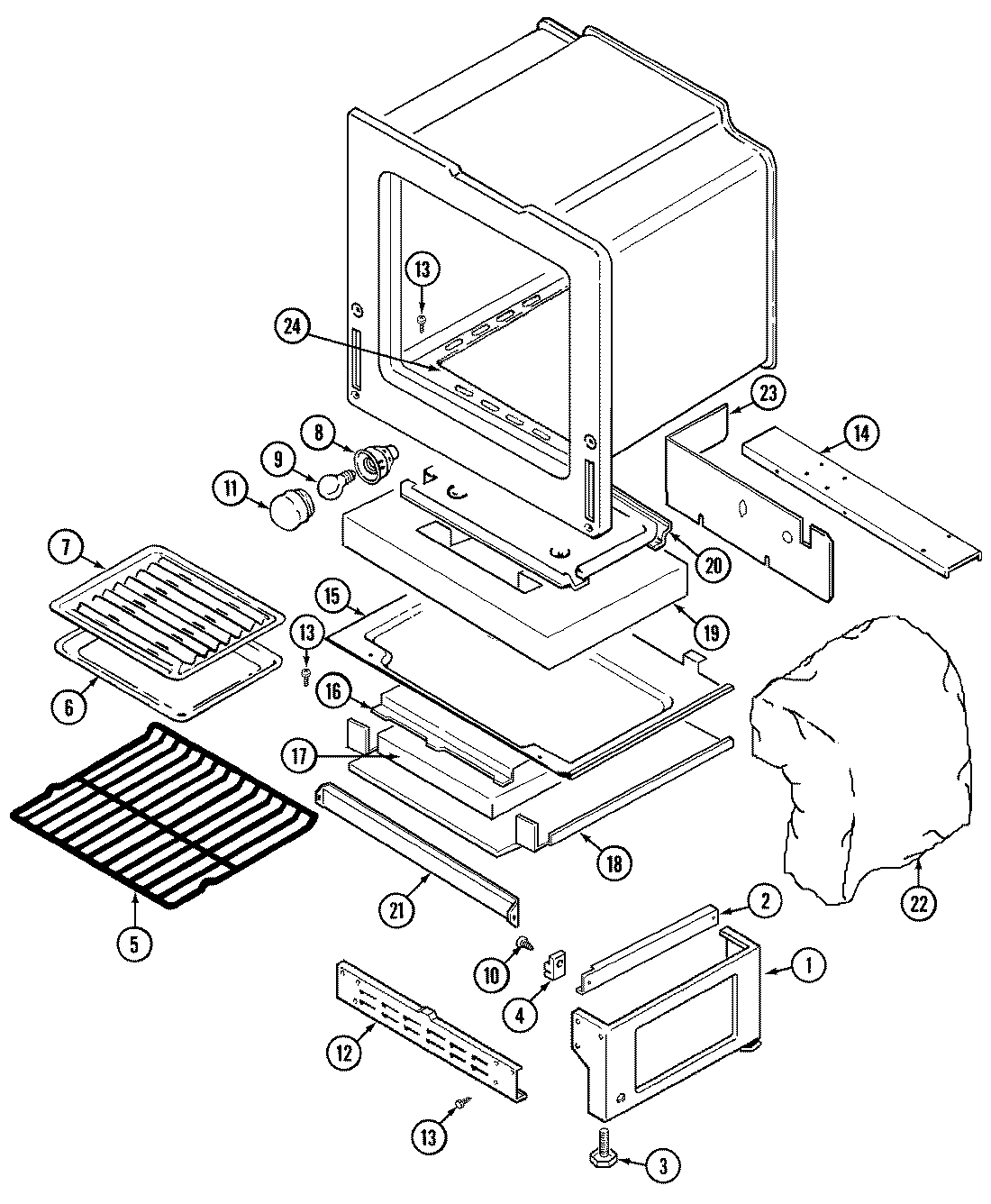

05 - OVEN/BASE

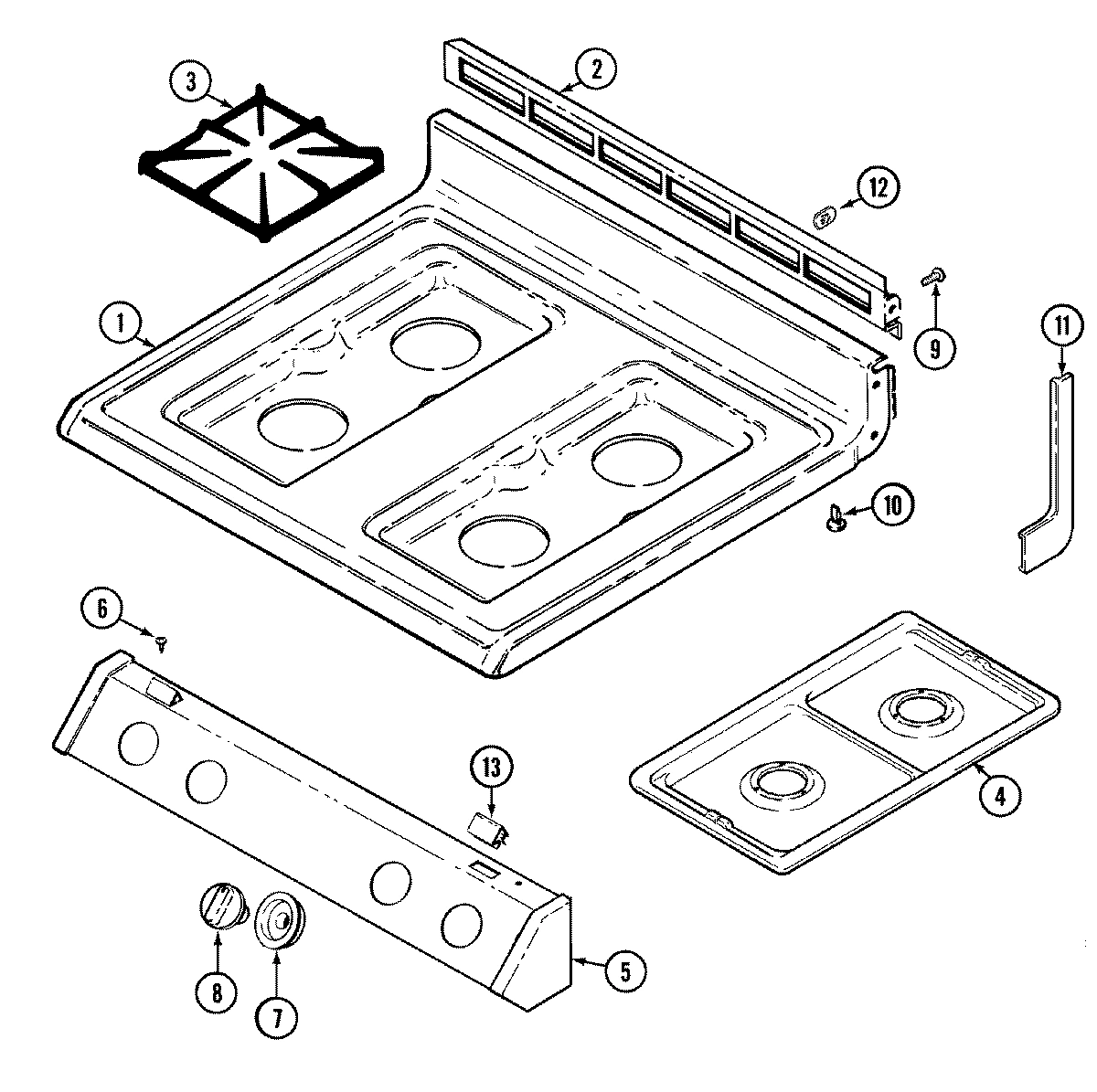

06 - TOP ASSEMBLY
07 - WIRING INFORMATION
Common parts from model Maytag FCG20100R GAS RANGE
1
MAY 74002162 MAY 74002162 Contact Us For Availability
1
MAY 7502P251-60 MAY 7502P251-60 Contact Us For Availability
1
MAY 74001705 MAY 74001705 Contact Us For Availability
1
MAY 2001W085-84 MAY 2001W085-84 Contact Us For Availability
2
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 74001311 MAY 74001311 Contact Us For Availability
3
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
3
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
3
MAY 74001653 MAY 74001653 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
5
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
5
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
5
MAY 7712P130-60 MAY 7712P130-60 Contact Us For Availability
6
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY 74002027 MAY 74002027 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
7
MAY 7740P058-60 MAY 7740P058-60 Contact Us For Availability
7
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
8
MAY 8009P029-60 MAY 8009P029-60 Contact Us For Availability
8
LEVER, LATCH (BLK) MAY 74001075 Contact Us For Availability
8
MAY 74002042 MAY 74002042 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
MAY 74003125 MAY 74003125 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 74002030 MAY 74002030 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
10
MAY 74001719 MAY 74001719 Contact Us For Availability
10
MAY 74002099 MAY 74002099 Contact Us For Availability
10
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
10
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
11
MAY 74002035 MAY 74002035 Contact Us For Availability
11
MAY 74002036 MAY 74002036 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
11
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
11
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
11
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
11
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
12
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
12
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
12
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
12
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
13
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
13
MAY 74002039 MAY 74002039 Contact Us For Availability
13
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
13
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
13
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
14
MAY 5125A354-60 MAY 5125A354-60 Contact Us For Availability
14
MAY 5170P204-60 MAY 5170P204-60 Contact Us For Availability
14
MAY 5180D152-60 MAY 5180D152-60 Contact Us For Availability
14
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
14
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
14
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
14
MAY 3807F476-51 MAY 3807F476-51 Contact Us For Availability
15
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
15
MAY 74002276 MAY 74002276 Contact Us For Availability
15
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
15
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
15
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
15
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
16
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
16
MAY 16000326 MAY 16000326 Contact Us For Availability
16
MAY 2416F038-64 MAY 2416F038-64 Contact Us For Availability
16
NUT, WING MAY 7103P030-60 Contact Us For Availability
16
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
17
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
17
MAY 7510P050-60 MAY 7510P050-60 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
18
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
18
MAY 3807F473-51 MAY 3807F473-51 Contact Us For Availability
18
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
18
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
19
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
19
MAY 3807F474-45 MAY 3807F474-45 Contact Us For Availability
19
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
20
MAY 74002307 MAY 74002307 Contact Us For Availability
20
MAY 74001651 MAY 74001651 Contact Us For Availability
21
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 74002308 MAY 74002308 Contact Us For Availability
21
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
22
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
22
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
22
MAY 74002309 MAY 74002309 Contact Us For Availability
22
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
22
MAY 74001800 MAY 74001800 Contact Us For Availability
23
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
23
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
23
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
23
MAY 74002310 MAY 74002310 Contact Us For Availability
24
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
24
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
24
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
24
MAY 3601F229-45 MAY 3601F229-45 Contact Us For Availability
24
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
25
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
25
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
25
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
26
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
26
MAY 1555258K MAY 1555258K Contact Us For Availability
26
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
27
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
27
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
28
MAY 5187D034-60 MAY 5187D034-60 Contact Us For Availability
28
MAY 5187D035-60 MAY 5187D035-60 Contact Us For Availability
29
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
29
MAY 5140D035-60 MAY 5140D035-60 Contact Us For Availability
NI
MAY 15001546 MAY 15001546 Contact Us For Availability
× ![]()
