Model Electrolux FBD2400KS6B DISHWASHER – Common Parts & Diagrams

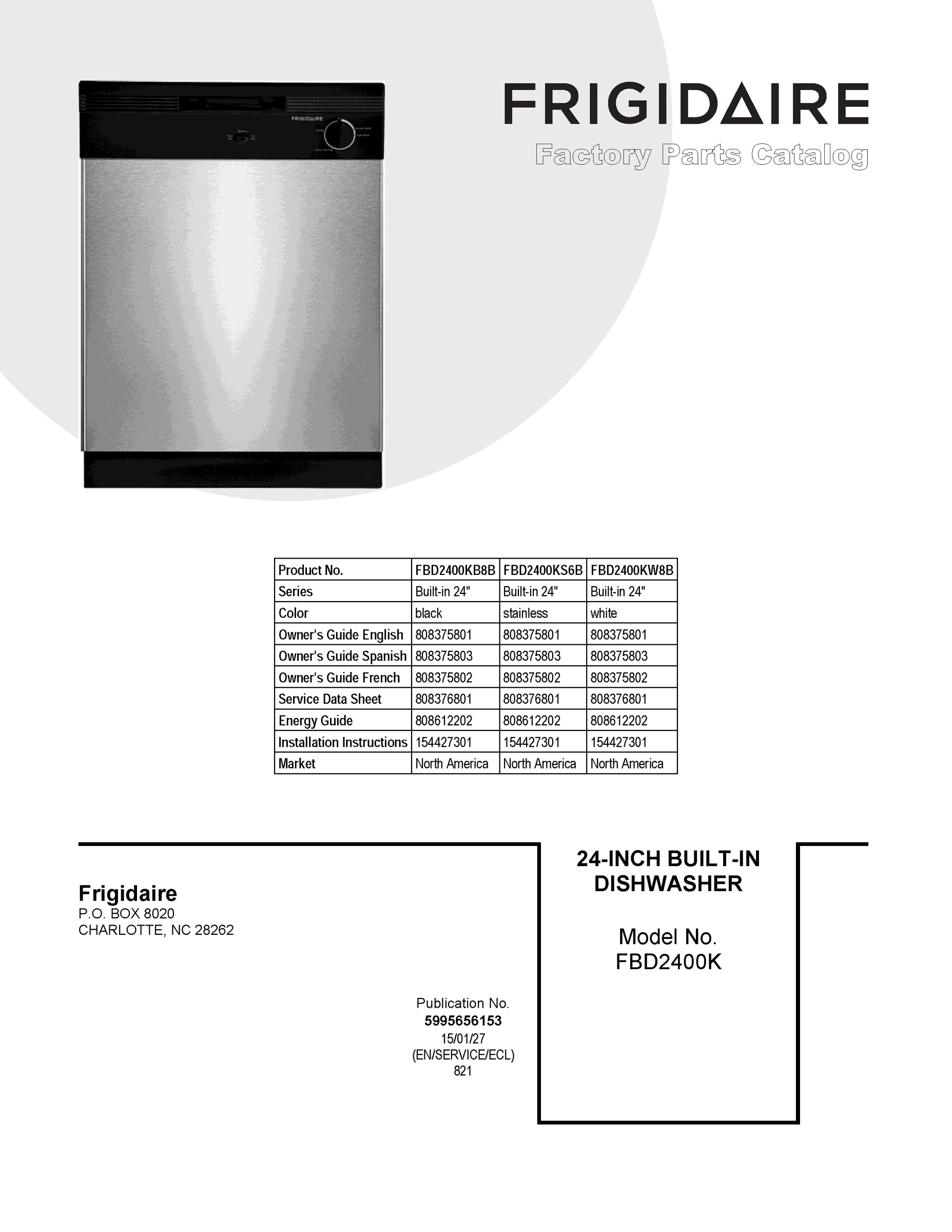

01 - COVER SHEET

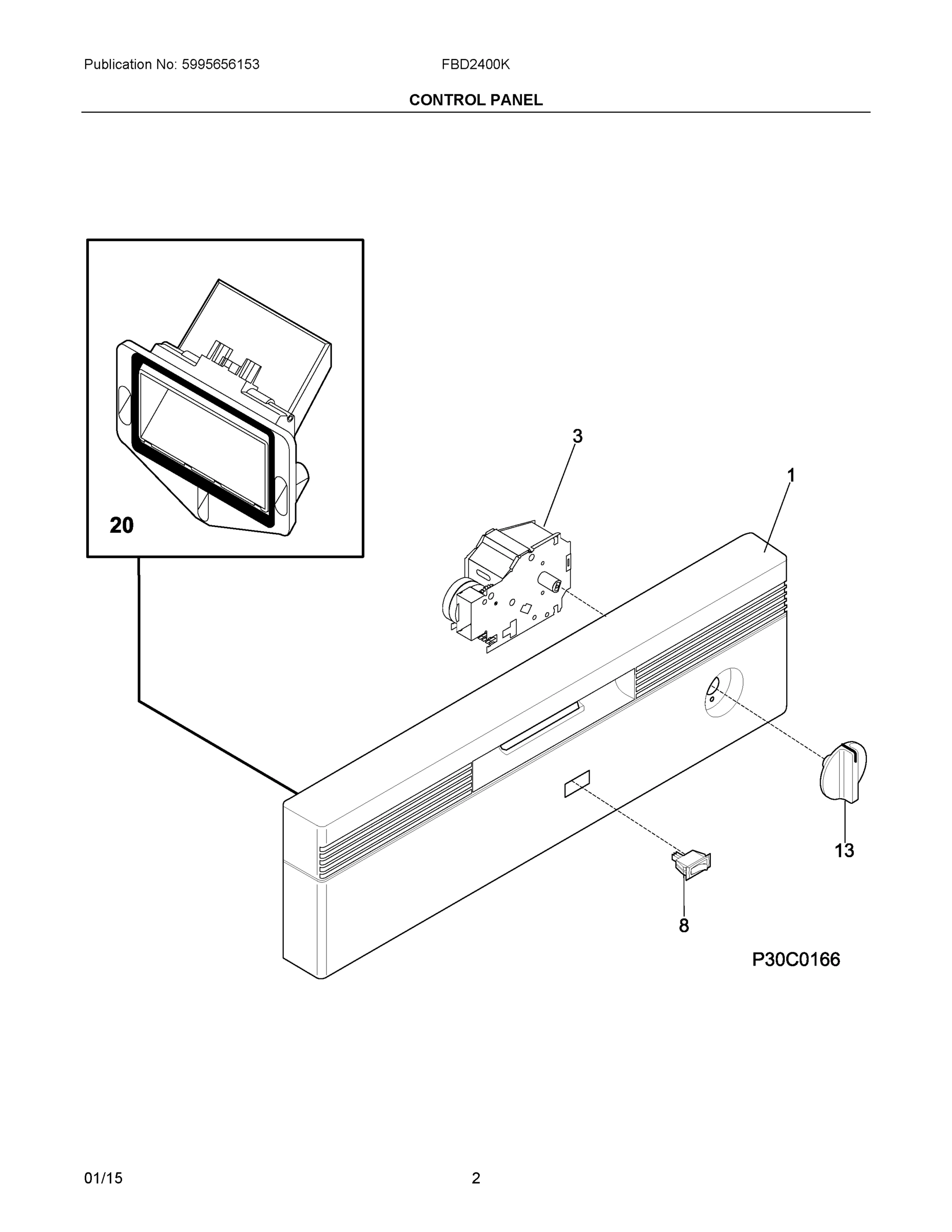

02 - CONTROL PANEL
03 - DOOR
04 - TUB
05 - MOTOR & PUMP
06 - FRAME
07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux FBD2400KS6B DISHWASHER
1
HEATER, ROUND WCI 154825001 Contact Us For Availability
1
SPRING, DOOR, (2) WCI 154430501 Contact Us For Availability
1
WCI 5304488410 WCI 5304488410 Contact Us For Availability
1
PANEL, CONTROL (BLACK) (W/GRAPHICS) WCI 154667445 Contact Us For Availability
1A
LINKAGE, DOOR SPRING, (2) WCI 154325201 Contact Us For Availability
2
STRIKE, DOOR WCI 154662601 Contact Us For Availability
2
BRACKET, HEATER, (2) WCI 154465101 Contact Us For Availability
2
SCREW, ARM ASSY, (4) WCI 154093301 Contact Us For Availability
3
GASKET, TUB WCI 154827601 Contact Us For Availability
3
VALVE, WATER WCI 807047901 Contact Us For Availability
3
WCI 807387501 WCI 807387501 Contact Us For Availability
4
WHEEL & BUSHING ASSY, GREY, UPPER RACK, (8) WCI 154522902 Contact Us For Availability
6
SLIDE, RACK, UPPER, (2) WCI 154597801 Contact Us For Availability
6
SCREW, W/WASHER, (8) WCI 5303943103 Contact Us For Availability
7
WCI 5304500205 WCI 5304500205 Contact Us For Availability
8
TOEPLATE, ADJUSTABLE, BLACK WCI 154745503 Contact Us For Availability
8
SCREW, #7 PLAS .375, (6), DISP. ASSY. WCI 154294701 Contact Us For Availability
8
SWITCH, ROCKER/SELECTOR (BLACK) WCI 154240403 Contact Us For Availability
10
SCREW, TOEPLATE MTG, 8-18 AB HEX HD, BLACK, ( WCI 154754801 Contact Us For Availability
10
WCI 807114001 WCI 807114001 Contact Us For Availability
10
SCREW, LATCH MTG, (2) WCI 154103702 Contact Us For Availability
11
PLATE, PUMP INLET WCI 807111601 Contact Us For Availability
11
SCREW, #10-32 X 3/8 WCI 154200701 Contact Us For Availability
13
GASKET, SUMP WCI 154246801 Contact Us For Availability
13
KNOB, TIMER (BLACK) WCI 154338303 Contact Us For Availability
14
WCI 807185501 WCI 807185501 Contact Us For Availability
15
FLAPPER, VALVE WCI 807048001 Contact Us For Availability
16
WCI 154246502 WCI 154246502 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 154758501 Contact Us For Availability
20
VENT ASSY, STATIC DRY WCI 154433001 Contact Us For Availability
20
WCI 154828805 WCI 154828805 Contact Us For Availability
21
SCREW, TRUSS HD, 8-18 TYPE AB WCI 154754701 Contact Us For Availability
24
HOSE, DRAIN WCI 807117001 Contact Us For Availability
24A
NUT, SPRAY ARM WCI 154335201 Contact Us For Availability
28
SWITCH ASSY, FLOAT WCI 154773201 Contact Us For Availability
29
WCI 154227811 WCI 154227811 Contact Us For Availability
30
RETAINER, THERMOSTAT WCI 154241101 Contact Us For Availability
49
WCI 5304500204 WCI 5304500204 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability
59
O-RING, REAR WCI 154246901 Contact Us For Availability
59A
O-RING, FRONT WCI 154247001 Contact Us For Availability
70
WCI 807473201 WCI 807473201 Contact Us For Availability
NI
CLAMP, HOSE, 1.5" OPEN, WORM GEAR, (5) WCI 154380601 Contact Us For Availability
NI
BRACKET KIT, COUNTERTOP MTG, W/SCRWS & INSTR WCI 154406801 Contact Us For Availability
NI
SCREW, PLT, 8-10 WCI 154783101 Contact Us For Availability
NI
BEARING, HINGE PIN WCI 154686401 Contact Us For Availability
NI
SCREW, PH, 8-10, (2) WCI 154779601 Contact Us For Availability
NI
HINGE PIN, ARM ASSY WCI 154647101 Contact Us For Availability
NI
WCI 808421301 WCI 808421301 Contact Us For Availability
NIA
NUT, HEATER, (2) WCI 154106202 Contact Us For Availability
NIA
SCREW, SUMP MTG, 8-16, (4) WCI 154754901 Contact Us For Availability
NIA
SCREW, DRAIN MOTOR MTG, (3) WCI 154741501 Contact Us For Availability
NIA
SCREW, RETAINER-THERMO WCI 154297701 Contact Us For Availability
NIA
SCREW, DRY DUCT, (3) WCI 154793401 Contact Us For Availability
NIB
SHIELD, HEATER TERMINAL WCI 154289801 Contact Us For Availability
× ![]()
