Model Electrolux FAHE4045QW0 LAUNDRY, WASHER, TOP-LOAD – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET/TOP

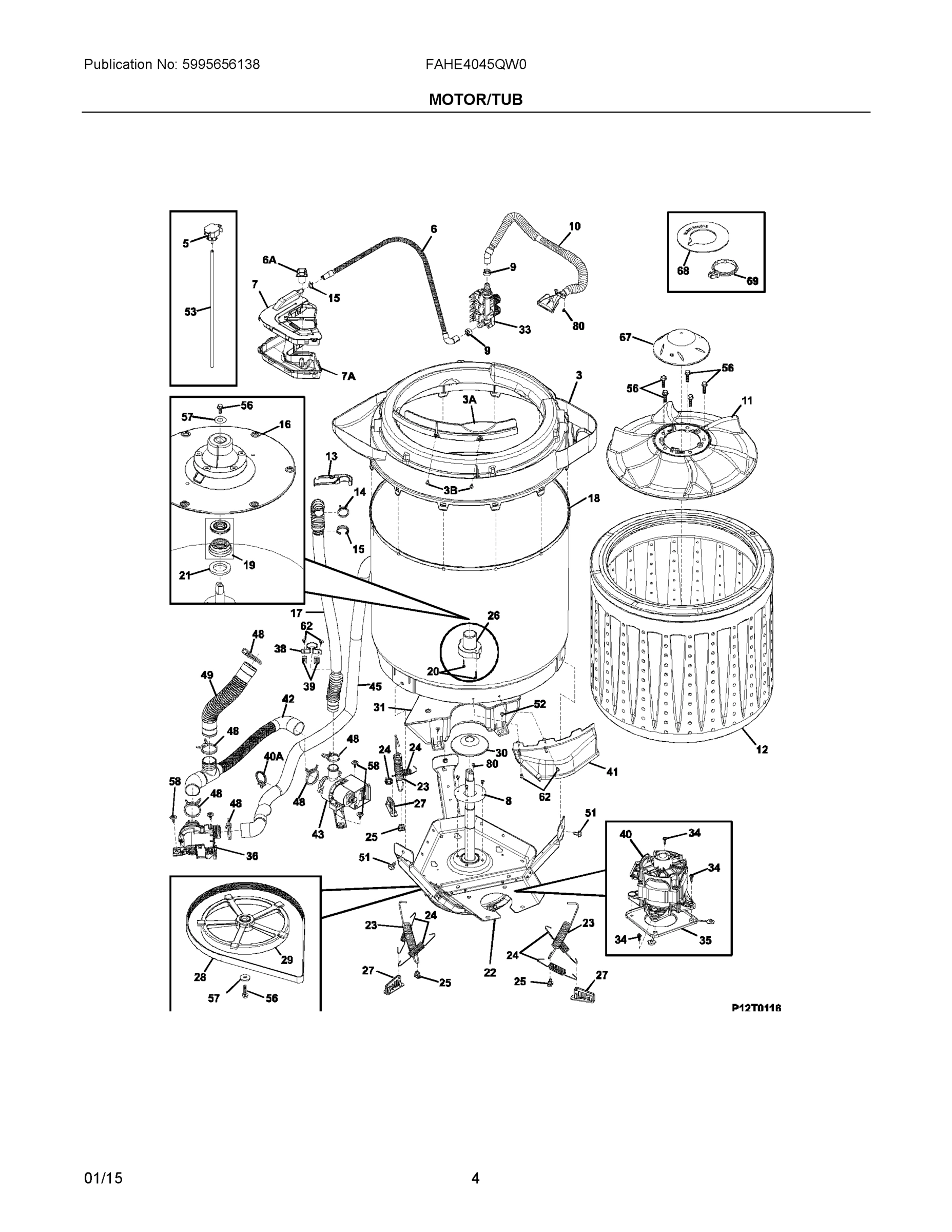

03 - MOTOR/TUB

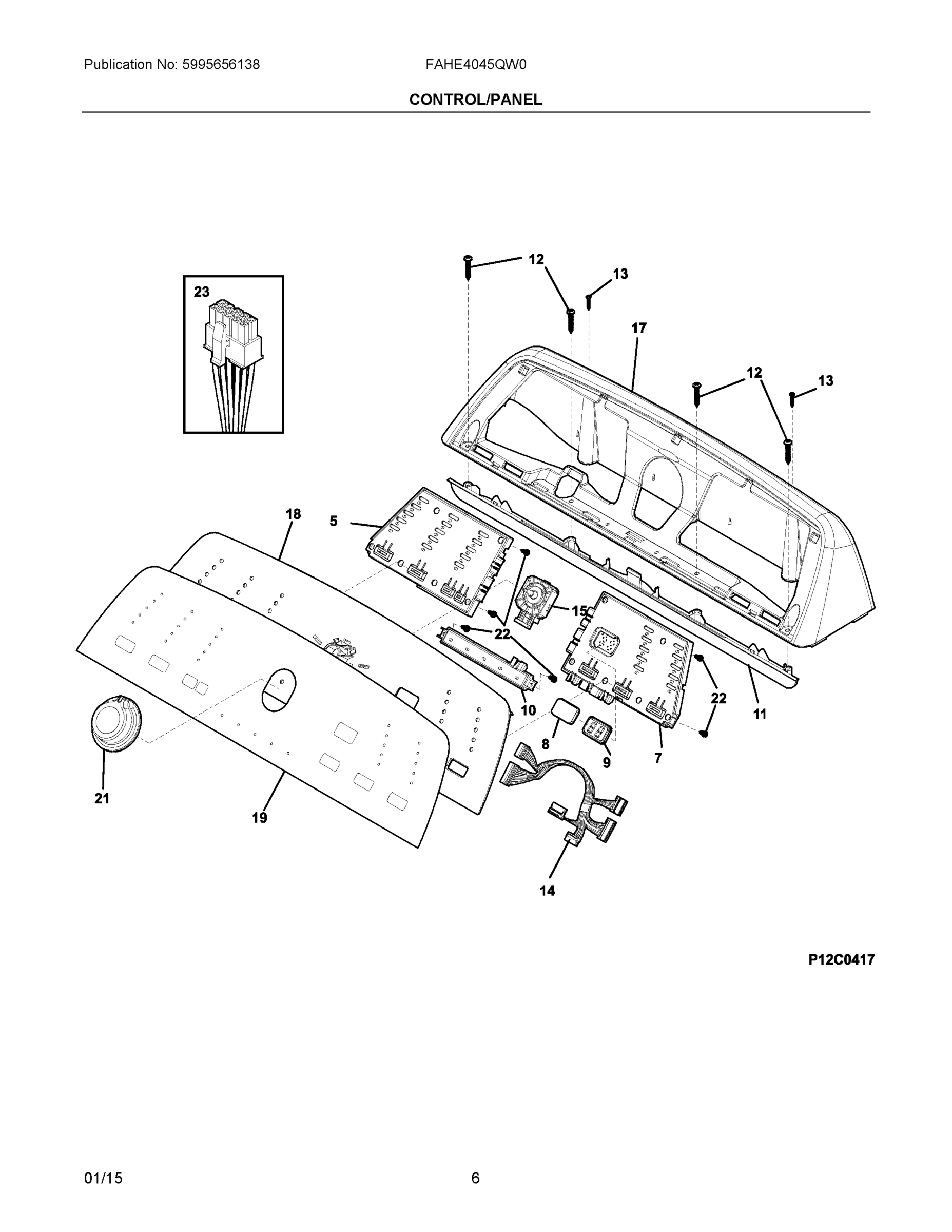

04 - CONTROL/PANEL

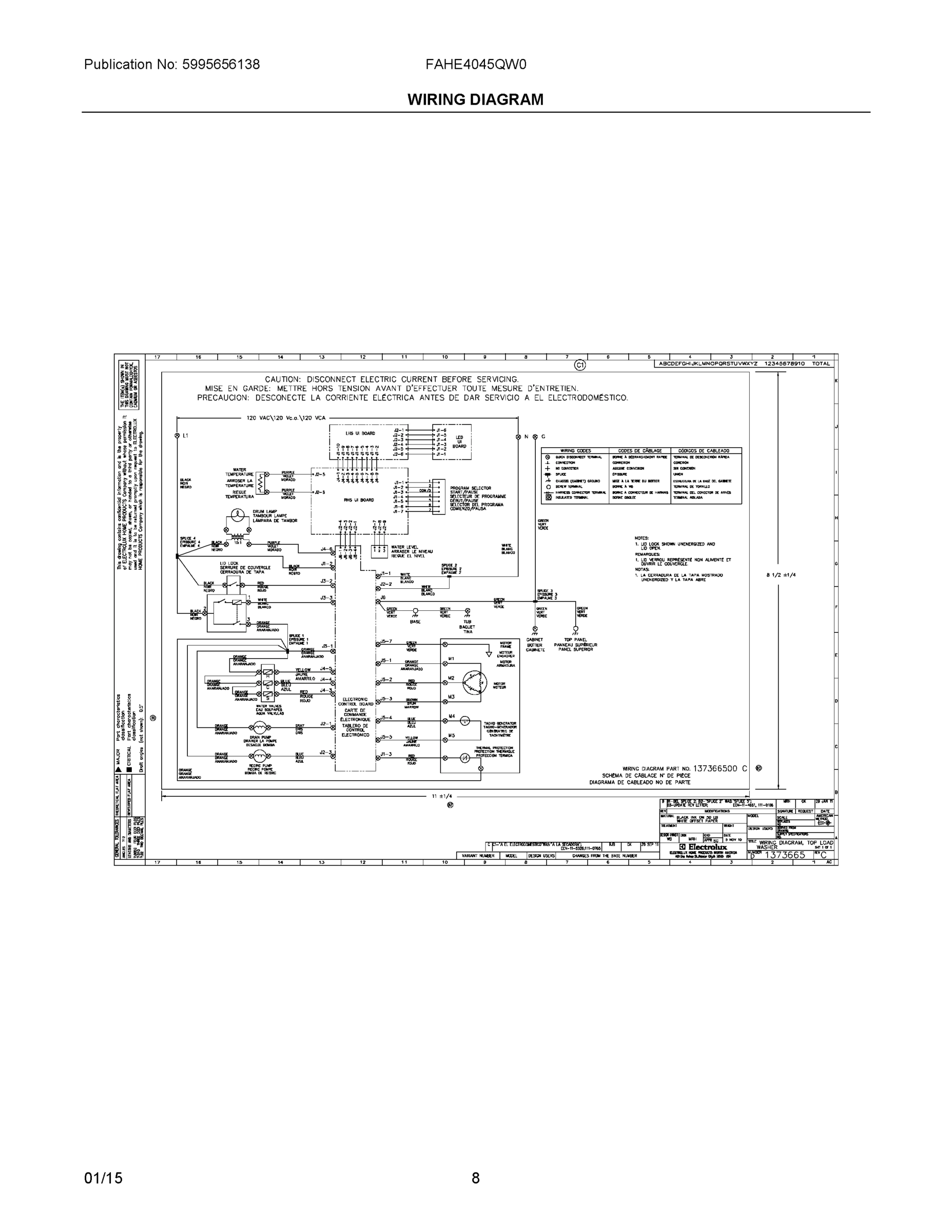

05 - WIRING DIAGRAM
Common parts from model Electrolux FAHE4045QW0 LAUNDRY, WASHER, TOP-LOAD
3
COVER, SPLASH TUB, RECIRCULATING WCI 137351500 Contact Us For Availability
3A
SHIELD, TUB COVER WCI 137419200 No Longer Available
4
HINGE BAR, RH WCI 5304500661 Contact Us For Availability
4A
HINGE BAR, LH WCI 5304500662 No Longer Available
5
BOARD, UI LT HSG COVER WCI 137363800 Contact Us For Availability
5
GROMMET, HINGE, FSW WCI 137456300 Contact Us For Availability
6
HOSE, DISPENSER OUT WCI 137469800 Contact Us For Availability
6
PANEL, LID GLASS, WHITE WCI 137330210 Contact Us For Availability
7
BOARD, UI RT HSG COVER WCI 5304500657 No Longer Available
7
COVER, DISPENSER, SOFT WCI 137189048 Contact Us For Availability
7
ASMY, FRAME & GLASS WCI 137302210 Contact Us For Availability
7A
CUP, DISPENSER, SOFT WCI 137176448 Contact Us For Availability
8
GASKET, GLASS, FSW WCI 137330400 Contact Us For Availability
8
COVER, BEARING WCI 137363400 Contact Us For Availability
9
STRIKER, LID, TLW WCI 137512000 No Longer Available
10
BOARD, CENTRAL HSG CVR WCI 137363900 Contact Us For Availability
11
WASH PLATE WCI 137494000 Contact Us For Availability
12
TUB, SPIN, H+ W/O LINT FIL WCI 137492800 Contact Us For Availability
16
TRUNNION, LARGE WCI 137470000 Contact Us For Availability
17
CONSOLE, SHELL J, WHITE WCI 137054110 Contact Us For Availability
18
TUB, SPLASH, AIR DOME/BEARNG WCI 137326201 Contact Us For Availability
19
TUB SEAL KIT WCI 137547700 Contact Us For Availability
19
OVERLAY, FRONT WCI 137517971 Contact Us For Availability
21
GROMMET, SEAL WCI 137272000 Contact Us For Availability
21
BRACKET, HINGE WCI 137278500 Contact Us For Availability
22
LEG, DOME & BRACKETS, ASSEMBLY WCI 137513900 No Longer Available
23
SPRING, VERTICAL, BLACK WCI 137497110 Contact Us For Availability
23
HARNESS, MAIN WASHER WCI 137435500 Contact Us For Availability
24
SPRING, HORIZONTAL WCI 137532600 Contact Us For Availability
24A
BASE, MOTOR CONTROL WCI 137469200 Contact Us For Availability
25
RETAINER, SPRING WCI 137507100 Contact Us For Availability
27
RETAINER, INSERT, SPRING WCI 137491600 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
38
BASE, 27, FSW, WASHED WCI 137493201 Contact Us For Availability
40A
WIRING HARNESS, MOTOR WCI 137324300 Contact Us For Availability
42
PANEL, FRONT, FSW, WHITE WCI 137363110 Contact Us For Availability
42
HOSE, RECIR PUMP INLT WCI 137364100 Contact Us For Availability
43
PUMP, RECIRCULATION WCI 137389000 Contact Us For Availability
53
PANEL, TOP, WHITE WCI 137510010 Contact Us For Availability
54
BEXEL, DISPENSER-BL/SF WCI 137271648 Contact Us For Availability
55
SPRING, LID ASSIST WCI 137534000 No Longer Available
56
LIGHT, TUB W/HOUSING WCI 137533000 Contact Us For Availability
58
TRANSFORMER WCI 134554300 Contact Us For Availability
67
WCI 137193200 WCI 137193200 Contact Us For Availability
NIA
WCI 131663500 WCI 131663500 Contact Us For Availability
× ![]()
