Model Whirlpool F9208W0 – Common Parts & Diagrams
02 - BACKGUARD , LIT/OPTIONAL
04 - BODY

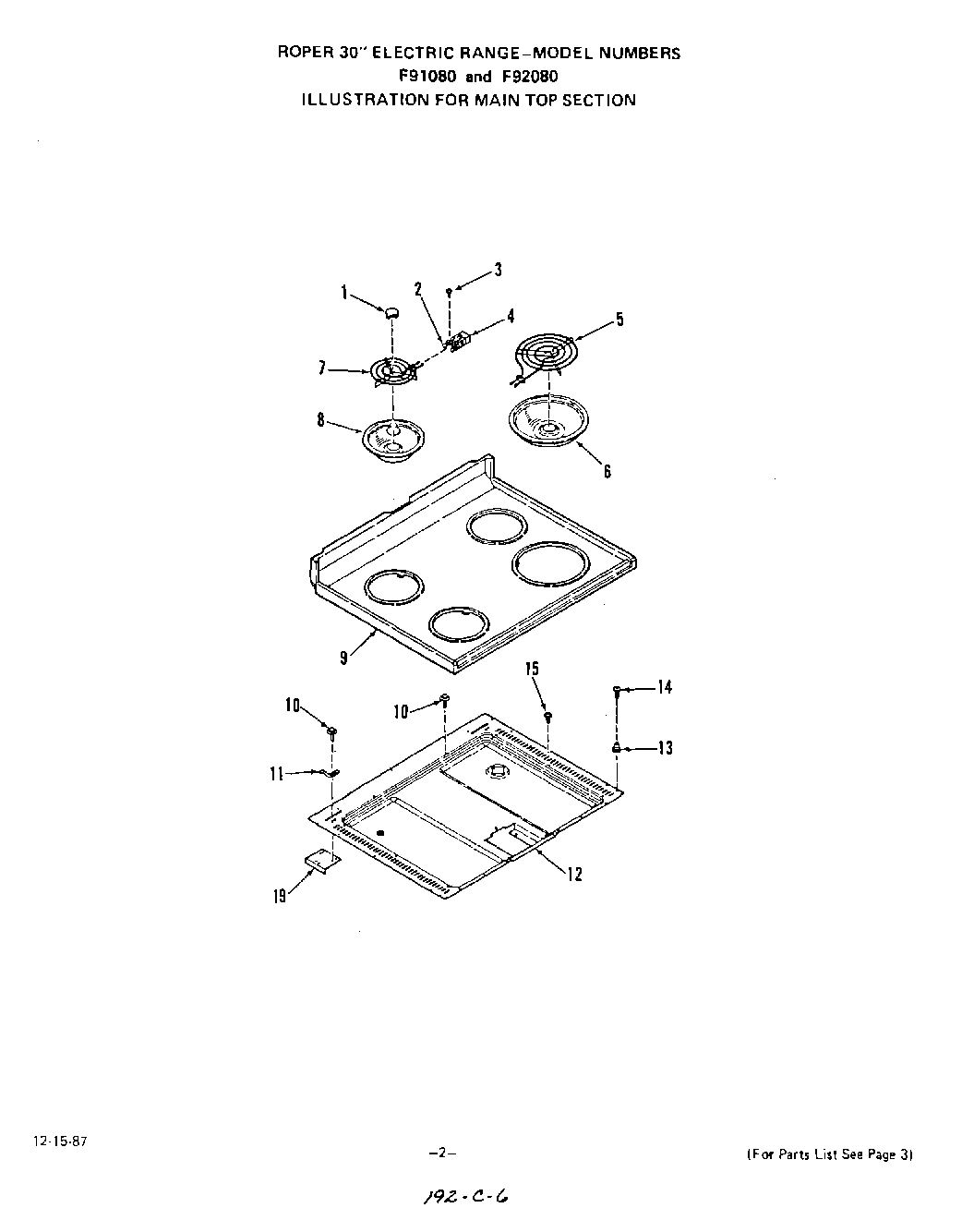

03 - MAIN TOP

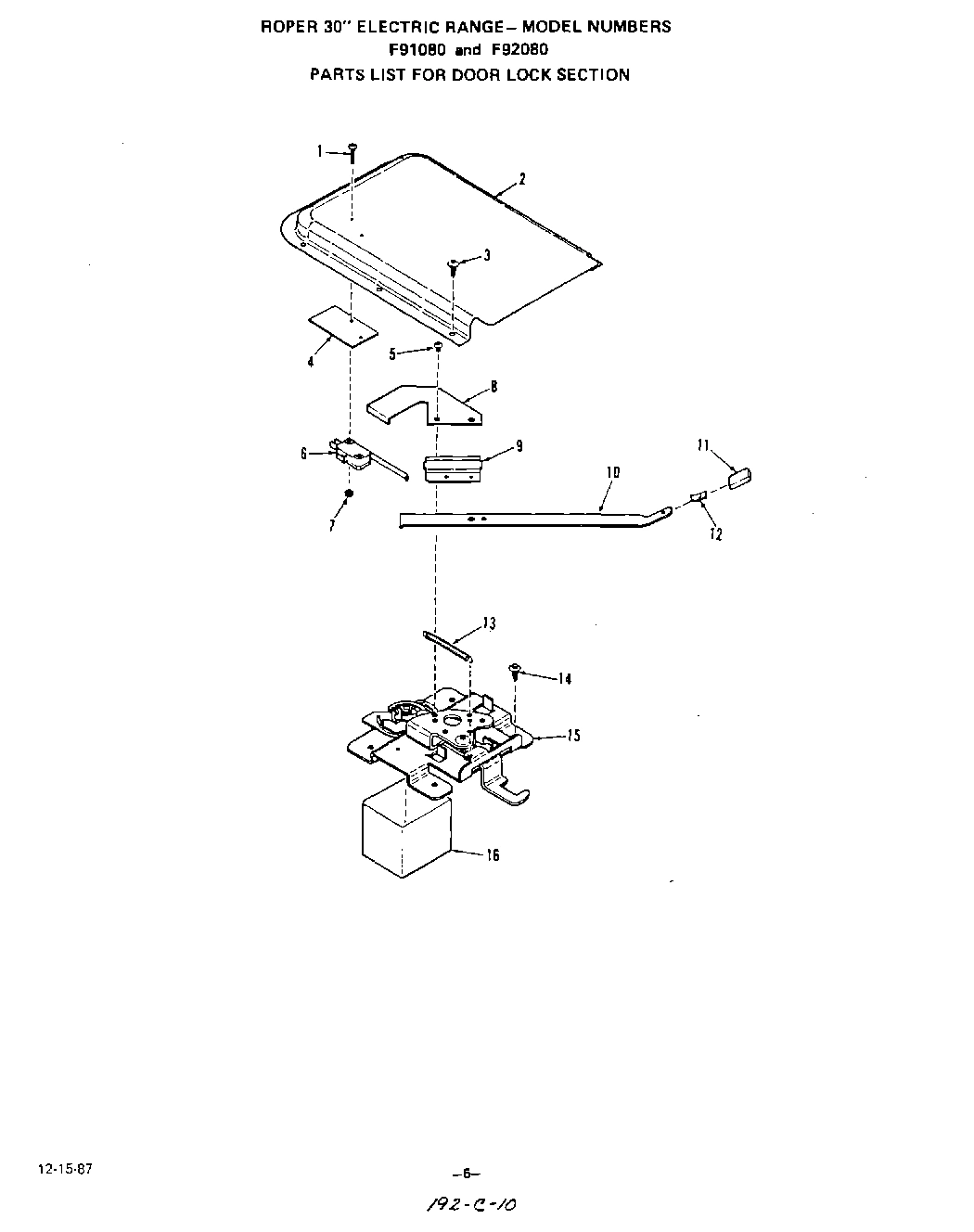

05 - DOOR LOCK

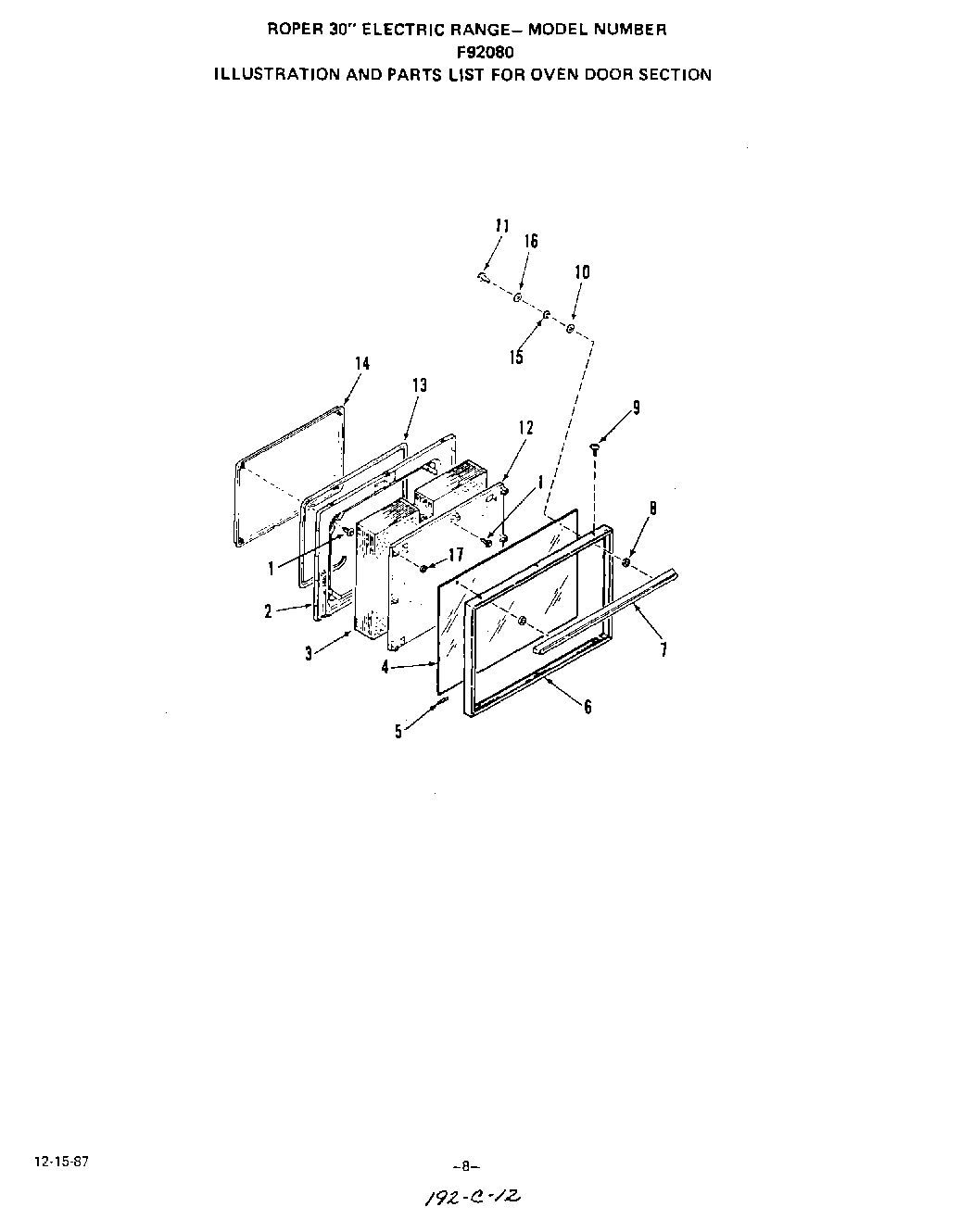

07 - F92080

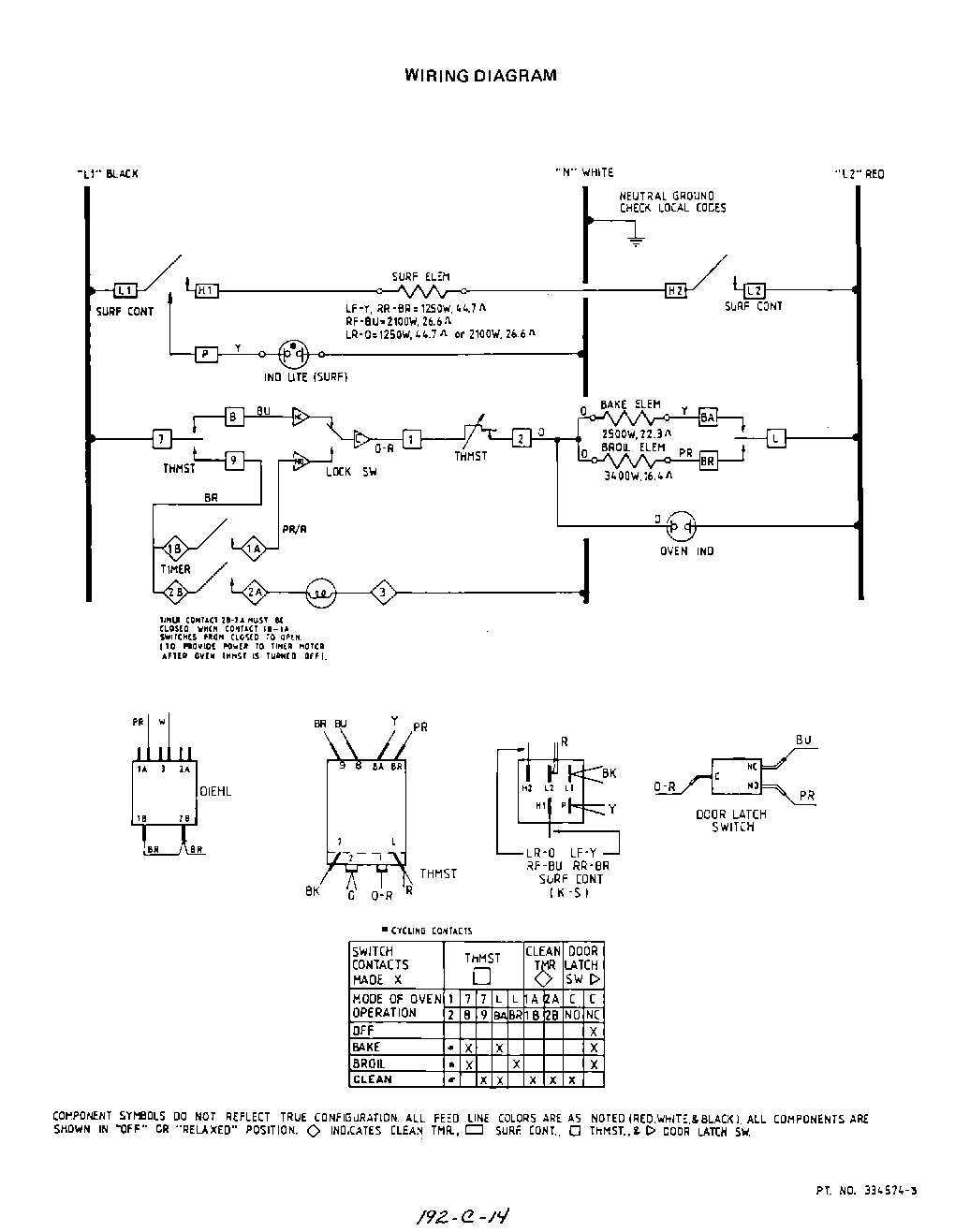

09 - WIRING DIAGRAM

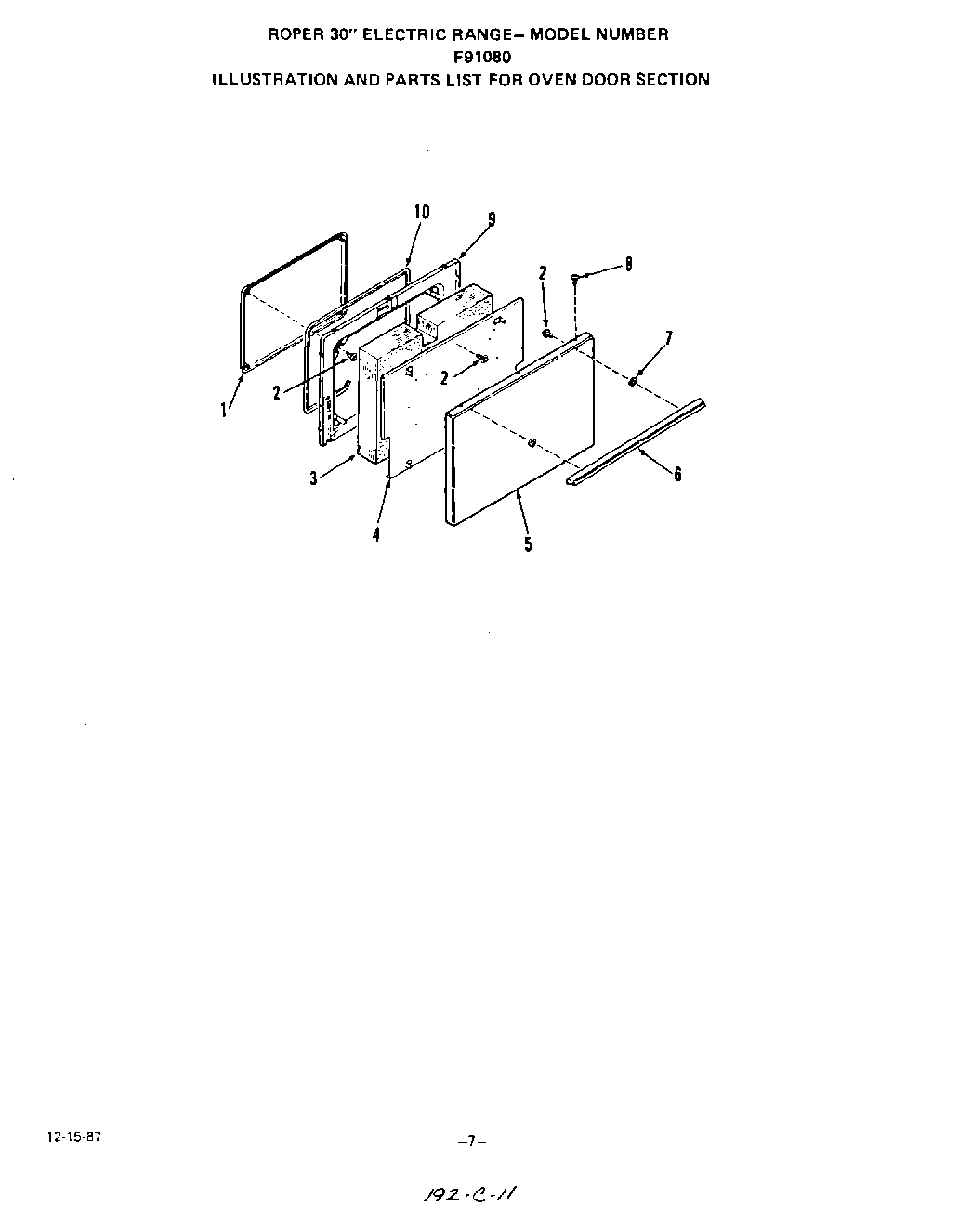

06 - F91080

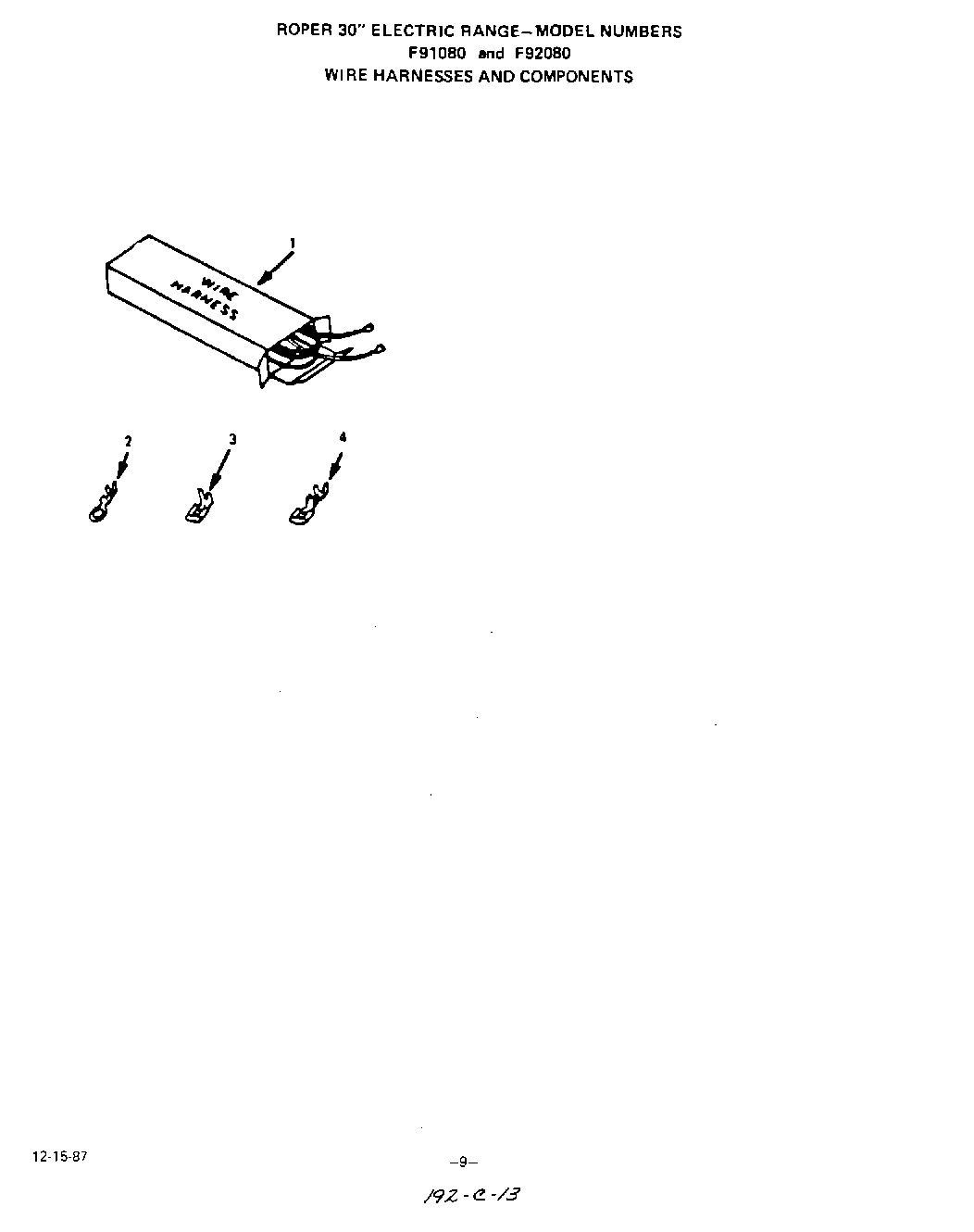

08 - WIRE HARNESS AND COMPONENTS
Common parts from model Whirlpool F9208W0
xClock Lens WPL 336943 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Screw 4-40 x 11/16`` WPL 335942 Contact Us For Availability
1
Plug WPL 337031 Contact Us For Availability
1
Wire Harness (Lock Switch) WPL 334556 Contact Us For Availability
1
Wire Harness (Main) WPL 334575 Contact Us For Availability
1
Wire Harness (Main Top) WPL 339181 Contact Us For Availability
2
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
2
Cover-Lock WPL 335934 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Wire Shield WPL 333956 Contact Us For Availability
3
Screw WPL 336529 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Insulation WPL 335782 Contact Us For Availability
3
Insulation WPL 336151 Contact Us For Availability
3
Flag Terminal WPL 238389 Contact Us For Availability
4
Backguard Body WPL 334199 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
4
Insulator-Switch WPL 329171 Contact Us For Availability
4
Glass-Outer WPL 332068 Contact Us For Availability
4
Insulation Retainer WPL 326623 Contact Us For Availability
4
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
4
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
5
Backguard Support WPL 335120 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
5
Screw (8-32x1/8``) WPL 97411 Contact Us For Availability
5
Cushion WPL 112370 Contact Us For Availability
5
Outer Panel (White) WPL 333466 Contact Us For Availability
5
Outer Panel (Almond) WPL 333468 Contact Us For Availability
6
End Cap (Right) WPL 335074 Contact Us For Availability
6
End Cap (Left) WPL 335075 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
Handle WPL 334848 Contact Us For Availability
6
8`` Burner Bowl WPL 292975 Contact Us For Availability
6
Micro Switch WPL 334078 Contact Us For Availability
6
Frame WPL 337765 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
7
Nut-Hex 4-40 WPL 306638 Contact Us For Availability
7
Spacer WPL 107158 Contact Us For Availability
8
Thermostat WPL 334557 Contact Us For Availability
8
Hex Nut 10-32 WPL 97816 Contact Us For Availability
8
6`` Burner Bowl WPL 292974 Contact Us For Availability
8
Switch Lever WPL 335929 Contact Us For Availability
8
Screw 10-32 x 1/2`` WPL 335967 Contact Us For Availability
9
Infinite Switch (Lt. Front, Rt. Rear, Lt. Rea WPL 334887 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
Screw WPL 331704 Contact Us For Availability
9
Main Top (White) WPL 332043 Contact Us For Availability
9
Main Top (Almond) WPL 332245 Contact Us For Availability
9
Retainer-Latch Handle WPL 333787 Contact Us For Availability
9
Lining WPL 331624 Contact Us For Availability
10
Infinite Switch (Rt. Front) WPL 334888 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Handle-Latch WPL 333792 Contact Us For Availability
10
Fiber Washer WPL 333014 Contact Us For Availability
10
Gasket WPL 292244 Contact Us For Availability
11
Control Panel (White (Model F9108W0)) WPL 338549 Contact Us For Availability
11
Control Panel (White (Model F9208W0)) WPL 338551 Contact Us For Availability
11
Control Panel (Almond (Model F9108L0)) WPL 338563 Contact Us For Availability
11
Control Panel (Almond (Model F9208L0)) WPL 338564 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
Hinge-Main Top (Left) WPL 333859 Contact Us For Availability
11
Hinge-Main Top (Right) WPL 334089 Contact Us For Availability
11
Lock Knob WPL 335738 Contact Us For Availability
11
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
12
Indicator Light WPL 331716 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
12
Burner Box Bottom WPL 333171 Contact Us For Availability
12
Knob Clip WPL 328474 Contact Us For Availability
12
Insulation Retainer WPL 325987 Contact Us For Availability
13
Indicator Light WPL 331717 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Strike WPL 333892 Contact Us For Availability
13
Spring WPL 313075 Contact Us For Availability
14
Screw 8-32x3/16`` WPL 292605 Contact Us For Availability
14
Insulation-Oven Back WPL 308861 Contact Us For Availability
14
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
15
Lens-Indicator Light WPL 331705 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
15
Latch Asm. WPL 333781 Contact Us For Availability
15
Glass Spacer WPL 333015 Contact Us For Availability
16
Thermostat Knob WPL 334094 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 312518 Contact Us For Availability
16
Insulation Retainer WPL 338865 Contact Us For Availability
16
Washer WPL 99279 Contact Us For Availability
17
Infinite Knob WPL 337360 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
18
Clock Knob WPL 339197 Contact Us For Availability
19
Clock w/Lens WPL 336931 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
19
Reinforcement Plate WPL 335823 Contact Us For Availability
20
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
21
Cleat WPL 335977 Contact Us For Availability
22
Timer WPL 331093 Contact Us For Availability
22
Hinge-Oven Door (Right) WPL 334632 Contact Us For Availability
22
Hinge-Oven Door (Left) WPL 334633 Contact Us For Availability
23
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334570 Contact Us For Availability
24
Timer Knob WPL 338373 Contact Us For Availability
24
Body Side (Lt. or Rt.) (White) WPL 333303 Contact Us For Availability
24
Body Side (Lt. or Rt.) (Almond) WPL 333307 Contact Us For Availability
25
Light Switch (Model F92080) WPL 334649 Contact Us For Availability
25
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Front Panel-Storage (White) WPL 332121 Contact Us For Availability
31
Front Panel-Storage (Almond) WPL 332125 Contact Us For Availability
34
Bake Element (240 Volt) WPL 326365 Contact Us For Availability
34
Bake Element (208 Volt) WPL 326366 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 337043 Contact Us For Availability
37
Vent Tube WPL 333802 Contact Us For Availability
38
Front Frame WPL 333321 Contact Us For Availability
39
Bulb Holder WPL 87883 Contact Us For Availability
40
Oven Bulb WPL 111257 Contact Us For Availability
41
Washer WPL 106462 Contact Us For Availability
42
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
43
Broiler Pan WPL 331592 Contact Us For Availability
44
Insulation - Top & Sides (Front) WPL 316951 Contact Us For Availability
45
Oven Rack WPL 326069 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broiler Element WPL 339593 Contact Us For Availability
48
Broil Element (2 WPL 334368 Contact Us For Availability
48
WPL 334369 WPL 334369 Contact Us For Availability
49
WPL 229371 WPL 229371 Contact Us For Availability
50
WPL 114989 WPL 114989 Contact Us For Availability
51
WPL 229372 WPL 229372 Contact Us For Availability
51
WPL 326935 WPL 326935 Contact Us For Availability
52
WPL 337045 WPL 337045 Contact Us For Availability
53
WPL 337857 WPL 337857 Contact Us For Availability
× ![]()
