Model LG F8U4XNP32.ABWEPUS – Common Parts & Diagrams

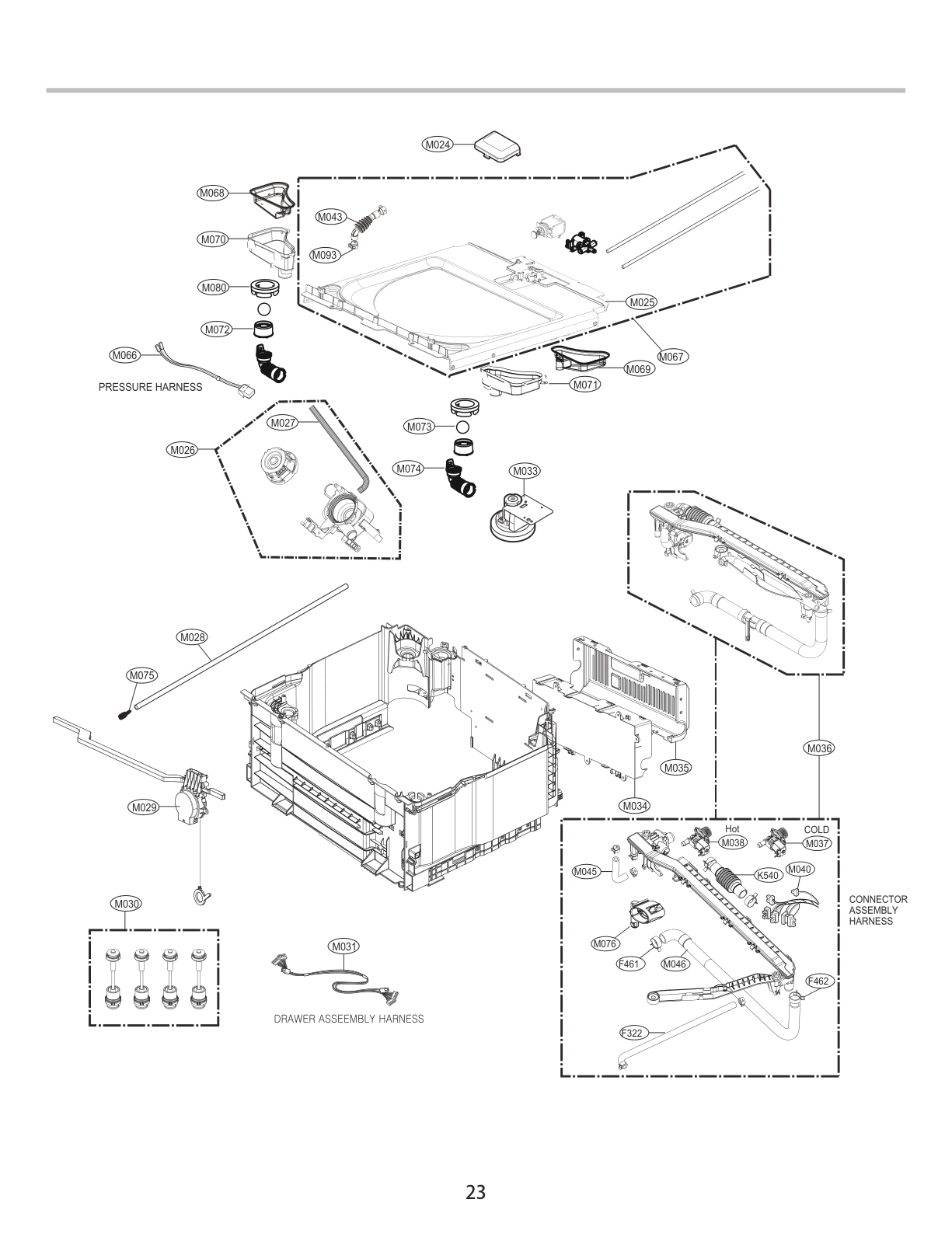

F322
Hose,Inlet
Hose,Inlet LGE MEJ63184703 Contact Us For Availability
View on Model
F461
Clamp Assembly
Clamp Assembly LGE 4861EN3003Z Contact Us For Availability
View on Model
F462
Clamp Assembly
Clamp Assembly LGE 4861EN3003C Contact Us For Availability
View on Model
K540
Bellows
Bellows LGE MAR62262001 Contact Us For Availability
View on Model
M001
Cover Assembly,Front
Cover Assembly,Front LGE ACQ88868135 Contact Us For Availability
View on Model
M006
Roller Assembly
Roller Assembly LGE AHJ73429901 Contact Us For Availability
View on Model
M007
Shaft,Roller
Shaft,Roller LGE MHJ63195401 Contact Us For Availability
View on Model
M019
Switch Assembly
Switch Assembly LGE EBF62495001 Contact Us For Availability
View on Model
M021
Cover,Top
Cover,Top LGE MCK68354301 Contact Us For Availability
View on Model
M023
Cover,Lower
Cover,Lower LGE MCK69155603 Contact Us For Availability
View on Model
M024
Cover,Water Inlet
Cover,Water Inlet LGE MCK71119501 Contact Us For Availability
View on Model
M025
Cover,Top
Cover,Top LGE MCK71146201 Contact Us For Availability
View on Model
M026
Pump Assembly,Drain
Pump Assembly,Drain LGE AHA76133402 Contact Us For Availability
View on Model
M027
Hose,Connector
Hose,Connector LGE MEJ63165008 Contact Us For Availability
View on Model
M028
Hose,Connector
Hose,Connector LGE MEJ63165209 Contact Us For Availability
View on Model
M029
Switch Assembly
Switch Assembly LGE EBF64561202 Contact Us For Availability
View on Model
M030
Suspension,Parts Assembly,SVC
Suspension,Parts Assembly,SVC LGE AGM75369501 Contact Us For Availability
View on Model
M031
Harness,Single
Harness,Single LGE EAD63146414 Contact Us For Availability
View on Model
M033
Switch Assembly,Pressure
Switch Assembly,Pressure LGE EBF63534901 Contact Us For Availability
View on Model
M034
PCB Assembly,Main
PCB Assembly,Main LGE EBR30148507 Contact Us For Availability
View on Model
M035
Cover,Protect
Cover,Protect LGE MCK65833302 Contact Us For Availability
View on Model
M036
Connector Assembly
Connector Assembly LGE ACJ74070115 Contact Us For Availability
View on Model
M037
Valve Assembly,Inlet
Valve Assembly,Inlet LGE AJU75052601 Contact Us For Availability
View on Model
M038
Valve Assembly,Inlet
Valve Assembly,Inlet LGE AJU75052603 Contact Us For Availability
View on Model
M040
Harness,Multi
Harness,Multi LGE EAD63105215 Contact Us For Availability
View on Model
M043
Bellows
Bellows LGE MAR62261901 Contact Us For Availability
View on Model
M045
Hose,Inlet
Hose,Inlet LGE MEJ63644601 Contact Us For Availability
View on Model
M046
Hose,Drain
Hose,Drain LGE MEJ63184908 Contact Us For Availability
View on Model

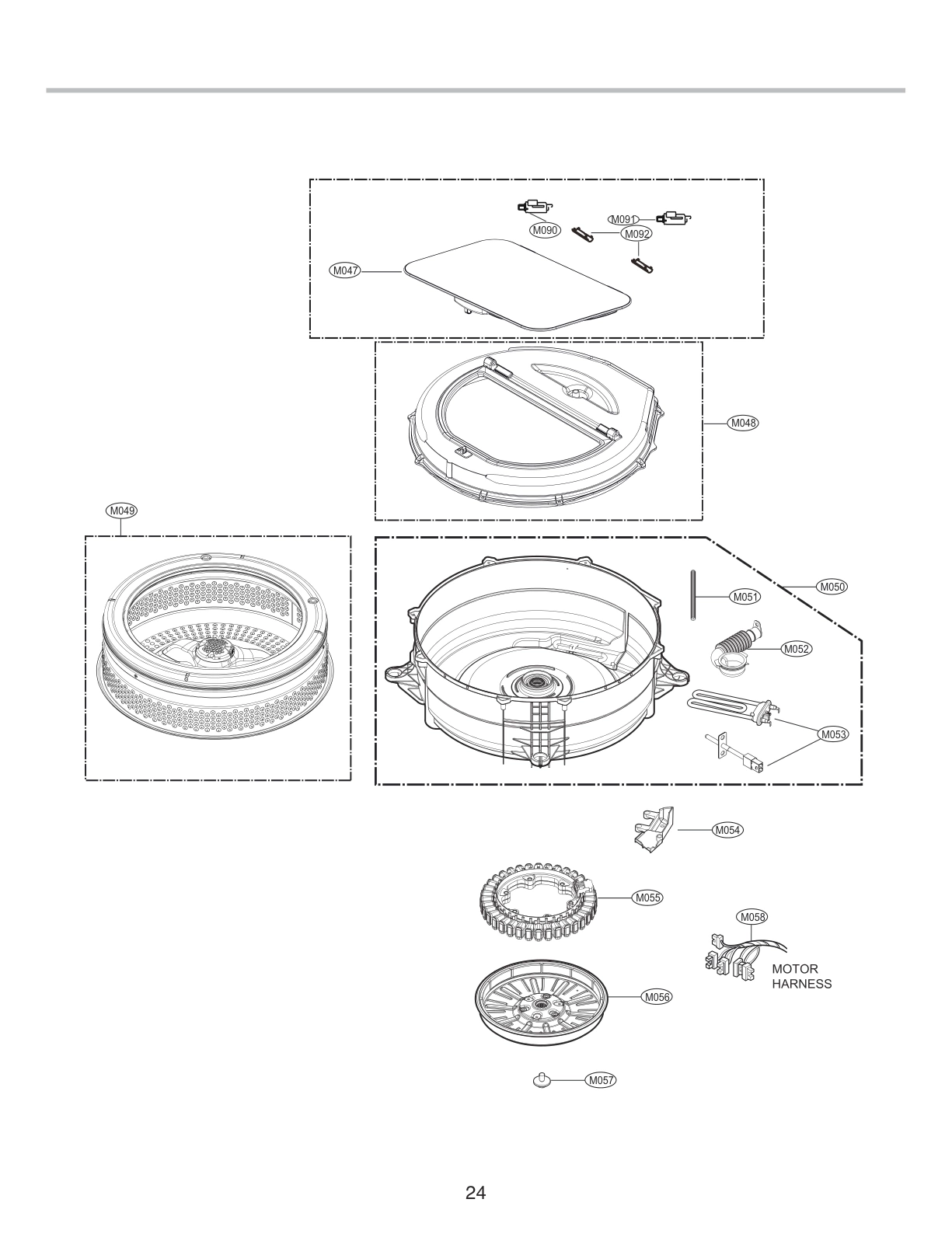

M047
Lid Assembly
Lid Assembly LGE AFG73609714 Contact Us For Availability
View on Model
M048
Cover Assembly,Tub
Cover Assembly,Tub LGE ACQ91573401 Contact Us For Availability
View on Model
M049
Tub Assembly,Inner
Tub Assembly,Inner LGE AJQ74494004 Contact Us For Availability
View on Model
M050
Tub Assy,Parts Assembly,SVC
Tub Assy,Parts Assembly,SVC LGE AGM75369518 Contact Us For Availability
View on Model
M051
Hose,Connector
Hose,Connector LGE MEJ63165007 Contact Us For Availability
View on Model
M052
Bellows
Bellows LGE MAR62421901 Contact Us For Availability
View on Model
M053
Thermistor,NTC
Thermistor,NTC LGE 6322FR2046G Contact Us For Availability
View on Model
M054
Cover,Protect
Cover,Protect LGE MCK69049201 Contact Us For Availability
View on Model
M055
Stator Assembly
Stator Assembly LGE AJB73816010 Contact Us For Availability
View on Model
M056
Rotor Assembly
Rotor Assembly LGE AHL73894501 Contact Us For Availability
View on Model
M057
Bolt Assembly
Bolt Assembly LGE FAA30970901 Contact Us For Availability
View on Model
M058
Harness,Single
Harness,Single LGE EAD63146223 Contact Us For Availability
View on Model

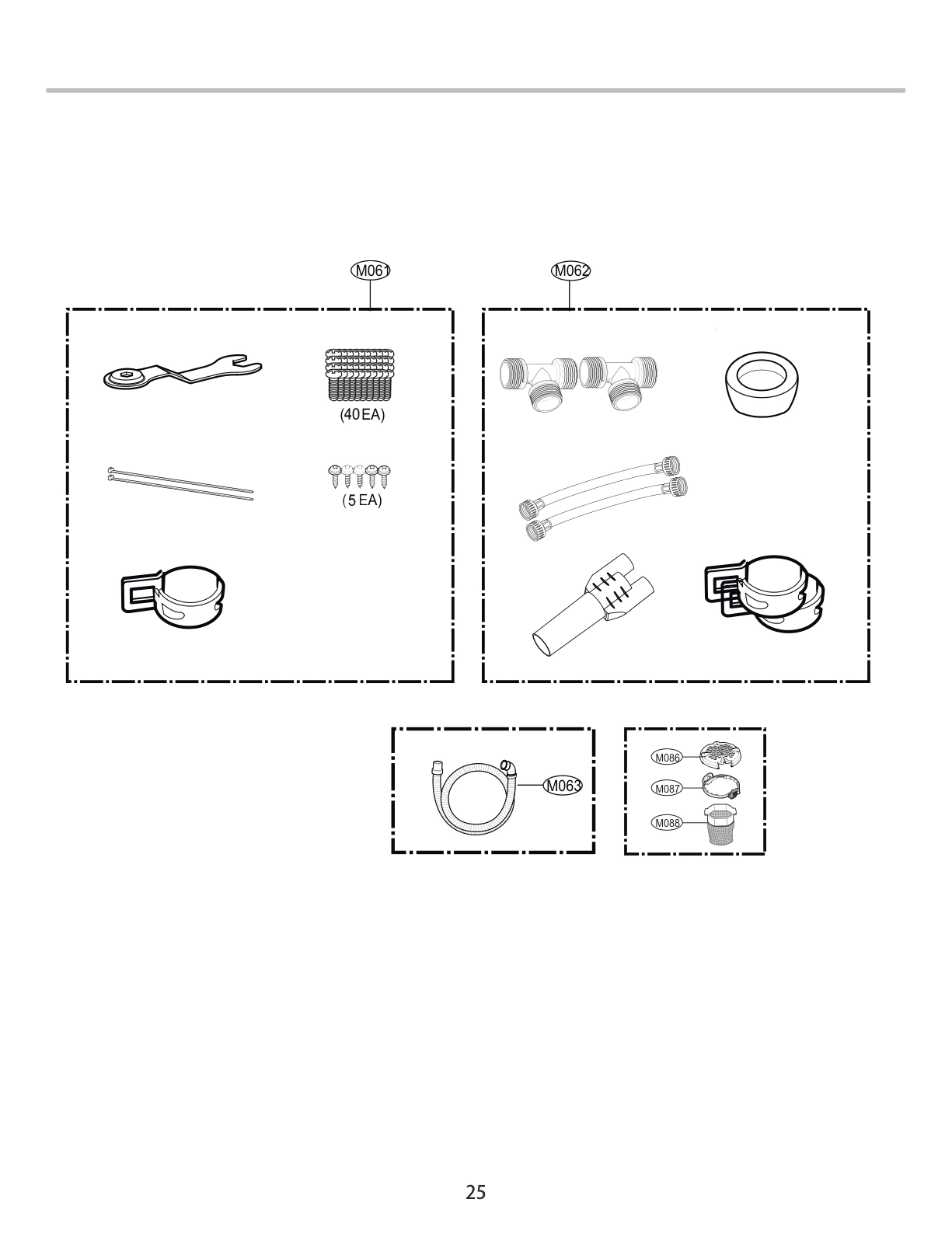

M061
Accessory Assembly
Accessory Assembly LGE AAA36585275 Contact Us For Availability
View on Model
M061
Accessory Assembly
Accessory Assembly LGE AAA36585298 Contact Us For Availability
View on Model
M062
Accessory Assembly
Accessory Assembly LGE AAA76555332 Contact Us For Availability
View on Model
M063
Hose,Pump
Hose,Pump LGE MEJ62884704 Contact Us For Availability
View on Model
M066
Harness,Single
Harness,Single LGE EAD63105305 Contact Us For Availability
View on Model
M067
Cover Assembly,Top
Cover Assembly,Top LGE ACQ91574801 Contact Us For Availability
View on Model
M068
Cap,Cover
Cap,Cover LGE MBL68497402 Contact Us For Availability
View on Model
M069
Cap,Softener
Cap,Softener LGE MBL68497302 Contact Us For Availability
View on Model
M070
Housing,Detergent
Housing,Detergent LGE MEK64986601 Contact Us For Availability
View on Model
M071
Housing,Detergent
Housing,Detergent LGE MEK64986701 Contact Us For Availability
View on Model
M072
Valve,Check
Valve,Check LGE MJX64351401 Contact Us For Availability
View on Model
M073
Ball
Ball LGE MAH62121501 Contact Us For Availability
View on Model
M074
Bellows
Bellows LGE MAR62482101 Contact Us For Availability
View on Model
M075
Cap,Drain Hose
Cap,Drain Hose LGE 5006EN3015A Contact Us For Availability
View on Model
M076
Connector,Hose
Connector,Hose LGE MCD64266801 Contact Us For Availability
View on Model
M078
Holder
Holder LGE MEG64899403 Contact Us For Availability
View on Model
M079
Bracket,Base
Bracket,Base LGE MAZ65351401 Contact Us For Availability
View on Model
M080
Gasket
Gasket LGE MDS66250801 Contact Us For Availability
View on Model
M081
Bracket,Frame
Bracket,Frame LGE MAZ65351501 Contact Us For Availability
View on Model
M081
Bracket,Frame
Bracket,Frame LGE MAZ65351502 Contact Us For Availability
View on Model
M086
Cap
Cap LGE 5006EA3002A Contact Us For Availability
View on Model
M087
Handle
Handle LGE 3650EA3001A Contact Us For Availability
View on Model
M088
Filter Assembly,Lint
Filter Assembly,Lint LGE 5231EA3003A Contact Us For Availability
View on Model
M090
Damper Assembly,Friction
Damper Assembly,Friction LGE ACV74130002 Contact Us For Availability
View on Model
M091
Damper Assembly,Friction
Damper Assembly,Friction LGE ACV74130102 Contact Us For Availability
View on Model
M092
Cover,Lower
Cover,Lower LGE MCK69073403 Contact Us For Availability
View on Model
M093
Clamp,Hose
Clamp,Hose LGE MBU62225404 Contact Us For Availability
View on Model
