Model Whirlpool F8558W0 – Common Parts & Diagrams
03 - MAIN TOP
06 - OVEN BODY

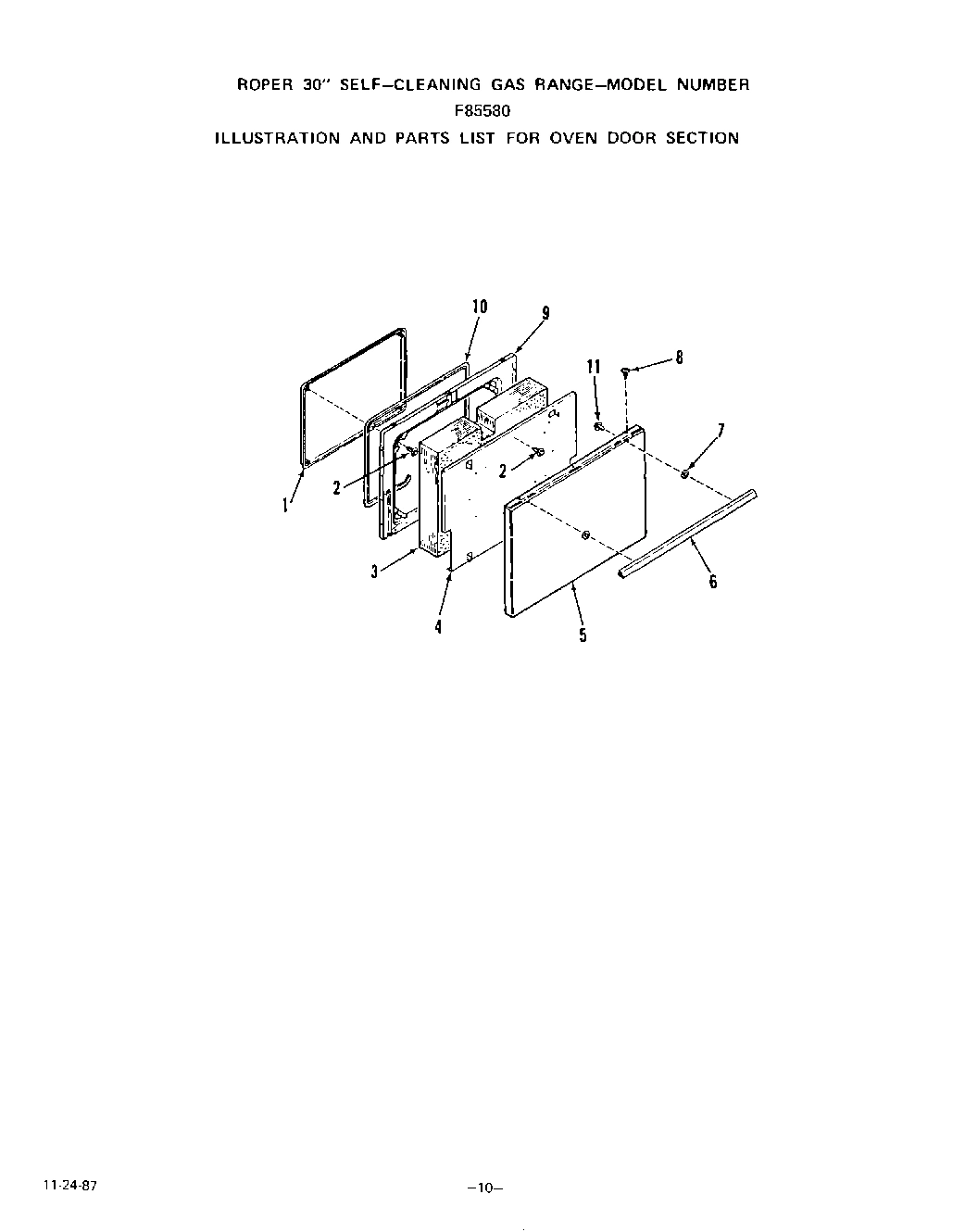

08 - OVEN DOOR

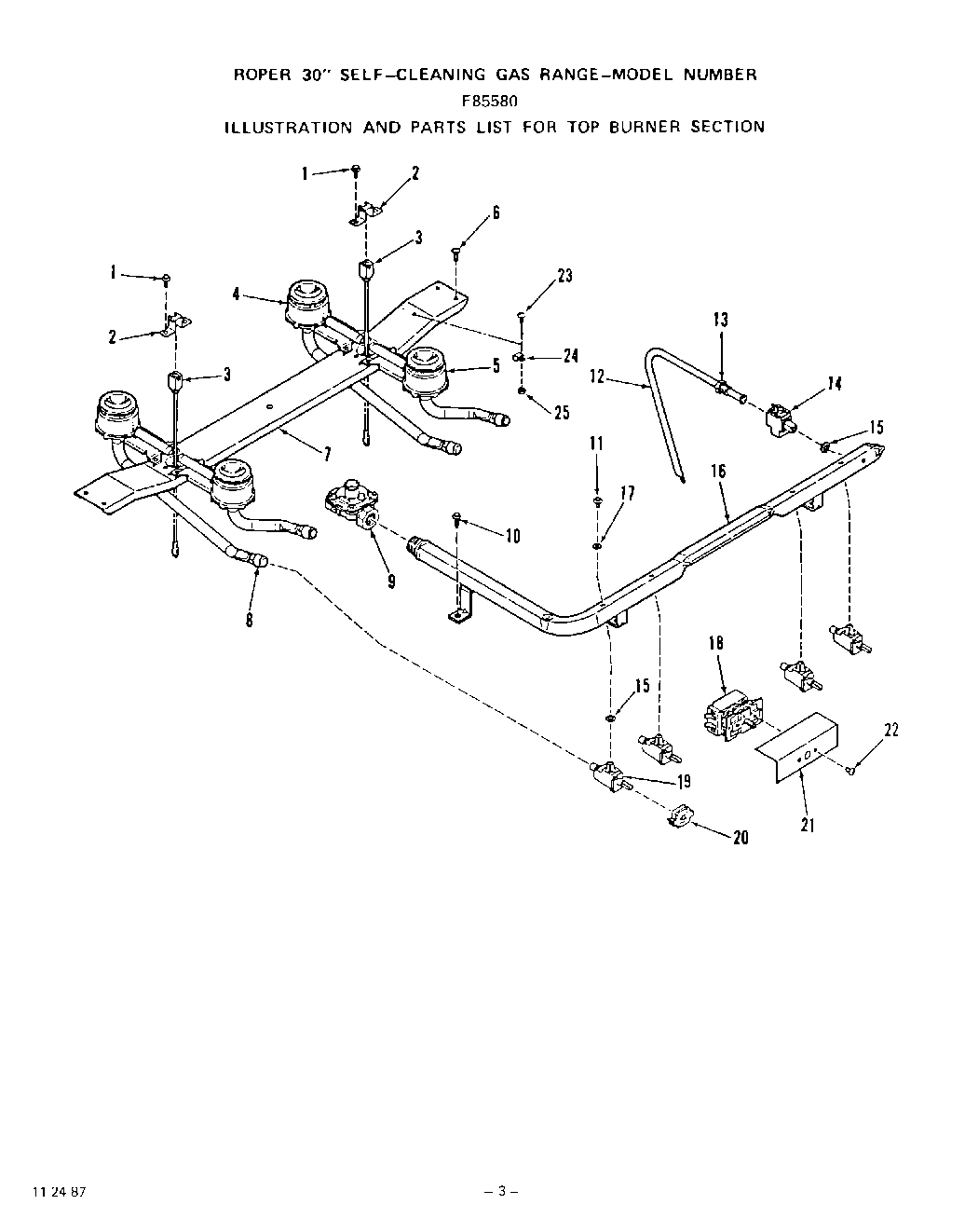

04 - TOP BURNER

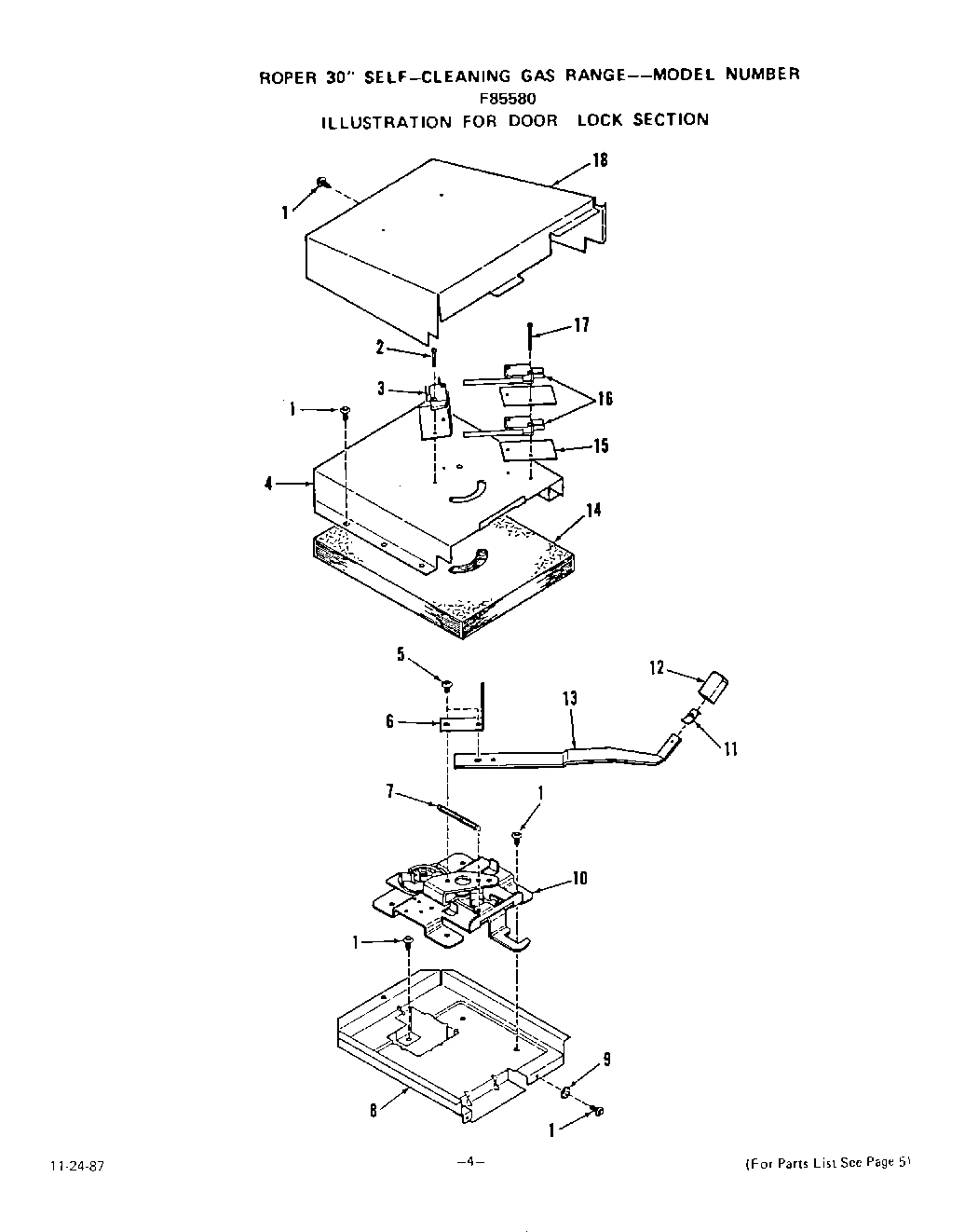

05 - DOOR LOCK

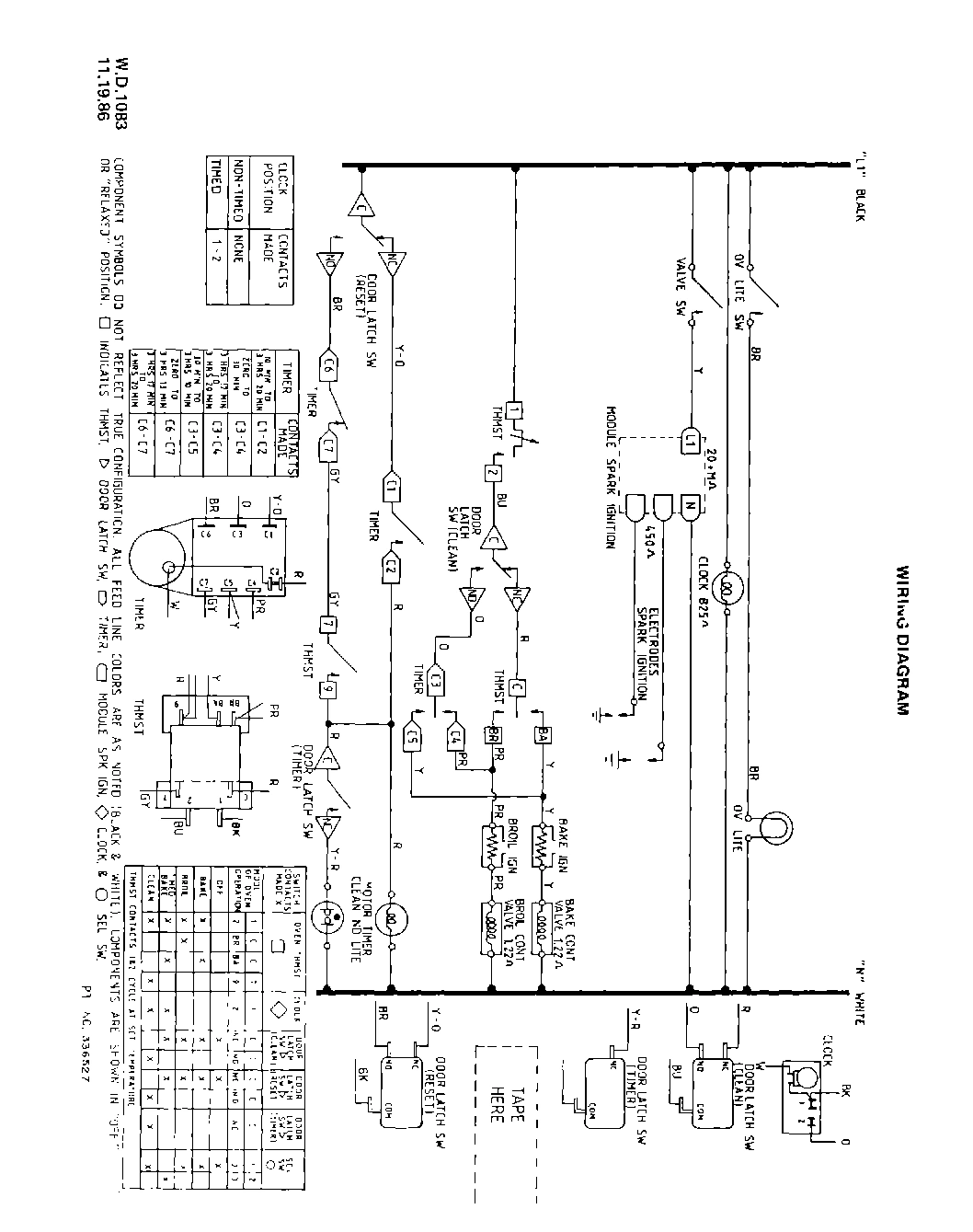

10 - WIRING DIAGRAM

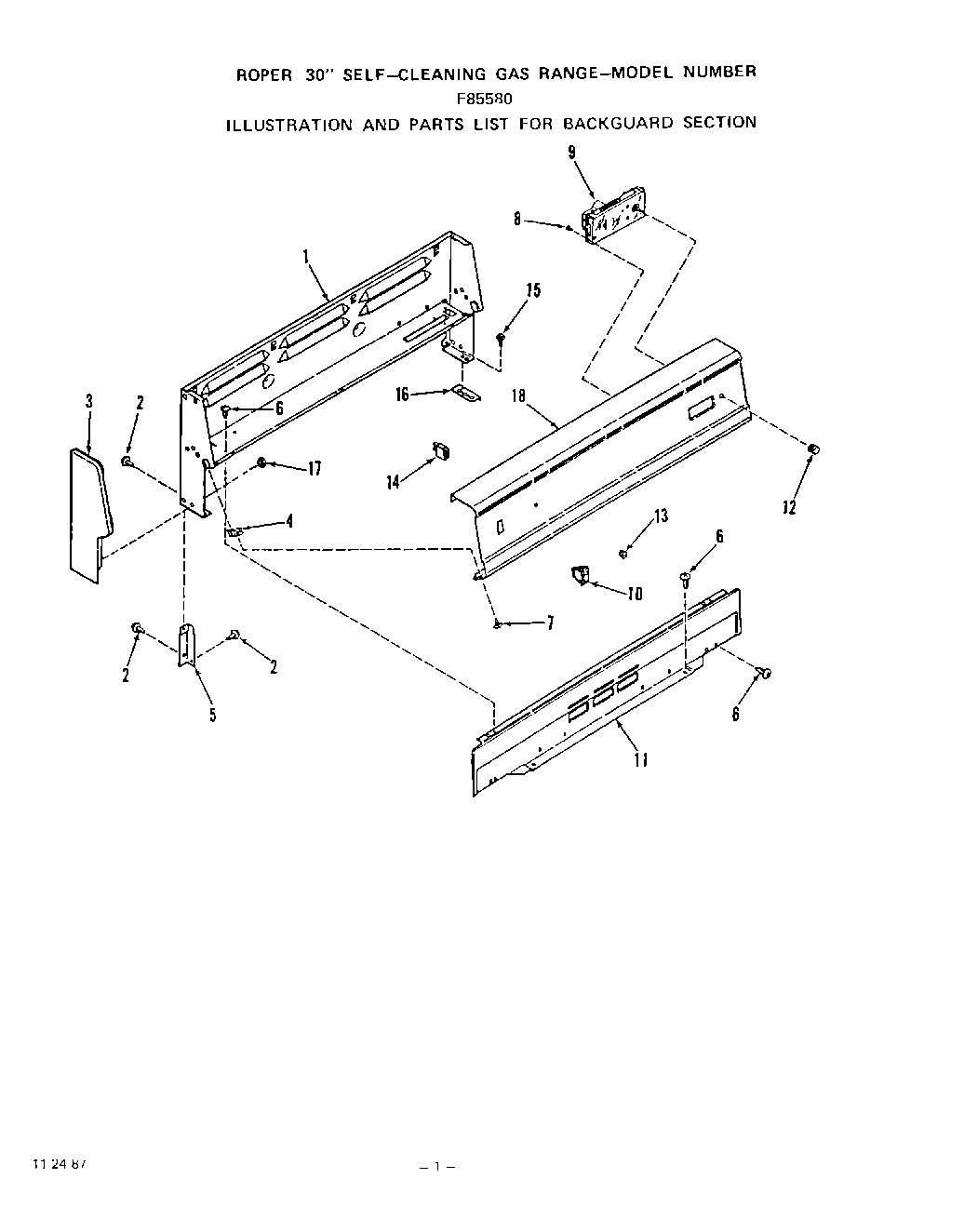

02 - BACK GUARD

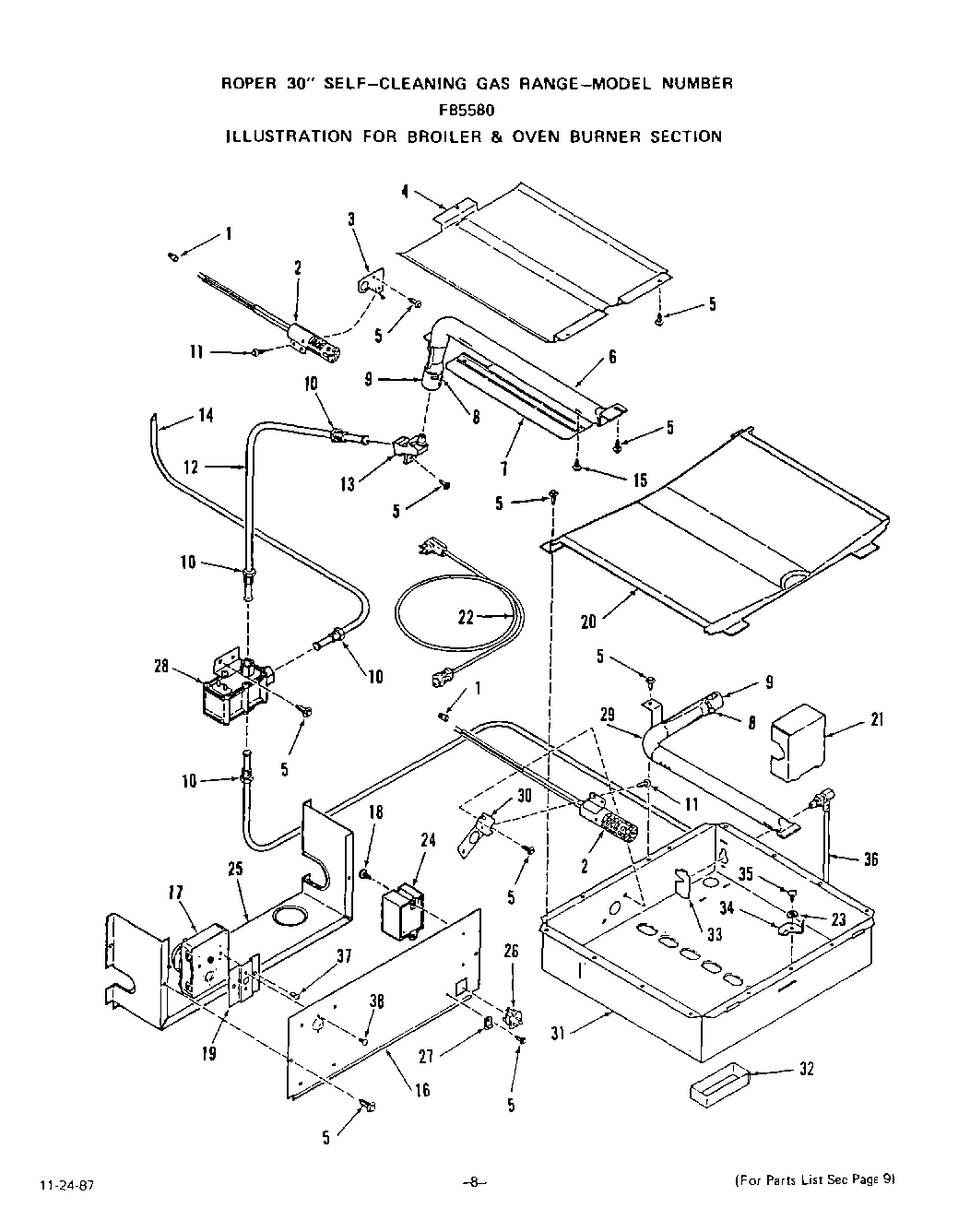

07 - BROILER AND OVEN BURNER
09 - WIRING HARNESS AND COMPONENTS , GRI
Common parts from model Whirlpool F8558W0
xClock Lens WPL 336943 Contact Us For Availability
xInstallation Guide WPL 335346 Contact Us For Availability
xRepair Parts List WPL 339389 Contact Us For Availability
xManual-Use & Care WPL 339424 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Plug WPL 337031 Contact Us For Availability
1
Backguard Body WPL 338150 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Set-On Griddle WPL 289671 Contact Us For Availability
1
Igniter WPL 329162 Contact Us For Availability
1
Switch-Gas Valve WPL 329364 Contact Us For Availability
1
Backguard WPL 335672 Contact Us For Availability
1
Main WPL 339380 Contact Us For Availability
1
Wire Harness WPL ARI57035A1 Contact Us For Availability
2
Spacer WPL 335760 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 337263 Contact Us For Availability
2
Flag Terminal WPL 238389 Contact Us For Availability
3
Rivet WPL 338735 Contact Us For Availability
3
Main Back WPL 338314 Contact Us For Availability
3
Insulation WPL 336151 Contact Us For Availability
3
Right WPL 334510 Contact Us For Availability
3
Left WPL 334511 Contact Us For Availability
3
Electrode WPL ARI57029A1 Contact Us For Availability
3
Micro Switch WPL 329170 Contact Us For Availability
3
Right WPL 334161 Contact Us For Availability
3
Left WPL 334162 Contact Us For Availability
3
End Cap WPL ARI57024A6 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
3/16`` WPL 238392 Contact Us For Availability
3
1/4`` WPL 238393 Contact Us For Availability
3
Faston Terminal WPL ARI57036A4 Contact Us For Availability
4
Hinge Bracket WPL 335975 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
4
Retainer Insulation Oven WPL 326623 Contact Us For Availability
4
Rear Burner-Lt. or Rt.. (Inc`s. Key 8) WPL 333223 Contact Us For Availability
4
Cover-Lock Box WPL 333628 Contact Us For Availability
4
Backguard Clip WPL 337975 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
5
Right WPL 320921 Contact Us For Availability
5
Left WPL 320922 Contact Us For Availability
5
Hinge WPL ARI57026A6 Contact Us For Availability
5
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 338755 Contact Us For Availability
5
White WPL 333466 Contact Us For Availability
5
Almond WPL 333468 Contact Us For Availability
5
Outer Panel WPL ARI57034A5 Contact Us For Availability
5
Front Burner-Lt. or Rt. (Inc`s. Key 8) WPL 333222 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
Right WPL 334337 Contact Us For Availability
5
Left WPL 334338 Contact Us For Availability
5
Backguard Support WPL ARI57025A7 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
6
Screw WPL 337857 Contact Us For Availability
6
Spacer-Main Top (2 Req) WPL 335320 Contact Us For Availability
6
Handle WPL 334848 Contact Us For Availability
6
Extension-Handle WPL 335984 Contact Us For Availability
6
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
7
Support Rod WPL 332284 Contact Us For Availability
7
White WPL 335826 Contact Us For Availability
7
Body Side (Almond) WPL 335830 Contact Us For Availability
7
Body Side (Lt. or Rt.) WPL ARI57030A5 Contact Us For Availability
7
Spacer WPL 107158 Contact Us For Availability
7
Support-Top Burner WPL 333607 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
Screw WPL 336529 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
8
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
8
Screw 10-32 x 1/2`` WPL 335967 Contact Us For Availability
8
Air Shutter WPL 327198 Contact Us For Availability
8
Lock Box WPL 333627 Contact Us For Availability
8
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326963 Contact Us For Availability
9
Lining WPL 331624 Contact Us For Availability
9
Pressure Regulator WPL 324528 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Clock Asm w/Lens WPL 336931 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
10
Right WPL 334632 Contact Us For Availability
10
Left WPL 334633 Contact Us For Availability
10
Hinge-Oven Door WPL ARI57031A5 Contact Us For Availability
10
Gasket WPL 292244 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Oven Light Switch WPL 334649 Contact Us For Availability
11
Right WPL 333351 Contact Us For Availability
11
Left WPL 333352 Contact Us For Availability
11
Manifold Panel Bracket WPL ARI57027A7 Contact Us For Availability
11
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
11
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
11
Screw (For Key 19) WPL 311455 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
11
Backguard Lower Front Panel WPL 336660 Contact Us For Availability
12
Gas Valve Knob WPL 338449 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Knob-Lock WPL 335738 Contact Us For Availability
12
Clock Knob WPL 334045 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
13
Thermostat Knob WPL 334094 Contact Us For Availability
13
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
Lens-Indicator Light WPL 331705 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
14
Manifold Panel WPL 335757 Contact Us For Availability
14
Tubing 3/8`` (Control Valve to Shut-Off Valve WPL 231899 Contact Us For Availability
14
Shut Off Valve WPL 326830 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
14
Indicator Light WPL 331716 Contact Us For Availability
15
Burner Box Bottom WPL 333547 Contact Us For Availability
15
Catch-Lo Front Panel WPL 335480 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Gasket (For Key 14 & 19) WPL 313563 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
16
Cleat WPL 335977 Contact Us For Availability
16
White WPL 332318 Contact Us For Availability
16
Almond WPL 332324 Contact Us For Availability
16
Main Top WPL ARI57028A2 Contact Us For Availability
16
Front Frame WPL 338305 Contact Us For Availability
16
Manifold Pipe WPL 333221 Contact Us For Availability
16
Micro Switch WPL 329169 Contact Us For Availability
16
Component Bracket Cover WPL 338160 Contact Us For Availability
17
Lower Insulation Retainer WPL 331144 Contact Us For Availability
17
Gasket (For Key 11) WPL 311692 Contact Us For Availability
17
Screw 4-40 x1 9/16`` WPL 331081 Contact Us For Availability
17
Pal Nut WPL 335776 Contact Us For Availability
17
Timer WPL 335819 Contact Us For Availability
18
Insulation WPL 330166 Contact Us For Availability
18
Thermostat WPL 328279 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 333694 Contact Us For Availability
18
Control Panel WPL 335674 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
19
Wire Shield WPL 327808 Contact Us For Availability
19
Gas Valve (Inc`s Key 15) WPL 332001 Contact Us For Availability
19
Timer Bracket WPL 336506 Contact Us For Availability
20
Bushing WPL 324257 Contact Us For Availability
20
Switch-Gas Valve WPL 312457 Contact Us For Availability
20
Baffle-Oven Burner WPL 335196 Contact Us For Availability
21
Flue Deflector WPL 331564 Contact Us For Availability
21
Shield-Thermostat WPL 329839 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
22
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
23
Flue Box WPL 327781 Contact Us For Availability
23
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
23
Washer WPL 333674 Contact Us For Availability
24
Oven Body WPL 337039 Contact Us For Availability
24
Clip WPL 335798 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
25
Nut 8-32 WPL 239764 Contact Us For Availability
25
Mounting Bracket-Components WPL 338167 Contact Us For Availability
26
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
27
Oven Bulb WPL 111257 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
28
Oven Light Holder WPL 87883 Contact Us For Availability
28
Control Valve WPL 306267 Contact Us For Availability
29
Gasket WPL 229371 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
30
Oven Lamp Lens WPL 114989 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
31
Support-Lr. Front Panel WPL 335481 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
32
White WPL 332105 Contact Us For Availability
32
Almond WPL 332109 Contact Us For Availability
32
Panel-Lower Front WPL ARI57032A1 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
33
Oven Bottom WPL 335231 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Lamp Lens Retainer WPL 229372 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Cover Plate WPL 337045 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
36
Oven Rack WPL 326069 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
37
Broiler Pan WPL 331592 Contact Us For Availability
37
Screw 6-32x3/16`` WPL 237450 Contact Us For Availability
38
Broiler Pan Grid WPL 326297 Contact Us For Availability
38
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
39
Accordian Rivet WPL 281160 Contact Us For Availability
41
Shield-Flue Deflector WPL 328487 Contact Us For Availability
42
Strike WPL 333892 Contact Us For Availability
43
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
44
Shield-Thermostat Bulb WPL 335197 Contact Us For Availability
45
Button-Dart WPL 296097 Contact Us For Availability
46
Insulation WPL 329834 Contact Us For Availability
47
Insulation WPL 335815 Contact Us For Availability
48
Right WPL 334340 Contact Us For Availability
48
Left WPL 334341 Contact Us For Availability
48
Body Side Support WPL ARI57033A3 Contact Us For Availability
49
Screw WPL 336152 Contact Us For Availability
× ![]()
