Model Whirlpool F7607W0 – Common Parts & Diagrams
02 - BACKGUARD , LIT/OPTIONAL
03 - MAIN

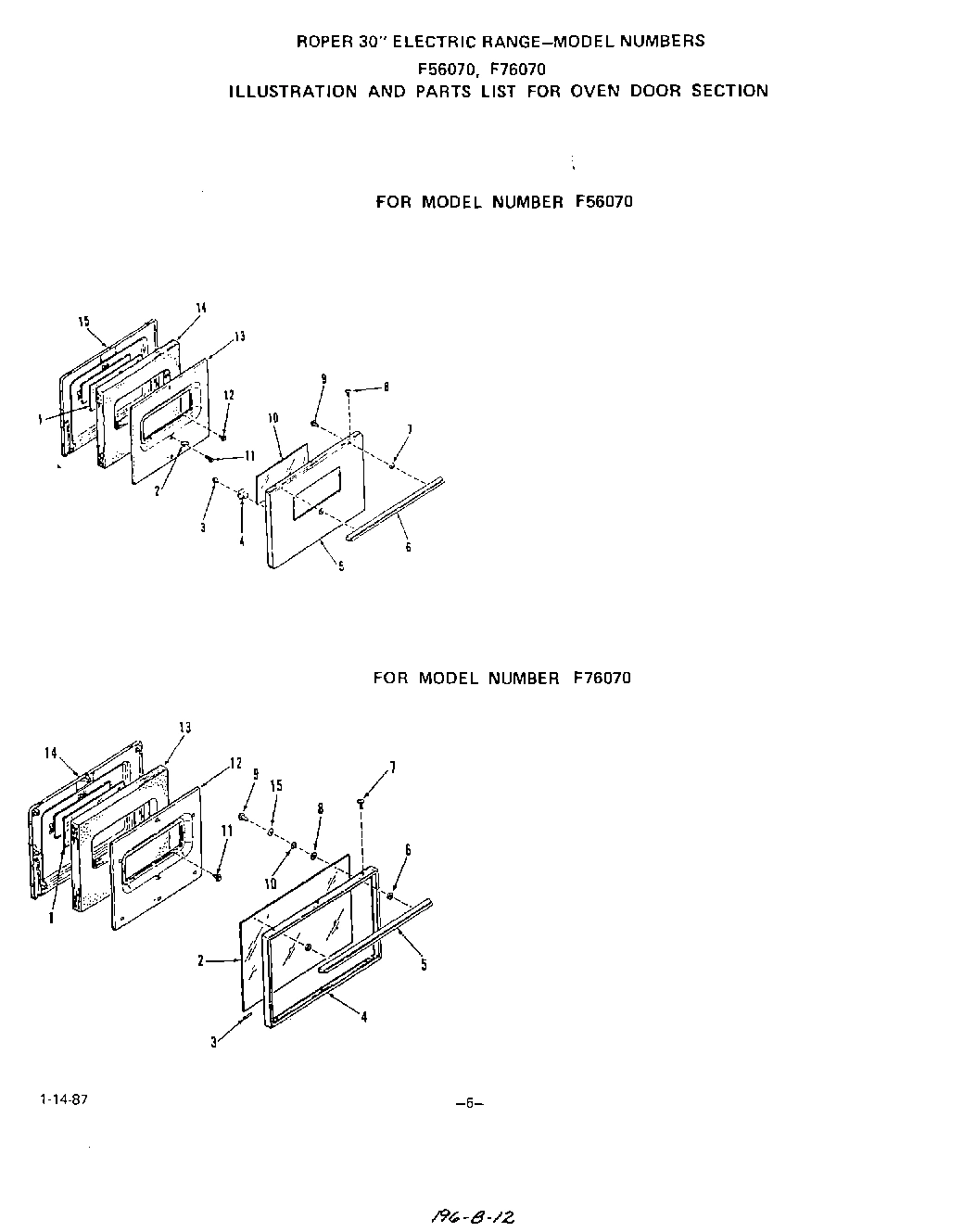

05 - F56070 , F76070

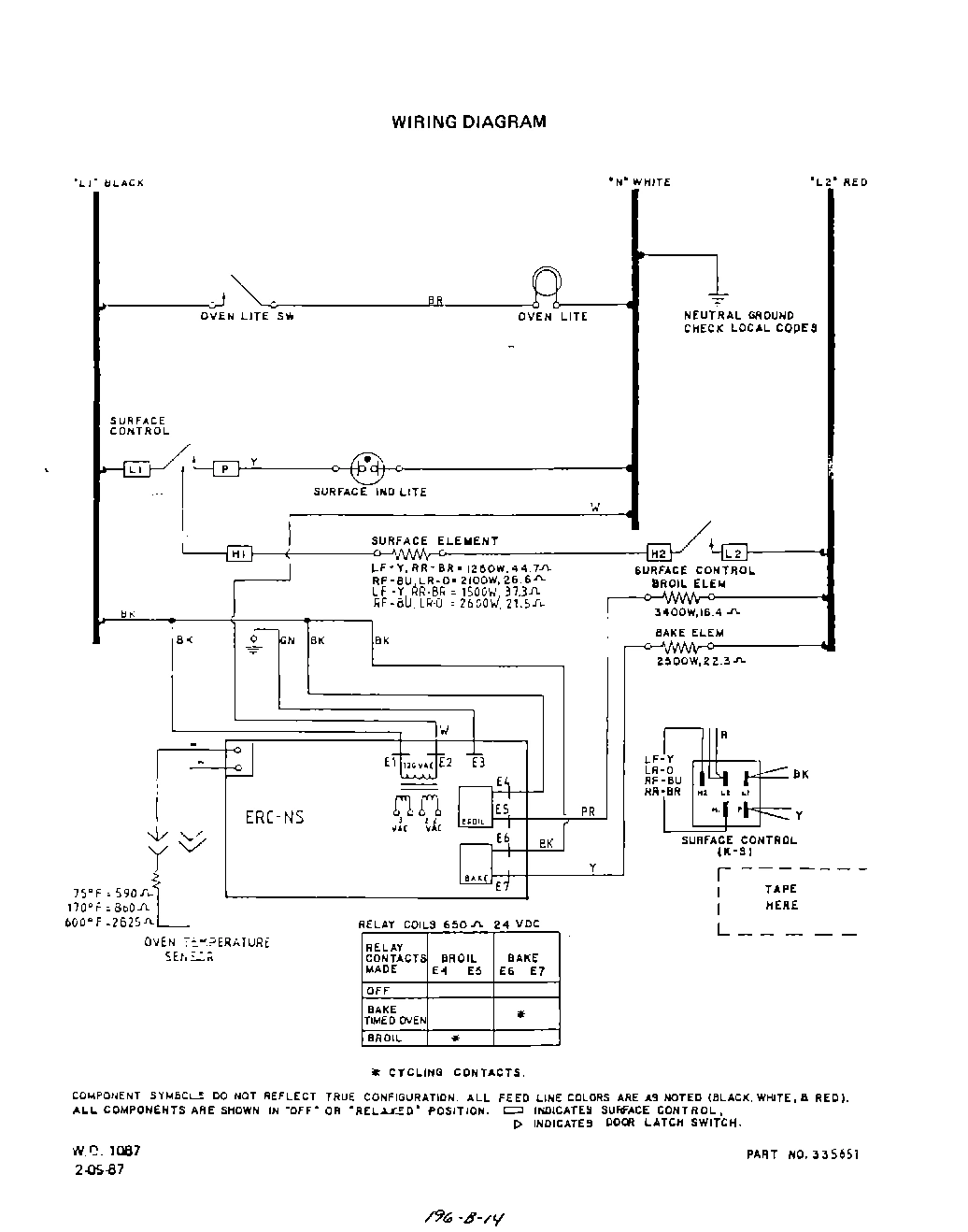

07 - WIRING DIAGRAM

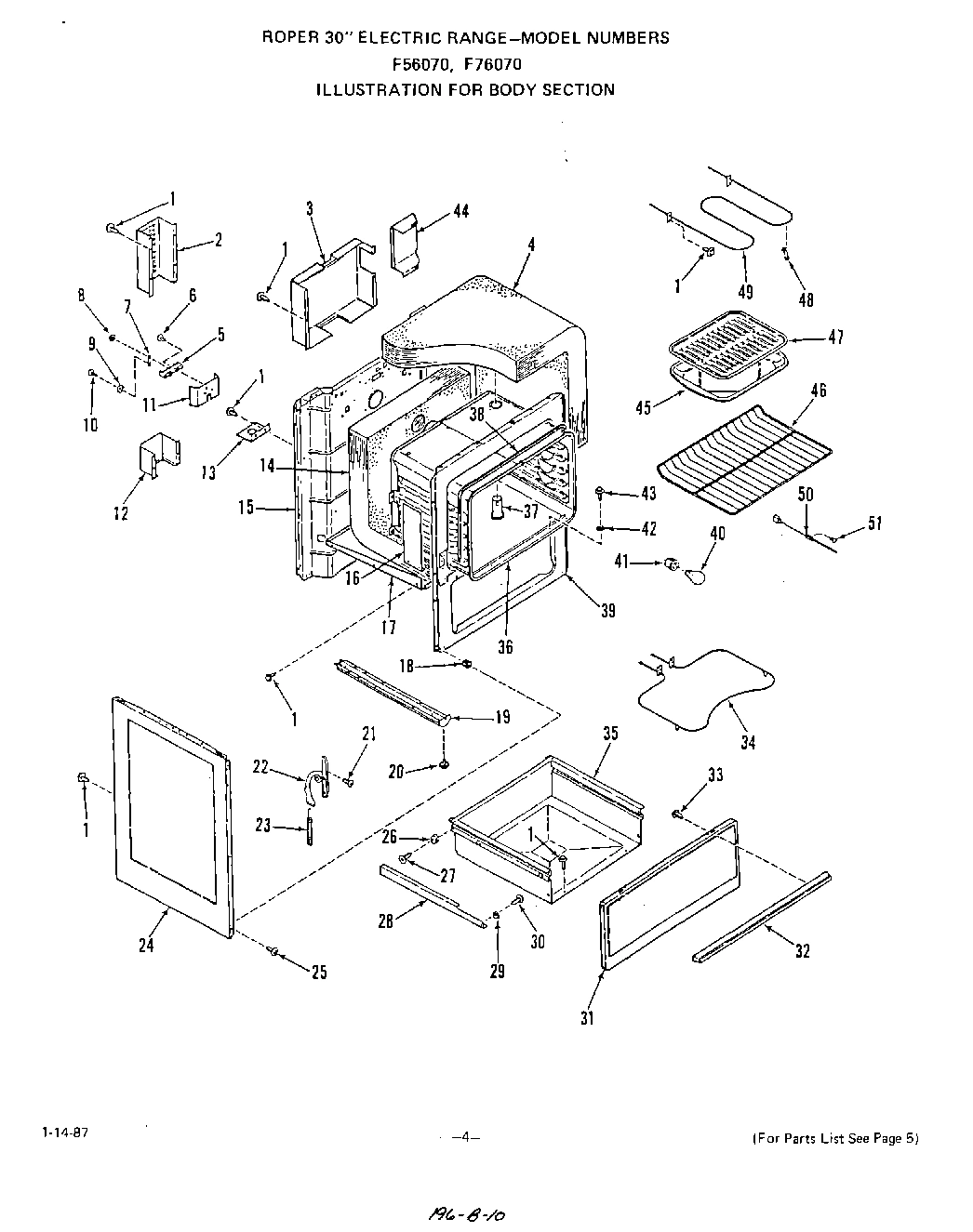

04 - BODY

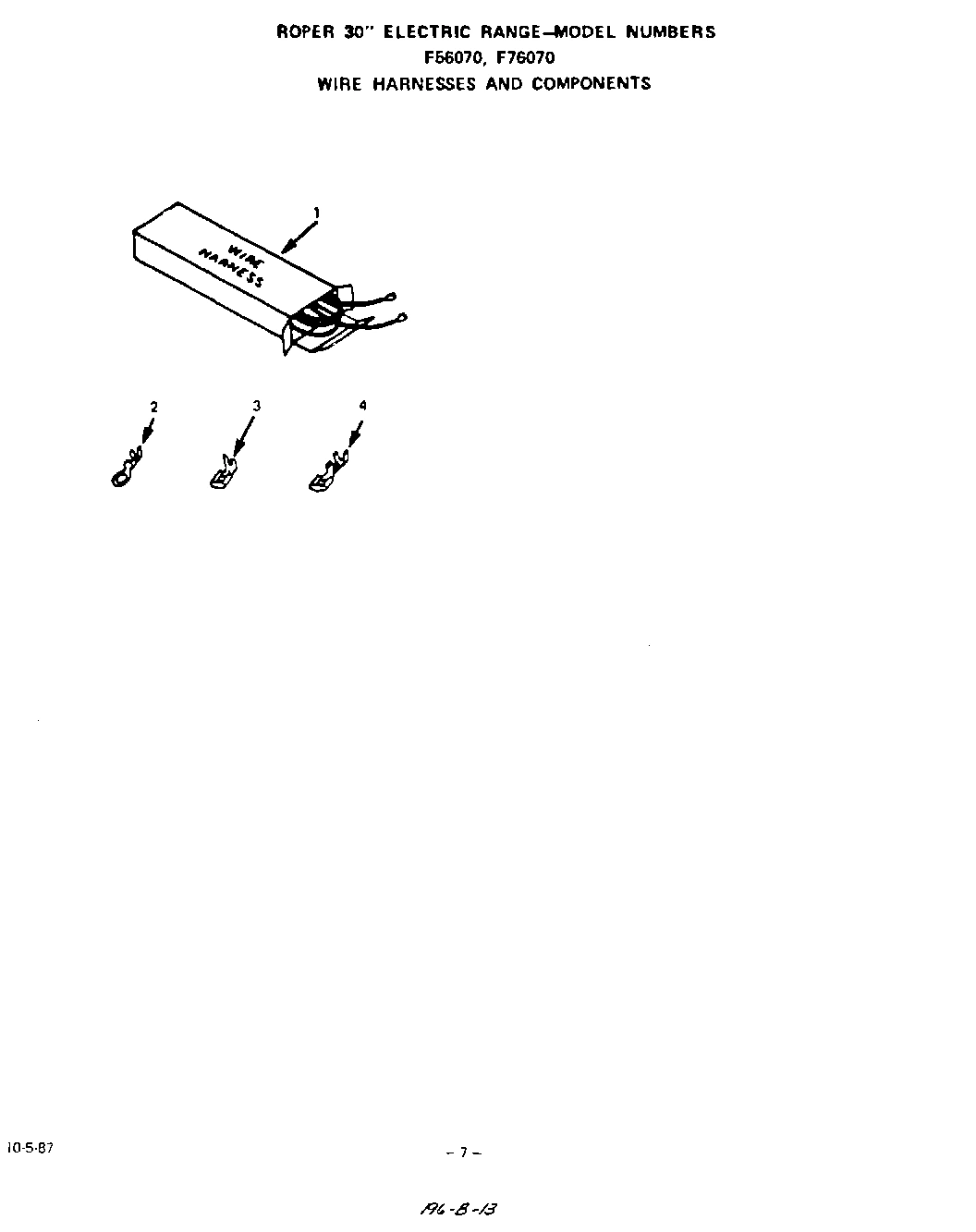

06 - WIRE HARNESS AND COMPONENTS
Common parts from model Whirlpool F7607W0
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Inner Glass WPL 326010 Contact Us For Availability
1
Wire Harness (Sensor) WPL 336312 Contact Us For Availability
1
Wire Harness (Main Top) WPL 336316 Contact Us For Availability
1
Wire Harness (Main) WPL 337009 Contact Us For Availability
1
Wire Harness (Control) WPL 337923 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
2
Spacer WPL 327269 Contact Us For Availability
2
Outer Glass WPL 332067 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
3
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
3
Wire Shield WPL 335724 Contact Us For Availability
3
Flag Terminal WPL 238391 Contact Us For Availability
4
End Cap (Right) WPL 334161 Contact Us For Availability
4
End Cap (Left) WPL 334162 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
4
Retainer-Door Glass (Lt. or Rt.) WPL 299592 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
4
Insulation-Oven Wrap WPL 326040 Contact Us For Availability
4
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
4
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
5
Backguard Support (Right) WPL 334337 Contact Us For Availability
5
Backguard Support (Left) WPL 334338 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
5
Front Panel-Oven Door (White) WPL 333459 Contact Us For Availability
5
Front Panel-Oven Door (Almond) WPL 333461 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
6
Backguard Clip WPL 334375 Contact Us For Availability
6
8`` Burner Bowl WPL 304969 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
7
Pal Nut WPL 335776 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
7
Spacer, Door Handle WPL 107158 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
8
Infinite Switch (Rt. Front or Lt. Rear) WPL 334888 Contact Us For Availability
8
6`` Burner Bowl WPL 296481 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
8
Hex Nut 10-32 WPL 97816 Contact Us For Availability
9
Infinite Switch (Lt. Front or Rt. Rear) WPL 334887 Contact Us For Availability
9
Main Top (White) WPL 332047 Contact Us For Availability
9
Main Top (Almond) WPL 332251 Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
10
Backguard Body WPL 338151 Contact Us For Availability
10
Outer Glass-Oven Door WPL 326583 Contact Us For Availability
10
Spacer-Glass WPL 333015 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
11
Indicator Light WPL 331717 Contact Us For Availability
11
Hinge-Main Top (Left) WPL 333859 Contact Us For Availability
11
Hinge-Main Top (Right) WPL 334089 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
12
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
12
Reinforcement Plate WPL 335823 Contact Us For Availability
12
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
12
Retainer WPL 325996 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
13
Screw 10-32x1/2`` WPL 321665 Contact Us For Availability
13
Burner Box Bottom WPL 333168 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 335843 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
14
Switch-Oven Light WPL 334649 Contact Us For Availability
14
Screw 10-16x1/2`` WPL 335967 Contact Us For Availability
14
Insulation-Oven Door WPL 325999 Contact Us For Availability
14
Lining WPL 325946 Contact Us For Availability
14
Insulation-Oven Back WPL 326049 Contact Us For Availability
15
Lens-Indicator Light WPL 331705 Contact Us For Availability
15
Clamp-Support Rod WPL 335547 Contact Us For Availability
15
Lining-Oven Door WPL 331743 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
16
Infinite Knob WPL 334562 Contact Us For Availability
16
Support Rod-Main Top WPL 334993 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 328984 Contact Us For Availability
17
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
18
Clock/Oven Control Knob WPL 334914 Contact Us For Availability
19
Control Panel WPL 335645 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
20
Clock/Oven Control Lens WPL 335646 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
21
Clock/Oven Control WPL 336282 Contact Us For Availability
21
Screw WPL 331704 Contact Us For Availability
22
Hinge-Oven Door (Right) WPL 334632 Contact Us For Availability
22
Hinge-Oven Door (Left) WPL 334633 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334660 Contact Us For Availability
24
Body Side (Lt. or Rt.) (White) WPL 333303 Contact Us For Availability
24
Body Side (Lt. or Rt.) (Almond) WPL 333307 Contact Us For Availability
25
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Front Panel-Storage (White) WPL 332121 Contact Us For Availability
31
Front Panel-Storage (Almond) WPL 332125 Contact Us For Availability
32
Handle WPL 334848 Contact Us For Availability
33
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
34
Bake Element (240 Volt) WPL 325883 Contact Us For Availability
34
Bake Element (108 Volt) WPL 326364 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body (F5607 Models) WPL 334938 Contact Us For Availability
36
Oven Body (F7607 Models) WPL 335961 Contact Us For Availability
37
Vent Tube WPL 333801 Contact Us For Availability
38
Seal-Oven Door WPL 314062 Contact Us For Availability
39
Front Frame WPL 334085 Contact Us For Availability
40
Oven Bulb WPL 111257 Contact Us For Availability
41
Bulb Holder WPL 87883 Contact Us For Availability
42
Washer WPL 106462 Contact Us For Availability
43
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
44
Wire Shield-Sensor WPL 330614 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Oven Rack WPL 326068 Contact Us For Availability
47
Broiler Pan Grid WPL 326297 Contact Us For Availability
48
WPL 334565 WPL 334565 Contact Us For Availability
49
WPL 334368 WPL 334368 Contact Us For Availability
49
WPL 334369 WPL 334369 Contact Us For Availability
50
WPL 338242 WPL 338242 Contact Us For Availability
51
WPL 327621 WPL 327621 Contact Us For Availability
× ![]()
