Model Electrolux F64S352BDA RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BACKGUARD

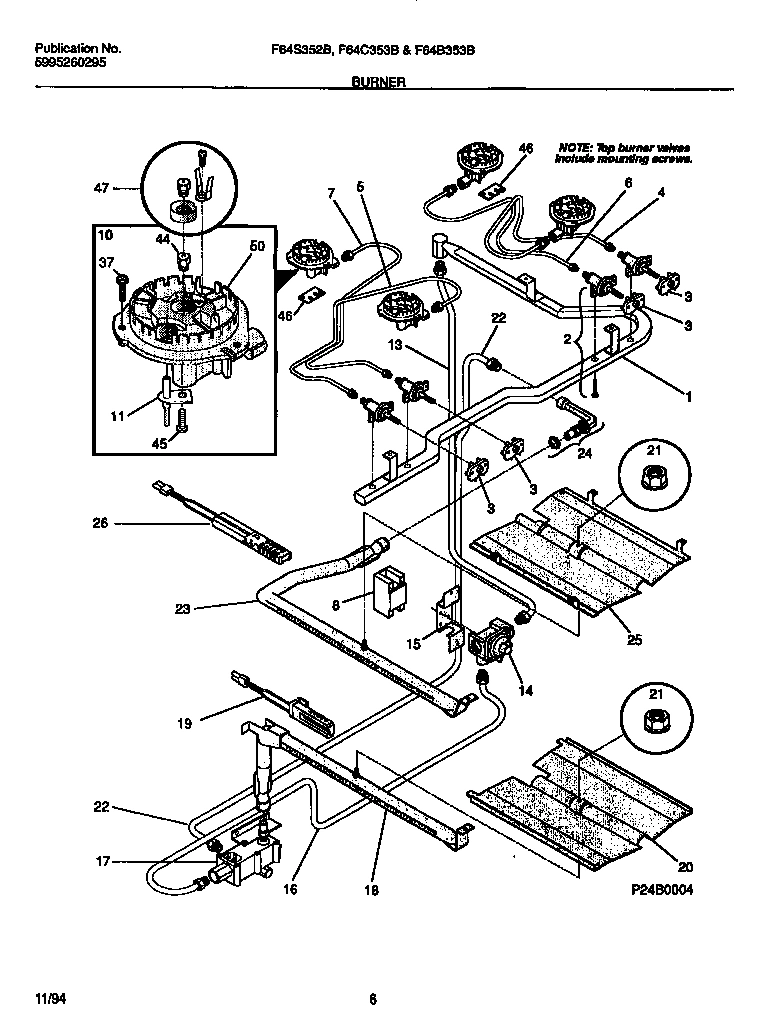

04 - BURNER

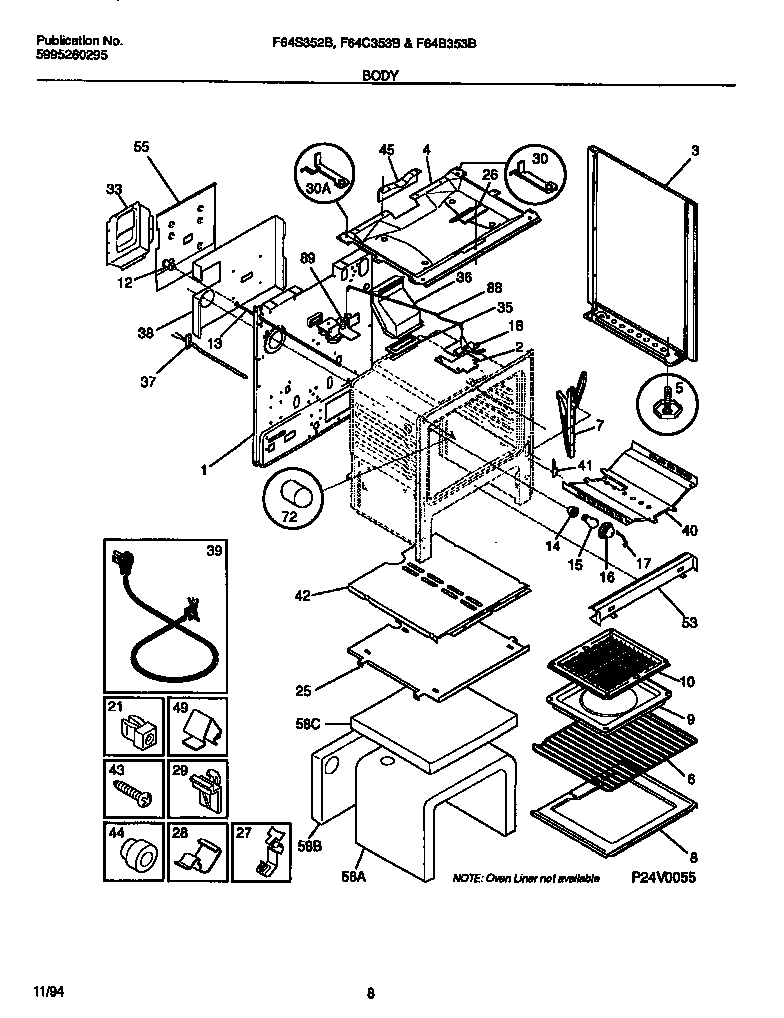

05 - BODY

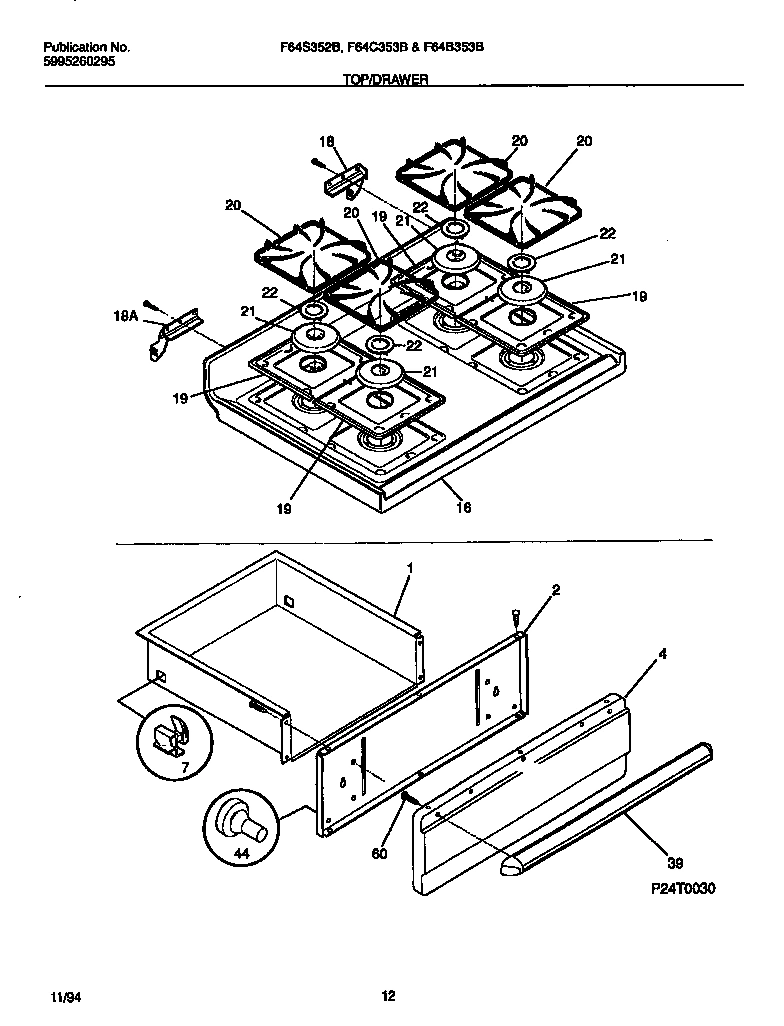

06 - TOP/DRAWER

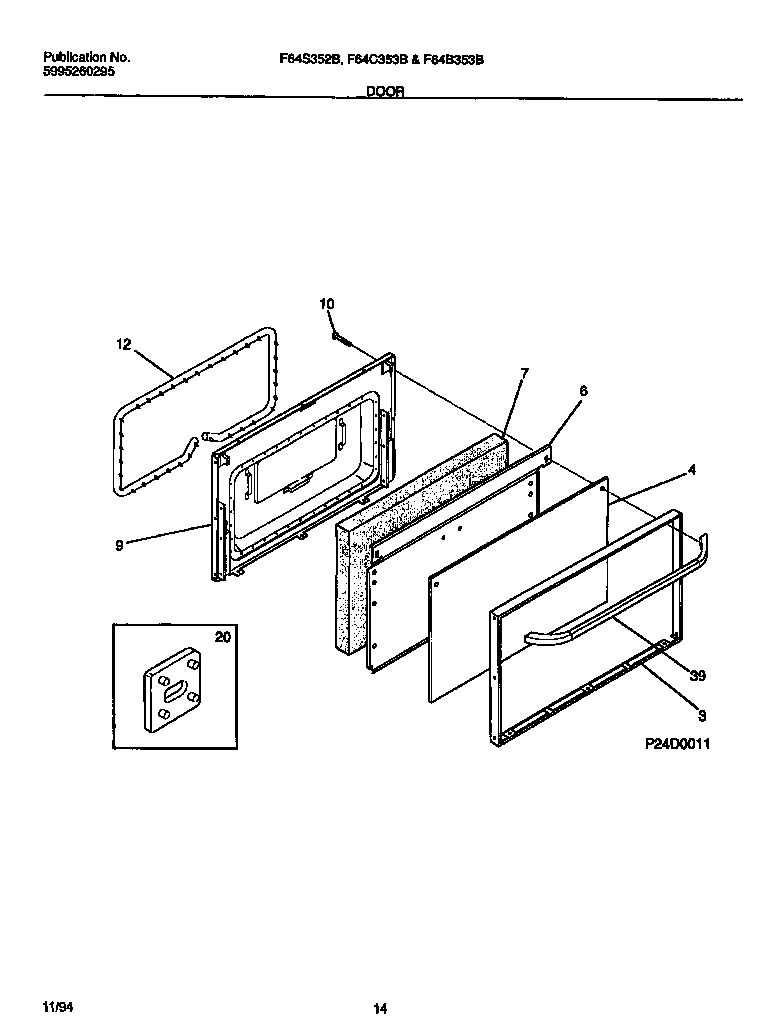

07 - DOOR

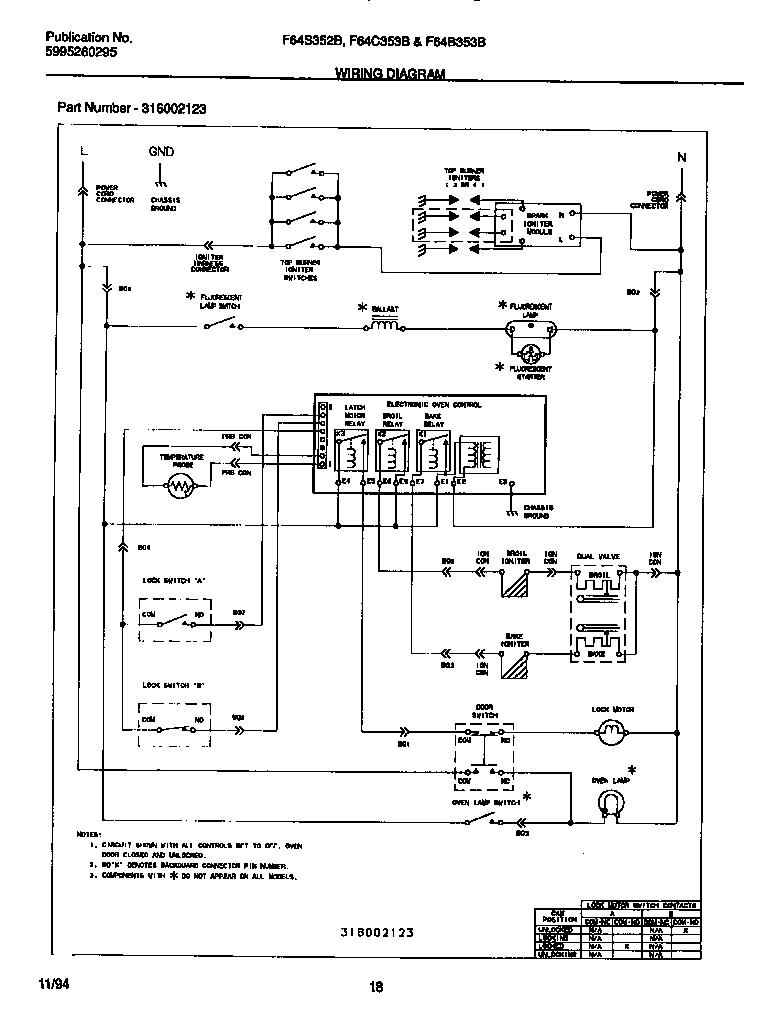

08 - WIRING DIAGRAM

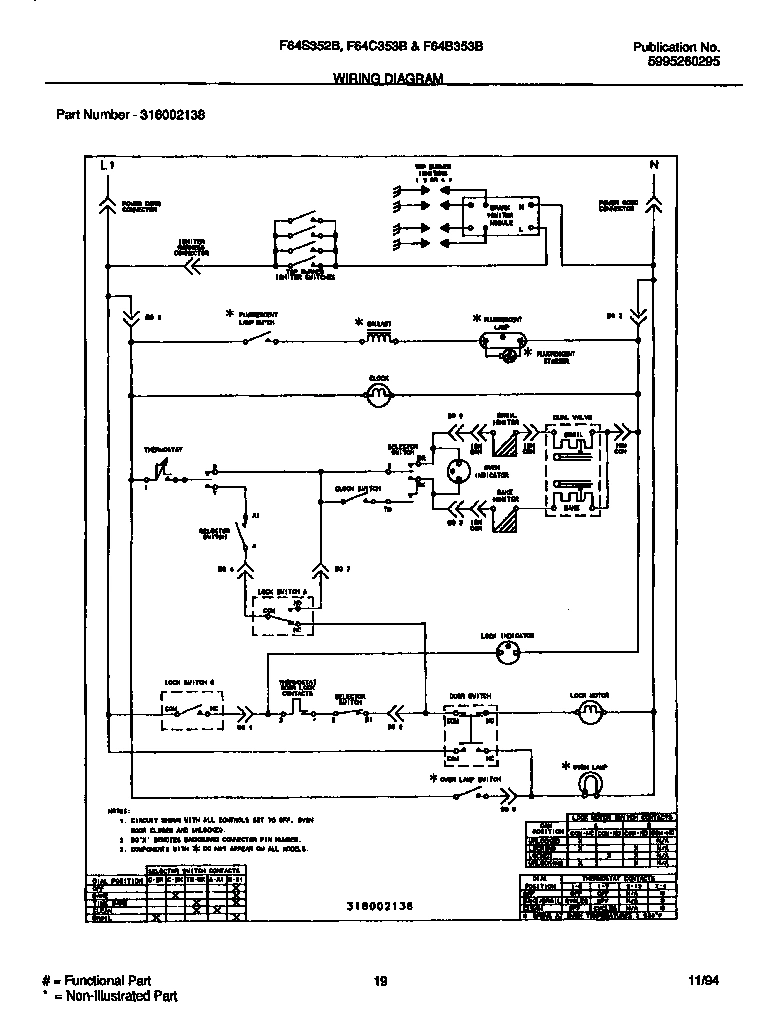

09 - WIRING DIAGRAM
Common parts from model Electrolux F64S352BDA RANGE
*83920
WCI 3200846 WCI 3200846 Contact Us For Availability
*83921
WCI 08067961 WCI 08067961 Contact Us For Availability
*83923
WCI 5303305325 WCI 5303305325 Contact Us For Availability
*83930
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*83931
WCI 316065300 WCI 316065300 Contact Us For Availability
*83932
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*83933
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3B
SHIELD - INSULATION, GALV STEEL WCI 08067992 Contact Us For Availability
4
WCI 316011905 WCI 316011905 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4A
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5C
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8A
HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRAT WCI 5303289034 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, (4), INCLUDES 11, 37 WCI 5303935025 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316073300 WCI 316073300 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, W/FITTINGS WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
16A
WCI 5303271891 WCI 5303271891 Contact Us For Availability
16B
WCI 5303271892 WCI 5303271892 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316011401 WCI 316011401 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 316025400 WCI 316025400 Contact Us For Availability
20
WCI 316055101 WCI 316055101 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, CAST, BLACK, (4) WCI 316011001 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
WCI 316026100 WCI 316026100 Contact Us For Availability
39A
HARNESS-WIRING, MAIN (NON-ILLUSTRATED) WCI 316001630 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40A
SCREW-HEAT SHIELD, HD SHLDR SQDR, -18 X 1/2 ( WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, (4) WCI 5303210090 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 5303269491 WCI 5303269491 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
50
BURNER-TOP, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
55
WCI 316052601 WCI 316052601 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
