Model Whirlpool F5808L0 – Common Parts & Diagrams
04 - BODY
05 - OVEN DOOR
02 - BACKGUARD , LIT/OPTIONAL

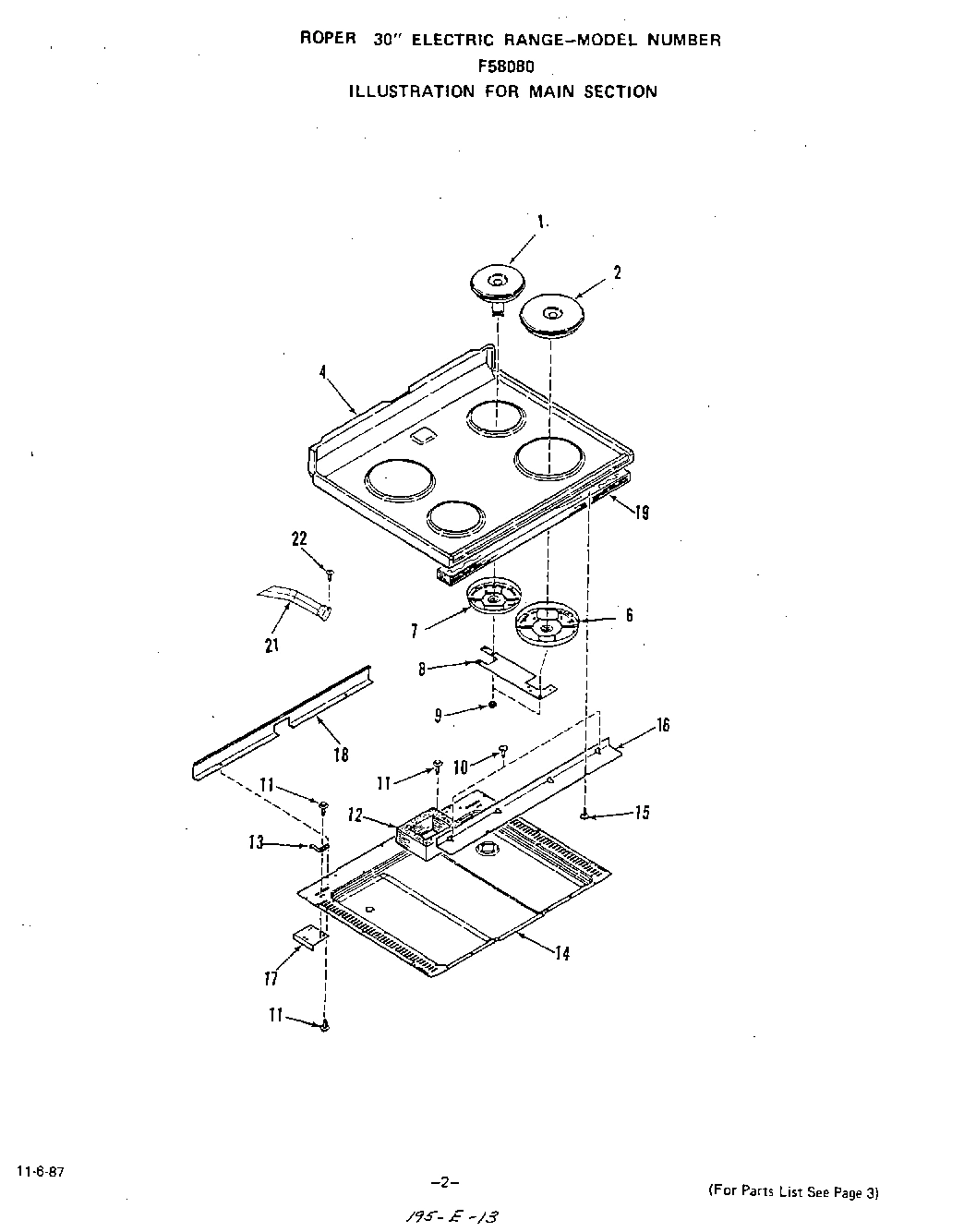

03 - MAIN

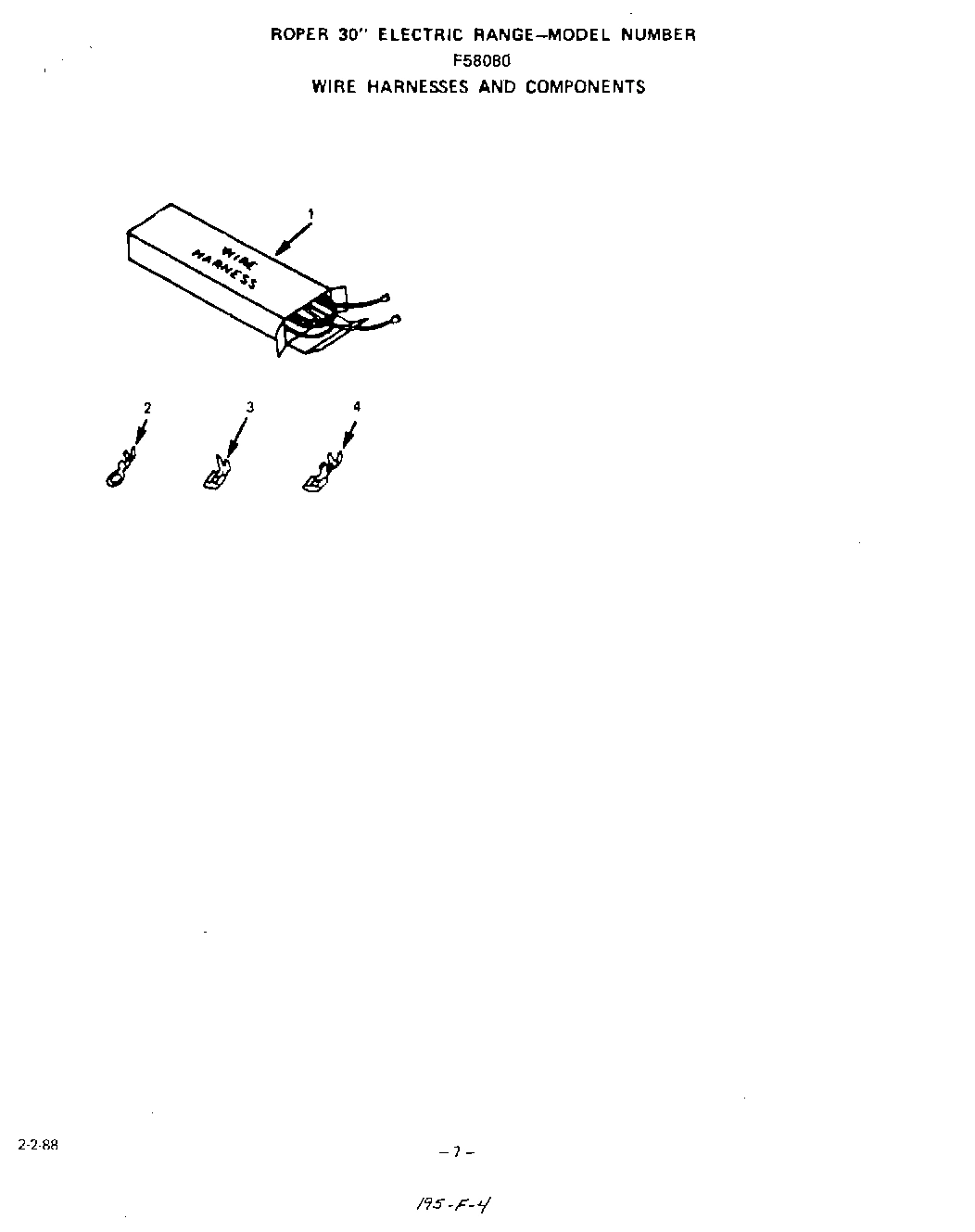

06 - WIRE HARNESS AND COMPONENTS

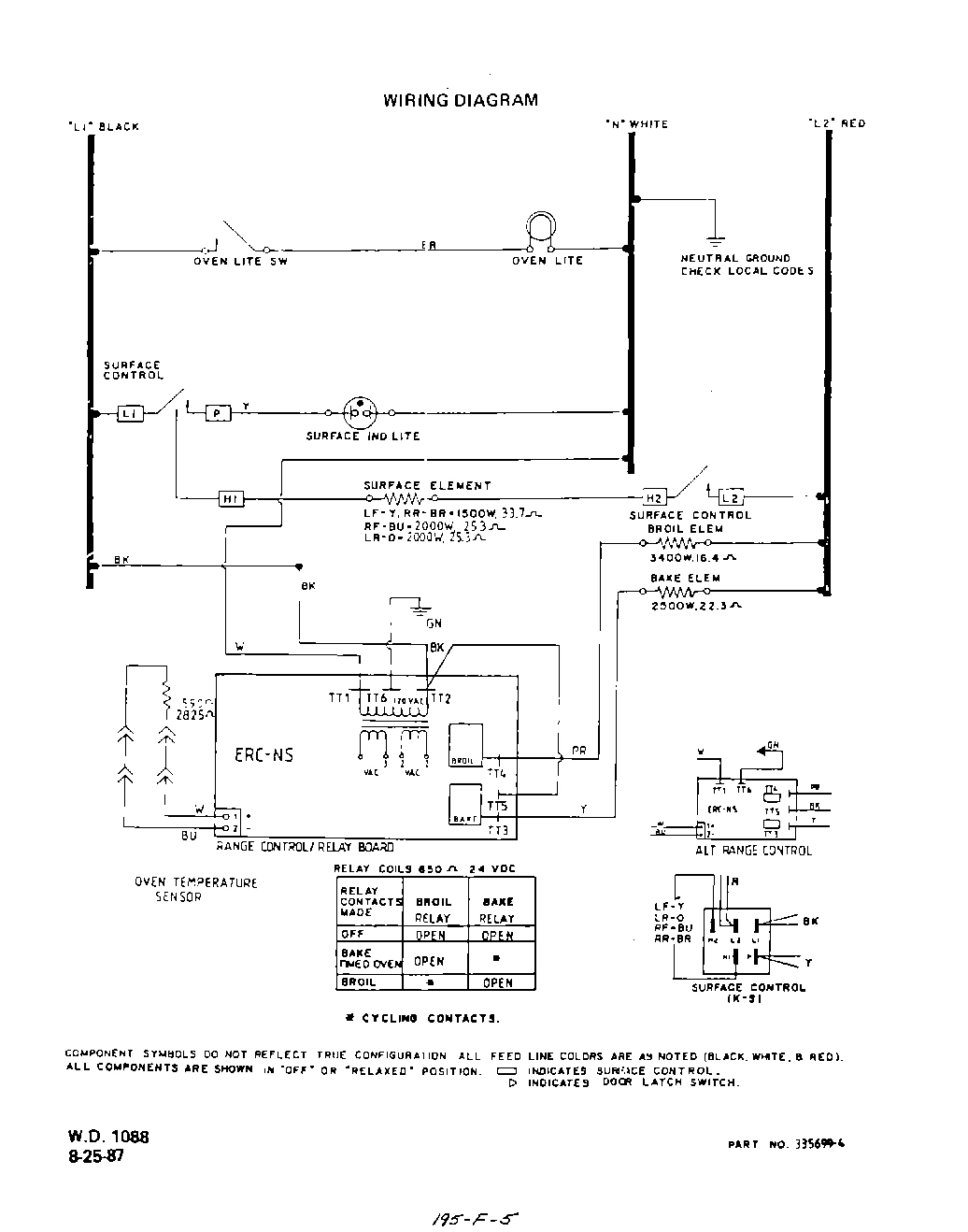

07 - WIRING DIAGRAM
Common parts from model Whirlpool F5808L0
1
Inner Glass WPL 326010 Contact Us For Availability
1
Element-Small WPL 329106 Contact Us For Availability
1
Wire Harness (Eyelet Terminal) WPL 238387 Contact Us For Availability
1
Wire Harness (Flag Terminal) WPL 238391 Contact Us For Availability
1
Wire Harness (Faston Terminal) (3/16``) WPL 238392 Contact Us For Availability
1
Wire Harness (Faston Terminal) (1/4``) WPL 238393 Contact Us For Availability
1
Wire Harness (Sensor) WPL 336312 Contact Us For Availability
1
Wire Harness (Main) WPL 337009 Contact Us For Availability
1
Wire Harness (Main Top-Left) WPL 337016 Contact Us For Availability
1
Wire Harness (Backguard) WPL 337017 Contact Us For Availability
1
Wire Harness (Control) WPL 339071 Contact Us For Availability
1
Wire Harness (Main Top-Rt.) WPL 339459 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Outer Glass WPL 332067 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Element-Large WPL 329107 Contact Us For Availability
3
Wire Shield WPL 335724 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
4
Insulation-Oven Wrap WPL 326040 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
4
End Cap (Right) WPL 334161 Contact Us For Availability
4
End Cap (Left) WPL 334162 Contact Us For Availability
4
Main Top (White) WPL 336012 Contact Us For Availability
4
Main Top (Almond) WPL 336013 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
Handle WPL 332452 Contact Us For Availability
5
Backguard Support (Right) WPL 334337 Contact Us For Availability
5
Backguard Support (Left) WPL 334338 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Backguard Clip WPL 337975 Contact Us For Availability
6
Element Clamp-Large WPL 329108 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
Screw WPL 331704 Contact Us For Availability
7
Pal Nut WPL 335776 Contact Us For Availability
7
Element Clamp-Small WPL 329109 Contact Us For Availability
8
Hex Nut 10-32 WPL 97816 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
8
Infinite Switch (Lt. Front or Rt. Rear) WPL 336119 Contact Us For Availability
8
Strap WPL 339505 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
9
Infinite Switch (Rt. Front-Lt. Rear) WPL 336120 Contact Us For Availability
9
Nut (4 Reg.) WPL 329326 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Spacer-Glass WPL 333015 Contact Us For Availability
10
Backguard Body WPL 338152 Contact Us For Availability
10
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
11
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
11
Indicator Light WPL 331716 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
12
Retainer WPL 328622 Contact Us For Availability
12
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
12
Vent Seal WPL 335784 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Insulation WPL 325999 Contact Us For Availability
13
Screw WPL 321665 Contact Us For Availability
13
Main Top Hinge (Left) WPL 333859 Contact Us For Availability
13
Main Top Hinge (Right) WPL 334089 Contact Us For Availability
14
Insulation-Oven Back WPL 326049 Contact Us For Availability
14
Lining WPL 331581 Contact Us For Availability
14
Oven Light Switch WPL 334649 Contact Us For Availability
14
Burner Box Bottom WPL 338927 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
15
Screw WPL 314124 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
Lens-Indicator Light WPL 331705 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 328984 Contact Us For Availability
16
Infinite Knob WPL 334562 Contact Us For Availability
16
Cover Plate WPL 337666 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
17
Screw WPL 70655 Contact Us For Availability
17
Reinforcement Plate WPL 335823 Contact Us For Availability
18
Clock Knob/Oven Control WPL 339197 Contact Us For Availability
18
Burner Box Baffle WPL 335816 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
19
Control Panel WPL 339141 Contact Us For Availability
19
Insulation WPL 337671 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
20
Clock/Oven Control w/Lens WPL 337178 Contact Us For Availability
21
Infinite Control Spacer WPL 338858 Contact Us For Availability
21
Vent Tube Extension WPL 338762 Contact Us For Availability
22
Hinge-Oven Door (Right) WPL 334632 Contact Us For Availability
22
Hinge-Oven Door (Left) WPL 334633 Contact Us For Availability
22
Wire Clip WPL 338025 Contact Us For Availability
22
screw WPL 326974 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334660 Contact Us For Availability
24
Body Side (Lt. or Rt.) (White) WPL 333303 Contact Us For Availability
24
Body Side (Lt. or Rt.) (Almond) WPL 333307 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Front Panel-Storage (White) WPL 332153 Contact Us For Availability
31
Front Panel-Storage (Almond) WPL 332157 Contact Us For Availability
32
Handle WPL 332205 Contact Us For Availability
33
Screw 10-32x7/16`` WPL 336529 Contact Us For Availability
34
Bake Element (240 Volt) WPL 325883 Contact Us For Availability
34
Bake Element (208 Volt) WPL 326364 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 337043 Contact Us For Availability
37
Vent Tube WPL 339216 Contact Us For Availability
38
Seal-Oven Door WPL 314062 Contact Us For Availability
39
Front Frame WPL 334085 Contact Us For Availability
40
Bulb-Lamp Oven WPL 111257 Contact Us For Availability
41
Lamp Bulb Holder WPL 87883 Contact Us For Availability
42
Washer WPL 106462 Contact Us For Availability
43
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
44
Sensor WPL 338242 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Oven Rack WPL 326068 Contact Us For Availability
47
Broiler Pan Grid WPL 326297 Contact Us For Availability
48
Support-Broiler Element WPL 339593 Contact Us For Availability
49
Broil Element (2 WPL 334368 Contact Us For Availability
49
WPL 334369 WPL 334369 Contact Us For Availability
50
WPL 337857 WPL 337857 Contact Us For Availability
51
WPL 335178 WPL 335178 Contact Us For Availability
52
WPL 330614 WPL 330614 Contact Us For Availability
53
WPL 333499 WPL 333499 Contact Us For Availability
54
WPL 334349 WPL 334349 Contact Us For Availability
55
WPL 339561 WPL 339561 Contact Us For Availability
× ![]()
