Model Whirlpool F5057W0 – Common Parts & Diagrams
04 - OVEN DOOR
05 - WIRING DIAGRAM

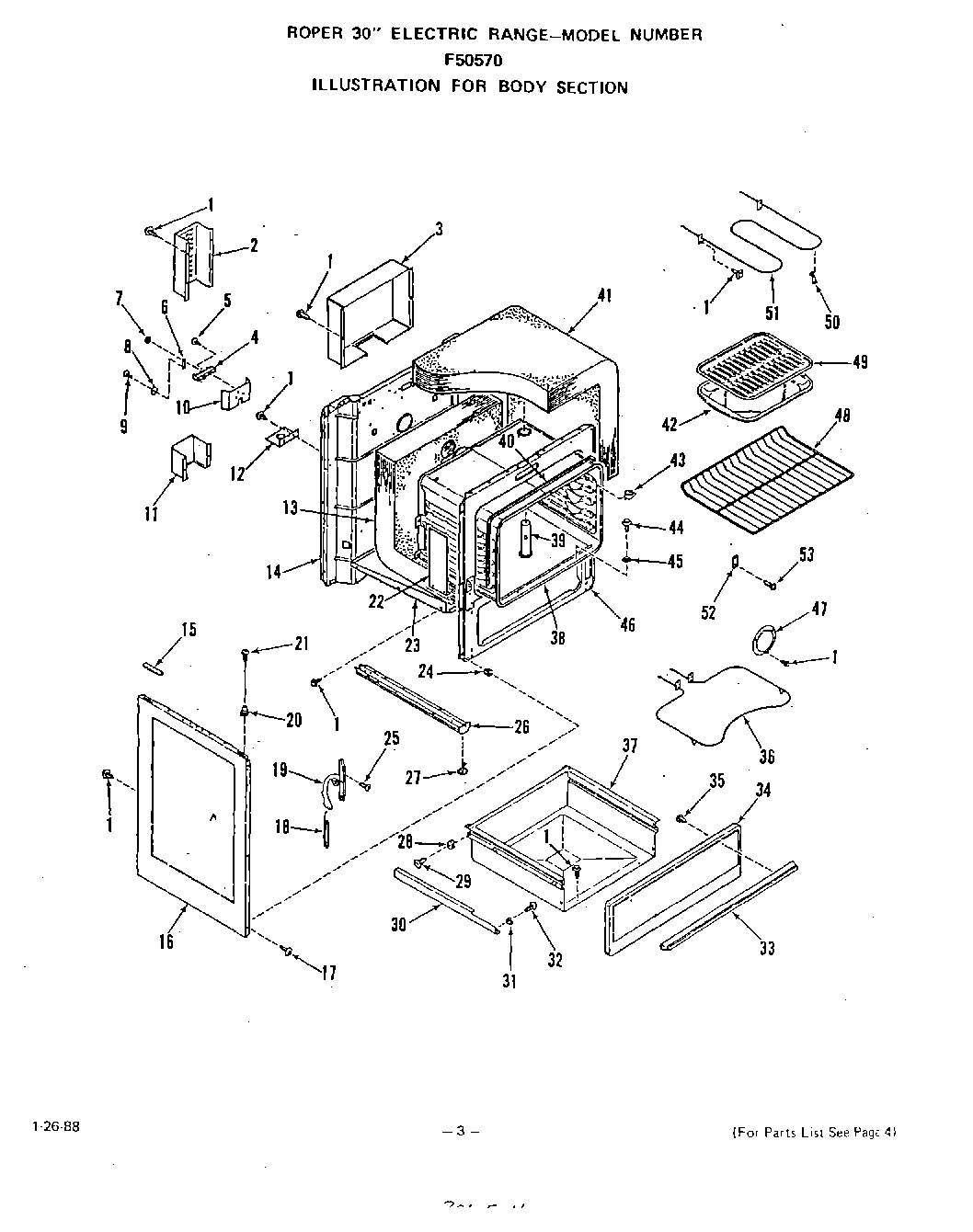

03 - BODY

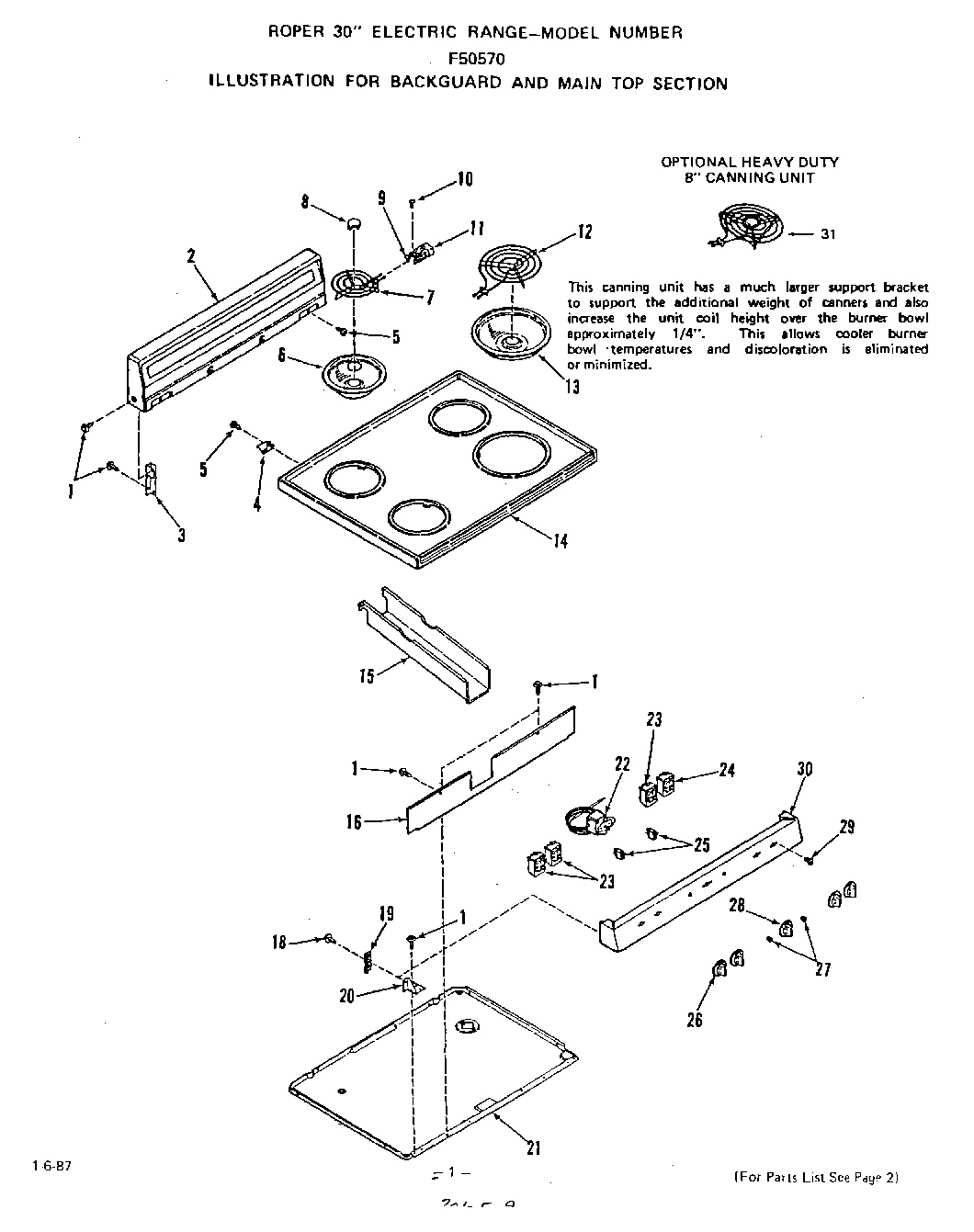

02 - BACKGUARD AND MAIN TOP
Common parts from model Whirlpool F5057W0
1
Insulation-Oven Door WPL 327625 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
2
White WPL 333452 Contact Us For Availability
2
Almond WPL 333454 Contact Us For Availability
2
Black WPL 336035 Contact Us For Availability
2
Front Panel-Oven Door WPL ARI56785A6 Contact Us For Availability
2
Wire Cover-Upper WPL 327235 Contact Us For Availability
2
Backguard Panel (White) WPL 336031 Contact Us For Availability
2
Backguard Panel (Almond) WPL 336032 Contact Us For Availability
2
Backguard Panel (Black) WPL 336033 Contact Us For Availability
3
Wire Shield WPL 326495 Contact Us For Availability
3
Backguard Support (Right) WPL 327106 Contact Us For Availability
3
Backguard Support (Left) WPL 327107 Contact Us For Availability
4
Spacer, Door Handle WPL 107158 Contact Us For Availability
4
Junction Block WPL 290105 Contact Us For Availability
4
Main Top Retainer (Lt. or Rt.) WPL 301672 Contact Us For Availability
5
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
5
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
Ground Strap WPL 327255 Contact Us For Availability
6
6`` Chrome Bowl (Lt. Rr., Rt. Rr., Lt. Fr.) WPL 296481 Contact Us For Availability
7
Lining-Oven Door WPL 331579 Contact Us For Availability
7
Hex Nut 10-32 WPL 97816 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
8
Washer WPL 299425 Contact Us For Availability
8
Medallion WPL 319704 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
9
Terminal Block Clip WPL 318872 Contact Us For Availability
10
Service Cord Insulator WPL 327242 Contact Us For Availability
10
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
11
Wire Shield-Lower WPL 327258 Contact Us For Availability
11
Terminal Block w/Wires WPL 318960 Contact Us For Availability
12
Service Cord Mounting Plate WPL 327259 Contact Us For Availability
12
8`` Surface Element WPL 325503 Contact Us For Availability
13
Insulation-Back & Bottom WPL 326049 Contact Us For Availability
13
8`` Chrome Bowl (Rt. Fr.) WPL 304969 Contact Us For Availability
14
Main Back WPL 333824 Contact Us For Availability
14
Main Top (White) WPL 332037 Contact Us For Availability
14
Main Top (Almond) WPL 332211 Contact Us For Availability
14
Main Top (Chrome) WPL 332214 Contact Us For Availability
15
Main Top Spacer (Lt. or Rt.) WPL 326914 Contact Us For Availability
15
Wire Cover-Main Top WPL 333839 Contact Us For Availability
16
White WPL 333303 Contact Us For Availability
16
Almond WPL 333307 Contact Us For Availability
16
Black WPL 333308 Contact Us For Availability
16
Body Side (Lt. or Rt.) WPL ARI56780A4 Contact Us For Availability
16
Wire Cover-Controls WPL 333840 Contact Us For Availability
17
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
18
Oven Door Spring (Lt. or Rt.) WPL 334722 Contact Us For Availability
18
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
19
Right WPL 334632 Contact Us For Availability
19
Left WPL 334633 Contact Us For Availability
19
Oven Door Hinge WPL ARI56781A3 Contact Us For Availability
19
Cleat WPL 335735 Contact Us For Availability
20
Main Top Strike WPL 333892 Contact Us For Availability
20
Right WPL 333351 Contact Us For Availability
20
Left WPL 333352 Contact Us For Availability
20
Manifold Panel Bracket WPL ARI56777A4 Contact Us For Availability
21
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
21
Burner Box Bottom WPL 333827 Contact Us For Availability
22
Insulation Retainer-Side (Lt. or Rt.) WPL 328984 Contact Us For Availability
22
Thermostat WPL 334896 Contact Us For Availability
23
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
23
Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.) WPL 334887 Contact Us For Availability
24
Infinite Switch (Right Front) WPL 334888 Contact Us For Availability
25
Screw WPL 331704 Contact Us For Availability
25
Indicator Light WPL 331717 Contact Us For Availability
26
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
26
Infinite Knob WPL 335669 Contact Us For Availability
27
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
27
Lens-Indicator Light WPL 331705 Contact Us For Availability
28
Slide Block-Rear WPL 281913 Contact Us For Availability
28
Thermostat Knob WPL 335668 Contact Us For Availability
29
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
29
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
30
Storage Drawer Support (Lt. or Rt.) WPL 311441 Contact Us For Availability
30
White WPL 336028 Contact Us For Availability
30
Almond WPL 336029 Contact Us For Availability
30
Black WPL 336030 Contact Us For Availability
30
Manifold Panel WPL ARI56778A4 Contact Us For Availability
31
Slide Block-Front WPL 281914 Contact Us For Availability
31
240 Volt WPL 326786 Contact Us For Availability
31
Optional 8`` Canning Element WPL ARI56779A6 Contact Us For Availability
33
Handle WPL 334848 Contact Us For Availability
34
White WPL 335284 Contact Us For Availability
34
Almond WPL 335285 Contact Us For Availability
34
Black WPL 336036 Contact Us For Availability
34
Storage Drawer Panel WPL ARI56782A4 Contact Us For Availability
35
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
36
240 Volt WPL 326365 Contact Us For Availability
36
208 Volt WPL 326366 Contact Us For Availability
36
Bake Element WPL ARI56783A3 Contact Us For Availability
37
Storage Drawer WPL 296150 Contact Us For Availability
38
Oven Body WPL 337043 Contact Us For Availability
39
Vent Tube WPL 333880 Contact Us For Availability
40
Oven Door Seal WPL 314062 Contact Us For Availability
41
Insulation-Top & Sides WPL 326040 Contact Us For Availability
42
Broiler Pan WPL 331592 Contact Us For Availability
43
Capillary Tube Clip WPL 321539 Contact Us For Availability
44
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
45
Washer WPL 21067 Contact Us For Availability
46
Front Frame WPL 333847 Contact Us For Availability
47
Cover WPL 326935 Contact Us For Availability
48
Oven Rack WPL 326068 Contact Us For Availability
49
Broiler Pan Grid WPL 326297 Contact Us For Availability
50
Support-Broil Element WPL 334565 Contact Us For Availability
51
240 Volt WPL 334368 Contact Us For Availability
51
208 Volt WPL 334369 Contact Us For Availability
51
Broil Element WPL ARI56784A9 Contact Us For Availability
52
Cover WPL 337045 Contact Us For Availability
53
Screw WPL 327621 Contact Us For Availability
× ![]()
