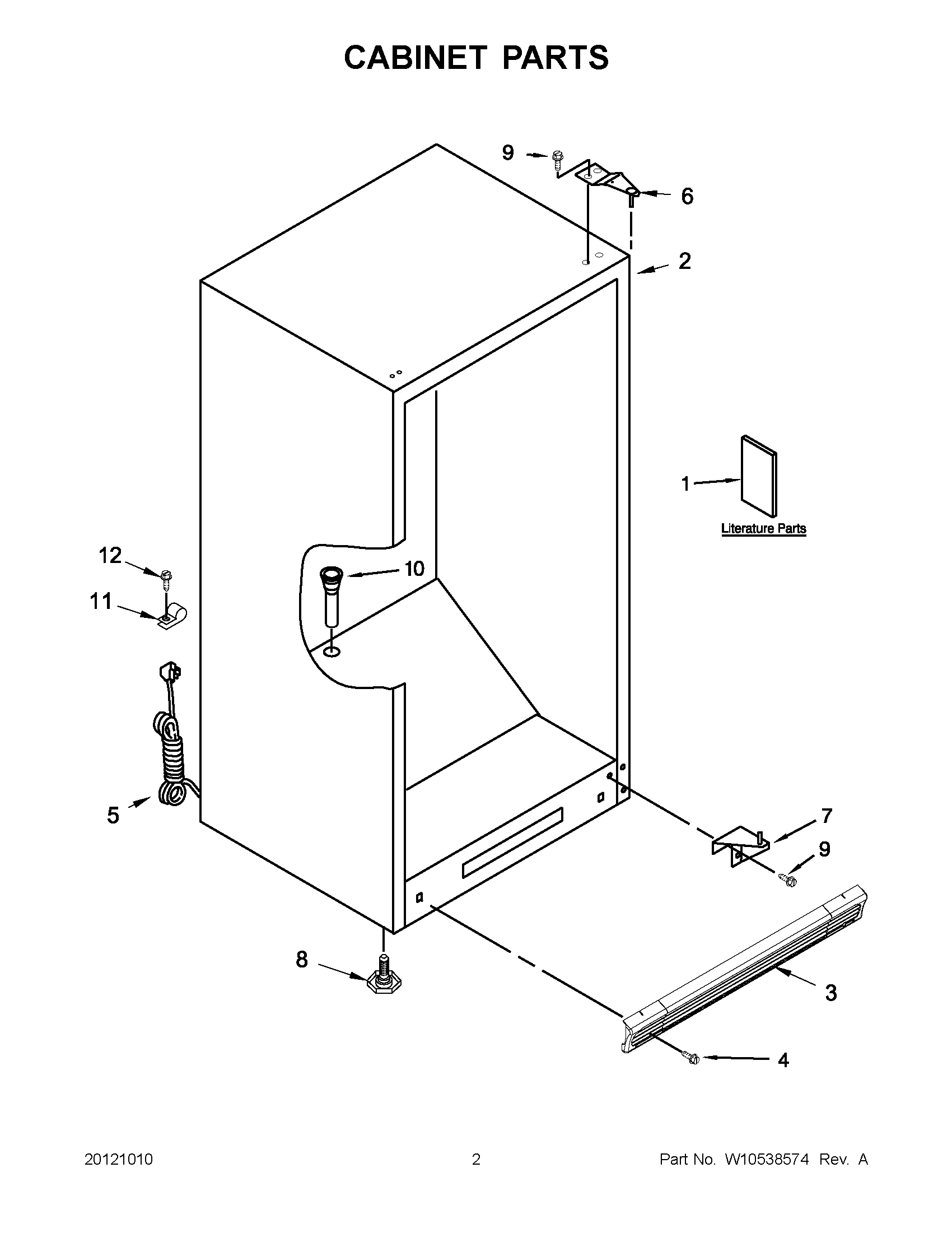

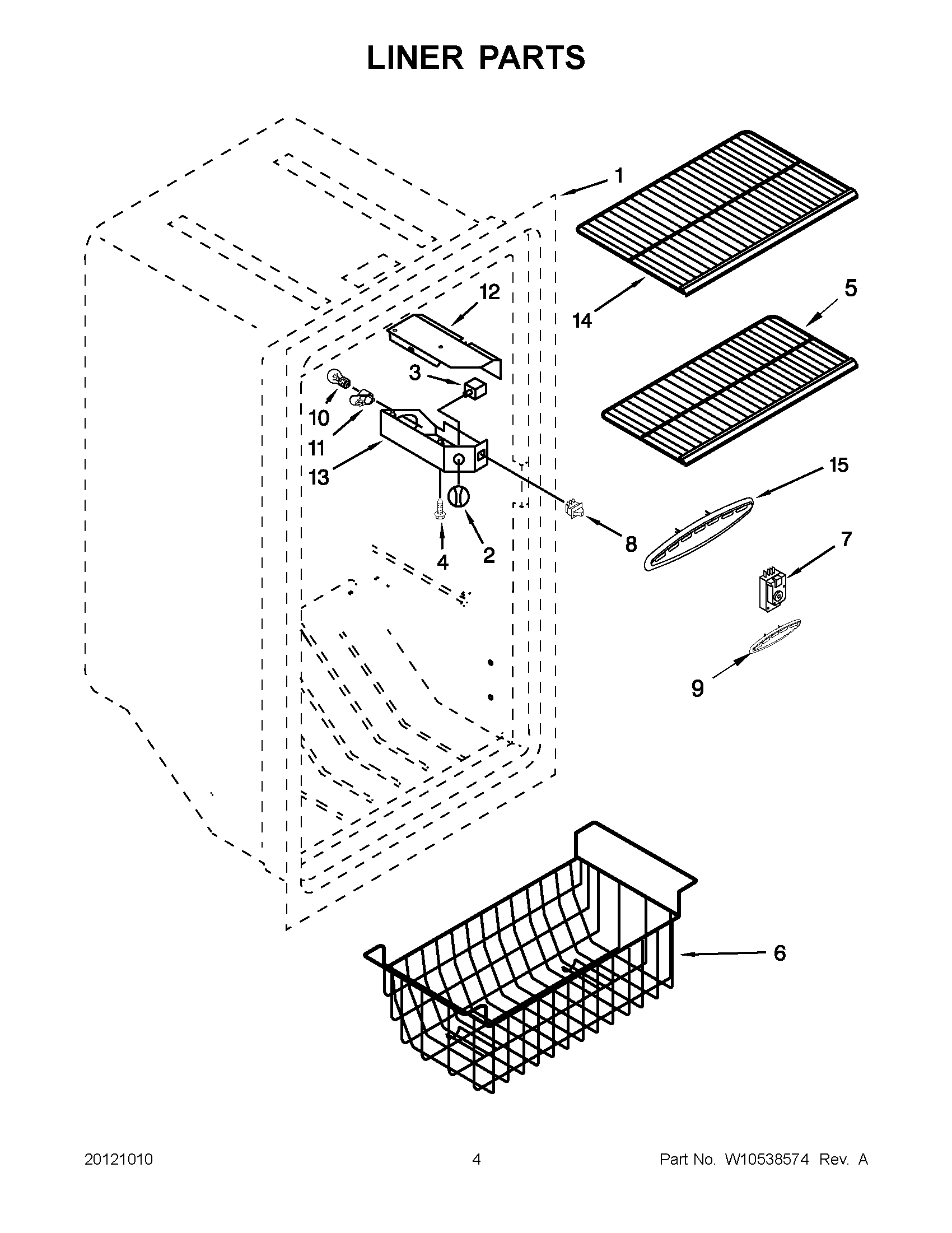

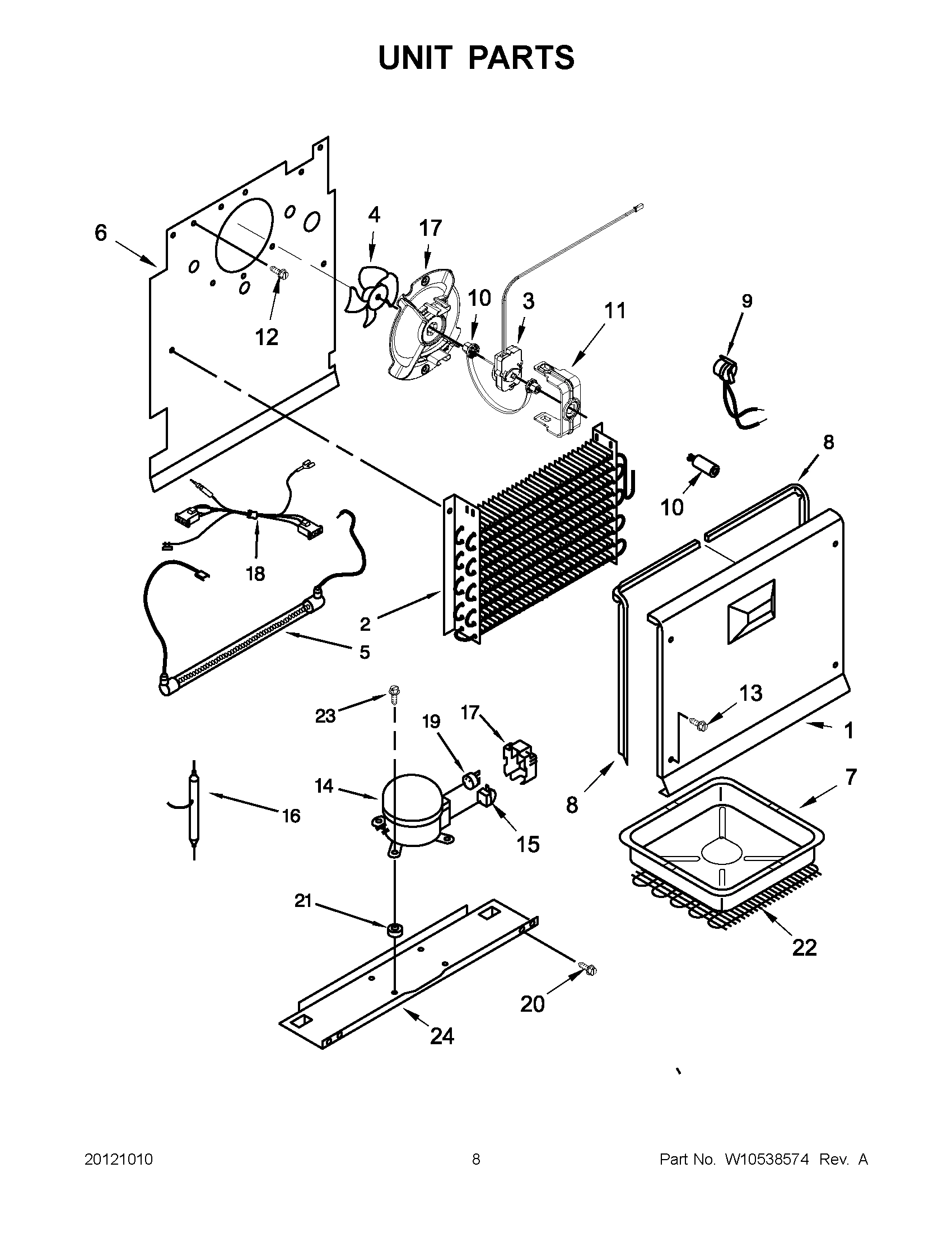

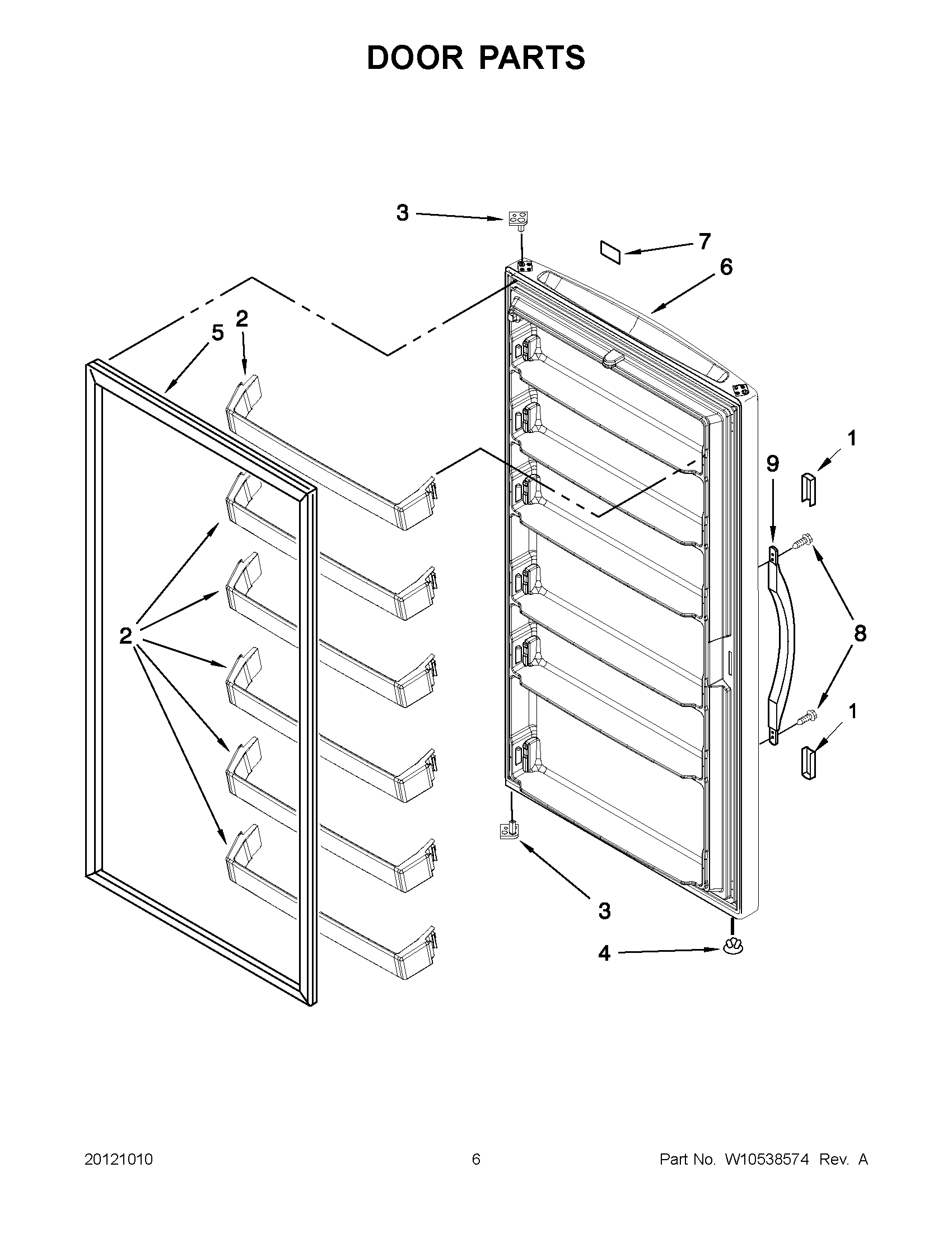

Model Whirlpool EV200NZTQ02 VERTICAL FREEZER – Common Parts & Diagrams

1
OWNERS MANUAL
OWNERS MANUAL WPL W10326799 Contact Us For Availability
View on Model
1
ENERGY LABEL/TAG
ENERGY LABEL/TAG WPL W10326808 Contact Us For Availability
View on Model
1
LINER (NOT A SERVICEABLE PART)
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
2
EVAPORATOR
EVAPORATOR WPL W10455861 Contact Us For Availability
View on Model
2
KNOB, CONTROL
KNOB, CONTROL WPL 382390001 Contact Us For Availability
View on Model
3
TRIM, TOE KICK (WHITE)
TRIM, TOE KICK (WHITE) WPL 460461006 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 324004107 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 324004092 Contact Us For Availability
View on Model
5
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
5
SHELF, FROST FREE
SHELF, FROST FREE WPL 482977001 Contact Us For Availability
View on Model
6
HINGE, TOP FC (WHITE)
HINGE, TOP FC (WHITE) WPL 281016105 Contact Us For Availability
View on Model
6
BASKET, WIRE
BASKET, WIRE WPL 460064001 Contact Us For Availability
View on Model
7
HINGE, BOTTOM
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
View on Model
7
TIMER, DEFROST
TIMER, DEFROST WPL 381329 Contact Us For Availability
View on Model
8
LEG, LEVELER (BLACK)
LEG, LEVELER (BLACK) WPL 382710001 Contact Us For Availability
View on Model
8
SWITCH, LIGHT
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
9
AIR DIFFUSER, SHORT
AIR DIFFUSER, SHORT WPL 482573002 Contact Us For Availability
View on Model
10
GROMMET, DRAIN
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
View on Model
10
BULB, LIGHT
BULB, LIGHT WPL 134291002 Contact Us For Availability
View on Model
11
CLIP, EVAPORATOR MOTOR
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
View on Model
11
CLAMP, TUBE
CLAMP, TUBE WPL 325095011 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 380675105 Contact Us For Availability
View on Model
12
SHIELD, CORNER CONTROL
SHIELD, CORNER CONTROL WPL 382392001 Contact Us For Availability
View on Model
13
HOUSING, CORNER CONTROL
HOUSING, CORNER CONTROL WPL 482389002 Contact Us For Availability
View on Model
14
SHELF, SLIDE OUT
SHELF, SLIDE OUT WPL 482634001 Contact Us For Availability
View on Model
15
AIR DIFFUSER, LONG
AIR DIFFUSER, LONG WPL 482556002 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``)
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH TORX KEY
TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL
MISCELLANEOUS, CLEANER, STAINLESS STEEL WPL 20000008 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
