Model Whirlpool EV188NYWQ02 FREEZER – Common Parts & Diagrams
01 - COVER SHEET
06 - OPTIONAL PARTS (NOT INCLUDED)

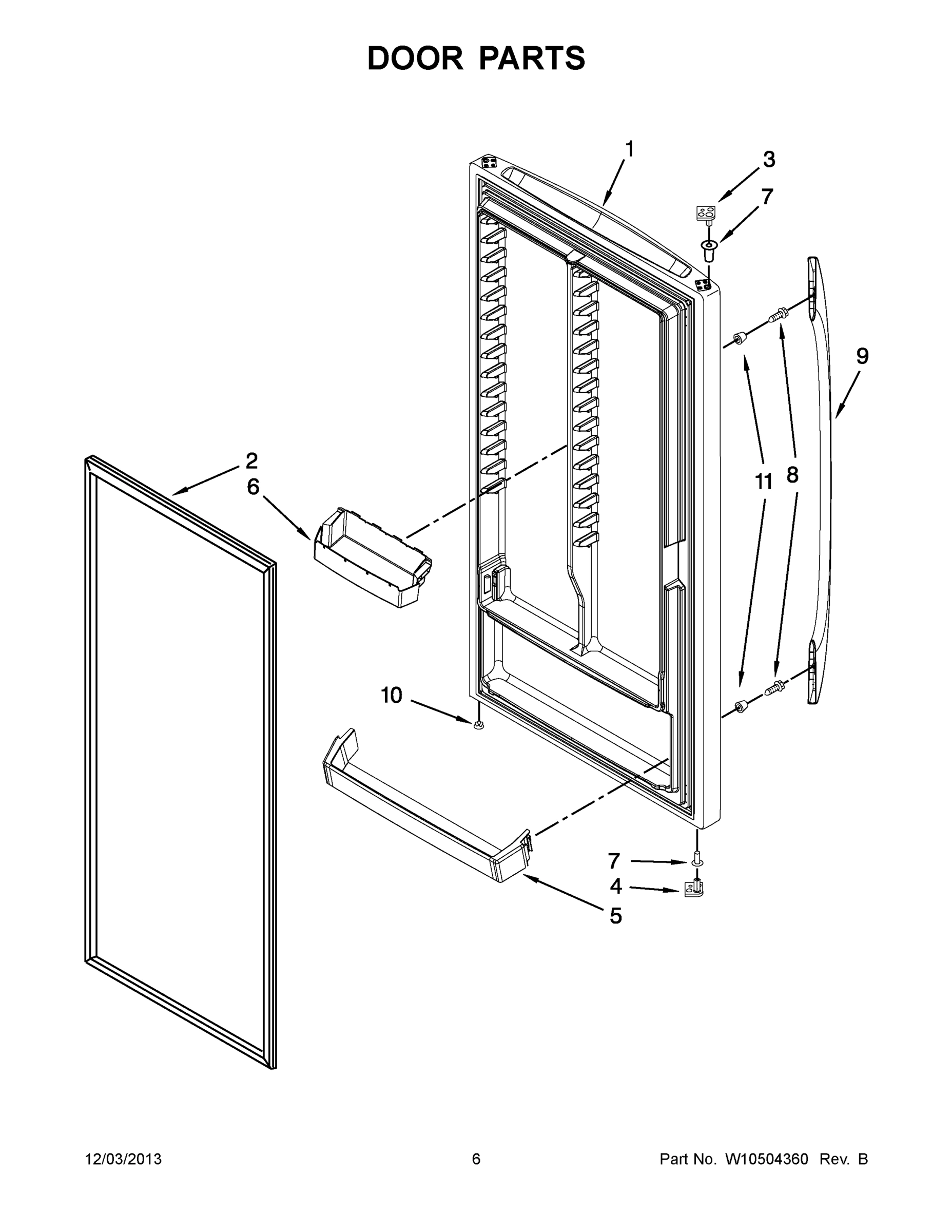

04 - DOOR PARTS

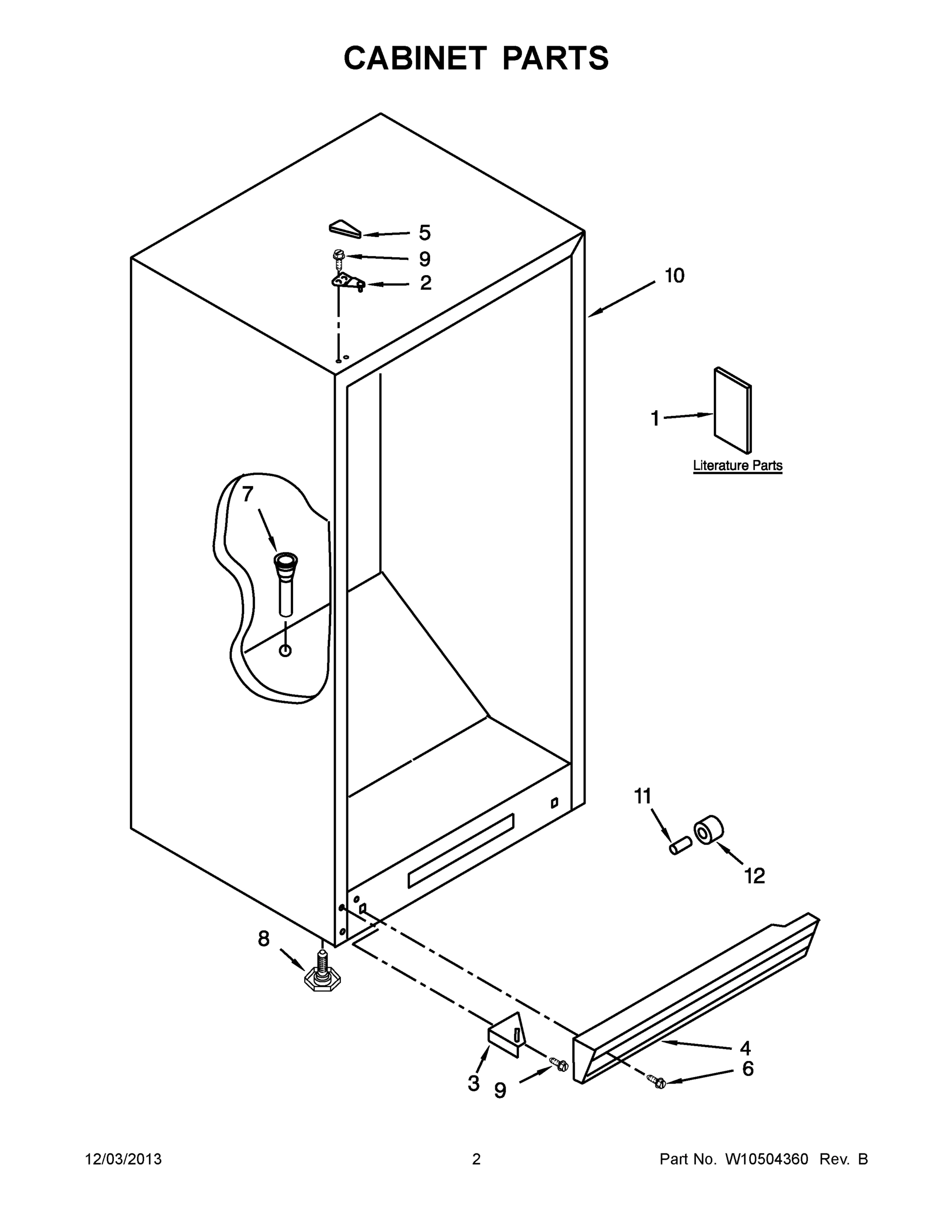

02 - CABINET PARTS
03 - LINER PARTS

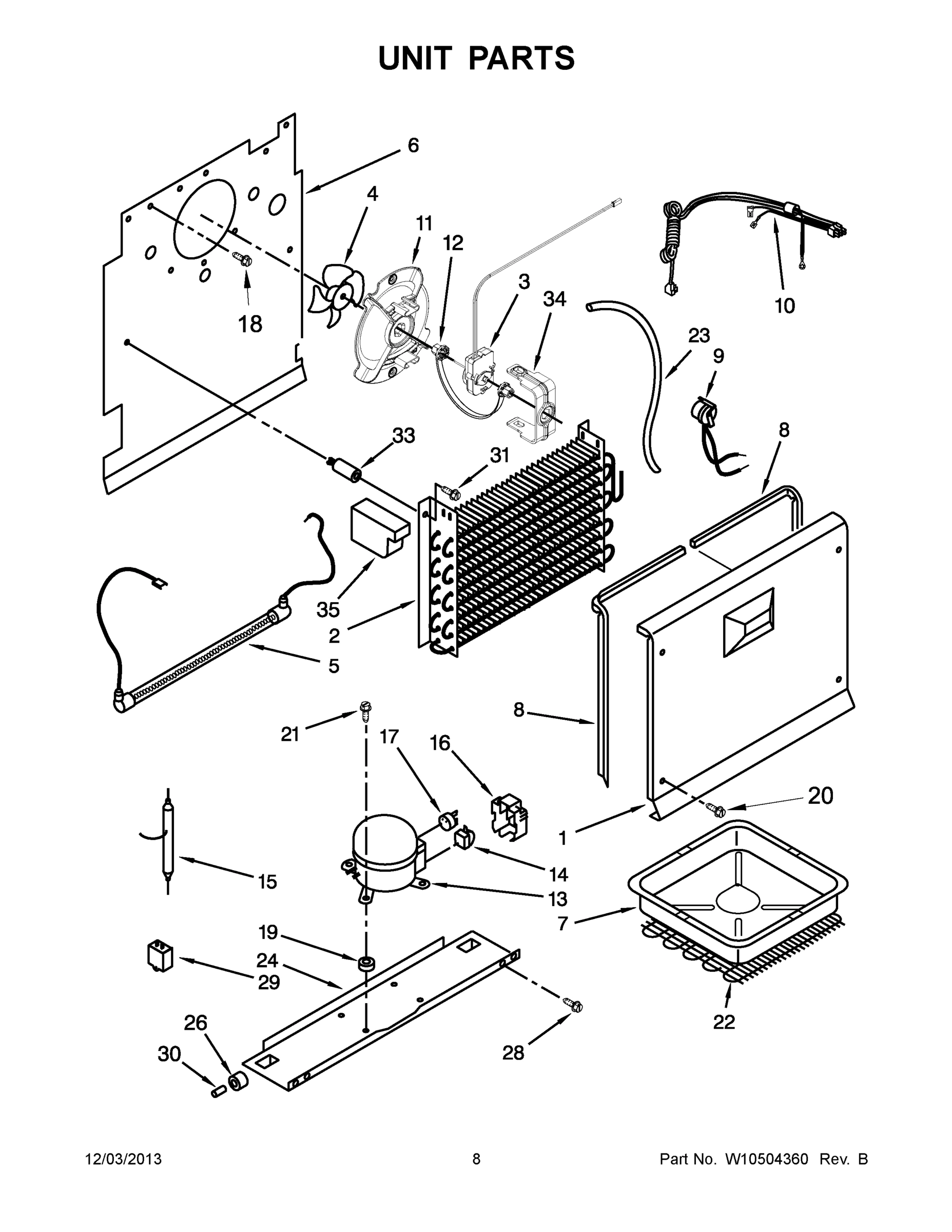

05 - UNIT PARTS
Common parts from model Whirlpool EV188NYWQ02 FREEZER
1
USE AND CARE GUIDE WPL W10326801 Contact Us For Availability
1
ENERGY GUIDE WPL W10326807 Contact Us For Availability
1
COVER, ICEMAKER HOLE WPL 160123001 Contact Us For Availability
1
COVER, EVAPORATOR WPL W10452370 Contact Us For Availability
2
EVAPORATOR WPL W10455861 Contact Us For Availability
2
HINGE, TOP (WHITE) WPL 281016105 Contact Us For Availability
2
HINGE, TOP (SILVER) WPL 281016107 Contact Us For Availability
2
BASKET, WIRE WPL W10508630 Contact Us For Availability
3
HINGE, BOTTOM (SILVER) WPL 482693012 Contact Us For Availability
3
HINGE, BOTTOM (WHITE) WPL 482693014 Contact Us For Availability
3
SHROUD, CONDENSER MOTOR WPL 482690001 Contact Us For Availability
4
GRILLE (WHITE) WPL 460461005 Contact Us For Availability
4
GRILLE (SILVER) WPL 460461010 Contact Us For Availability
5
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
5
COVER, HINGE (SILVER) WPL 380838007 Contact Us For Availability
5
KNOB, THERMOSTAT WPL 481294004 Contact Us For Availability
6
SCREW WPL 324004107 Contact Us For Availability
6
TIMER, DEFROST WPL 381329 Contact Us For Availability
7
GROMMET, DRAIN WPL W10558247 Contact Us For Availability
7
PAN, DRAIN WPL 482749001 Contact Us For Availability
8
LEG, LEVELING (BLACK) WPL 382710001 Contact Us For Availability
8
BULB, LIGHT WPL 134291002 Contact Us For Availability
8
GASKET, EVAPORATOR COVER (RIGHT SIDE) WPL 360180001 Contact Us For Availability
8
GASKET, EVAPORATOR COVER (LEFT SIDE) WPL 360180002 Contact Us For Availability
9
SCREW WPL 180271106 Contact Us For Availability
9
SHIELD, LIGHT WPL 360197001 Contact Us For Availability
10
PLATE, THERMOSTAT WPL 181154 Contact Us For Availability
10
CORD, POWER WPL 482399001 Contact Us For Availability
11
STUD, HANDLE WPL 282532001 Contact Us For Availability
11
SCREW WPL 180283110 Contact Us For Availability
12
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
13
MOTOR, CONDENSER WPL 482691001 Contact Us For Availability
13
COMPRESSOR WPL 432972143 Contact Us For Availability
14
SHELF, MIDDLE WPL 460209002 Contact Us For Availability
15
SHELF, TOP WPL 460207002 Contact Us For Availability
16
BRACKET, MOTOR WPL 382685001 Contact Us For Availability
17
SCREW WPL 380732014 Contact Us For Availability
17
PROTECTOR, OVERLOAD WPL 234286037 Contact Us For Availability
18
HOUSING, LIGHT SOCKET WPL 460185002 Contact Us For Availability
18
SCREW WPL 380732004 Contact Us For Availability
19
BLADE, CONDENSER FAN WPL 382692001 Contact Us For Availability
20
BASKET, WIRE WPL W10508628 Contact Us For Availability
20
SCREW WPL W10451793 Contact Us For Availability
21
DIFFUSER, LONG AIR WPL 482556002 Contact Us For Availability
21
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
22
DIFFUSER, SHORT AIR WPL 482573002 Contact Us For Availability
22
CONDENSER WPL 482683001 Contact Us For Availability
24
PAN, COMPRESSOR WPL W10470129 Contact Us For Availability
26
ROLLER, FRONT WPL 360315001 Contact Us For Availability
28
SCREW WPL 324838048 Contact Us For Availability
29
CAPACITOR WPL 335956013 Contact Us For Availability
30
AXLE WPL 160316001 Contact Us For Availability
31
SCREW WPL 324004079 Contact Us For Availability
33
GROMMET WPL 180275101 Contact Us For Availability
34
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
Refinishing Material (White) WPL 799344 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.8 OZ. (R-134A)) WPL NP Contact Us For Availability
× ![]()
