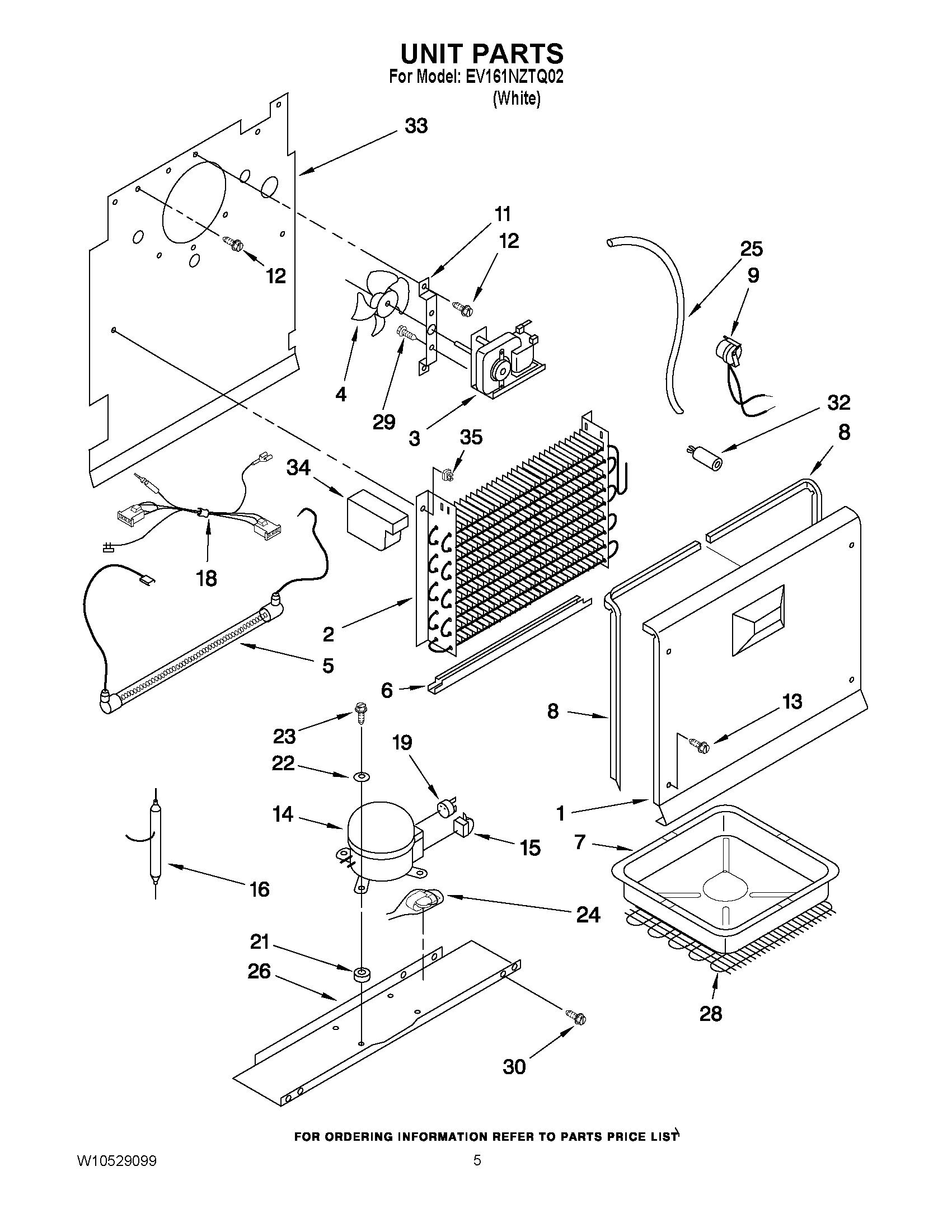

Model Whirlpool EV161NZTQ02 VERTICAL FREEZER – Common Parts & Diagrams

1
COVER, EVAPORATOR
COVER, EVAPORATOR WPL W10452370 Contact Us For Availability
View on Model
2
EVAPORATOR
EVAPORATOR WPL W10455861 Contact Us For Availability
View on Model
2
GRILLE
GRILLE WPL 460461001 Contact Us For Availability
View on Model
3
POWER LIGHT ASSEMBLY
POWER LIGHT ASSEMBLY WPL 382130001 Contact Us For Availability
View on Model
4
COVER, HINGE
COVER, HINGE WPL 380838003 Contact Us For Availability
View on Model
5
HINGE, TOP
HINGE, TOP WPL 281016105 Contact Us For Availability
View on Model
6
HINGE, BOTTOM
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
View on Model
6
SHIELD, HEATER
SHIELD, HEATER WPL W10508692 Contact Us For Availability
View on Model
7
PLUG, HOLE
PLUG, HOLE WPL 225702008 Contact Us For Availability
View on Model
7
PAN, DRAIN
PAN, DRAIN WPL 482674001 Contact Us For Availability
View on Model
8
LEG, LEVELER
LEG, LEVELER WPL 382710001 Contact Us For Availability
View on Model
8
GASKET, COVER EVAPORATOR (RIGHT)
GASKET, COVER EVAPORATOR (RIGHT) WPL 360180001 Contact Us For Availability
View on Model
8
GASKET, COVER EVAPORATOR (LEFT)
GASKET, COVER EVAPORATOR (LEFT) WPL 360180002 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
10
GROMMET, DRAIN
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
View on Model
11
BRACKET, MOTOR
BRACKET, MOTOR WPL 13058002 Contact Us For Availability
View on Model
11
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
13
CLAMP, TUBE
CLAMP, TUBE WPL 325095011 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL W10451793 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 380675105 Contact Us For Availability
View on Model
14
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21)
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21) WPL 432972142 Contact Us For Availability
View on Model
16
DRIER
DRIER WPL 381459002 Contact Us For Availability
View on Model
19
OVERLOAD
OVERLOAD WPL 234286038 Contact Us For Availability
View on Model
22
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
23
BOLT, COMPRESSOR
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
View on Model
24
ALARM (BUZZER)
ALARM (BUZZER) WPL 382728001 Contact Us For Availability
View on Model
28
CONDENSER
CONDENSER WPL 482234002 Contact Us For Availability
View on Model
29
SCREW
SCREW WPL 380732004 Contact Us For Availability
View on Model
30
SCREW
SCREW WPL 324838048 Contact Us For Availability
View on Model
32
Grommet
Grommet WPL 4357020 Contact Us For Availability
View on Model
35
SCREW
SCREW WPL 10623002 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``)
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
View on Model
NI
REFRIGERANT CHARGE 6.2 OZ. (R-134A)
REFRIGERANT CHARGE 6.2 OZ. (R-134A) WPL NP Contact Us For Availability
View on Model
