Model Whirlpool EV040FXHW00 VERTICAL FREEZER – Common Parts & Diagrams

1

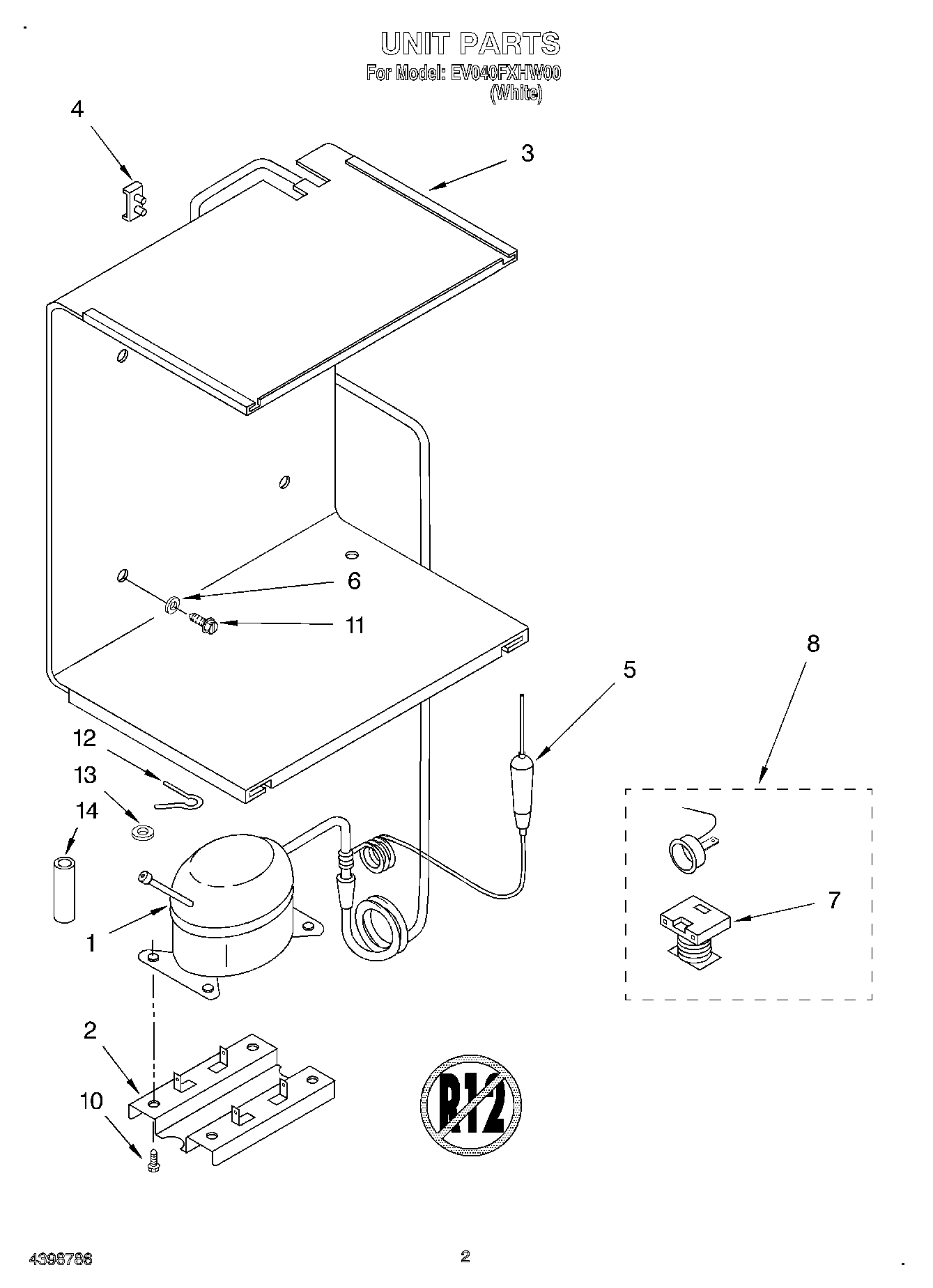

Compressor
Compressor WPL 4312548 Contact Us For Availability
View on Model
1

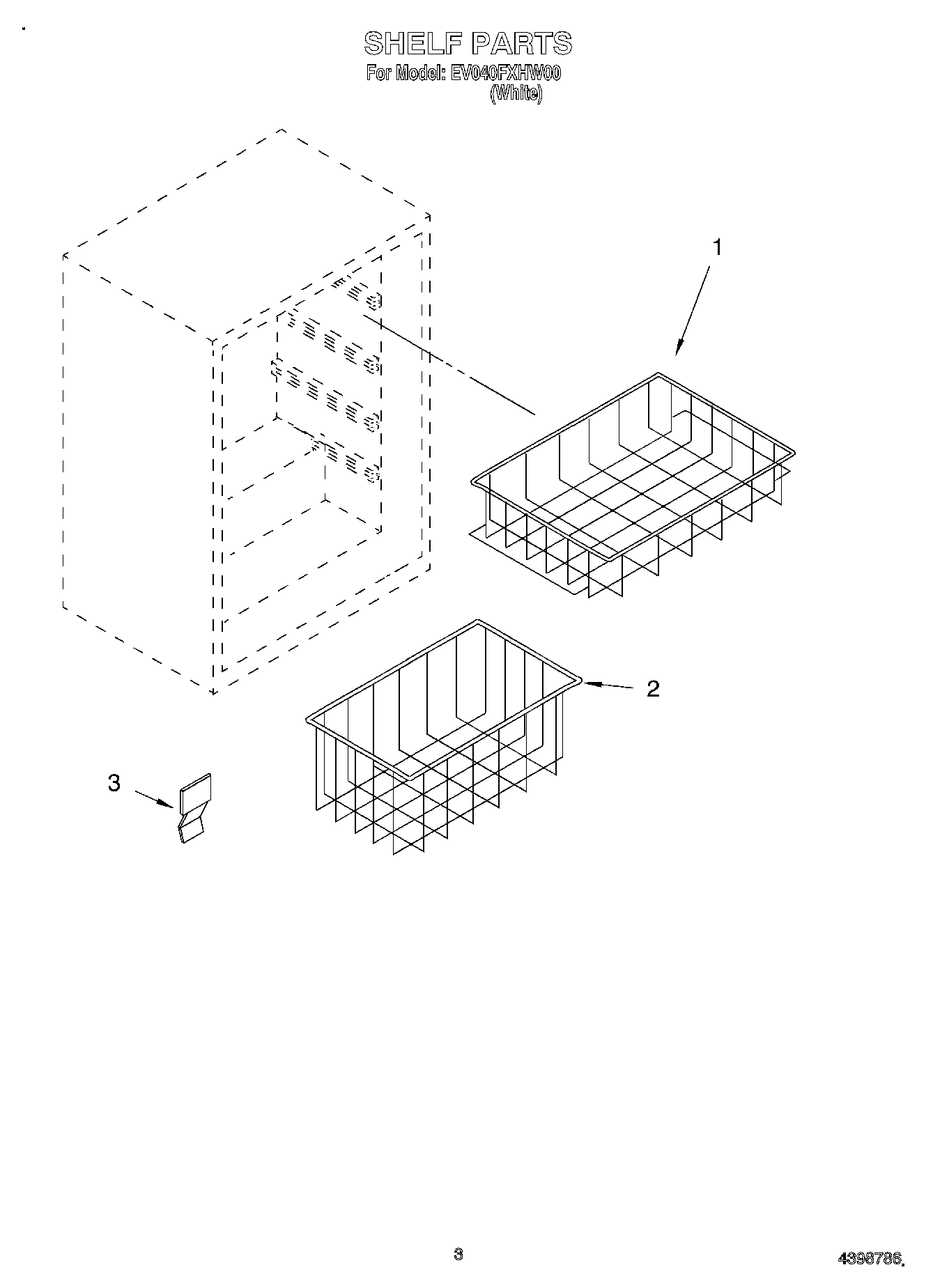

Shelf, Top
Shelf, Top WPL 4312550 Contact Us For Availability
View on Model
1
Door
Door WPL 4312553 Contact Us For Availability
View on Model
1
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI55564A2 Contact Us For Availability
View on Model
2
Base, Compressor
Base, Compressor WPL 4312457 Contact Us For Availability
View on Model
2
Shelf, Bottom
Shelf, Bottom WPL 4312551 Contact Us For Availability
View on Model
2
Gasket
Gasket WPL 4312554 Contact Us For Availability
View on Model
3
Evaporator
Evaporator WPL 4312546 Contact Us For Availability
View on Model
3
Spatula (White)
Spatula (White) WPL 4312552 Contact Us For Availability
View on Model
3
Hole Plug
Hole Plug WPL 4312479 Contact Us For Availability
View on Model
4
Retainer, Evaporator
Retainer, Evaporator WPL 4312459 Contact Us For Availability
View on Model
4
Nameplate
Nameplate WPL 4312520 Contact Us For Availability
View on Model
4
Shim, Hinge
Shim, Hinge WPL 4312438 Contact Us For Availability
View on Model
5
Strain Relief
Strain Relief WPL 4312439 Contact Us For Availability
View on Model
6
Washer
Washer WPL 4312461 Contact Us For Availability
View on Model
6
Bushing, Hinge
Bushing, Hinge WPL 4312440 Contact Us For Availability
View on Model
7
Relay (See Overload)
Relay (See Overload) WPL ARI55565A8 Contact Us For Availability
View on Model
7
Thermostat
Thermostat WPL 4312537 Contact Us For Availability
View on Model
8
Overload (Includes Relay)
Overload (Includes Relay) WPL 4312549 Contact Us For Availability
View on Model
8
Knob, Thermostat
Knob, Thermostat WPL 4312541 Contact Us For Availability
View on Model
9
Control Box
Control Box WPL 4312542 Contact Us For Availability
View on Model
12
Pin, Cotter
Pin, Cotter WPL 4312465 Contact Us For Availability
View on Model
13
Washer
Washer WPL 4312466 Contact Us For Availability
View on Model
14
Gasket
Gasket WPL 4312547 Contact Us For Availability
View on Model
14
Cap, Leveler
Cap, Leveler WPL 4312536 Contact Us For Availability
View on Model
15
Hole Plug
Hole Plug WPL 4312447 Contact Us For Availability
View on Model
16
Filler, Wrapper
Filler, Wrapper WPL 4312448 Contact Us For Availability
View on Model
17
Box, Junction
Box, Junction WPL 4312514 Contact Us For Availability
View on Model
18
Screw
Screw WPL 4312544 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4312453 Contact Us For Availability
View on Model
23
Leveler
Leveler WPL 4312543 Contact Us For Availability
View on Model
24
Screw
Screw WPL 4312454 Contact Us For Availability
View on Model
26
Cover, Cabinet
Cover, Cabinet WPL 4312482 Contact Us For Availability
View on Model
27
Kit, Leg Leveler
Kit, Leg Leveler WPL 4312555 Contact Us For Availability
View on Model
28
Cup, Drain
Cup, Drain WPL 4312534 Contact Us For Availability
View on Model
29
Cup, Drain Gutter
Cup, Drain Gutter WPL 4312535 Contact Us For Availability
View on Model
30
Tube, Thermostat Barrier
Tube, Thermostat Barrier WPL 4312538 Contact Us For Availability
View on Model
31
Bracket, Thermo.
Bracket, Thermo. WPL 4312539 Contact Us For Availability
View on Model
32
Wiring Harness
Wiring Harness WPL 4312545 Contact Us For Availability
View on Model
