Model Whirlpool ET25DQRDN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - REFRIGERATOR DOOR
08 - MOTOR AND ICE CONTAINER

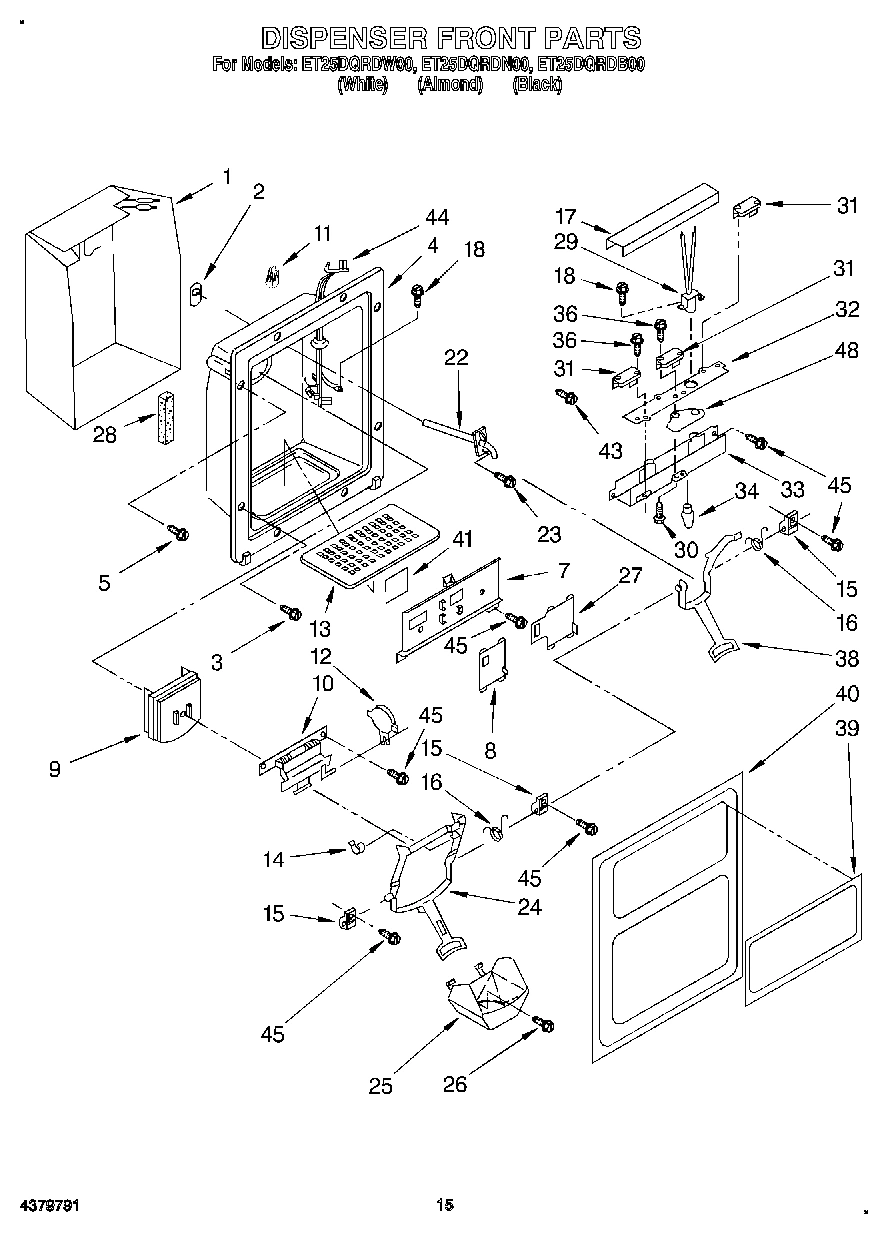

09 - DISPENSER FRONT
10 - ICEMAKER

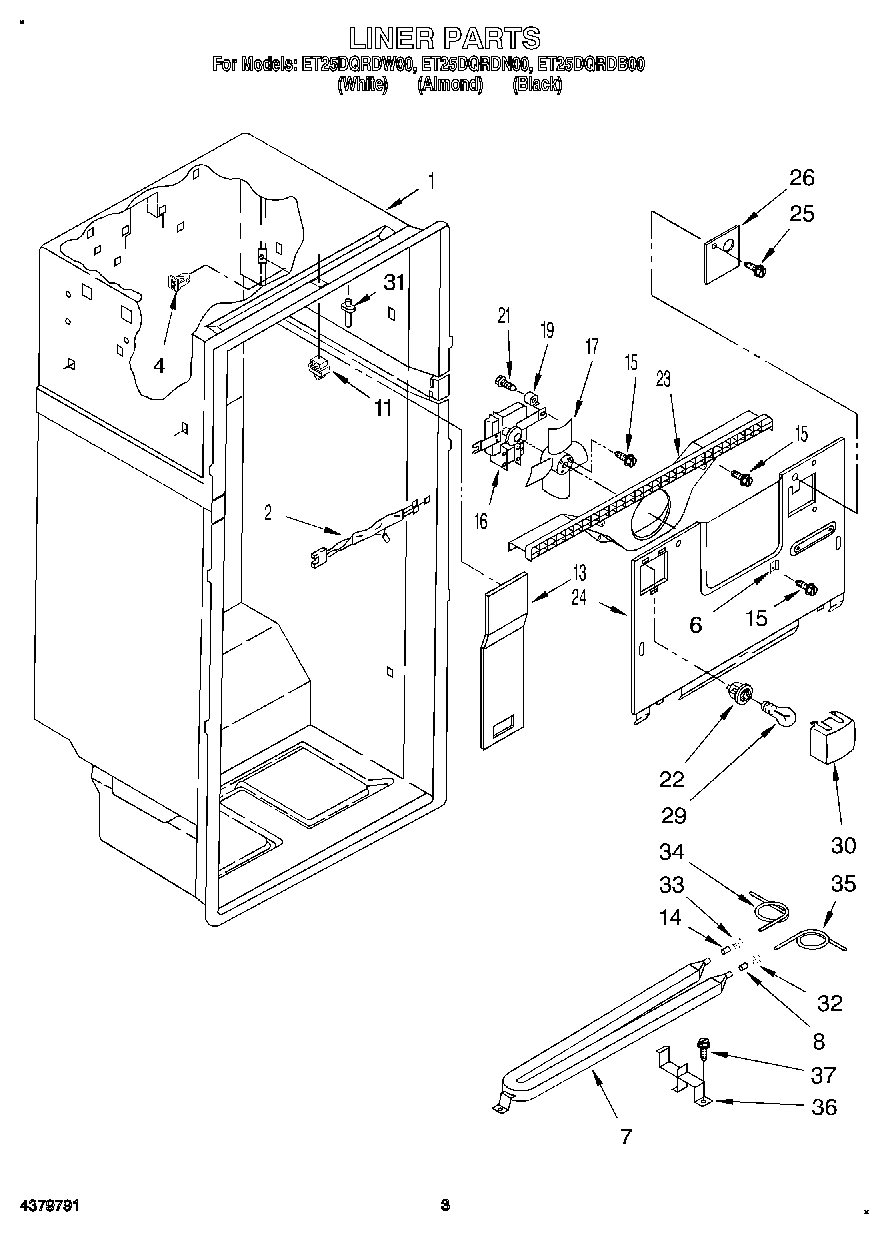

02 - LINER
04 - FREEZER DOOR

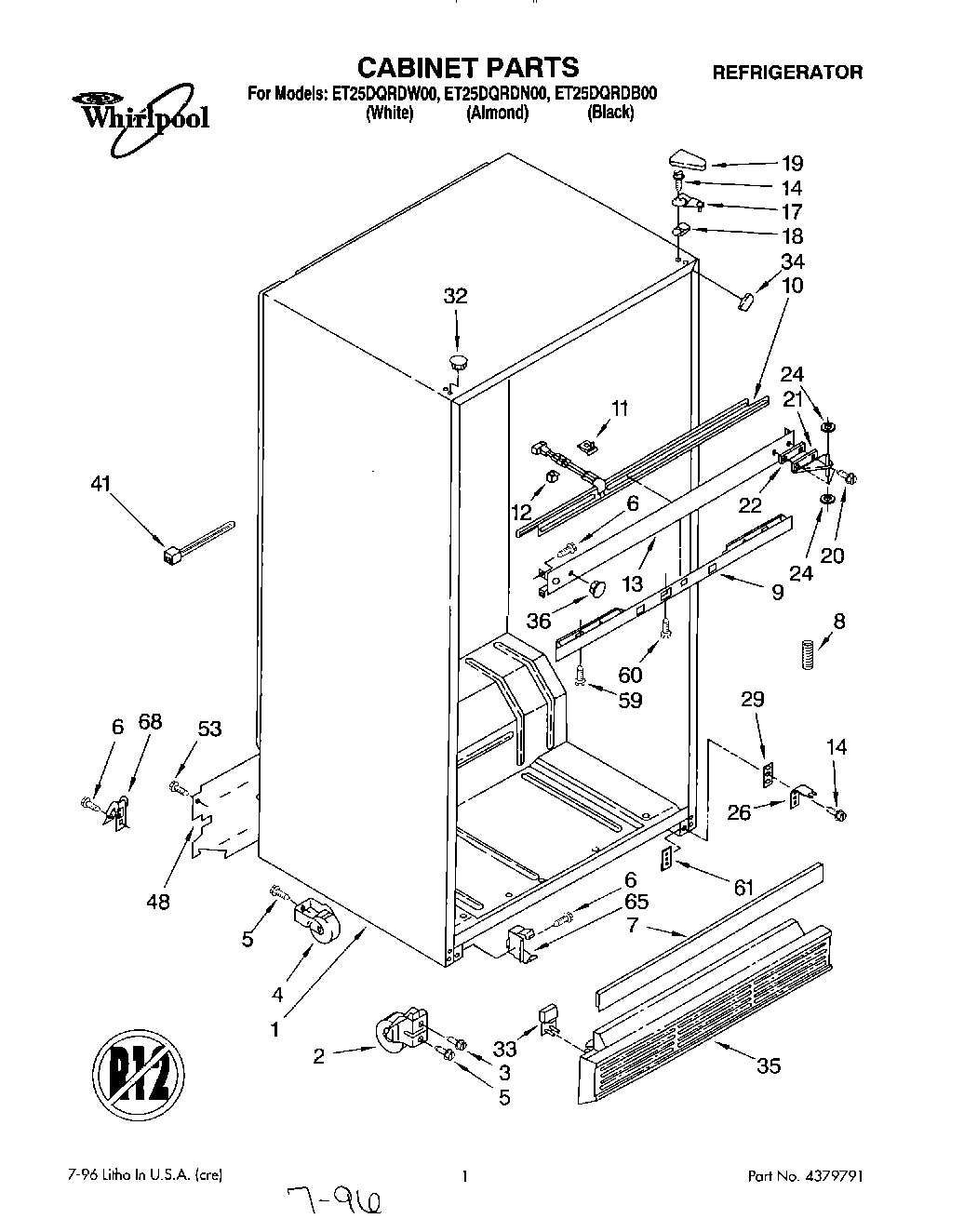

01 - CABINET

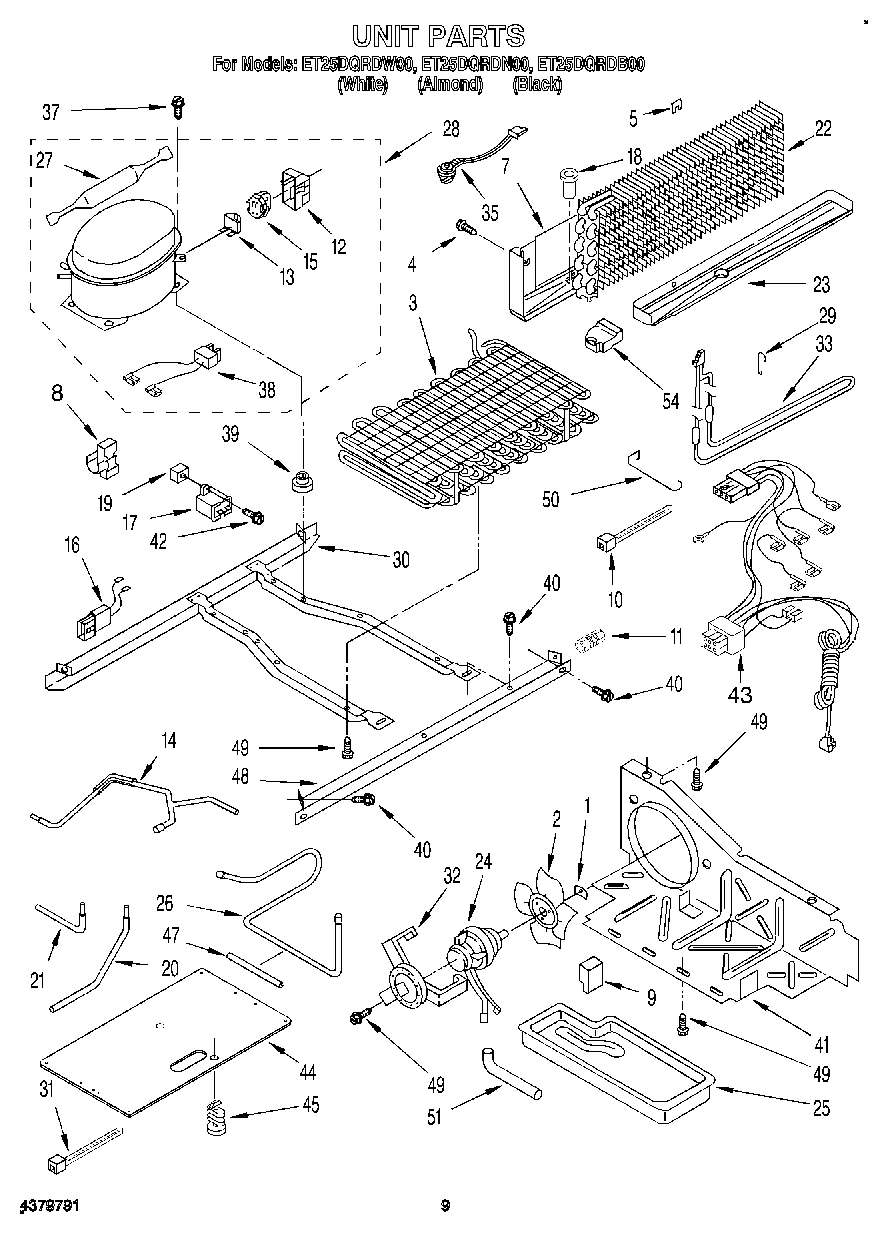

06 - UNIT

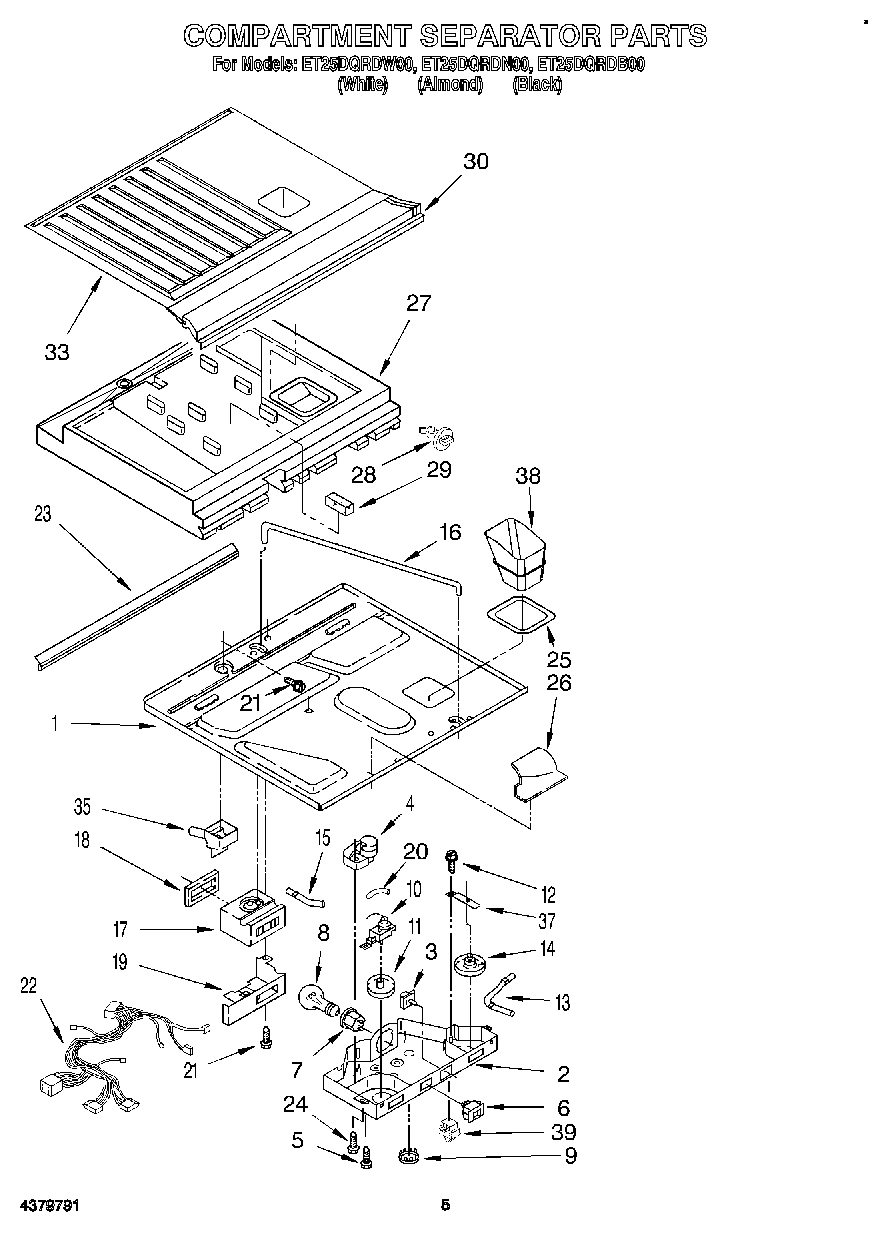

03 - COMPARTMENT SEPARATOR

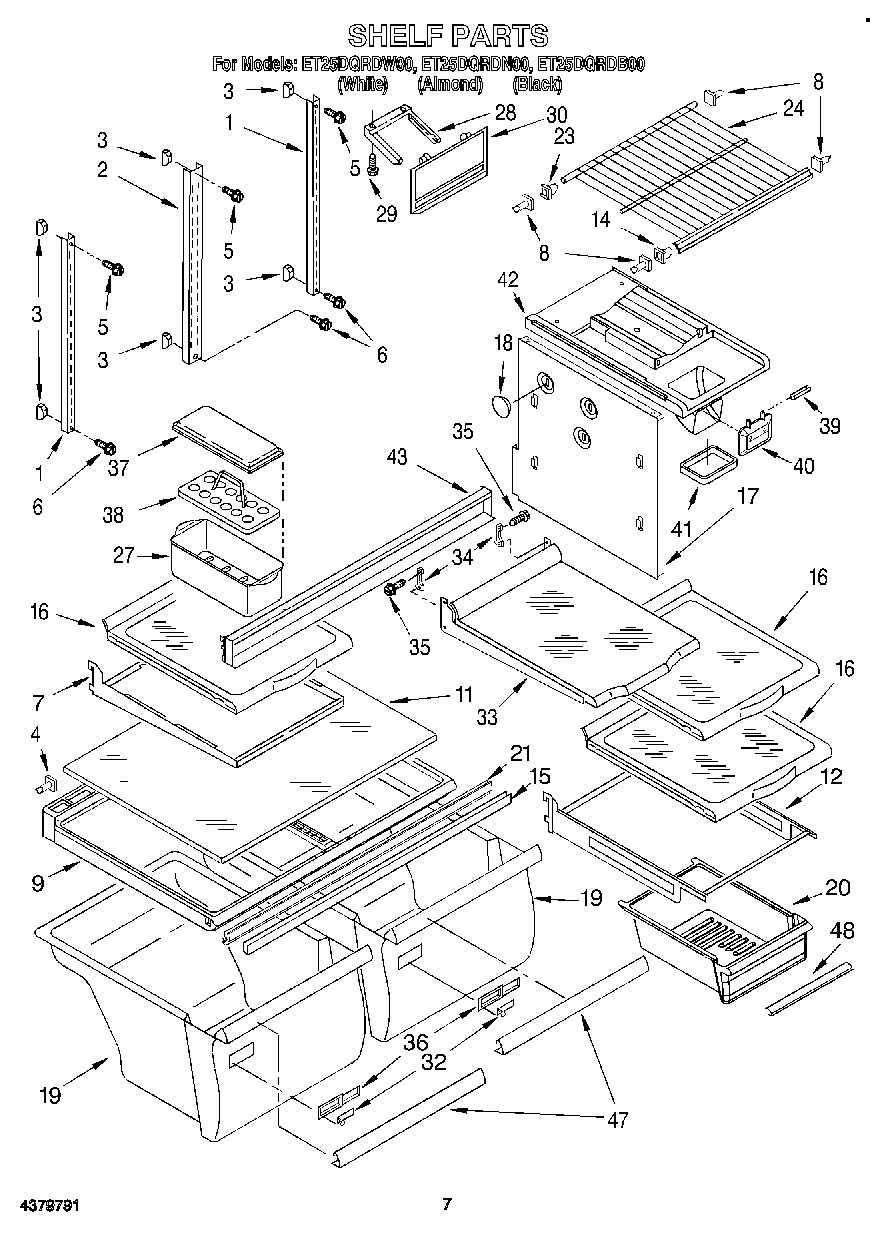

05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET25DQRDN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175885 WPL LIT2175885 Contact Us For Availability
WPL LIT2176903 WPL LIT2176903 Contact Us For Availability
WPL LIT2180547 WPL LIT2180547 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50393A1 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50392A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172830 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Box, Control WPL 2174823 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Grommet WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2174039 Contact Us For Availability
8
Door Gasket Magnetic (Mist Beige) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
9
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Crisper Cover WPL 2179421 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Knob, Thermostat WPL 2174826 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174146 Contact Us For Availability
12
Handle, Center (White) WPL 2179308 Contact Us For Availability
12
Handle, Center (Almond) WPL 2179309 Contact Us For Availability
12
Handle, Center (Black) WPL 2179310 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Shelf Assembly, Spillguard WPL 2174044 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
14
Shelf Stud (2) WPL 946356 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
15
Interior Door Panel WPL 2171393 Contact Us For Availability
15
Relay (See Overload) WPL ARI50394A6 Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Crisper Support WPL 2179449 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174038 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Bin, Shelf (3) WPL 2169603 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Hole Plug (White) WPL 2174433 Contact Us For Availability
18
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
18
Hole Plug (Black) WPL 2174435 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
19
Grommet WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2179413 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
20
Pan, Meat WPL 2179414 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Crisper Gasket, Front WPL 2179393 Contact Us For Availability
22
Pin Plate (4) WPL 1118048 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Evaporator Cover WPL 2160647 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160696 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
26
Screw (Stainless Steel) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Pin Plate (2) WPL 1116986 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Reinforcement, Mid Door WPL 1118008 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Reinforcement, Side Door WPL 1118007 Contact Us For Availability
30
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
30
Door, Ice Compartment WPL 2170849 Contact Us For Availability
31
Trim, Door Shelf WPL 2171400 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
33
Slide Shelf, Assembly WPL 2174224 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (Black) WPL 2160687 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover, Egg Bin WPL 2169935 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever, Water Di WPL 2177150 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
WPL 2174331 WPL 2174331 Contact Us For Availability
39
WPL 2179206 WPL 2179206 Contact Us For Availability
39
WPL 2179207 WPL 2179207 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
40
WPL 2174309 WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Wire Assy WPL 2176859 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169801 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157364 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
48
WPL 799344 WPL 799344 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
48
Door Removal Instructions WPL 2169064 Contact Us For Availability
48
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
48
WPL 799833 WPL 799833 Contact Us For Availability
48
WPL 978883 WPL 978883 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
