Model Whirlpool ET25DQRAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

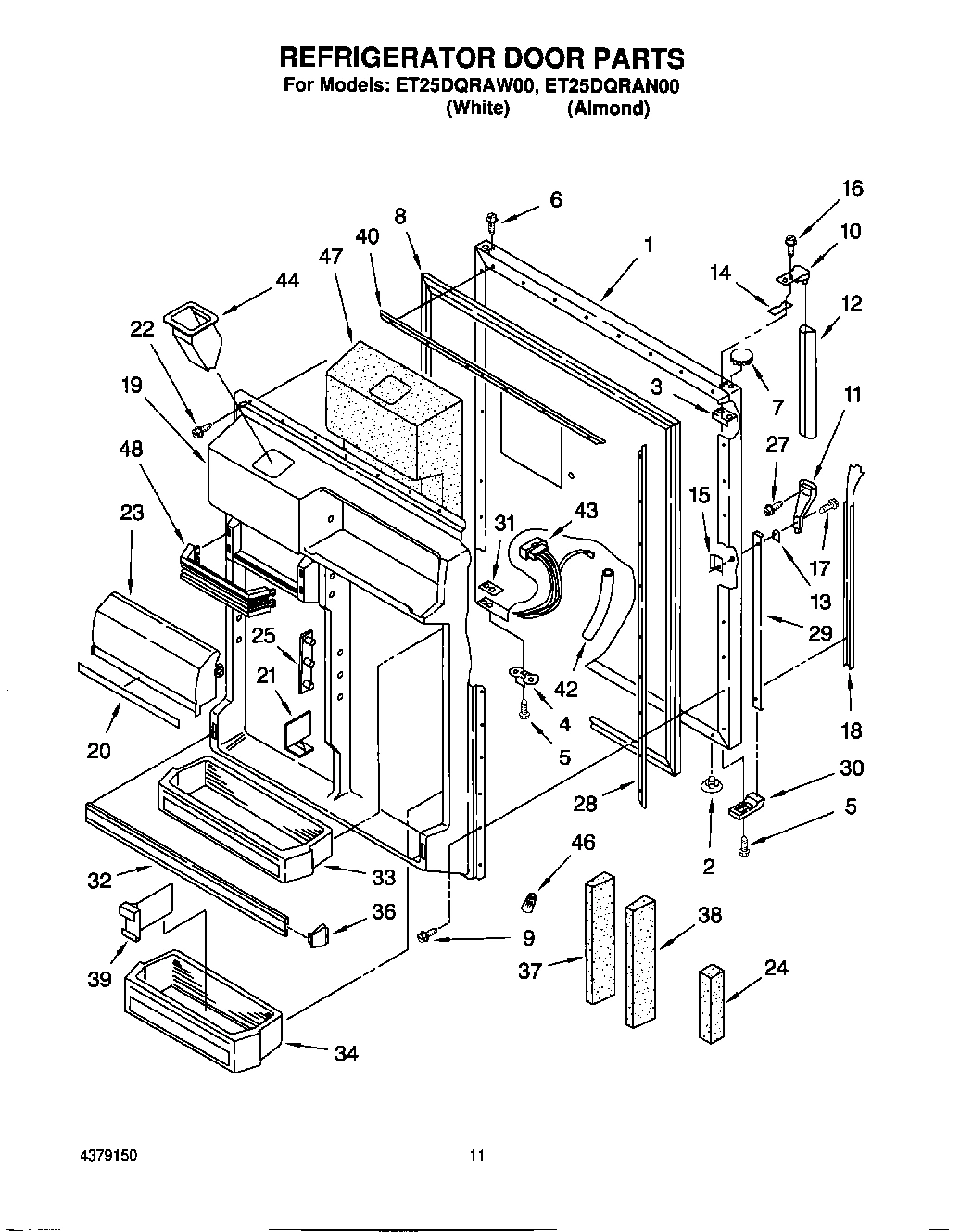

07 - REFRIGERATOR DOOR

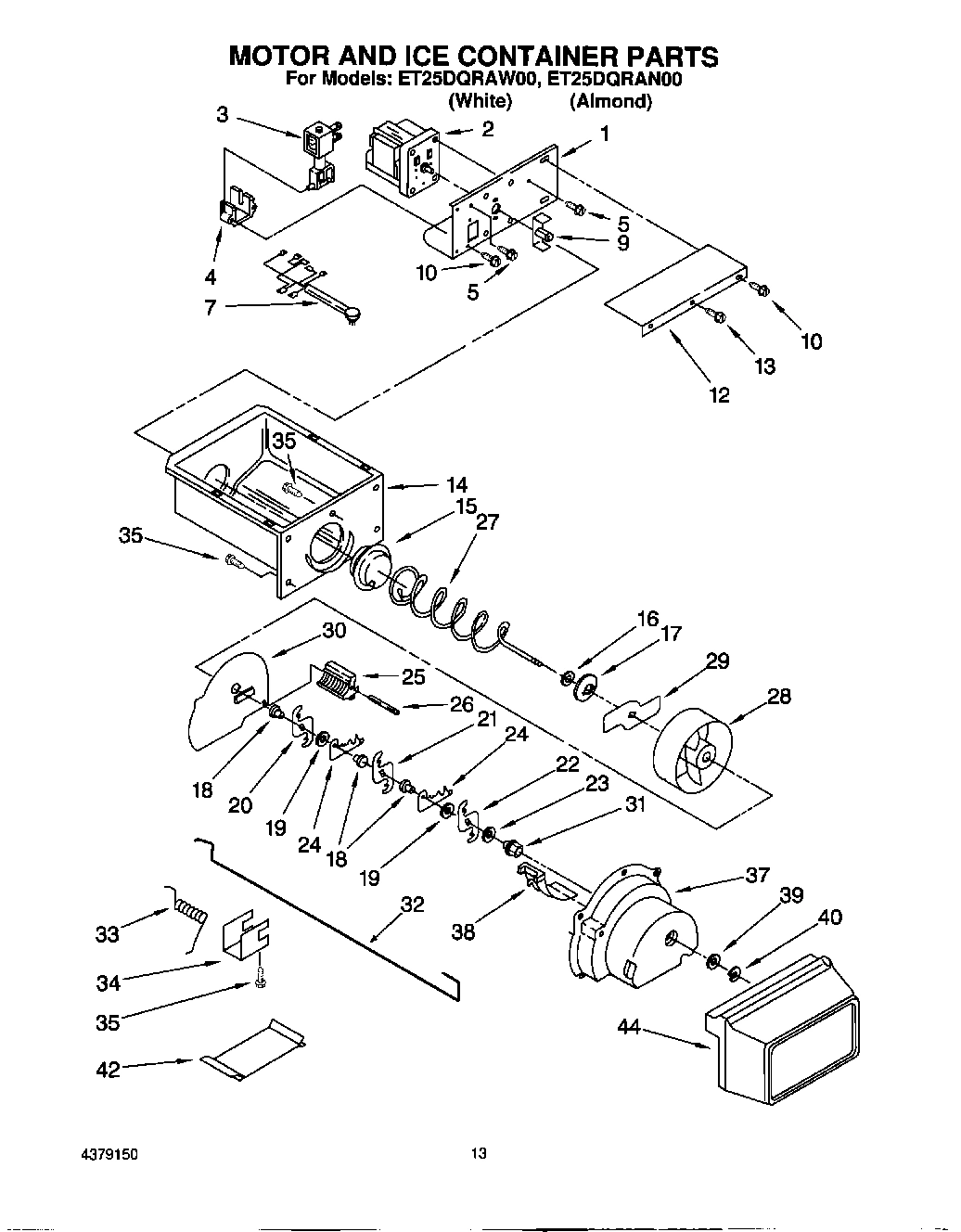

08 - MOTOR AND ICE CONTAINER

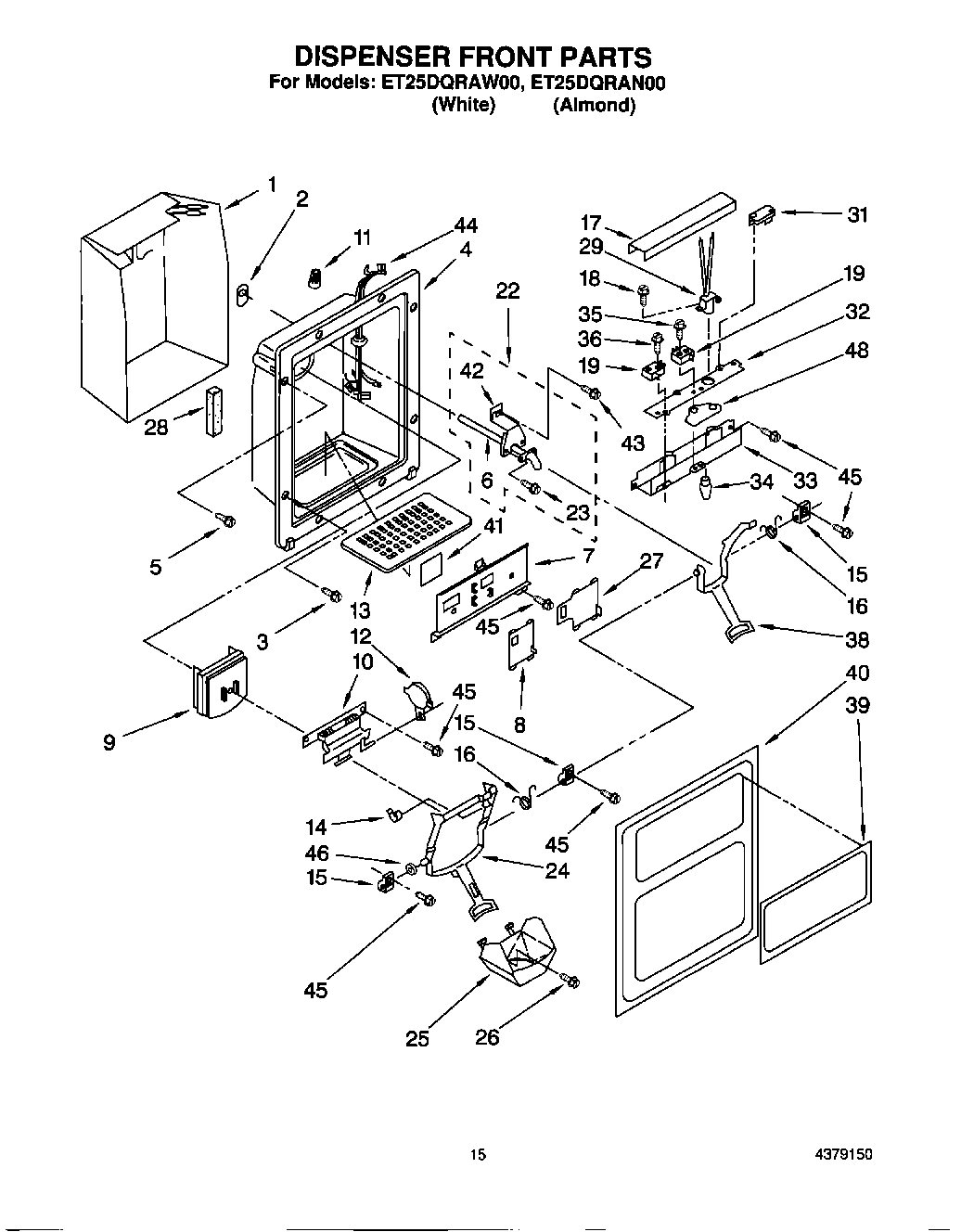

09 - DISPENSER FRONT

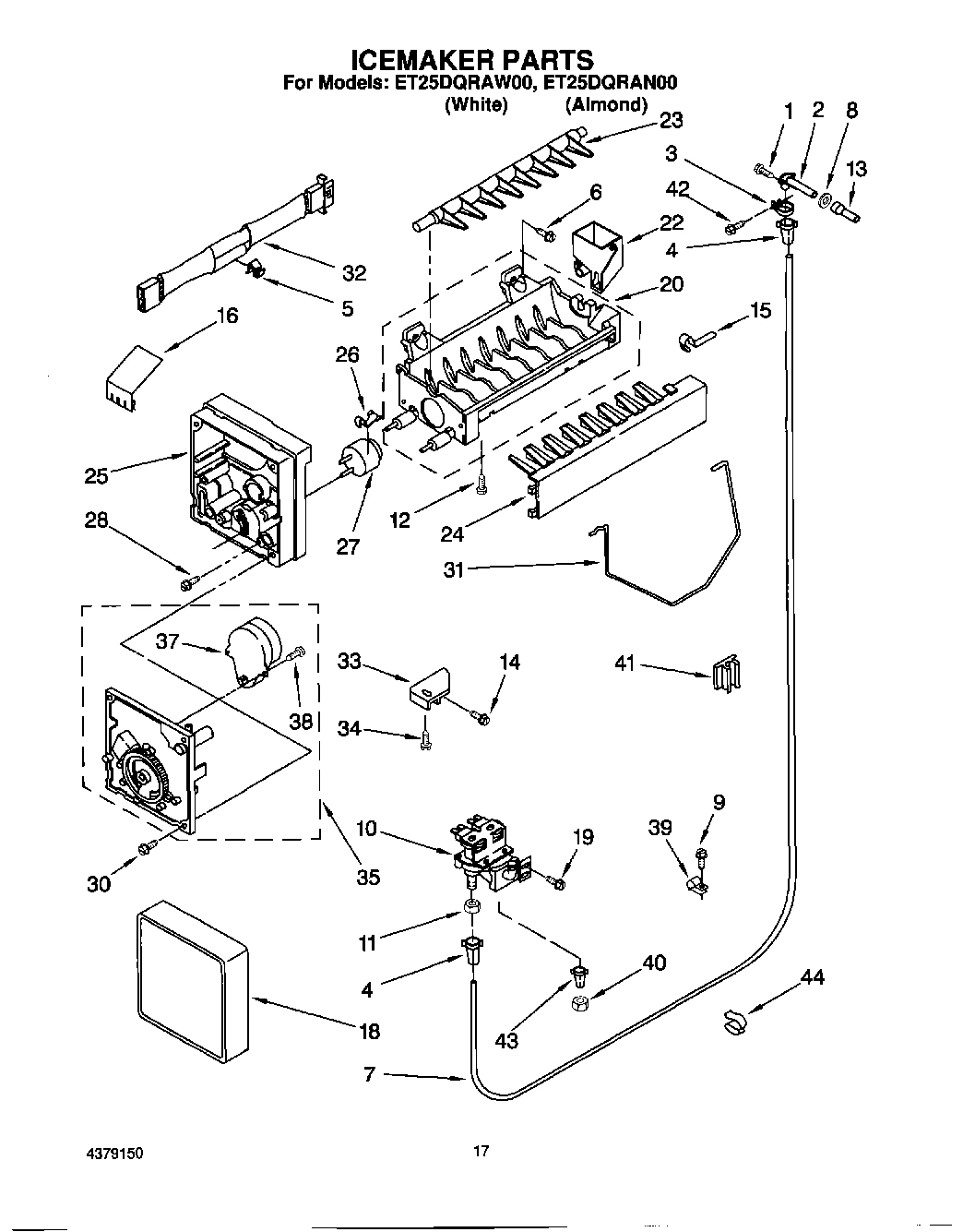

10 - ICEMAKER

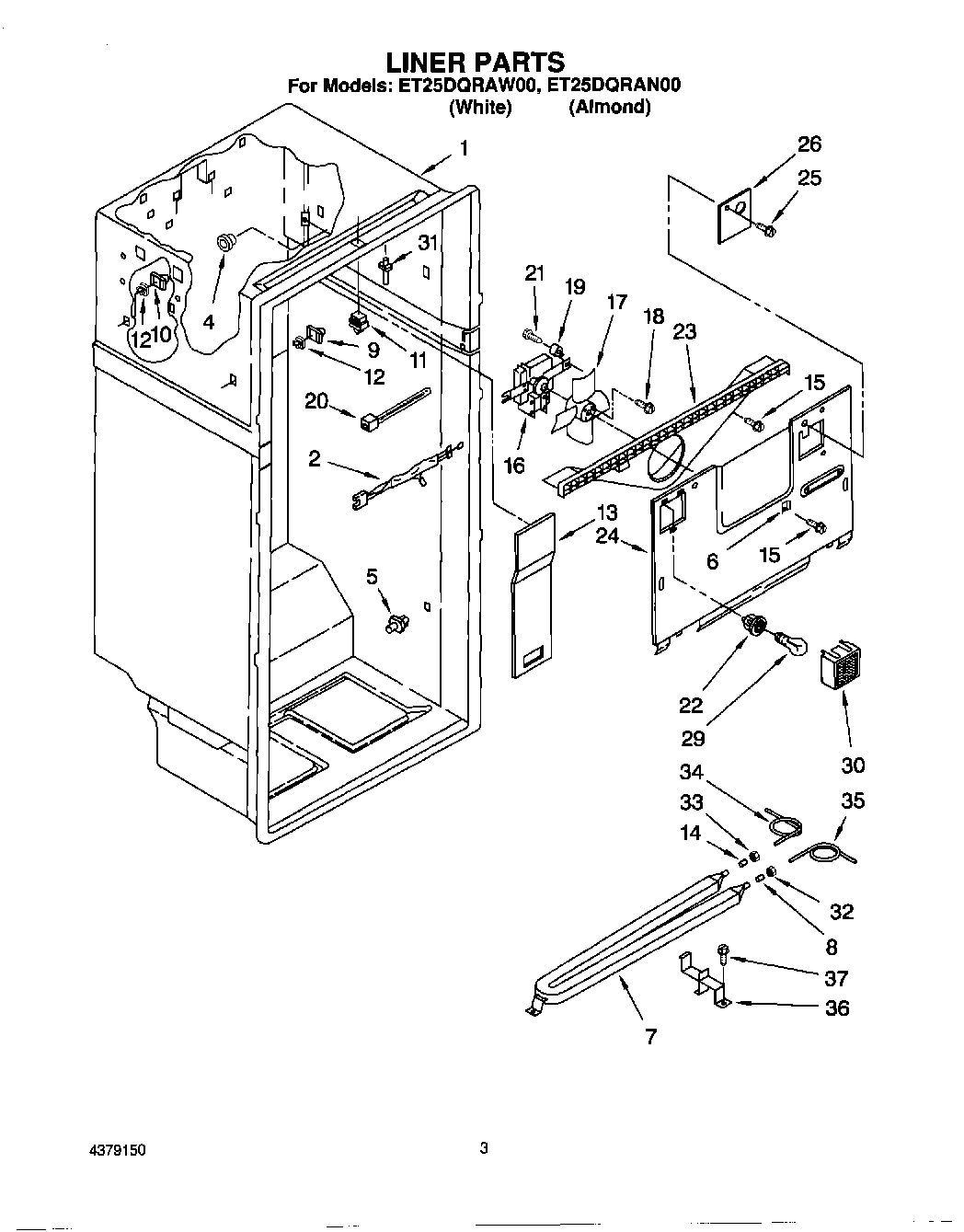

02 - LINER

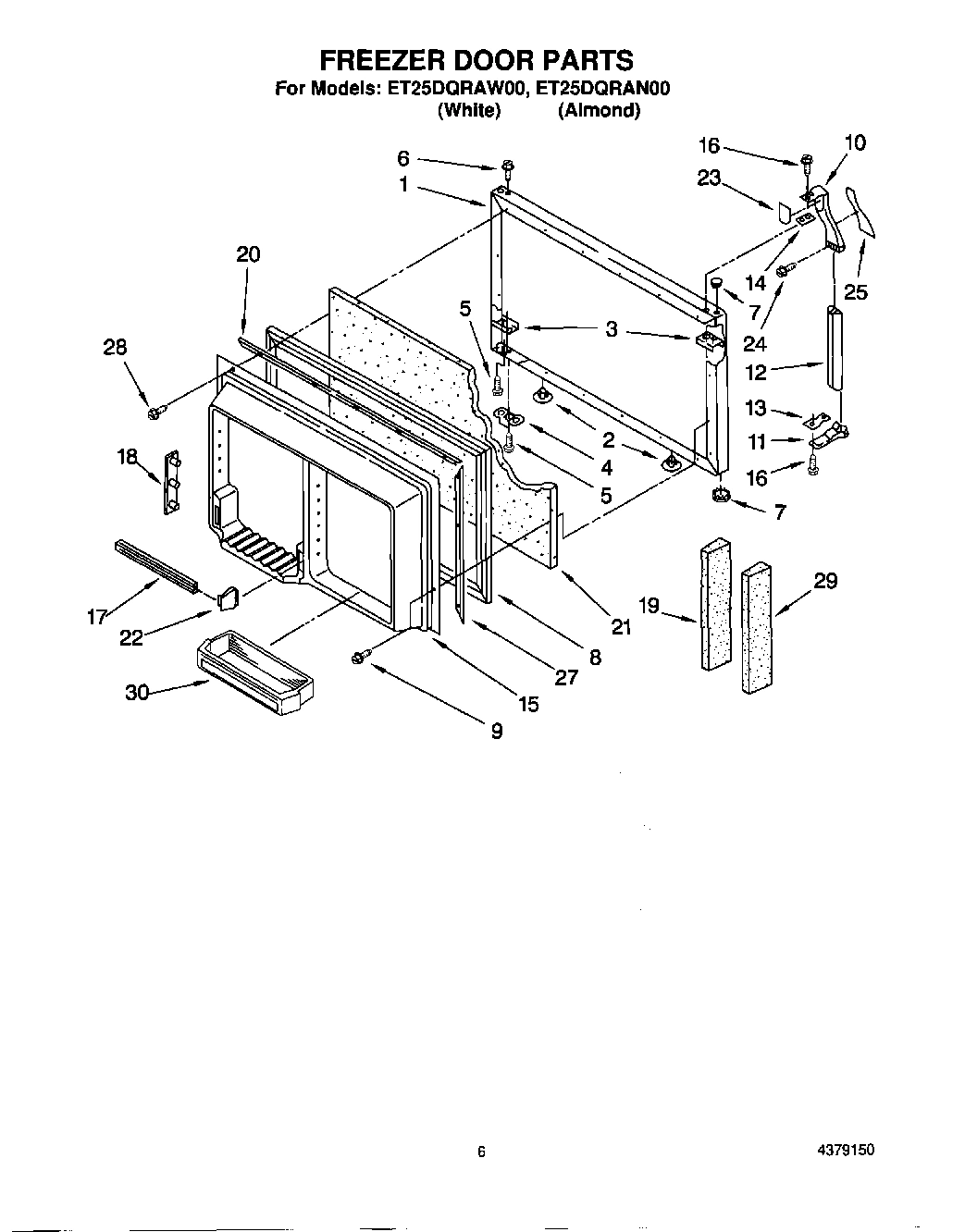

04 - FREEZER DOOR

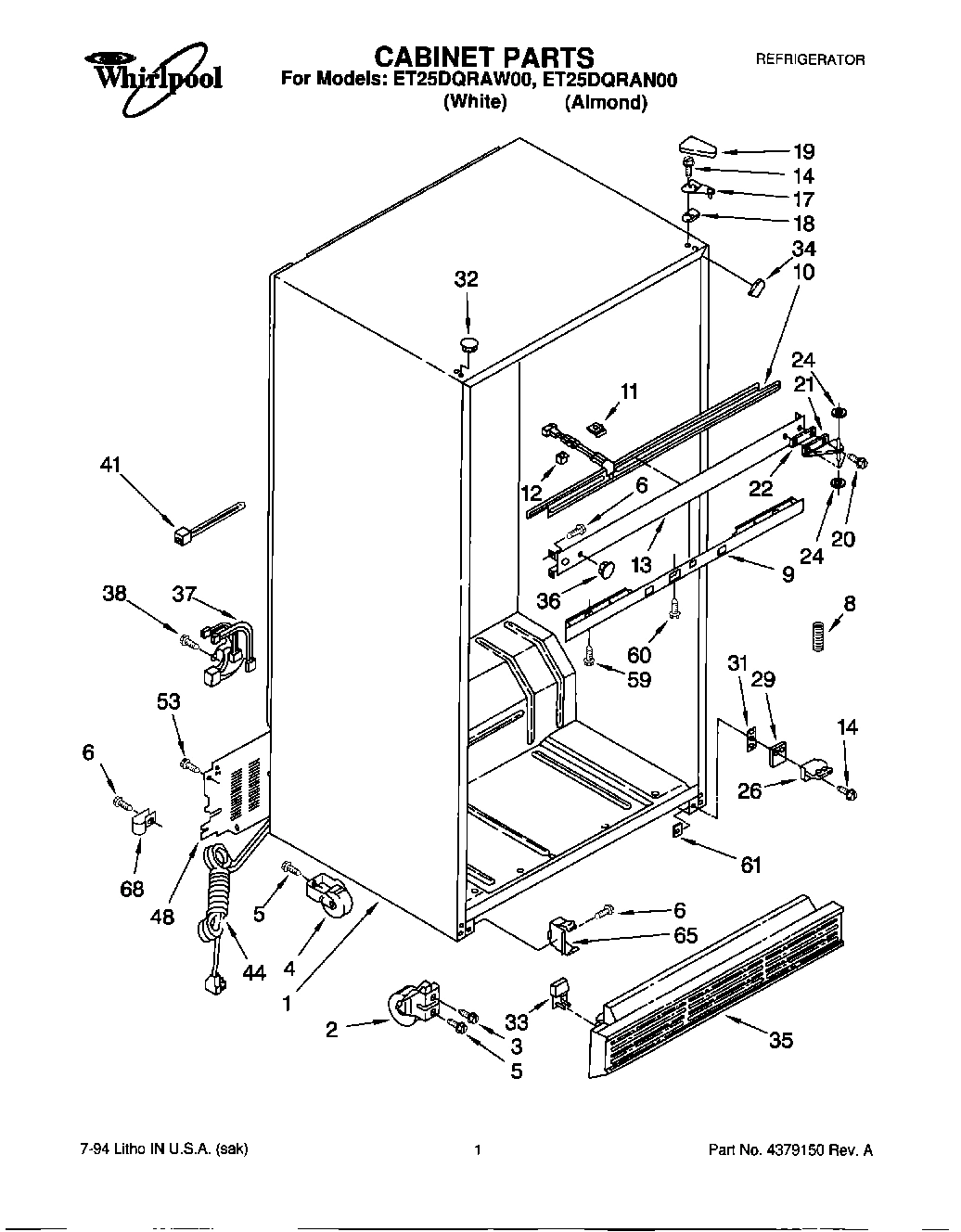

01 - CABINET

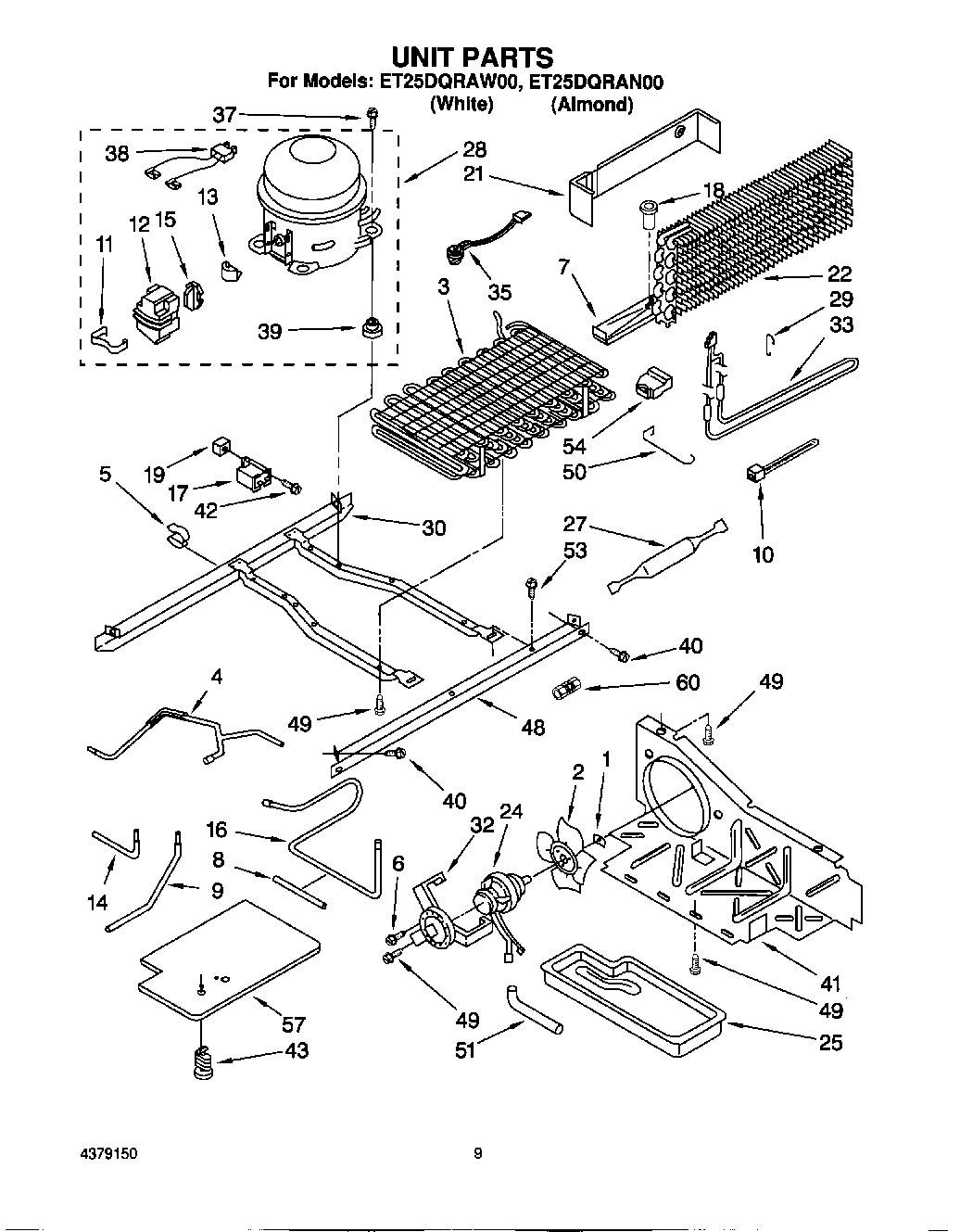

06 - UNIT

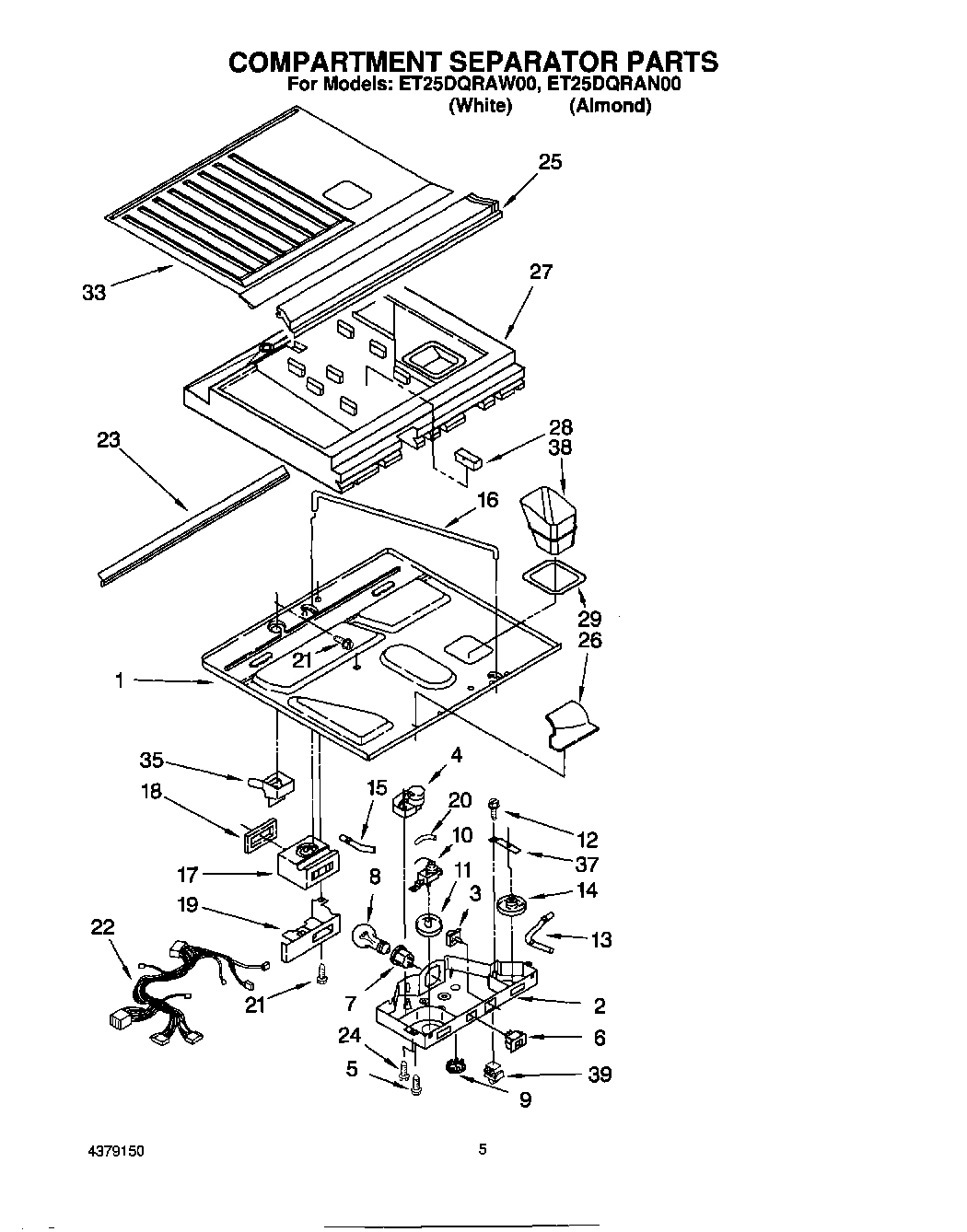

03 - COMPARTMENT SEPARATOR

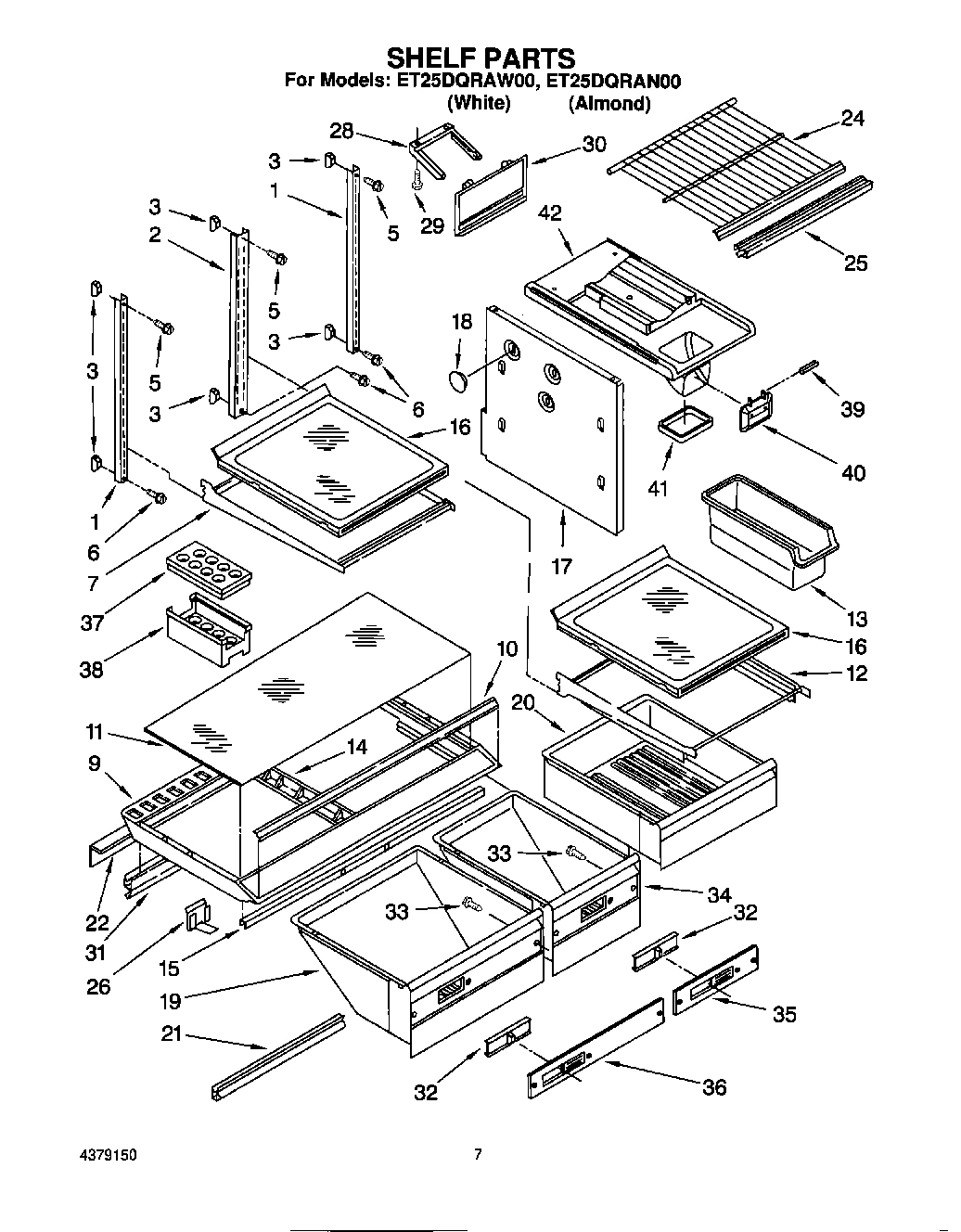

05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET25DQRAW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2160736 WPL LIT2160736 Contact Us For Availability
WPL LIT2168555 WPL LIT2168555 Contact Us For Availability
WPL LIT2168565 WPL LIT2168565 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50380A4 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50379A5 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2160629 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Box, Control WPL 2160635 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
4
Grommet (2) WPL 848445 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Clip, Wire (2) WPL 2155658 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 1114597 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2160307 Contact Us For Availability
8
Door Gasket, Magnetic (Almond) WPL 1121202 Contact Us For Availability
8
Door Gasket, Magnetic (White) WPL 1125922 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Crisper Cover WPL 2148622 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Trim, Crisper Cover WPL 1121136 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116667 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center (Almond) WPL 2162694 Contact Us For Availability
12
Handle, Center (White) WPL 2162741 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Shelf Assembly, Cantilever WPL 2166328 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Center Rail WPL 2154187 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Center, Track WPL 1118092 Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
15
Interior Door Panel WPL 2160724 Contact Us For Availability
15
Relay (See Overload) WPL ARI50381A9 Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Crisper, Support WPL 1114568 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
16
Tube, Suction WPL 2162473 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160323 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Trim, Door Shelf WPL 2168578 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Pip Plate (6) WPL 1116986 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Door Dike, Middle WPL 1118008 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2162725 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
20
Pan, Meat WPL 2162722 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Heat Shield WPL 1116511 Contact Us For Availability
21
Crisper, Gasket Front WPL 1116665 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2153980 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Support, Bar Rear WPL 2147047 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160694 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
25
Trim, Shelf WPL 2160697 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2160753 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Clip, Crisper (3) WPL 2149078 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
28
Rubber Strip WPL 2168582 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
30
Screw, 4-4- x 9/16 (2) WPL 488361 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door Bin (3) WPL 2148645 Contact Us For Availability
30
Door, Ice Compartment WPL 2160660 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116666 Contact Us For Availability
32
Trim, Door Shelf WPL 2157313 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
33
Screw (4) WPL 489268 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Filler, Wrapper Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (Almond) WPL 1118059 Contact Us For Availability
34
Crisper, Pan Small WPL 2162727 Contact Us For Availability
35
Screw (2) WPL 489360 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Crisper, Pan Front (Small) WPL 2148628 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Crisper, Pan Front WPL 2148625 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2149199 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Egg Container, Top WPL 1107388 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
38
Egg Container, Bottom WPL 1107384 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
39
Overlay, Front Cover (For Almond Model) WPL 2162690 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
40
Front Cover, Housing WPL 2150314 Contact Us For Availability
40
Front Cover Housing (For Almond Model WPL 2162701 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Cover, Unit WPL 2160508 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support Evaporator (2) WPL 1118017 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
