Model Whirlpool ET25DQLDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

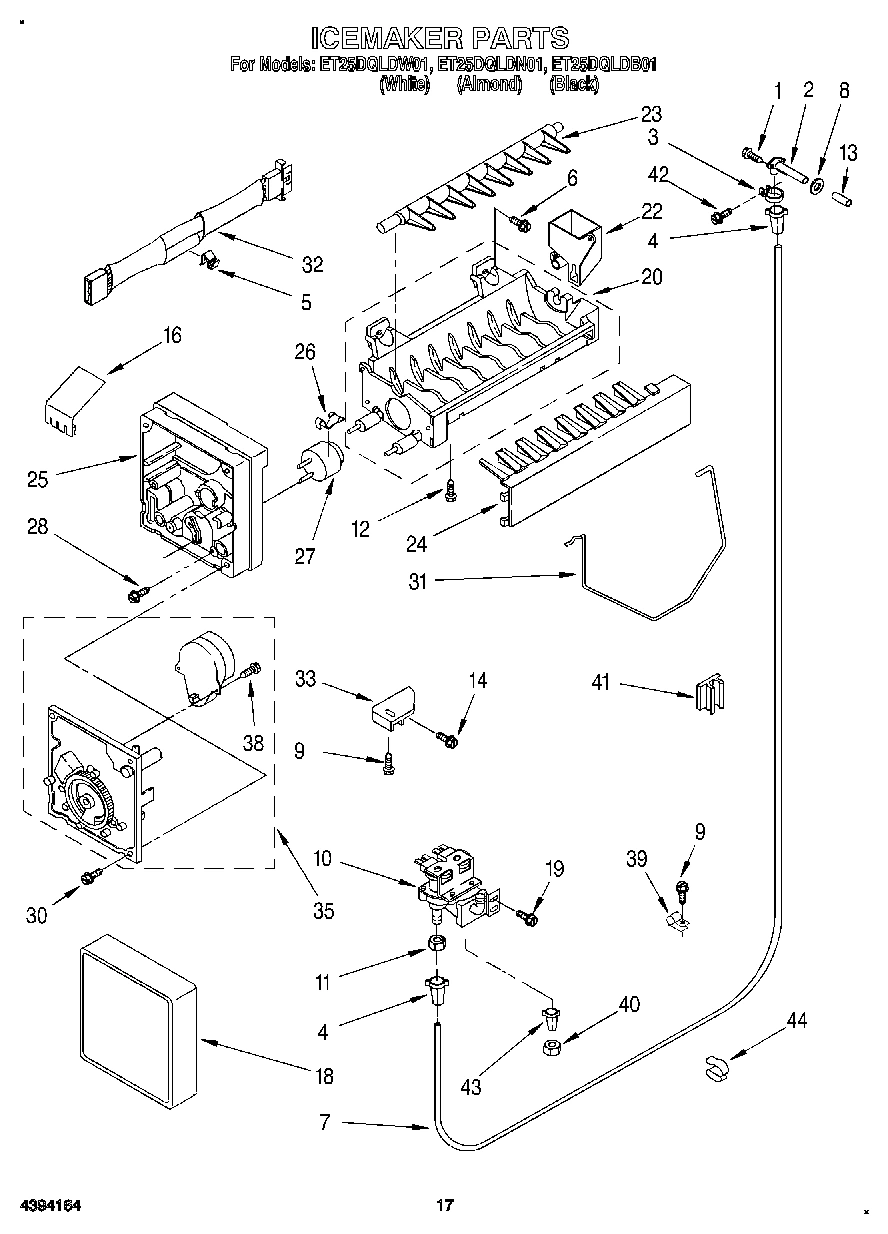

10 - ICEMAKER, LIT/OPTIONAL

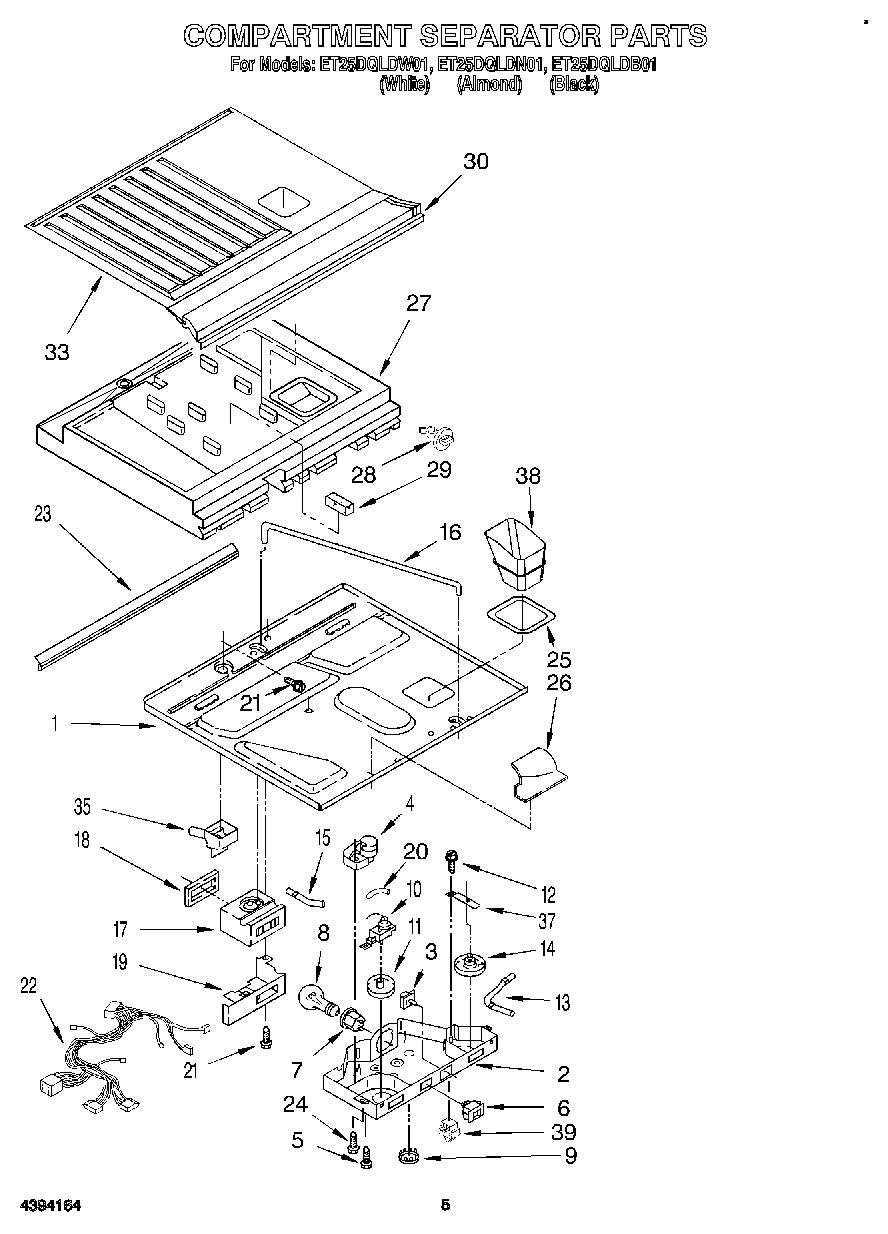

03 - COMPARTMENT SEPARATOR
05 - SHELF
06 - UNIT
02 - LINER
04 - FREEZER DOOR
01 - CABINET
08 - MOTOR AND ICE CONTAINER
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
Common parts from model Whirlpool ET25DQLDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50373A5 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50372A6 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2169036 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2169037 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2169038 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Shim, Handle WPL 2179398 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Grommet WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
4
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
8
Door Gasket Magnetic (Mist Beige) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) WPL 1121176 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170602 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
12
Handle, Center (White) WPL 2179308 Contact Us For Availability
12
Handle, Center (Almond) WPL 2179309 Contact Us For Availability
12
Handle, Center (Black) WPL 2179310 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Handle (White) WPL 2179311 Contact Us For Availability
12
Handle (Almond) WPL 2179312 Contact Us For Availability
12
Handle (Black) WPL 2179313 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Shim, Handle WPL 2179319 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Relay (See Overload) WPL ARI50374A1 Contact Us For Availability
15
Interior Door Panel WPL 2171393 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Housing Plug WPL 2154491 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Bin, Shelf (3) WPL 2179603 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Hole Plug (White) WPL 2174433 Contact Us For Availability
18
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
18
Hole Plug (Black) WPL 2174435 Contact Us For Availability
19
Pan, Crisper WPL 2179413 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Grommet WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Interior Door Panel WPL 2160667 Contact Us For Availability
20
Pan, Meat WPL 2179414 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
20
Trim, Door Compartment WPL 2162896 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Crisper Gasket, Front WPL 2179393 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Pin Plate (4) WPL 1118048 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Compartment Door WPL 2148289 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160696 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Blade, Fixed WPL 1119009 Contact Us For Availability
24
Retainer, Bottle WPL 2173643 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Pin Plate (6) WPL 1116986 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Screw (Stainless Steel) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Shim, Handle WPL 2183124 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Shim, Bottom WPL 2172744 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Door, Ice Compartment WPL 2173904 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Trim, Door Shelf WPL 2171400 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Trim, Door Shelf WPL 2171401 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Slide Shelf, Assembly WPL 2174224 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Bin, Door Shelf (3) WPL 2179602 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
34
Wire Assy WPL 2176859 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (White) WPL 2169060 Contact Us For Availability
35
Grille (Almond) WPL 2169061 Contact Us For Availability
35
Grille (Black) WPL 2169062 Contact Us For Availability
35
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Cover, Egg Bin WPL 2169935 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Door Dike, Center WPL 1118008 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever, Water Dispens WPL 2177150 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Divider, Bin WPL 2171284 Contact Us For Availability
39
WPL 2174331 WPL 2174331 Contact Us For Availability
39
WPL 2179206 WPL 2179206 Contact Us For Availability
39
WPL 2179207 WPL 2179207 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
40
WPL 2174309 WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Support, Pin Plate WPL 2168584 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169801 Contact Us For Availability
43
Plug, Crossover WPL 2169003 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
45
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
45
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
45
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Cover, Unit WPL 2183134 Contact Us For Availability
48
Trim-Door Shelf WPL 2177158 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
99
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
