Model Whirlpool ET25DMXDB00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - COMPARTMENT SEPARATOR
04 - SHELF

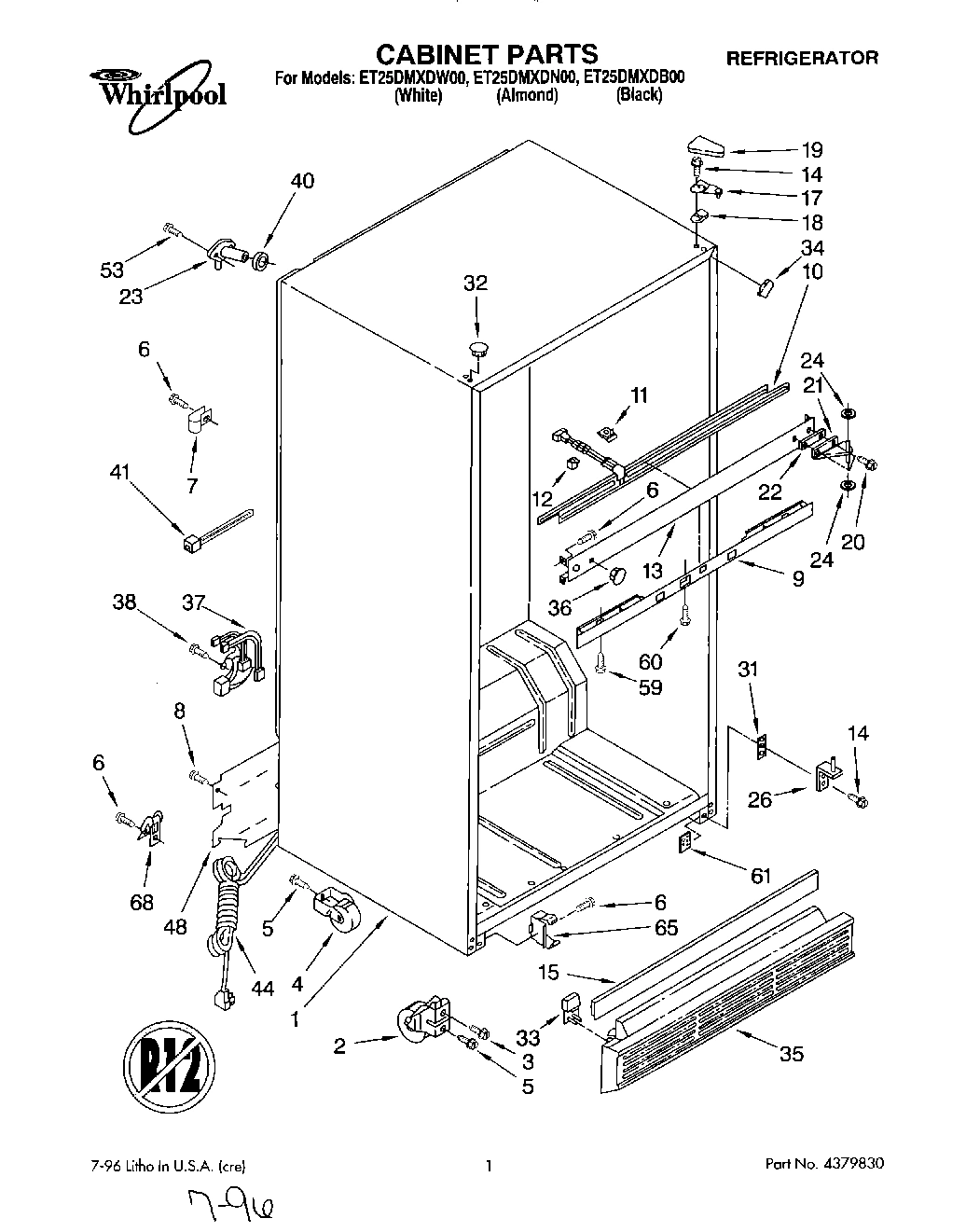

01 - CABINET

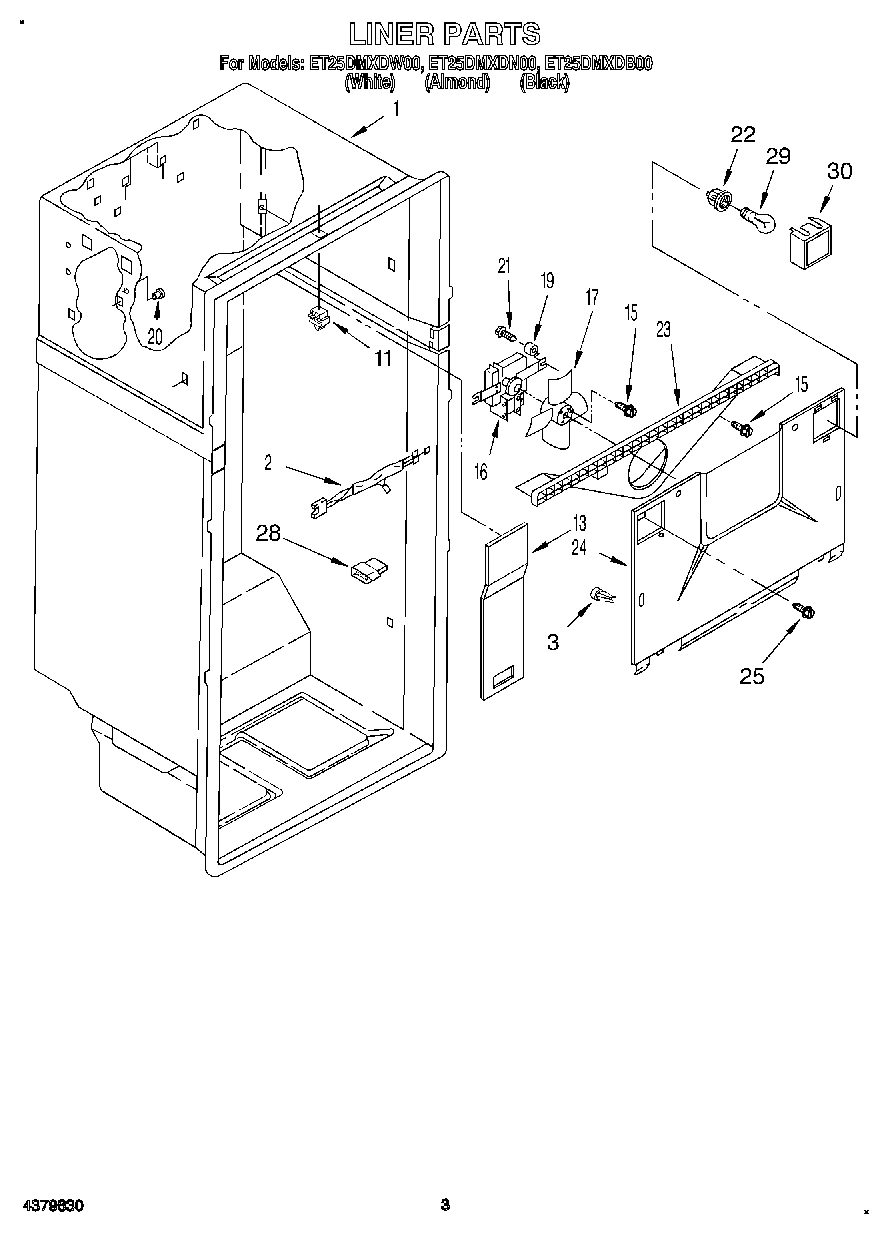

02 - LINER

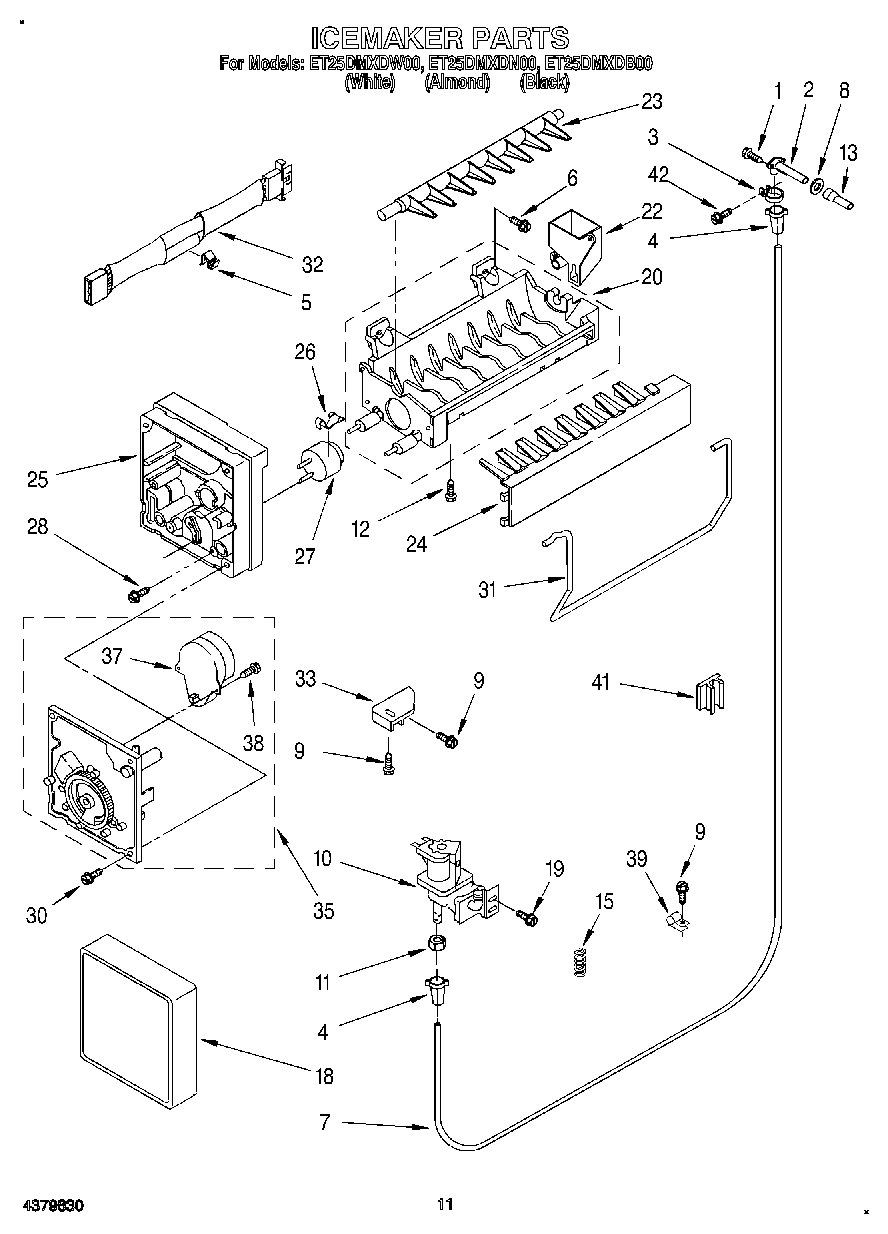

07 - ICEMAKER

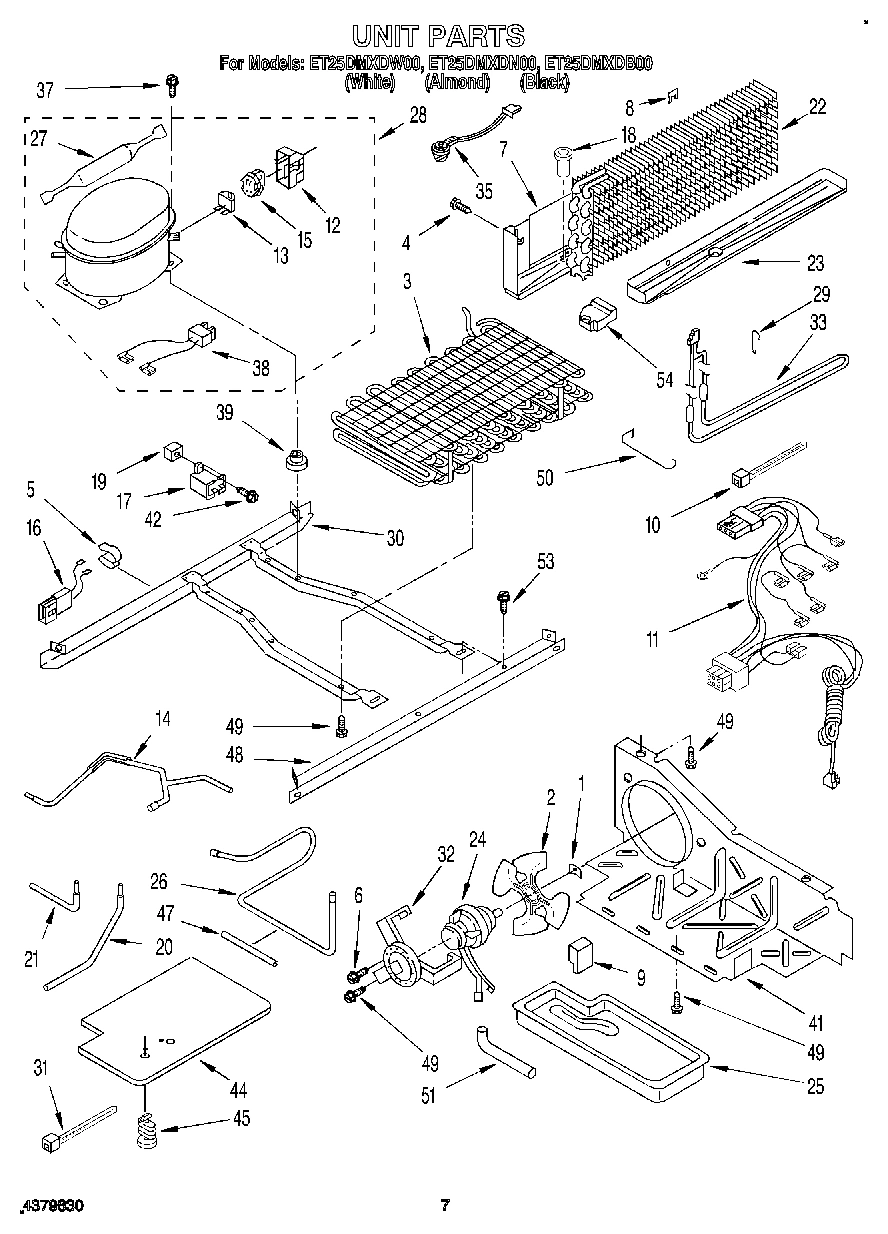

05 - UNIT

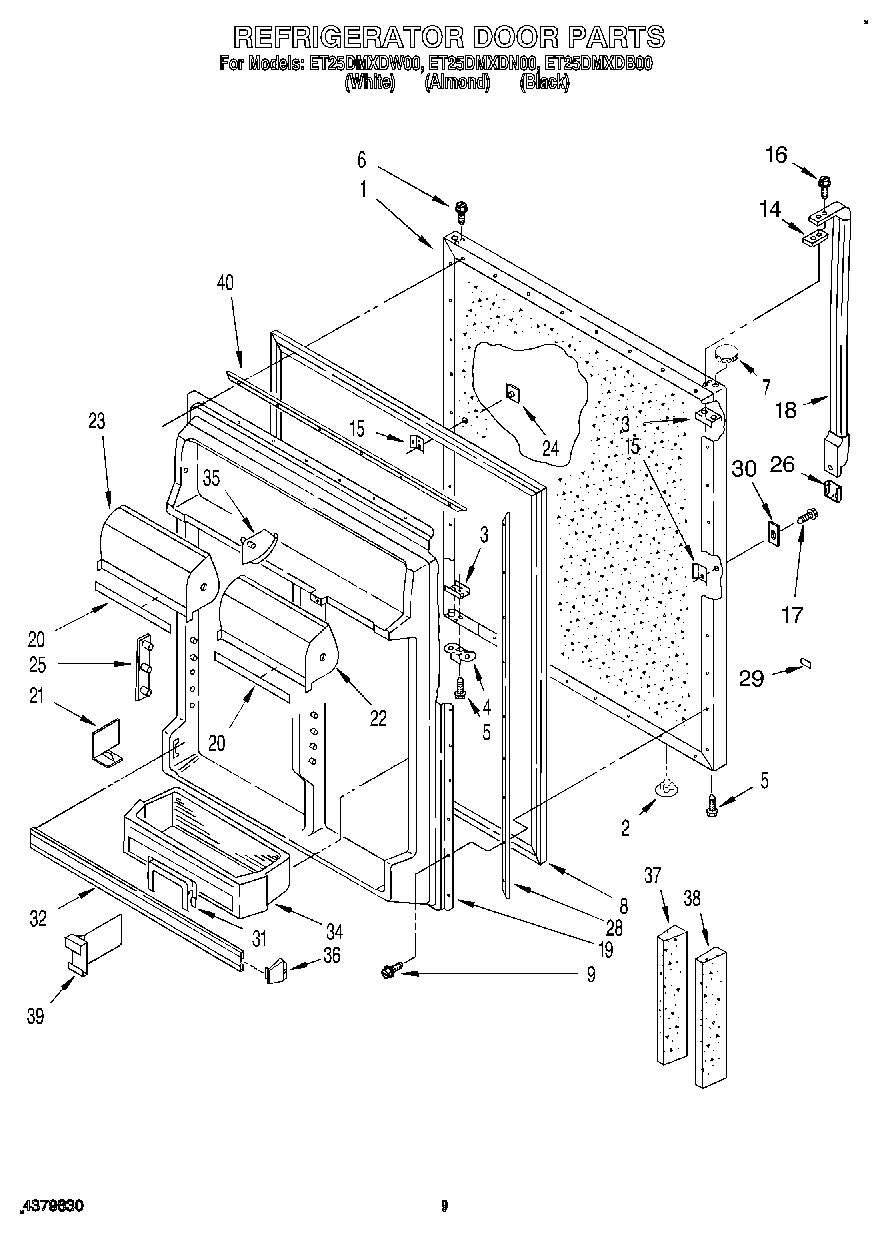

06 - REFRIGERATOR DOOR

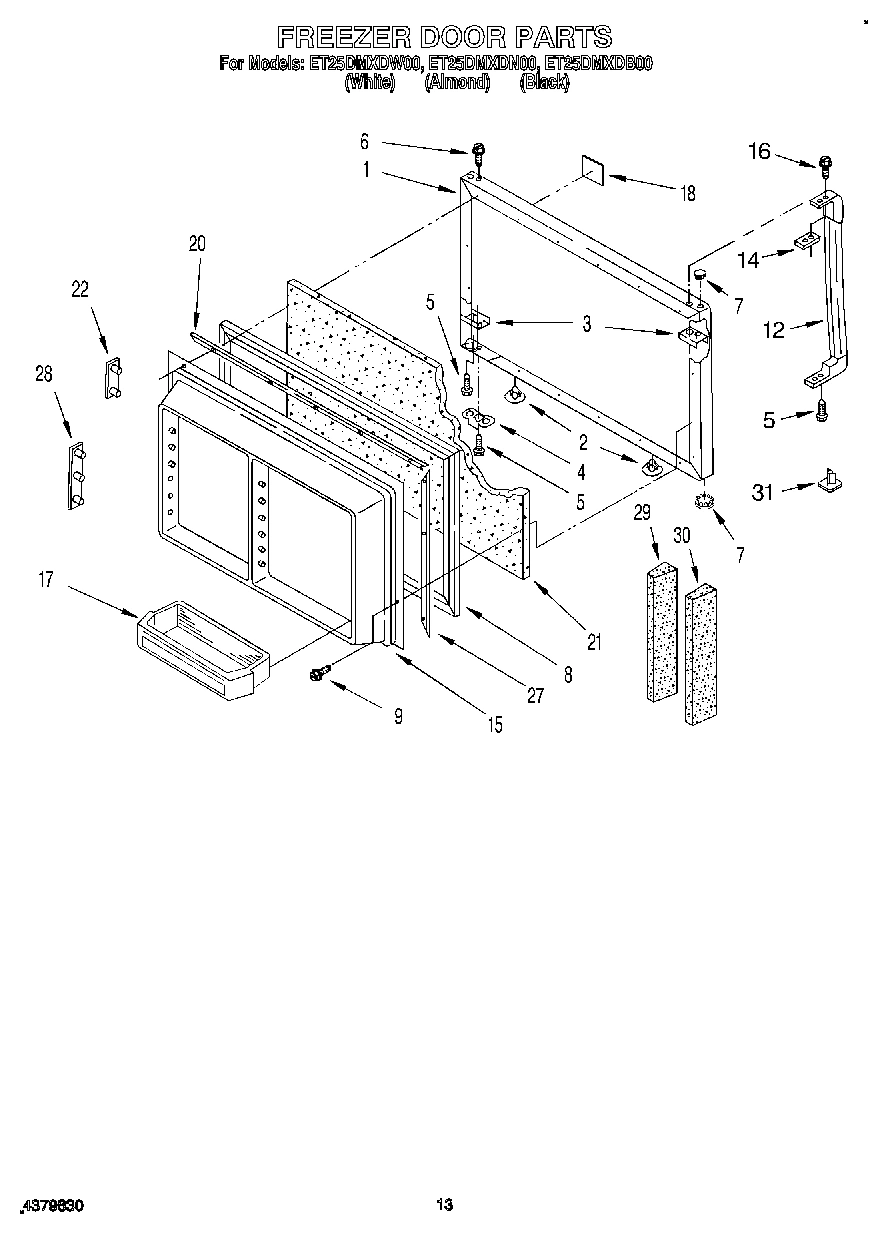

08 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool ET25DMXDB00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2174832 WPL LIT2174832 Contact Us For Availability
WPL LIT2175886 WPL LIT2175886 Contact Us For Availability
WPL LIT2179518 WPL LIT2179518 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50321A3 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2159591 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2161817 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2161857 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Grommet (2) WPL 2172803 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Bracket Door Stop (Black) WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop (Chrome) WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Drain Pan & WPL 1116511 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) WPL 1121176 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170602 Contact Us For Availability
8
Door Gasket Magnetic (Mist Beige) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
9
Insert, Air Baffle Heat Shield WPL 2176796 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Wire Assy WPL 2176857 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle (White) WPL 2179308 Contact Us For Availability
12
Handle (Almond) WPL 2179309 Contact Us For Availability
12
Handle (Black) WPL 2179310 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Cover, Air Duct WPL 2159578 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
15
Deck Rail Cover WPL 2174745 Contact Us For Availability
15
Spring WPL 2174719 Contact Us For Availability
15
Relay (See Overload) WPL ARI50322A5 Contact Us For Availability
15
Interior Door Panel WPL 2171355 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Bin, Shelf (4) WPL 2179584 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Insert, Handle (White) WPL 2179311 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2179312 Contact Us For Availability
18
Insert, Handle (Black) WPL 2179313 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2180545 Contact Us For Availability
18
Nameplate (Black) WPL 2180546 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 1123261 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
20
Trim, Door Compartment WPL 2157839 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Divider, Door Shelf WPL 1123293 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Compartment Door, Right Side WPL 2175998 Contact Us For Availability
22
Pin Plate WPL 1118048 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Compartment Door, Left Side WPL 2175997 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
26
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
26
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
26
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Pin Plate WPL 1116986 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Shim WPL 2179398 Contact Us For Availability
29
Reinforcement, Mid Door WPL 1118008 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Shim (Bottom) Retainer WPL 2179319 Contact Us For Availability
30
Reinforcement, WPL 1118007 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Retainer, Bottle WPL 2173643 Contact Us For Availability
31
Hole Plug, Endcap (White) WPL 2174433 Contact Us For Availability
31
Hole Plug, Endcap (Almond) WPL 2174434 Contact Us For Availability
31
Hole Plug, Endcap (Black Side Door) WPL 2174435 Contact Us For Availability
31
Door Reversal Instructions WPL 2180411 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Door Shelf WPL 2171401 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Bin, Door Shelf (4) WPL 2179586 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Grille (Black) WPL 1129002 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
39
Div WPL 2171284 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
