Model Whirlpool ET25DMXBW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

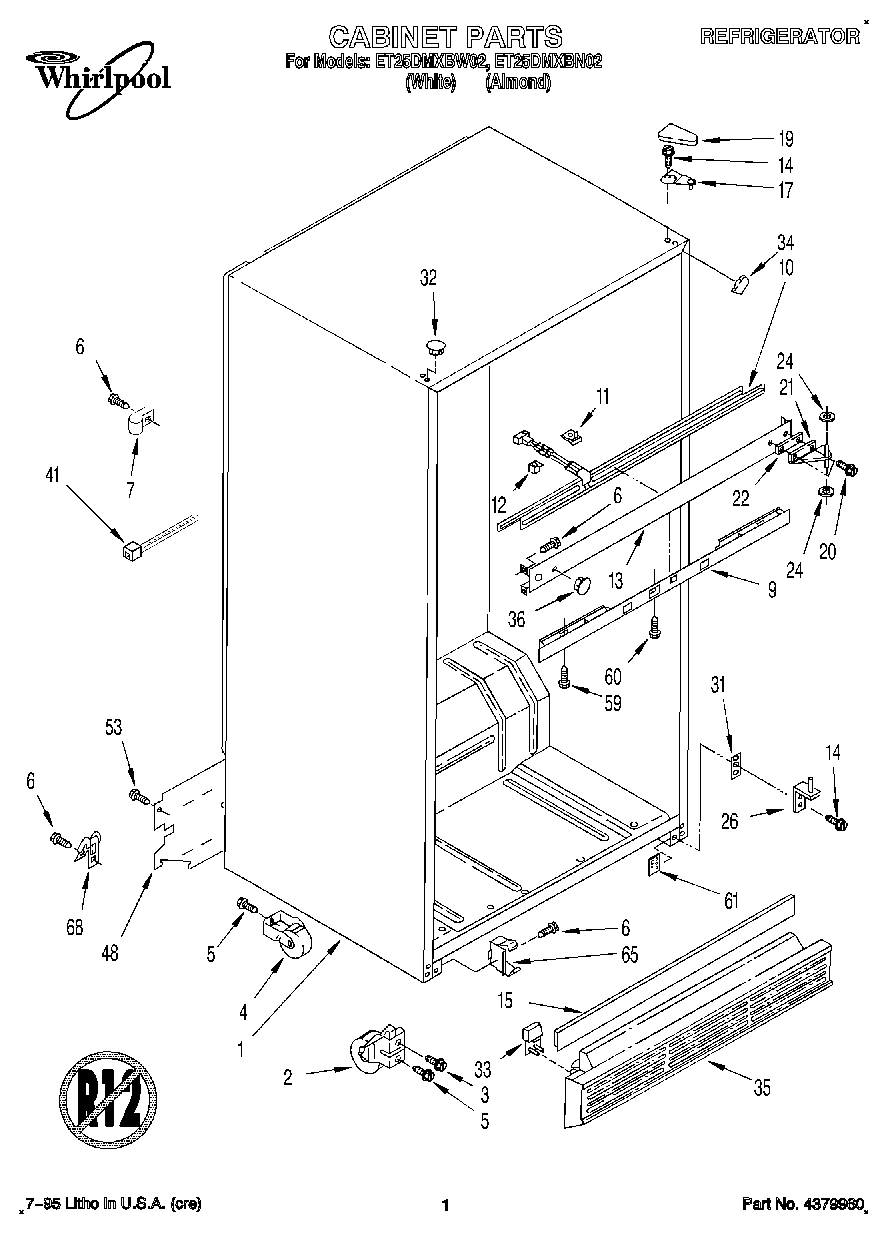

01 - CABINET

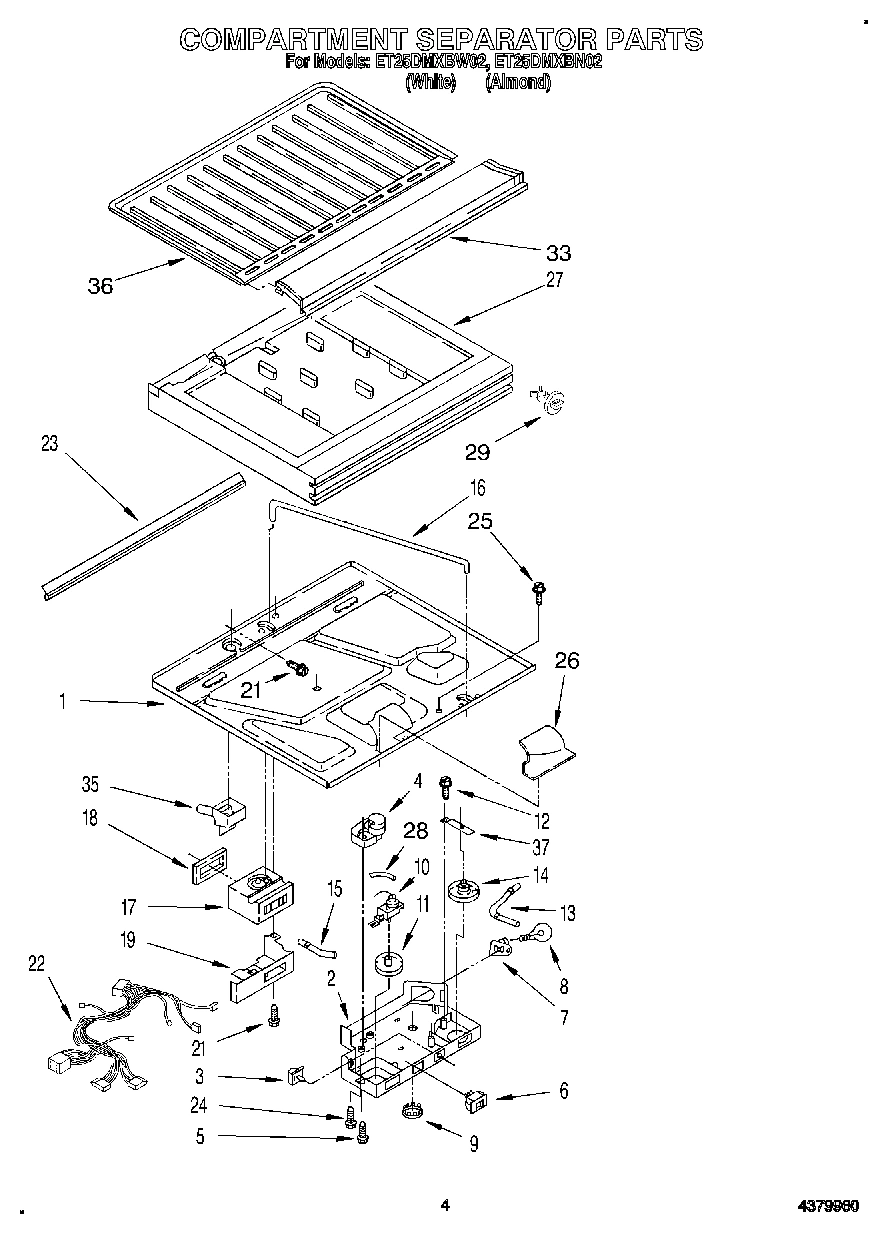

03 - COMPARTMENT SEPARATOR

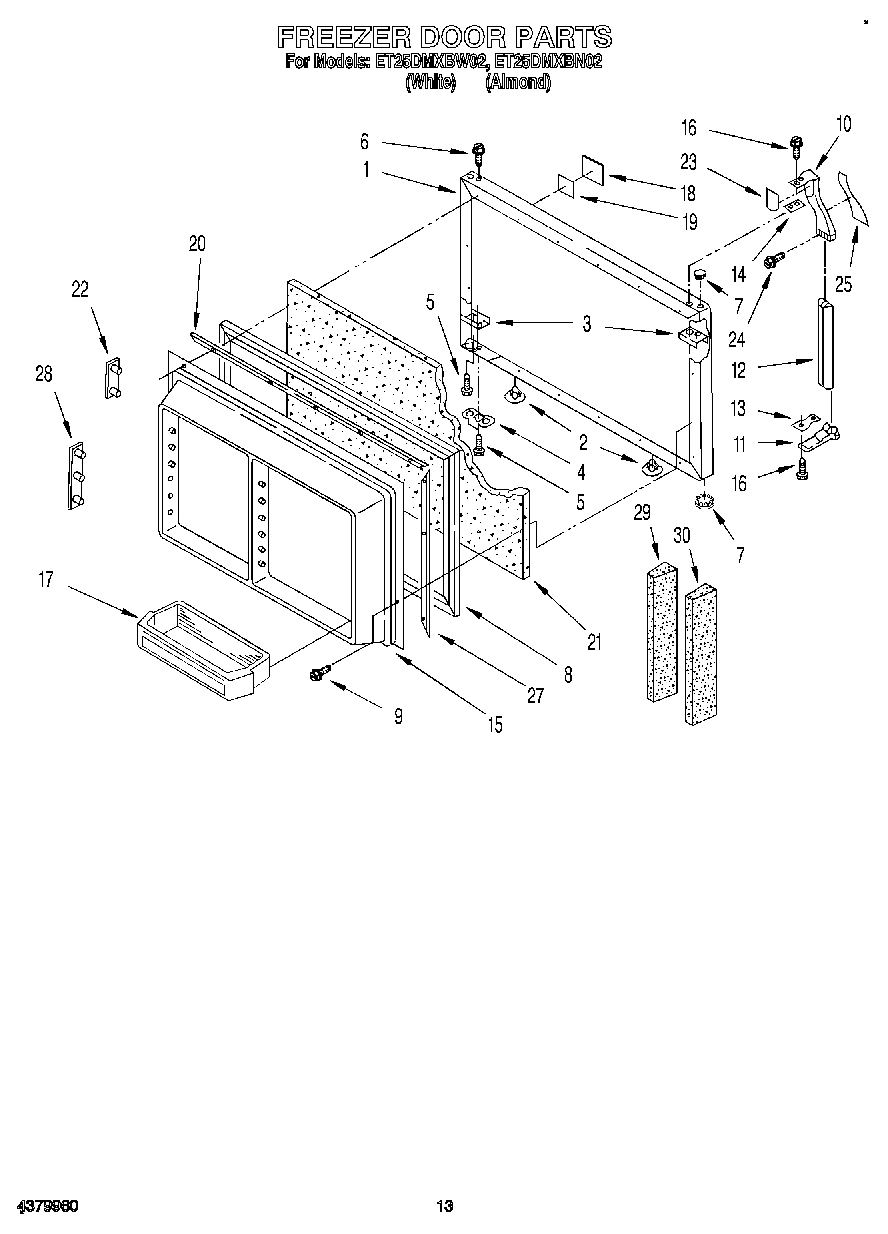

08 - FREEZER DOOR

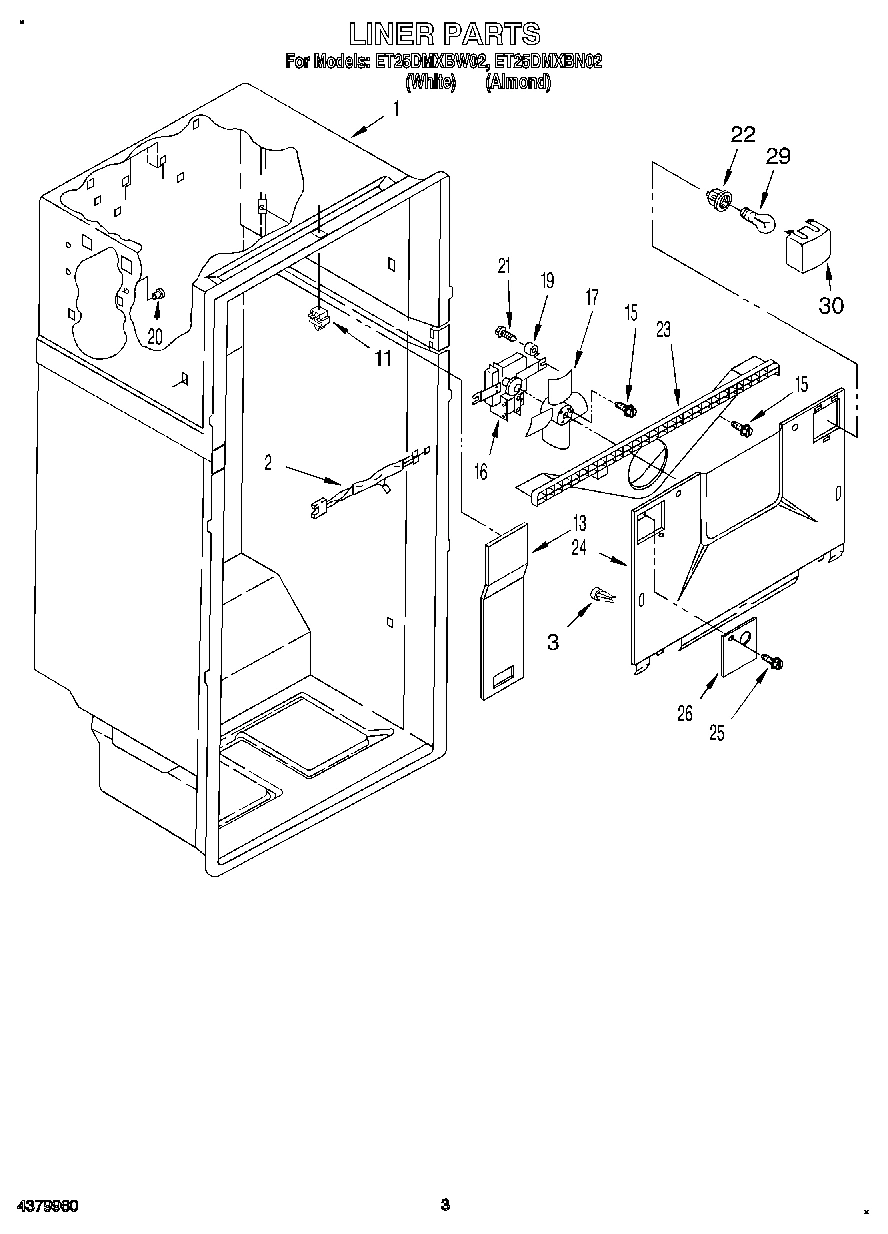

02 - LINER

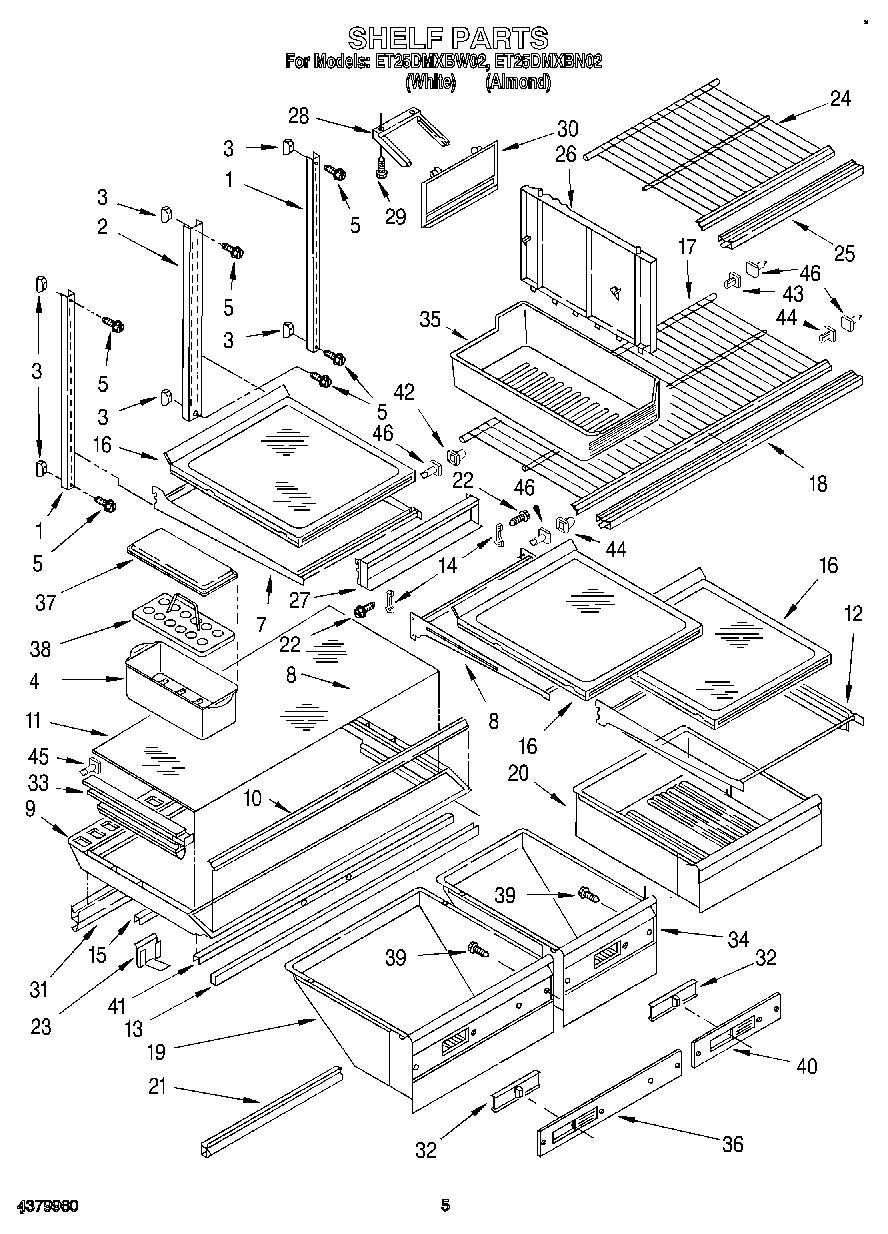

04 - SHELF, LIT/OPTIONAL

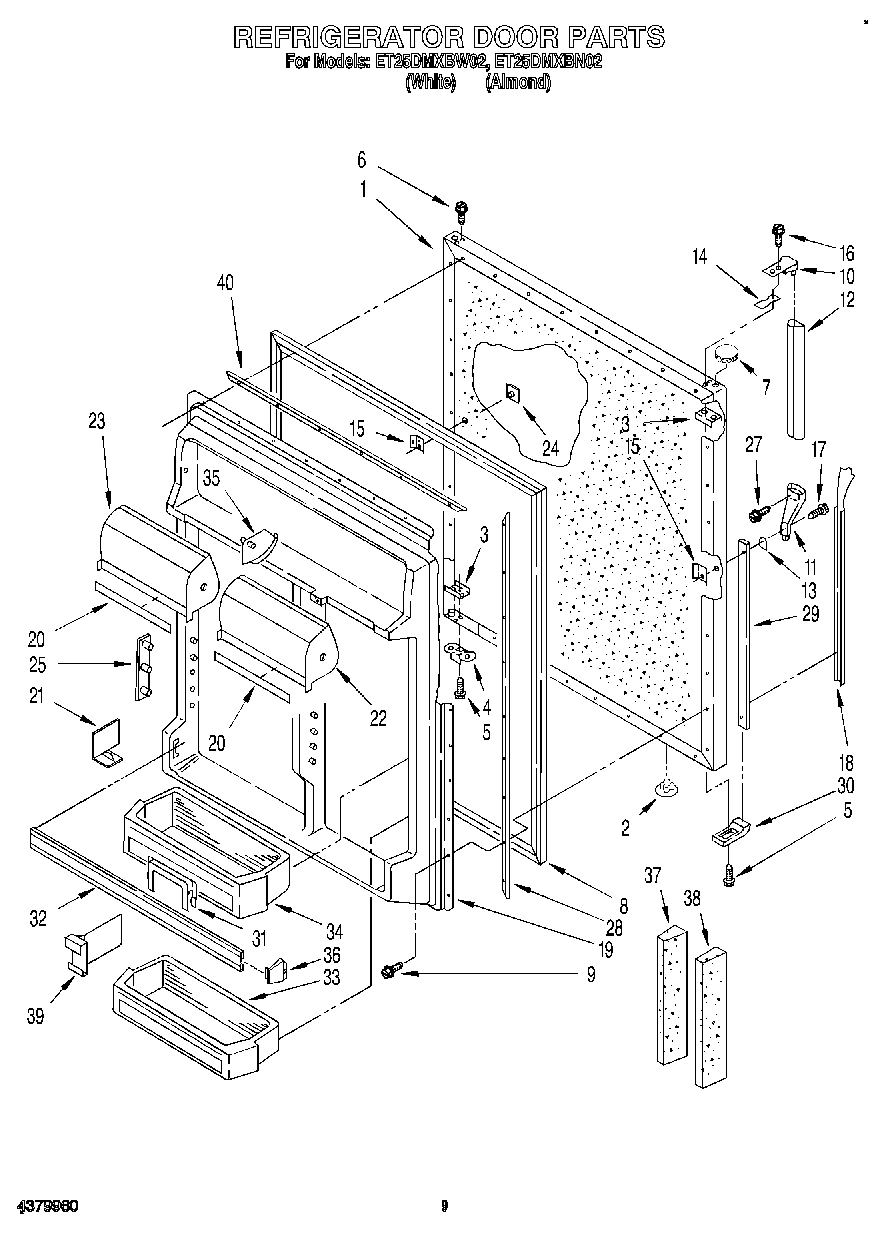

06 - REFRIGERATOR DOOR

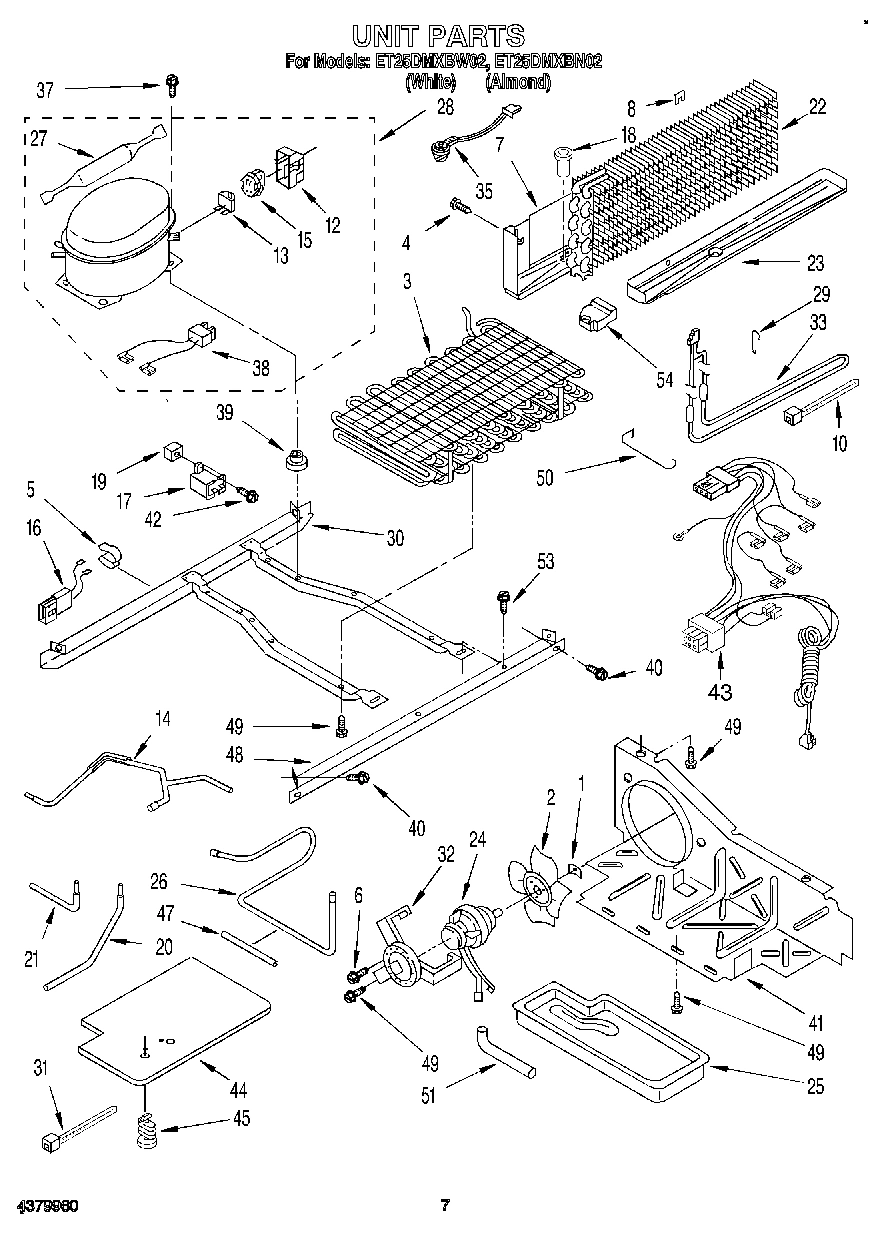

05 - UNIT
07 - ICEMAKER
Common parts from model Whirlpool ET25DMXBW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170893 WPL LIT2170893 Contact Us For Availability
WPL LIT2170980 WPL LIT2170980 Contact Us For Availability
WPL LIT2176949 WPL LIT2176949 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50318A2 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2159591 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2161817 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
3
Grommet (2) WPL 2172803 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop (Chrome) WPL 944036 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2160307 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
8
Door Gasket Magnetic (Almond Model) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (White Model) WPL 1125922 Contact Us For Availability
8
Shelf, Cantilever Spillguard WPL 2169601 Contact Us For Availability
8
Door Gasket, Magnetic (Almond Model) WPL 1121176 Contact Us For Availability
8
Door Gasket, Magnetic (White Model) WPL 1125923 Contact Us For Availability
9
Crisper Cover WPL 2162920 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162848 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162982 Contact Us For Availability
12
Handle, Center (Almond) WPL 2162694 Contact Us For Availability
12
Handle, Center (White) WPL 2162741 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2166328 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Spring WPL 2174719 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Cover, Air Duct WPL 2159578 Contact Us For Availability
13
Crisper Support WPL 2179449 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
15
Interior Door Panel WPL 2171355 Contact Us For Availability
15
Crisper, Support WPL 2147047 Contact Us For Availability
15
Relay (See Overload) WPL ARI50319A1 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160323 Contact Us For Availability
16
Housing Plug WPL 2154491 Contact Us For Availability
17
Shelf, Freezer WPL 1121154 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162698 Contact Us For Availability
18
Trim, Shelf Front WPL 2162936 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper Wide WPL 2162859 Contact Us For Availability
19
Interior Door Panel WPL 1123261 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2162931 Contact Us For Availability
20
Trim, Door Compartment WPL 2157839 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front WPL 1116665 Contact Us For Availability
21
Divider, Door Shelf WPL 1123293 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Pin Plate WPL 1118048 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Compartment Door, Right Side WPL 2175998 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Scroll, Fan WPL 2169469 Contact Us For Availability
23
Clip WPL 2149078 Contact Us For Availability
23
Compartment Door, Left Side WPL 2175997 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1114570 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Pin Plate WPL 1116986 Contact Us For Availability
25
Trim, Shelf WPL 2162937 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Track Assembly, Shelf WPL 2169801 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Compartment WPL 2149136 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116666 Contact Us For Availability
31
Retainer, Bottle WPL 2163566 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Trim, Door Shelf WPL 2162842 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Crisper Track, Center WPL 1118092 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2162892 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
34
Bin, Door Shelf (2) WPL 2162893 Contact Us For Availability
34
Pan, Crisper WPL 2162858 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Compartment Sep. Top-Rear WPL 2162455 Contact Us For Availability
36
Crisper Pan Front WPL 2162852 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Door Dike, Center WPL 1118008 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
39
Screw WPL 489162 Contact Us For Availability
39
Divider, Bin WPL 2152335 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
40
Front, Crisper Pan WPL 2162853 Contact Us For Availability
41
Crisper, Support WPL 1114568 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
43
Wire Assembly WPL 2176857 Contact Us For Availability
44
Shelf Stud (3) WPL 946356 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
Door Reversal Instructions WPL 2172761 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
WPL 542639 WPL 542639 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 946355 WPL 946355 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
