Model Whirlpool ET22PKXEW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR, LIT/OPTIONAL
05 - UNIT

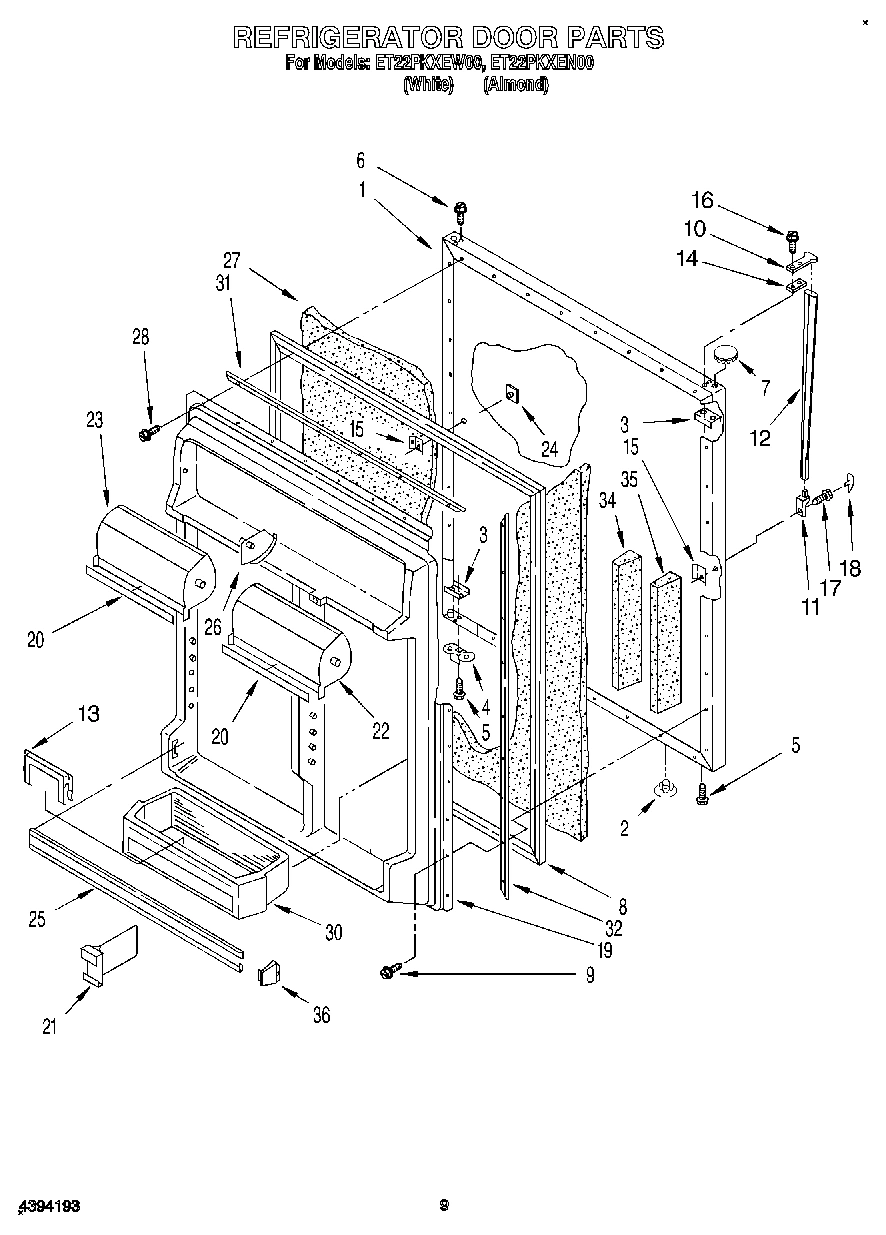

06 - REFRIGERATOR DOOR

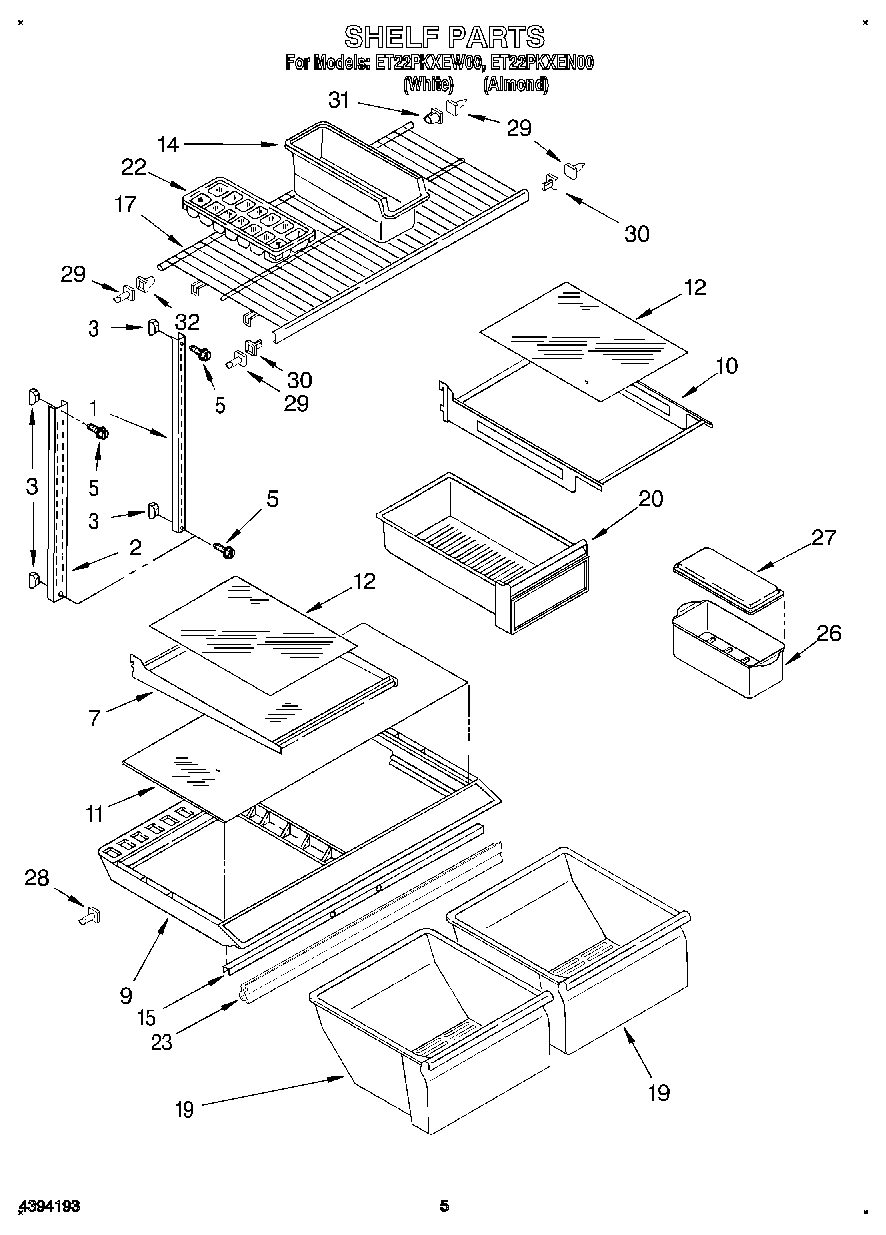

04 - SHELF

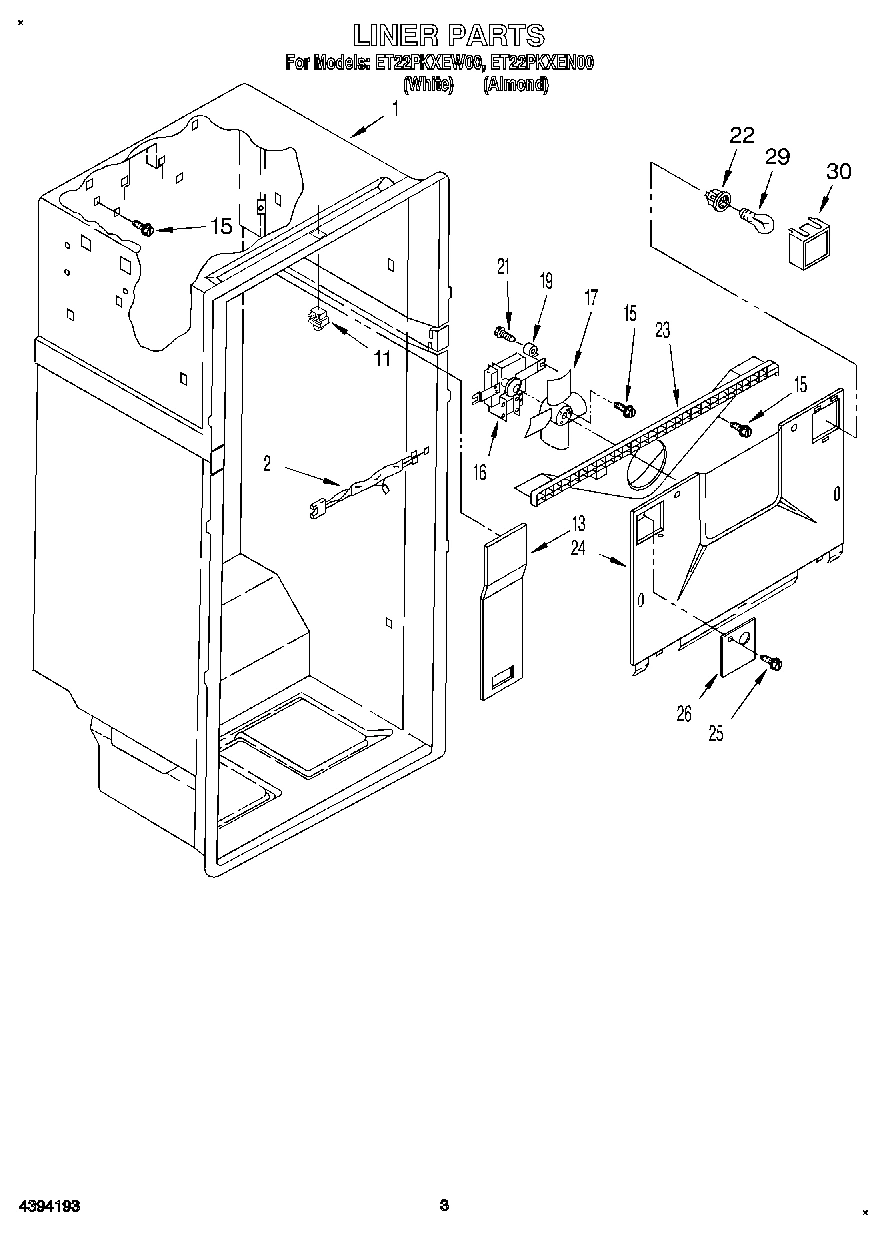

02 - LINER

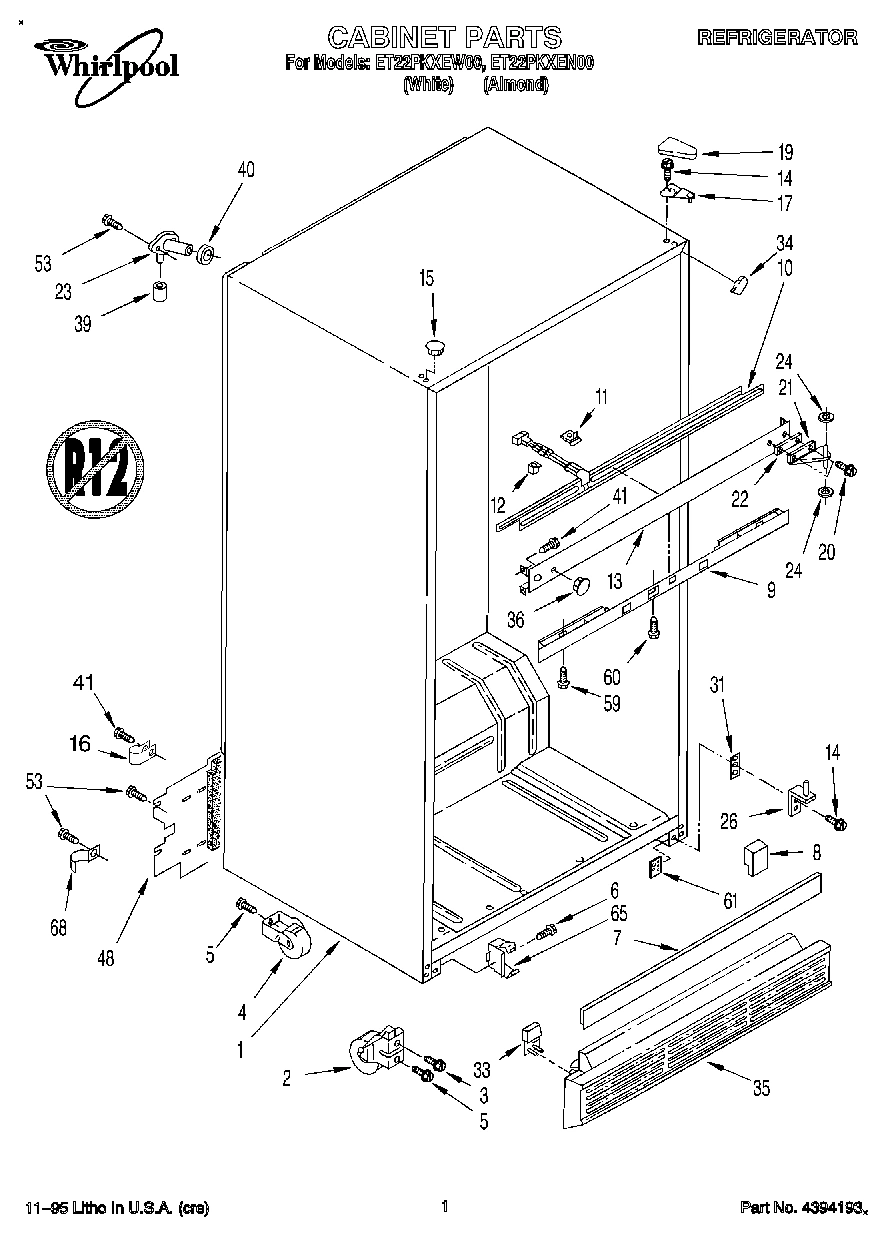

01 - CABINET

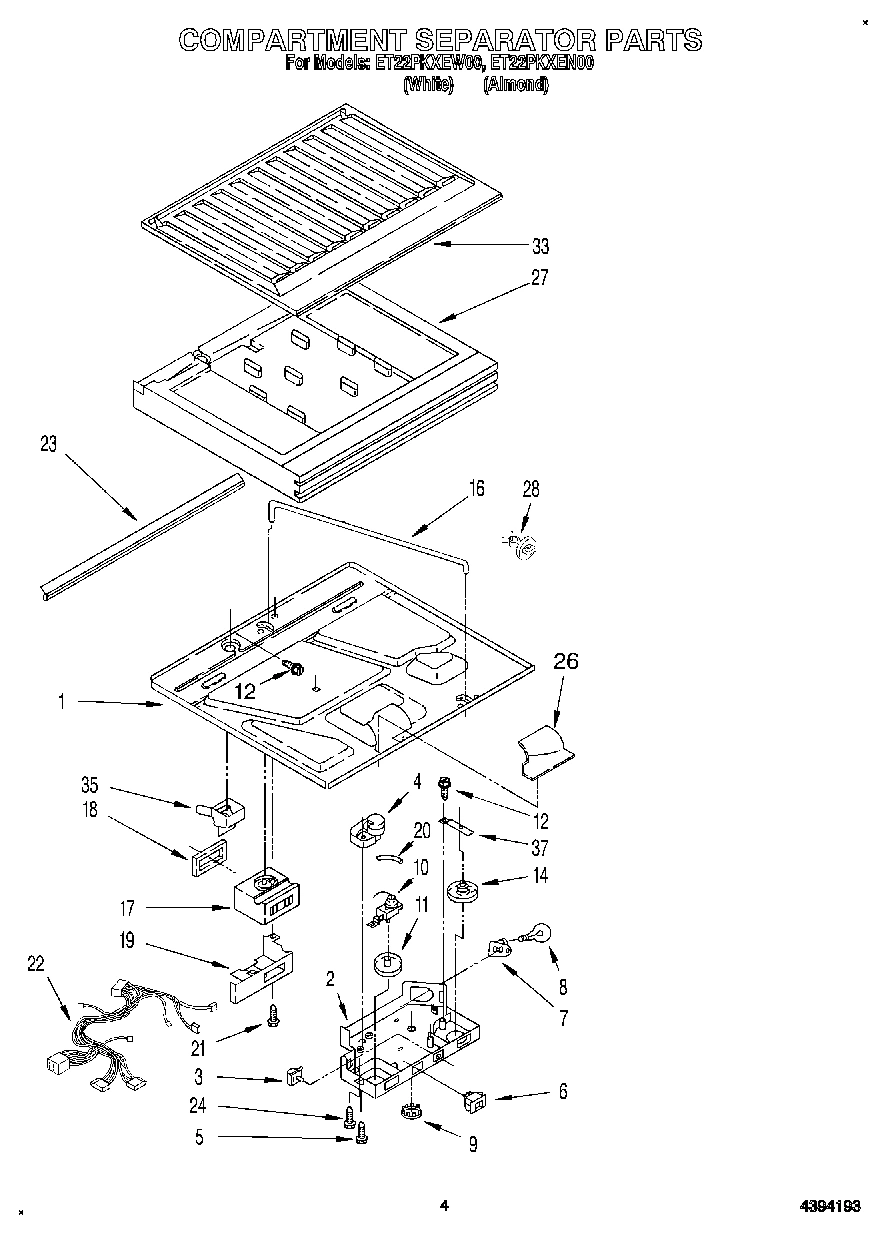

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET22PKXEW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 27) WPL 1122549 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 27) WPL 1122658 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50172A9 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50171A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174810 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Box, Control WPL 2174825 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2173421 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Crisper Cover WPL 2179422 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Shelf, Meat Pan WPL 2179441 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174147 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2174826 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Shelf, Glass WPL 2173907 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Bottle WPL 2163566 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
18
Screw Cover (White) WPL 9791769 Contact Us For Availability
18
Screw Cover (Almond) WPL 9791770 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Pan, Crisper WPL 2179524 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Pan, Meat WPL 2179525 Contact Us For Availability
21
Divider-Door Bin WPL 2152335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2174831 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
23
Gasket, Crisper Cover WPL 2179392 Contact Us For Availability
23
Scroll, Fan WPL 2169467 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2179450 Contact Us For Availability
25
WPL 876029 WPL 876029 Contact Us For Availability
25
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
25
Retainer, Gasket WPL 1122553 Contact Us For Availability
25
Trim, Door WPL 2171148 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Cover, Bin WPL 2169935 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
29
Stud, Support WPL 946355 Contact Us For Availability
30
Shelf Bin WPL 2170615 Contact Us For Availability
30
Stud, Front (2) WPL 946356 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174327 Contact Us For Availability
34
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
34
Reinforcement Dike-Mid WPL 2174751 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Reinforcement Dike-Side WPL 1122709 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
End Cap (2) WPL 2159300 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Screw Grommet WPL 509812 Contact Us For Availability
45
Wire Assembly WPL 2176987 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
