Model Whirlpool ET22DMXZN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
05 - SHELF, LIT/OPTIONAL

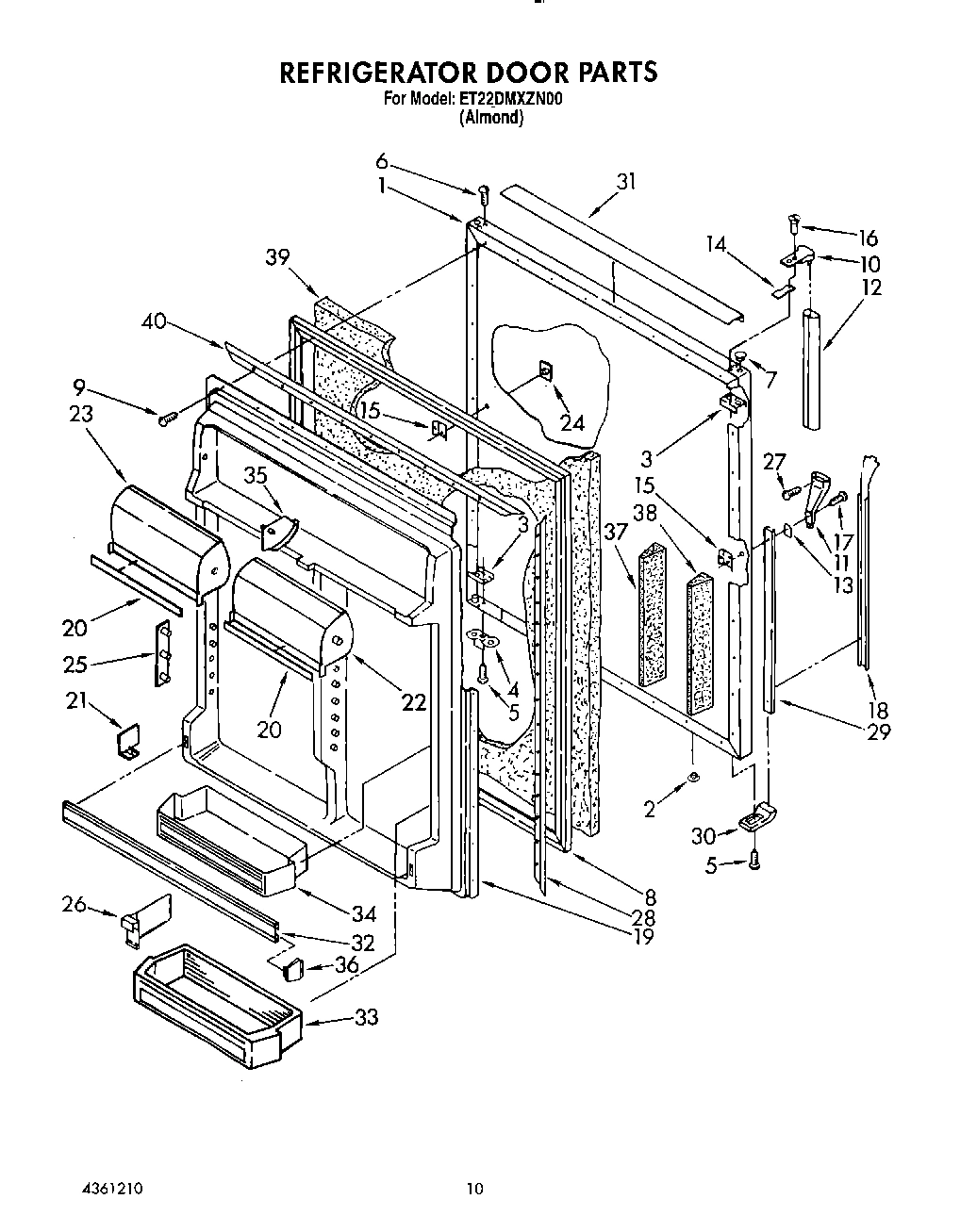

07 - REFRIGERATOR DOOR

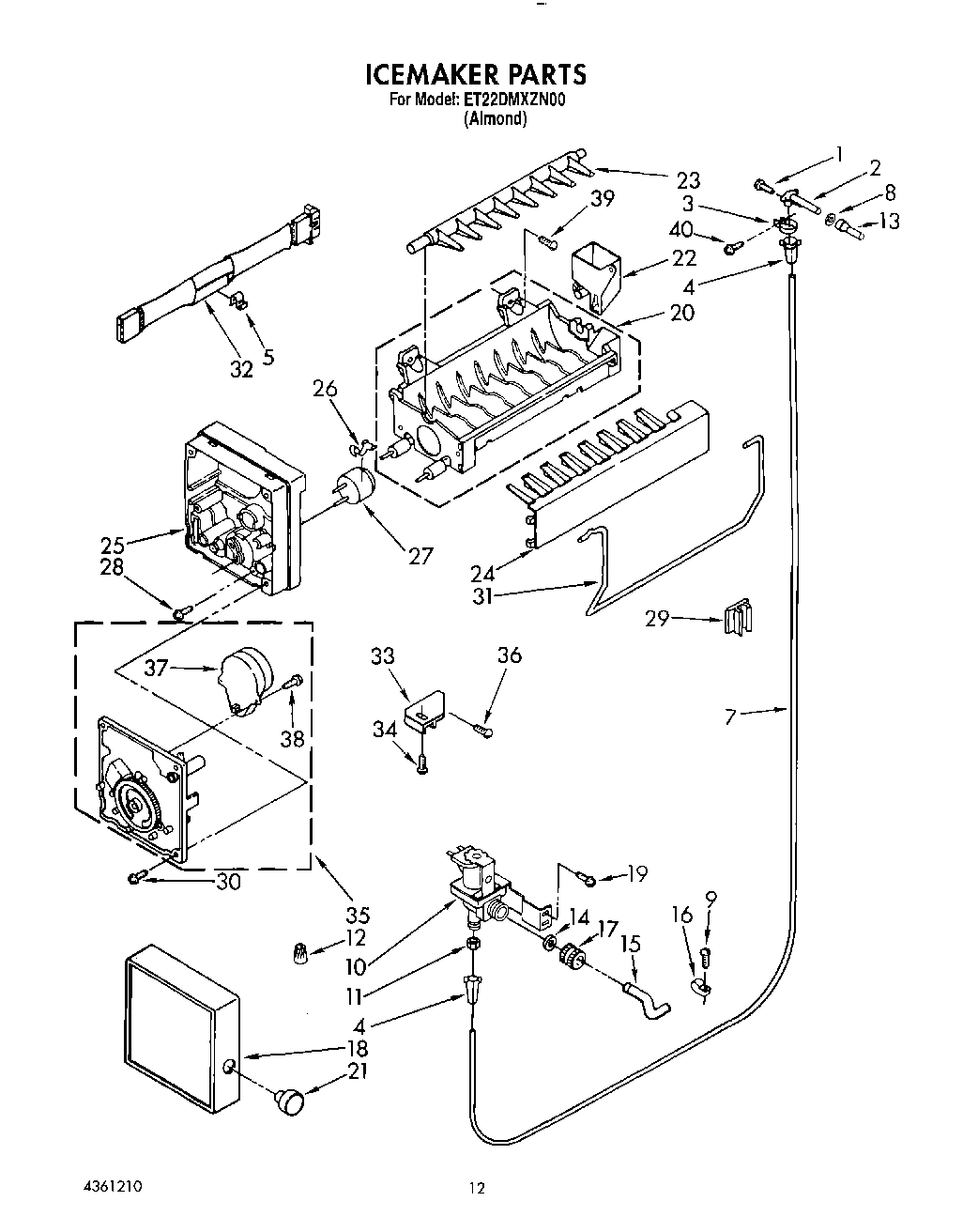

08 - ICEMAKER

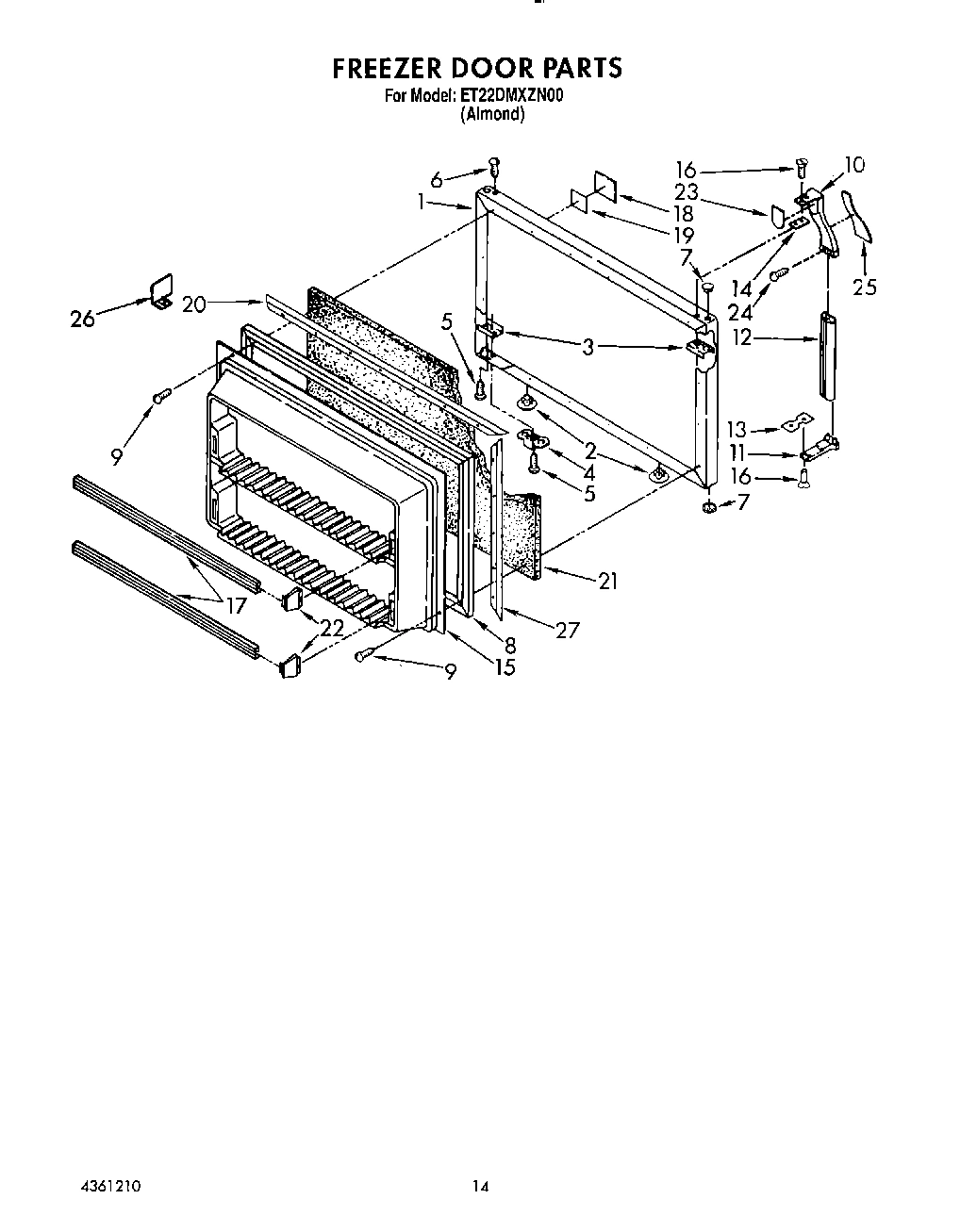

09 - FREEZER DOOR

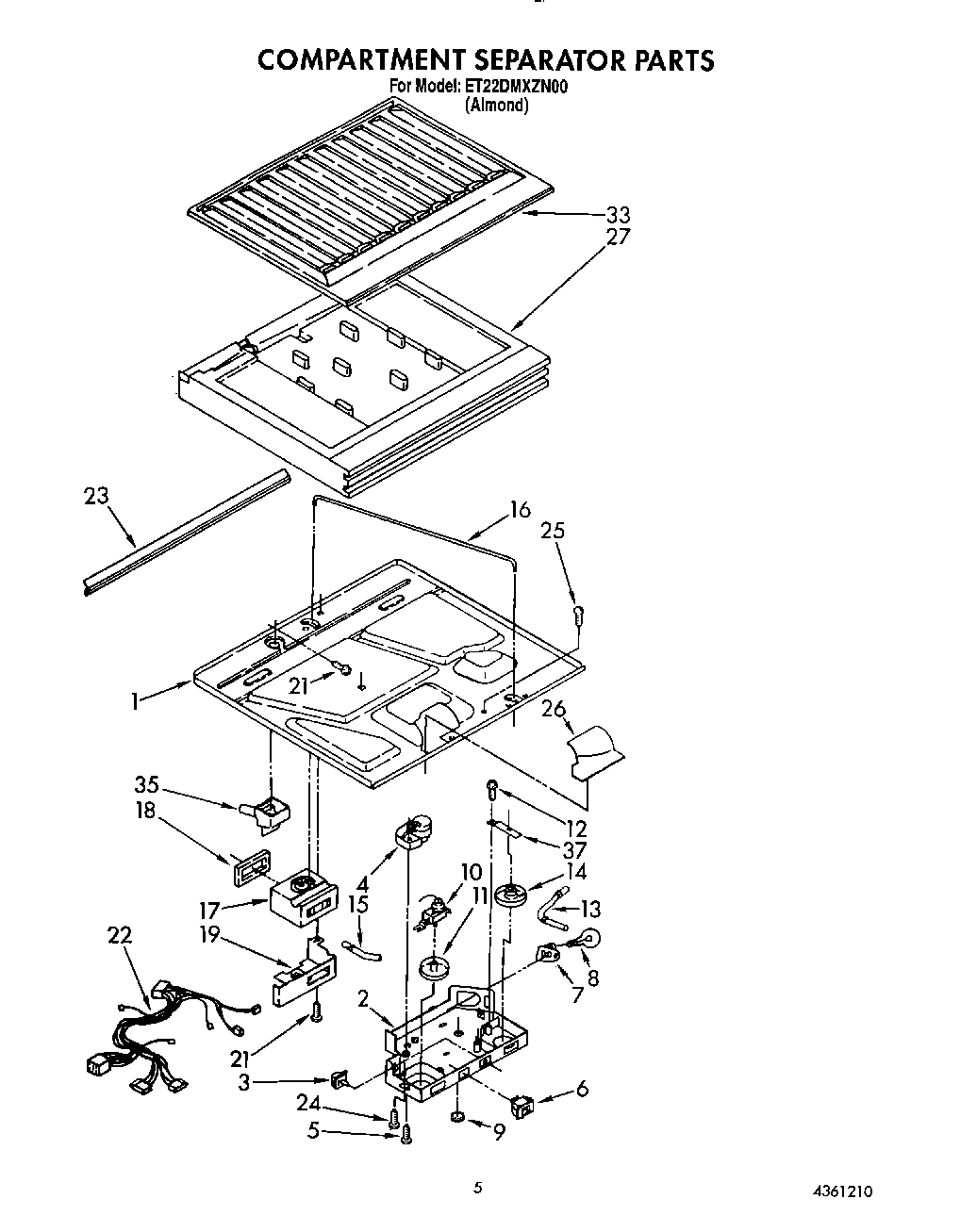

04 - COMPARTMENT SEPARATOR

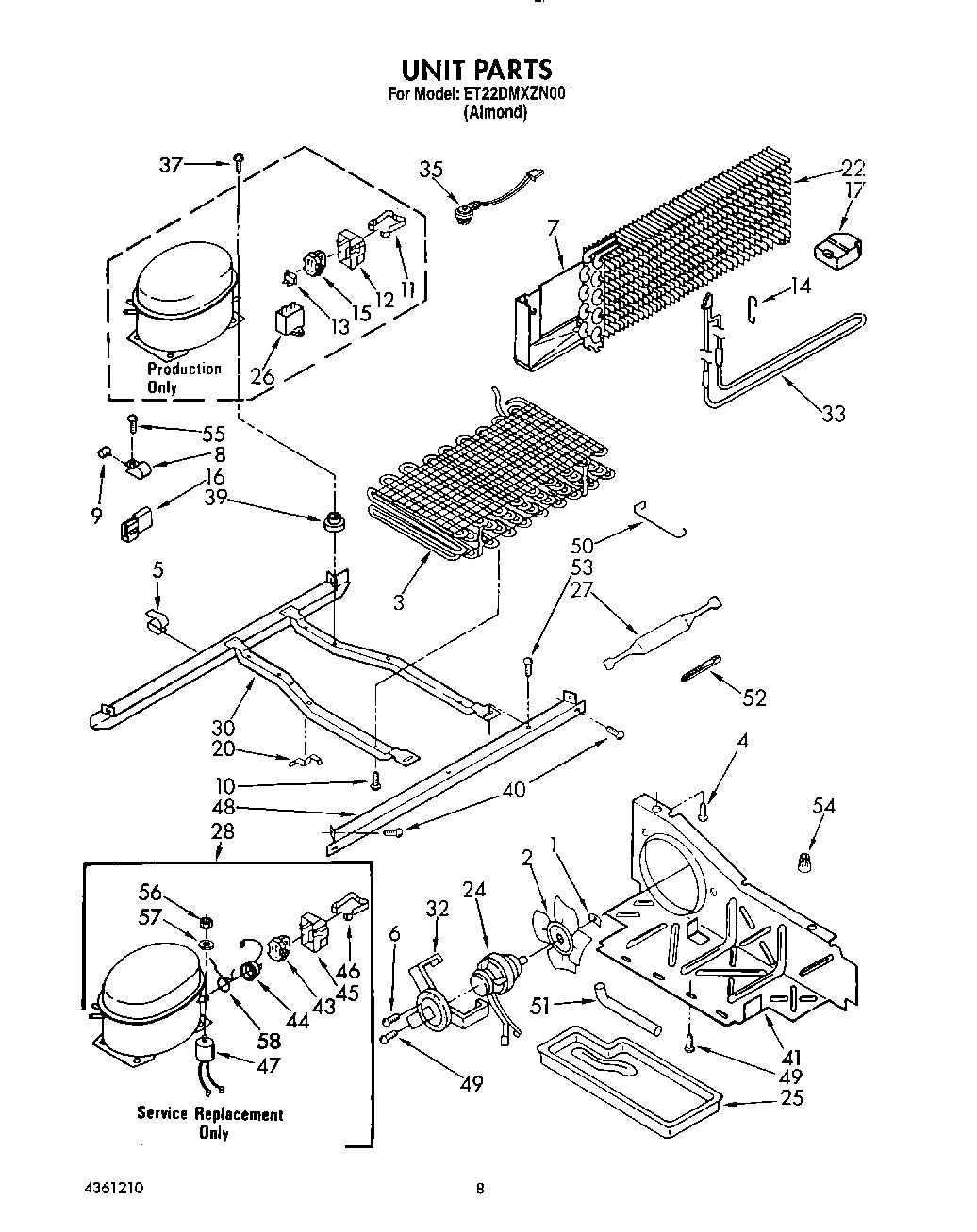

06 - UNIT

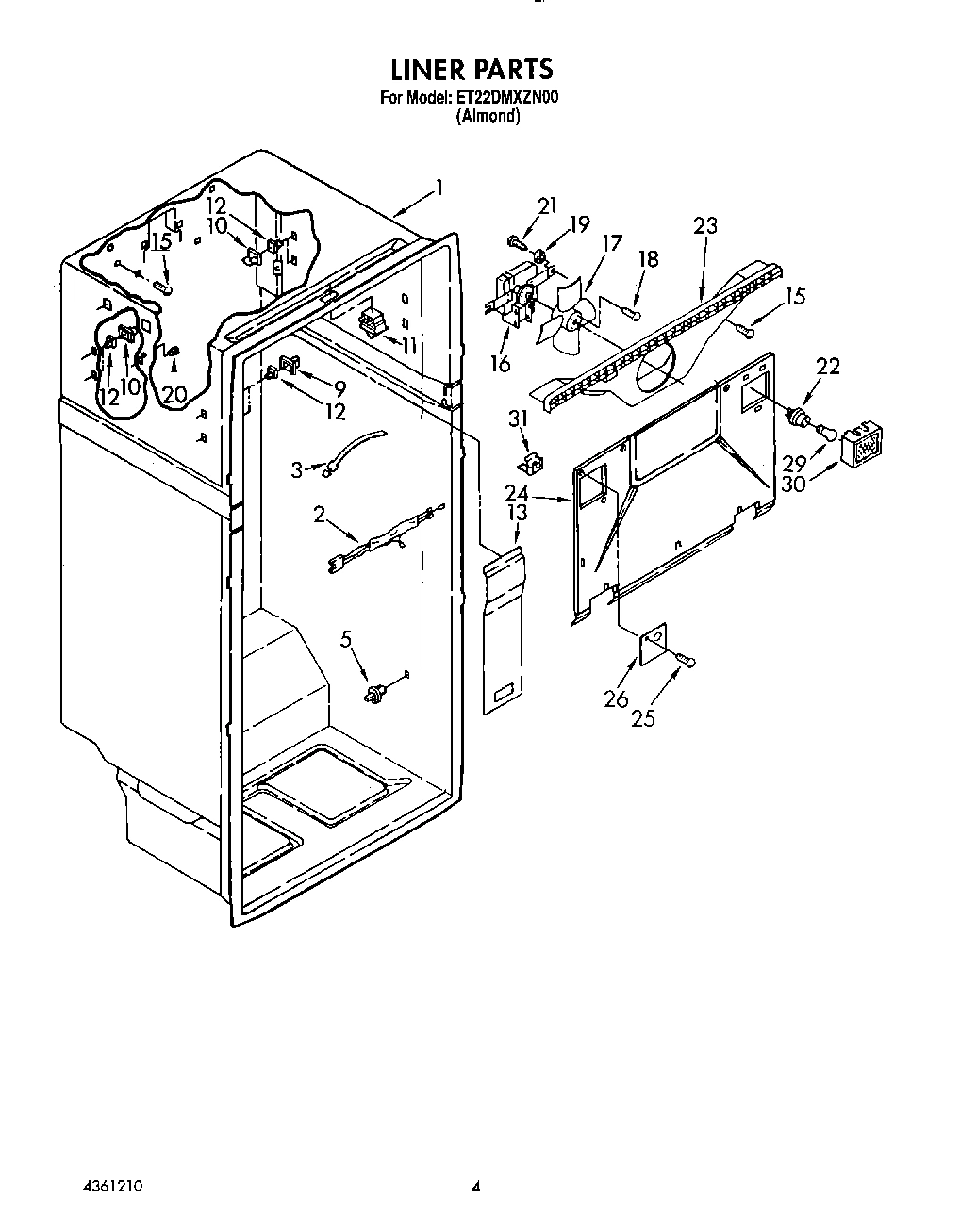

03 - LINER
Common parts from model Whirlpool ET22DMXZN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 1122658 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105452 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146796A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Fitting, Water Tube WPL 2154801 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Box, Control WPL 1106805 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Strap, Mtg. WPL 1123230 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Switch, Toggle WPL 1106601 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Handle, Center WPL 1120781 Contact Us For Availability
12
Handle, Center WPL 1110382 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Overload WPL 2154140 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 1118806 Contact Us For Availability
18
Insert, Handle WPL 1120830 Contact Us For Availability
18
Nameplate WPL 1111555 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Interior Door Panel WPL 2156244 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Trim, Door Compartment WPL 1124223 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148792 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Reflector, Shelf WPL 1110743 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148794 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
25
Trim, Shelf WPL 2148451 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
25
Insert, Handle WPL 1114390 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1114380 Contact Us For Availability
26
Divider, Bin WPL 2152336 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317959 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Door, Ice Compartment WPL 2148731 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
31
Clip (2) WPL 1119734 Contact Us For Availability
32
Slide, Crisper WPL 1116718 Contact Us For Availability
32
Trim, Door Shelf WPL 1124254 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Screw (6) WPL 489226 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Heater, Defrost WPL 2154736 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
WPL 876029 WPL 876029 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
WPL 799344 WPL 799344 Contact Us For Availability
36
Crisper Pan, Front WPL 2148815 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Door Dike, Center WPL 1122711 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
