Model Whirlpool ET22DMXDN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

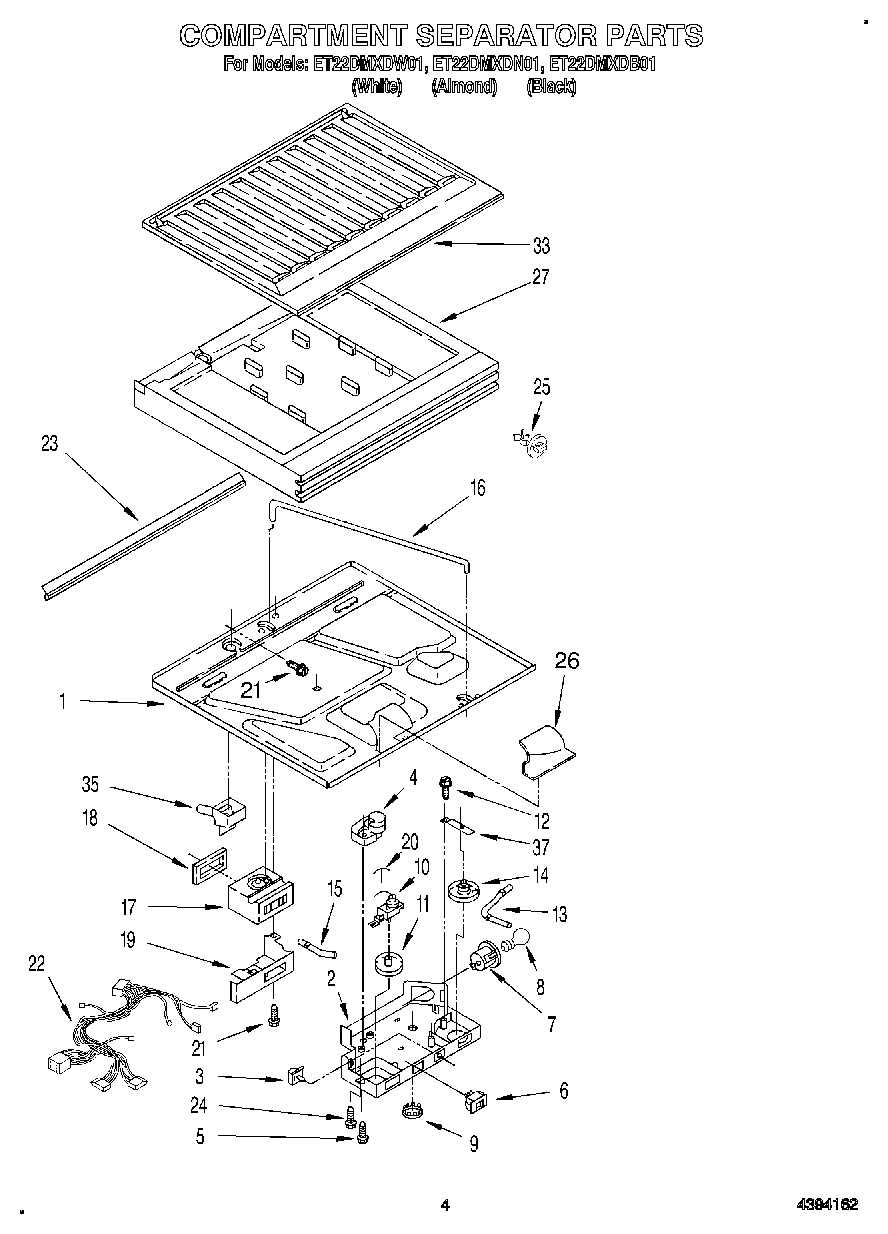

03 - COMPARTMENT SEPARATOR

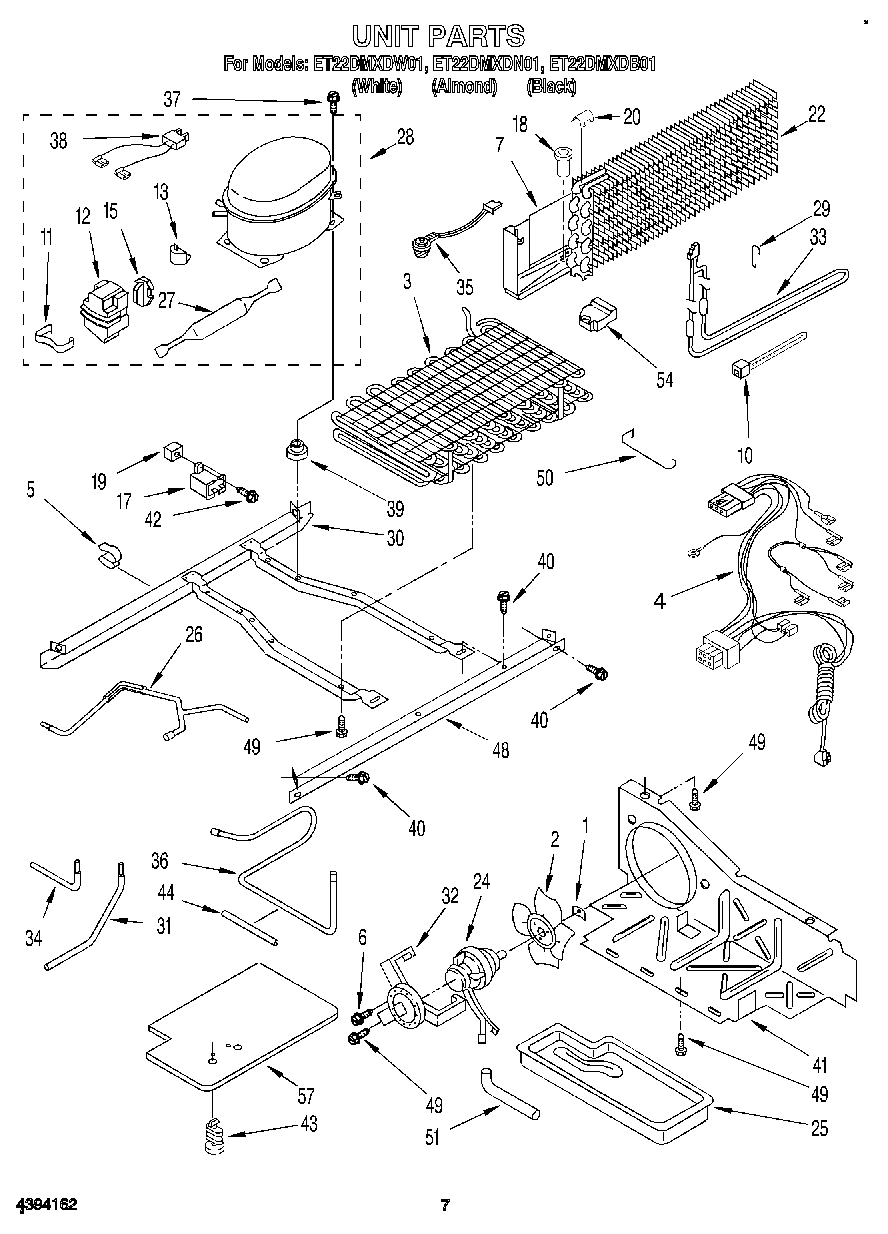

05 - UNIT
02 - LINER
04 - SHELF
07 - ICEMAKER
06 - REFRIGERATOR DOOR
01 - CABINET
08 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool ET22DMXDN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173969 WPL LIT2173969 Contact Us For Availability
WPL LIT2176899 WPL LIT2176899 Contact Us For Availability
WPL LIT2179516 WPL LIT2179516 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50033A3 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 2161866 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50032A2 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Bracket, Door Stop (Black Model) WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Floor, Pull-Out Freezer WPL 2174376 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
6
Fence, Freezer Floor WPL 2174378 Contact Us For Availability
7
Trim, Freezer Floor WPL 2174323 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2174036 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Track, Freezer Floor (2) WPL 2174370 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170598 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170599 Contact Us For Availability
9
Crisper Cover WPL 2179420 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Gasket, Crisper Cover WPL 2179392 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Plug, Hole (White) WPL 2174433 Contact Us For Availability
10
Plug, Hole (Almond) WPL 2174434 Contact Us For Availability
10
Plug, Hole (Black) WPL 2174435 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174143 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
12
Shelf, Slide (Side to Side) WPL 2174224 Contact Us For Availability
12
Screw WPL 486214 Contact Us For Availability
12
Handle, Door (White) WPL 2179311 Contact Us For Availability
12
Handle, Door (Almond) WPL 2179312 Contact Us For Availability
12
Handle, Door (Black) WPL 2179313 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Door (White) WPL 2179305 Contact Us For Availability
12
Handle, Door (Almond) WPL 2179306 Contact Us For Availability
12
Handle, Door (Black) WPL 2179307 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
15
Spring WPL 2174719 Contact Us For Availability
15
Deck Rail Cover WPL 2172708 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174035 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171403 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2180545 Contact Us For Availability
18
Nameplate (Black) WPL 2180546 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2179411 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2179412 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
24
Evaporator Cover WPL 2174325 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2179445 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
26
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
26
Divider WPL 2179446 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Hook, Shelf WPL 2169608 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Door Reversal Instructions WPL 2172761 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Trim, Door Shelf WPL 2177228 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Screw WPL 489419 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
34
Bin, Door Shelf (4) WPL 2179604 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Hole Plug (White) WPL 1129062 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
41
Support, Stud WPL 946355 Contact Us For Availability
41
Shim, Handle WPL 2179398 Contact Us For Availability
42
Shim, Handle WPL 2183124 Contact Us For Availability
43
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
43
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
43
Cover, Endca WPL 2174008 Contact Us For Availability
44
Shelf, Meat Pan WPL 2174043 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
