Model Whirlpool ET22DMXBW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

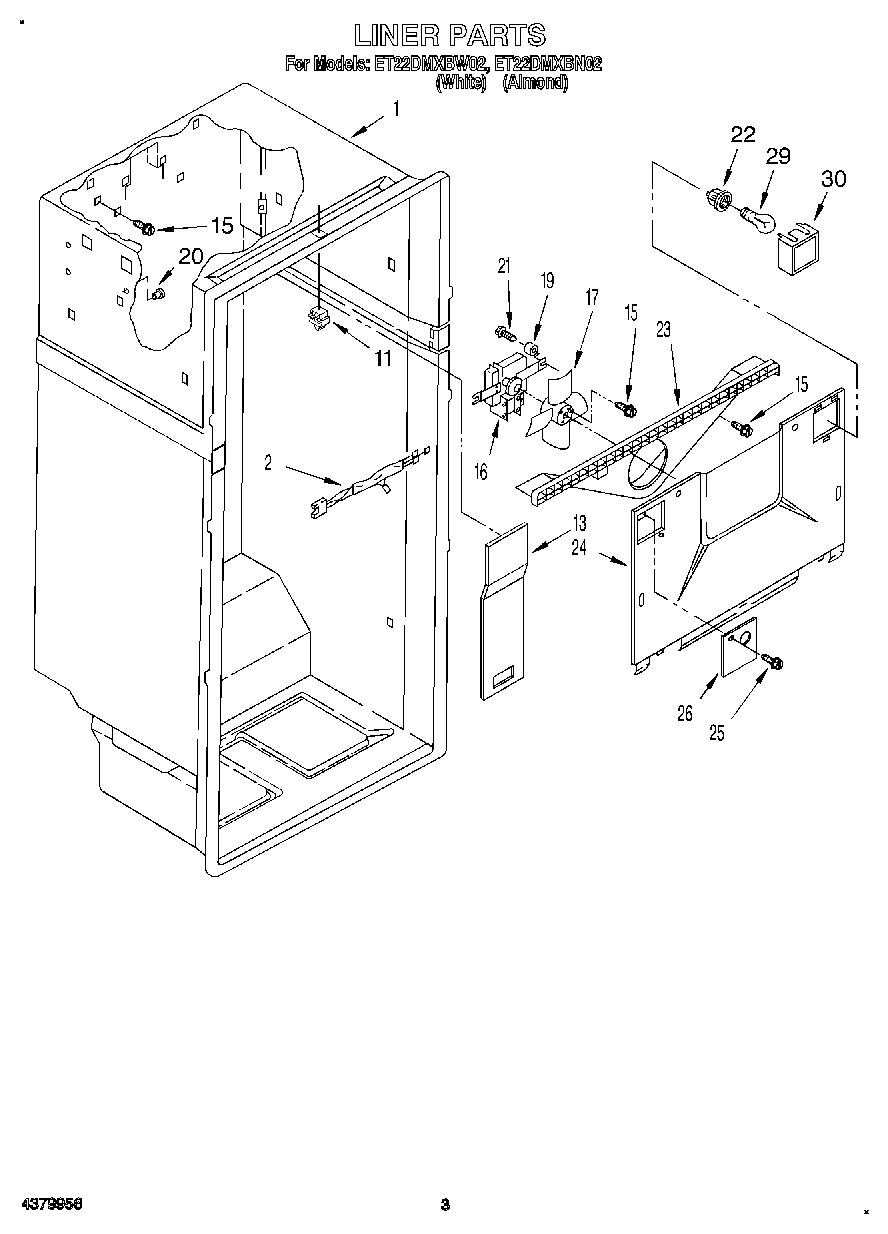

02 - LINER

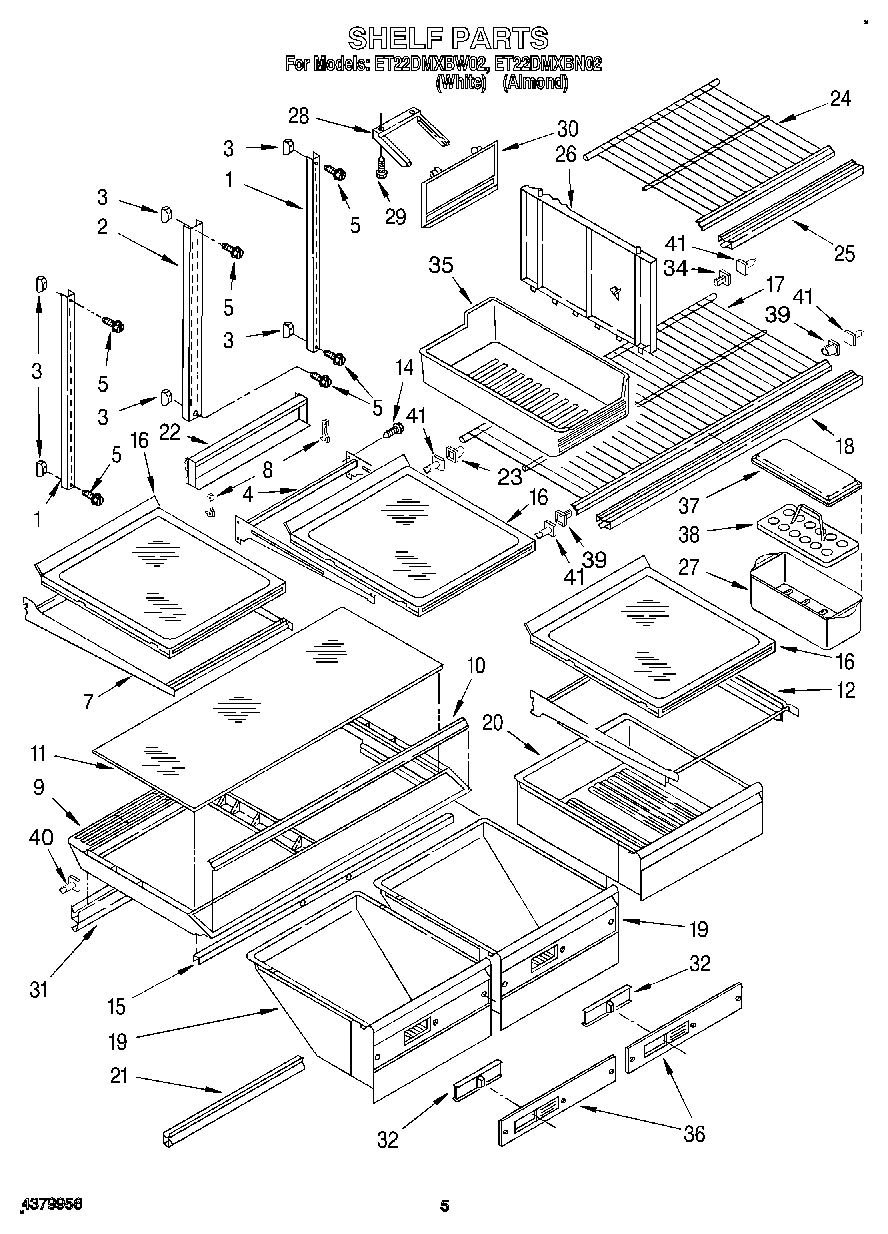

04 - SHELF, LIT/OPTIONAL

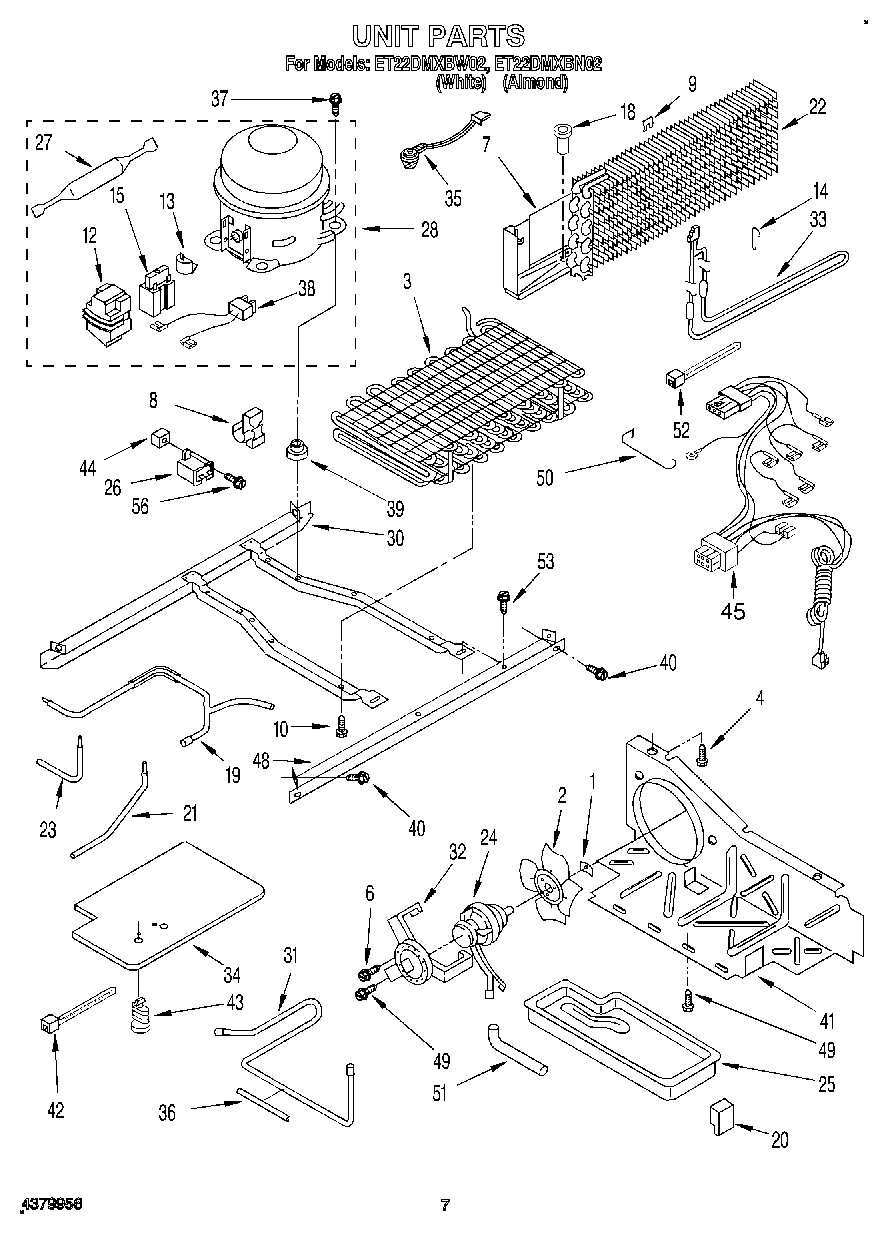

05 - UNIT

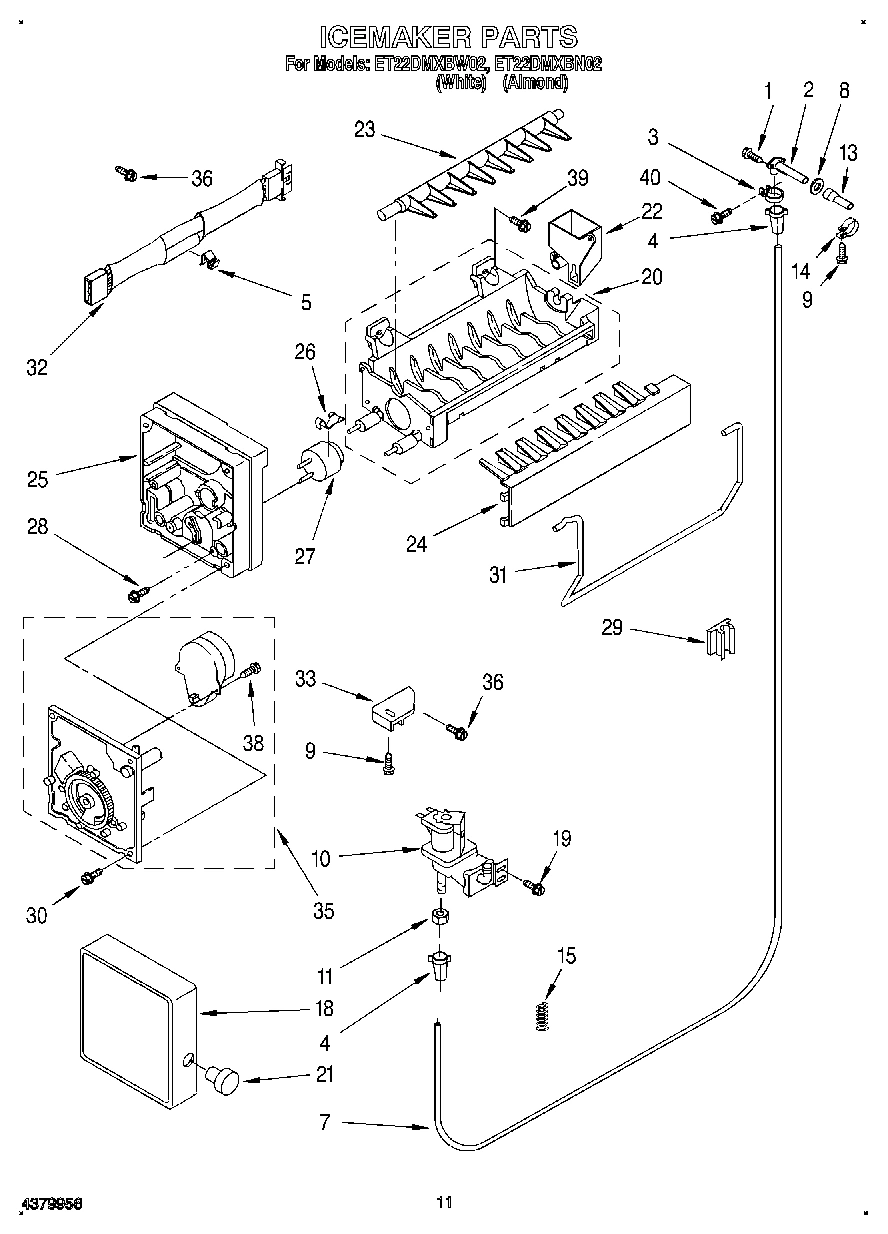

07 - ICEMAKER

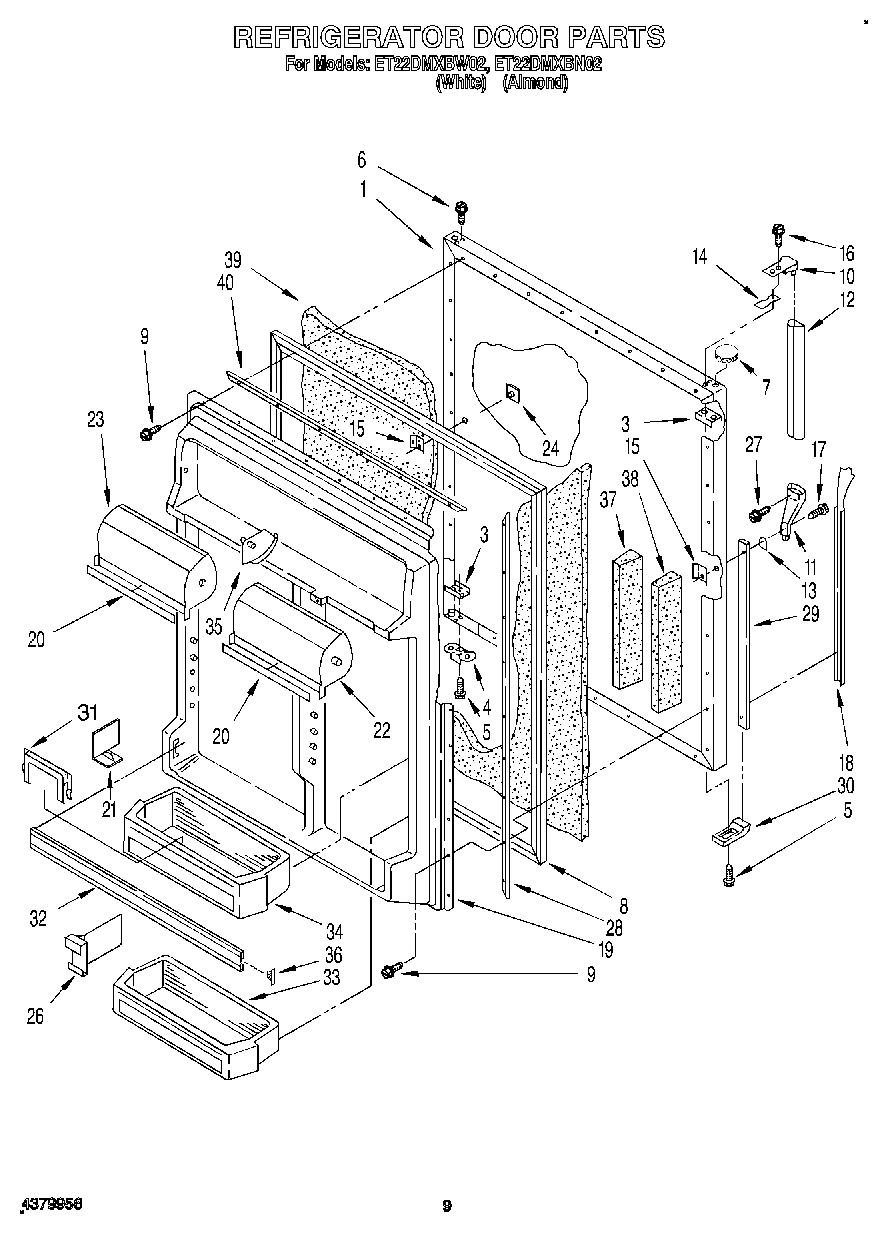

06 - REFRIGERATOR DOOR

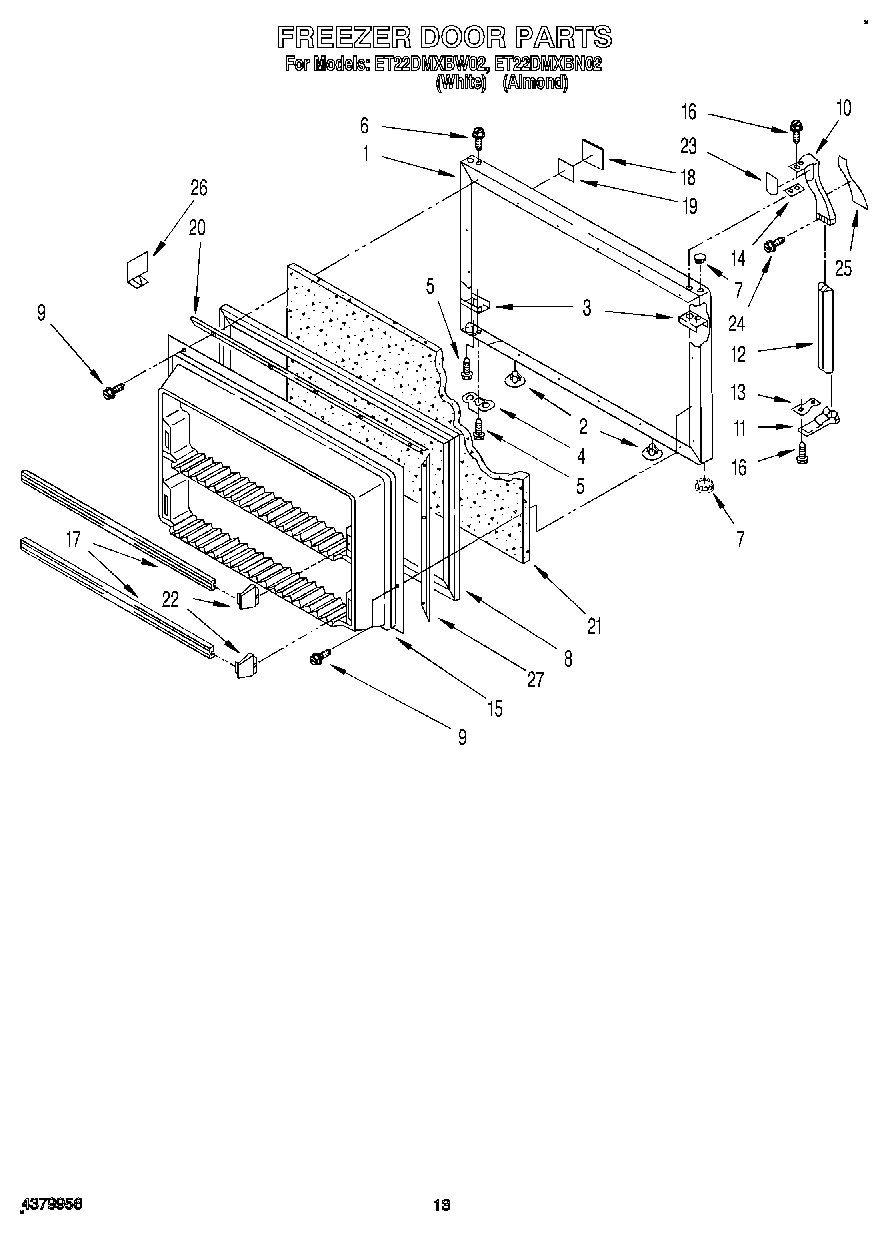

08 - FREEZER DOOR
Common parts from model Whirlpool ET22DMXBW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170892 WPL LIT2170892 Contact Us For Availability
WPL LIT2170979 WPL LIT2170979 Contact Us For Availability
WPL LIT2176949 WPL LIT2176949 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 39) WPL 1122549 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 39) WPL 1122658 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 21) (Whit WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Shelf Assembly, Spillguard WPL 2169603 Contact Us For Availability
4
Bracket, Door Stop (Chrome) WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Shelf, Cantilever WPL 2160306 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Hook, Shelf WPL 2169608 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162846 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162981 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2166327 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Screw WPL 489419 Contact Us For Availability
14
Support, Heater WPL 851358 Contact Us For Availability
15
Relay (See Overload) WPL ARI50022A3 Contact Us For Availability
15
Spring WPL 2174719 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2162839 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162698 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162856 Contact Us For Availability
19
Tube, Discharge WPL 2162475 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2162930 Contact Us For Availability
20
Insert, Air Baffle WPL 2176796 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Track Assembly, Shelf WPL 2169793 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Evaporator Cover WPL 2179450 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
25
Trim, Shelf WPL 2162935 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Capacitor, Run WPL 2154565 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Divider, Bin WPL 2152335 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Tube, Suction WPL 2162472 Contact Us For Availability
31
Retainer, Bottle WPL 2163566 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 2173850 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2162894 Contact Us For Availability
34
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2162895 Contact Us For Availability
36
Crisper, Pan Front WPL 2162851 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
40
Shelf Stud (2) WPL 1106612 Contact Us For Availability
41
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
Plug-Trim WPL 2159300 Contact Us For Availability
41
Door Reversal Instructions WPL 2172761 Contact Us For Availability
41
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
41
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 946355 WPL 946355 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Screw Grommet WPL 509812 Contact Us For Availability
45
Wire Assembly WPL 2176857 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2183033 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
