Model Whirlpool ET22DMXBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - SHELF, LITERATURE
08 - FREEZER DOOR

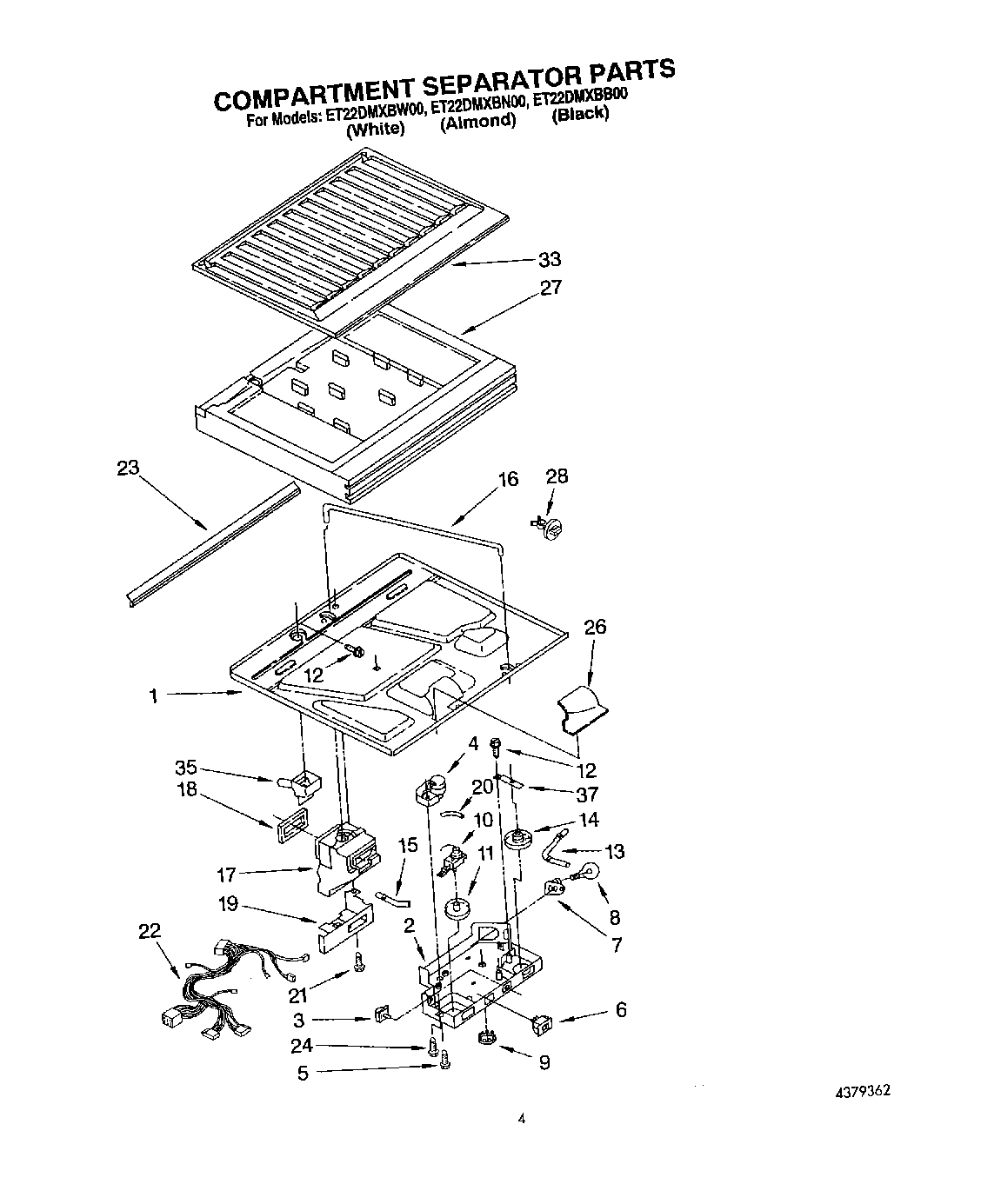

03 - COMPARTMENT SEPARATOR

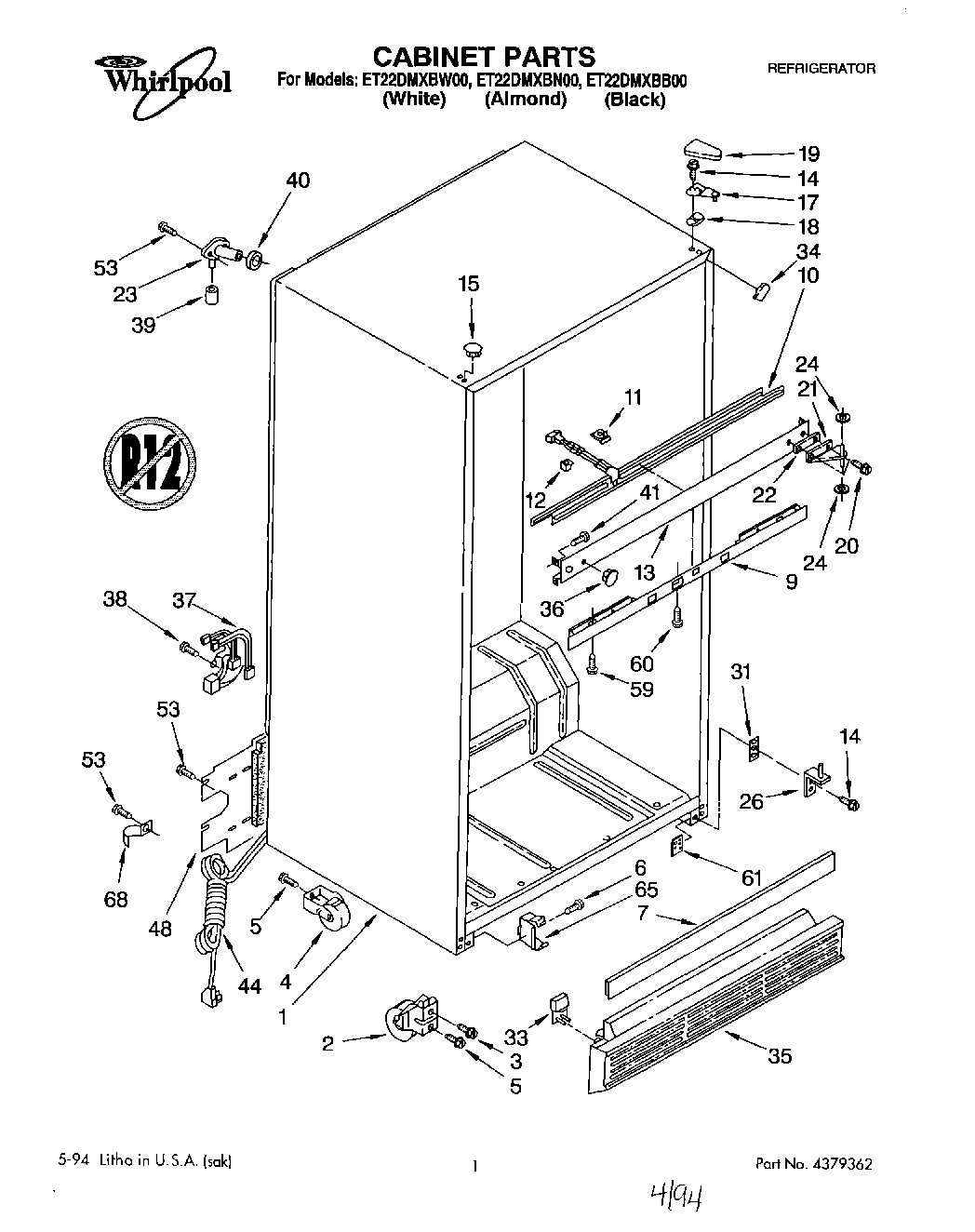

01 - CABINET

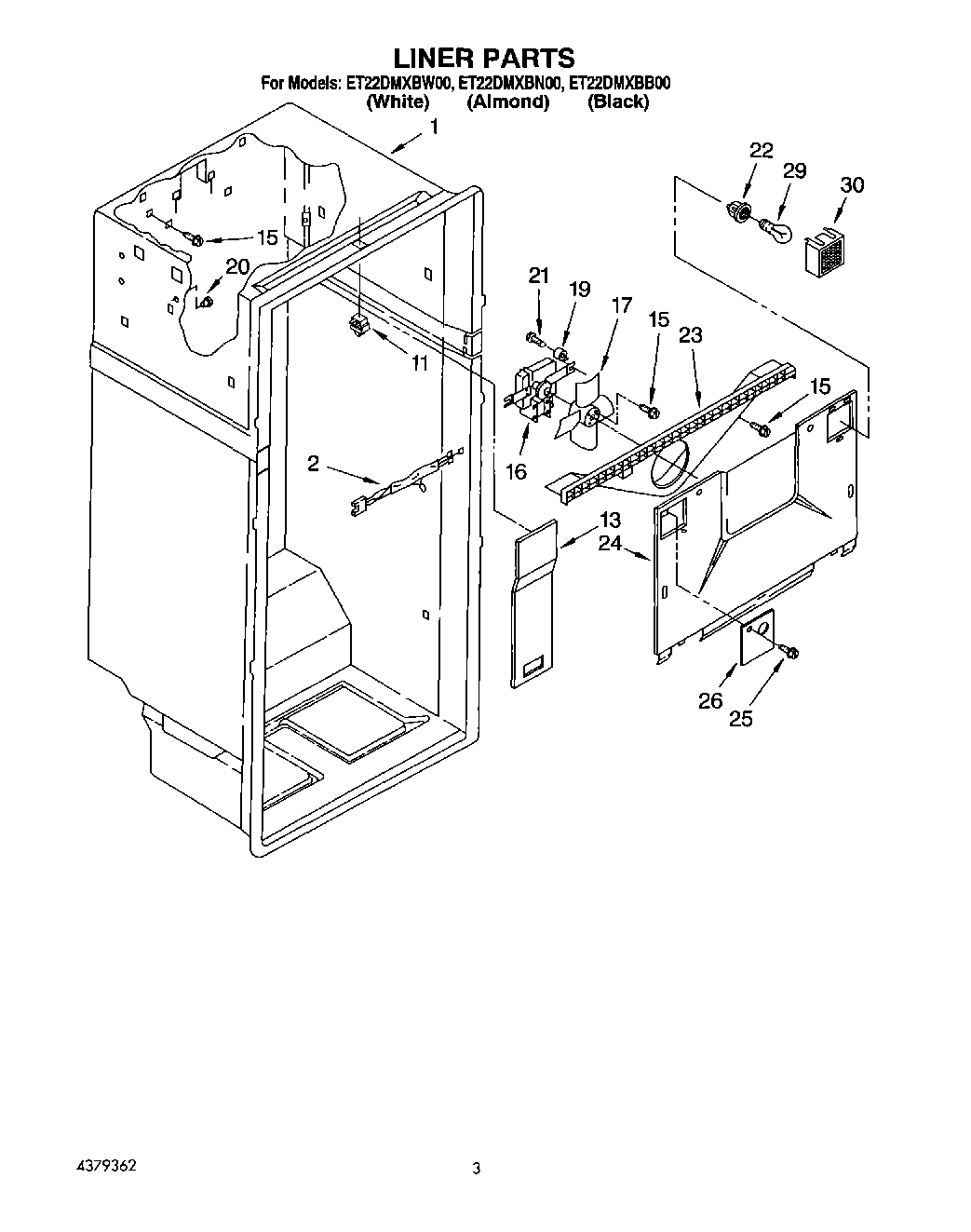

02 - LINER

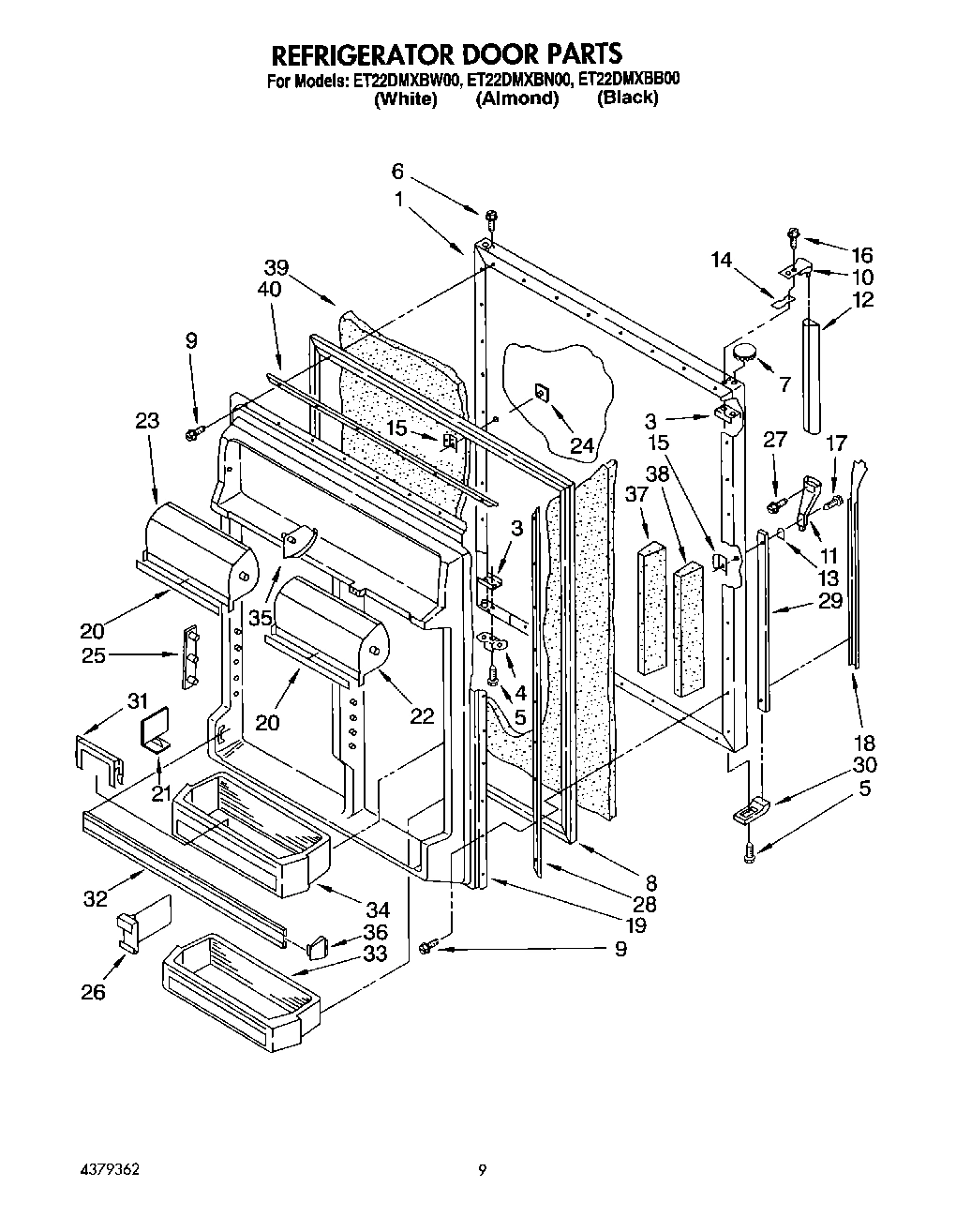

06 - REFRIGERATOR DOOR

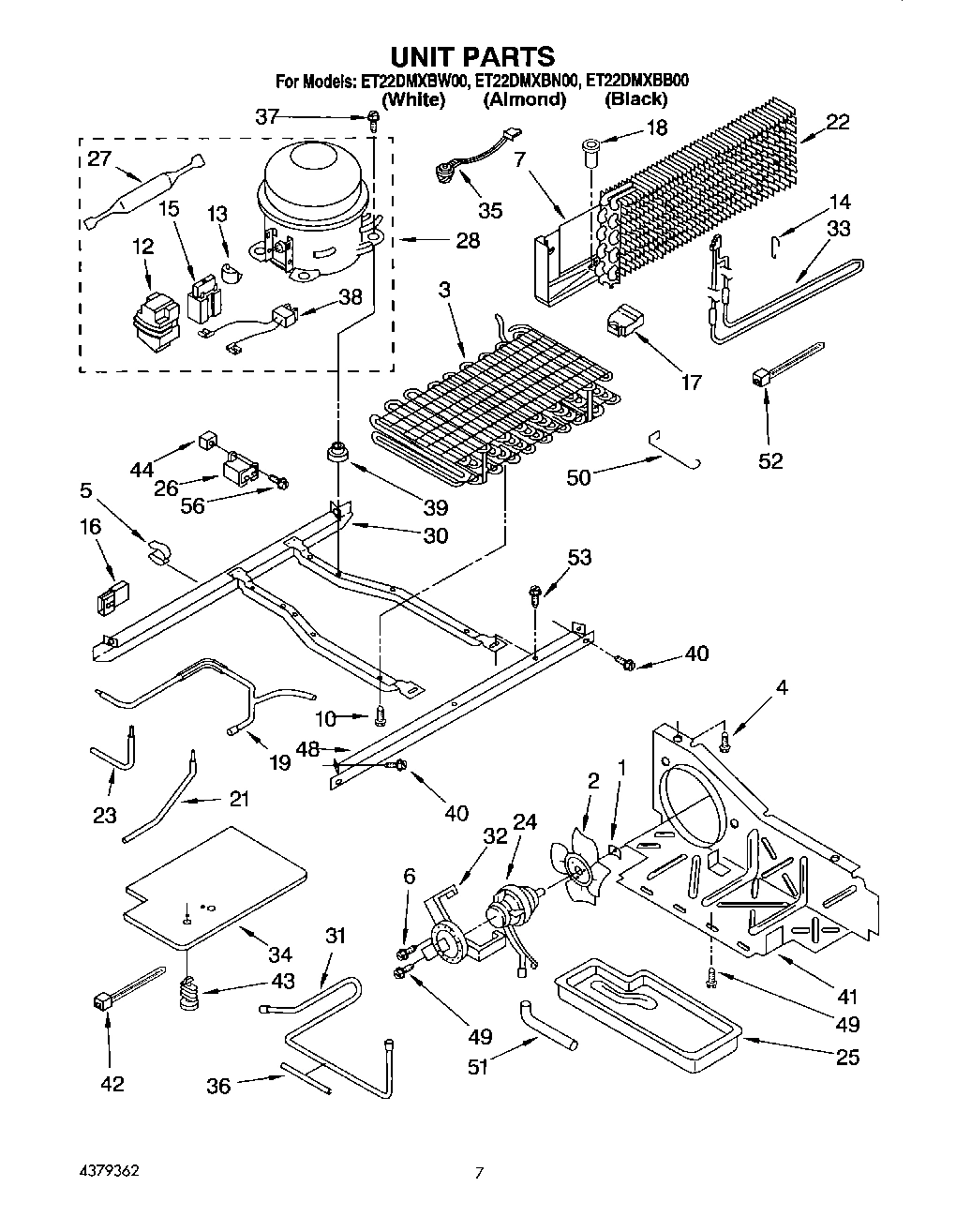

05 - UNIT

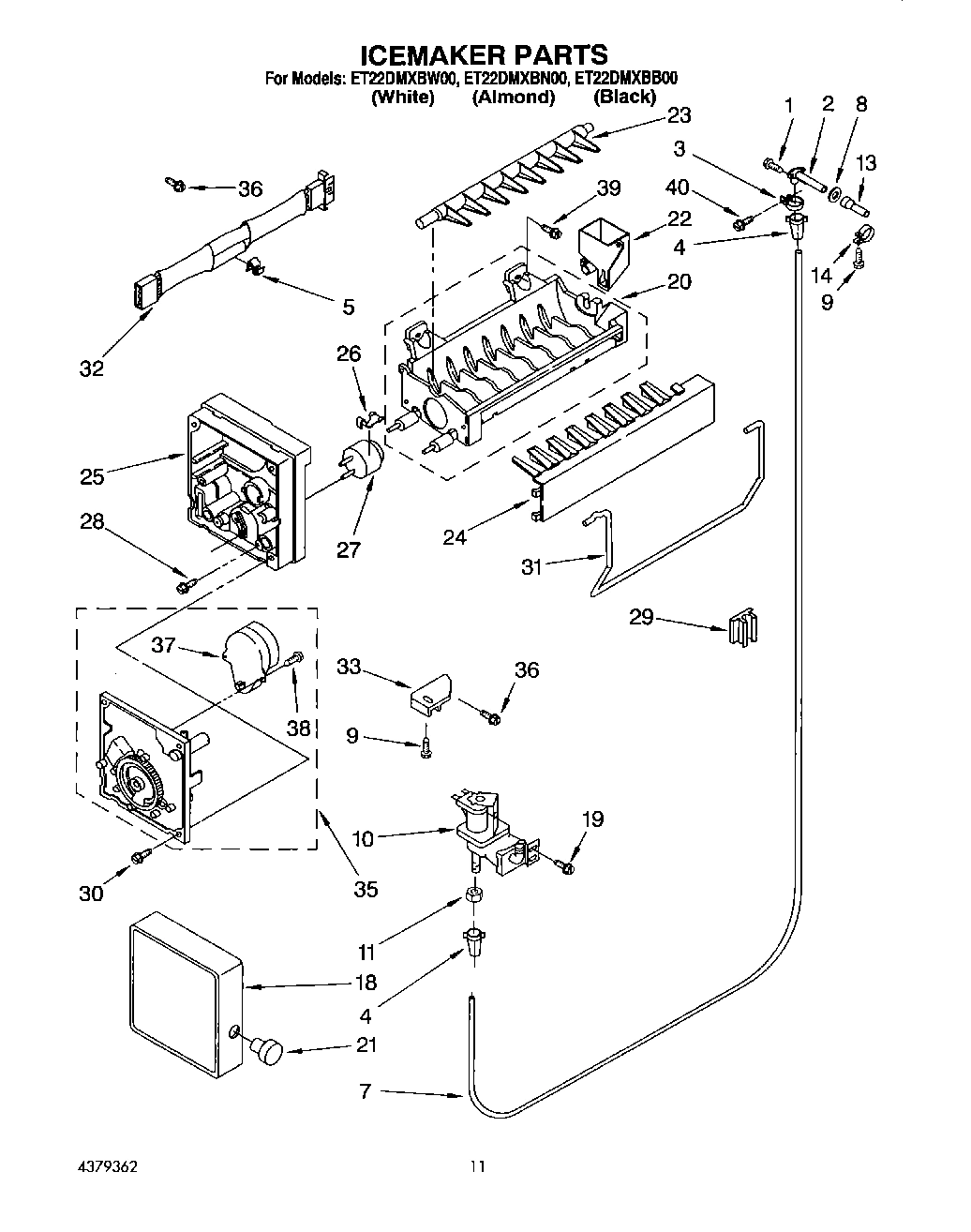

07 - ICEMAKER
Common parts from model Whirlpool ET22DMXBW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172820 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146754A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146755A Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 2161866 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop (Black Model) WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 944036 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170599 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170598 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
12
Handle, Center (Black) WPL 2159168 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Black) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2162839 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Black Model) WPL 2162668 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162698 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Insert, Handle (Black) WPL 1120830 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 2156245 Contact Us For Availability
19
Tube, Discharge WPL 2162475 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Trim, Compartment Door WPL 2170552 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Divider, Door Shelf WPL 2160050 Contact Us For Availability
21
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148807 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148809 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
25
Pin Plate WPL 1116986 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider, Bin WPL 2152335 Contact Us For Availability
26
Capacitor, Run (Service) WPL 2154565 Contact Us For Availability
26
Capacitor, Run (Production) WPL 2169137 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Endcap, Ins WPL 1105804 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
WPL 2163566 WPL 2163566 Contact Us For Availability
31
Tube, Suction WPL 2162472 Contact Us For Availability
32
WPL 2162841 WPL 2162841 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
WPL 2162894 WPL 2162894 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
WPL 2162895 WPL 2162895 Contact Us For Availability
34
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
WPL 1122711 WPL 1122711 Contact Us For Availability
38
WPL 1122709 WPL 1122709 Contact Us For Availability
40
Shelf Stud (2) WPL 1106612 Contact Us For Availability
40
WPL 1122552 WPL 1122552 Contact Us For Availability
41
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Screw Grommet WPL 509812 Contact Us For Availability
48
Cover, Unit WPL 2172768 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
