Model Whirlpool ET22DMXAN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - REFRIGERATOR DOOR
09 - FREEZER DOOR

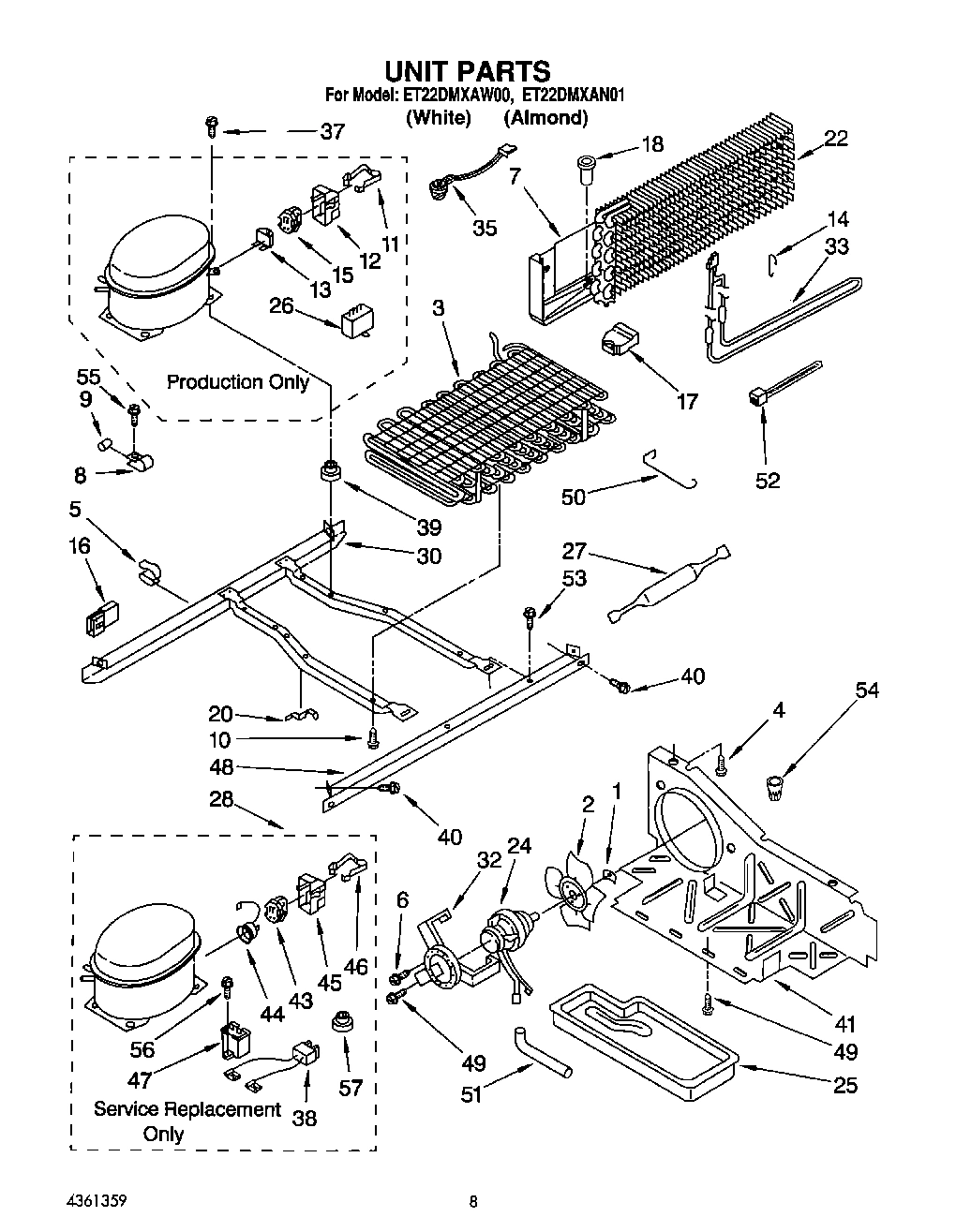

06 - UNIT
08 - ICEMAKER

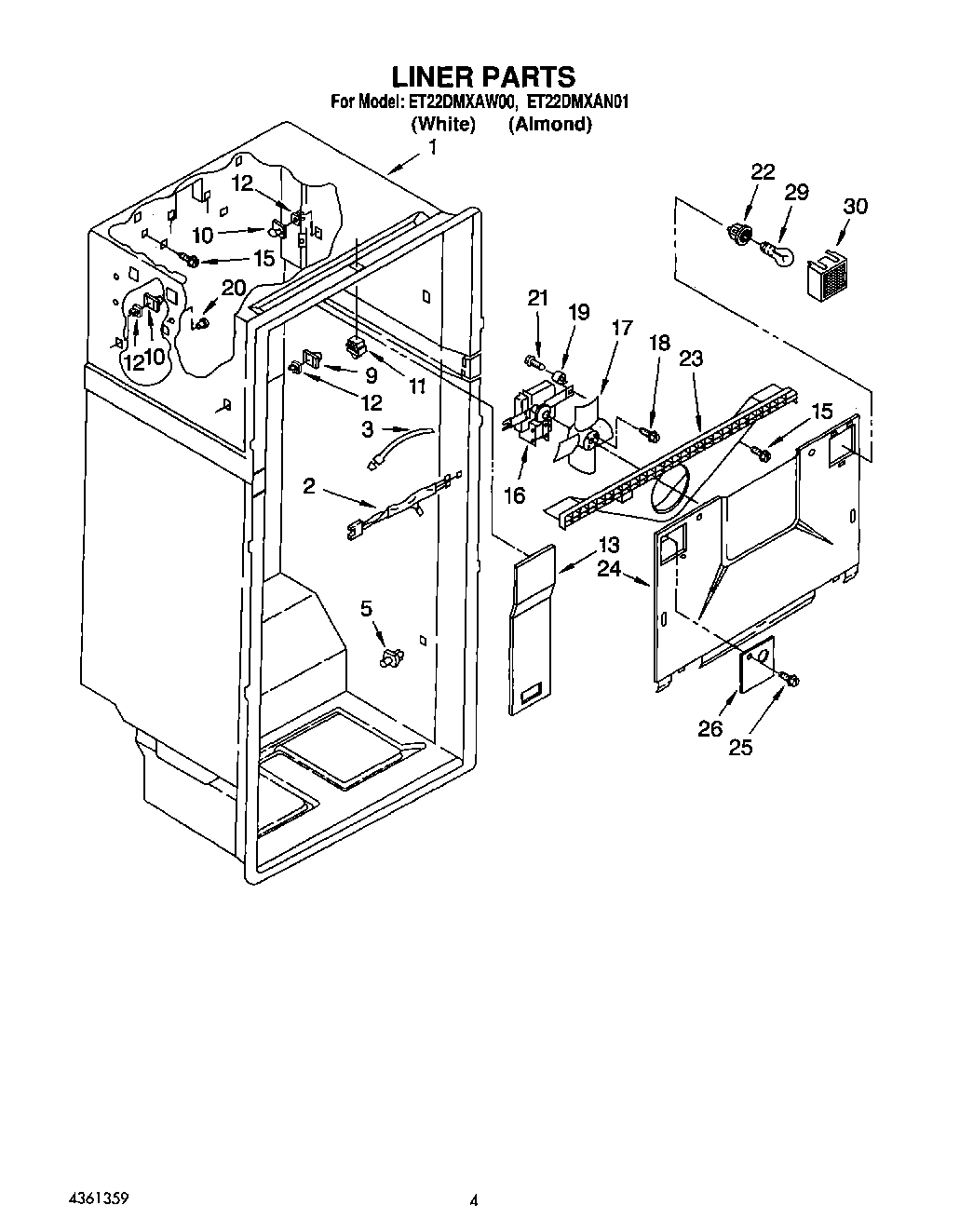

03 - LINER

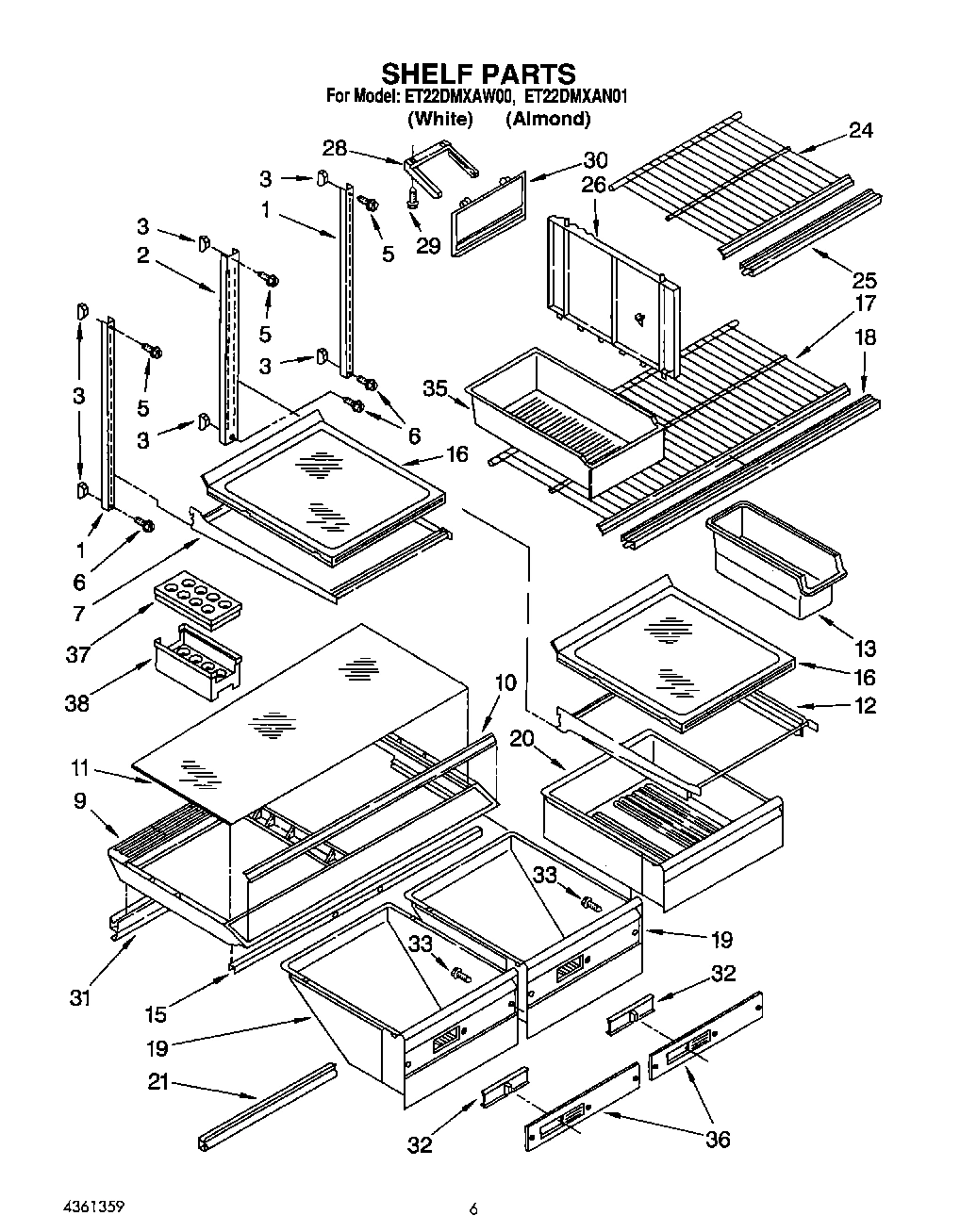

05 - SHELF, LIT/OPTIONAL

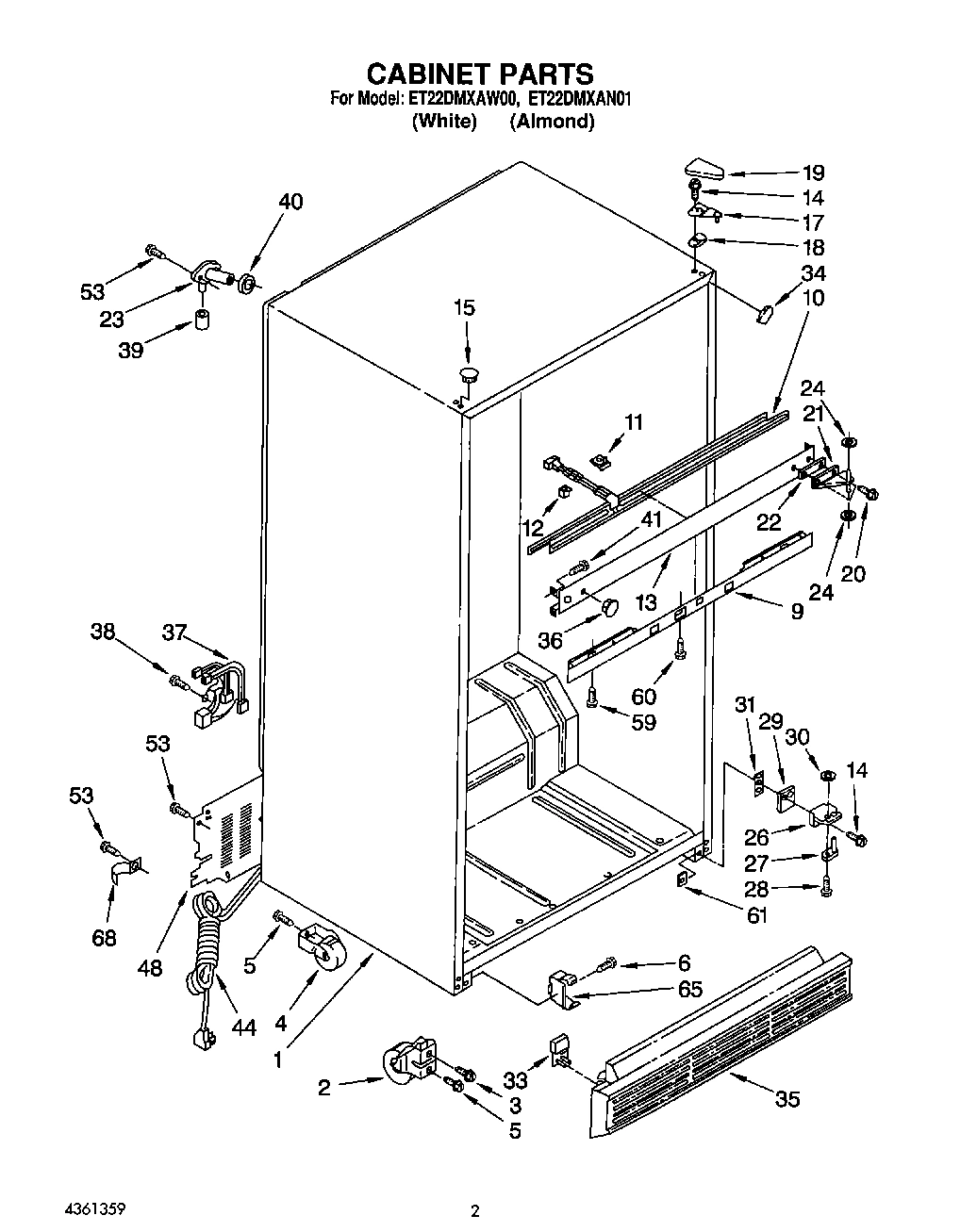

02 - CABINET

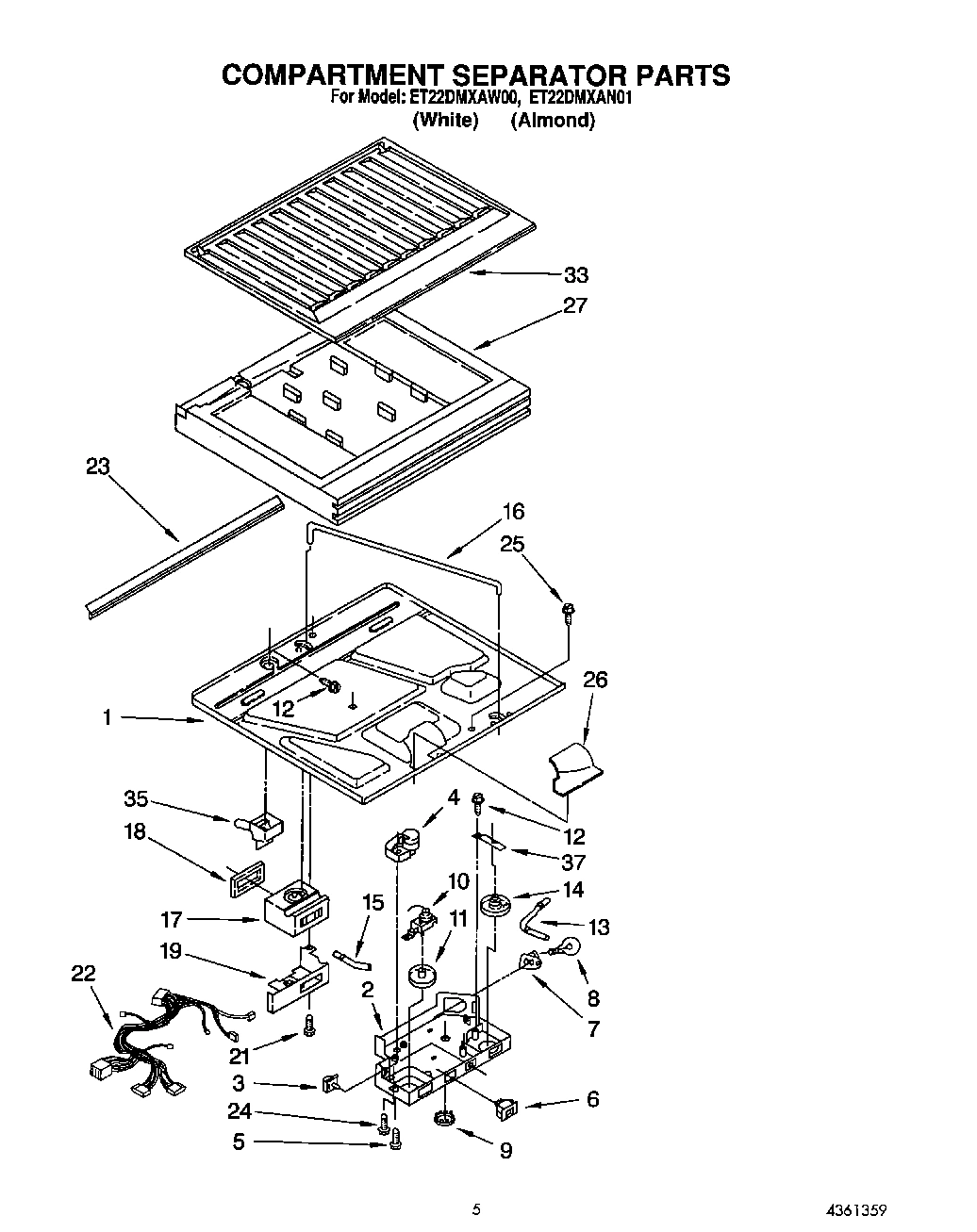

04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET22DMXAN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154076 WPL LIT2154076 Contact Us For Availability
WPL LIT2160152 WPL LIT2160152 Contact Us For Availability
WPL LIT2162621 WPL LIT2162621 Contact Us For Availability
WPL LIT4361359 WPL LIT4361359 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50011A5 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50010A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105452 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Strap, Mtg. WPL 1123230 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Screw (6) WPL 488454 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Shelf, Cantilever WPL 2160306 Contact Us For Availability
8
Tube Clamp WPL 2159720 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 1119480 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2166327 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Trim, Shelf Front WPL 2148535 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162717 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2162716 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
25
Insert, Handle (White Model) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond Model) WPL 1108830 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Trim, Shelf WPL 2148537 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Capacitor, Run WPL 2154565 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door, Ice Compartment WPL 2148741 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Screw WPL 489226 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
Crisper Pan, Front WPL 2148816 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Egg Cont. Top WPL 2164174 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
Egg Cont. Bott. WPL 2164173 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
39
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
