Model Whirlpool ET21UMXGW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

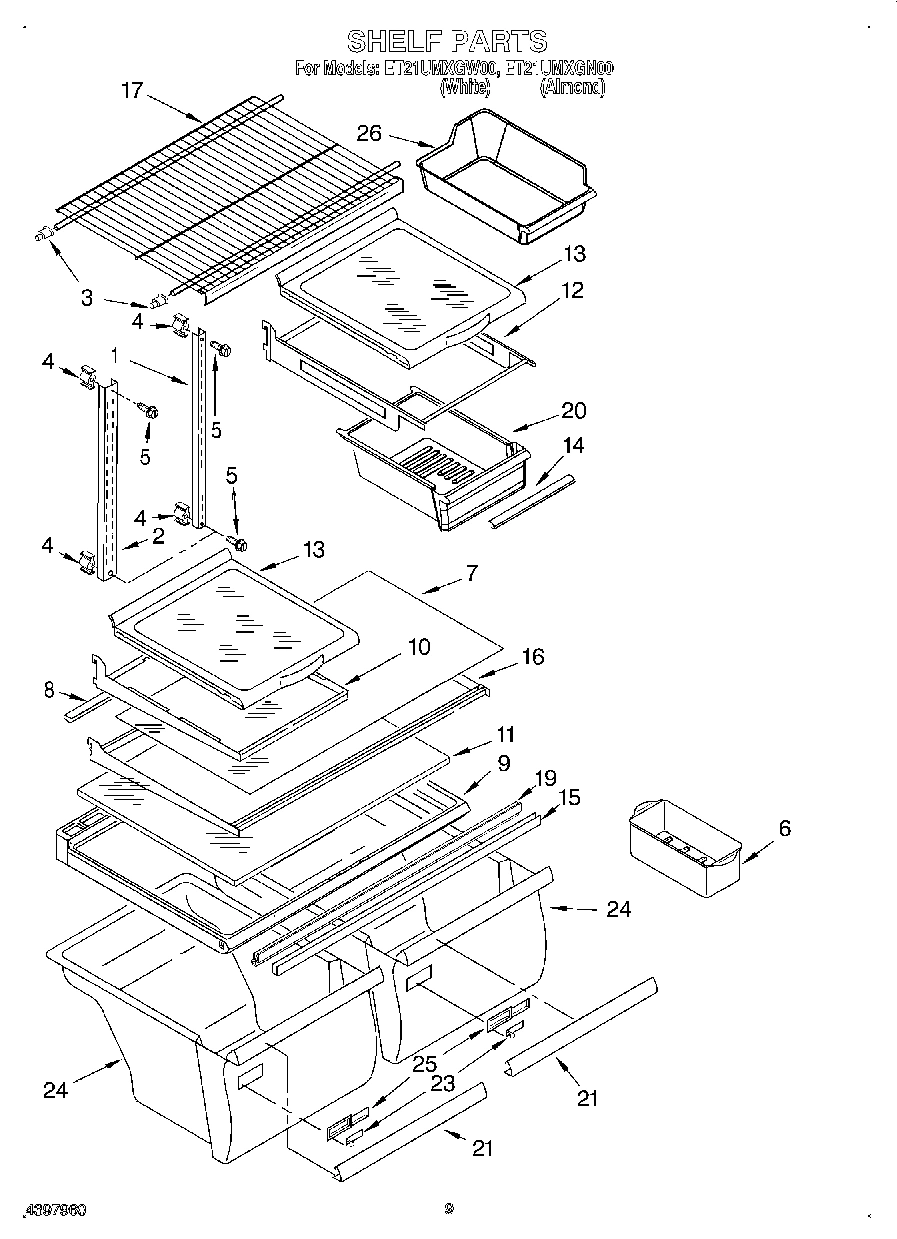

05 - SHELF, LIT/OPTIONAL

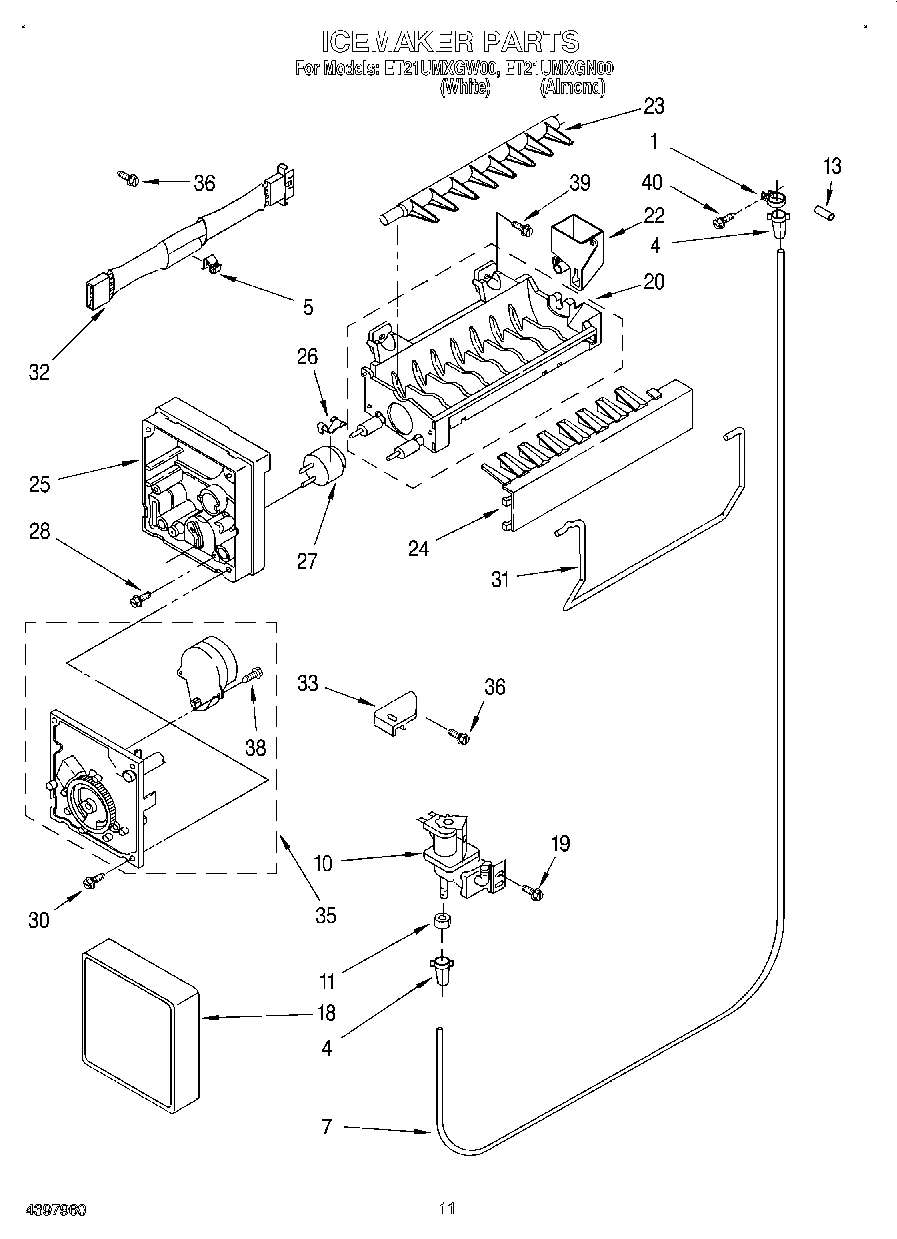

06 - ICEMAKER
02 - DOOR
04 - UNIT
01 - CABINET
03 - LINER
Common parts from model Whirlpool ET21UMXGW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49932A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49935A1 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Screw Support WPL 2189314 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
11
Cover, Strap WPL 943322 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Cover WPL 1105055 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
15
Relay (See Overload) WPL ARI49936A7 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Support Block WPL 2189906 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Slide, Crisper WPL 2176222 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI49933A4 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (White) WPL 2183991 Contact Us For Availability
36
Grille (Almond) WPL 2183992 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI49934A7 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
