Model Whirlpool ET20RMXTM00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - REFRIGERATOR SHELF
06 - FREEZER SHELF

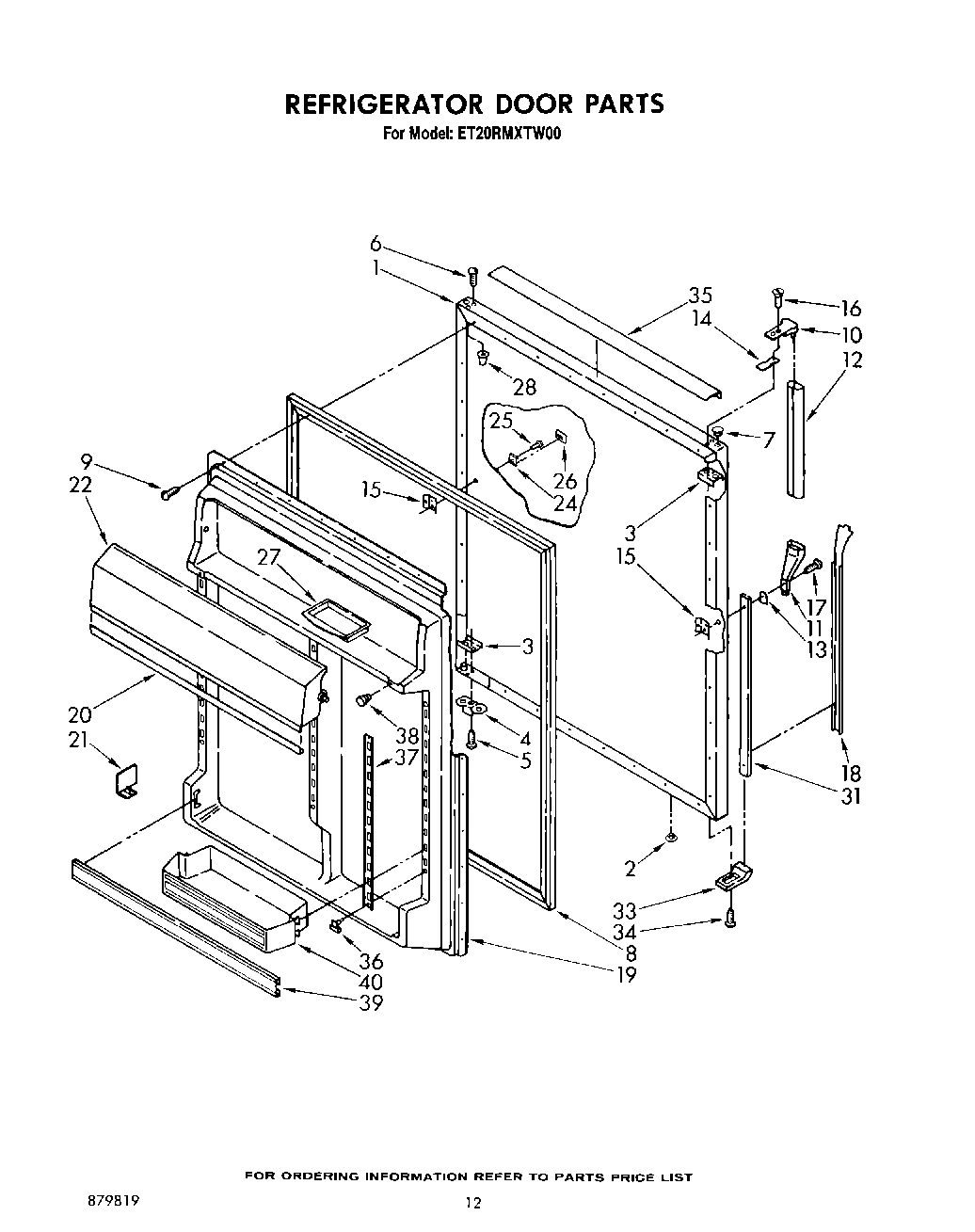

09 - REFRIGERATOR DOOR

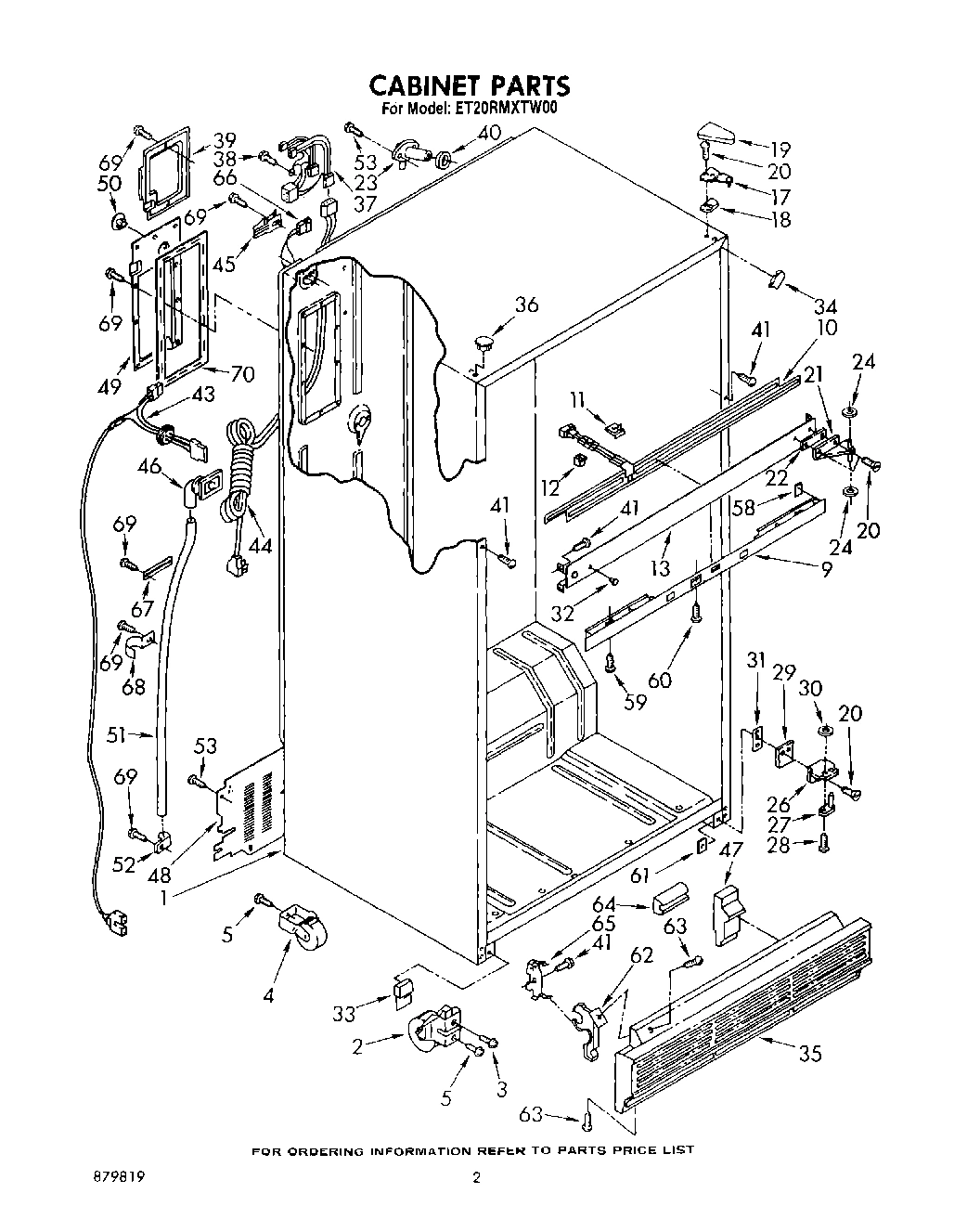

02 - CABINET

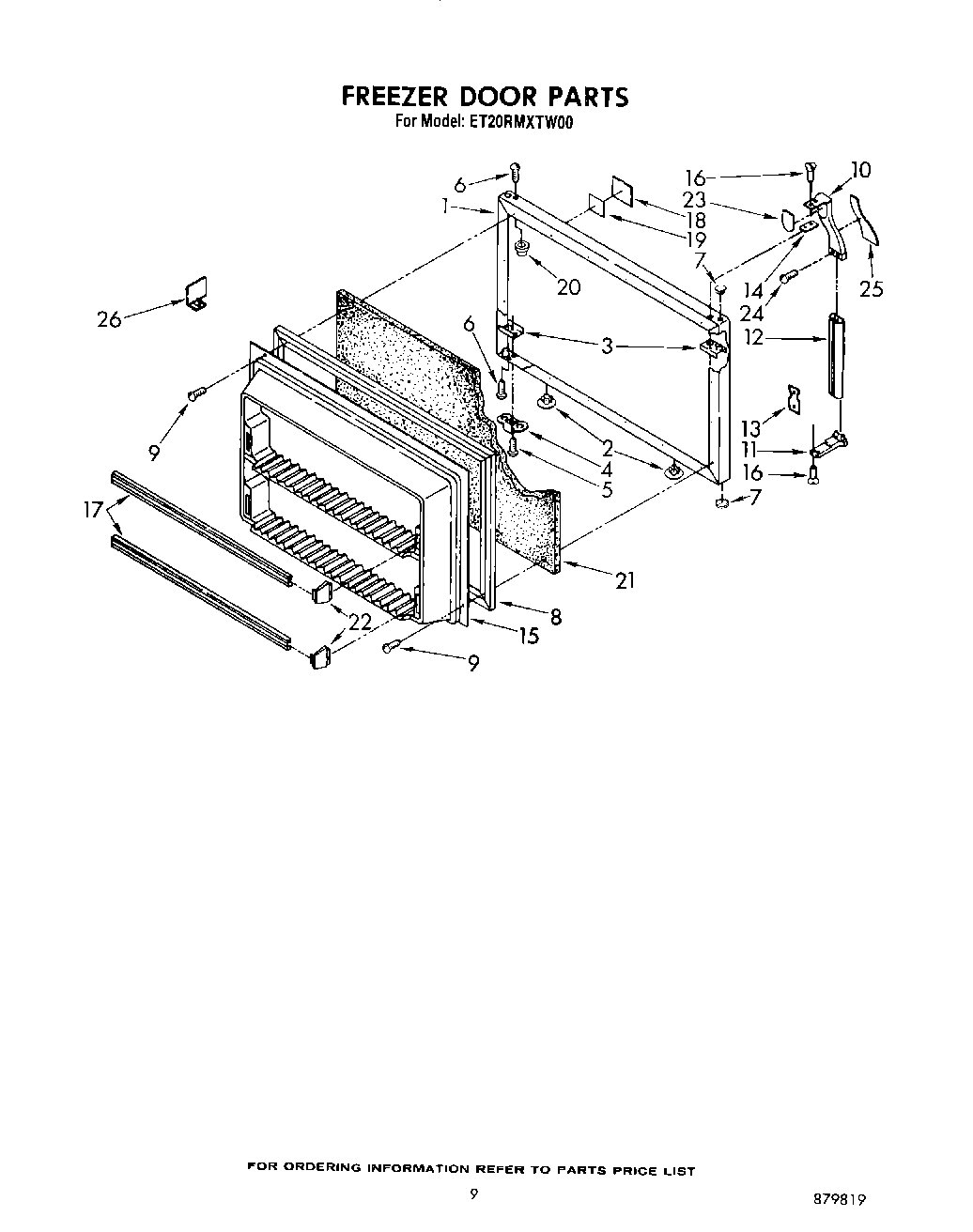

07 - FREEZER DOOR

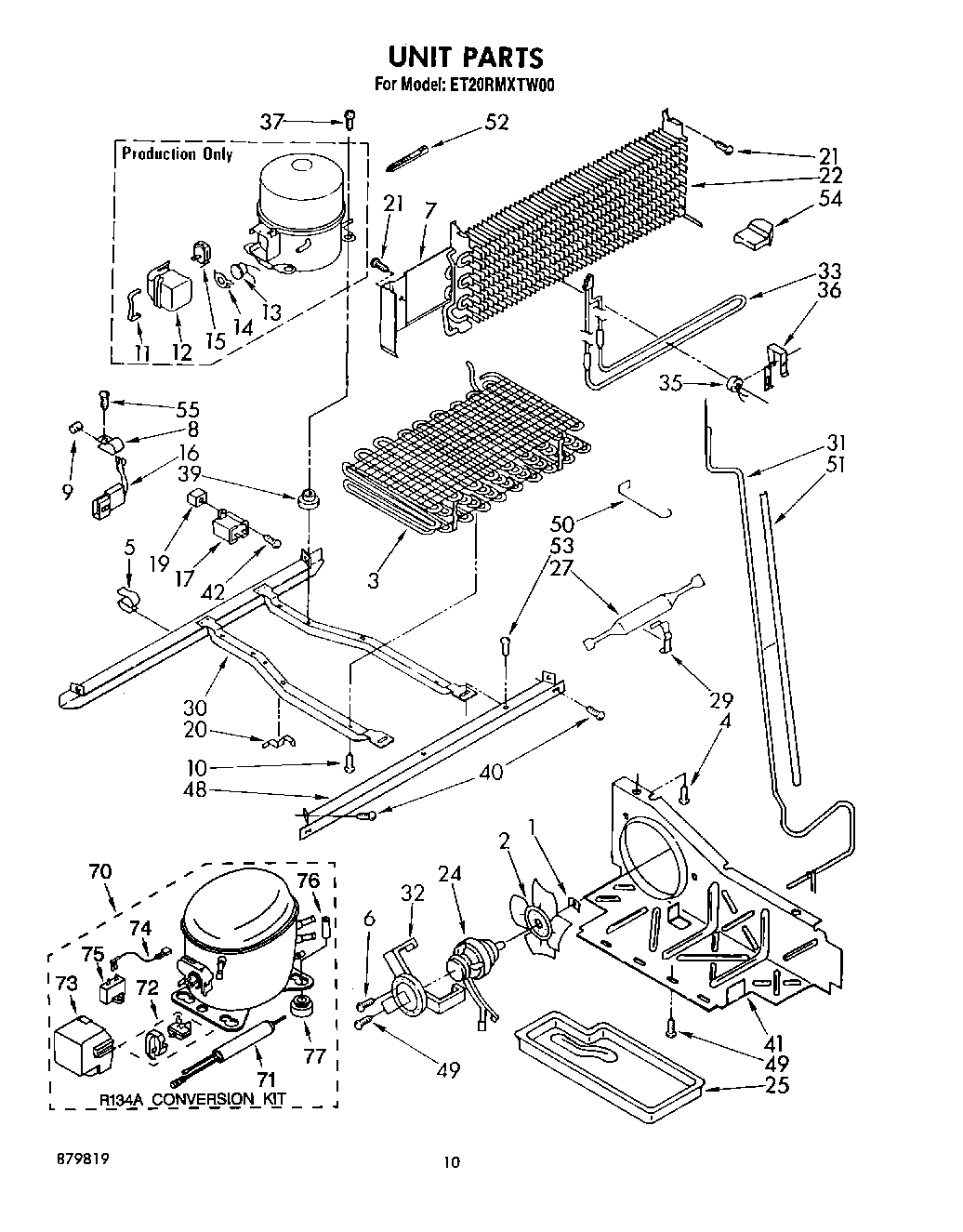

08 - UNIT

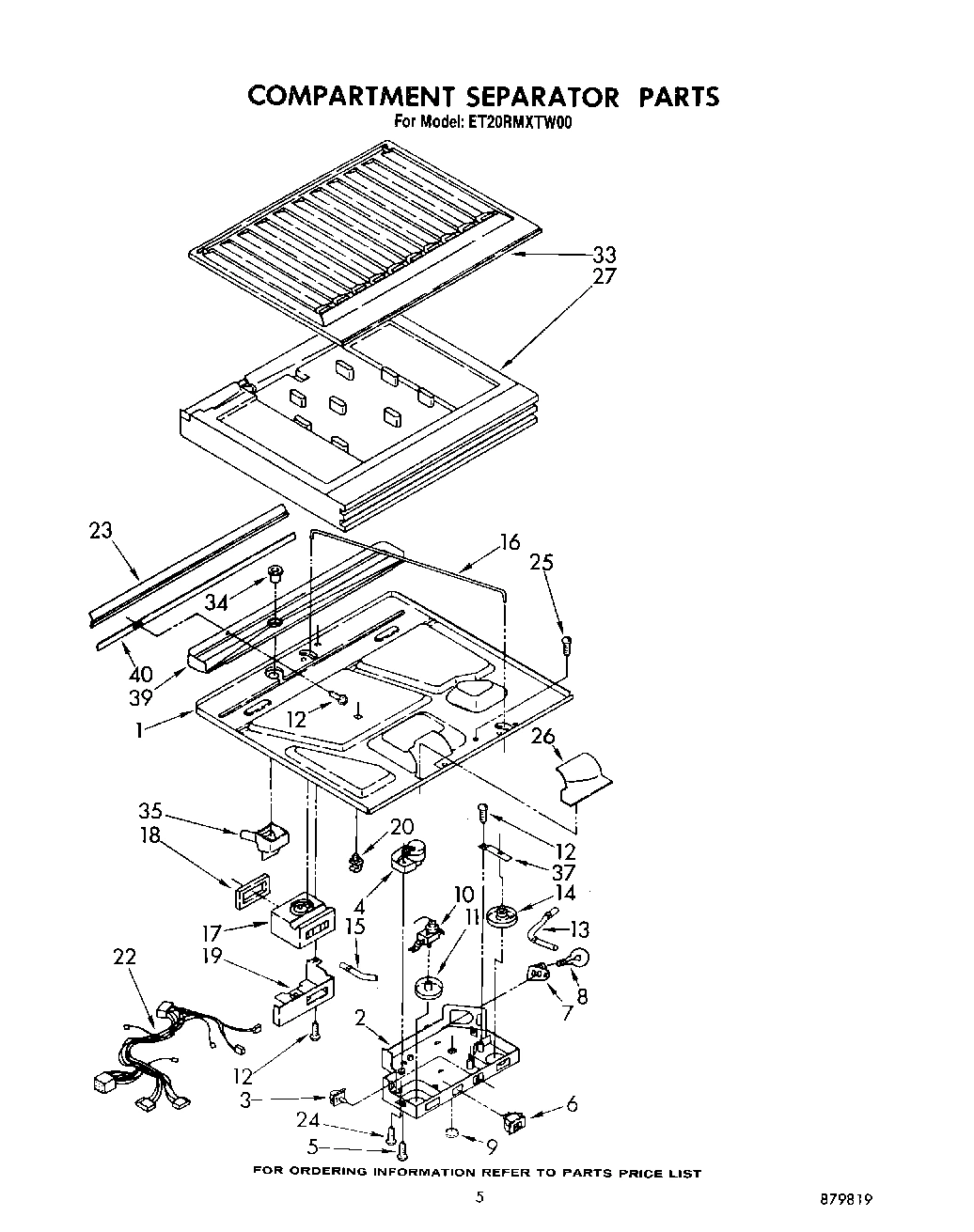

04 - COMPARTMENT SEPARATOR

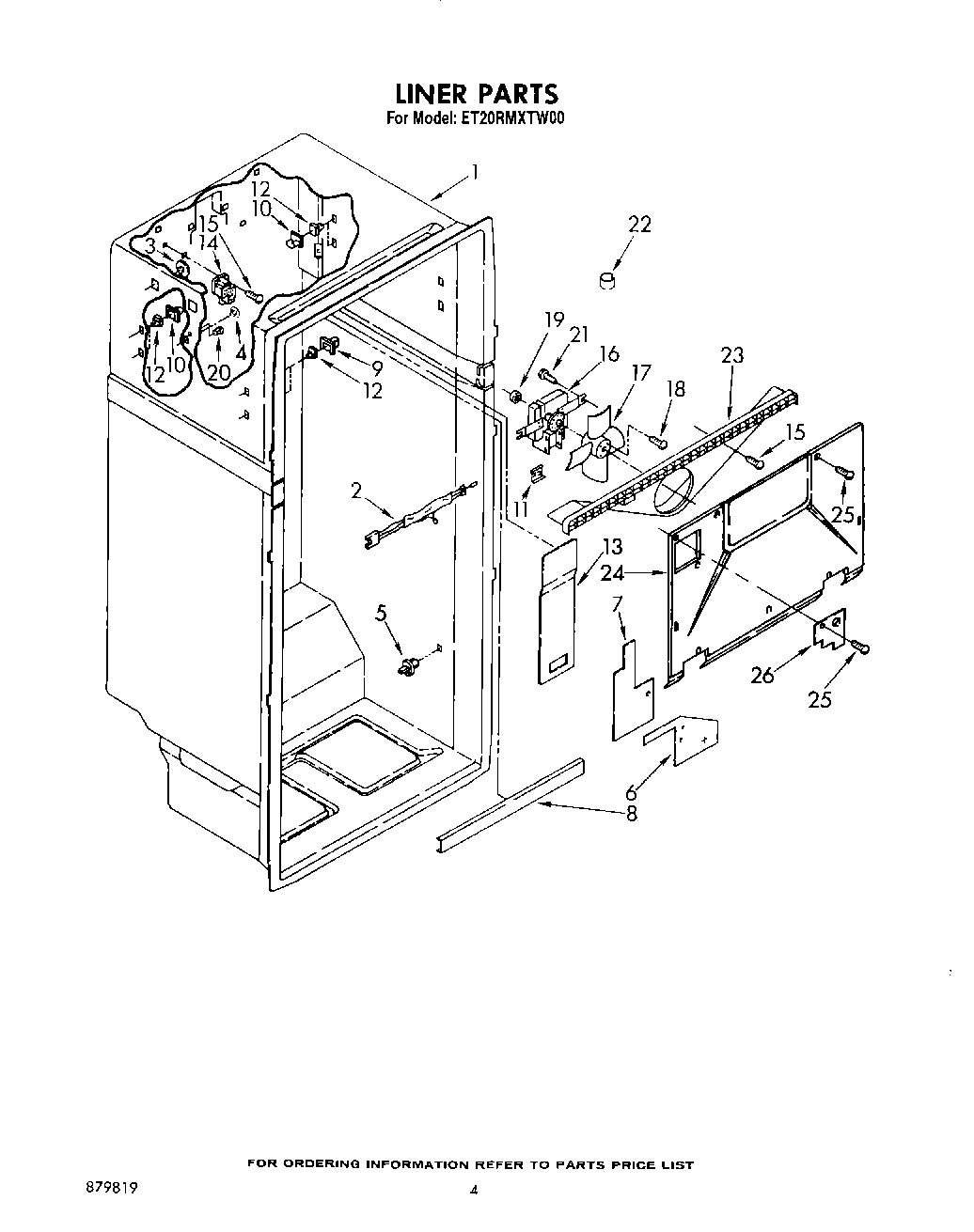

03 - LINER

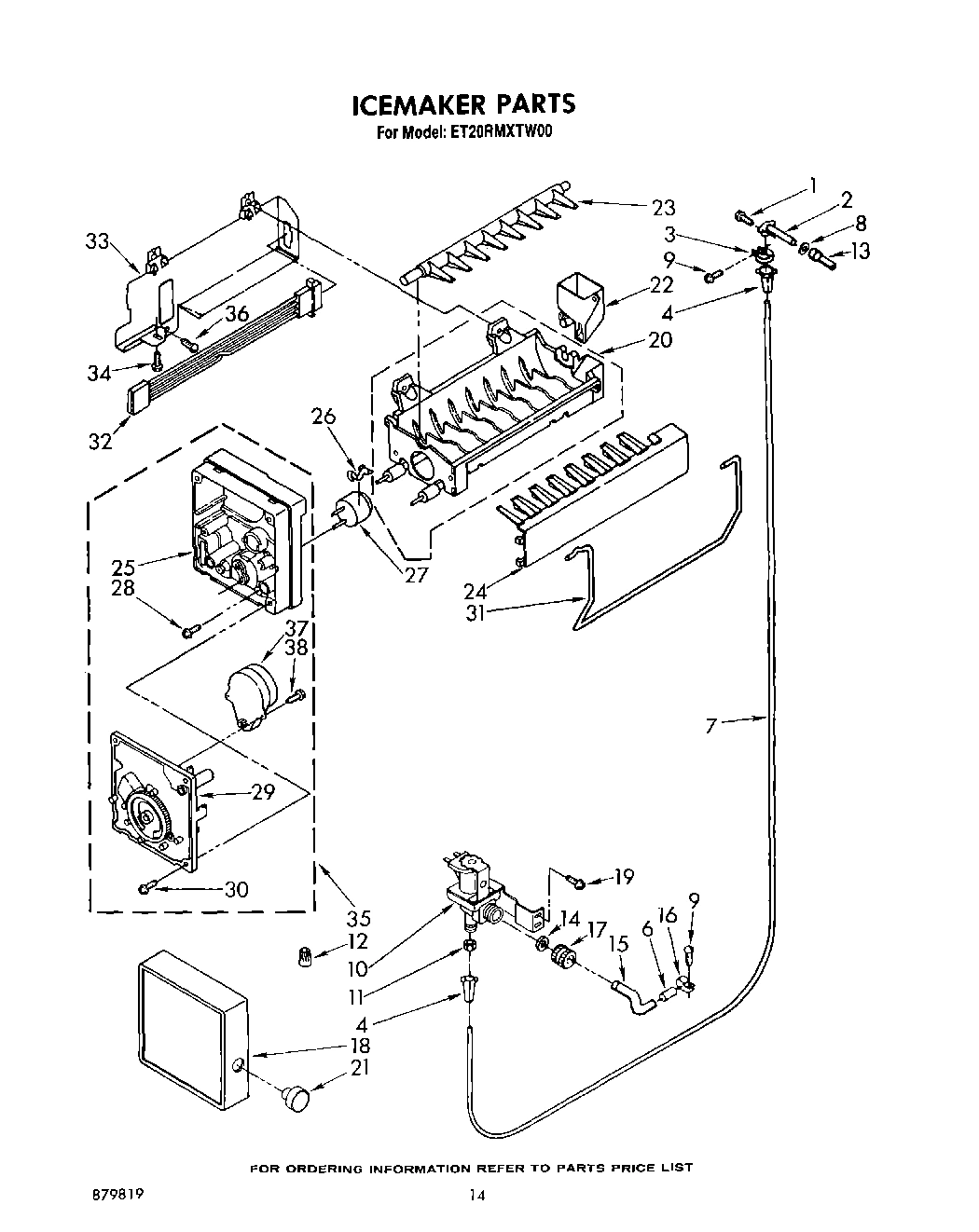

10 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ET20RMXTM00 TOP MOUNT REFRIGERATOR
WPL LIT1118687 WPL LIT1118687 Contact Us For Availability
WPL LIT1119534 WPL LIT1119534 Contact Us For Availability
WPL LIT1119536 WPL LIT1119536 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879819 WPL LIT879819 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49305A9 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1105512 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1105513 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1105514 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49306A2 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Box, Control WPL 1106805 Contact Us For Availability
2
Wiring, Fan Motor WPL 1105679 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Condenser Assembly WPL 1105540 Contact Us For Availability
3
Hole Plug WPL 944795 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Electrical, Shield WPL 1106829 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1105545 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
9
Control, Front Cover WPL 1119503 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Spring, Relay Case WPL 943497 Contact Us For Availability
11
Knob, Thermostat WPL 1116236 Contact Us For Availability
11
Screw, Anchor WPL 1105678 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
12
Handle, Center WPL 1119529 Contact Us For Availability
12
Case, Relay WPL 943496 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1105426 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
13
Center Rail (Toast) WPL 1105428 Contact Us For Availability
13
Center Rail (Platinum) WPL 1105429 Contact Us For Availability
13
Overload WPL 1114487 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Overload Spring WPL 943494 Contact Us For Availability
14
Knob, Air Control WPL 1116237 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
15
Relay WPL 945535 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1119527 Contact Us For Availability
17
Air Diffuser Assembly WPL 1114442 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Nameplate WPL 1119531 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Stud, Hook WPL 529850 Contact Us For Availability
20
Grommet, (6) WPL 533881 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Compartment Door, Utility WPL 1119519 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Evaporator WPL 1103846 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1106698 Contact Us For Availability
22
Ground Spacer WPL 1110565 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Scroll, Fan WPL 1105517 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Evaporator Cover WPL 1118711 Contact Us For Availability
25
Insert, Handle WPL 1119530 Contact Us For Availability
25
Screw, 8-15 x 1/2 (4) WPL 489147 Contact Us For Availability
26
Medallion WPL 1119525 Contact Us For Availability
26
Hinge Butt, Bottom WPL 836159 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1119517 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw, 10-32 x 43/64 WPL 489163 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
30
Unit Mounting Frame WPL 1105534 Contact Us For Availability
31
Retainer, Insert WPL 935871 Contact Us For Availability
31
Spacer, Hinge WPL 1105474 Contact Us For Availability
31
Exchanger, Heat WPL 1105546 Contact Us For Availability
32
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
32
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
32
Hole, Plug (2) (White) WPL 835974 Contact Us For Availability
32
Hole, Plug (2) (Almond) WPL 989193 Contact Us For Availability
32
Hole, Plug (2) (Golden Harvest) WPL 989882 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
33
Corner Filler, Grille WPL 1119513 Contact Us For Availability
33
Heater, Defrost WPL 1105551 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1105465 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
34
Filler, Wrap Corner (Golden Harvest) WPL 1110710 Contact Us For Availability
34
Filler, Wrap Corner (Toast) WPL 1110711 Contact Us For Availability
34
Filler, Wrap Corner (Platinum) WPL 1110712 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Trim, Door WPL 1116205 Contact Us For Availability
35
Grille WPL 1119512 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Retainer, Trim (6) WPL 1106864 Contact Us For Availability
36
Hole Plug (2) (Toast) WPL 1100176 Contact Us For Availability
36
Hole Plug (2) (Platinum) WPL 1100177 Contact Us For Availability
36
Hole Plug (2) (White WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Clamp WPL 1106913 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Trim, Interior Door (3) WPL 1119515 Contact Us For Availability
37
WPL 1114491 WPL 1114491 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
WPL 479502 WPL 479502 Contact Us For Availability
38
Bunper (2) WPL 532154 Contact Us For Availability
38
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
38
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
38
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
38
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
38
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
38
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
WPL 542639 WPL 542639 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 799908 WPL 799908 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
39
Trim, Door Shelf WPL 1119516 Contact Us For Availability
39
WPL 1105606 WPL 1105606 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
40
Shelf, Cantilever (4) WPL 1119521 Contact Us For Availability
40
Gasket, Drain Pan WPL 1105522 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 937062 WPL 937062 Contact Us For Availability
47
WPL 836372 WPL 836372 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Wedge, Air Baffle WPL 1105632 Contact Us For Availability
58
WPL 1106844 WPL 1106844 Contact Us For Availability
61
WPL 836162 WPL 836162 Contact Us For Availability
63
WPL 489173 WPL 489173 Contact Us For Availability
64
WPL 546131 WPL 546131 Contact Us For Availability
65
WPL 989068 WPL 989068 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
WPL 1114548 WPL 1114548 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
