Model Whirlpool ET20NMXAW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

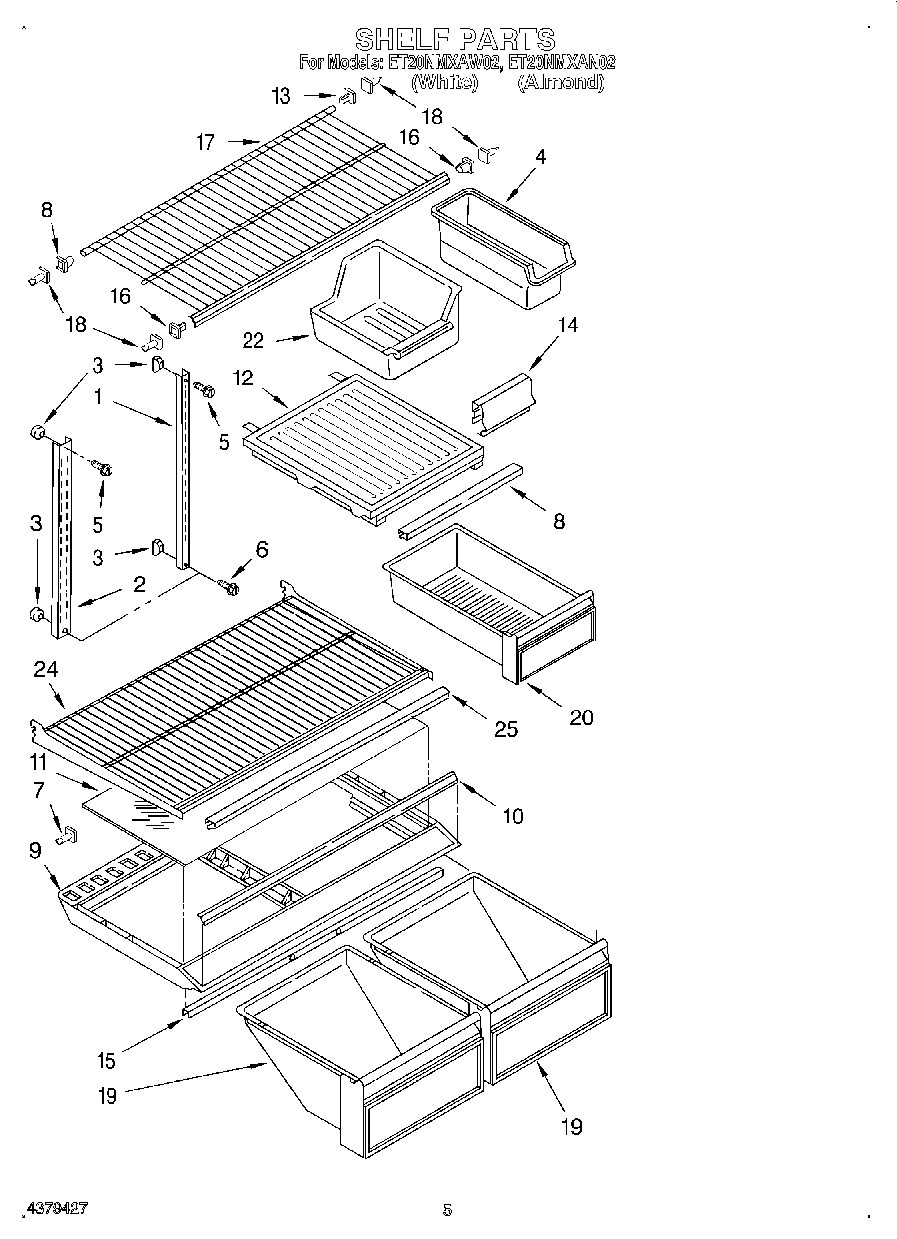

04 - SHELF

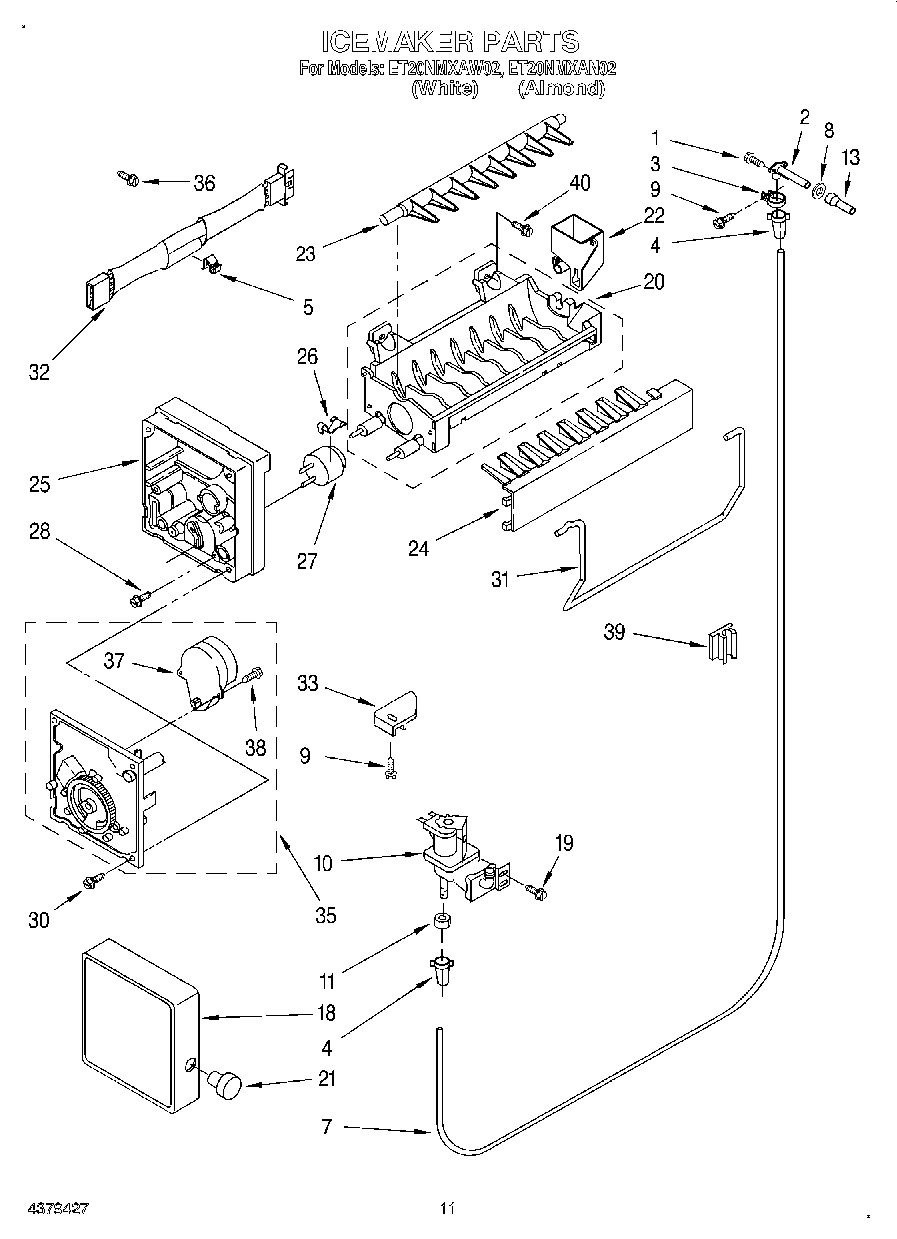

08 - ICEMAKER, LIT/OPTIONAL

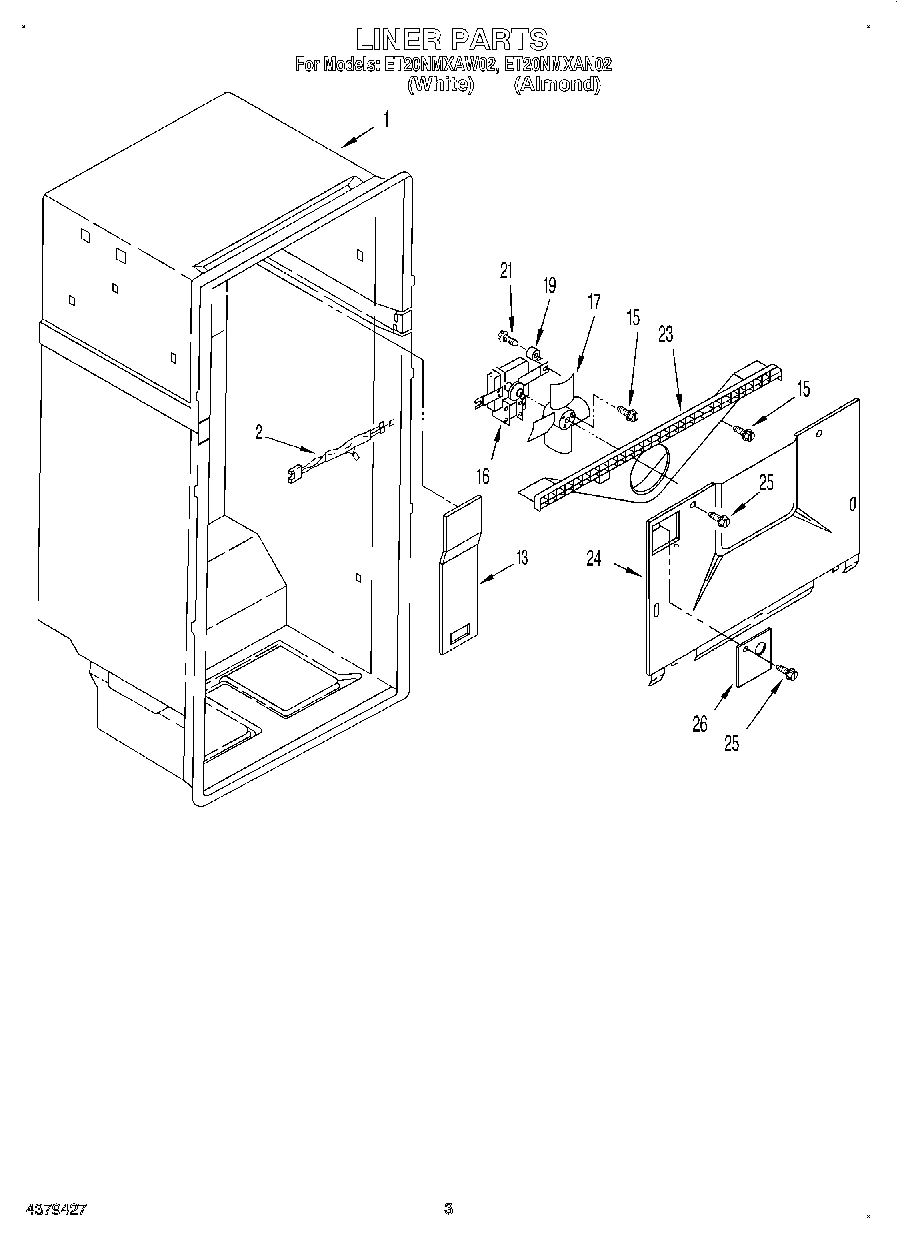

02 - LINER

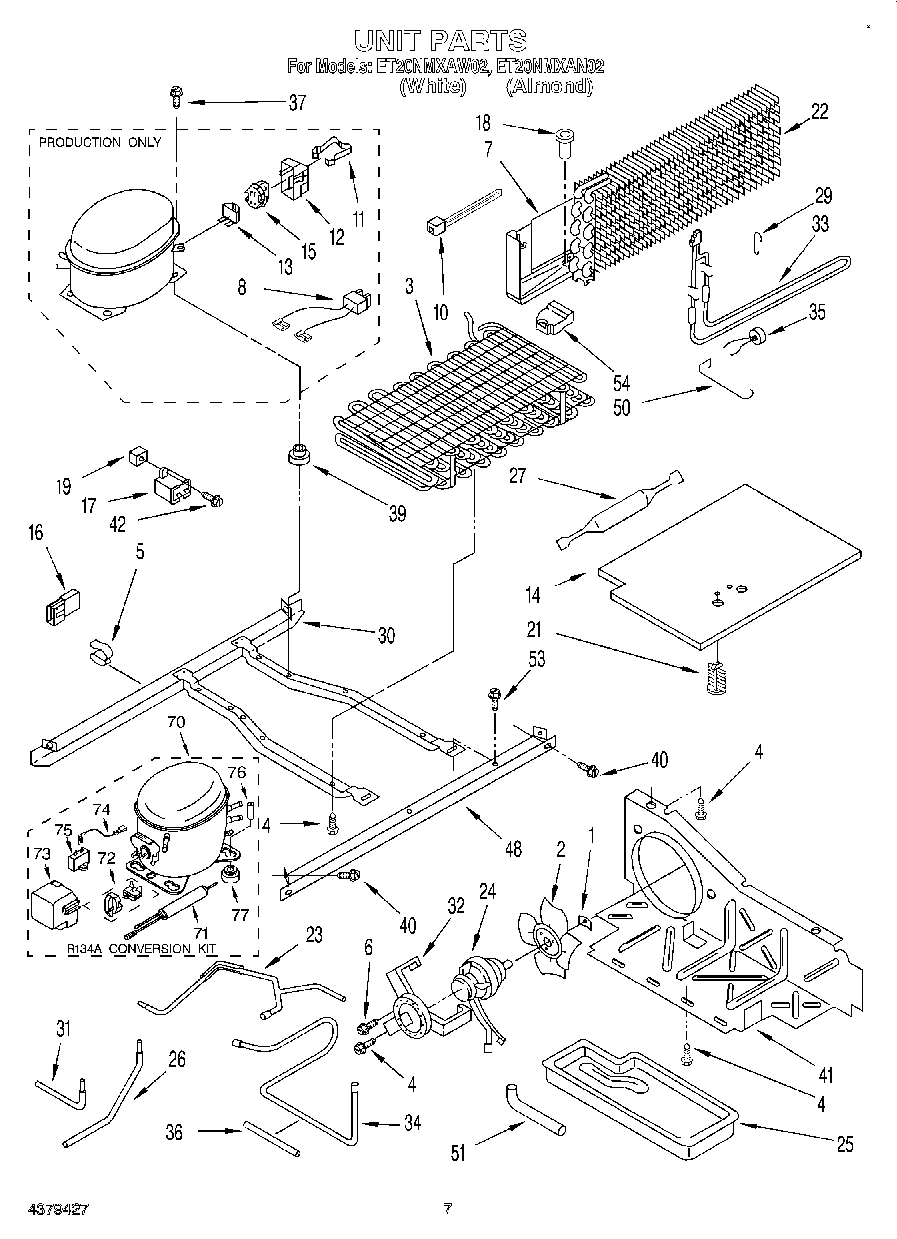

06 - UNIT

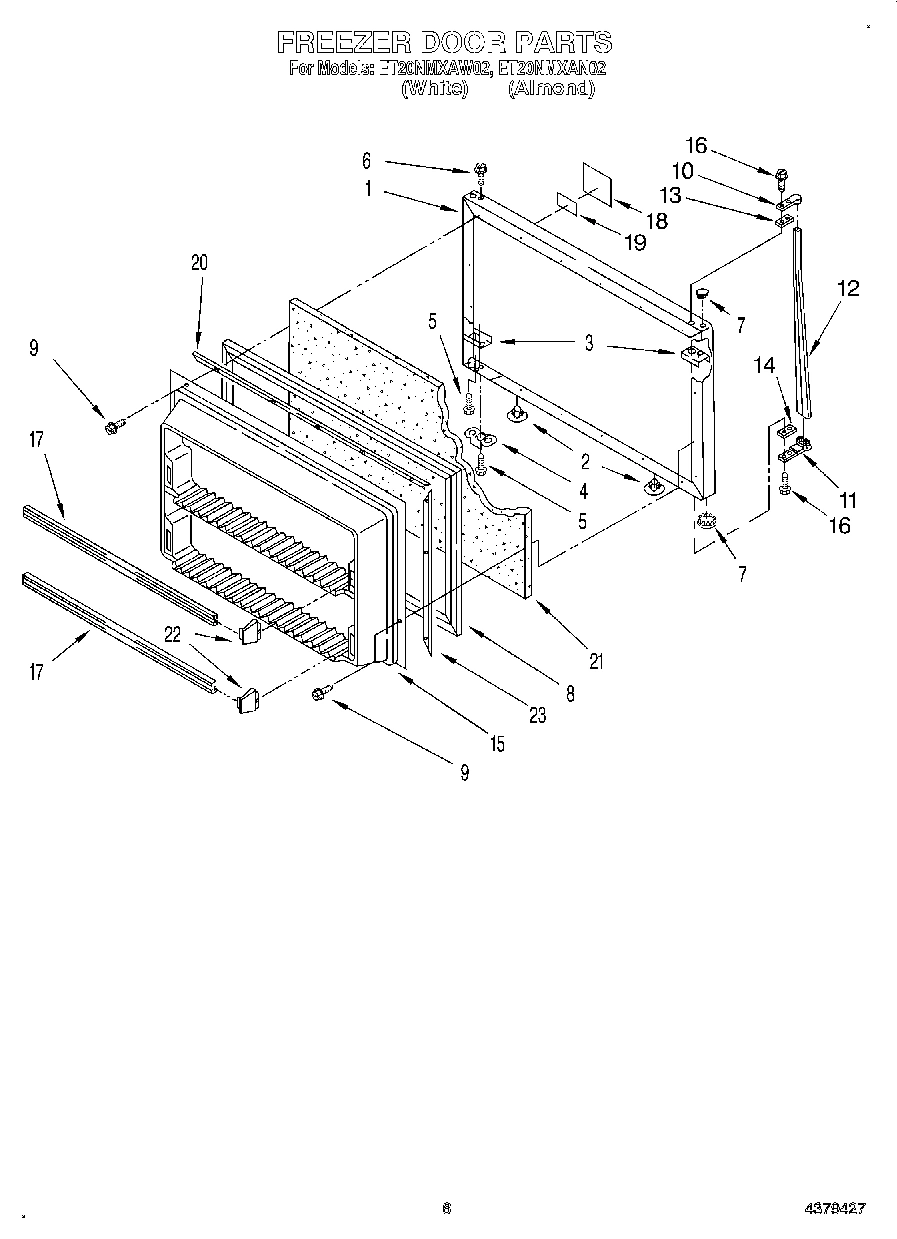

05 - FREEZER DOOR

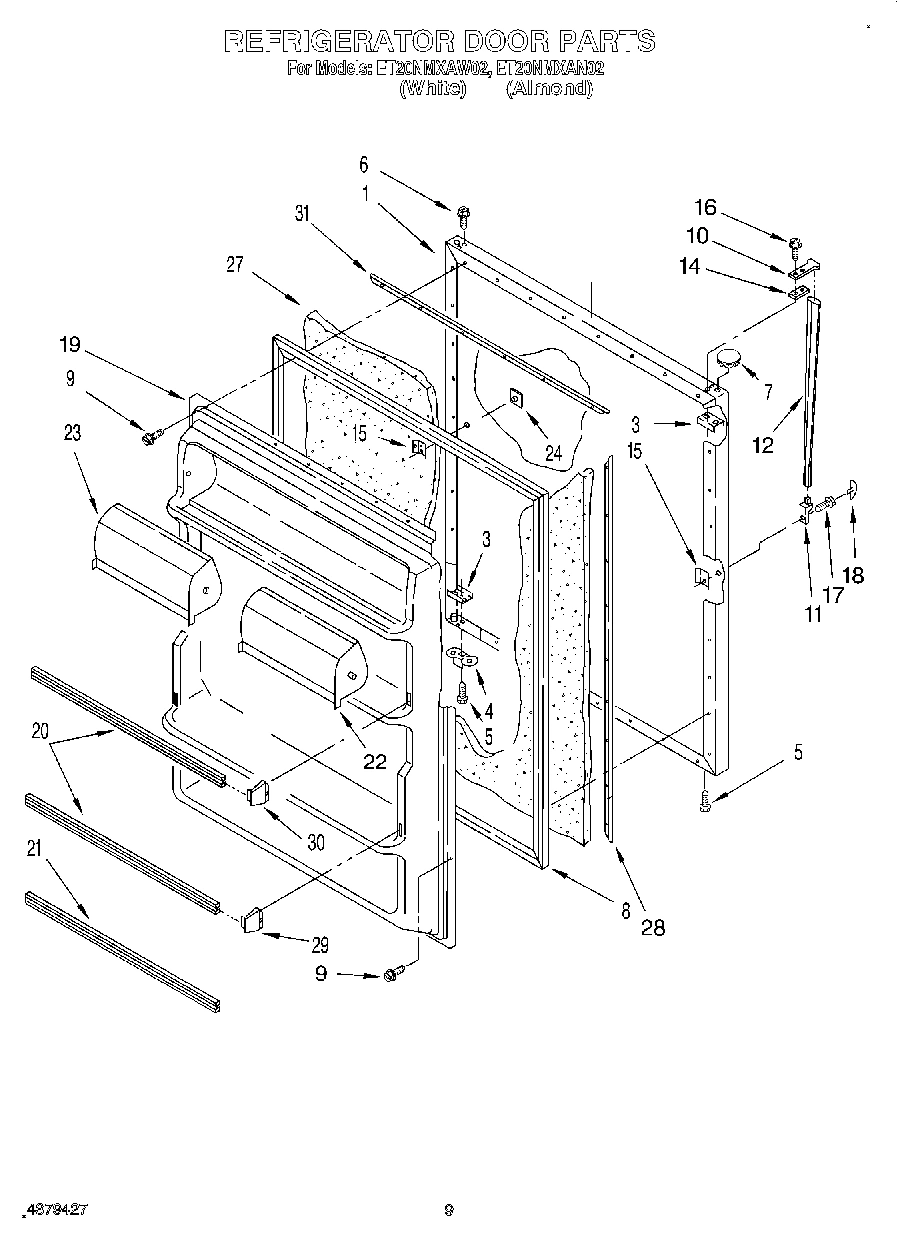

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET20NMXAW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2170725 WPL LIT2170725 Contact Us For Availability
WPL LIT2170977 WPL LIT2170977 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49034A3 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim WPL ARI49035A6 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172709 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Cover, Meat Pan WPL 944739 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Trim Ice Pan WPL 654218 Contact Us For Availability
14
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
15
Relay (See Overload) WPL ARI49036A5 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Shelf Stud WPL 946356 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1114327 Contact Us For Availability
18
Support, Stud WPL 946355 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 2156205 Contact Us For Availability
20
Pan, Meat WPL 1124976 Contact Us For Availability
20
Trim, Door (2) WPL 1114322 Contact Us For Availability
21
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Door WPL 1114323 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Pan, Ice Pan WPL 838530 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Compartment Door (R.S.) WPL 2148167 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Tube, Discharge WPL 2162475 Contact Us For Availability
23
Compartment Door (L.S.) WPL 2148168 Contact Us For Availability
24
Shelf, Full Cantilever (2) WPL 2162582 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Tube, Suction WPL 2162472 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172761 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
