Model Whirlpool ET20GMXWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

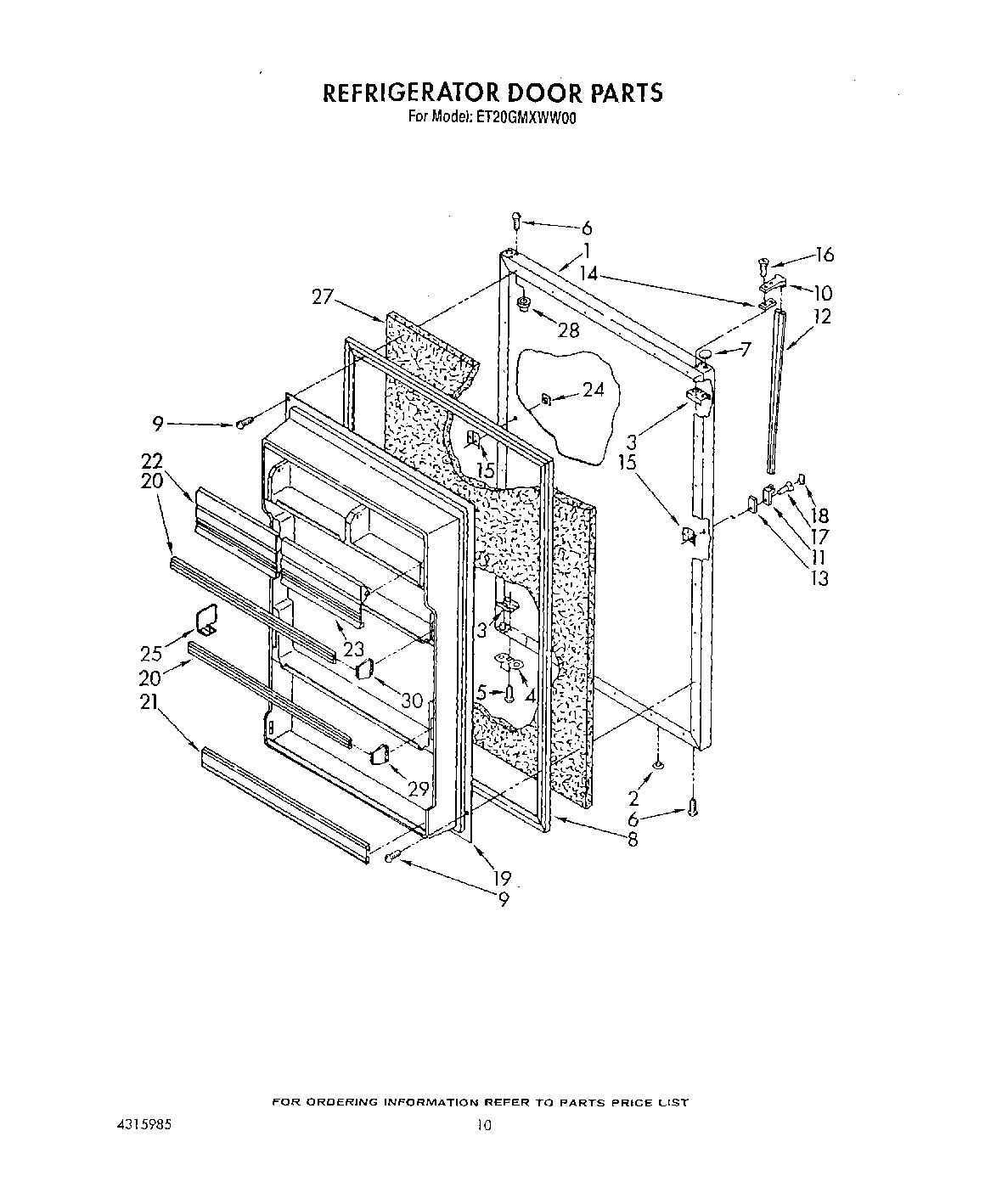

08 - REFRIGERATOR DOOR

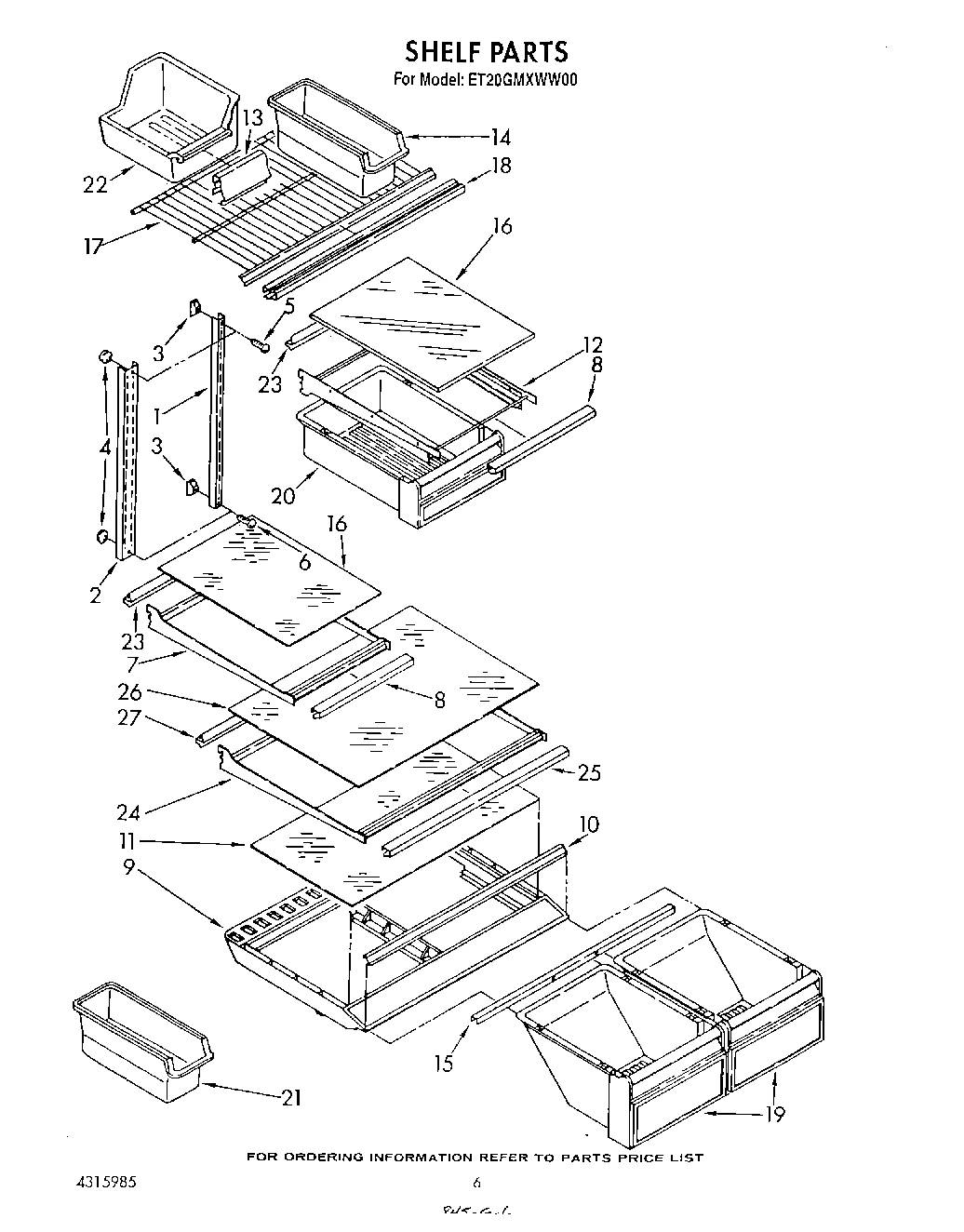

05 - SHELF

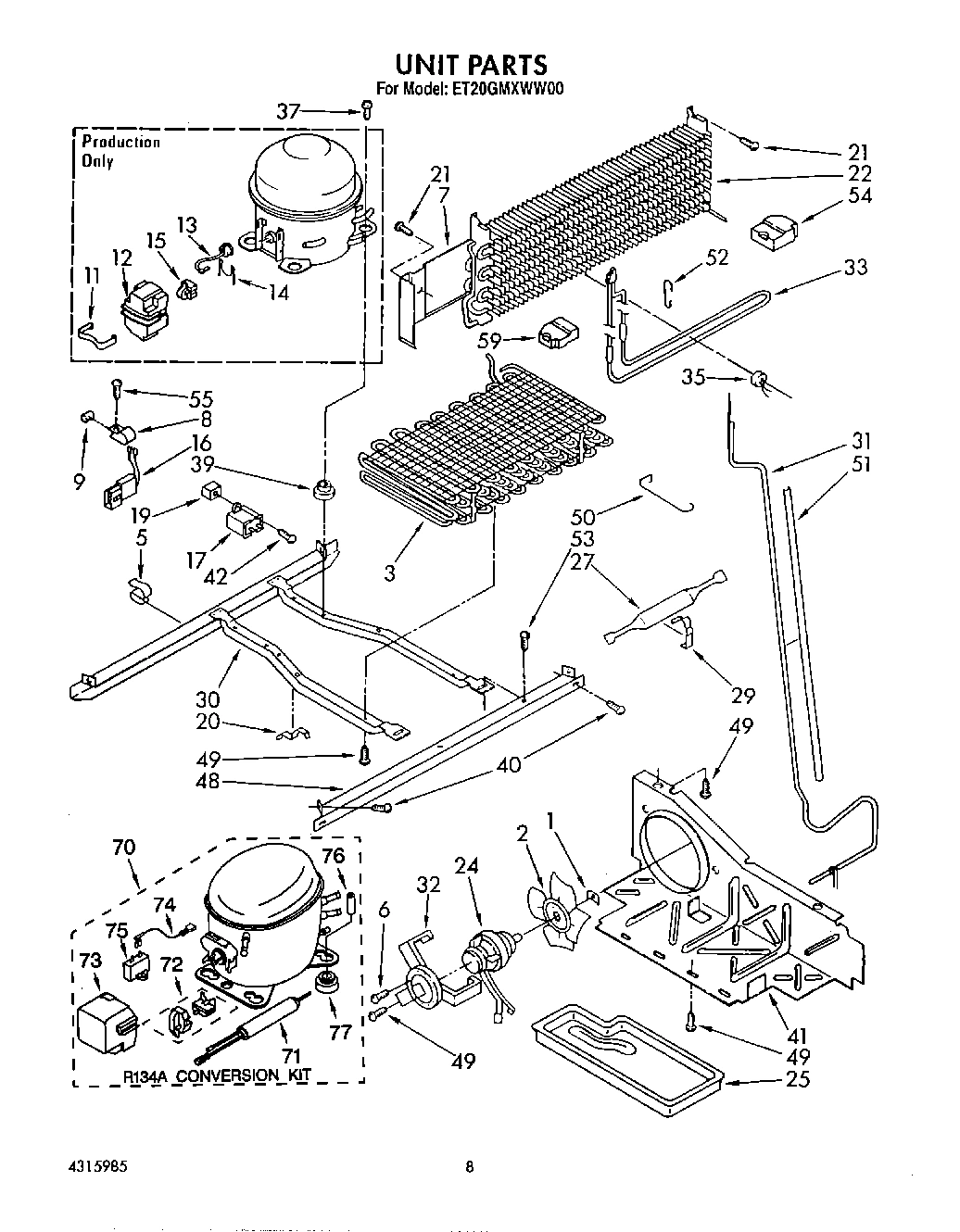

07 - UNIT

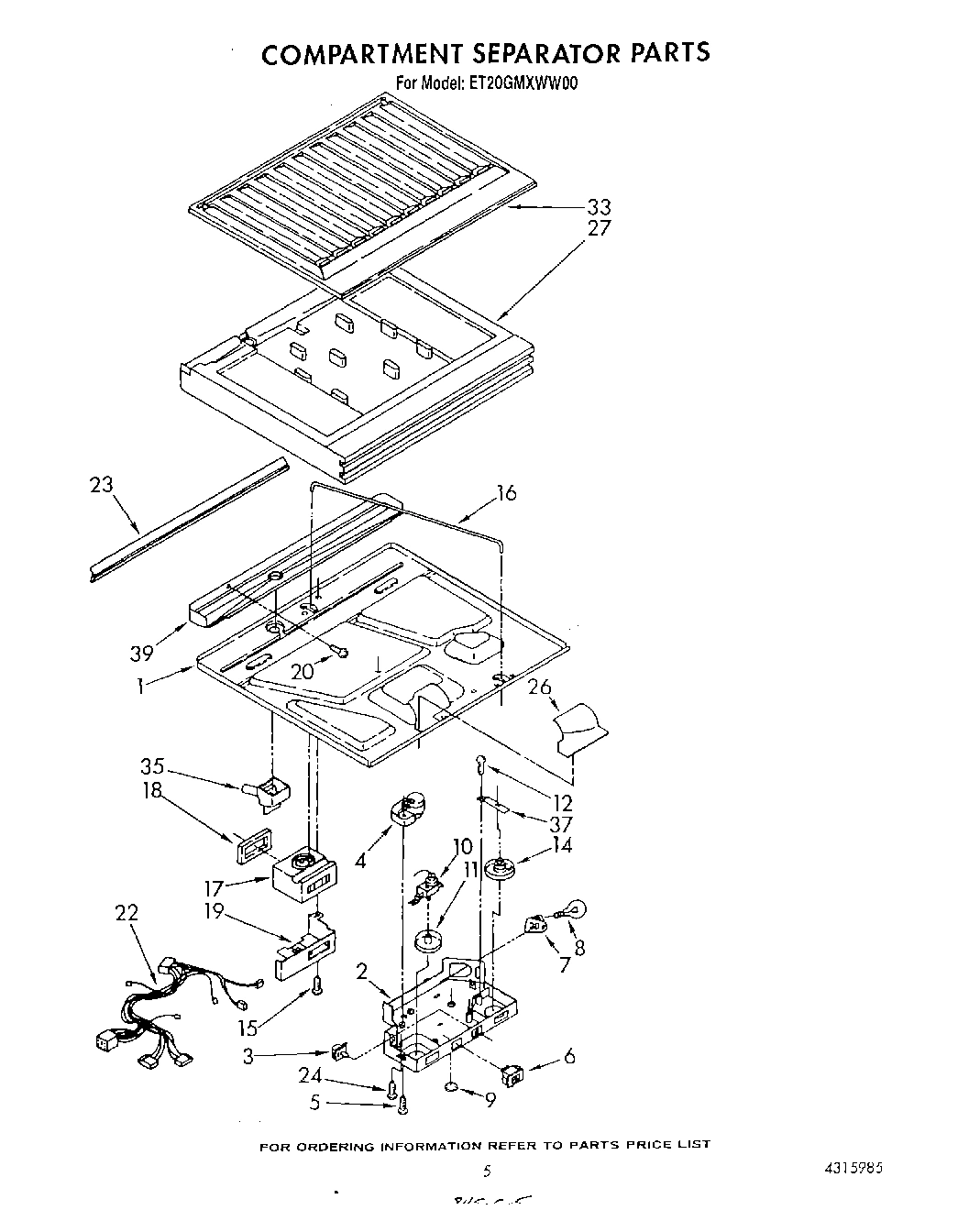

04 - COMPARTMENT SEPARATOR

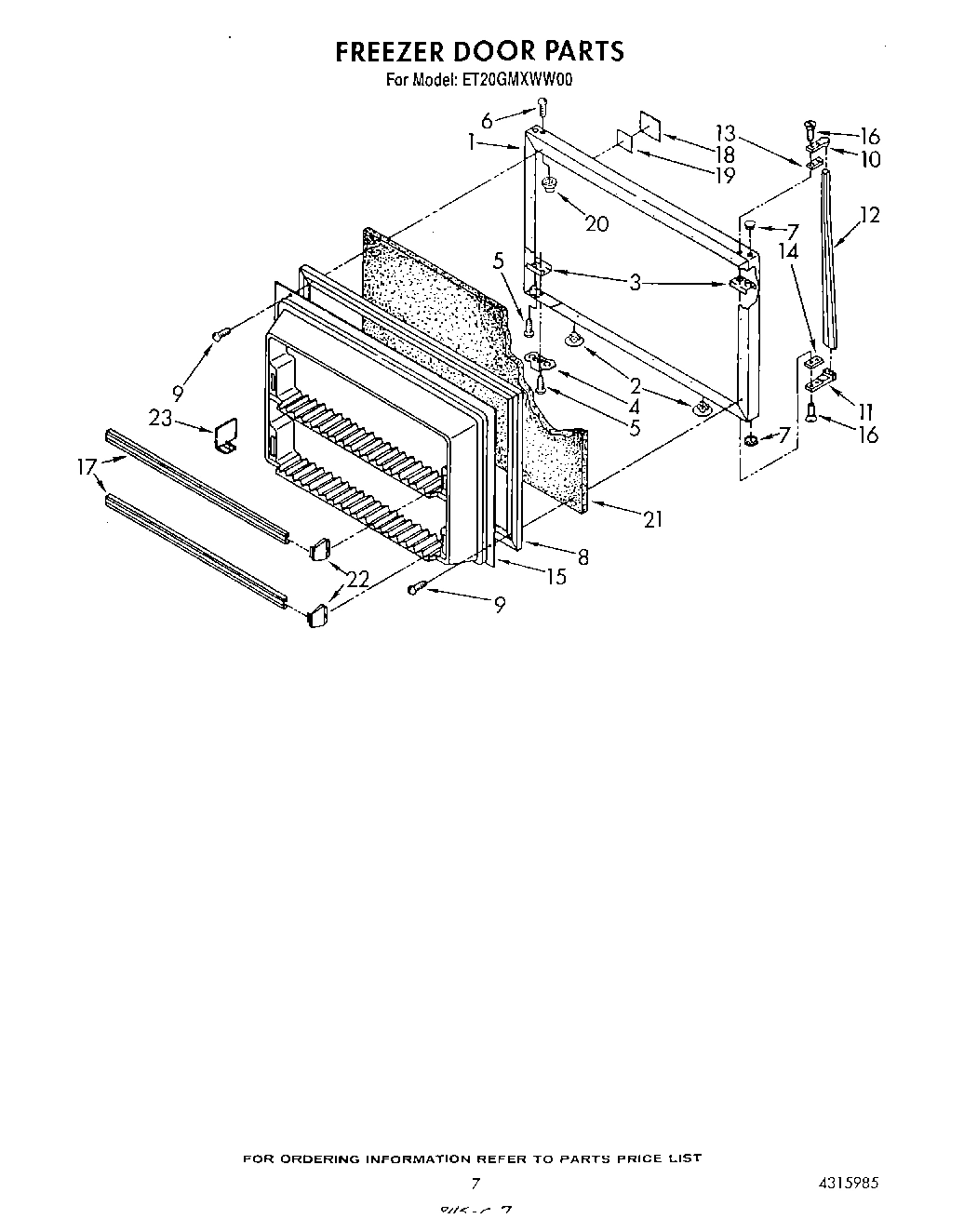

06 - FREEZER DOOR

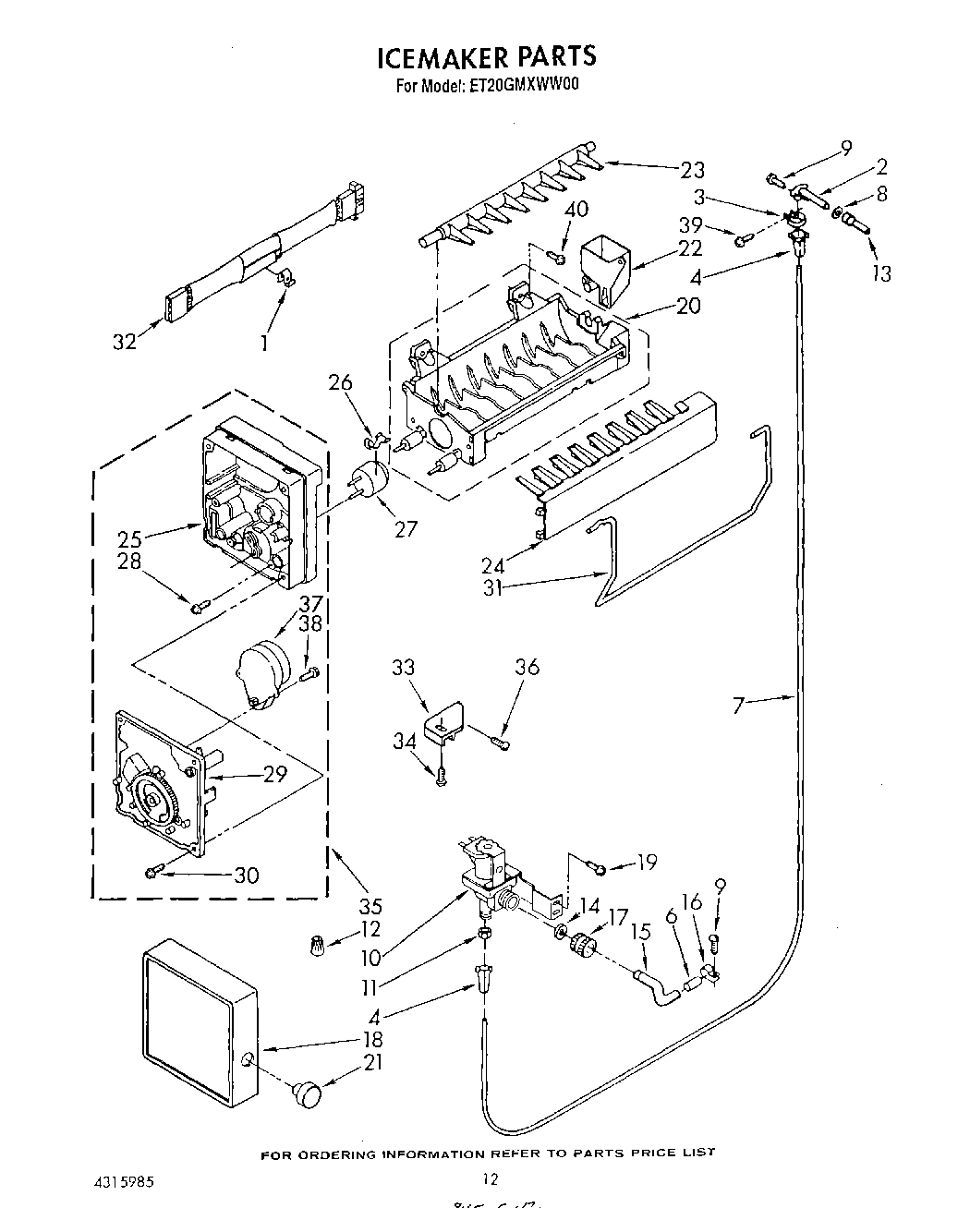

09 - ICEMAKER , LIT/OPTIONAL

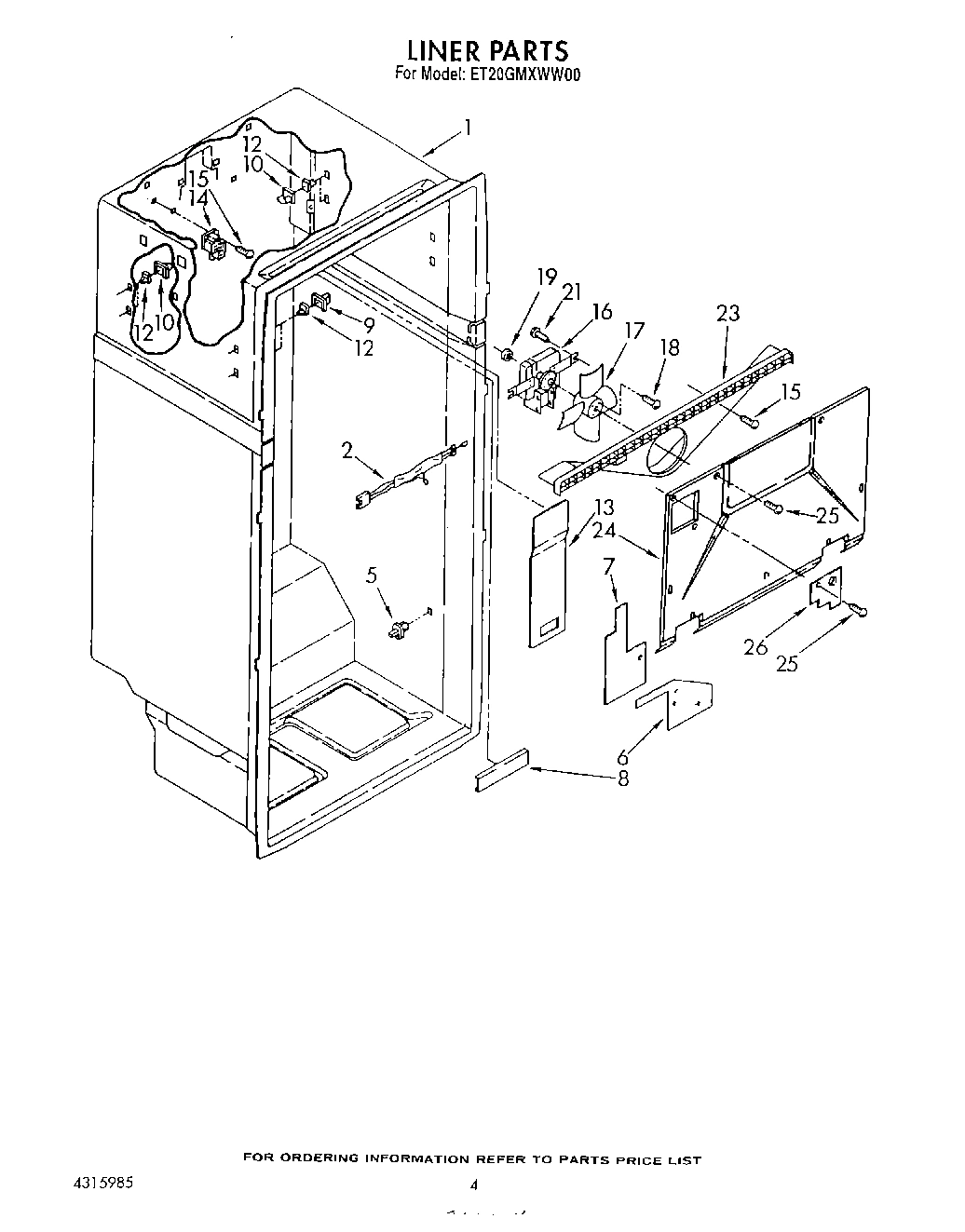

03 - LINER

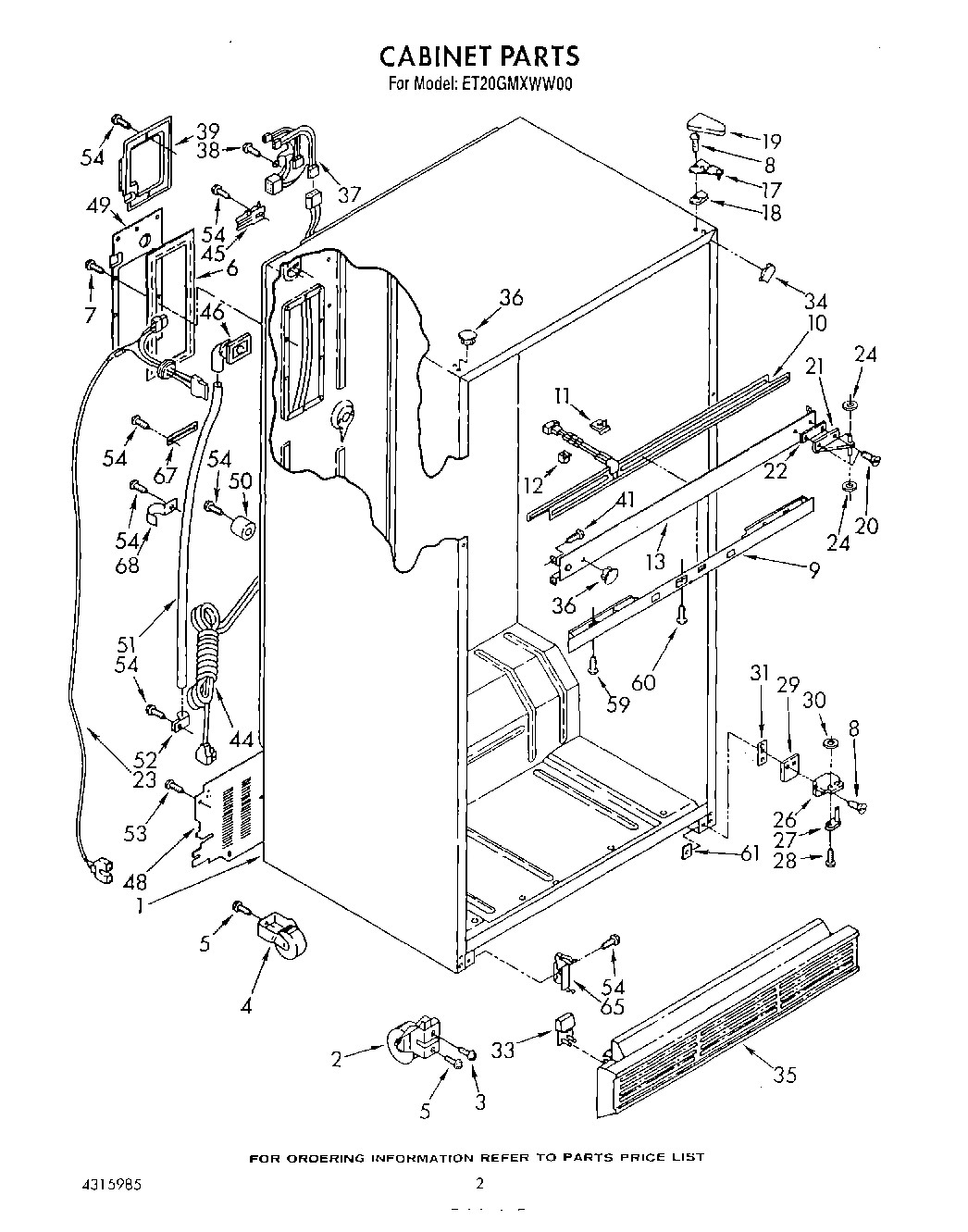

02 - CABINET
Common parts from model Whirlpool ET20GMXWN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124894 WPL LIT1124894 Contact Us For Availability
WPL LIT1127854 WPL LIT1127854 Contact Us For Availability
WPL LIT2148174 WPL LIT2148174 Contact Us For Availability
WPL LIT4315985 WPL LIT4315985 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48824A8 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48823A1 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Wiring, Fan Motor WPL 1114721 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1105267 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Roller, Rear (2) WPL 2147324 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
6
Switch, Toggle WPL 1106601 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Electrical, Shield WPL 1106829 Contact Us For Availability
6
Sealing Gasket WPL 1114548 Contact Us For Availability
7
Heat Shield Evaporator WPL 1105545 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Hole Plug WPL 940014 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148146 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
12
Handle, Center WPL 1111547 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1118851 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Washer WPL 489323 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
17
Air Diffuser Assembly WPL 1129013 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148169 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Gasket, Air Diffuser WPL 112429 Contact Us For Availability
18
Nameplate WPL 945114 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Evaporator WPL 1118548 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 1127838 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Divider WPL 1114380 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
24
Evaporator Cover WPL 1118708 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1115908 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
31
Heat, Exchanger WPL 1118681 Contact Us For Availability
31
Spacer WPL 1129868 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Heater, Defrost WPL 1118829 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 1118814 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
48
Unit Mounting Rail WPL 1127936 Contact Us For Availability
48
Cover, Unit WPL 2147330 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Cover, Plug WPL 1105527 Contact Us For Availability
50
Bumper, Back Panel WPL 1120595 Contact Us For Availability
52
Support, Heater WPL 851358 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
54
Support (R.S.) WPL 1118550 Contact Us For Availability
59
Support, Evaporator (L.S.) WPL 1118551 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
67
Tube Clamp WPL 1105607 Contact Us For Availability
68
Clamp WPL 1110564 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
