Model Whirlpool ET20DMXAN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

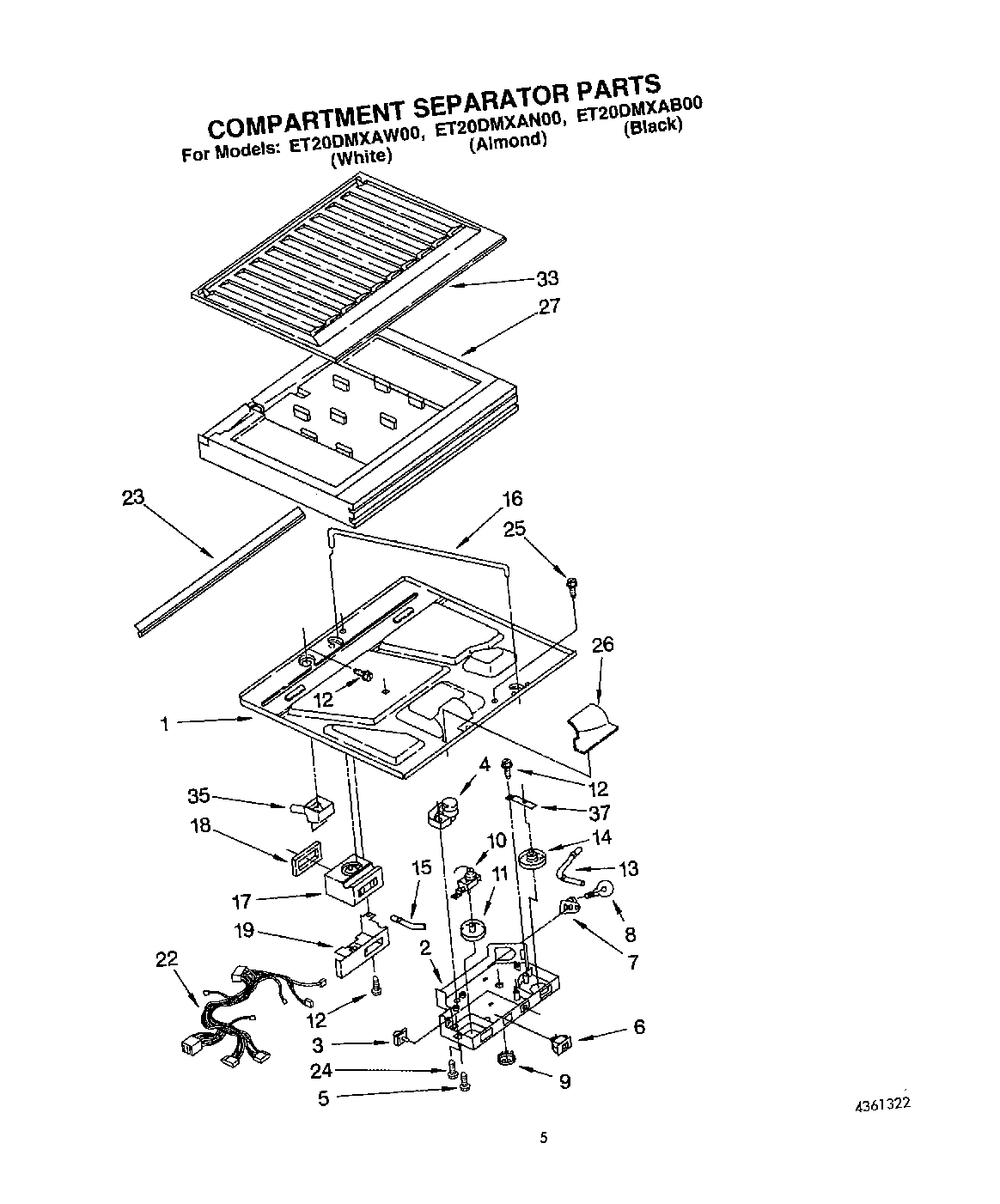

04 - COMPARTMENT SEPARATOR

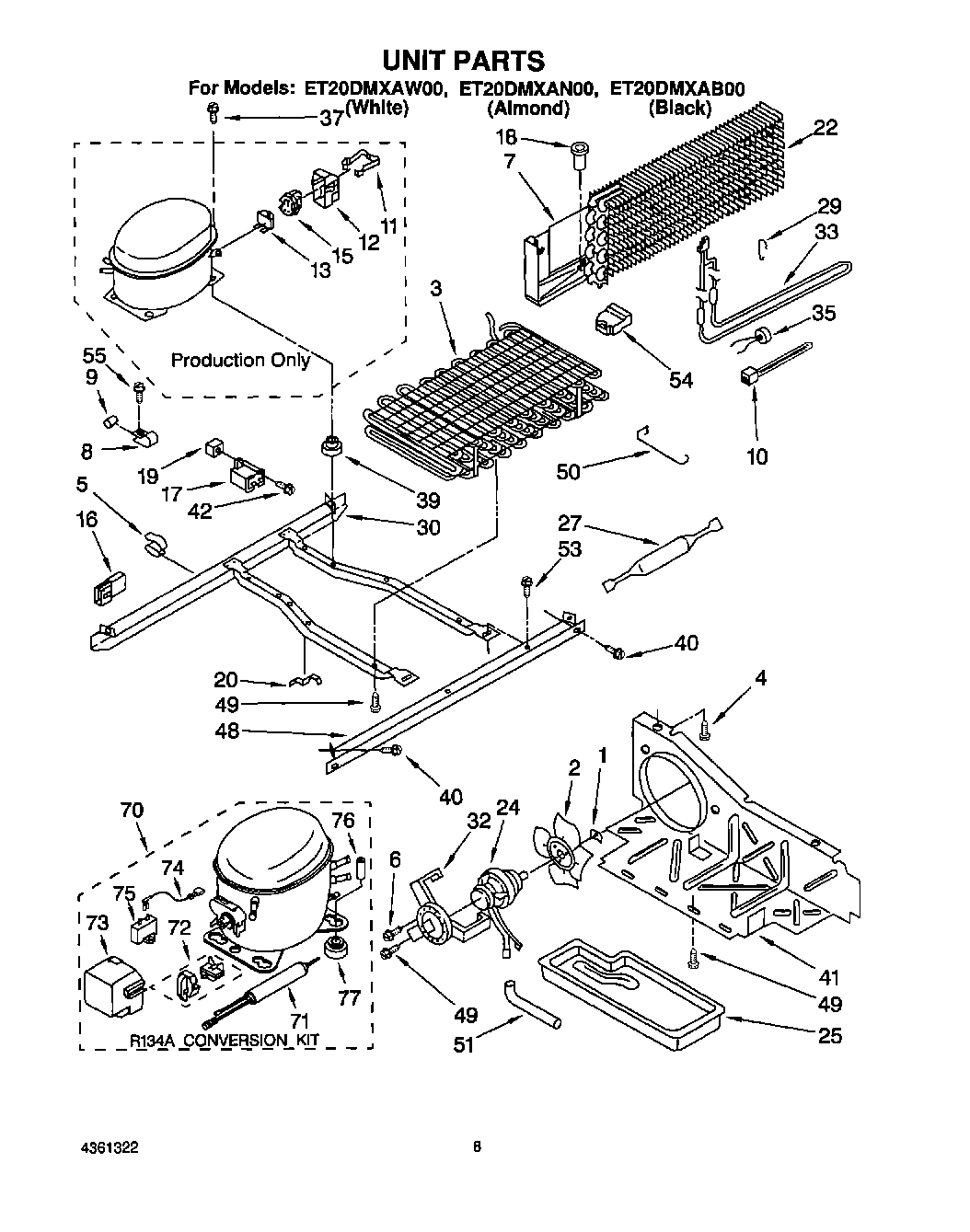

06 - UNIT

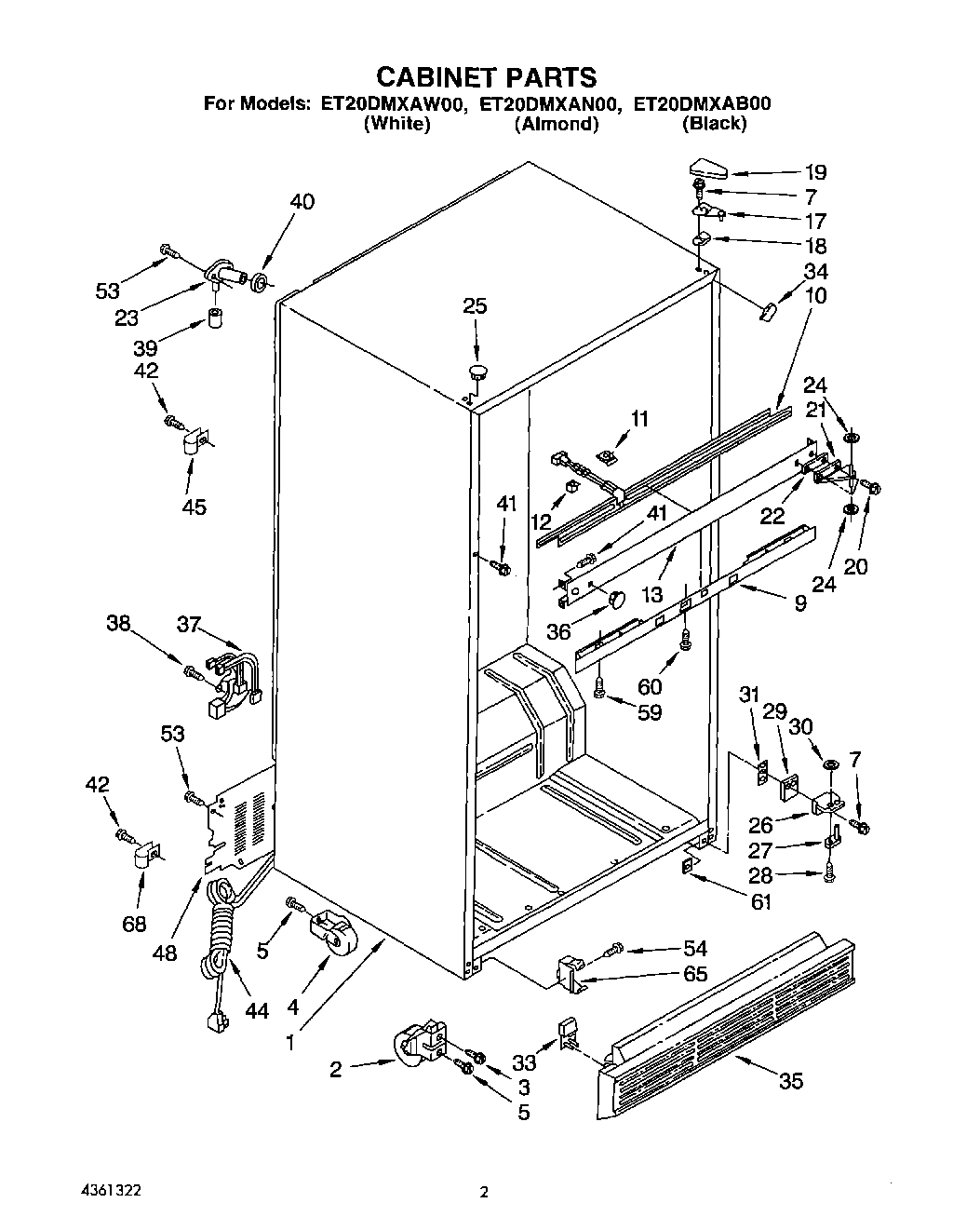

02 - CABINET

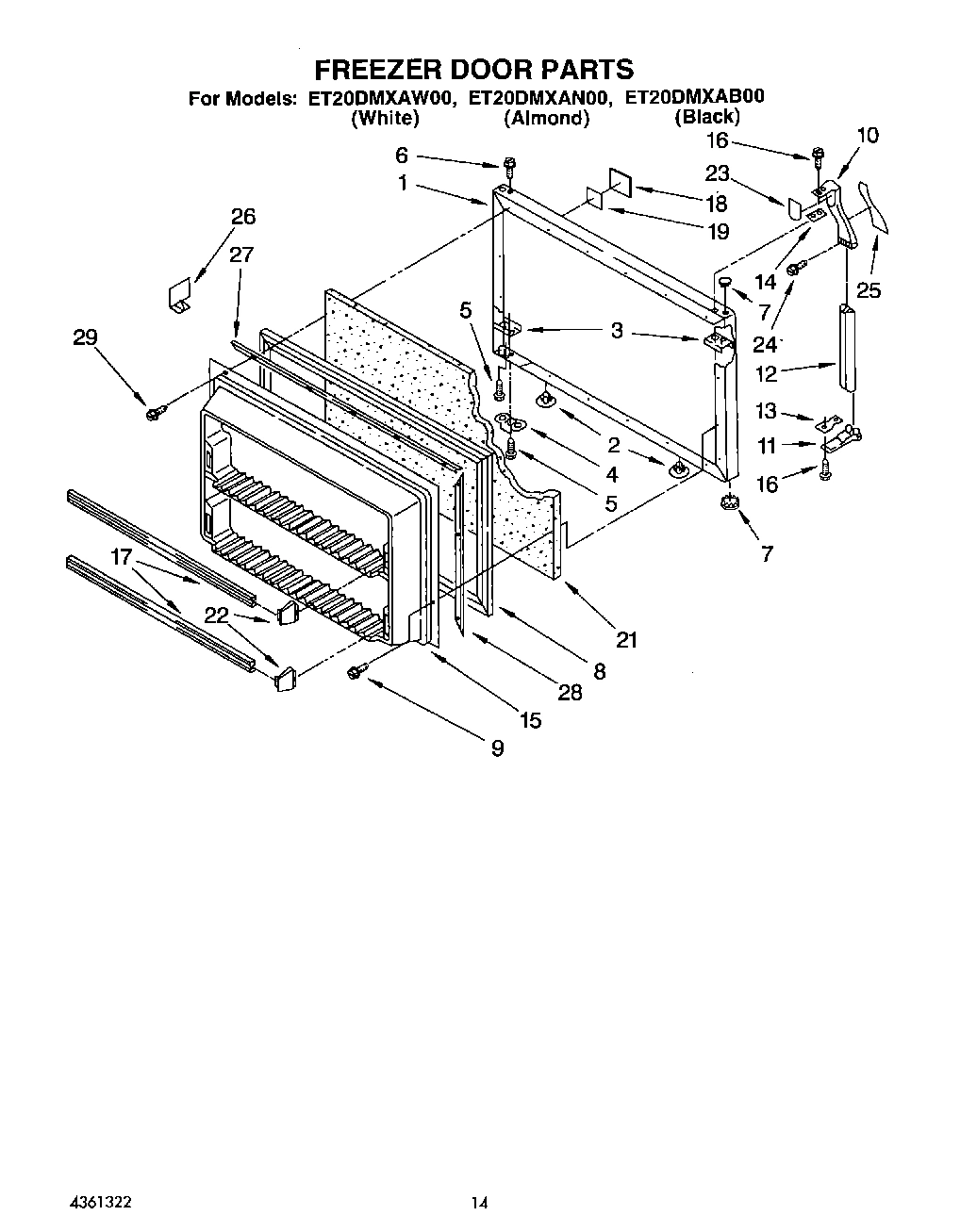

09 - FREEZER DOOR

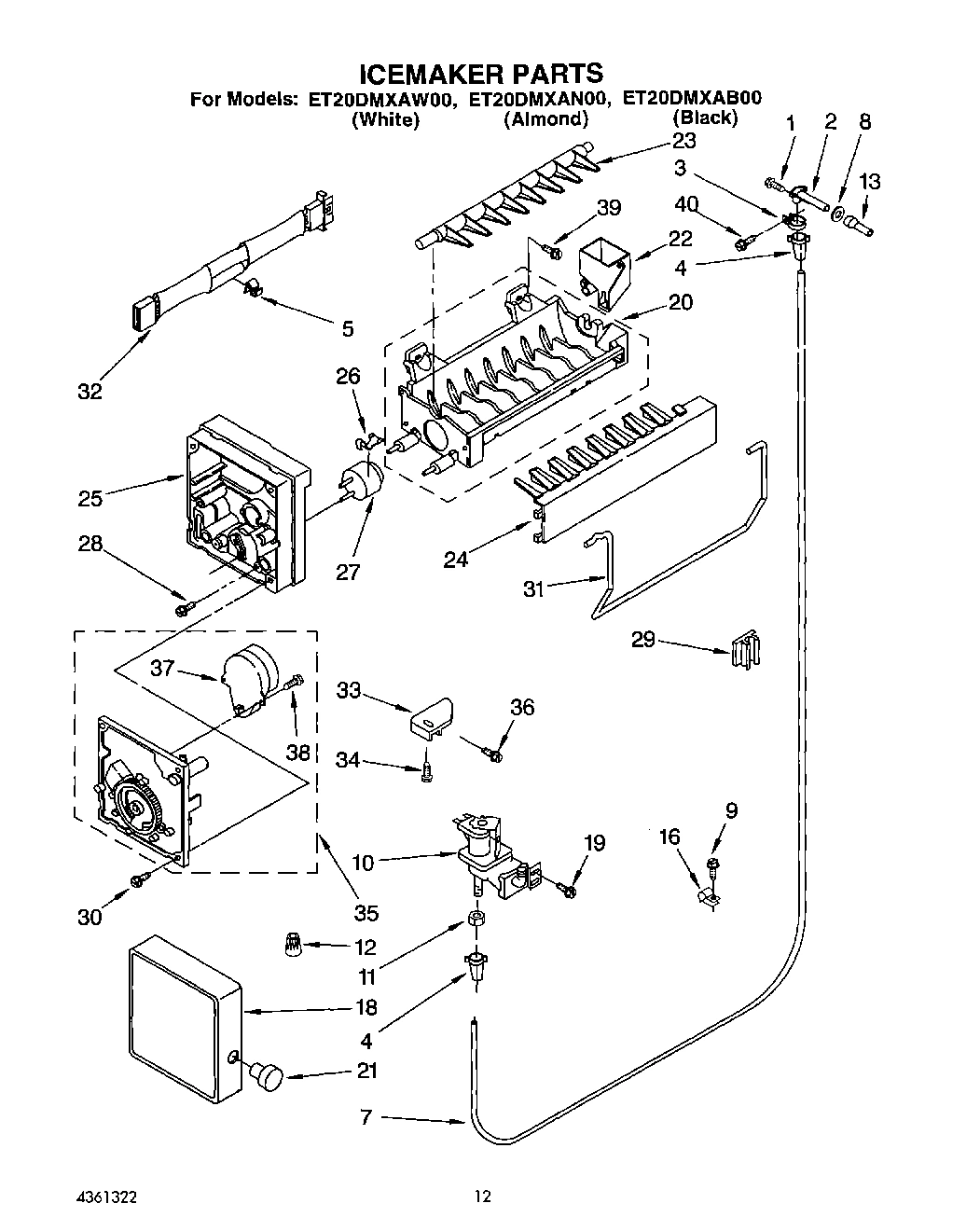

08 - ICE MAKER

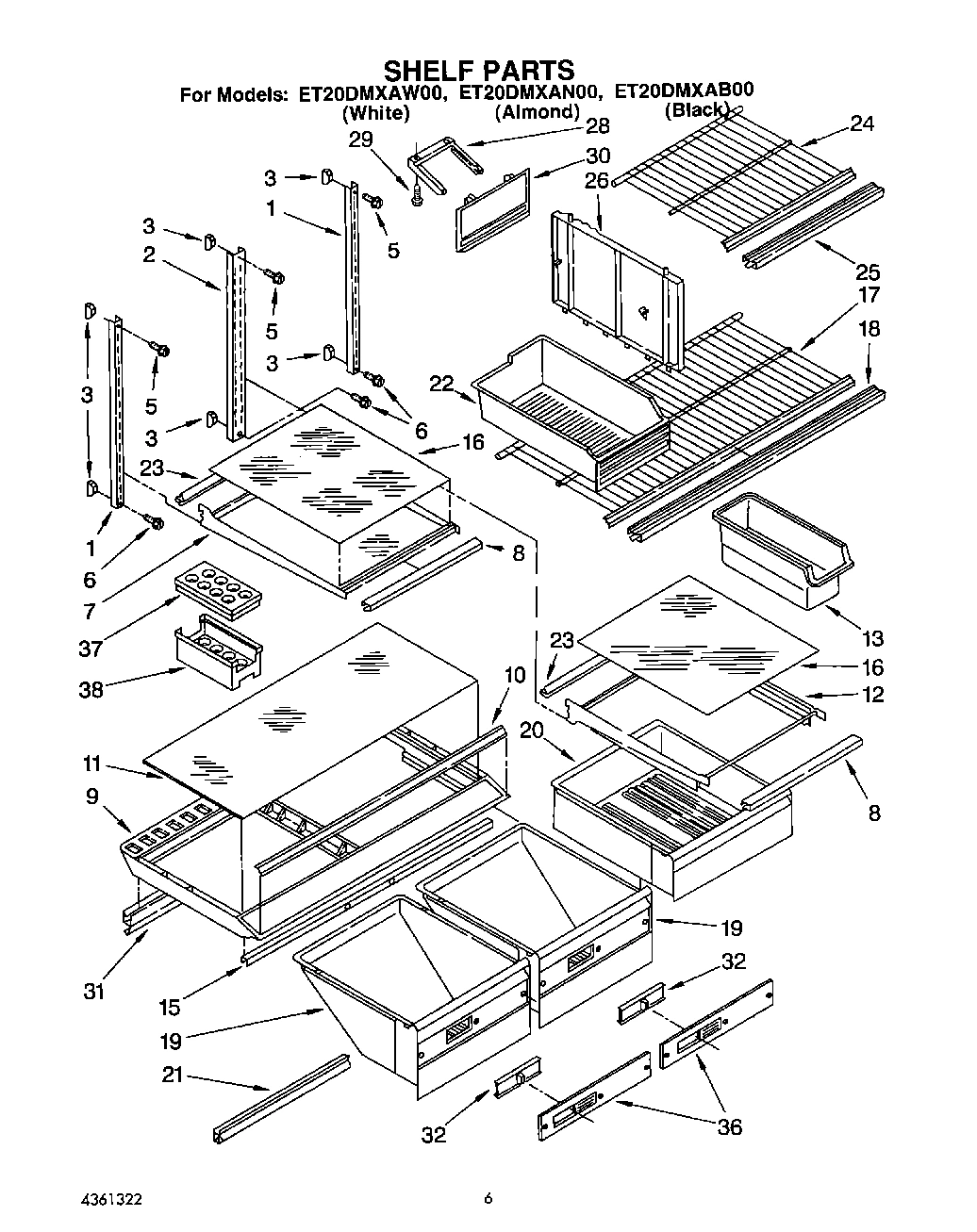

05 - SHELF, LIT/OPTIONAL

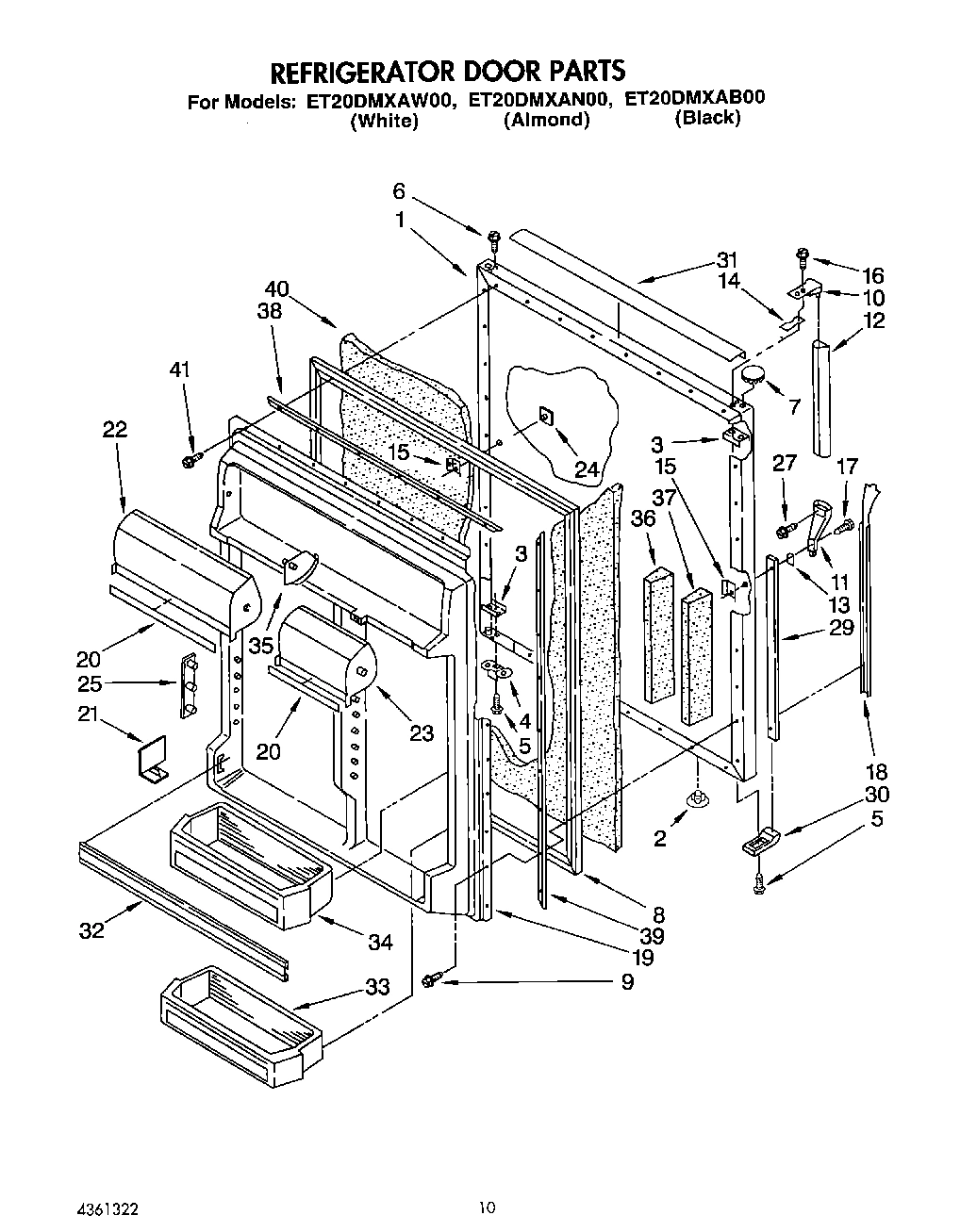

07 - REFRIGERATOR DOOR

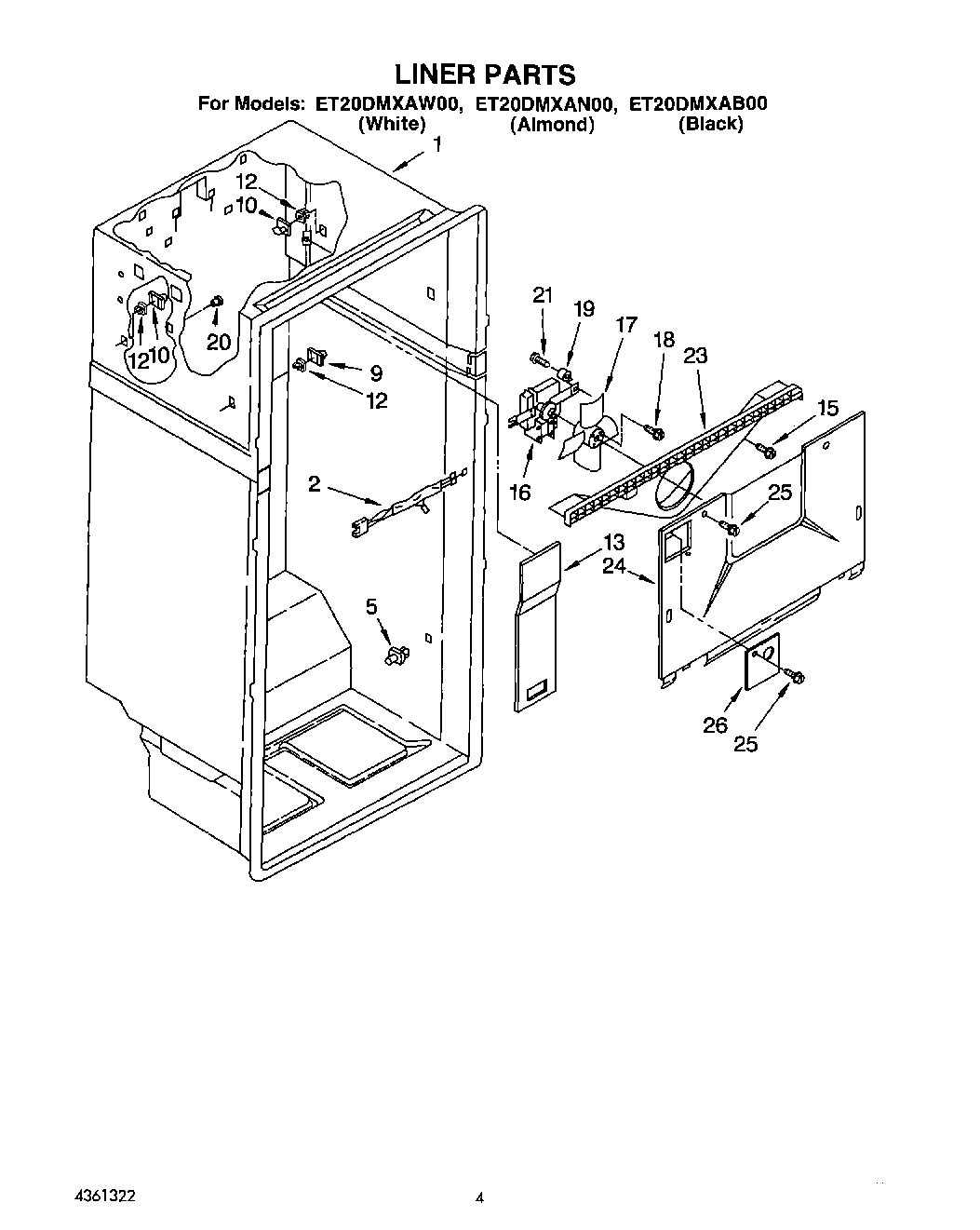

03 - LINER
Common parts from model Whirlpool ET20DMXAN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2160152 WPL LIT2160152 Contact Us For Availability
WPL LIT2162620 WPL LIT2162620 Contact Us For Availability
WPL LIT4361322 WPL LIT4361322 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146622A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2156096 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2156099 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2162683 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 2157700 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 2157703 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 2162680 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146623A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Plate, Tap (4) WPL 1123568 Contact Us For Availability
4
Bracket, Door Stop WPL 2157749 Contact Us For Availability
4
Bracket, Door Stop WPL 2157748 Contact Us For Availability
5
Screw (6) WPL 488454 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
7
Screw WPL 489327 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
8
Trim, Shelf WPL 2148526 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 1119480 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Mullion (3) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Black) WPL 2159168 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Handle, Center (Black Model) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Shelf, Glass WPL 1124551 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Nameplate (White Model Only) WPL 2148544 Contact Us For Availability
18
Nameplate (Black Model Only) WPL 2162668 Contact Us For Availability
18
Nameplate (Almond Model Only) WPL 2162698 Contact Us For Availability
18
Trim, Shelf Front WPL 2148535 Contact Us For Availability
18
Insert, Handle (Black Model) WPL 1120830 Contact Us For Availability
18
Insert, Handle (White Model) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Pan, Crisper WPL 2162717 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Pan, Meat WPL 2162716 Contact Us For Availability
20
Trim, Door Compartment (2) WPL 1122750 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Divider, Door Shelf WPL 2152335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Left Side WPL 2148809 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Reflector, Shelf WPL 1106768 Contact Us For Availability
23
Compartment Door, Right Side WPL 2148807 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157426 Contact Us For Availability
25
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black Model) WPL 1114390 Contact Us For Availability
25
Trim, Shelf WPL 2148537 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
26
Hinge Butt, Bottom (Black Model) WPL 1123378 Contact Us For Availability
26
Hinge Butt, Bottom (White & Almond Model) WPL 2148563 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Door, Ice Compartment WPL 2148741 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Trim WPL ARI146624A Contact Us For Availability
32
Slide, Humidity Control WPL 2148524 Contact Us For Availability
32
Trim, Door Shelf WPL 2148551 Contact Us For Availability
33
Corner Filler, Grille (Black Model) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (2) (Black Model) WPL 2162679 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Bin, Door Shelf WPL 2148550 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Hole Plug (4) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (4) (Almond) WPL 1129063 Contact Us For Availability
36
Hole Plug (4) (Black) WPL 2160814 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
Crisper Pan, Front WPL 2148816 Contact Us For Availability
36
WPL 1122711 WPL 1122711 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Egg Container-Top WPL 2164174 Contact Us For Availability
37
WPL 1122709 WPL 1122709 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
WPL 1122552 WPL 1122552 Contact Us For Availability
38
Egg Container-Bot. WPL 2164173 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
39
WPL 1122551 WPL 1122551 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
61
WPL 2147310 WPL 2147310 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
