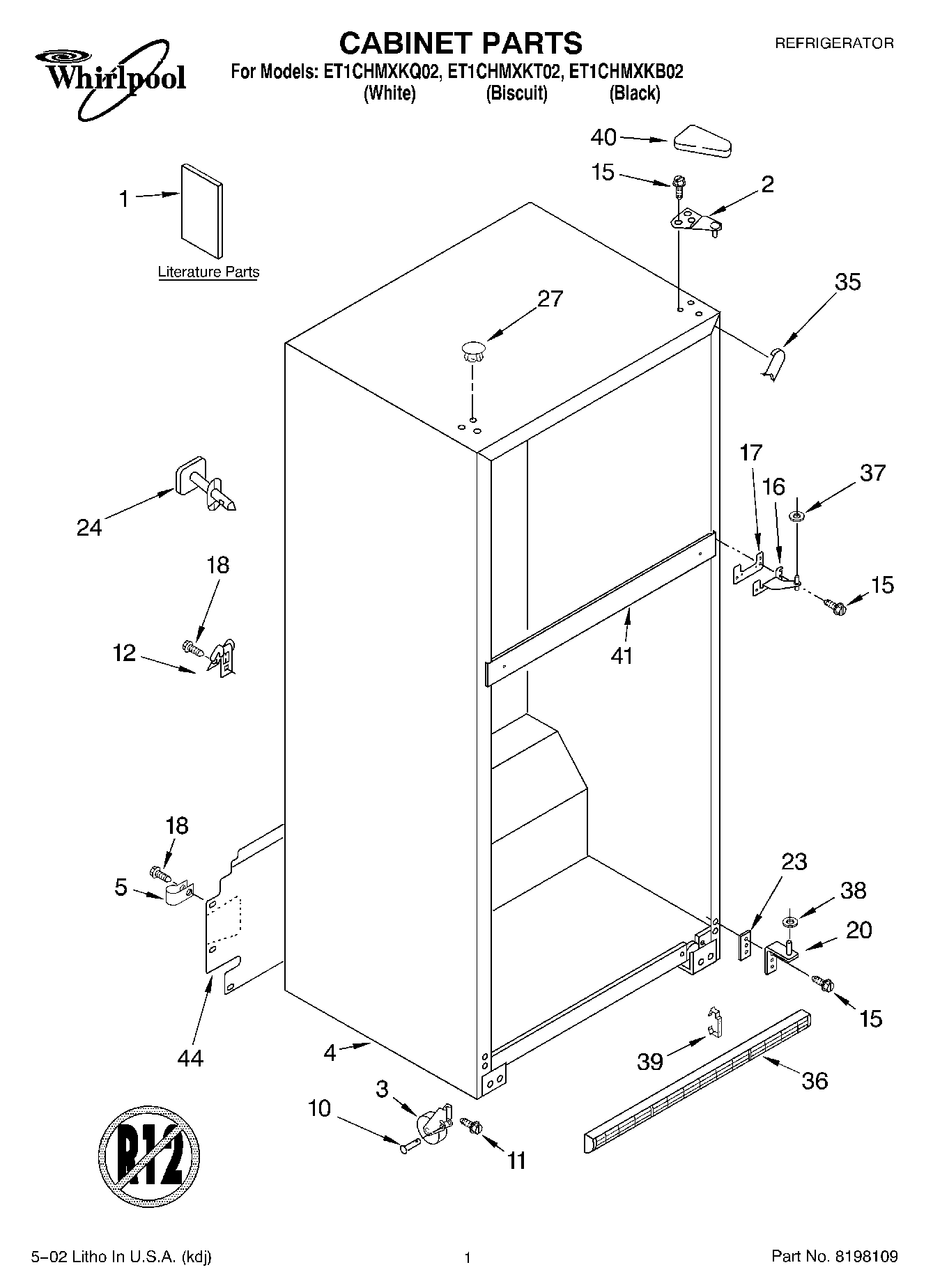

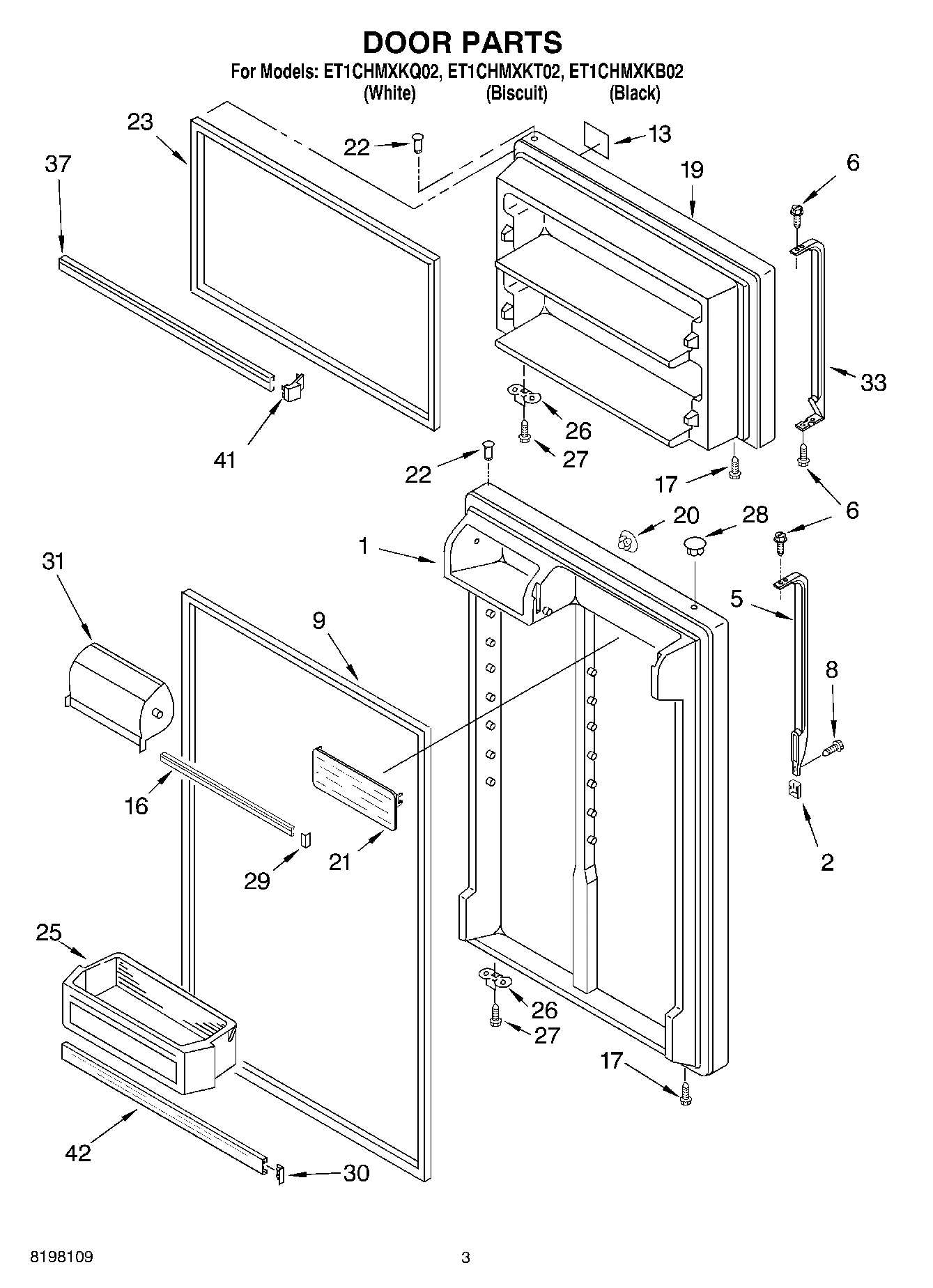

Model Whirlpool ET1CHMXKB02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

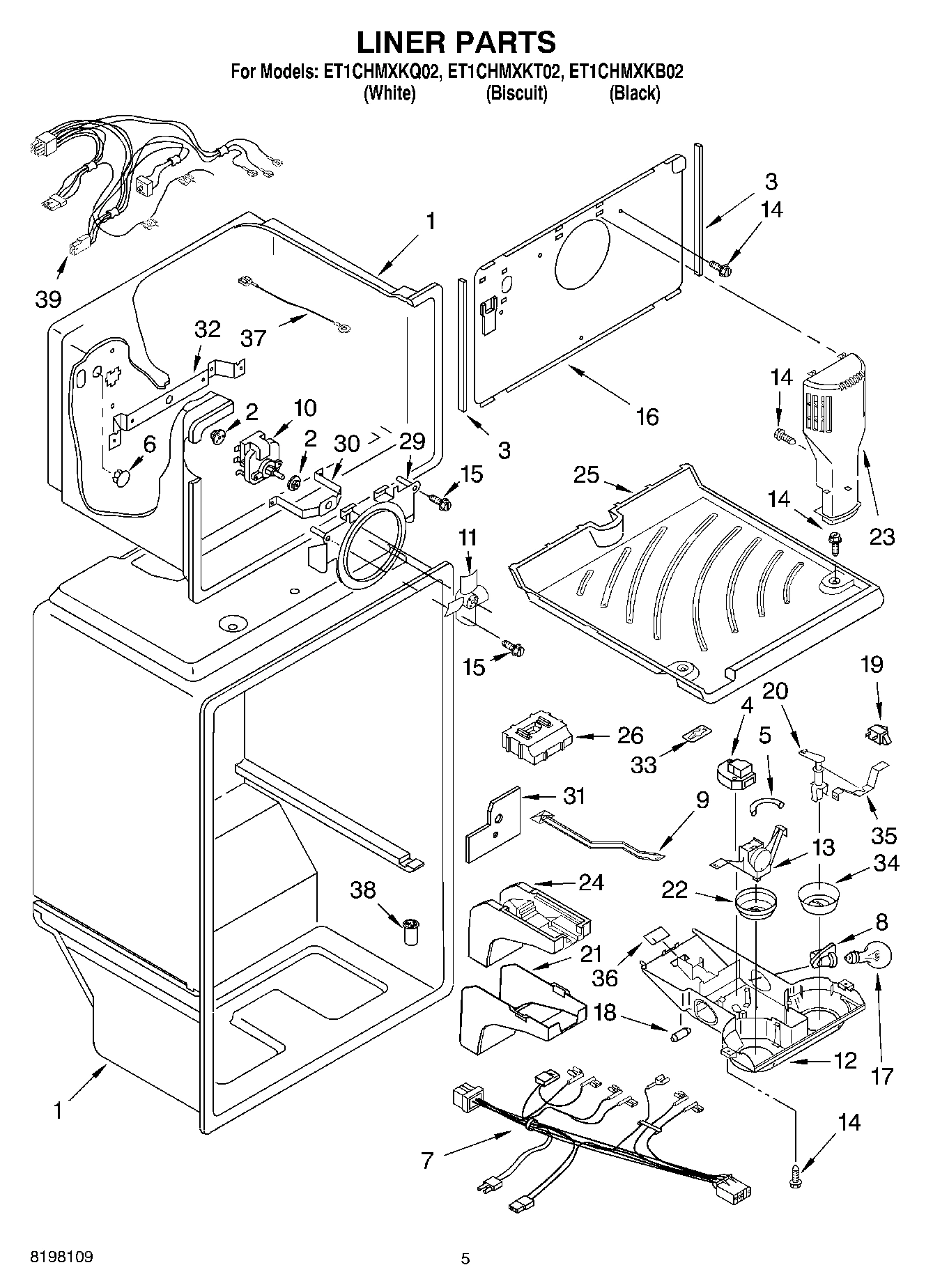

Liner (Not A Serviceable Part) WPL ARI45915A6 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

4

Defrost Timer WPL 2188376 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

Slide, Humidity Control WPL 2176222 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2187306 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

9

Damper, Air WPL 2179858 Contact Us For Availability

10

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

12

Control Box WPL 2200820 Contact Us For Availability

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $44.74

16

Support Block WPL 2201185 Contact Us For Availability

16

Cover, Evaporator WPL 2201175 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

Clip, Heater WPL 2182338 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $109.65

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Post, Damper WPL 2179859 Contact Us For Availability

21

WP2188236 Whirlpool Refrigerator Shelf Door In Stock WPL WP2188236 $51.39

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $93.60

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

Fitting, Water Tube (Not Serviced) WPL ARI45913A3 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP2188689 Whirlpool Refrigerator Shelf Trim Backorder WPL WP2188689 $42.73

WP2204812 Whirlpool Refrigerator Door Bin In Stock WPL WP2204812 $47.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30`` X WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Freezer Floor WPL 2184617 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

Installation Kit WPL 482801 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

WP2218118 Whirlpool Refrigerator Door Compres Backorder WPL WP2218118 $46.21

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

Shield, heat WPL 2204639 Contact Us For Availability

32

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

34

Knob, Damper WPL 2176297 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Grille (White) WPL 2201006 Contact Us For Availability

Grille (Black) WPL 2201008 Contact Us For Availability

Grille (Biscuit) WPL 2201020 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

37

Wire Assembly, Ground WPL 2187567 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Wire Assembly Freezer Compartment WPL 2219652 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

41

Rail Center (Not Serviced) WPL ARI45914A9 Contact Us For Availability

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2202884 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Tray, Evaporator WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

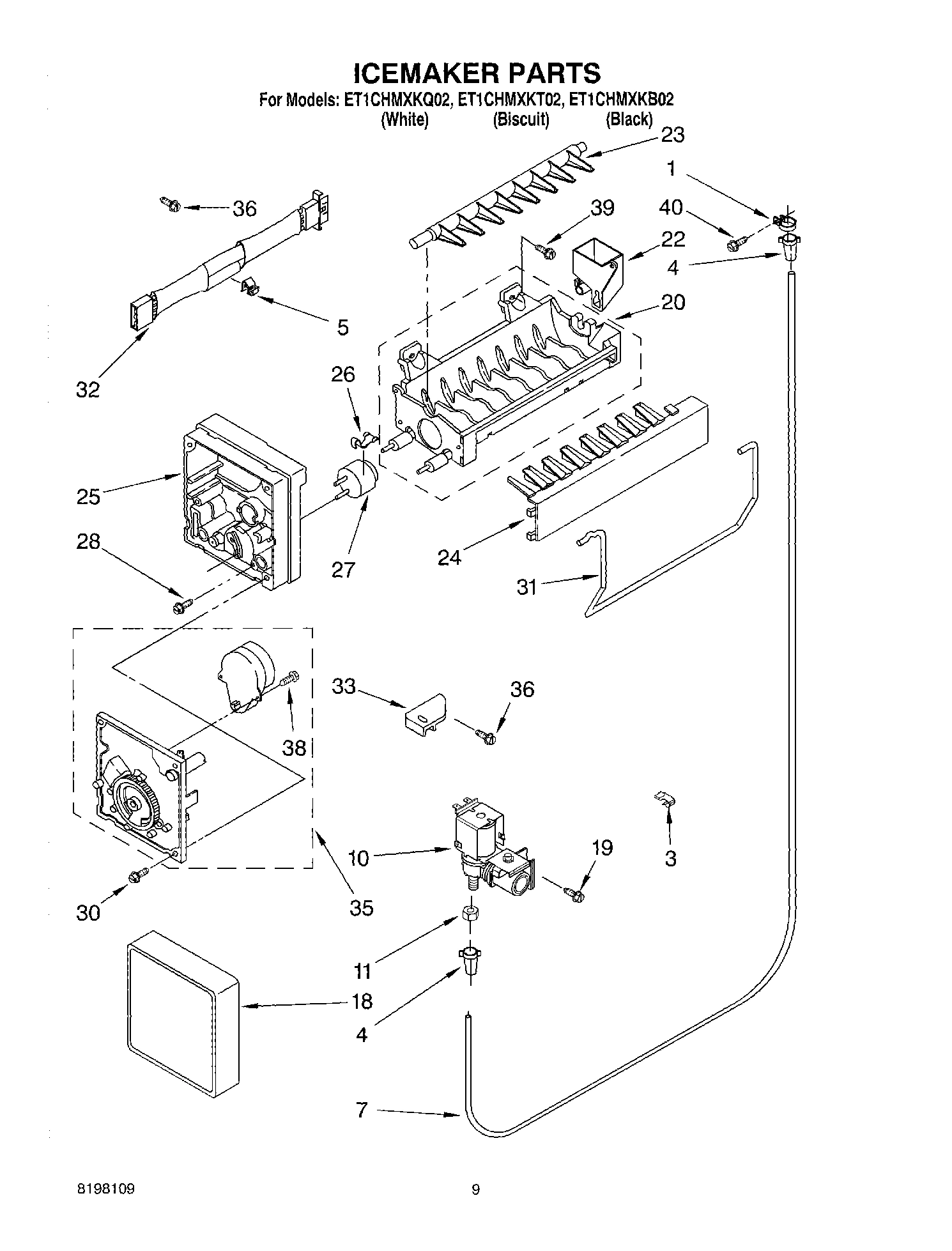

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
