Model Whirlpool ET19RKXGN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

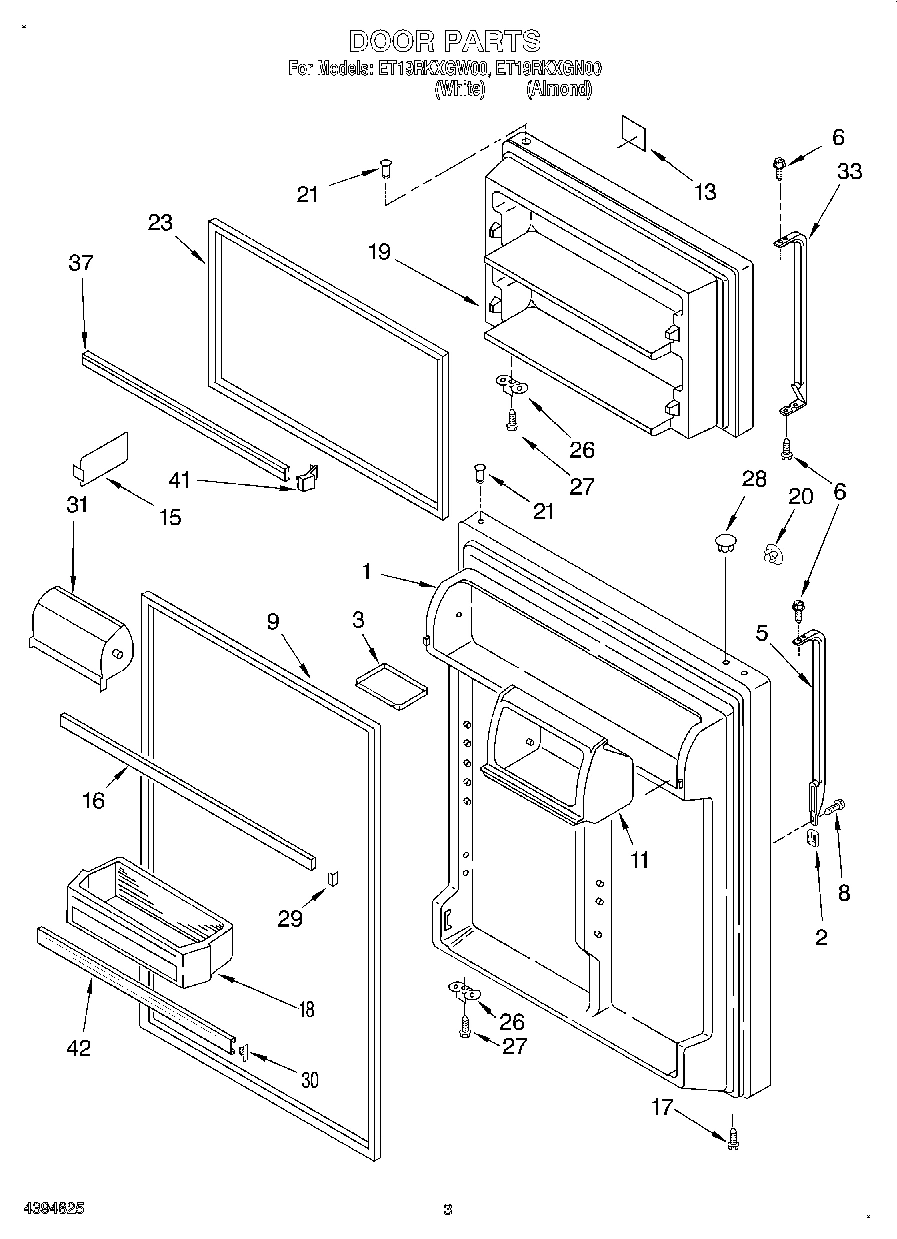

02 - DOOR

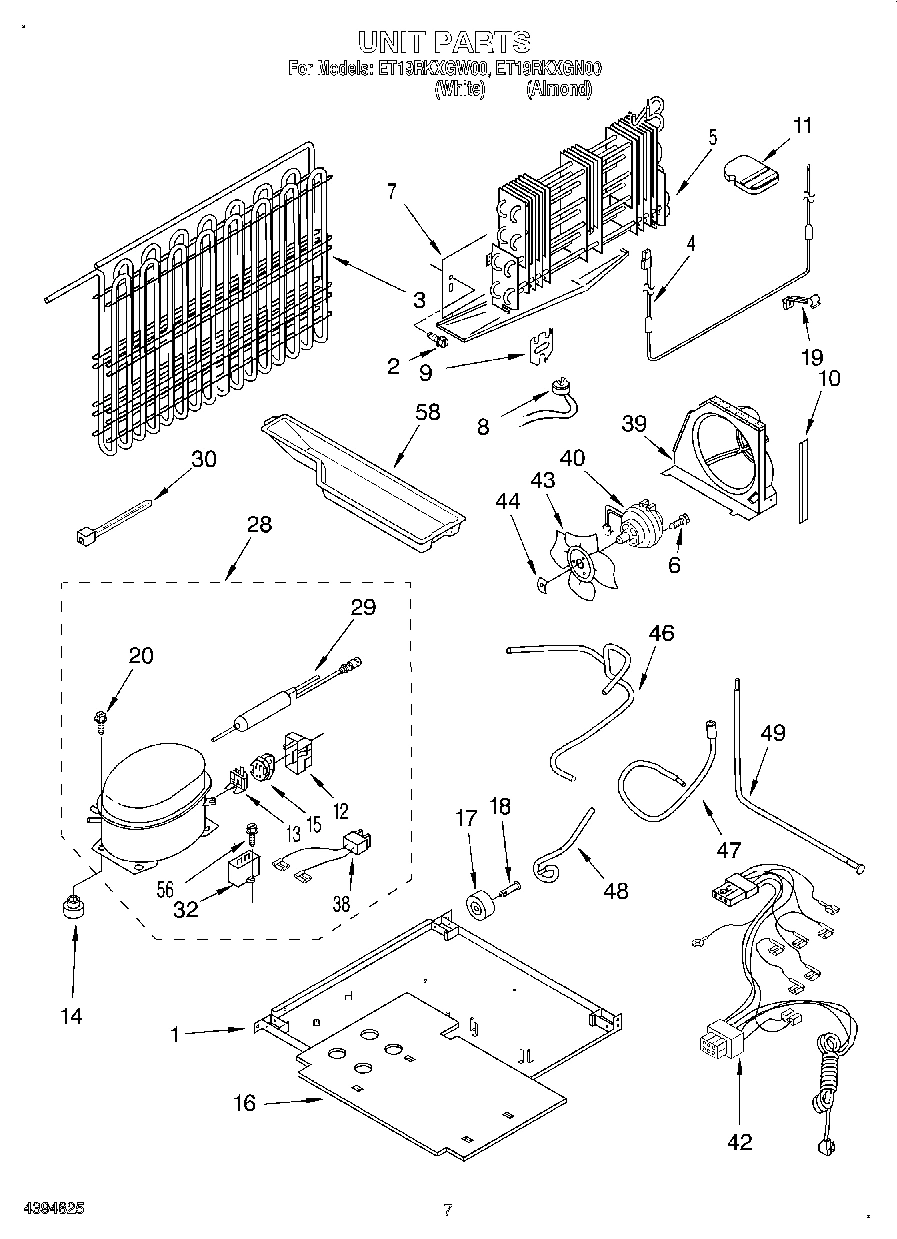

04 - UNIT
03 - LINER
05 - SHELF, LIT/OPTIONAL
01 - CABINET
Common parts from model Whirlpool ET19RKXGN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2199009 WPL LIT2199009 Contact Us For Availability
WPL LIT2199057 WPL LIT2199057 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45596A7 Contact Us For Availability
2
Frame Assembly, Shelf (3) WPL 2174446 Contact Us For Availability
5
Shelf Ladder, WPL 2163826 Contact Us For Availability
9
Damper, Air WPL 2195603 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
16
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Shelf Assembly, Spillguard (3) WPL 2195500 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Screw WPL 2174650 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI45597A2 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Pan Shelf, Cantilever WPL 2179716 Contact Us For Availability
26
Screw Support WPL 2189314 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Trim, Meat Pan WPL 2176356 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI45598A1 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI45599A6 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Wire Assembly Freezer Compt. WPL 2195656 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Post, Damper WPL 2179859 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2183993 Contact Us For Availability
36
Grille (Almond) WPL 2183994 Contact Us For Availability
37
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI45600A2 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 2, 13, 14, 20, 25, 44) A WPL 2200551 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
