Model Whirlpool ET19DKXDB00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
04 - REFRIGERATOR DOOR

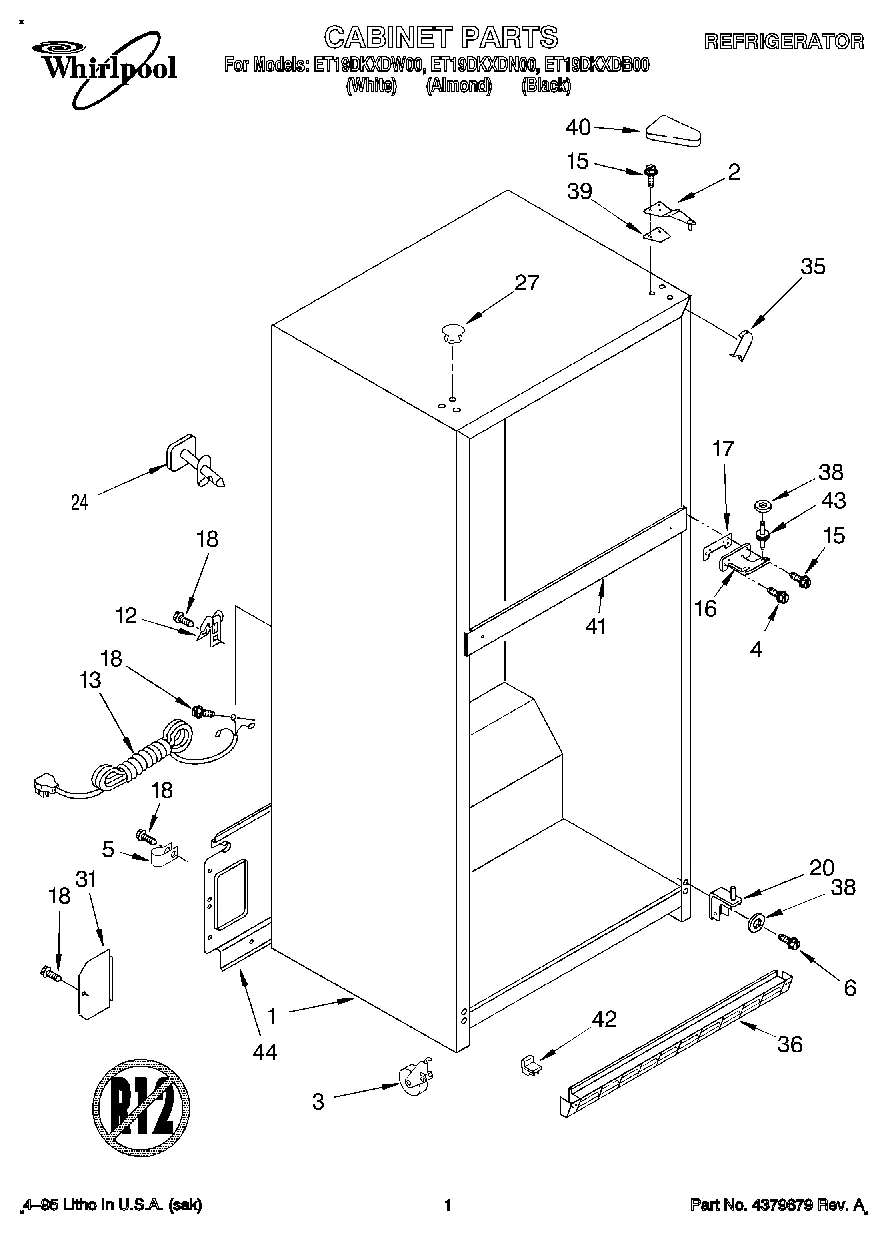

01 - CABINET

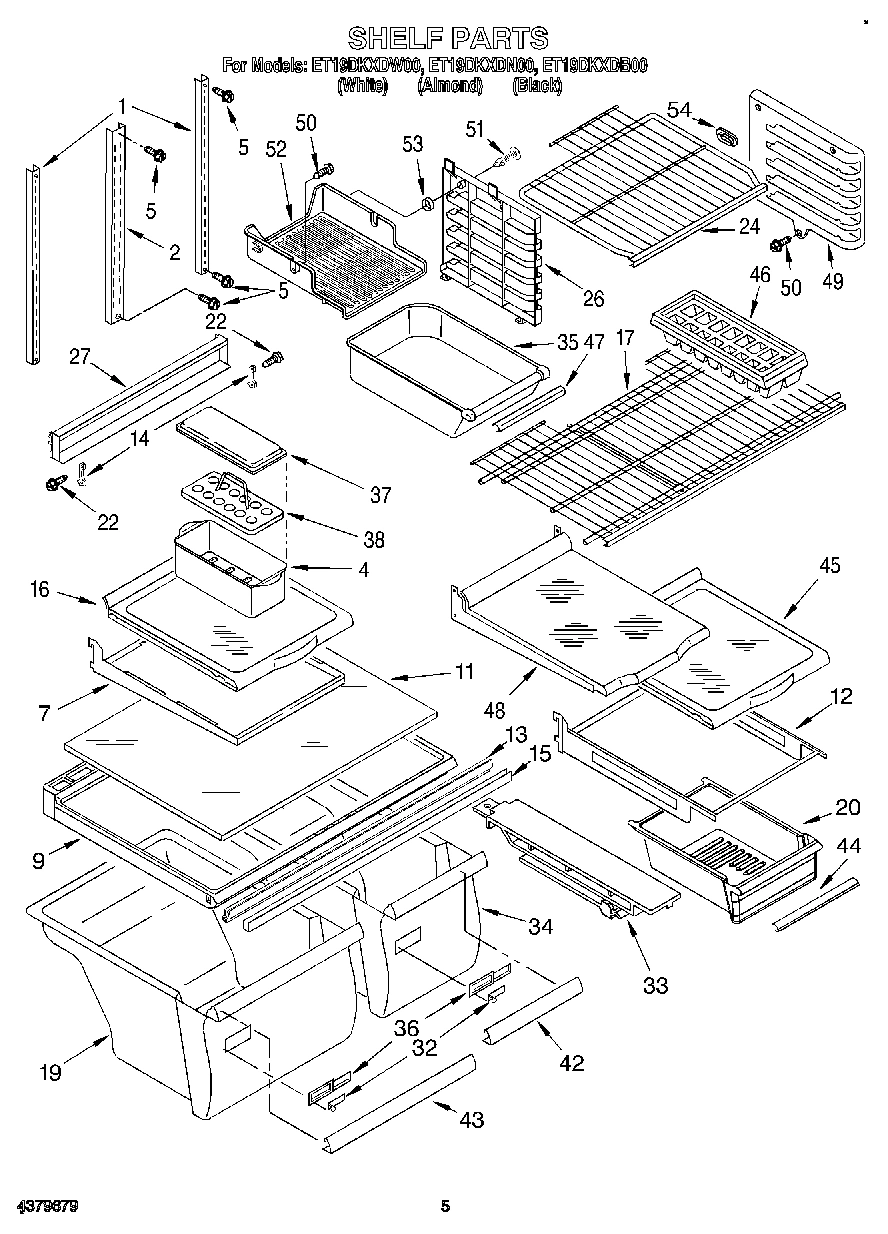

03 - SHELF

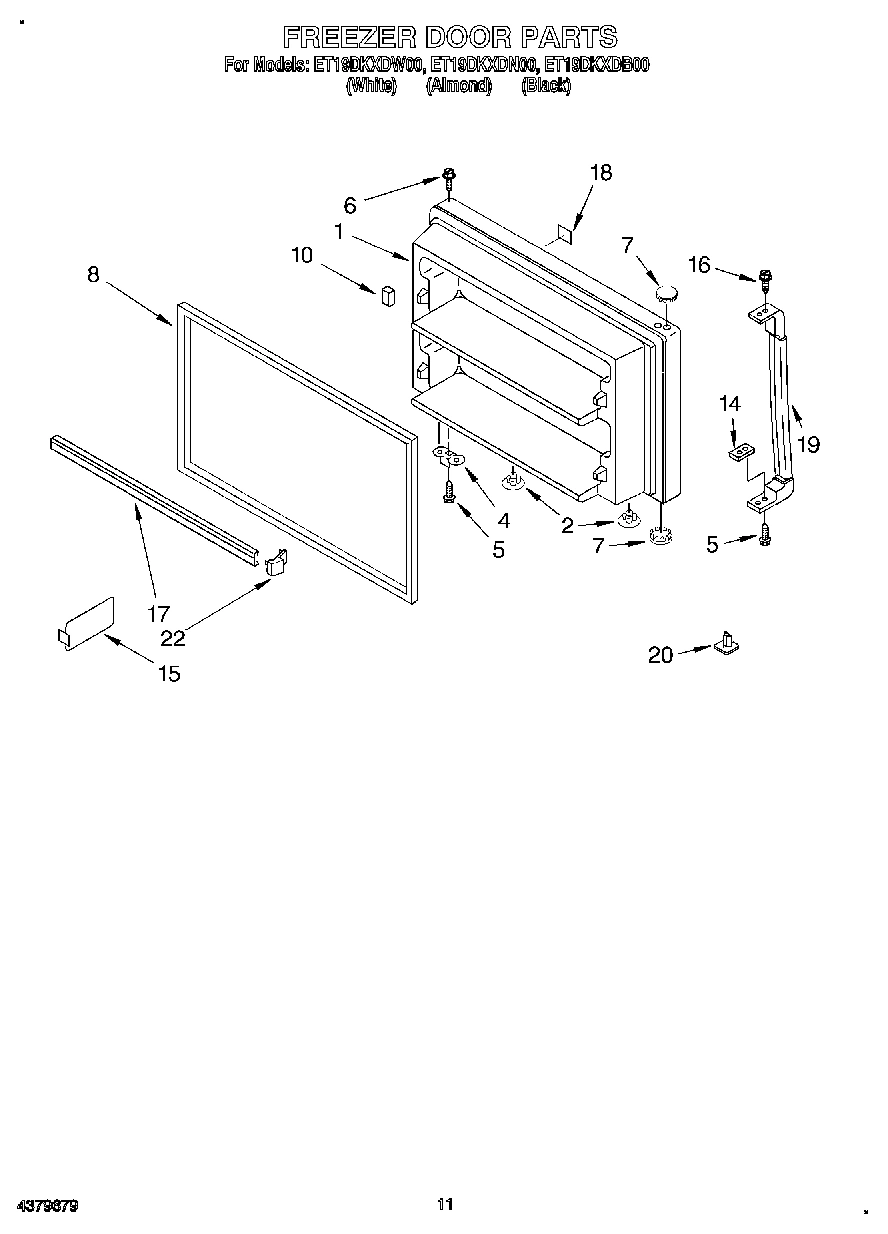

06 - FREEZER DOOR, LIT/OPTIONAL

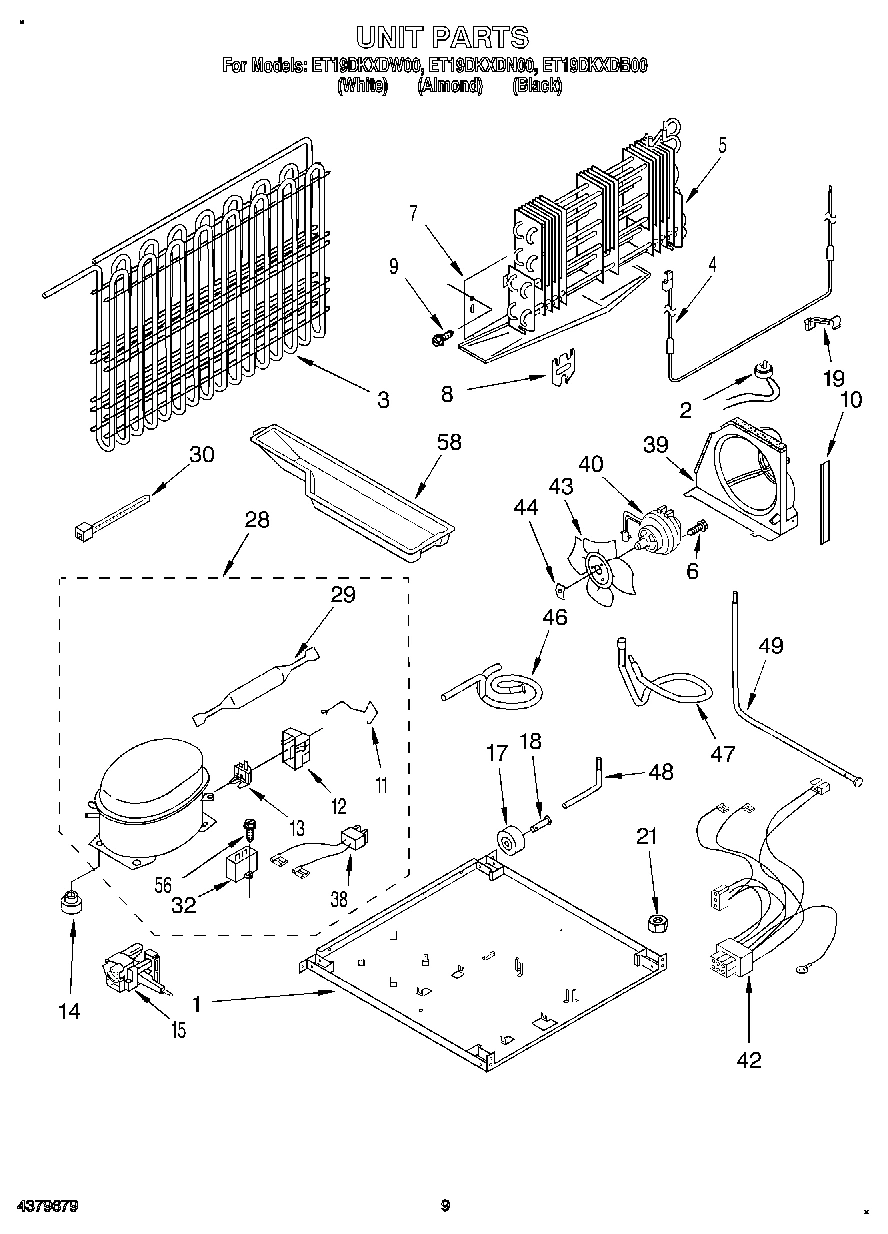

05 - UNIT
Common parts from model Whirlpool ET19DKXDB00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2174685 WPL LIT2174685 Contact Us For Availability
WPL LIT2176265 WPL LIT2176265 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (B WPL 2171236 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171245 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171246 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45480A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2171232 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2171234 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Black) WPL 2171235 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Shim, Handle WPL 2179319 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 2159368 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
10
Door Clip, Freezer Light WPL 2166278 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
16
Hinge, Center WPL 2176249 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174640 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Nameplate (White) WPL 2148544 Contact Us For Availability
18
Nameplate (Black) WPL 2162668 Contact Us For Availability
18
Nameplate (Almond) WPL 2162698 Contact Us For Availability
19
Handle (White) WPL 2179311 Contact Us For Availability
19
Handle (Almond) WPL 2179312 Contact Us For Availability
19
Handle (Black) WPL 2179313 Contact Us For Availability
19
Handle (White) WPL 2179302 Contact Us For Availability
19
Handle (Almond) WPL 2179303 Contact Us For Availability
19
Handle (Black) WPL 2179304 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2171074 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
20
Hole Plug (Black) WPL 2174435 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI45484A2 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Door Reversal Instructions WPL 2176379 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI45481A9 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2166111 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2172696 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Black) WPL 2166189 Contact Us For Availability
35
Ice Bucket WPL 2174616 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
36
Grille (Black) WPL 2166134 Contact Us For Availability
37
Cover WPL 2164374 Contact Us For Availability
38
Endcap, Door Trim WPL 2159301 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Black) WPL 2176206 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI45482A6 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Trim, Crisper Pan WPL 2176352 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Trim, Crisper Pan WPL 2176353 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2174644 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174648 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2166299 Contact Us For Availability
49
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
53
Center Support, Fl WPL 2179714 Contact Us For Availability
53
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
54
WPL 2179720 WPL 2179720 Contact Us For Availability
54
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
55
WPL 2179756 WPL 2179756 Contact Us For Availability
56
WPL 2179772 WPL 2179772 Contact Us For Availability
57
WPL 2174628 WPL 2174628 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
