Model Whirlpool ET18SKRDW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
Service & Wiring Sheet
Service & Wiring Sheet WPL LIT2172667 Contact Us For Availability
View on Model
Energy Label
Energy Label WPL LIT2180571 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT2184590 Contact Us For Availability
View on Model
Do-It-Yourself Manual Ref./Fzr.
Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability
View on Model
Do-It-Yourself Manual, Icemaker
Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability
View on Model
1

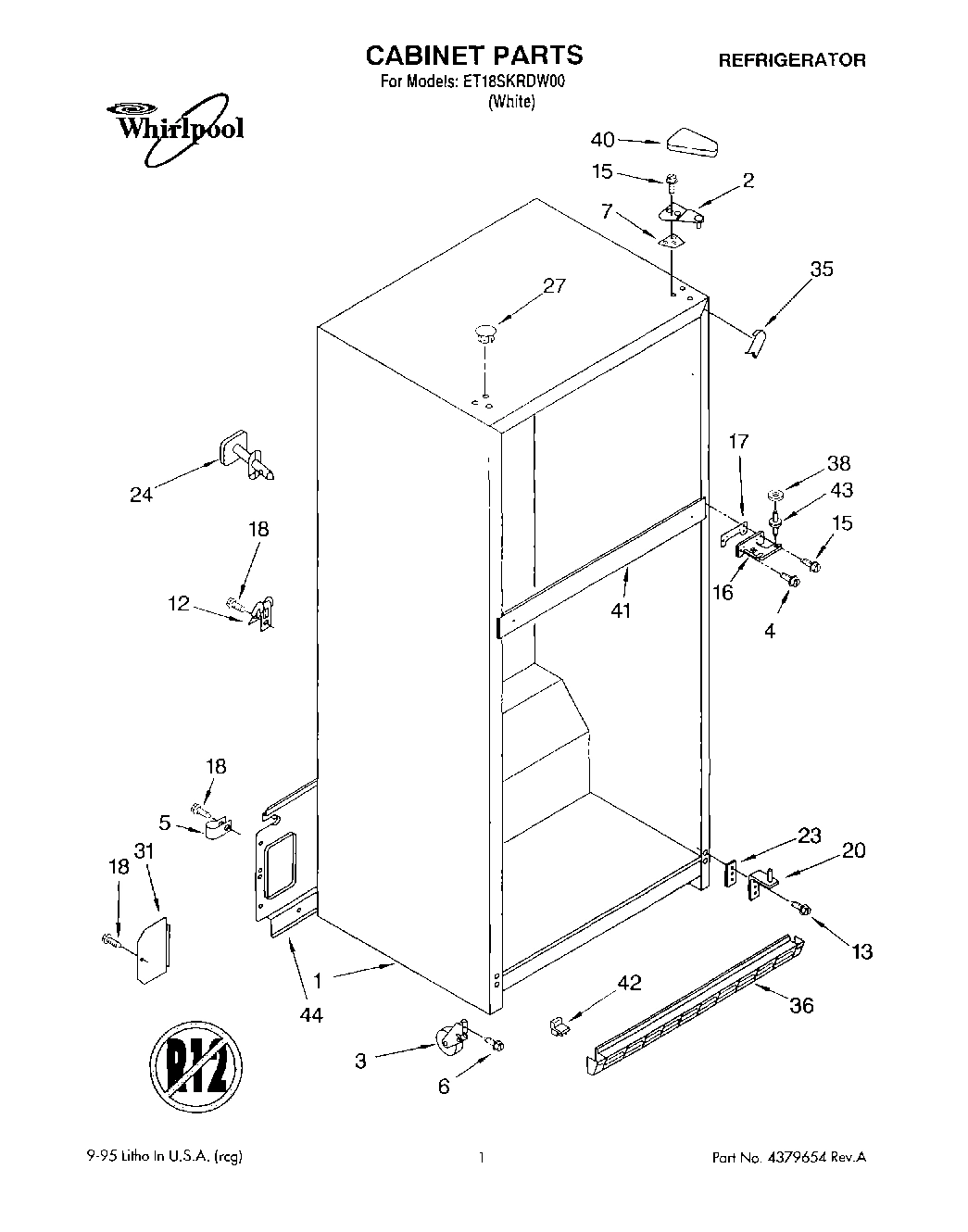

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI45058A3 Contact Us For Availability
View on Model
2

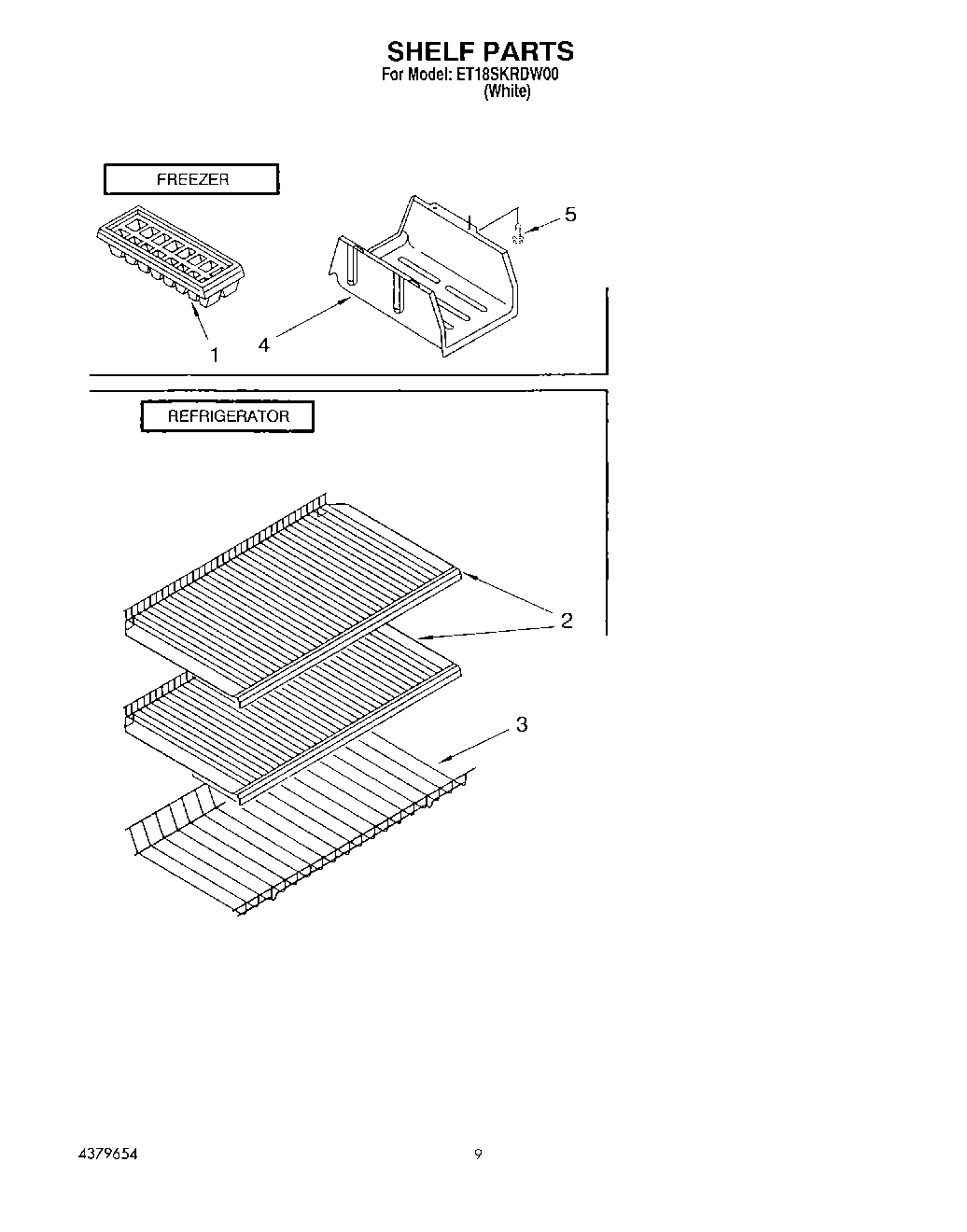

Shelf (2)
Shelf (2) WPL 2182443 Contact Us For Availability
View on Model
3
Trivet
Trivet WPL 2166210 Contact Us For Availability
View on Model
4
Screw
Screw WPL 489426 Contact Us For Availability
View on Model
4
Shelf
Shelf WPL 2172569 Contact Us For Availability
View on Model
5
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
5
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
5
Evaporator Assy.
Evaporator Assy. WPL 2176337 Contact Us For Availability
View on Model
5
Door Reversal Instructions
Door Reversal Instructions WPL 2172516 Contact Us For Availability
View on Model
5
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
5
KIT, PORCELAIN REPAIR (WHITE)
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
View on Model
5
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
5
Enamel, Almond (1 Qt. Uncut)
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
View on Model
6
Screw
Screw WPL 489414 Contact Us For Availability
View on Model
6
Screw
Screw WPL 2174650 Contact Us For Availability
View on Model
7
Spacer
Spacer WPL 943188 Contact Us For Availability
View on Model
7
Drain Pan
Drain Pan WPL 2172619 Contact Us For Availability
View on Model
7
Shim
Shim WPL 1123517 Contact Us For Availability
View on Model
9
Bracket, Heater
Bracket, Heater WPL 2176301 Contact Us For Availability
View on Model
10
Extension, Air Baffle
Extension, Air Baffle WPL 2163780 Contact Us For Availability
View on Model
11
Screw
Screw WPL 489433 Contact Us For Availability
View on Model
12
Cover, Screw
Cover, Screw WPL 9791769 Contact Us For Availability
View on Model
13
Screw
Screw WPL 489459 Contact Us For Availability
View on Model
14
Grommet (4) (Production)
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
View on Model
15
Relay (See Overload)
Relay (See Overload) WPL ARI45062A9 Contact Us For Availability
View on Model
17
Roller (2)
Roller (2) WPL 2163782 Contact Us For Availability
View on Model
17
Shim, Hinge Center
Shim, Hinge Center WPL 2163757 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
20
Hinge, Butt
Hinge, Butt WPL 2179829 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
21
Nut (Not Serviced)
Nut (Not Serviced) WPL ARI45063A4 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
View on Model
24
Fitting, Water Tube (Not Serviced)
Fitting, Water Tube (Not Serviced) WPL ARI45059A1 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
31
Cover, Water Valve
Cover, Water Valve WPL 2166251 Contact Us For Availability
View on Model
32
Capacitor (Service Only)
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
View on Model
36
Grille
Grille WPL 2182431 Contact Us For Availability
View on Model
38
Shim
Shim WPL 943187 Contact Us For Availability
View on Model
39
Air Baffle
Air Baffle WPL 2182395 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI45060A9 Contact Us For Availability
View on Model
42
Wire Assy. Unit
Wire Assy. Unit WPL 2182378 Contact Us For Availability
View on Model
42
Corner Filler, Grille
Corner Filler, Grille WPL 2166205 Contact Us For Availability
View on Model
43
Fan, Blade
Fan, Blade WPL 851732 Contact Us For Availability
View on Model
44
Cover, Unit
Cover, Unit WPL 2183158 Contact Us For Availability
View on Model
46
Tube, Discharge
Tube, Discharge WPL 2179856 Contact Us For Availability
View on Model
47
Tube, Suction
Tube, Suction WPL 2179854 Contact Us For Availability
View on Model
49
Tube, Condenser To Heat Loop
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
58
Evap. Tray
Evap. Tray WPL 2163795 Contact Us For Availability
View on Model
58
Start Kit
Start Kit WPL 482278 Contact Us For Availability
View on Model
58
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
