Model Whirlpool ET18NMYAW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - COMPARTMENT SEPARATOR

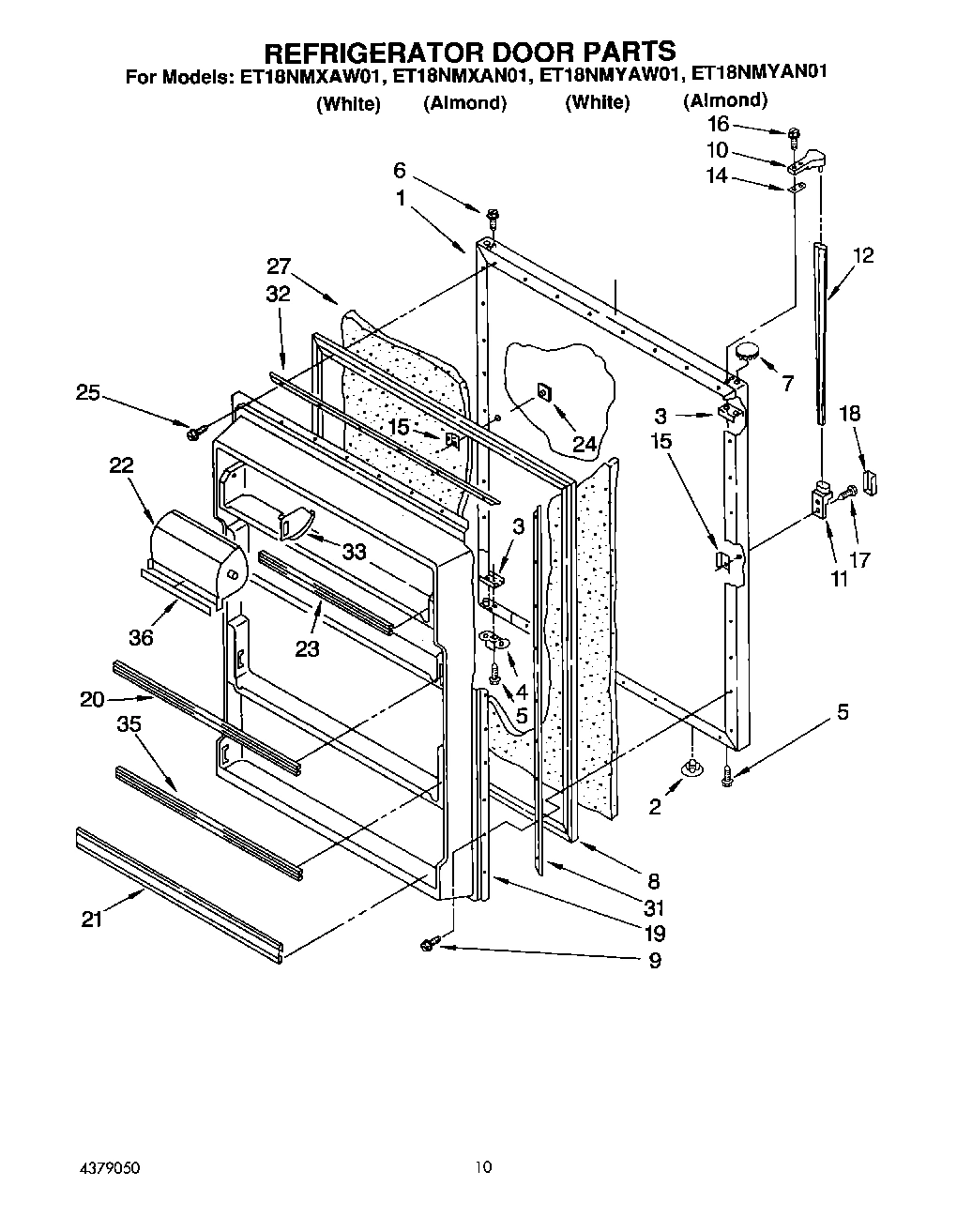

07 - REFRIGERATOR DOOR

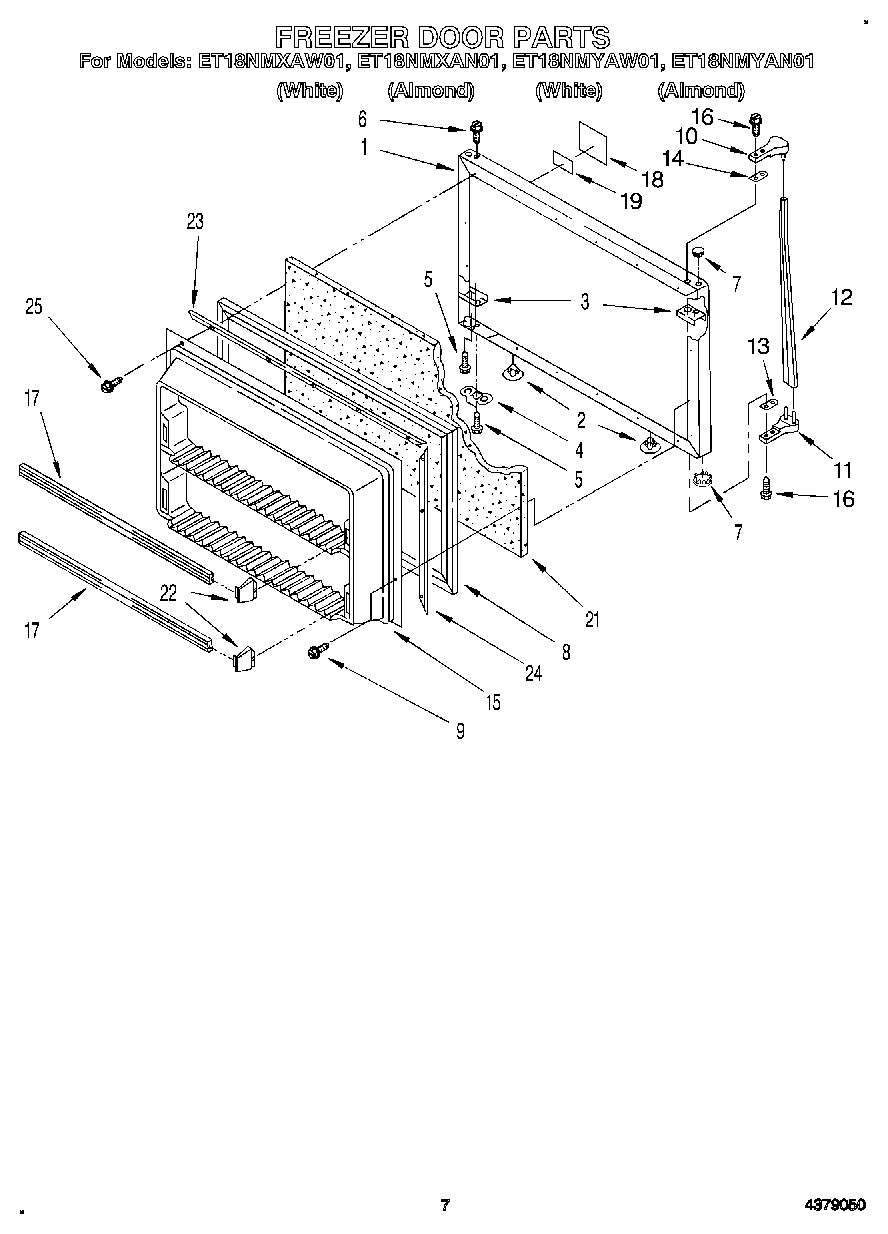

05 - FREEZER DOOR

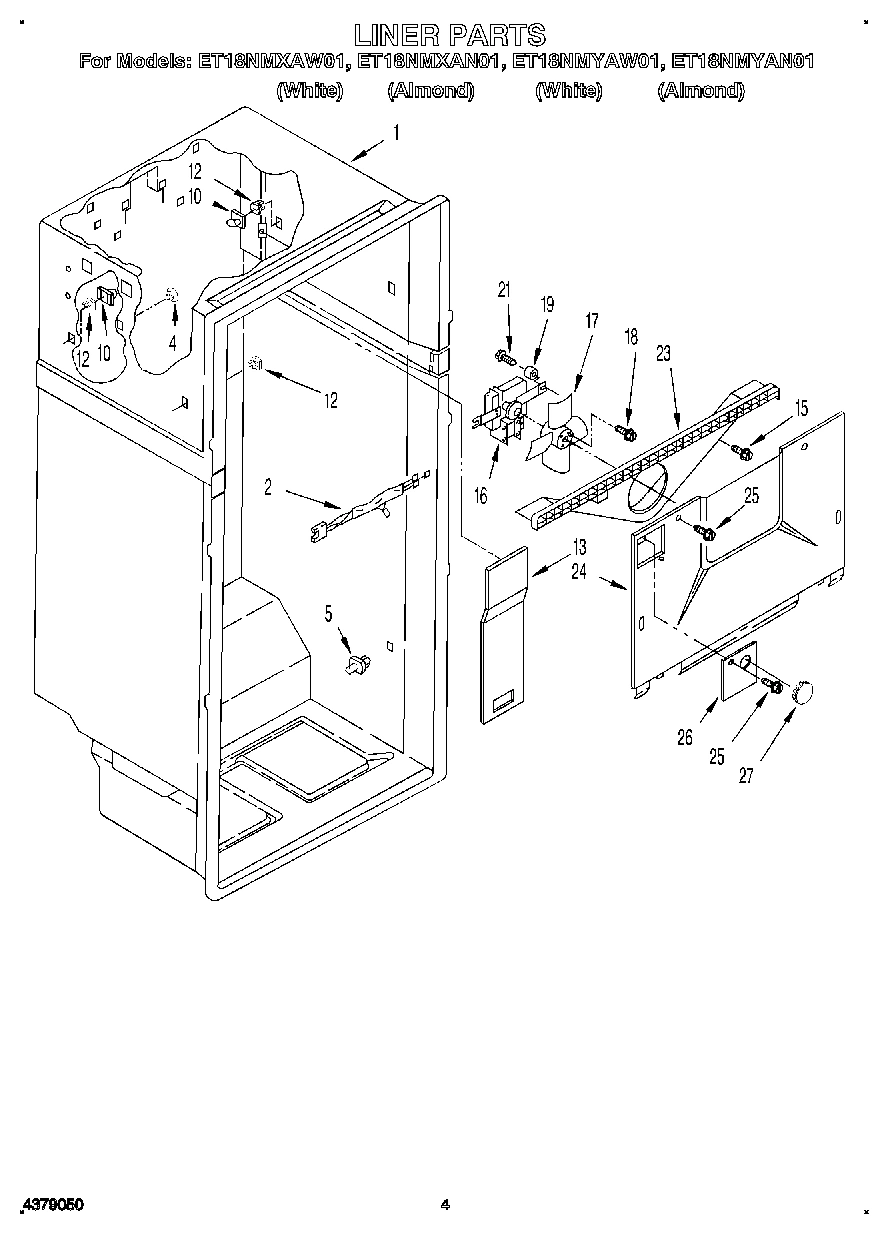

02 - LINER

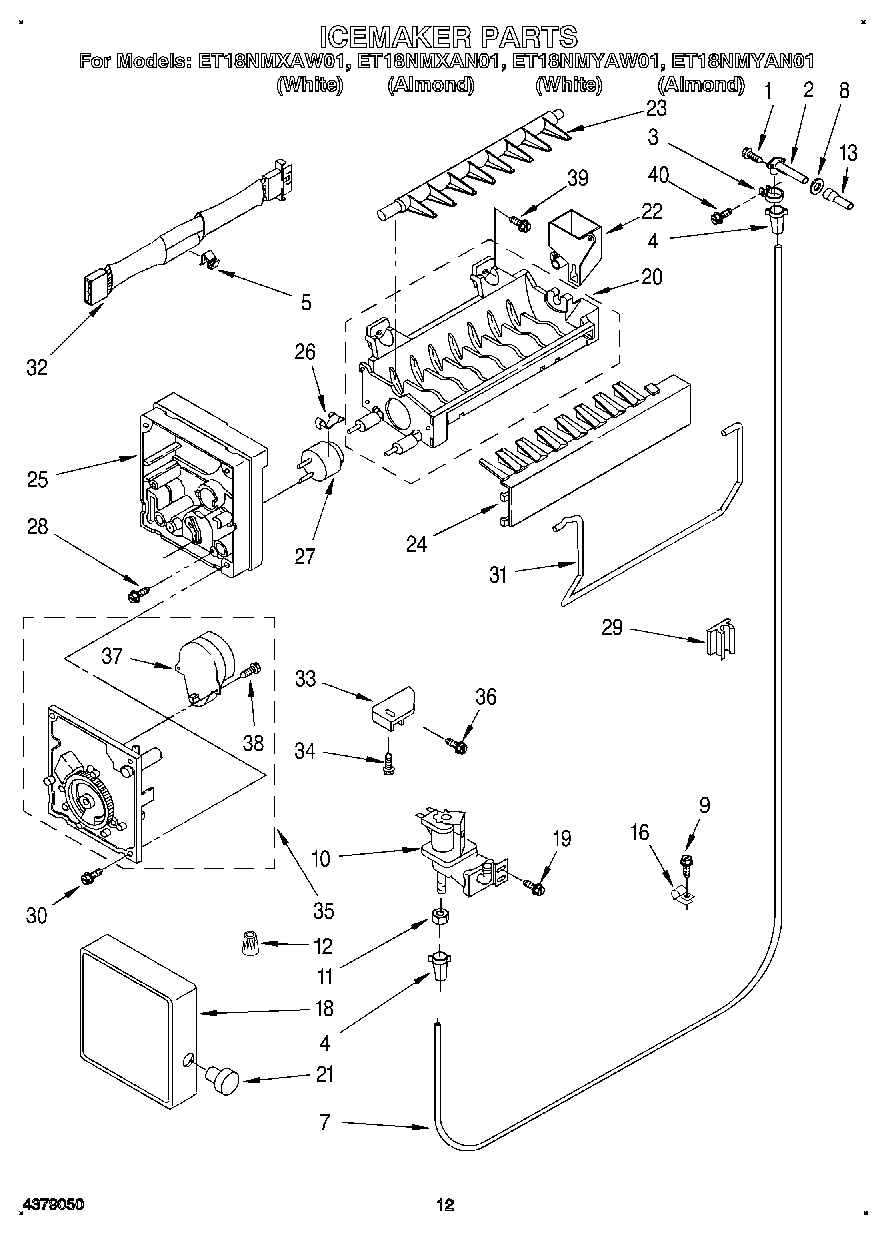

08 - ICEMAKER, LIT/OPTIONAL

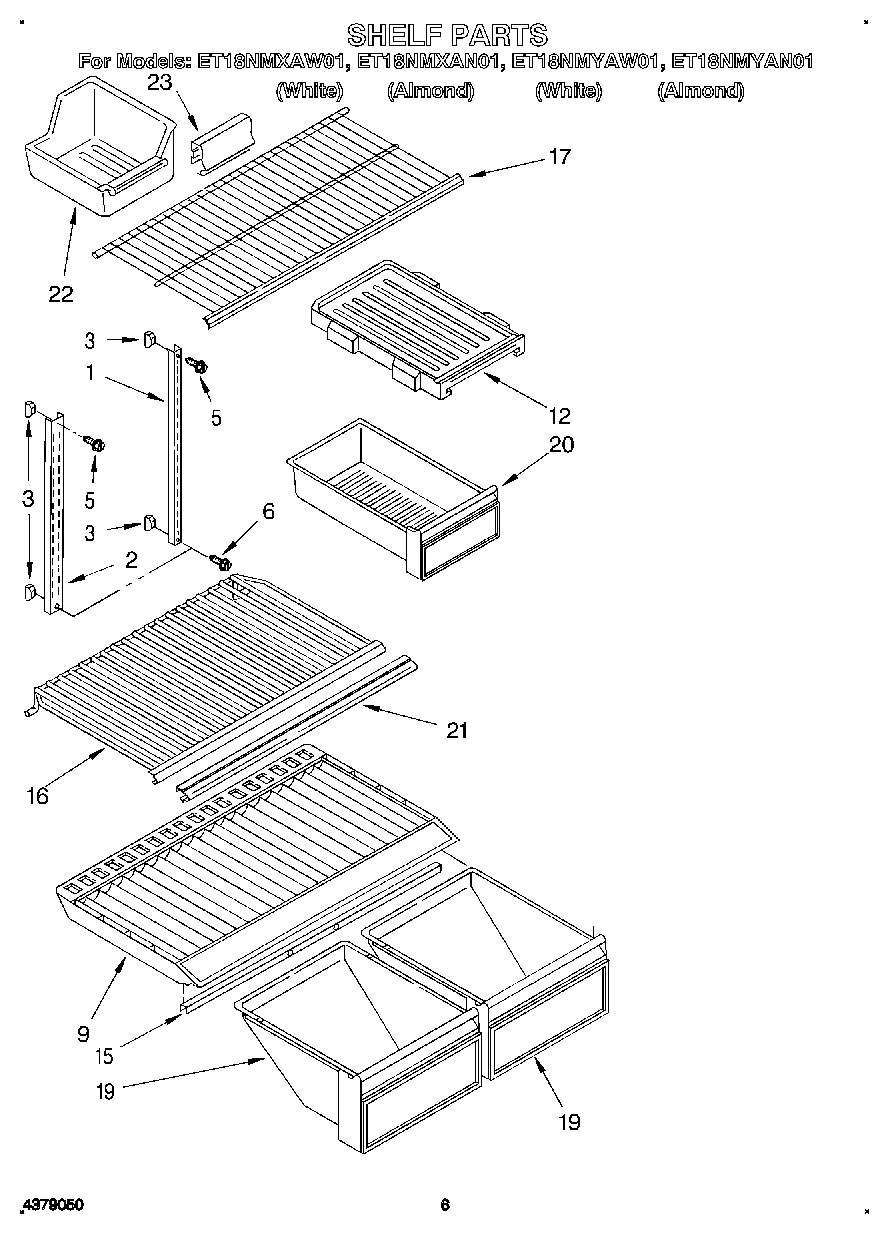

04 - SHELF

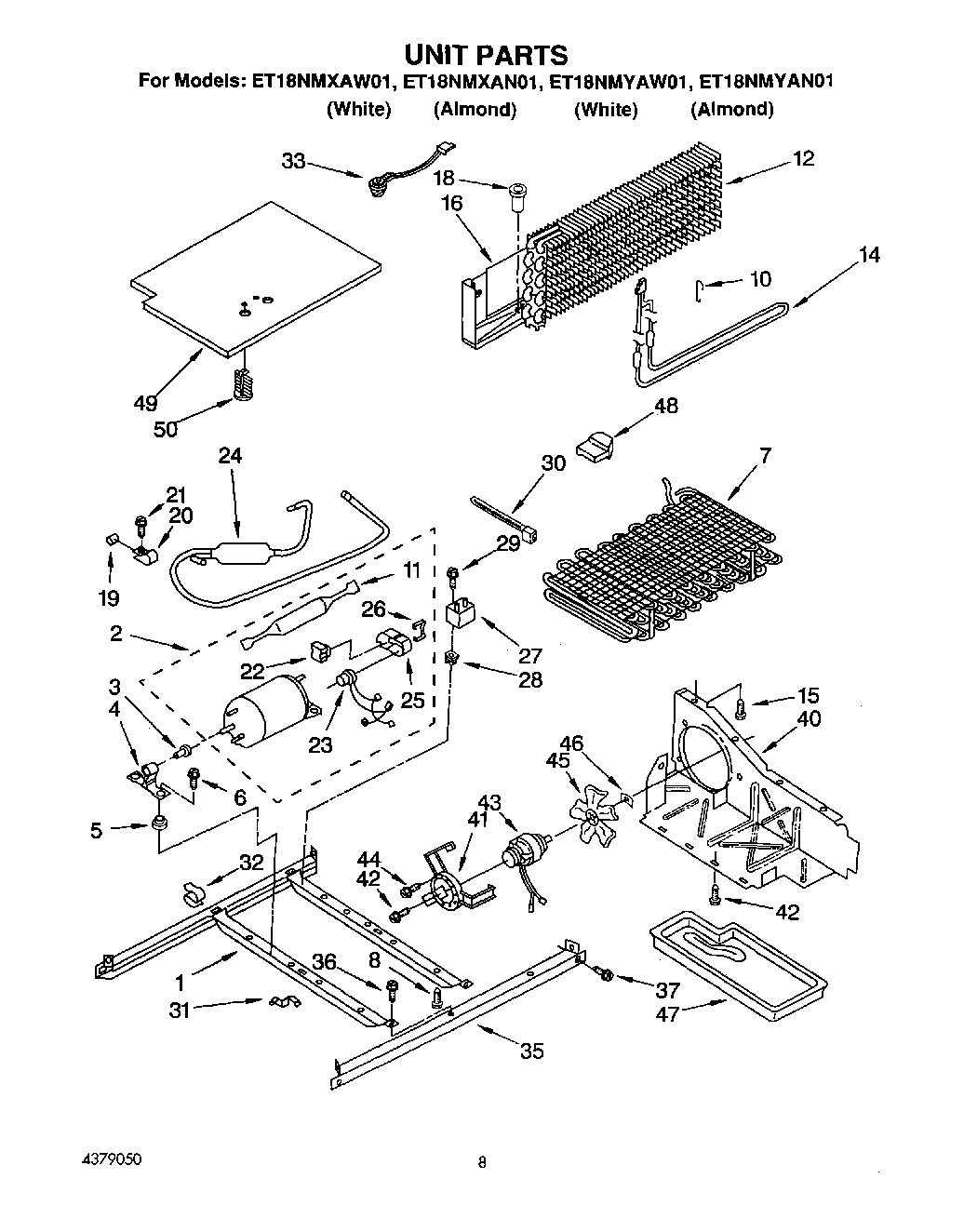

06 - UNIT
Common parts from model Whirlpool ET18NMYAW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2160155 WPL LIT2160155 Contact Us For Availability
WPL LIT2162809 WPL LIT2162809 Contact Us For Availability
WPL LIT4379050 WPL LIT4379050 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44779A2 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116734 Contact Us For Availability
8
Door Gasket Magnetic WPL 1116735 Contact Us For Availability
9
Crisper Cover WPL 2162599 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Stud, Front (2) WPL 946356 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover, Meat Pan WPL 944739 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Ice Pan WPL 1116722 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 2160165 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2148977 Contact Us For Availability
19
Dampener (2) WPL 2149670 Contact Us For Availability
20
Trim, Door Shelf WPL 2162607 Contact Us For Availability
20
Pan, Meat WPL 1124976 Contact Us For Availability
20
Tube Clamp (2) WPL 2159720 Contact Us For Availability
21
Trim, Door Shelf WPL 2162608 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Trim, Full Shelf WPL 2148050 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Compartment Door, Utility WPL 2162600 Contact Us For Availability
22
Pan-Ice Cube WPL 838530 Contact Us For Availability
22
Relay (See Overload) WPL ARI44780A7 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Trim, Door Shelf WPL 2162609 Contact Us For Availability
23
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Trim Ice Pan WPL 654218 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Muffler WPL 2159588 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Hinge Pin, Center WPL 2160051 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Trim, Door Shelf WPL 2162610 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Trim, Compartment Door WPL 1118014 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
