Model Whirlpool ET18JMXMWR6 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR
07 - UNIT

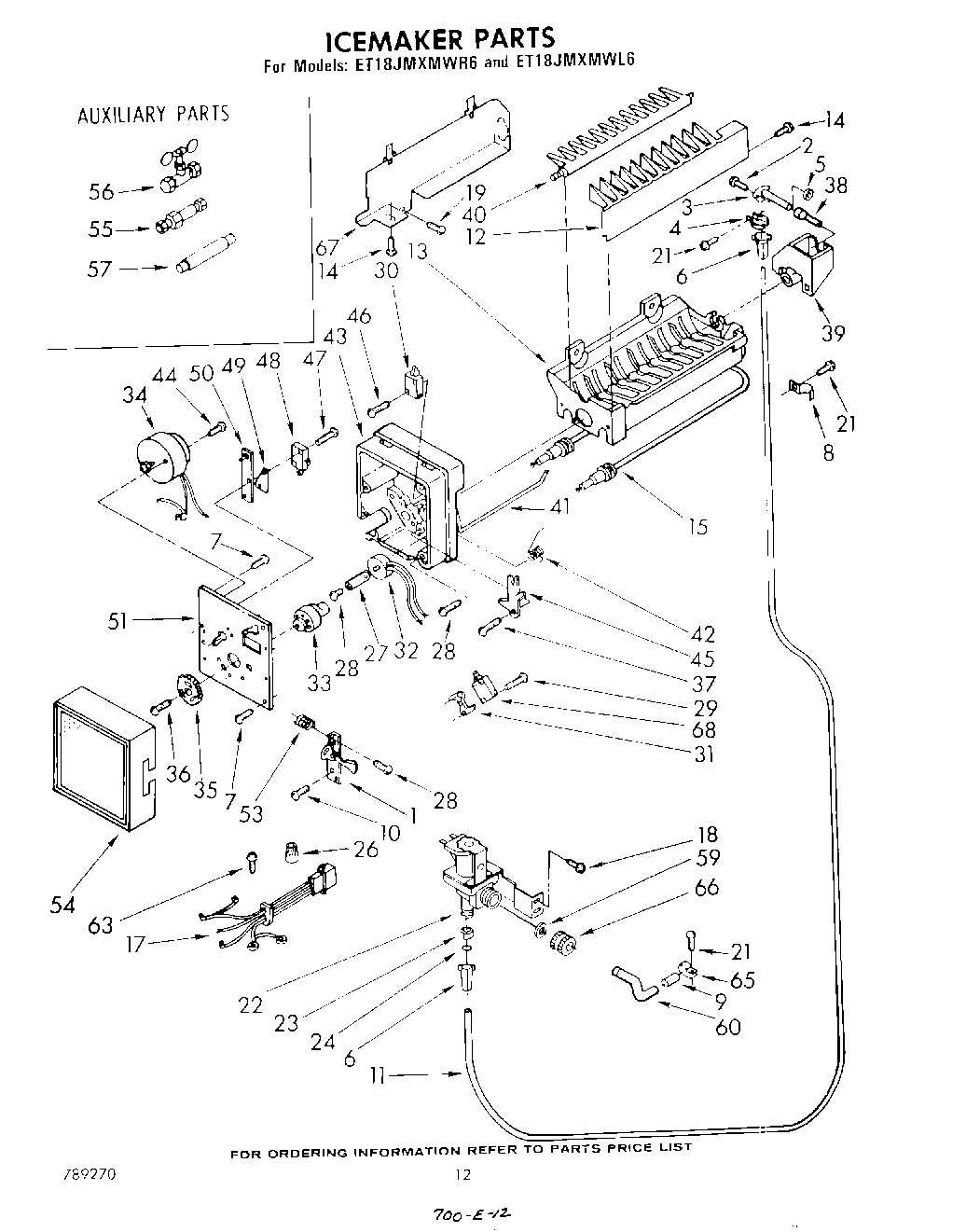

09 - ICE MAKER , NOT ILLUSTRATED AND OPTIONAL

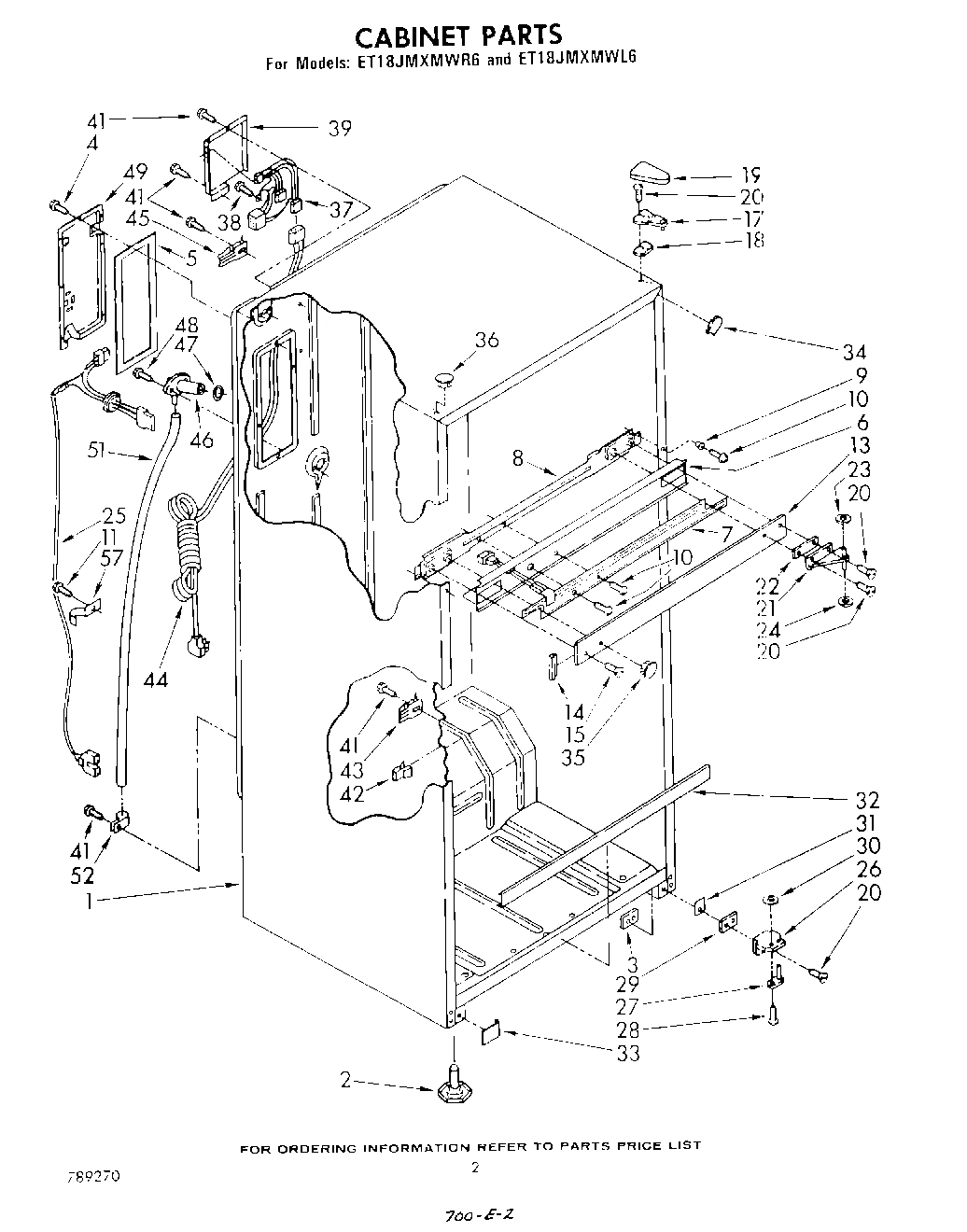

02 - CABINET

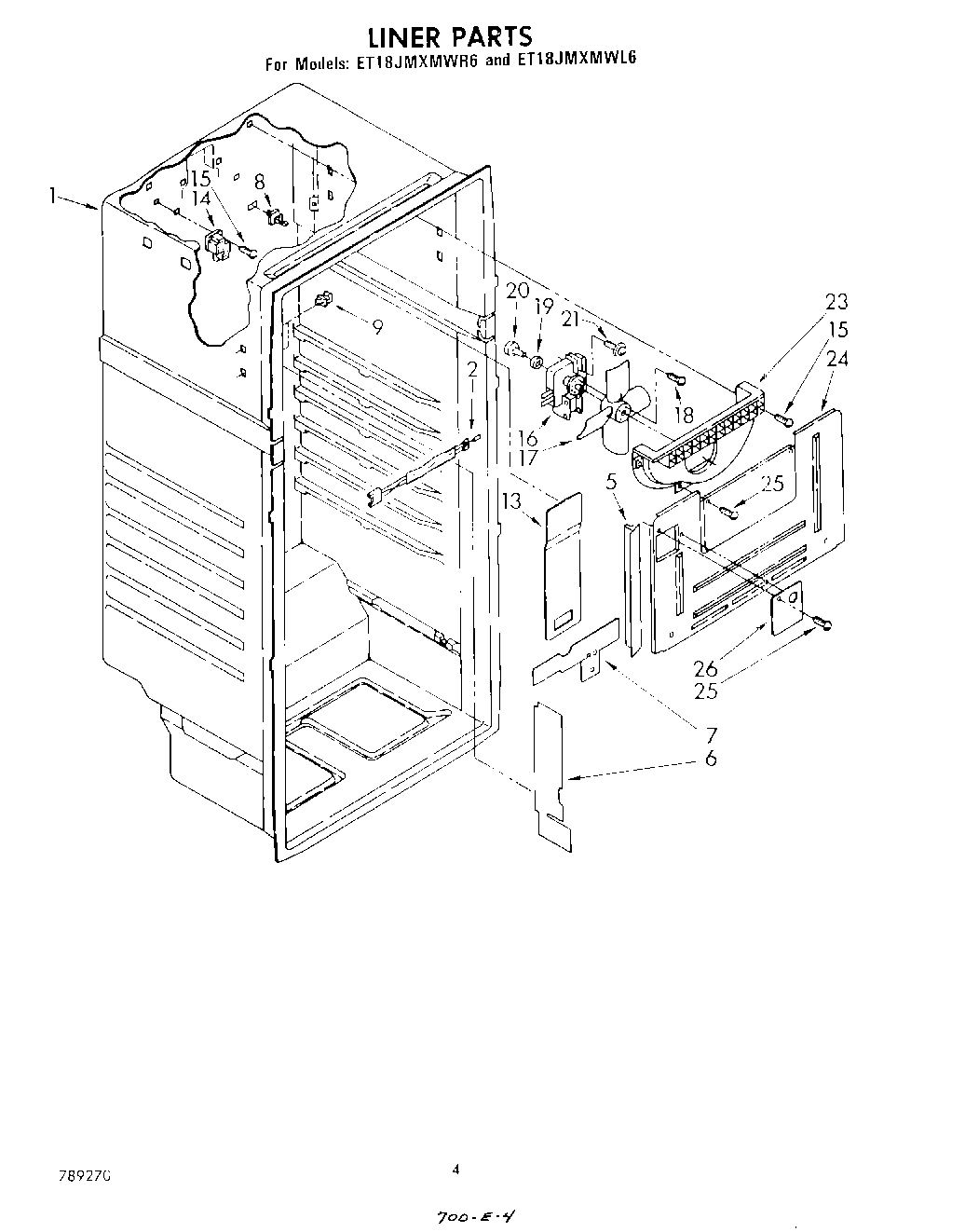

03 - LINER

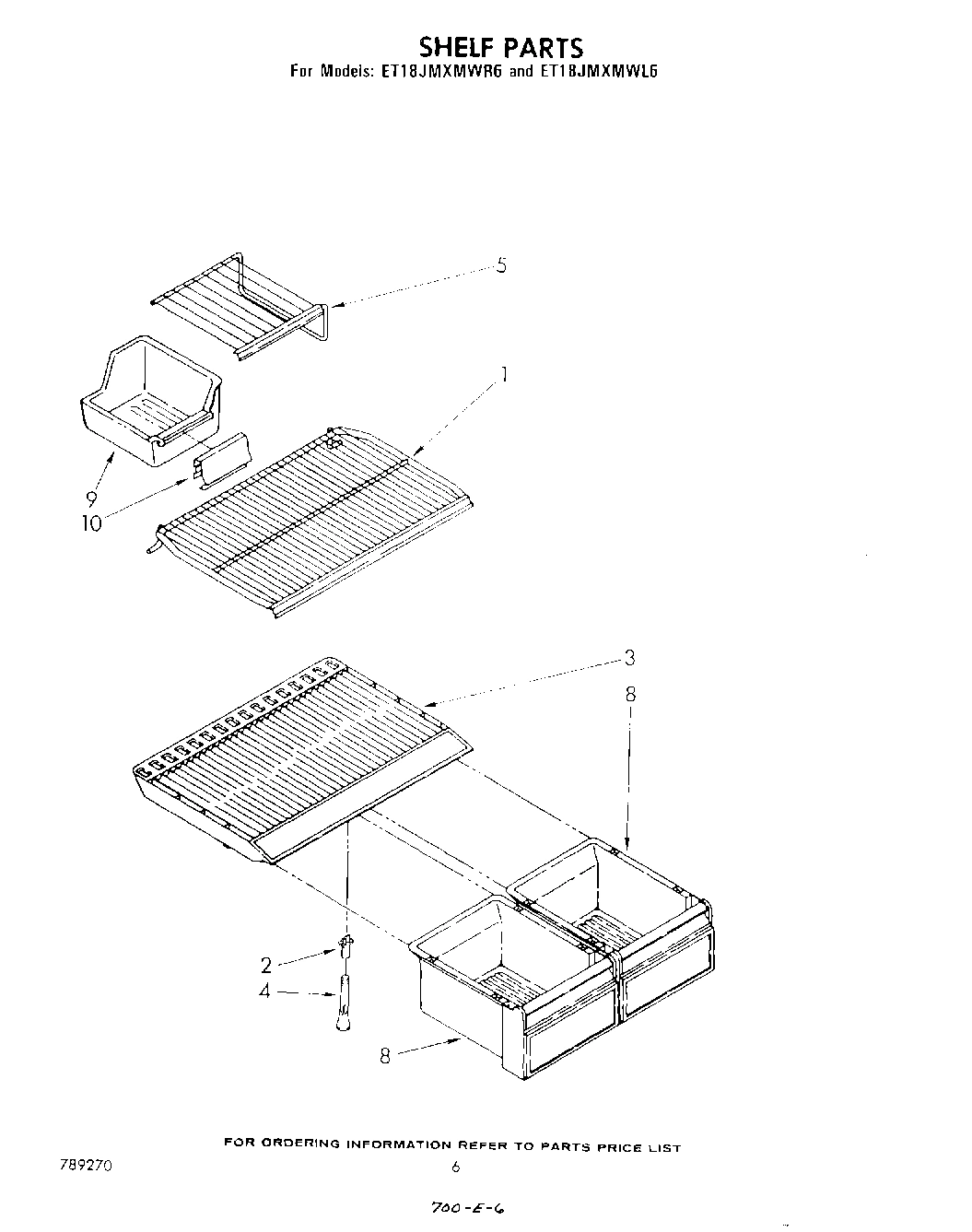

05 - SHELF

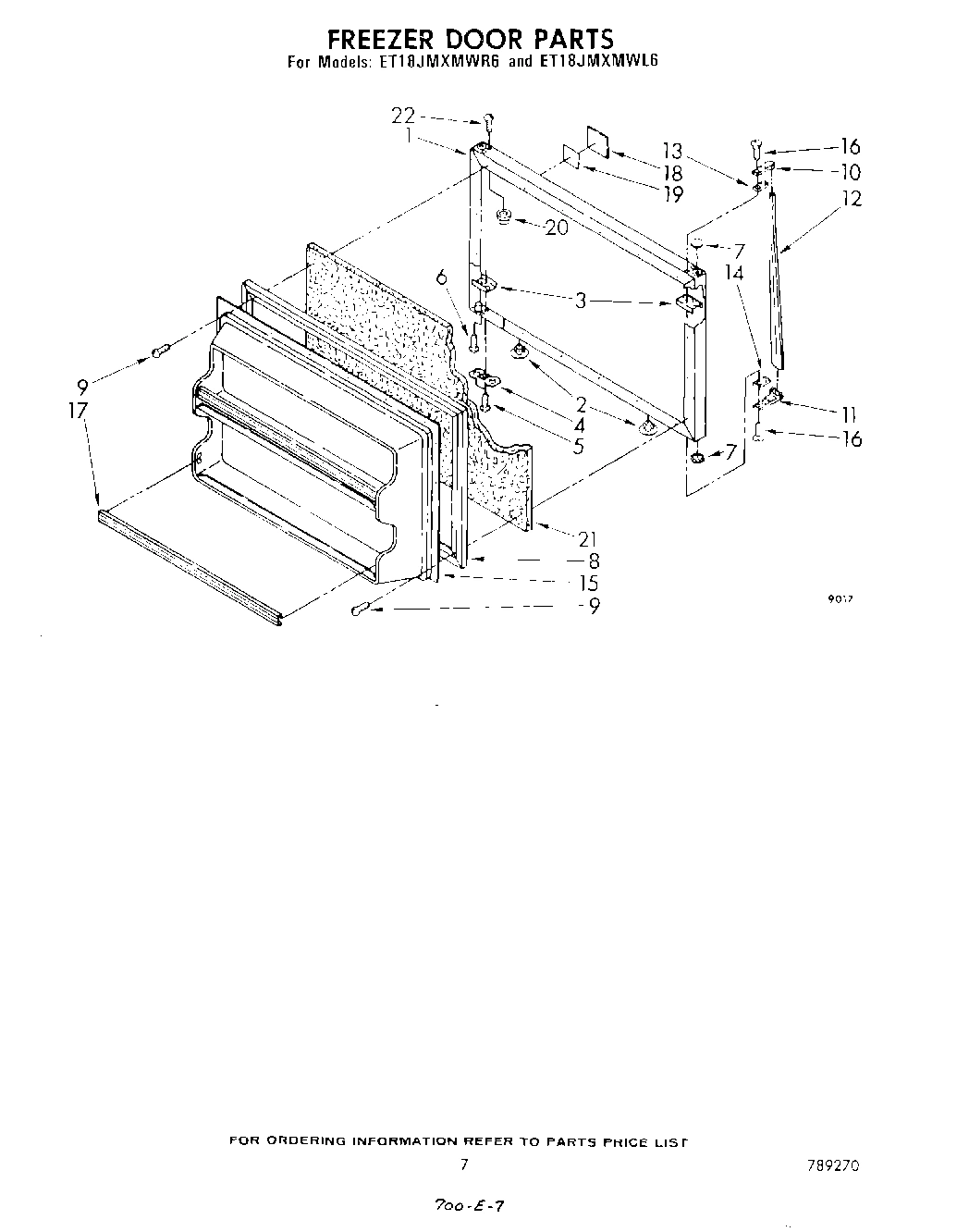

06 - FREEZER DOOR

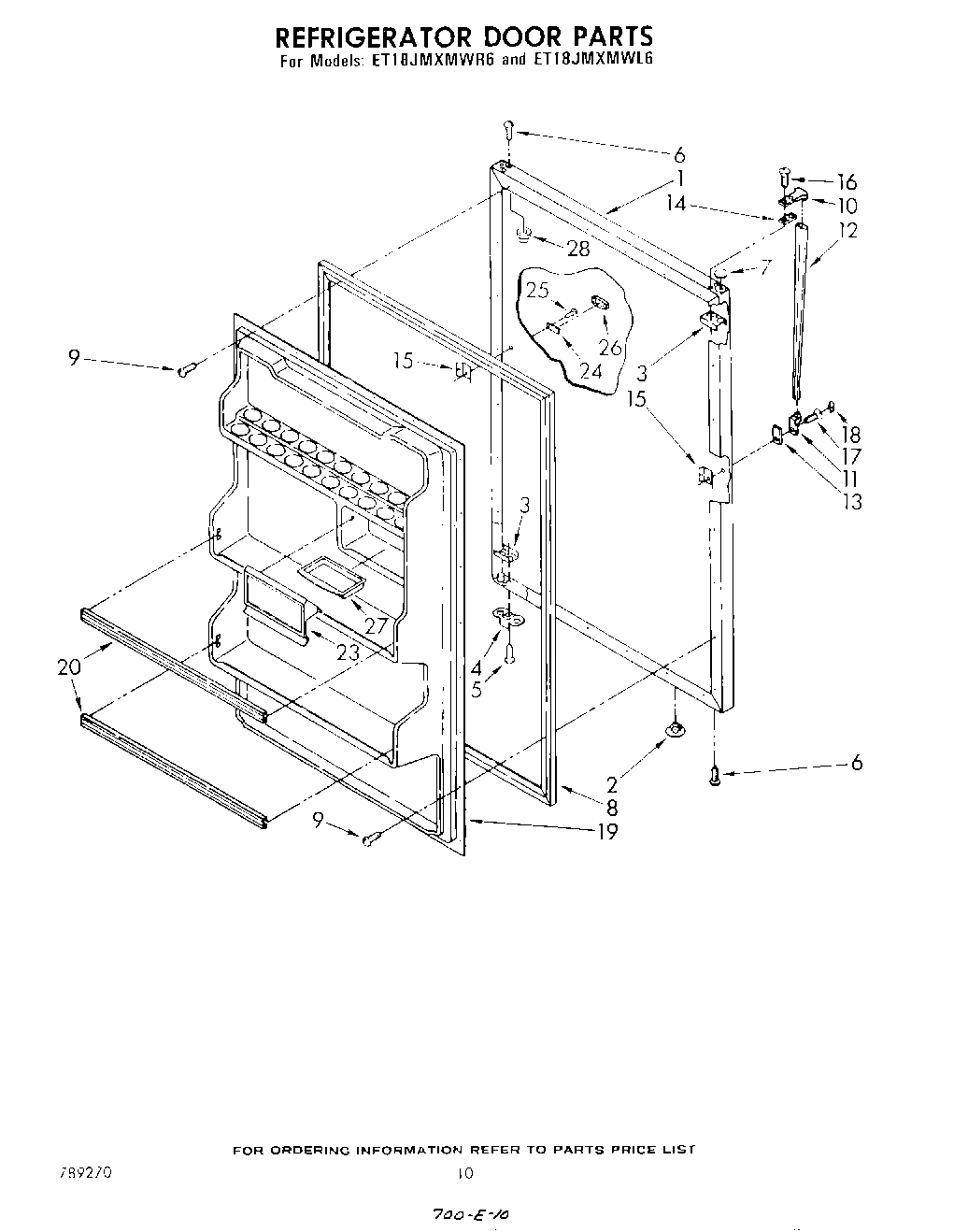

08 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET18JMXMWR6 TOP MOUNT REFRIGERATOR
WPL 261890 WPL 261890 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL LIT1100795 WPL LIT1100795 Contact Us For Availability
WPL LIT1101603 WPL LIT1101603 Contact Us For Availability
WPL LIT1105320 WPL LIT1105320 Contact Us For Availability
WPL LIT789270 WPL LIT789270 Contact Us For Availability
1
Lever & Plate Assembly WPL 627248 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44055A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44056A5 Contact Us For Availability
1
Shelf, Pullout (3) WPL 943719 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1104645 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1104646 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1104638 Contact Us For Availability
2
Leveler WPL 944766 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Tap Plate WPL 944813 Contact Us For Availability
3
Crisper Cover (For Platinum Model Only) WPL 943731 Contact Us For Availability
3
Cover, Crisper WPL 946429 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Seal, Gasket WPL 1106510 Contact Us For Availability
5
Gasket (2) WPL 1105673 Contact Us For Availability
5
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Frame, Center Rail WPL 943698 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Heater, Mullion WPL 943691 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Center Rail, Bracket WPL 943699 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Pan, Crisper WPL 943735 Contact Us For Availability
8
Crisper Pan (For Platinum Model Only) WPL 946438 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1106178 Contact Us For Availability
8
Door Gasket, Magnetic (For Platinum Model Onl WPL 1106180 Contact Us For Availability
8
Door Gasket, Magnetic (For Platinum Model Onl WPL 1109186 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1109188 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
9
Ice Cube Pan WPL 946400 Contact Us For Availability
10
Screw, 8-32 x 1/2 WPL 489129 Contact Us For Availability
10
Trim, Ice Pan WPL 539567 Contact Us For Availability
12
Stripper, Ice WPL 625840 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104740 Contact Us For Availability
12
Handle, Center WPL 982978 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104738 Contact Us For Availability
12
Handle, Center WPL 982946 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Mold & Heater Assembly (Includes Illus. 15) WPL 625856 Contact Us For Availability
13
Center Rail (Platinum) WPL 1100677 Contact Us For Availability
13
Center Rail (Toast) WPL 1100678 Contact Us For Availability
13
Center Rail (White) WPL 943692 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 943695 Contact Us For Availability
13
Center Rail (Almond) WPL 943697 Contact Us For Availability
13
Cover, Air Duct WPL 1111420 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Filler, Center Rail (2) (Platinum) WPL 1100679 Contact Us For Availability
14
Filler, Center Rail (2) (Toast) WPL 1100680 Contact Us For Availability
14
Filler, Center Rail (2) (White) WPL 946320 Contact Us For Availability
14
Filler, Center Rail (2) (Almond) WPL 946321 Contact Us For Availability
14
Filler, Center Rail (2) (Golden Harvest) WPL 946323 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Heater, Mold WPL 625843 Contact Us For Availability
15
Screw, 10-32 x 3/8 WPL 489097 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 945794 Contact Us For Availability
15
Interior Door Panel (For Platinum Model Only) WPL 945802 Contact Us For Availability
17
Harness, Wiring WPL 627750 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Trim, Door Shelf WPL 946824 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
19
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel (For Platinum Model Only) WPL 945886 Contact Us For Availability
19
Interior Door Panel WPL 946827 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Trim, Door (2) WPL 946819 Contact Us For Availability
21
Kit, Foam S WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
WPL 489112 WPL 489112 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Compartment Door, Butter WPL 946998 Contact Us For Availability
24
Ring, ``O`` WPL 488794 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
24
Clip, Medallion WPL 843213 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Connector Wire WPL 227991 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944783 Contact Us For Availability
26
Medallion (Toast) WPL 1100194 Contact Us For Availability
26
Medallion (Platinum) WPL 1100195 Contact Us For Availability
26
Medallion (White) WPL 848382 Contact Us For Availability
26
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
26
Medallion (Alm WPL 989904 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Clamp, Thermostat WPL 625829 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
28
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
28
WPL 509929 WPL 509929 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Screw, 4-40 x 1 (2) WPL 488361 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
31
Spacer, Holding Switch WPL 625834 Contact Us For Availability
31
Exchanger, Heat WPL 1108092 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
32
Thermostat WPL 625844 Contact Us For Availability
32
Cover WPL 1109364 Contact Us For Availability
32
WPL 1109366 WPL 1109366 Contact Us For Availability
32
WPL 1109368 WPL 1109368 Contact Us For Availability
32
WPL 1109373 WPL 1109373 Contact Us For Availability
32
WPL 1109374 WPL 1109374 Contact Us For Availability
33
Heater, Defrost WPL 1105165 Contact Us For Availability
33
Cam WPL 625913 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
34
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
34
Motor WPL 625846 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Gear WPL 625914 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
Screw WPL 488957 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
37
Screw, Shoulder WPL 627199 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
38
Tube, Water Inlet WPL 939027 Contact Us For Availability
39
Beraing & Inlet WPL 544304 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
Ejector WPL 627375 Contact Us For Availability
41
Arm, Shut-Off WPL 627003 Contact Us For Availability
42
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
43
Screw (Use W/Motor 627106) WPL 488622 Contact Us For Availability
43
Support WPL 625827 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Lever, Arm WPL 625830 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
Overload Spring WPL 1114190 Contact Us For Availability
47
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
48
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
49
Insulator, Switch WPL 625835 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
50
Plate, Valve Switch WPL 627024 Contact Us For Availability
51
Capacitor WPL 482996 Contact Us For Availability
51
Plate, Mounting WPL 627022 Contact Us For Availability
52
Nut WPL 489142 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
53
Washer WPL 489143 Contact Us For Availability
53
Spring WPL 627163 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
54
Cover (For Platinum Model Only) WPL 1100705 Contact Us For Availability
54
Cover WPL 944747 Contact Us For Availability
55
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
56
Valve, Shut-Off WPL 541157 Contact Us For Availability
57
Filter Kit WPL 978488 Contact Us For Availability
57
WPL 489151 WPL 489151 Contact Us For Availability
60
Tube, Inlet Valve WPL 627883 Contact Us For Availability
63
Screw, 8-32 x 1/4 (Ground) WPL 488542 Contact Us For Availability
65
Clamp Tube WPL 510716 Contact Us For Availability
66
Nut, Valve WPL 537588 Contact Us For Availability
67
Shield, Heat WPL 627751 Contact Us For Availability
68
WPL 479502 WPL 479502 Contact Us For Availability
68
WPL 799344 WPL 799344 Contact Us For Availability
68
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
68
En WPL 285367 Contact Us For Availability
68
WPL 285368 WPL 285368 Contact Us For Availability
68
WPL 542639 WPL 542639 Contact Us For Availability
68
WPL 627848 WPL 627848 Contact Us For Availability
68
WPL 72112 WPL 72112 Contact Us For Availability
68
WPL 799832 WPL 799832 Contact Us For Availability
68
WPL 799833 WPL 799833 Contact Us For Availability
68
WPL 799908 WPL 799908 Contact Us For Availability
68
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
