Model Whirlpool ET18HMXWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

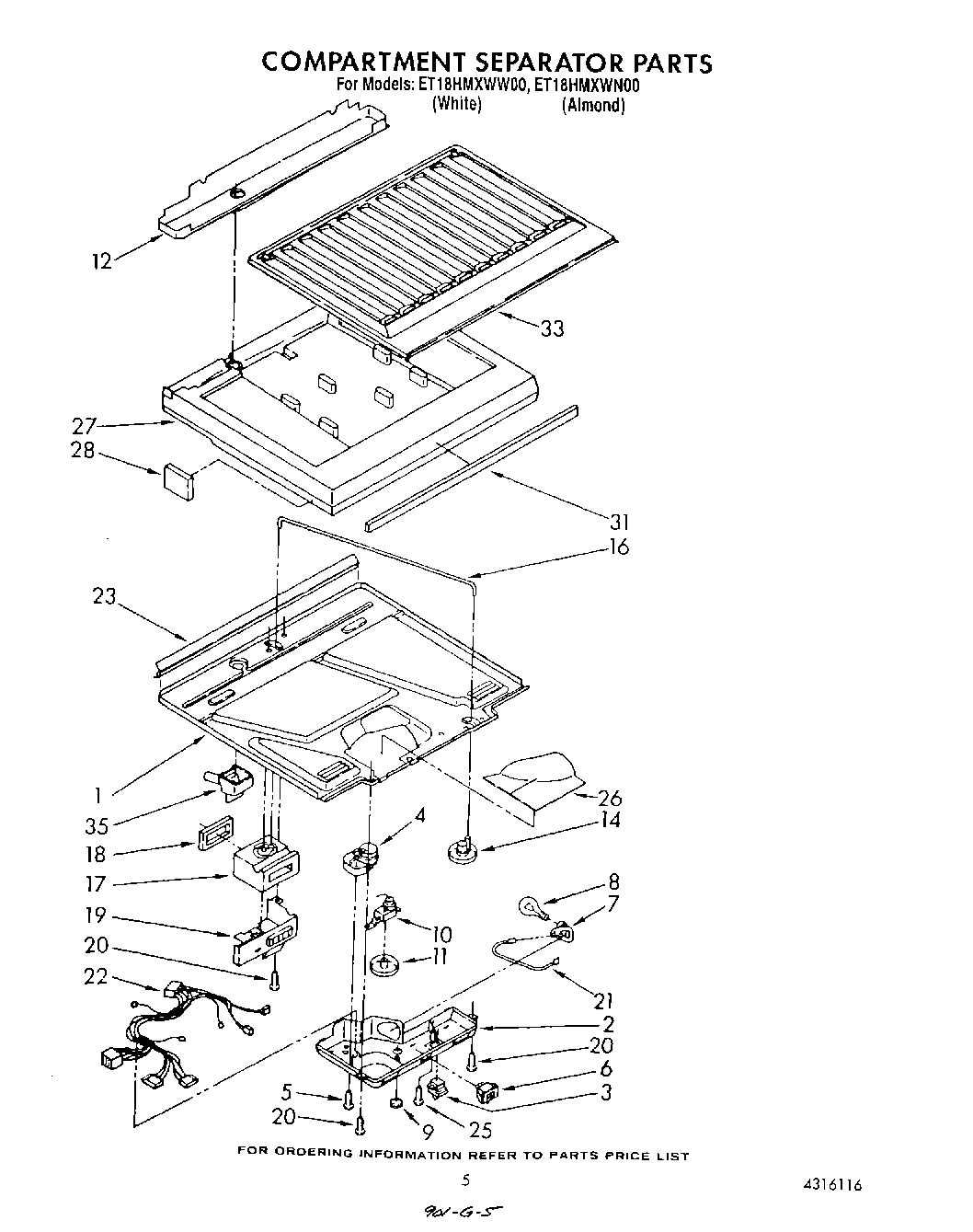

04 - COMPARTMENT SEPARATOR

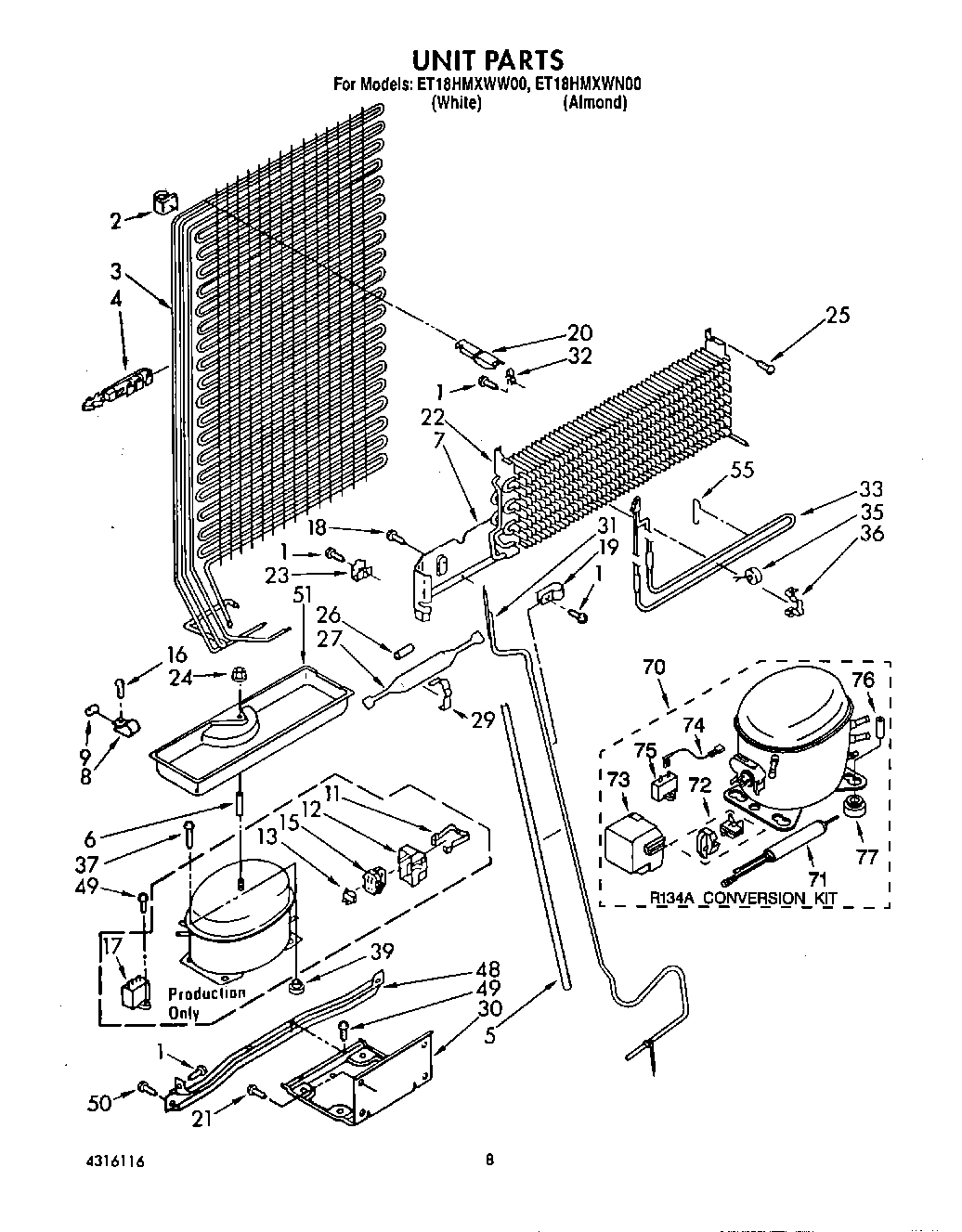

07 - UNIT
08 - REFRIGERATOR DOOR
05 - SHELF
06 - FREEZER DOOR
02 - CABINET
09 - ICE MAKER , LIT/OPTIONAL
03 - LINER
Common parts from model Whirlpool ET18HMXWN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124892 WPL LIT1124892 Contact Us For Availability
WPL LIT2148174 WPL LIT2148174 Contact Us For Availability
WPL LIT2149679 WPL LIT2149679 Contact Us For Availability
WPL LIT4316116 WPL LIT4316116 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 25) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 25) WPL 1104636 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1111807 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43726A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43727A7 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152013 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
5
Roller, Rear WPL 2152014 Contact Us For Availability
6
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1111778 Contact Us For Availability
7
Heater, Mullion WPL 1127770 Contact Us For Availability
7
Top, Electric Shield WPL 1129068 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2150117 Contact Us For Availability
8
Trim, Shelf WPL 1111808 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2150124 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
9
Crisper Cover WPL 2150111 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Trim, Crisper Cover WPL 946436 Contact Us For Availability
10
Spacer (2) WPL 2149077 Contact Us For Availability
11
Glass, Crisper Cover WPL 1111829 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1111774 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Glass, Shelf WPL 1111831 Contact Us For Availability
13
Center Rail (White) WPL 1120501 Contact Us For Availability
13
Center Rail (Almond) WPL 1120503 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Trim, Shelf WPL 1111834 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Support, Crisper Cover WPL 1103732 Contact Us For Availability
15
Interior Door Panel WPL 1120635 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Tap Plate (2) WPL 2147312 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Shelf, Freezer WPL 944734 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2150125 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Trim, Shelf Front WPL 1111814 Contact Us For Availability
18
Nameplate WPL 944380 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
19
Interior Door Panel WPL 1120634 Contact Us For Availability
19
Pan, Crisper WPL 2150112 Contact Us For Availability
19
Tape Strip WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Shim, Handle WPL 943187 Contact Us For Availability
20
Trim, Door (2) WPL 2150118 Contact Us For Availability
20
Pan, Meat WPL 2150113 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Trim, Door WPL 2150119 Contact Us For Availability
21
Hinge, Center WPL 2147358 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
22
Compartment Door, Utility WPL 2150120 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Compartment Door, Butter WPL 2150121 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
23
Reflector, Shelf WPL 1111844 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1120766 Contact Us For Availability
24
Evaporator Cover WPL 2151658 Contact Us For Availability
25
Pan-Ice Cube WPL 838530 Contact Us For Availability
26
Trim WPL 654218 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1119401 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
39
Screw, 8-18 x 1/2 WPL 486214 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
40
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
51
Evaporator Tray WPL 1101002 Contact Us For Availability
52
Cla WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
55
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
