Model Whirlpool ET18CMXJW00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

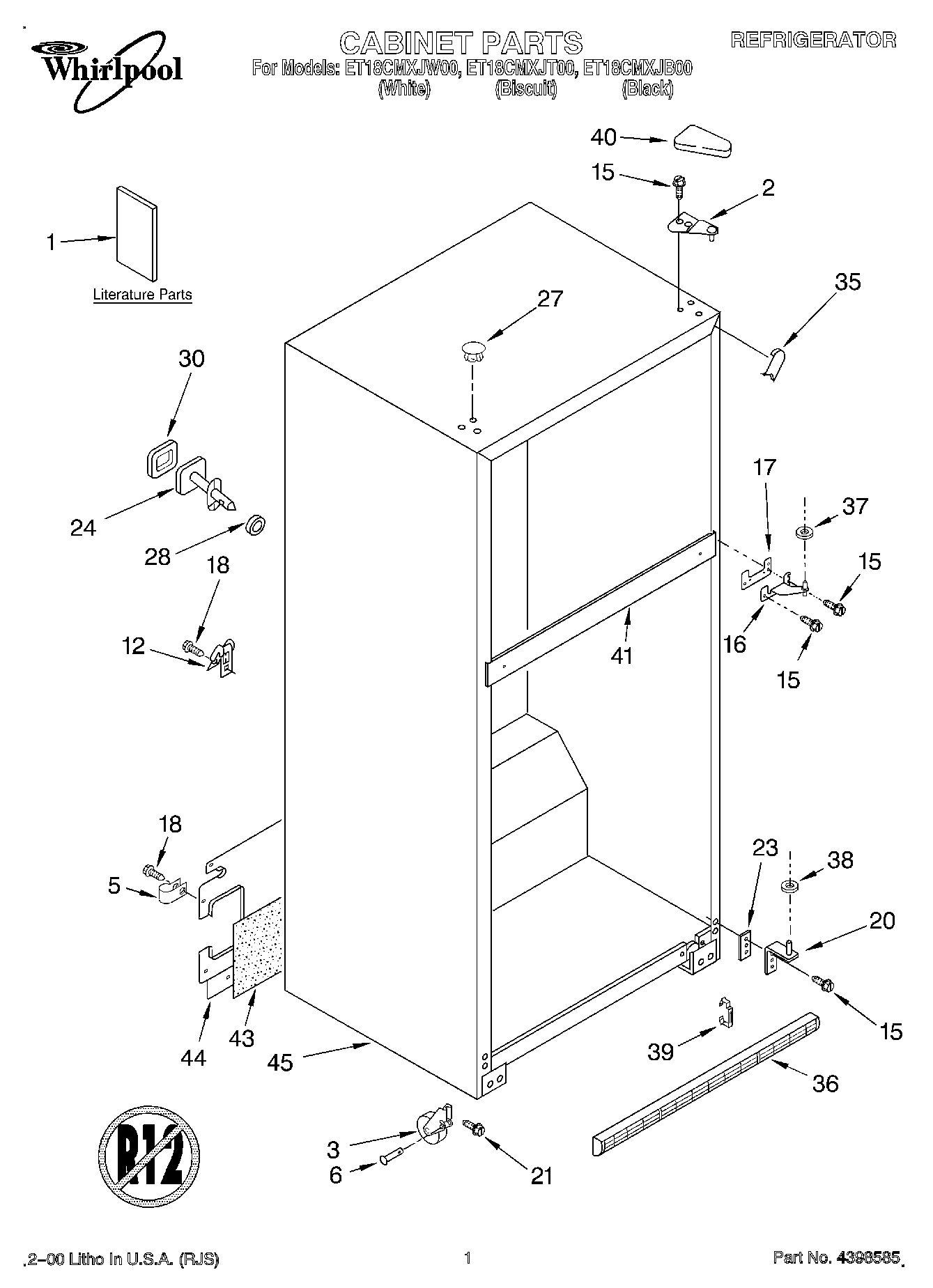

Use & Care Guide WPL LIT2200940 Contact Us For Availability

1

Service & Wiring Sheet WPL LIT2201079 Contact Us For Availability

1

Energy Label WPL LIT2205490 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

1

Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability

1

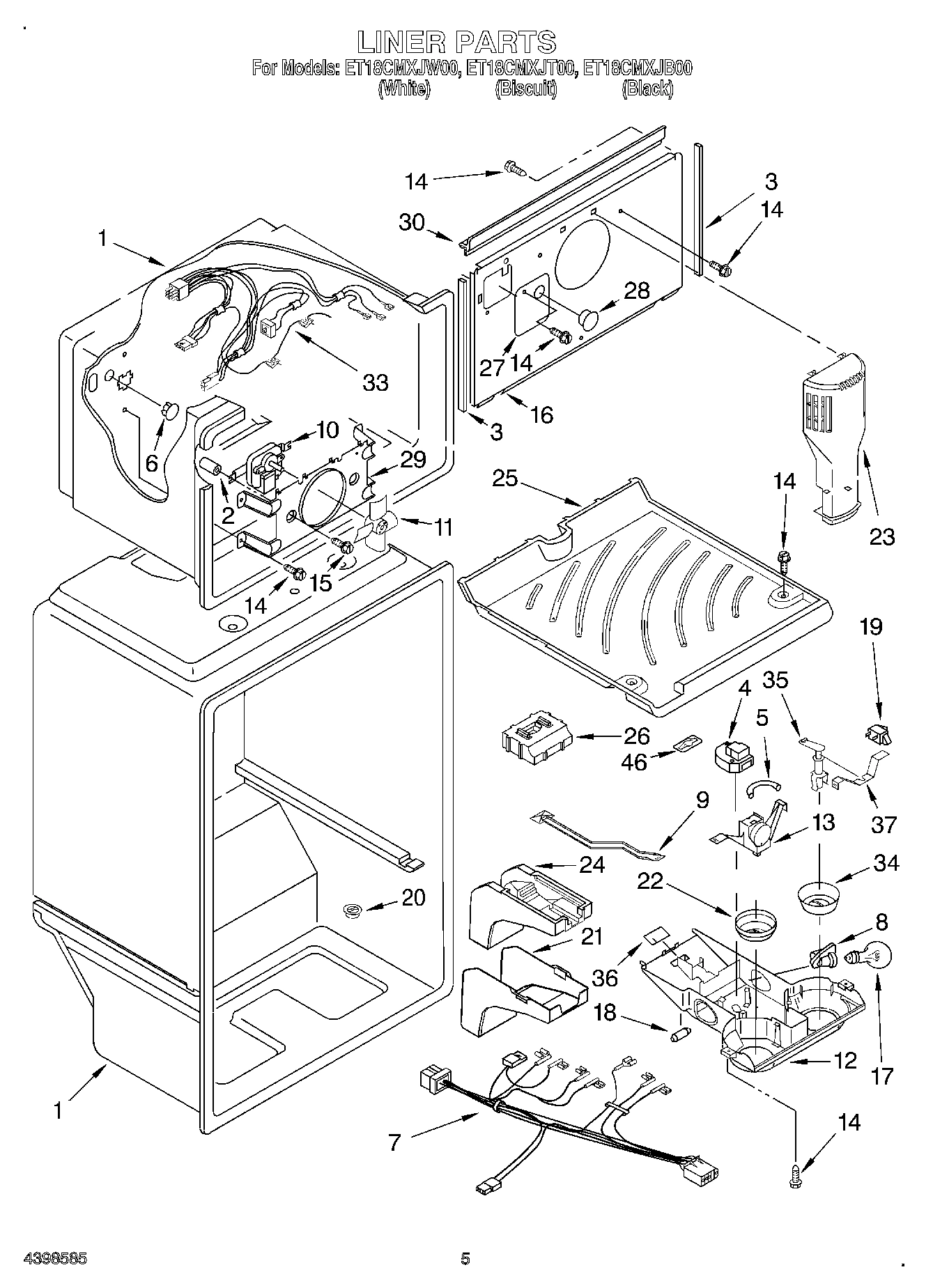

Liner (Not A Serviceable Part) WPL ARI43324A9 Contact Us For Availability

2

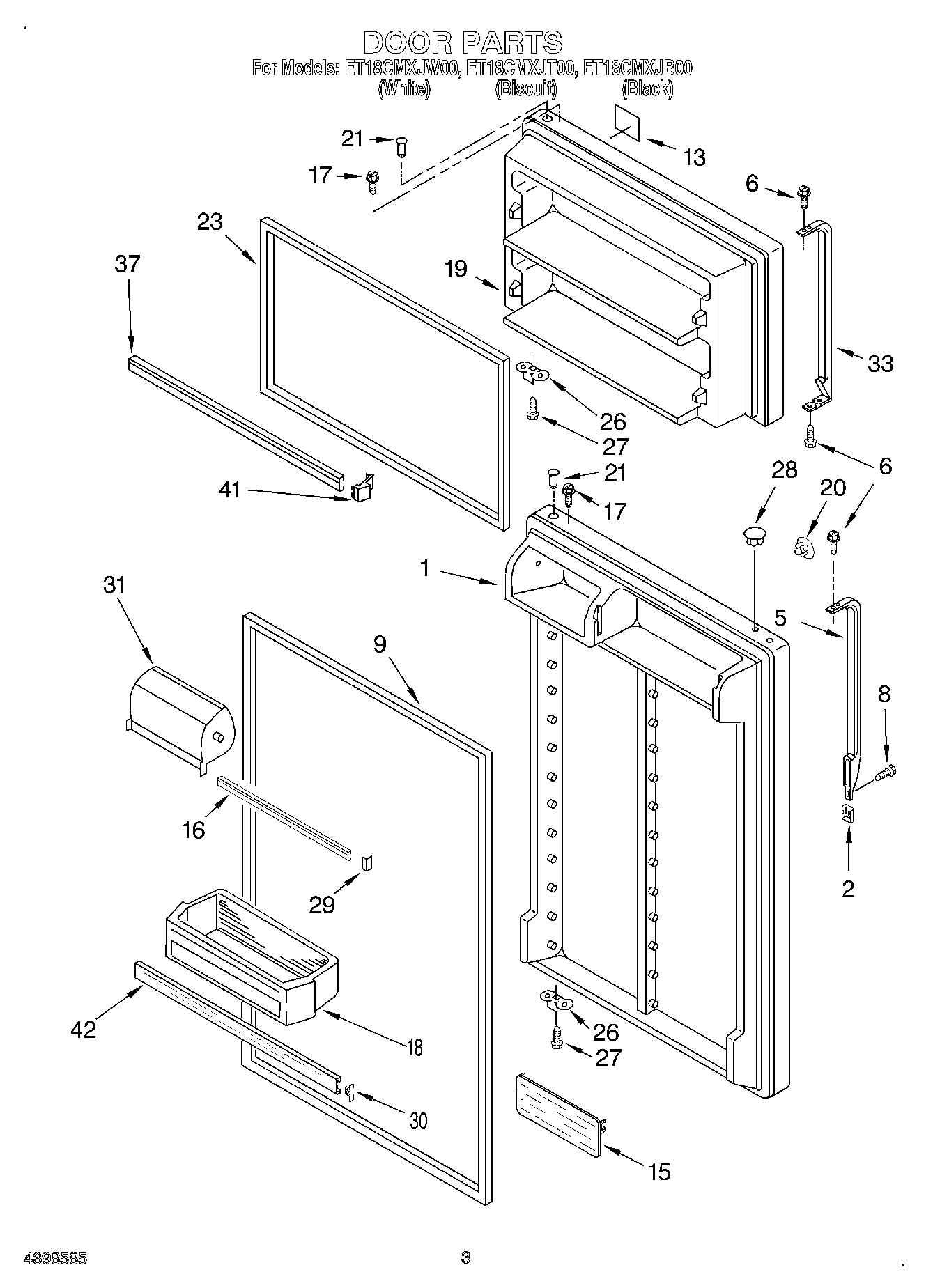

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $4.52

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.97

2

Grommet (2) WPL 531933 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $14.37

4

Timer, Defrost WPL 2199008 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $7.72

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.33

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $12.74

7

Wire Assy. Control Box WPL 2200632 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $3.33

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.96

9

Damper, Air WPL 2179858 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $130.50

10

Fan Motor WPL 2183448 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $5.42

11

Support Block WPL 2201184 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

Control Box WPL 2200820 Contact Us For Availability

13

Tube, Water Inlet WPL 2174755 Contact Us For Availability

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200830 Contact Us For Availability

15

WP2188234 Whirlpool Shelf In Stock WPL WP2188234 $42.42

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

15

Screw WPL 489462 Contact Us For Availability

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $44.74

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

16

Cover, Evaporator WPL 2183154 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

19

Clip, Heater WPL 2182338 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $4.52

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.52

21

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $82.84

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2177304 Whirlpool Refrigerator FIP Gasket In Stock WPL 2177304 $130.47

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Fitting, Water Tube (Not Serviced) WPL ARI43319A2 Contact Us For Availability

25

Freezer Floor WPL 2172565 Contact Us For Availability

26

Air Diffuser, Top WPL 2200793 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $9.02

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Slide, Humidity Control WPL 2176222 Contact Us For Availability

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $26.79

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI43320A6 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $4.52

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.92

30

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

30

Seal, Rear (Not Serviced) WPL ARI43321A1 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

33

Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability

34

Knob, Damper WPL 2176297 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.52

Post, Damper WPL 2179859 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $33.18

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Grille (Black) WPL 2201011 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.42

37

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.40

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

41

Rail Center (Not Serviced) WPL ARI43322A2 Contact Us For Availability

42

Wire Assy. Unit WPL 2199117 Contact Us For Availability

43

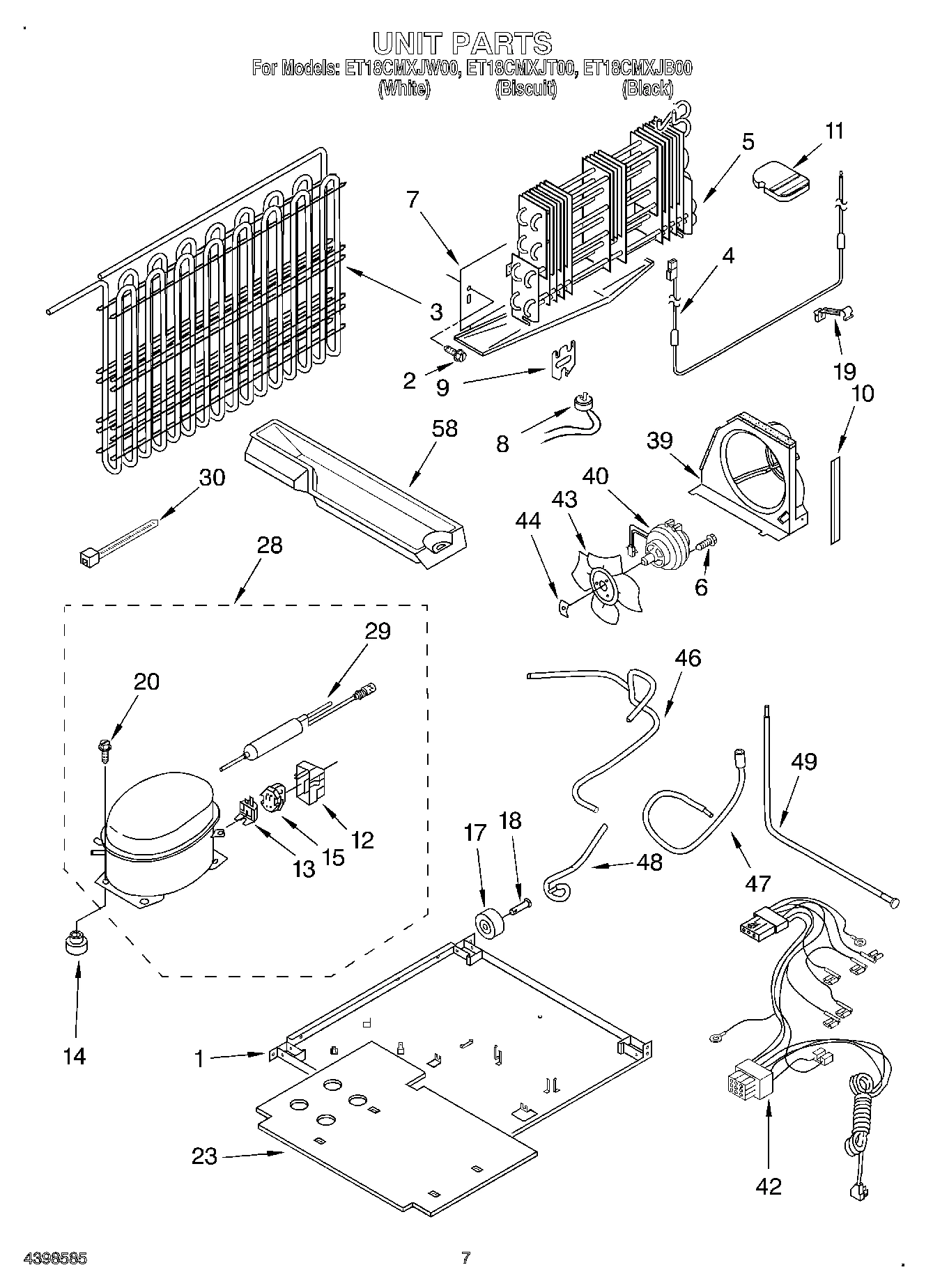

Blade, Fan WPL 2190685 Contact Us For Availability

43

Insulation WPL 2200777 Contact Us For Availability

44

WP2189475 Whirlpool Refrigerator Unit Cover Backorder WPL WP2189475 $71.66

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Cabinet (Not A Serviceable Part) WPL ARI43323A2 Contact Us For Availability

46

Tube, Discharge WPL 2179722 Contact Us For Availability

46

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

47

Tube, Suction WPL 2189161 Contact Us For Availability

48

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Evap. Tray WPL 2163795 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $90.29

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
