Model Whirlpool ET16ZMYWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

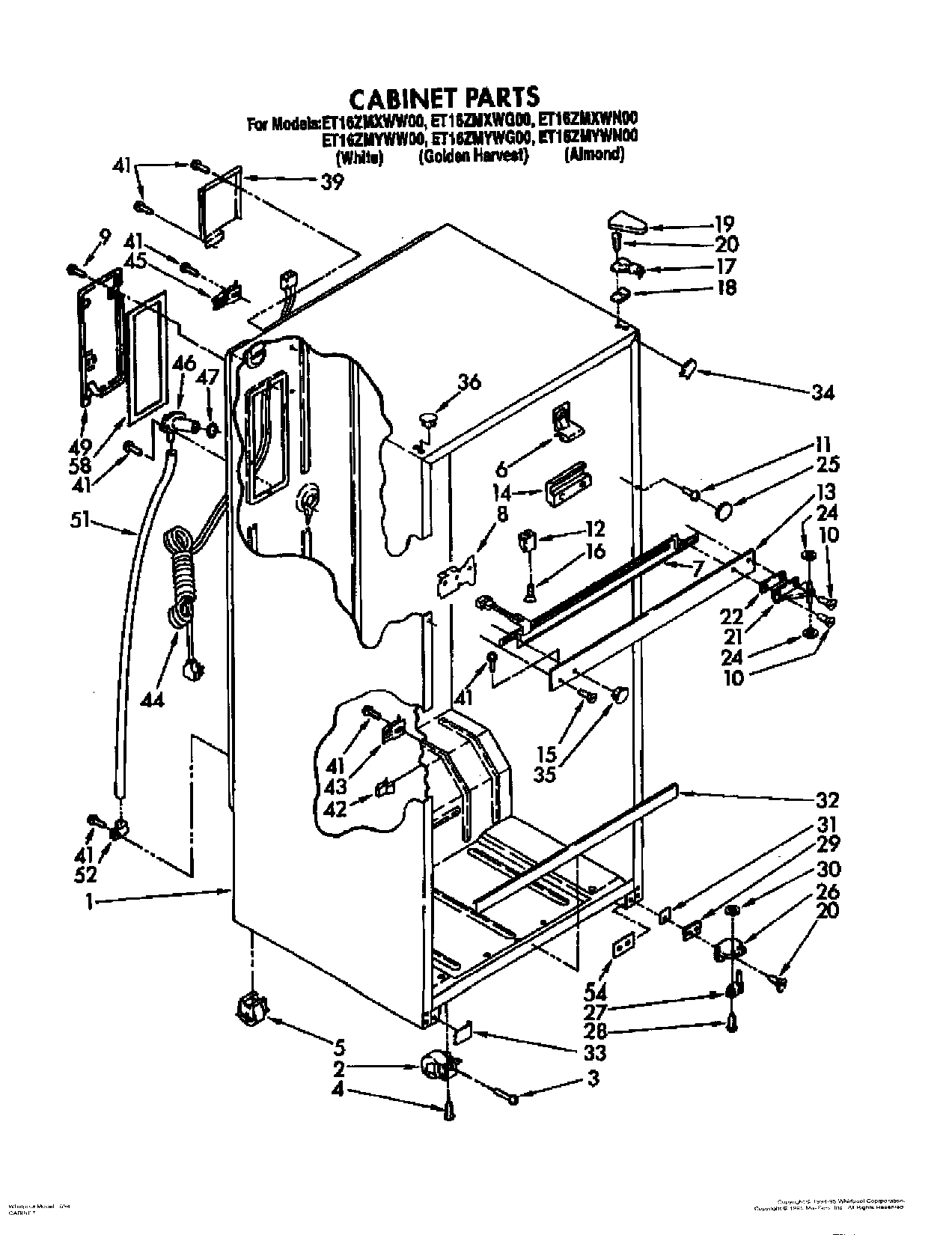

02 - CABINET

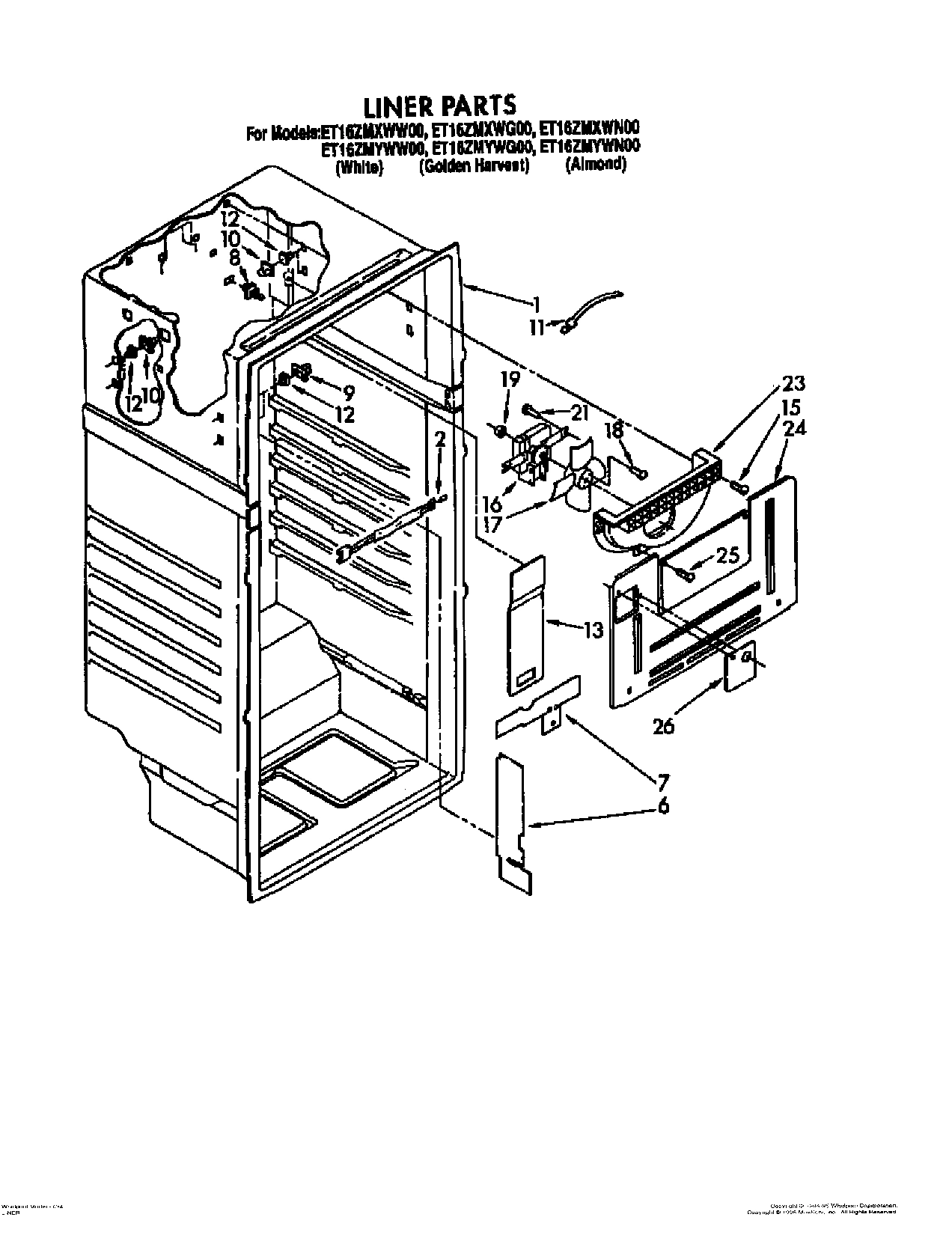

03 - LINER
04 - COMPARTMENT SEPARATOR
05 - SHELF
07 - UNIT
09 - ICEMAKER, LIT/OPTIONAL
06 - FREEZER DOOR
08 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET16ZMYWN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124990 WPL LIT1124990 Contact Us For Availability
WPL LIT2148754 WPL LIT2148754 Contact Us For Availability
WPL LIT2149680 WPL LIT2149680 Contact Us For Availability
WPL LIT4316148 WPL LIT4316148 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43056A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111794 Contact Us For Availability
1
Shelf, Pullout (3) WPL 943785 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103919 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Trim, Shelf (Front) WPL 935749 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Cover, Crisper WPL 2150103 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Glass, Crisper Cover WPL 2150104 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Roller, Rear (2) WPL 2152014 Contact Us For Availability
5
Cover, Meat Pan WPL 1108739 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Shelf, Freezer WPL 943783 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
7
Top, Electric Shield WPL 1129067 Contact Us For Availability
7
Trim, Shelf (Front) WPL 942840 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Pan, Crisper (2) WPL 2150106 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Pan, Meat WPL 2150107 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
11
Pan, Trim WPL 837142 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Trim, Crisper Cover WPL 946434 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106194 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148038 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Support, Crisper Cover WPL 1103731 Contact Us For Availability
13
Overload WPL 1108114 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Post, Cripser Cover WPL 836410 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Glass, Meat Pan Cover WPL 2150105 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120633 Contact Us For Availability
16
Rod, Connecting WPL 1111271 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124988 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 944380 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 1120632 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Tape Strip WPL 991259 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1124985 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Trim, Door (Bottom) WPL 1124986 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Compartment, Door (2) WPL 1124987 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
24
Evaporator Cover WPL 2151569 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123390 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
31
Exchanger, Heat WPL 1127874 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119324 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
58
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
