Model Whirlpool ET16JMXRWR1 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

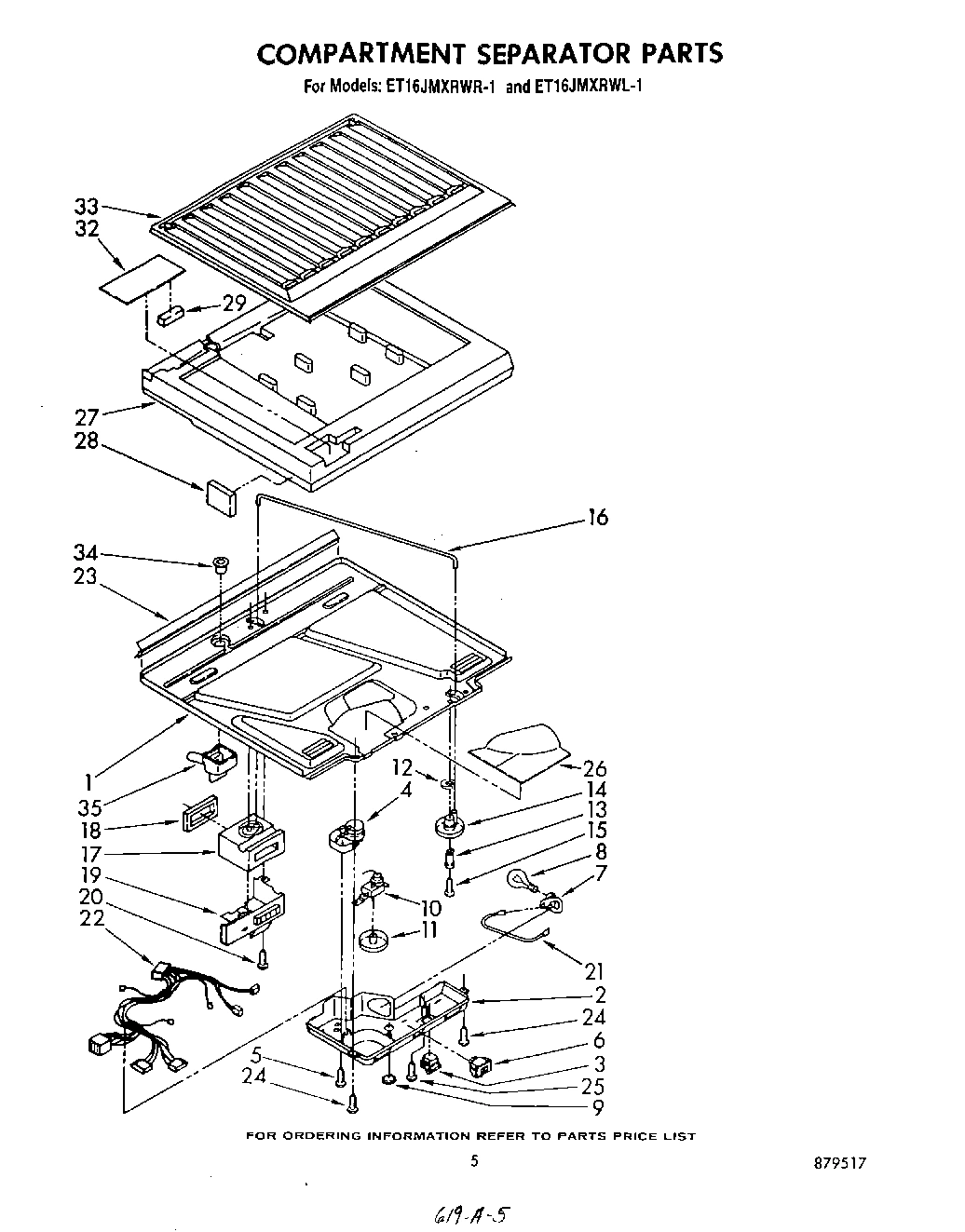

Bottom, Compartment Separator WPL 1110349 Contact Us For Availability

1

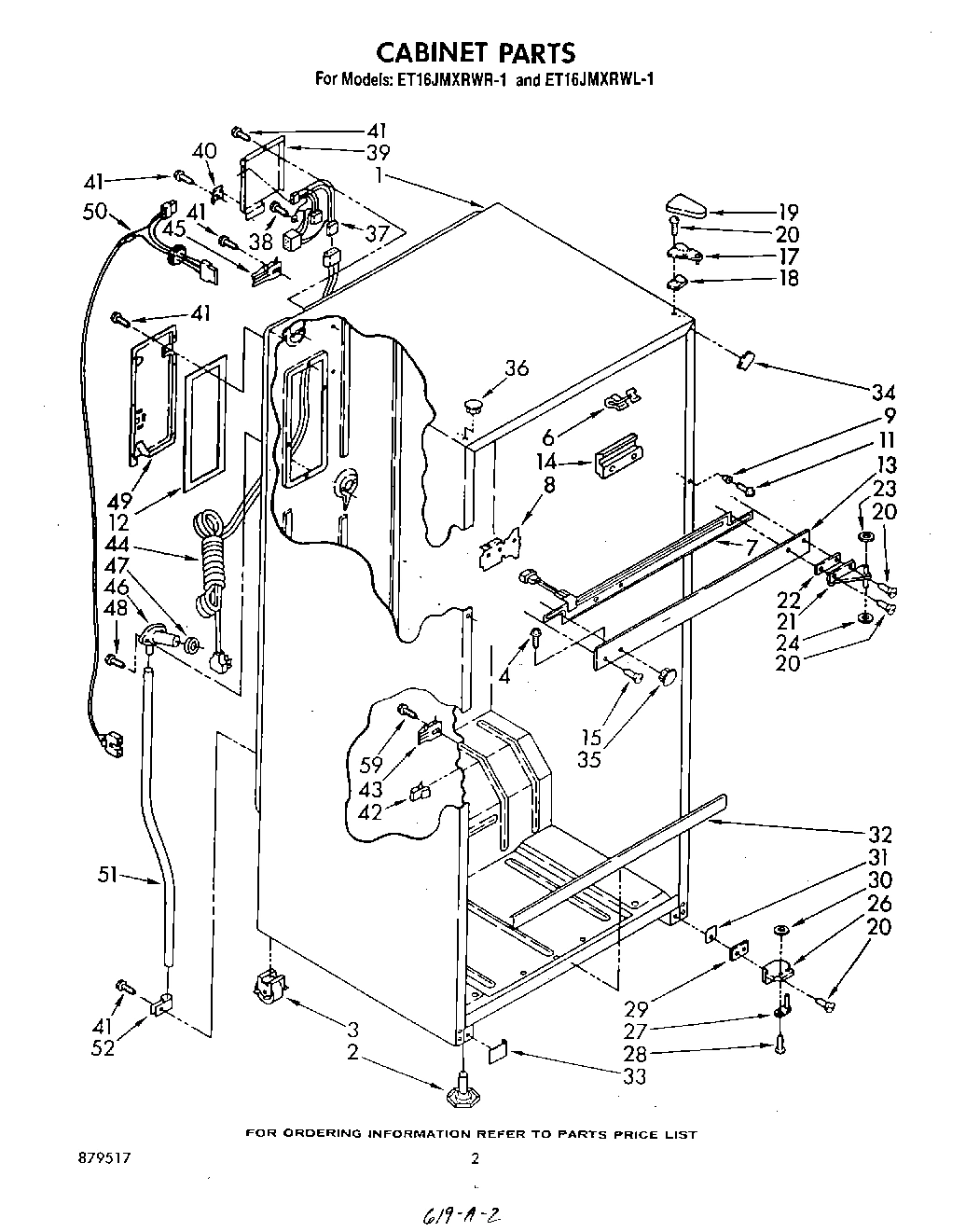

Cabinet (Not A Serviceable Part) WPL ARI42903A1 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI42904A7 Contact Us For Availability

1

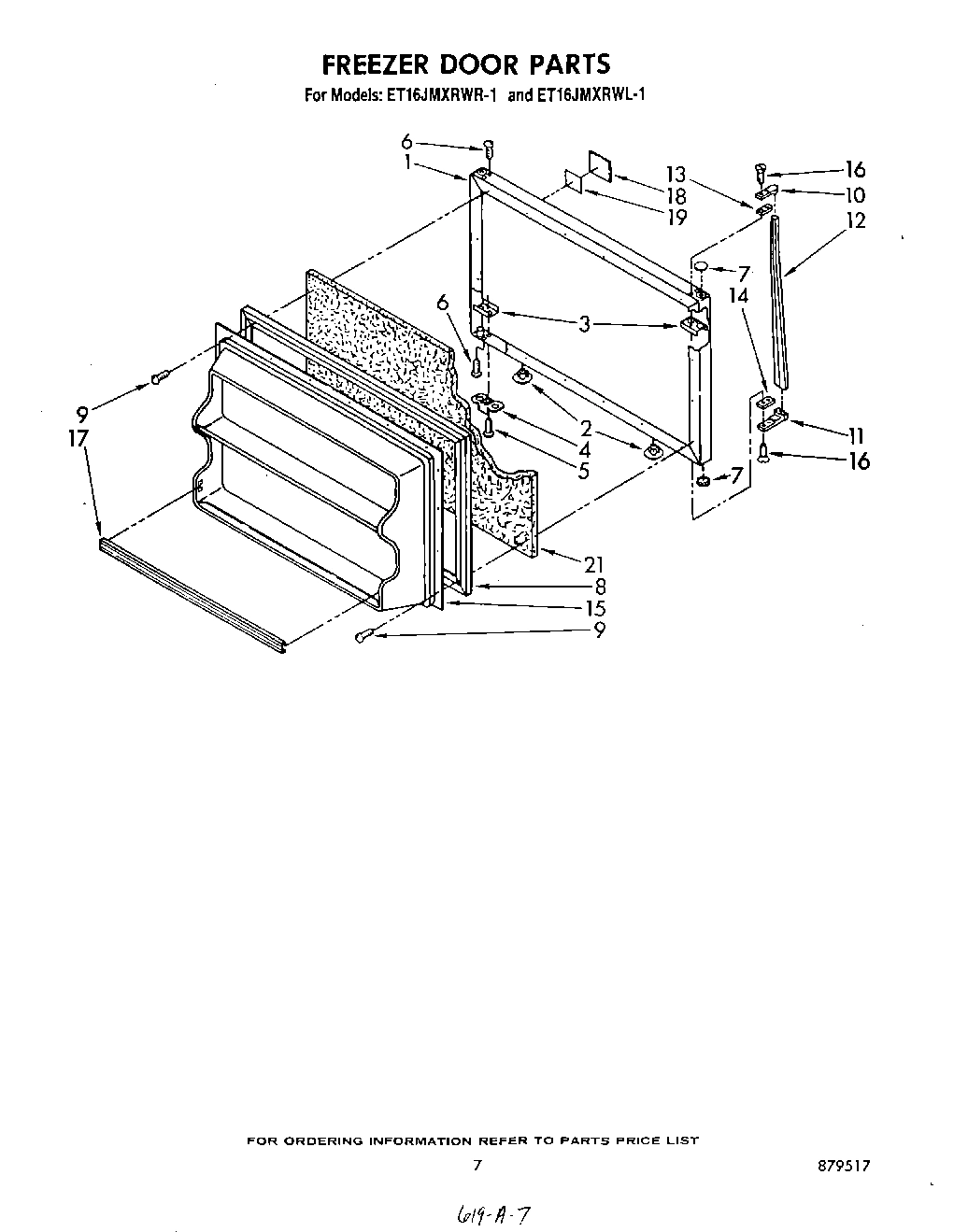

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Toa WPL 1103943 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability

1

Shelf, Pullout (3) WPL 942824 Contact Us For Availability

2

Box, Control WPL 942757 Contact Us For Availability

2

Leveler (2) WPL 944766 Contact Us For Availability

2

Wiring, Fan Motor WPL 943722 Contact Us For Availability

2

Hole Plug WPL 534927 Contact Us For Availability

2

Support, Crisper Cover WPL 1103731 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

Roller, Front & Rear (4) WPL 937216 Contact Us For Availability

3

Cover, Crisper WPL 942827 Contact Us For Availability

3

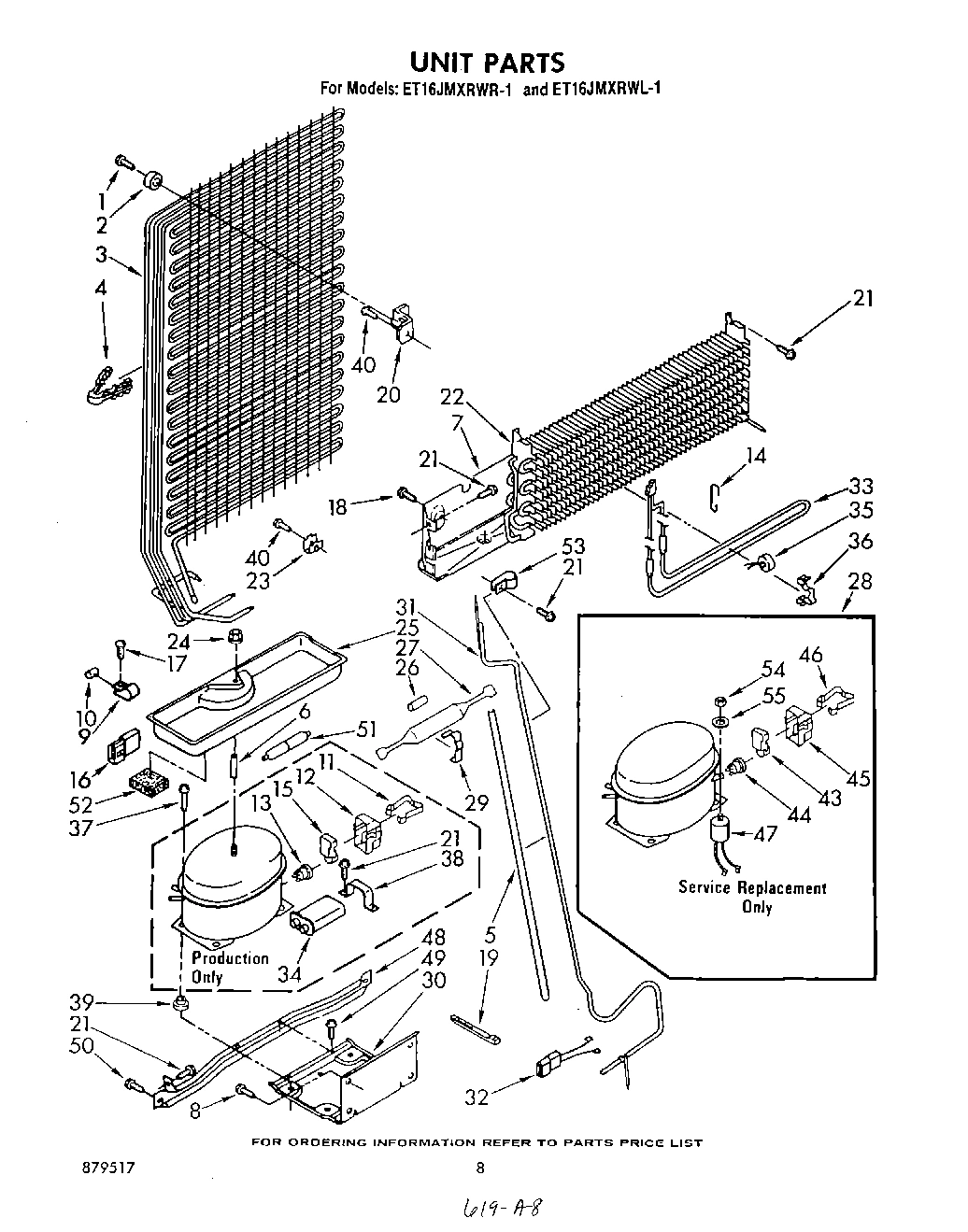

Condenser & Precooler Assembly WPL 1108012 Contact Us For Availability

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

4

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

4

Post, Cripser Cover WPL 836410 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Clip, Tube (2) WPL 1108037 Contact Us For Availability

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Breaker, Trim Clip WPL 534365 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability

6

Spacer WPL 1105130 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Heater, Mullion WPL 1108140 Contact Us For Availability

7

Top, Electric Shield WPL 946350 Contact Us For Availability

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heat Shield Evaporator WPL 942874 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $100.80

8

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

8

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Pan, Crisper (2) WPL 1106183 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Stud Hook (2) WPL 939065 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

9

Ferrule, Center Rail WPL 942737 Contact Us For Availability

9

Ice Cube Pan WPL 946400 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

Trim, Ice Pan WPL 539567 Contact Us For Availability

10

Dampener WPL 945593 Contact Us For Availability

11

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $30.71

11

Knob, Thermostat WPL 943798 Contact Us For Availability

11

Screw WPL 488428 Contact Us For Availability

Lockwasher WPL 489053 Contact Us For Availability

Seal, Gasket WPL 1106510 Contact Us For Availability

Handle, Center WPL 1106194 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Mold & Heater Assembly (Includes Illus. 15) WPL 625856 Contact Us For Availability

Spacer, Knob WPL 937105 Contact Us For Availability

Center Rail (White) WPL 1110233 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1110234 Contact Us For Availability

Center Rail (Almond) WPL 1110235 Contact Us For Availability

Center Rail (Toast) WPL 1110236 Contact Us For Availability

Center Rail (Platinum) WPL 1110237 Contact Us For Availability

Cover, Air Duct WPL 942749 Contact Us For Availability

Overload WPL 1100807 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 935727 Contact Us For Availability

Center, Rail Shim (2) WPL 939034 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

Support, Heater WPL 1108172 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Heater, Mold WPL 625843 Contact Us For Availability

Panel, Interior Door (Freezer) WPL 945701 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Rod, Connecting WPL 942761 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Harness, Wiring WPL 627750 Contact Us For Availability

Air Diffuser Assembly WPL 1108177 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

Trim, Door Shelf WPL 1106192 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Insulator, Switch WPL 627680 Contact Us For Availability

Gasket, Air Diffuser WPL 942765 Contact Us For Availability

Shim, Top Hinge WPL 1100509 Contact Us For Availability

Nameplate WPL 945119 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Cover, Air Diffuser WPL 1108178 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Switch WPL 627848 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Hinge, Center WPL 944788 Contact Us For Availability

Wiring Assembly WPL 937078 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 489042 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

Wiring, Assembly Control Box WPL 1103898 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Evaporator WPL 942866 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Gasket, Bottom Separator WPL 943733 Contact Us For Availability

Scroll, Fan WPL 942846 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

24

Evaporator Cover WPL 942847 Contact Us For Availability

25

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

25

Evaporator Tray WPL 1101002 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Connector Wire WPL 227991 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Hinge Butt, Bottom WPL 944783 Contact Us For Availability

Restrictor Sleeve WPL 510446 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Clamp, Thermostat WPL 625829 Contact Us For Availability

Insulation, Compartment Separator WPL 1110350 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Screw, 8-32 x 1 WPL 488372 Contact Us For Availability

Pad (2) WPL 946367 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

29

Protector, Wiring WPL 944998 Contact Us For Availability

29

Shim, Bottom Hinge WPL 942812 Contact Us For Availability

29

Clamp, Drier WPL 547637 Contact Us For Availability

30

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

30

Switch, S.P.D.T. WPL 625851 Contact Us For Availability

30

Unit Mounting Plate WPL 942860 Contact Us For Availability

Spacer, Holding Switch WPL 625834 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

Exchanger, Heat WPL 1105103 Contact Us For Availability

Thermostat WPL 625844 Contact Us For Availability

Shield, Compartment Separator WPL 942772 Contact Us For Availability

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability

Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability

Wire & Plug Assembly WPL 1101082 Contact Us For Availability

Cam WPL 625913 Contact Us For Availability

Separator, Compartment (Top) WPL 1110295 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability

Cover, G WPL 943552 Contact Us For Availability

WPL 944831 WPL 944831 Contact Us For Availability

WPL 944833 WPL 944833 Contact Us For Availability

Heater, Defrost WPL 942870 Contact Us For Availability

Motor WPL 625846 Contact Us For Availability

Drain Insert, Separator WPL 942849 Contact Us For Availability

WPL 1110684 WPL 1110684 Contact Us For Availability

WPL 1110685 WPL 1110685 Contact Us For Availability

WPL 1110686 WPL 1110686 Contact Us For Availability

WPL 1110687 WPL 1110687 Contact Us For Availability

WPL 1110688 WPL 1110688 Contact Us For Availability

Running Capacitor WPL 1108074 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

Cup, Drain WPL 939191 Contact Us For Availability

Gear WPL 625914 Contact Us For Availability

WPL 1100687 WPL 1100687 Contact Us For Availability

WPL 1100688 WPL 1100688 Contact Us For Availability

WPL 940086 WPL 940086 Contact Us For Availability

WPL 940087 WPL 940087 Contact Us For Availability

WPL 940089 WPL 940089 Contact Us For Availability

Screw WPL 488957 Contact Us For Availability

WPL 1100176 WPL 1100176 Contact Us For Availability

WPL 1100177 WPL 1100177 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

37

Screw, Shoulder WPL 627199 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

38

Tube, Water Inlet WPL 939027 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Beraing & Inlet WPL 544304 Contact Us For Availability

39

WPL 942845 WPL 942845 Contact Us For Availability

40

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

40

Ejector WPL 627375 Contact Us For Availability

40

WPL 944741 WPL 944741 Contact Us For Availability

41

Arm, Shut-Off WPL 627003 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

42

Spring, Shut-Off Arm WPL 625832 Contact Us For Availability

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

Support WPL 625827 Contact Us For Availability

43

Relay WPL 1100806 Contact Us For Availability

44

Screw (Use W/Motor 625846) WPL 488361 Contact Us For Availability

44

WPL 937360 WPL 937360 Contact Us For Availability

44

Overload WPL 1105077 Contact Us For Availability

45

Lever, Arm WPL 625830 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

46

Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

48

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

48

Switch, S.P.S.T. WPL 625947 Contact Us For Availability

48

Unit Mounting Rail WPL 942859 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

WPL 942854 WPL 942854 Contact Us For Availability

50

WP2187501 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187501 $53.02

50

Plate, Valve Switch WPL 627024 Contact Us For Availability

50

Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

Plate, Mounting WPL 627740 Contact Us For Availability

51

Muffler WPL 1105136 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

52

Pad, Sound WPL 301774 Contact Us For Availability

53

Spring WPL 627163 Contact Us For Availability

53

Tube, Clamp WPL 489151 Contact Us For Availability

54

Cover WPL 1100705 Contact Us For Availability

54

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

56

Valve, Shut-Off WPL 541157 Contact Us For Availability

57

Filter Kit WPL 978488 Contact Us For Availability

59

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

60

Tube, Inlet Valve WPL 944800 Contact Us For Availability

63

Screw, 8-32 x 1/4 (Ground) WPL 488542 Contact Us For Availability

66

Nut, Valve WPL 537588 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 1 WPL 479502 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 627751 WPL 627751 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
