Model Whirlpool ET16JMXDW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - ICEMAKER

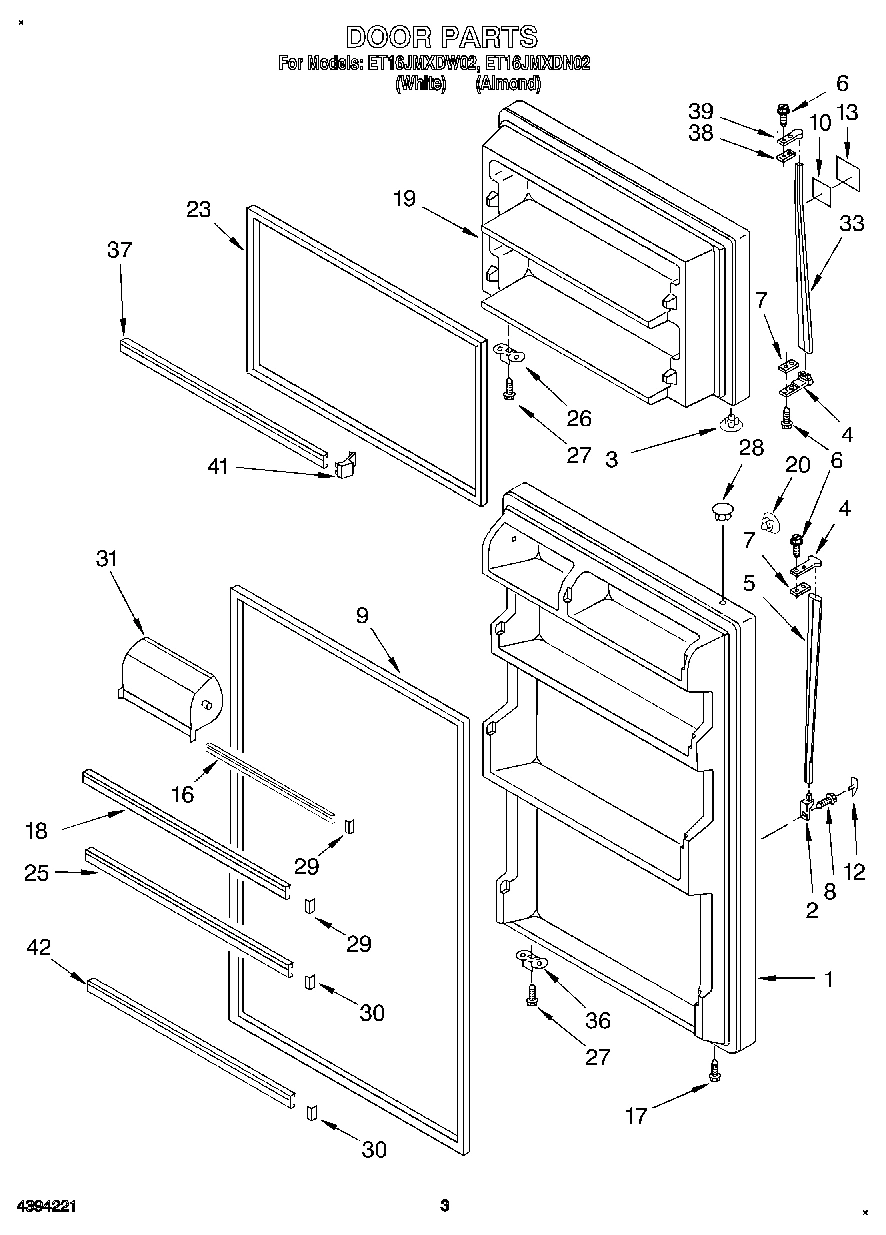

02 - DOOR
03 - LINER
01 - CABINET
04 - UNIT
06 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET16JMXDW02 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring Sheet WPL LIT2169460 Contact Us For Availability
Energy WPL LIT2182530 Contact Us For Availability
WPL LIT2184591 WPL LIT2184591 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42889A4 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Shelf (2) WPL 2182443 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
5
Evaporator Assy. WPL 2166206 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater Center WPL 2176301 Contact Us For Availability
8
Shelf, Ice Tray WPL 483210 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Door Reversal Instructions WPL 2176379 Contact Us For Availability
11
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
11
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
11
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay, Starting WPL ARI42892A7 Contact Us For Availability
16
Cover-Evaporator WPL 2183151 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182339 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Screw WPL 489473 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
33
Clip WPL 2166683 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2179823 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI42890A6 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2184585 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
