Model Whirlpool ET16JKYSF03 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER
06 - FREEZER DOOR

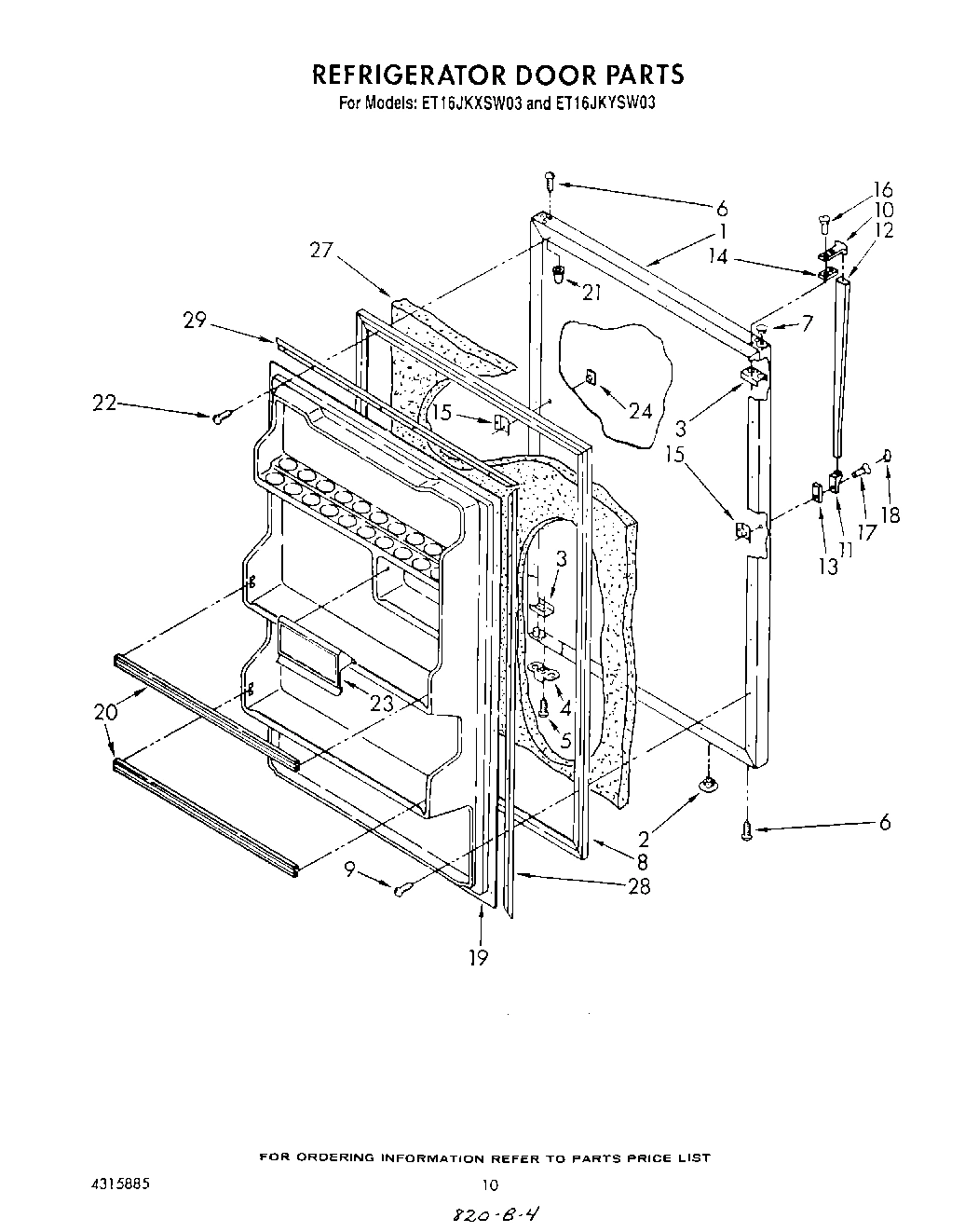

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

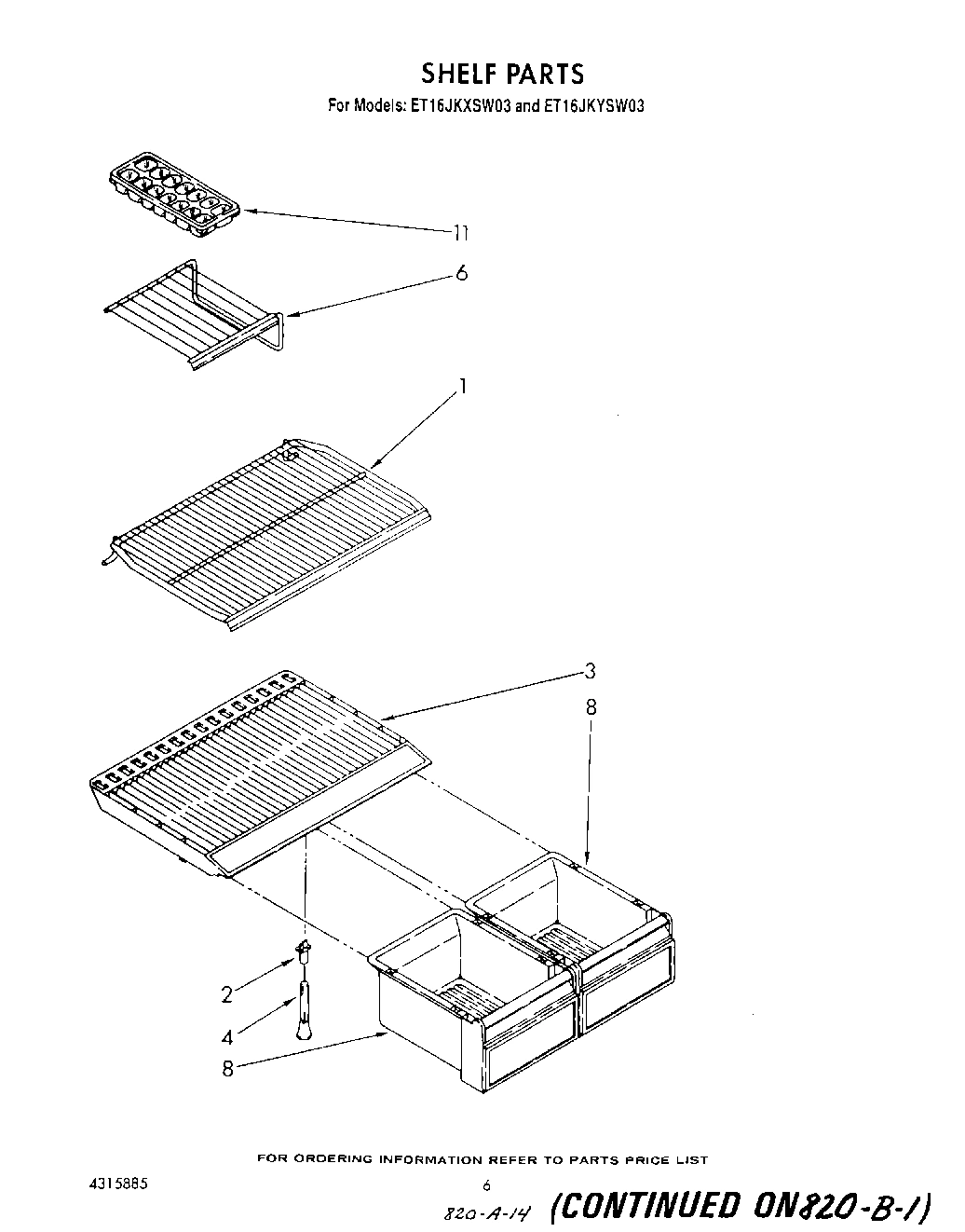

05 - SHELF

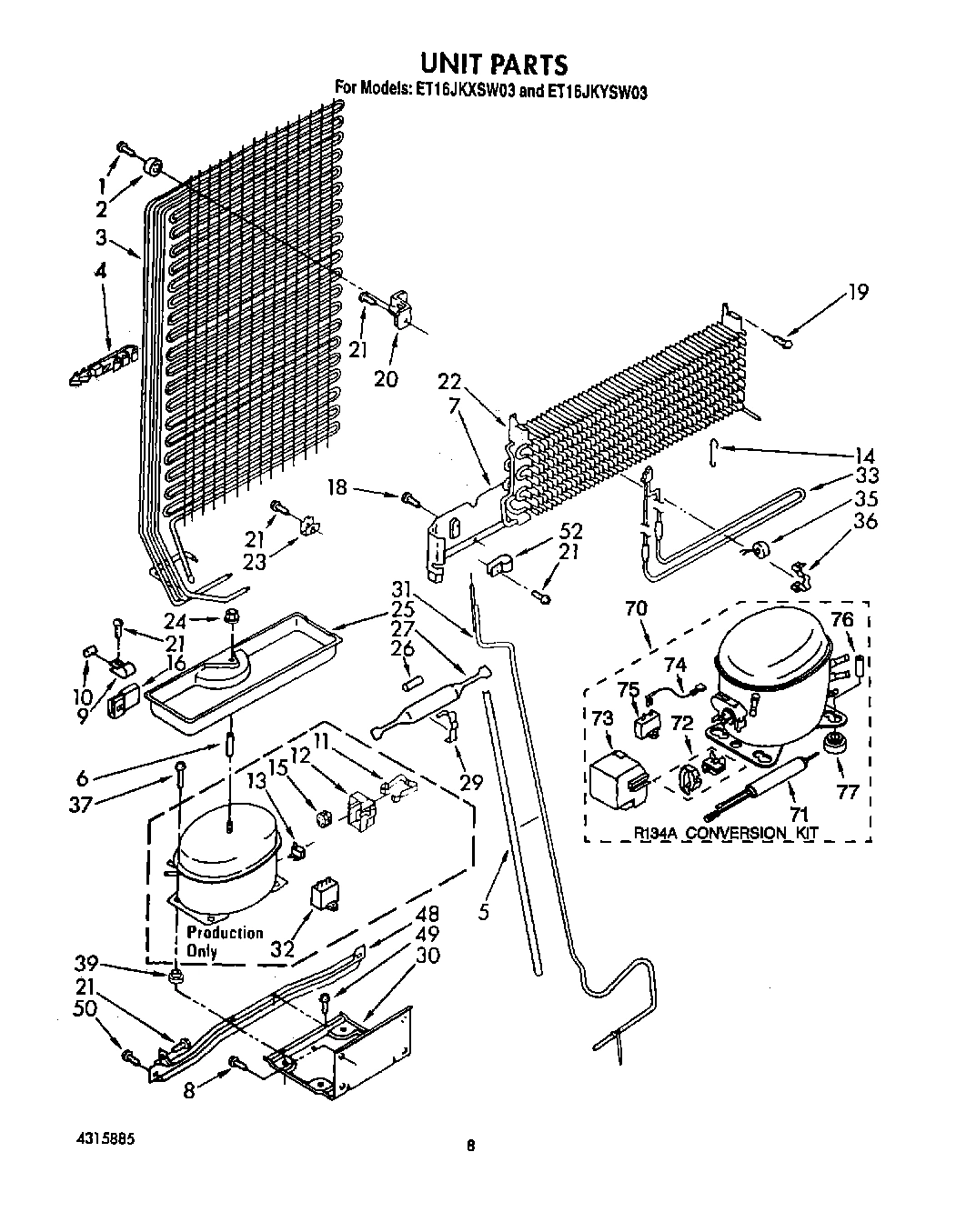

07 - UNIT

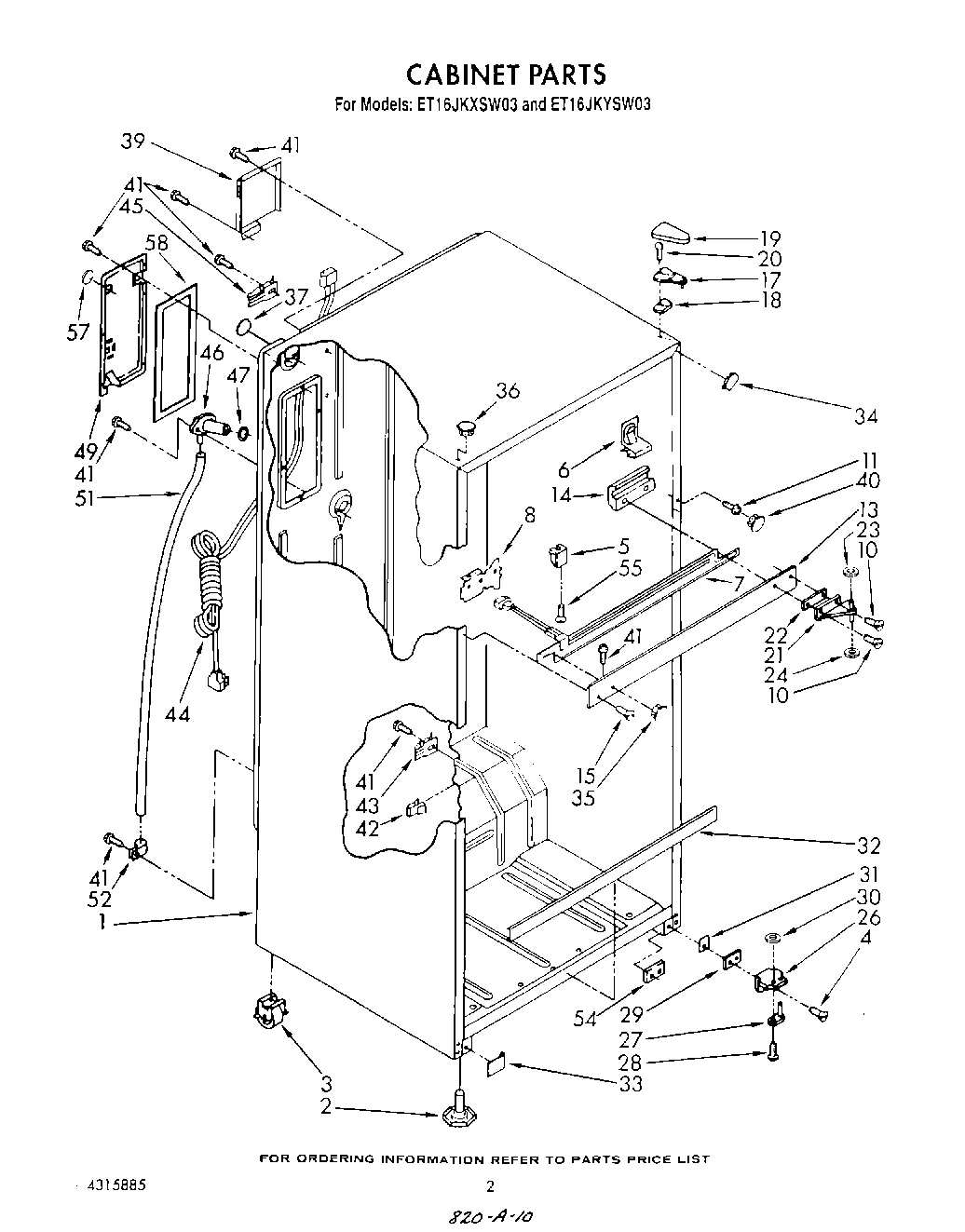

02 - CABINET

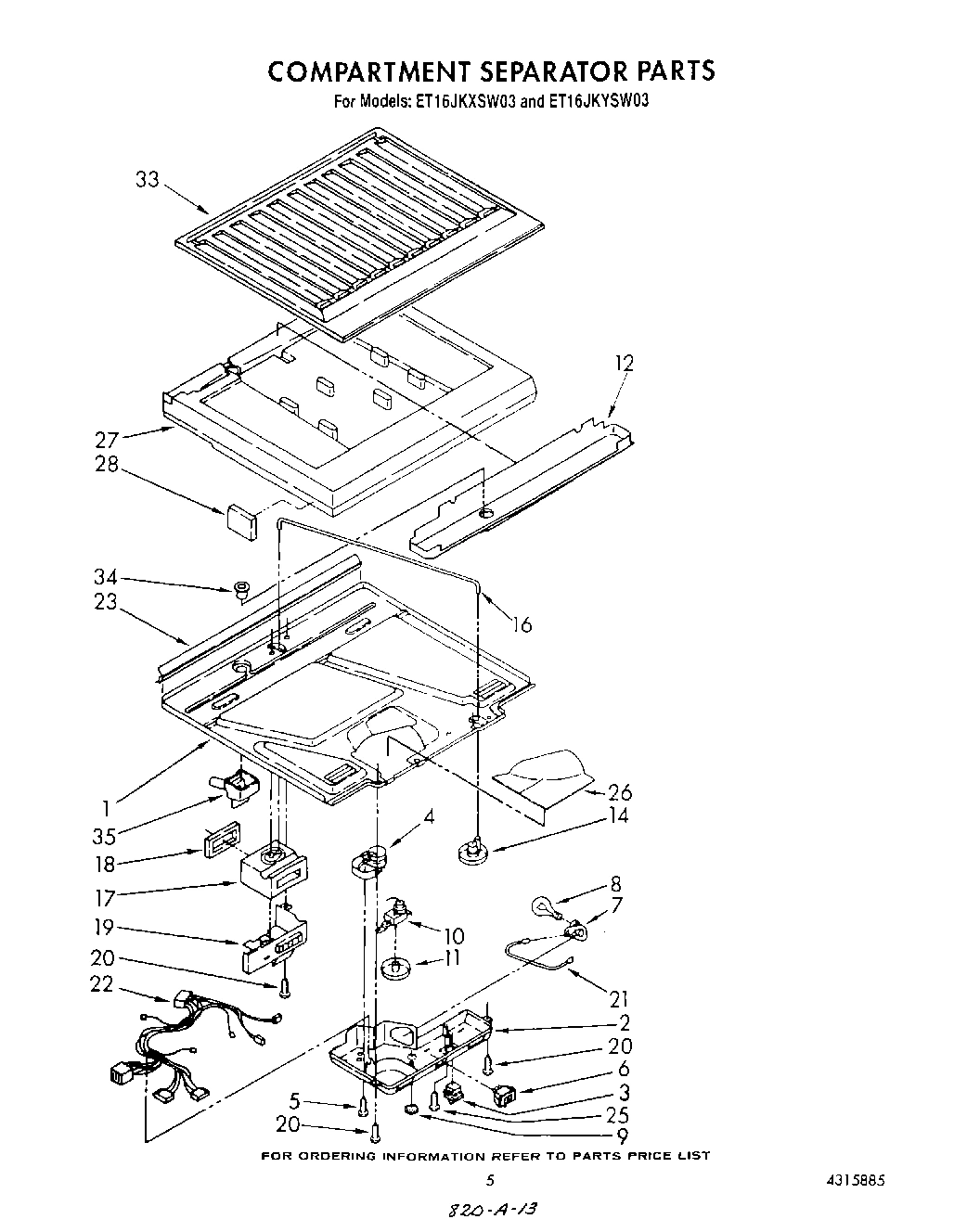

04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET16JKYSF03 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1120602 WPL LIT1120602 Contact Us For Availability
WPL LIT1124889 WPL LIT1124889 Contact Us For Availability
WPL LIT1127665 WPL LIT1127665 Contact Us For Availability
WPL LIT4315885 WPL LIT4315885 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1103919 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1103920 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) (Also Ord WPL 1103921 Contact Us For Availability
1
Shelf, Pullout (3) WPL 942824 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42803A5 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111794 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
3
Cover, Crisper WPL 1116047 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108012 Contact Us For Availability
3
Roller, Front & Rear WPL 937216 Contact Us For Availability
4
Post, Crisper WPL 836410 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1114283 Contact Us For Availability
5
Spacer (2) WPL 940024 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Clip, Center Rail WPL 1129018 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
8
Pan, Crisper (2) WPL 1111755 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
10
Screw WPL 489179 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
11
Knob, Thermostat WPL 1111759 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Center Rail (Toast) WPL 1111513 Contact Us For Availability
13
Center Rail (Platinum) WPL 1111514 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Support, Heater WPL 1108172 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
14
Knob, Air Control WPL 1126711 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
16
Screw (Repair) WPL 489250 Contact Us For Availability
16
Rod, Connecting WPL 1111271 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 1127674 Contact Us For Availability
23
Compartment, Butter Door WPL 1110148 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Hole Plug, Handle (Toast) WPL 1122695 Contact Us For Availability
24
Hole Plug, Handle (Platinum) WPL 1122696 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110350 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
28
Screw WPL 489218 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
WPL 1120614 WPL 1120614 Contact Us For Availability
29
WPL 261890 WPL 261890 Contact Us For Availability
29
WPL 261891 WPL 261891 Contact Us For Availability
29
WPL 285365 WPL 285365 Contact Us For Availability
29
WPL 285366 WPL 285366 Contact Us For Availability
29
WPL 285367 WPL 285367 Contact Us For Availability
29
WPL 285368 WPL 285368 Contact Us For Availability
29
WPL 350941 WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 72112 WPL 72112 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Exchanger, Heat WPL 1127628 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
32
Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability
32
Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
33
Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability
33
Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability
33
Cover, Gli WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119324 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
WPL 1129062 WPL 1129062 Contact Us For Availability
36
WPL 1129063 WPL 1129063 Contact Us For Availability
36
WPL 1129064 WPL 1129064 Contact Us For Availability
36
WPL 1129065 WPL 1129065 Contact Us For Availability
36
WPL 1129066 WPL 1129066 Contact Us For Availability
37
WPL 1129056 WPL 1129056 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 1122929 WPL 1122929 Contact Us For Availability
40
WPL 1126568 WPL 1126568 Contact Us For Availability
40
WPL 1126569 WPL 1126569 Contact Us For Availability
40
WPL 1126570 WPL 1126570 Contact Us For Availability
40
WPL 1126571 WPL 1126571 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
52
Tube, Clamp WPL 489151 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
54
WPL 944813 WPL 944813 Contact Us For Availability
57
WPL 1120224 WPL 1120224 Contact Us For Availability
58
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
