Model Whirlpool ET14NKXEN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

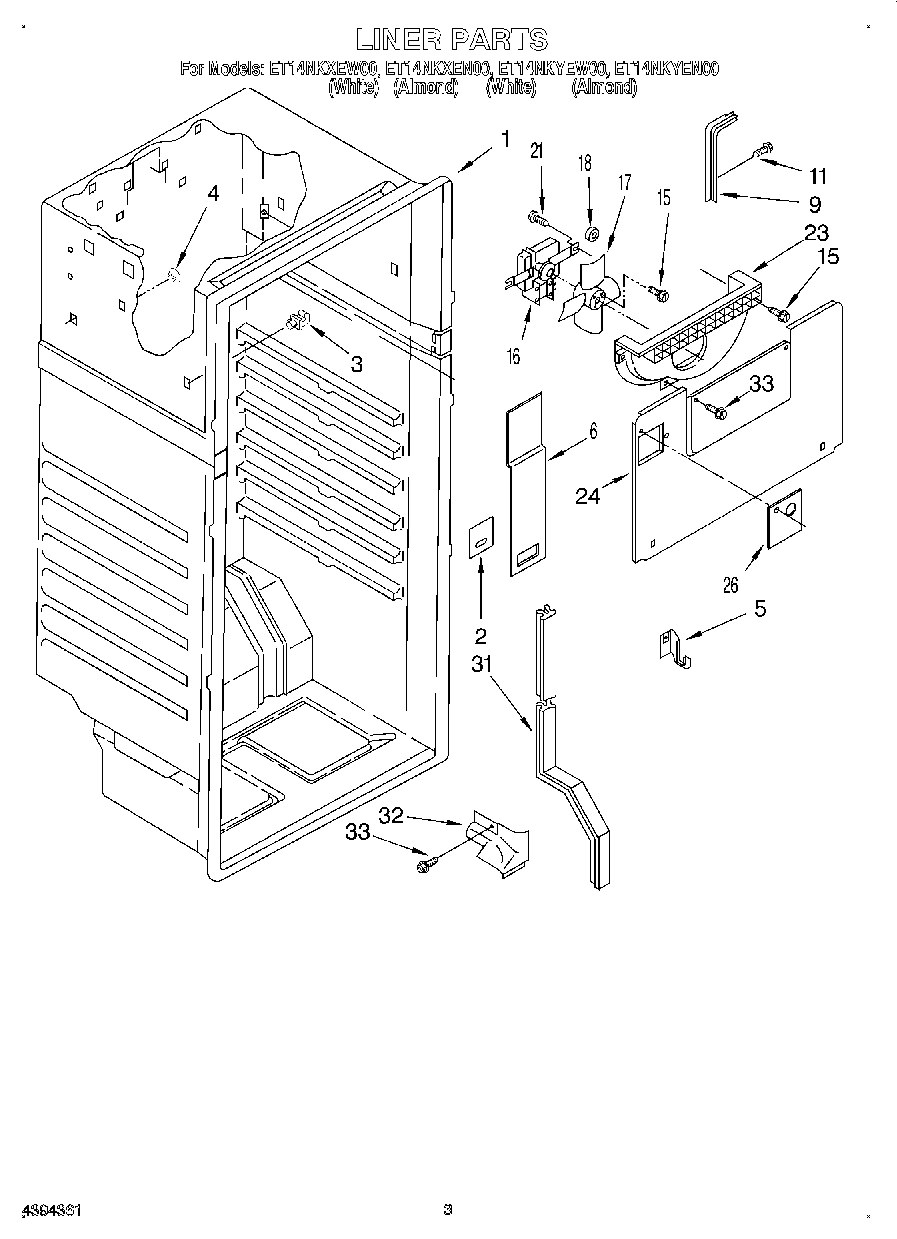

02 - LINER

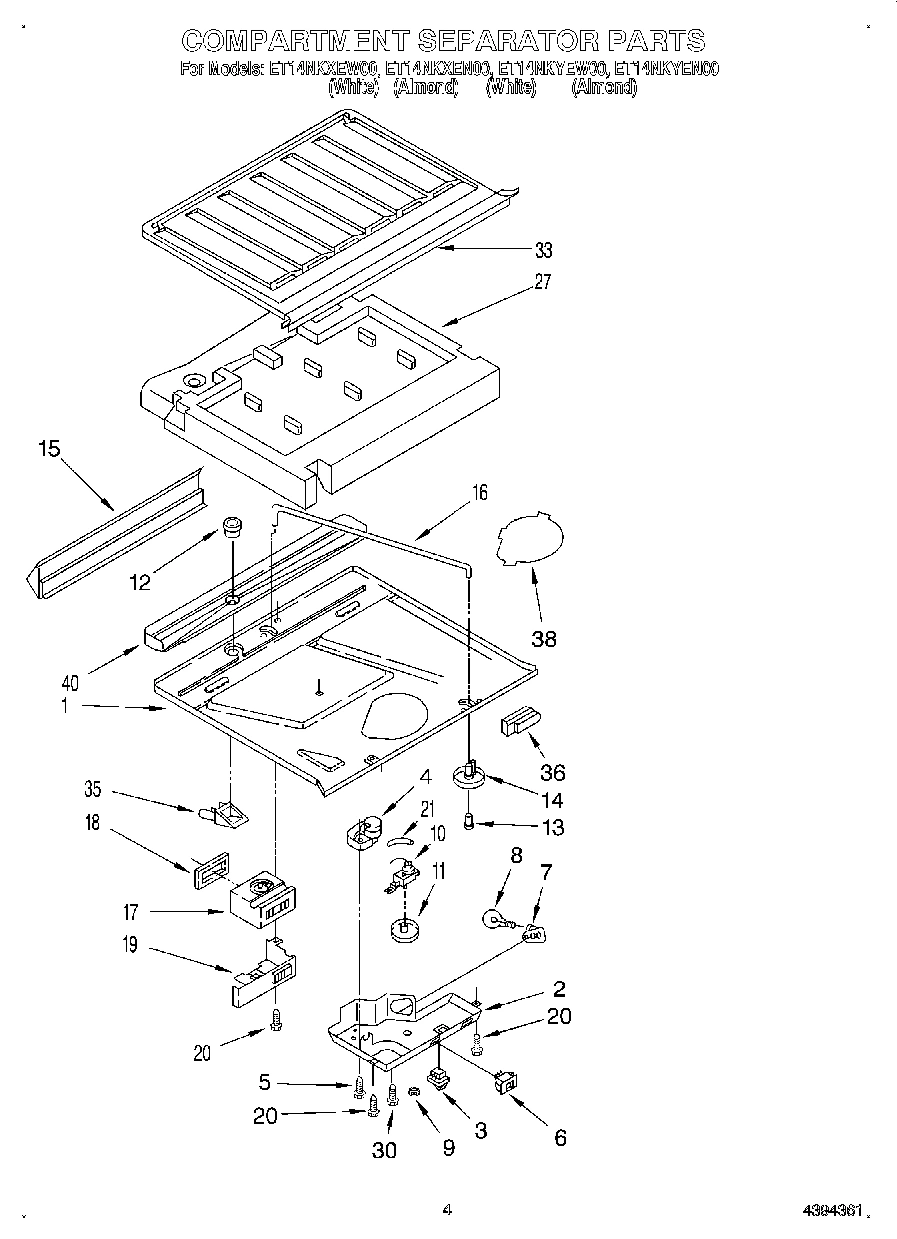

03 - COMPARTMENT SEPARATOR

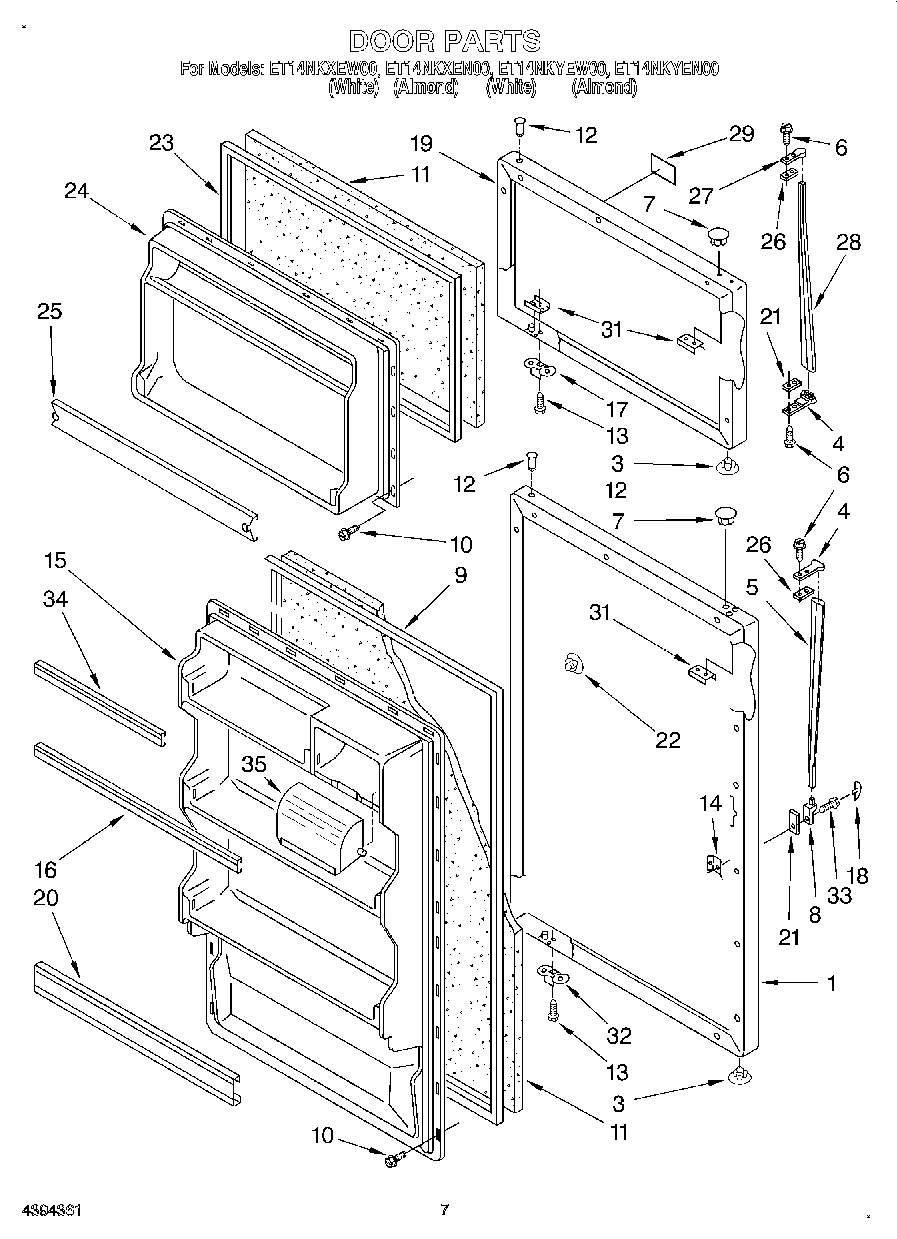

05 - DOOR, LIT/OPTIONAL

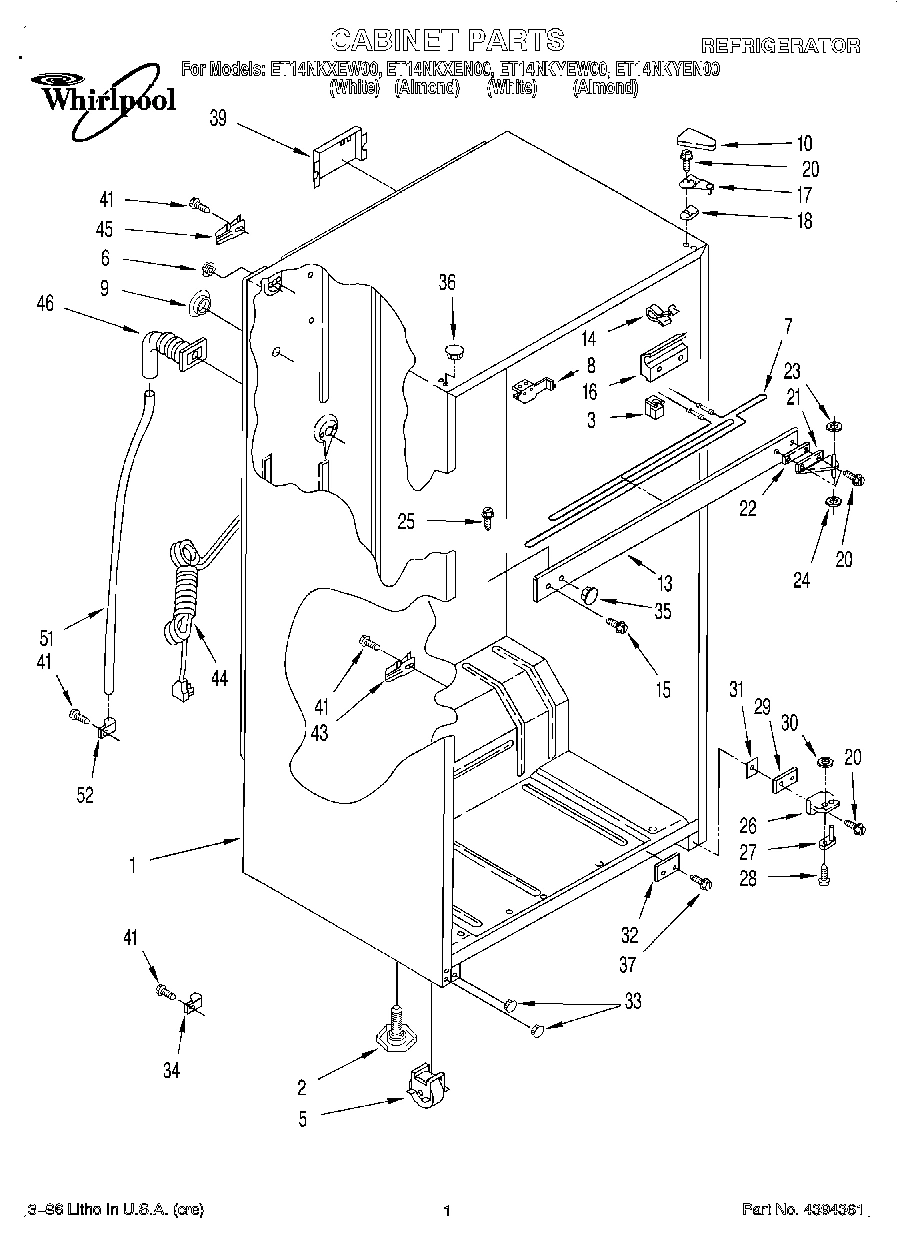

01 - CABINET

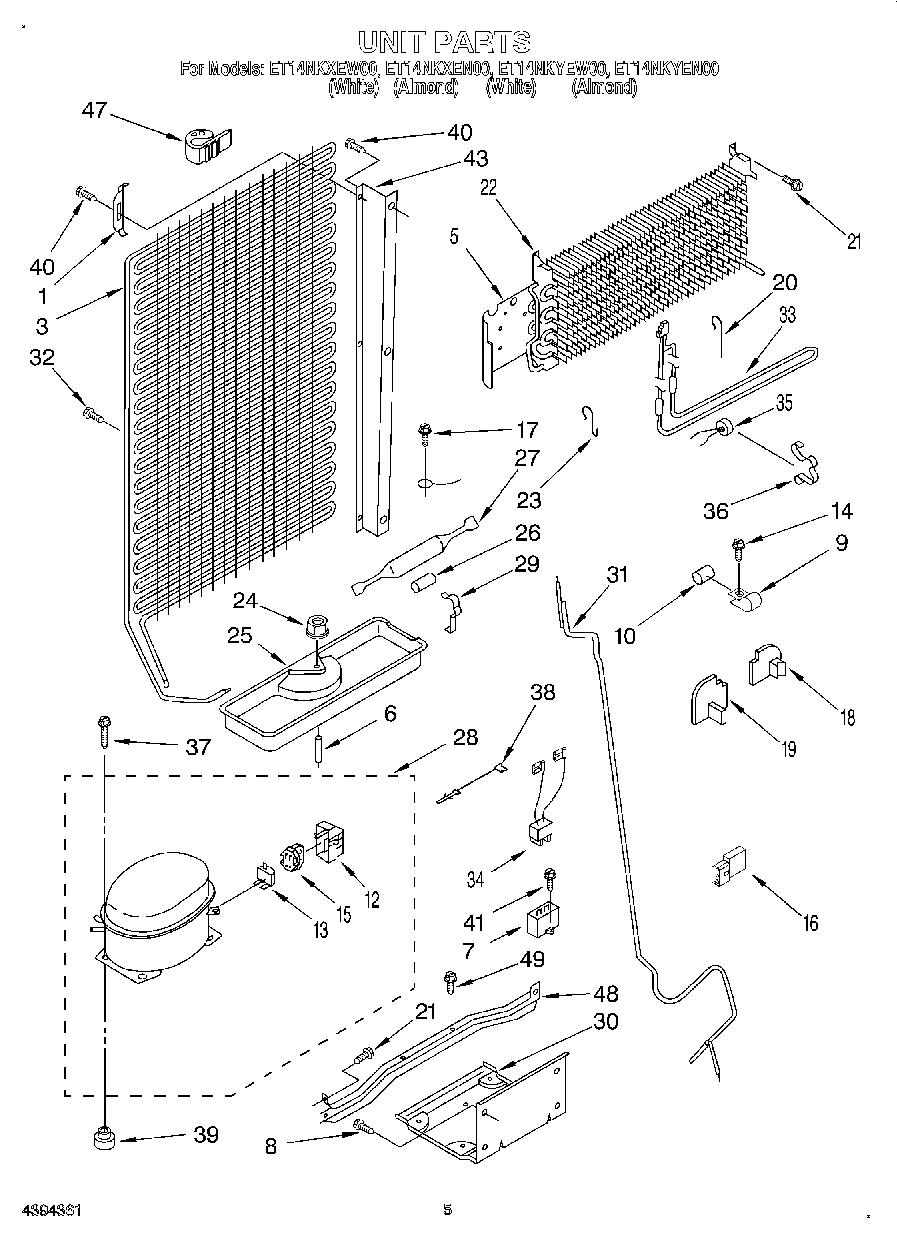

04 - UNIT

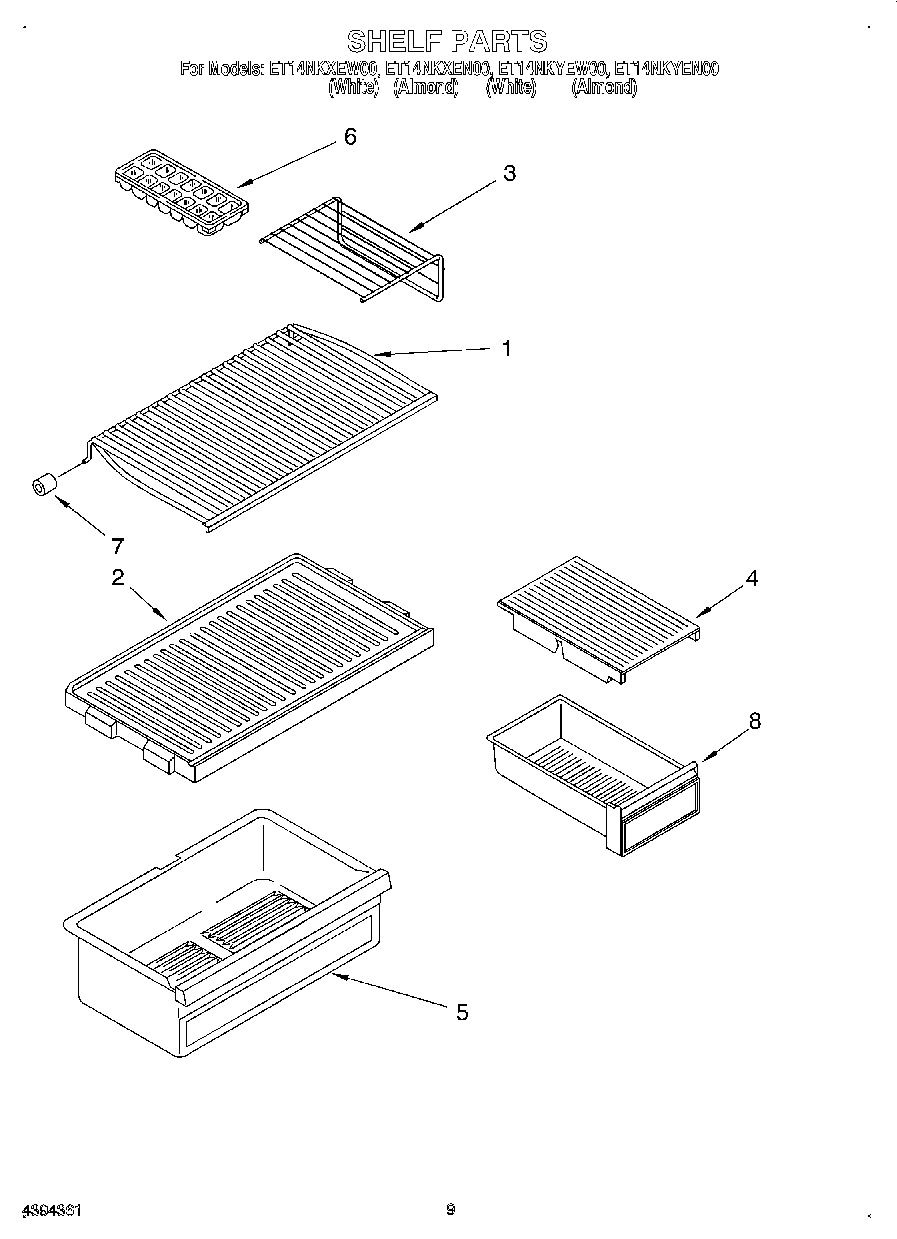

06 - SHELF
Common parts from model Whirlpool ET14NKXEN00 TOP MOUNT REFRIGERATOR
WPL LIT2190788 WPL LIT2190788 Contact Us For Availability
WPL LIT2191081 WPL LIT2191081 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 2191107 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 2191108 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42477A5 Contact Us For Availability
1
Bracket WPL 2150664 Contact Us For Availability
1
Shelf, Pullout (2) WPL 940006 Contact Us For Availability
2
Cover, Crisper WPL 1128659 Contact Us For Availability
3
Stud Hook WPL 939065 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Spacer WPL 1116484 Contact Us For Availability
3
Condenser Assembly WPL 2172124 Contact Us For Availability
3
Cover, Ice Tray WPL 2147583 Contact Us For Availability
4
Cover, Meat Pan WPL 1104924 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Heat Shield WPL 935699 Contact Us For Availability
5
Pan, Crisper WPL 2190948 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Hole Plug (2) (Almond) WPL 989196 Contact Us For Availability
7
Heater, Mullion WPL 2190815 Contact Us For Availability
7
Running Capacitor WPL 2169137 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
8
Center Rail, Bracket WPL 2178822 Contact Us For Availability
8
Pan, Meat WPL 2190749 Contact Us For Availability
9
Hole Plug WPL 655411 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
13
Center Rail WPL 935685 Contact Us For Availability
14
Breaker, Trim Clip WPL 534365 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 2178647 Contact Us For Availability
15
Relay (See Overload) WPL ARI42479A3 Contact Us For Availability
16
Trim, Door Shelf WPL 2190746 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
17
Bracket, Door Stop WPL 944035 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Cover, Screw (White) WPL 9791769 Contact Us For Availability
18
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2151218 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 2191098 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 2191099 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2151219 Contact Us For Availability
20
Trim, Door Shelf WPL 2178362 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Clip, Heater WPL 850721 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Hole Plug (2) (Almond) WPL 1122654 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2178207 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 2151203 Contact Us For Availability
25
Trim, Door Shelf WPL 2178363 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1128495 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Handle, Center (Almond) WPL 2148038 Contact Us For Availability
29
Nameplate WPL 2162781 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Exchanger, Heat WPL 2172126 Contact Us For Availability
32
Bracket, Door Stop WPL 1115910 Contact Us For Availability
32
Rail, Cover (White) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Heater, Defrost WPL 2151216 Contact Us For Availability
34
Trim, Door WPL 2190745 Contact Us For Availability
35
WPL 876029 WPL 876029 Contact Us For Availability
35
WPL 479502 WPL 479502 Contact Us For Availability
35
Door Reversal Instru WPL 2148984 Contact Us For Availability
35
WPL 2190748 WPL 2190748 Contact Us For Availability
35
WPL 542639 WPL 542639 Contact Us For Availability
35
WPL 799340 WPL 799340 Contact Us For Availability
35
WPL 799833 WPL 799833 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
35
Hole Plug WPL 1119707 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
40
Screw WPL VS9993 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 2150543 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
