Model Whirlpool ET14LKXXW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - SHELF
02 - CABINET
04 - COMPARTMENT SEPARATOR

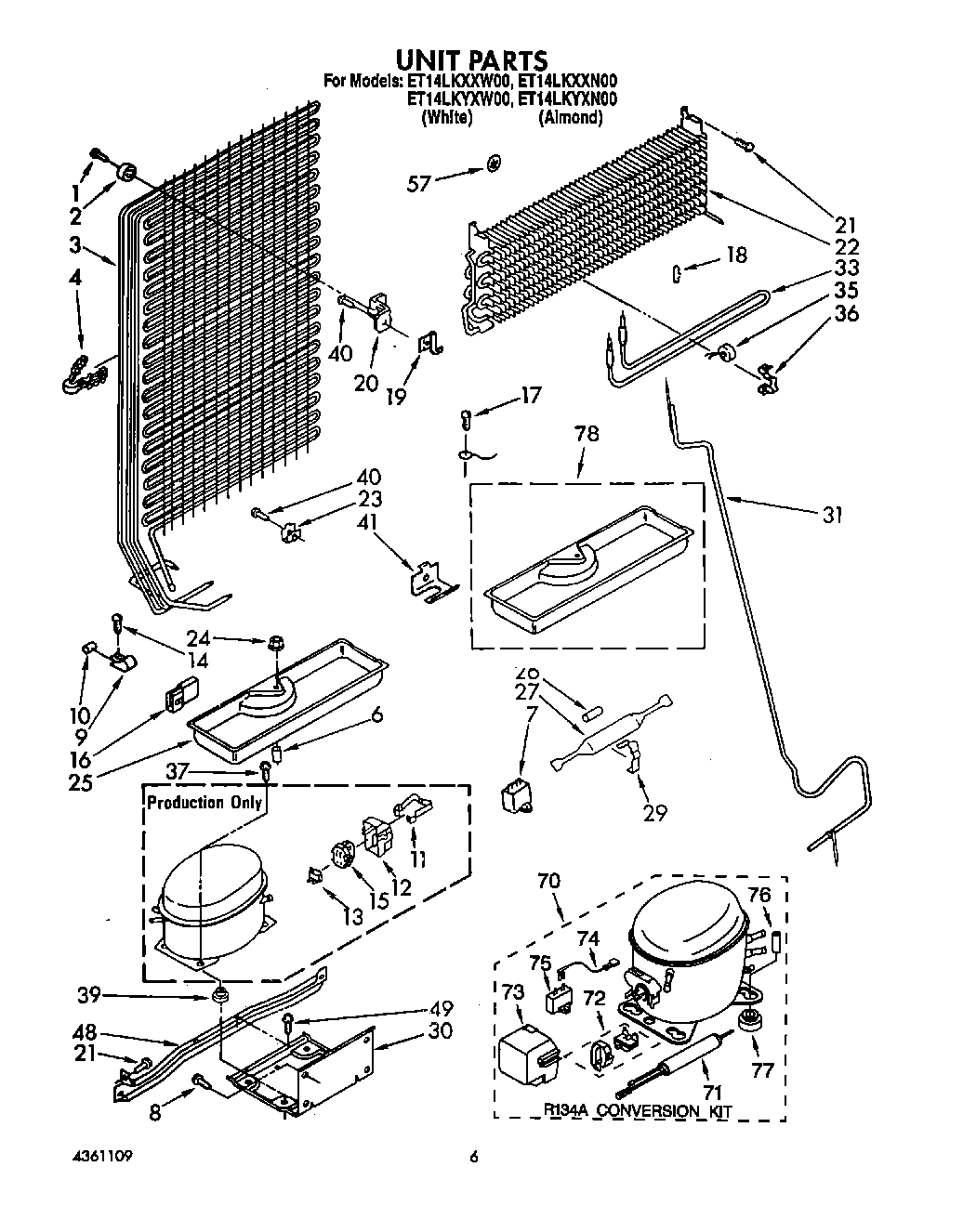

05 - UNIT

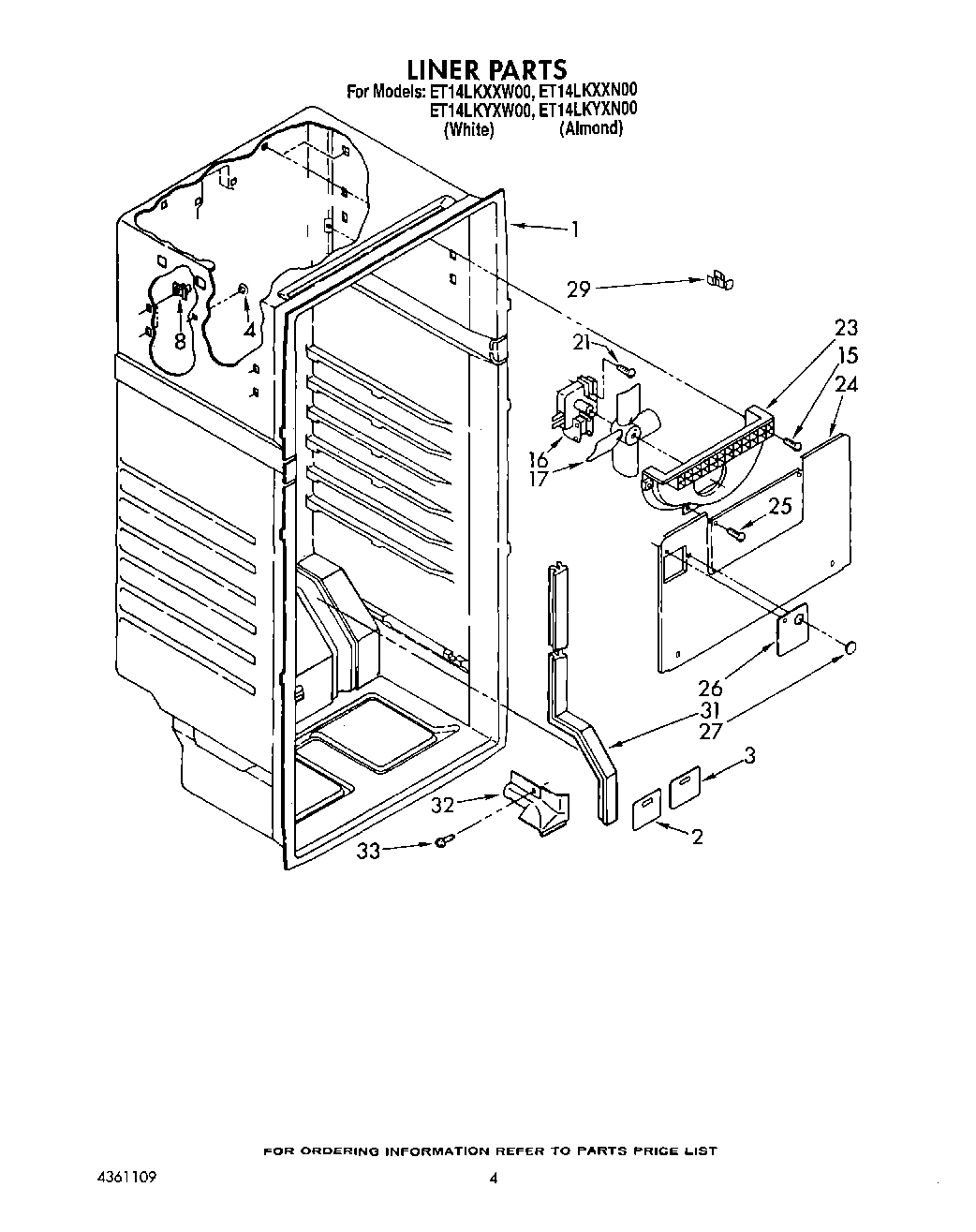

03 - LINER

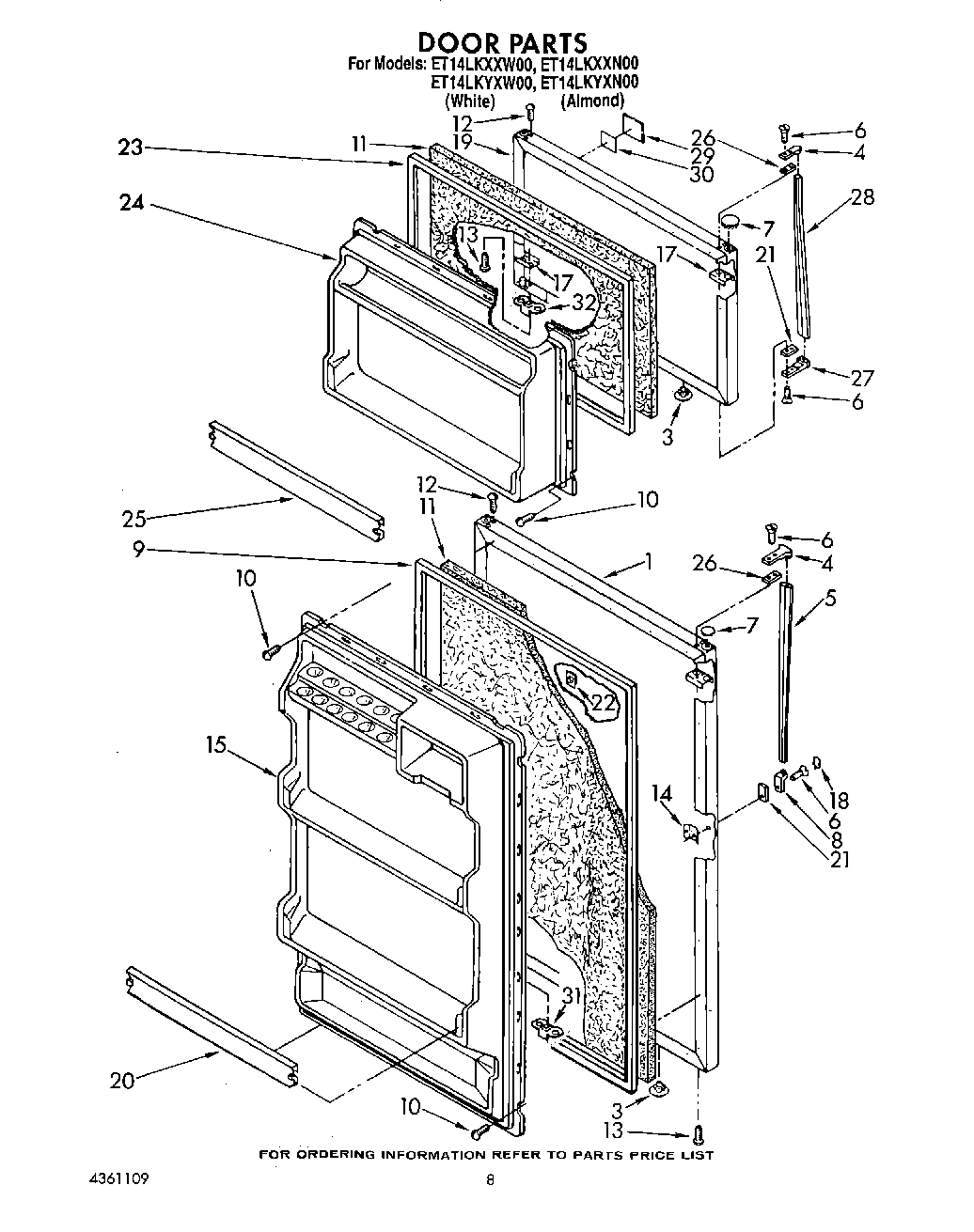

06 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool ET14LKXXW00 TOP MOUNT REFRIGERATOR
WPL LIT2150488 WPL LIT2150488 Contact Us For Availability
WPL LIT2150795 WPL LIT2150795 Contact Us For Availability
WPL LIT2150796 WPL LIT2150796 Contact Us For Availability
WPL LIT4361109 WPL LIT4361109 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116091 Contact Us For Availability
1
Screw, 8 x 7/8 WPL 487888 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42446A3 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944099 Contact Us For Availability
2
Box, Control WPL 935726 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cover, Air Duct WPL 935696 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1128113 Contact Us For Availability
3
Shield, Wiring WPL 946207 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
5
Roller (4) WPL 2152014 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Stud, Evaporator (2) WPL 939065 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Knob, Thermostat WPL 937144 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
15
Insert, Drain WPL 937359 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1128315 Contact Us For Availability
16
Rod, Connecting WPL 1111438 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118973 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Support, Heater WPL 851358 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Support, Evap. WPL 935700 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944105 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Trim, Door Shelf WPL 1116076 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Screw, 8 x 1-1/4 (2) WPL 489168 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Evaporator Cover WPL 2152289 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100247 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Trim, Door Shelf WPL 1116080 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment WPL 939272 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Handle, Center WPL 1109171 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Nameplate WPL 945114 Contact Us For Availability
30
Screw, 8 x 3/8 (2) Separator Front WPL 488624 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Tape WPL 991259 Contact Us For Availability
31
Exchanger, Heat WPL 1115429 Contact Us For Availability
31
Cover Tube, Rear WPL 935704 Contact Us For Availability
31
Stop, Door WPL 944036 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
WPL 799344 WPL 799344 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
WPL 542639 WPL 542639 Contact Us For Availability
32
WPL 799340 WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 944035 WPL 944035 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
33
Top, Compartment Separator WPL 935717 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
40
Drain Pan WPL 935718 Contact Us For Availability
41
Braket, Wire WPL 939050 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
57
Retainer, Evaporator (2) WPL 1108520 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
