Model Whirlpool ET14JKYXW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

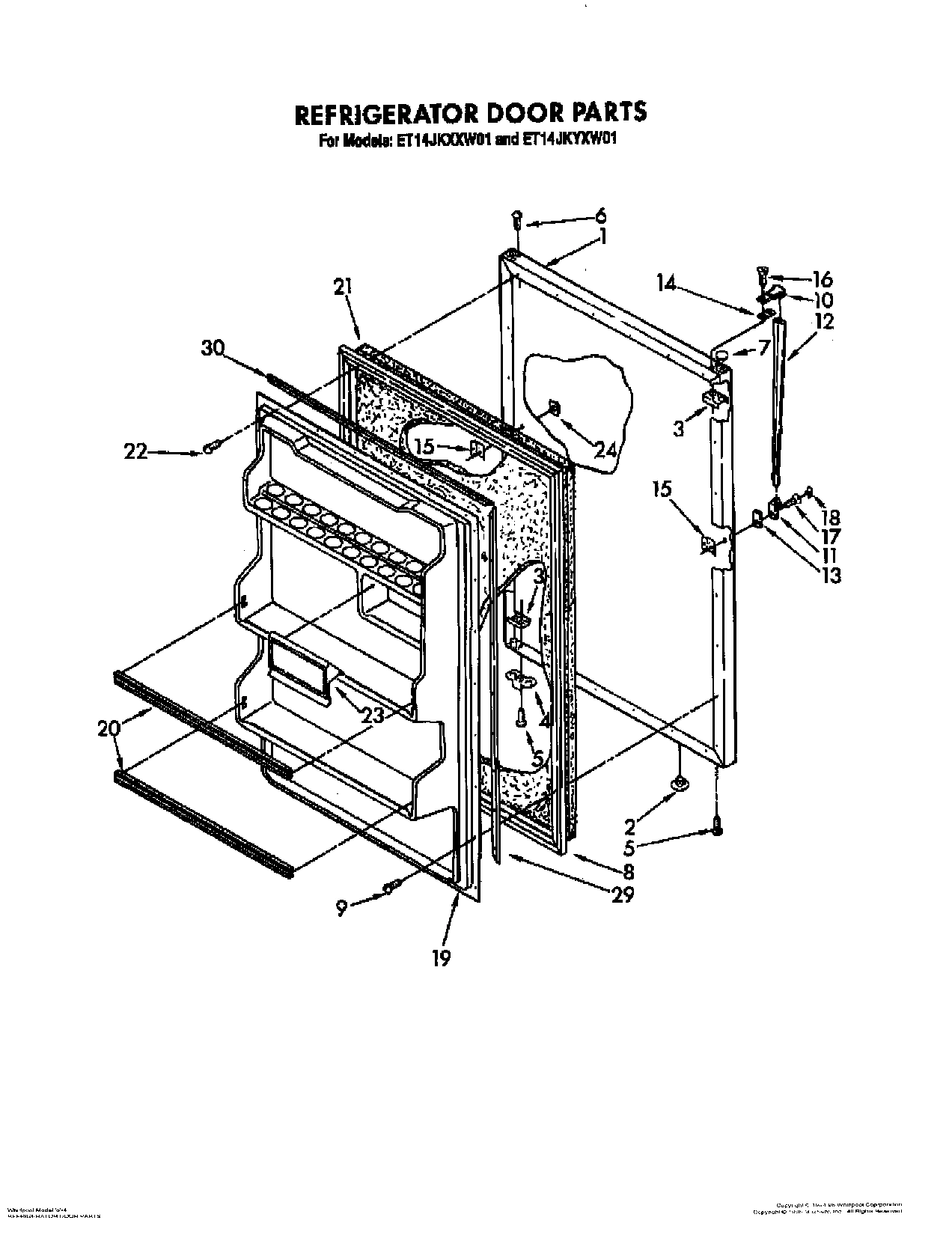

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

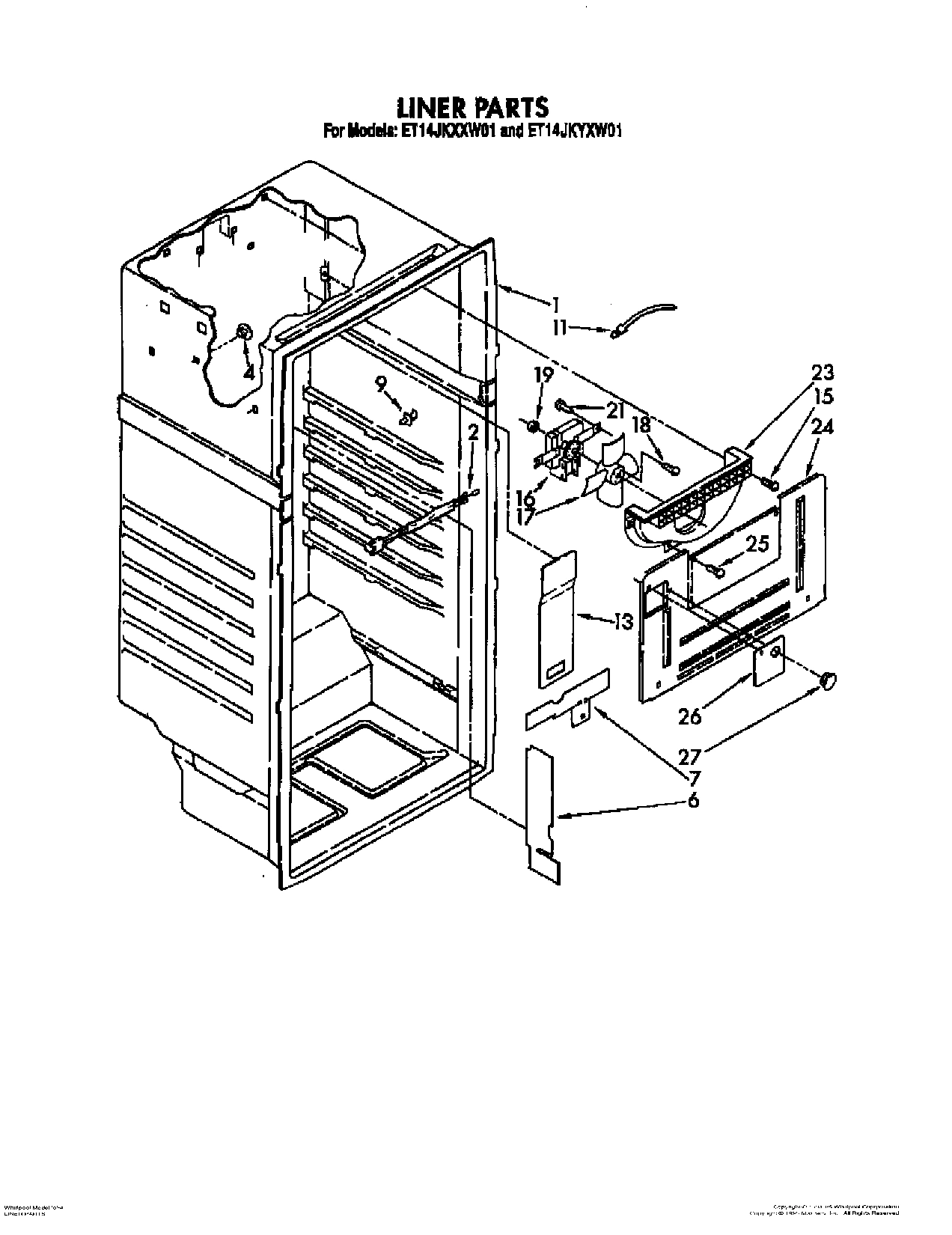

03 - LINER

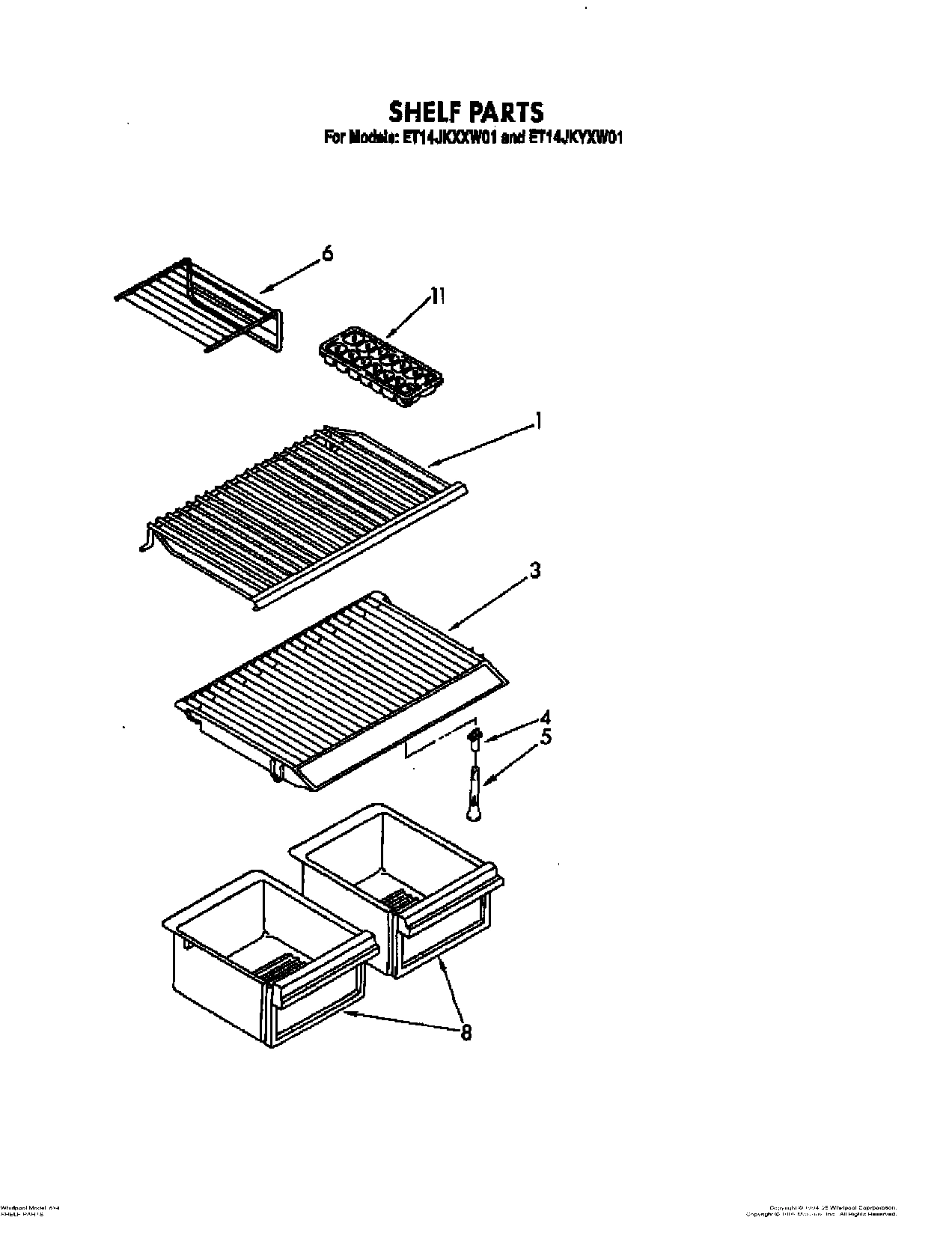

05 - SHELF

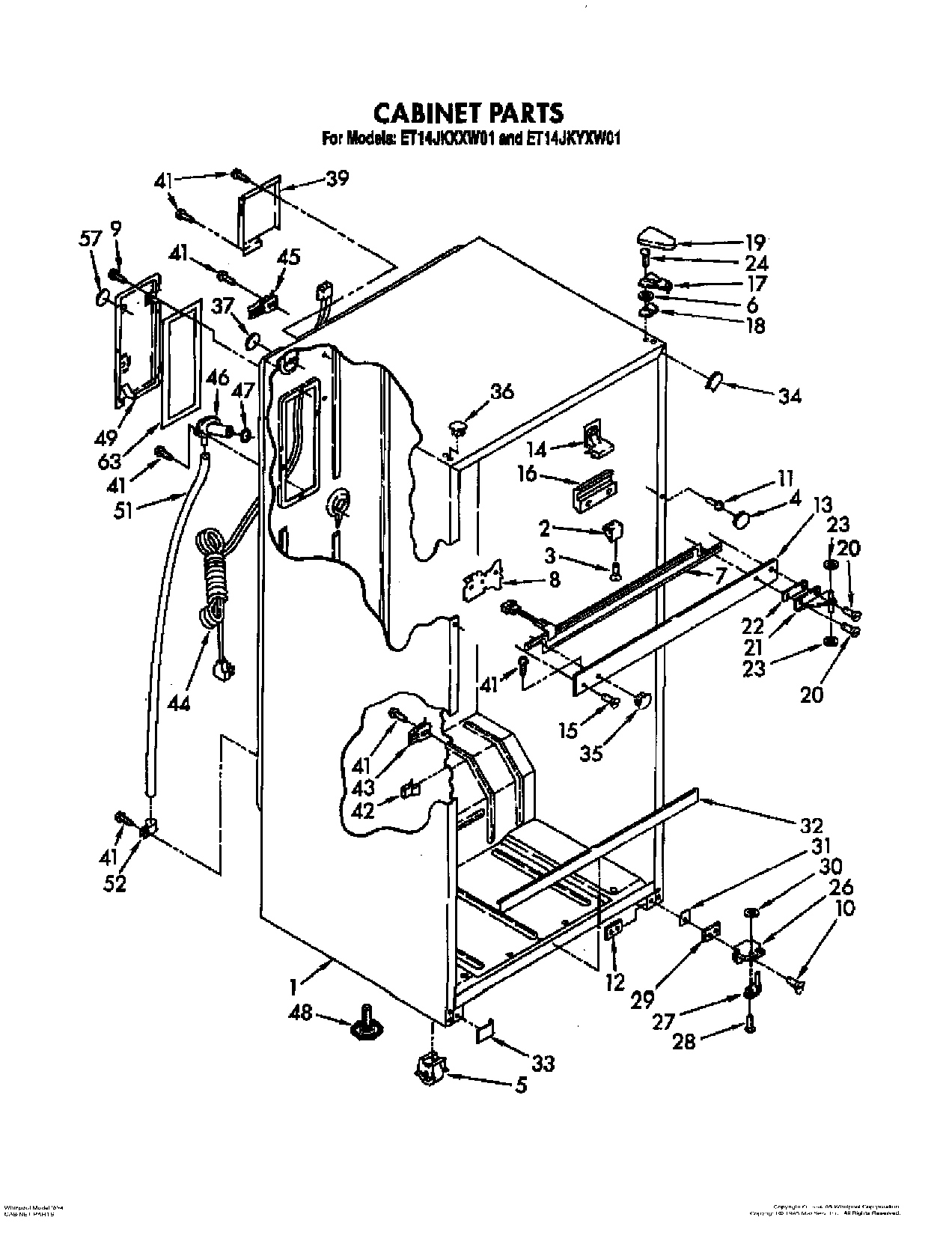

02 - CABINET

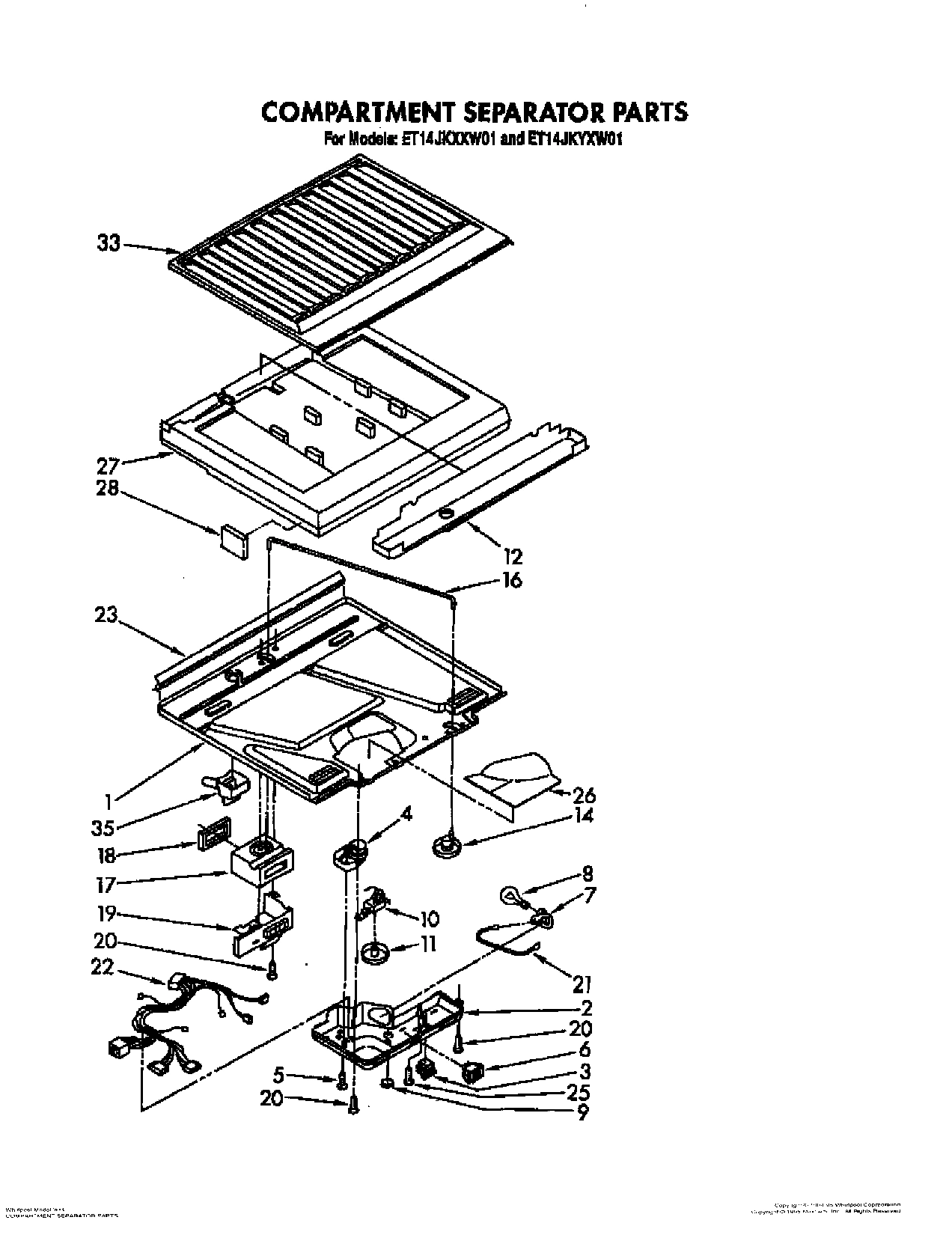

04 - COMPARTMENT SEPARATOR

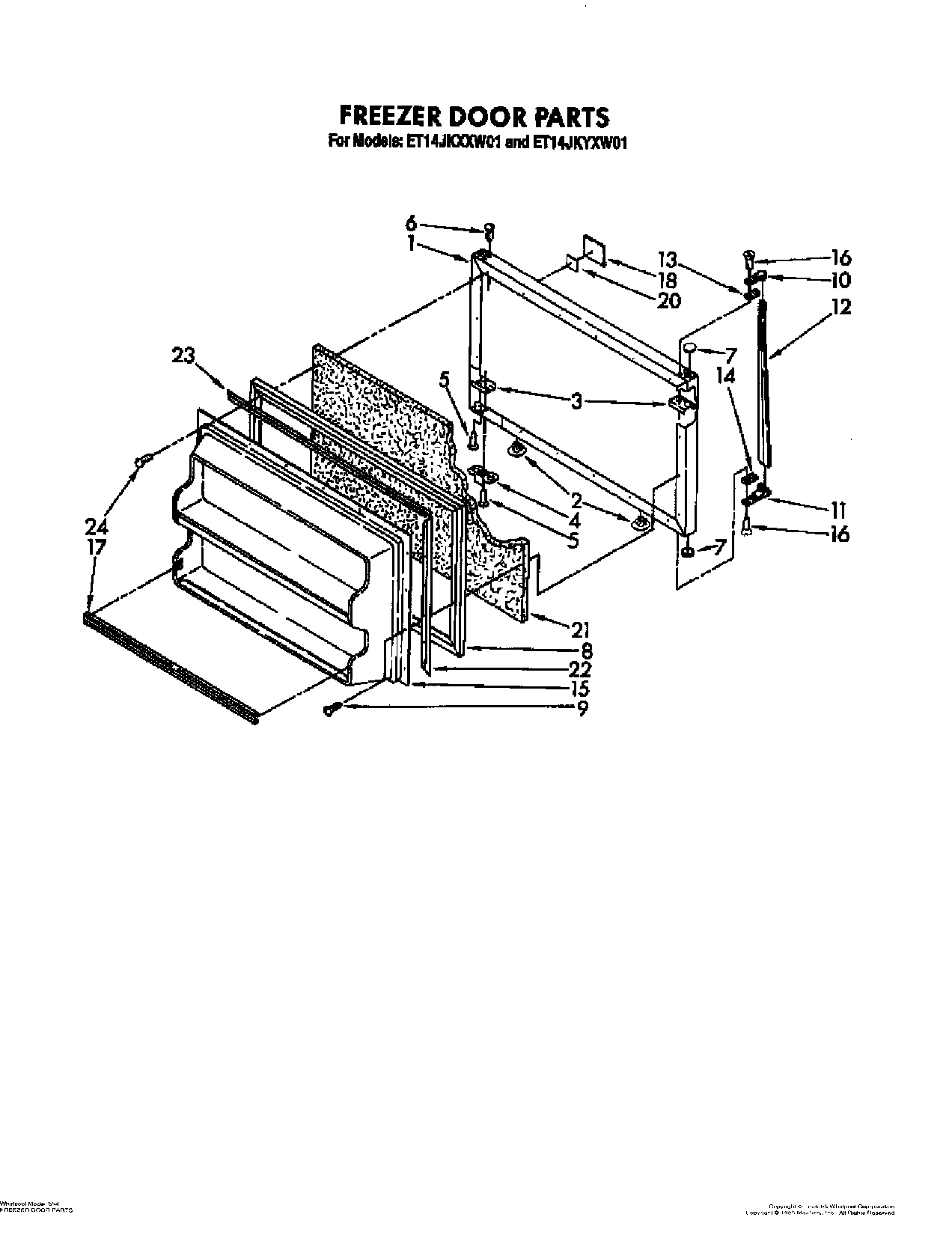

06 - FREEZER DOOR

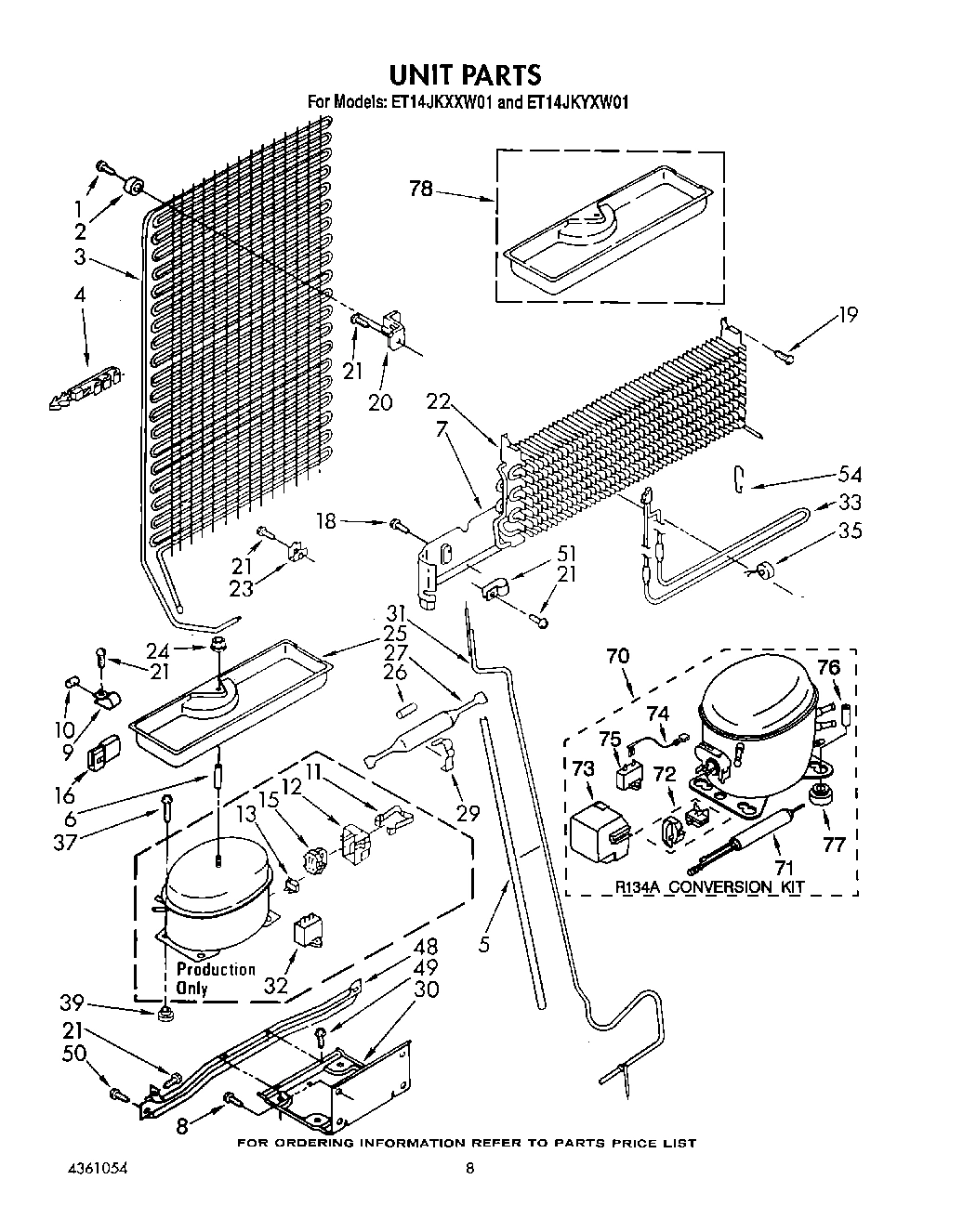

07 - UNIT
Common parts from model Whirlpool ET14JKYXW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42175A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111798 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Spacer WPL 2149077 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Cover, Crisper WPL 1120649 Contact Us For Availability
3
Condenser WPL 2154647 Contact Us For Availability
4
Support, Crisper Cover WPL 1103731 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
5
Post, Cripser Cover WPL 836410 Contact Us For Availability
5
Roller (4) WPL 2152014 Contact Us For Availability
6
Shelf, Ice Tray WPL 2151427 Contact Us For Availability
6
Spacer WPL 2154438 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
8
Pan, Crisper (2) WPL 1111909 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud (2) WPL 939065 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Screw WPL 489327 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Screw, WPL 489370 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Tap Plate (2) WPL 2147312 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Clip, Center Rail WPL 1129018 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118973 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
20
Tape Strip WPL 991259 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2154724 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 1108180 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
25
Tray, Evaporator WPL 942875 Contact Us For Availability
26
Hinge Butt, Bottom (R.H) WPL 1123882 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123389 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Exchanger, Heat WPL 1127957 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119323 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 2151653 Contact Us For Availability
37
Hole Seal WPL 1129056 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Leveler (2) WPL 944766 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
Cover, Plug WPL 1106511 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
Clamp (2) WPL 519405 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
57
Hole Seal WPL 1120224 Contact Us For Availability
63
Seal, Gasket WPL 1106510 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388008 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
