Model Whirlpool ET14JKXSW02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

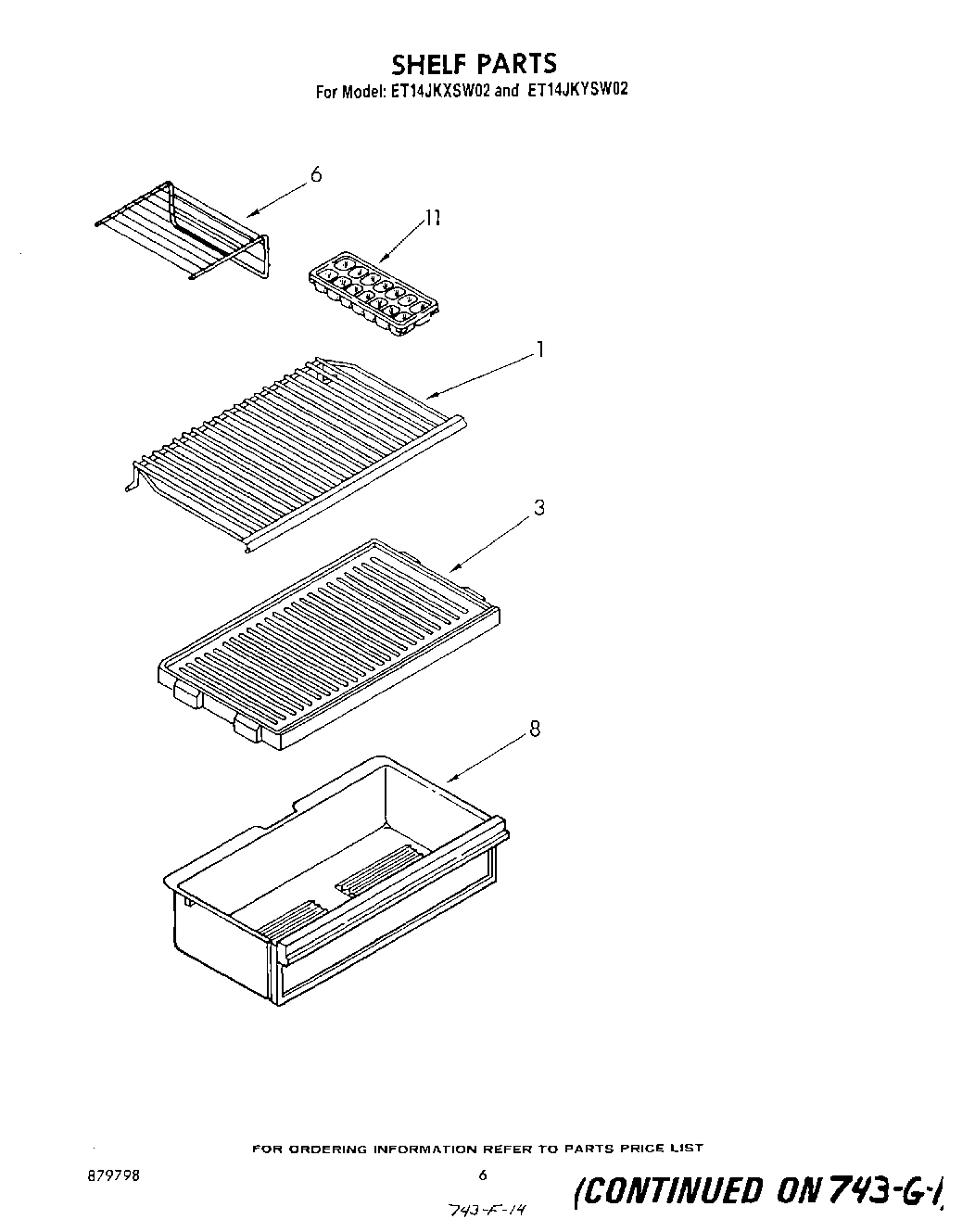

Shelf, Pullout (2) WPL 1105974 Contact Us For Availability

1

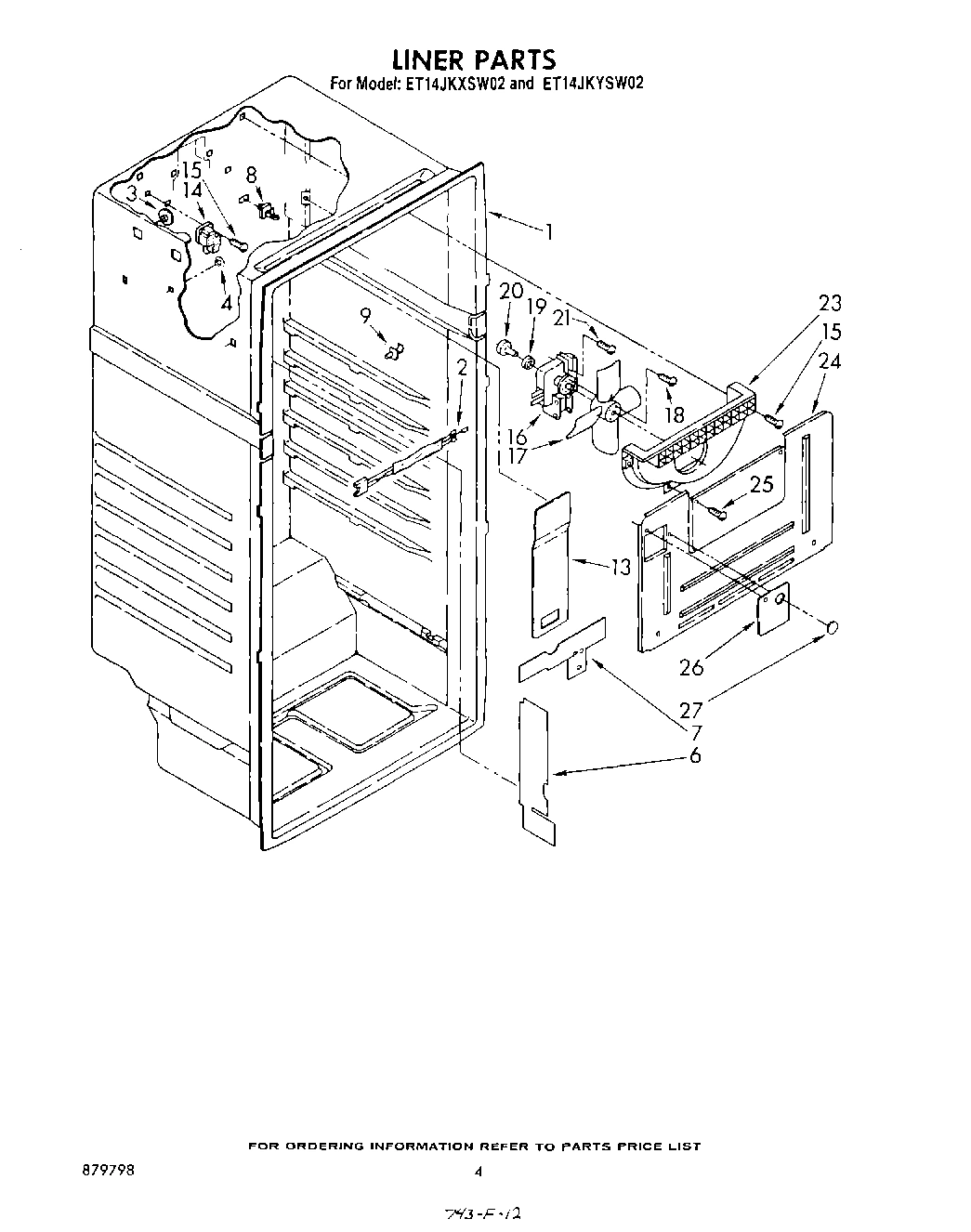

Liner (Not A Serviceable Part) WPL ARI42042A5 Contact Us For Availability

1

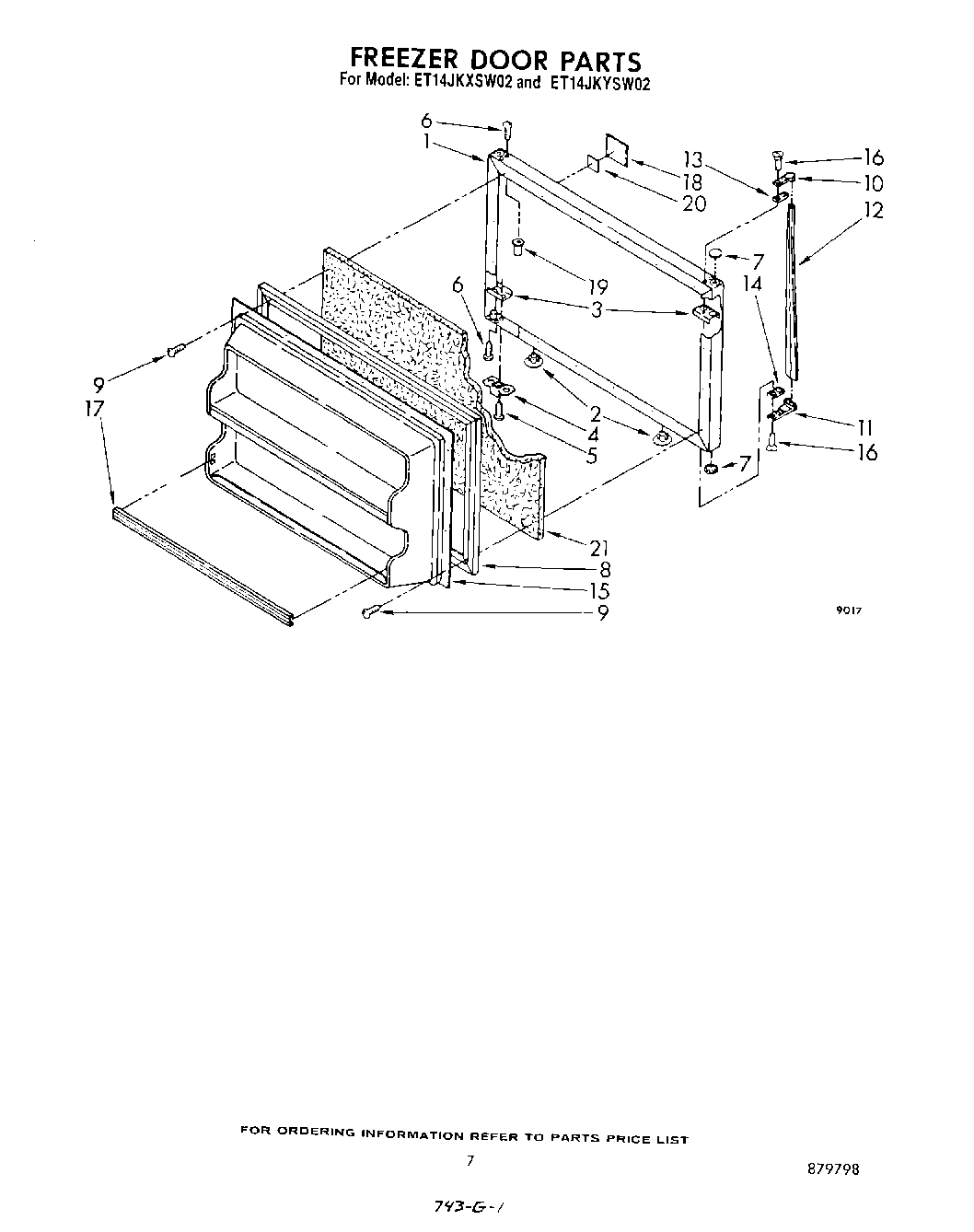

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Toa WPL 1103943 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability

1

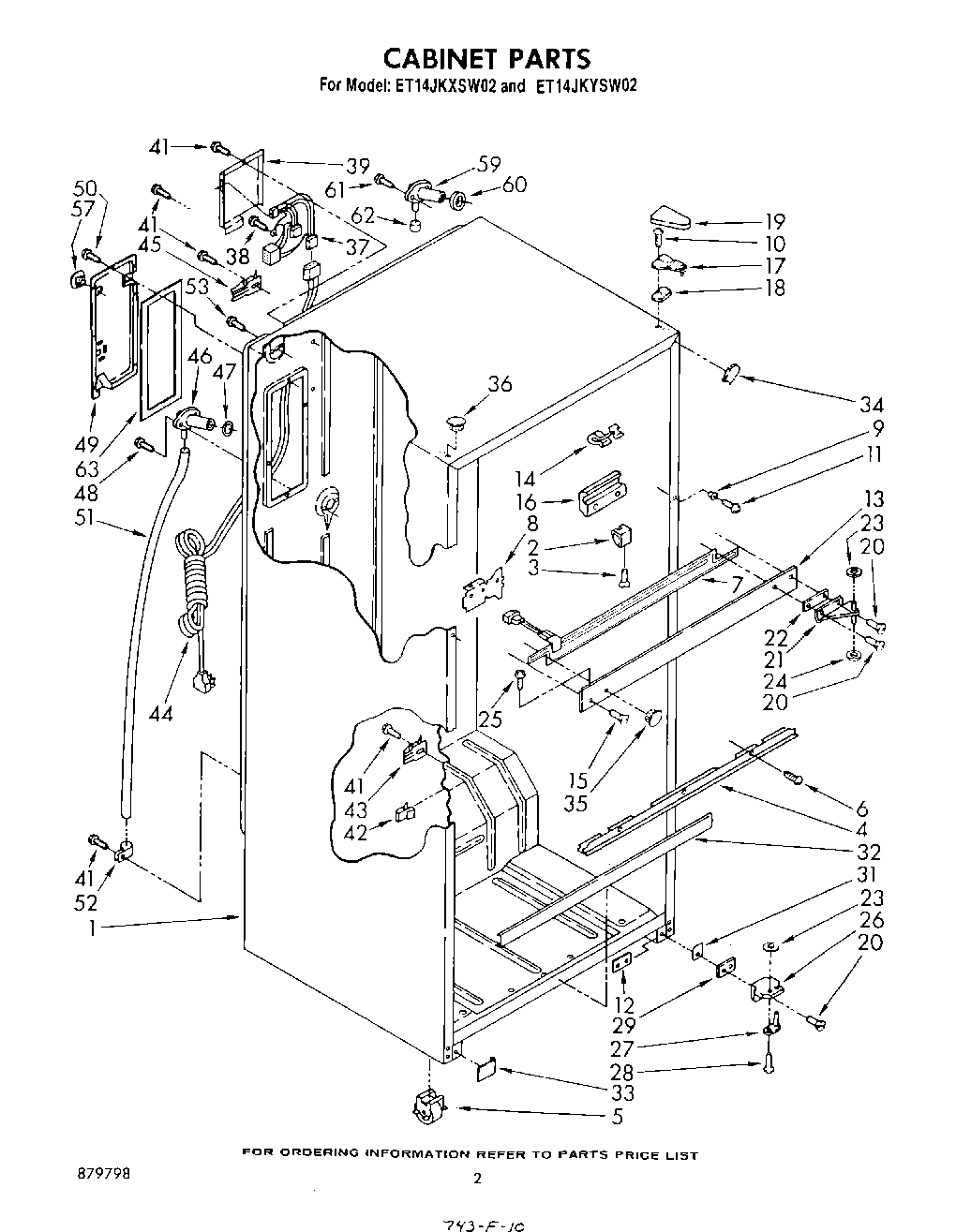

Cabinet (Not A Serviceable Part) WPL ARI42041A3 Contact Us For Availability

2

Box, Control WPL 942757 Contact Us For Availability

2

Wiring, Fan Motor WPL 943722 Contact Us For Availability

2

Hole Plug (Toast) WPL 1100196 Contact Us For Availability

2

Hole Plug (Platinum) WPL 1100197 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

2

Spacer WPL 940024 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

Cover, Crisper WPL 1116011 Contact Us For Availability

3

Hole Plug WPL 944795 Contact Us For Availability

3

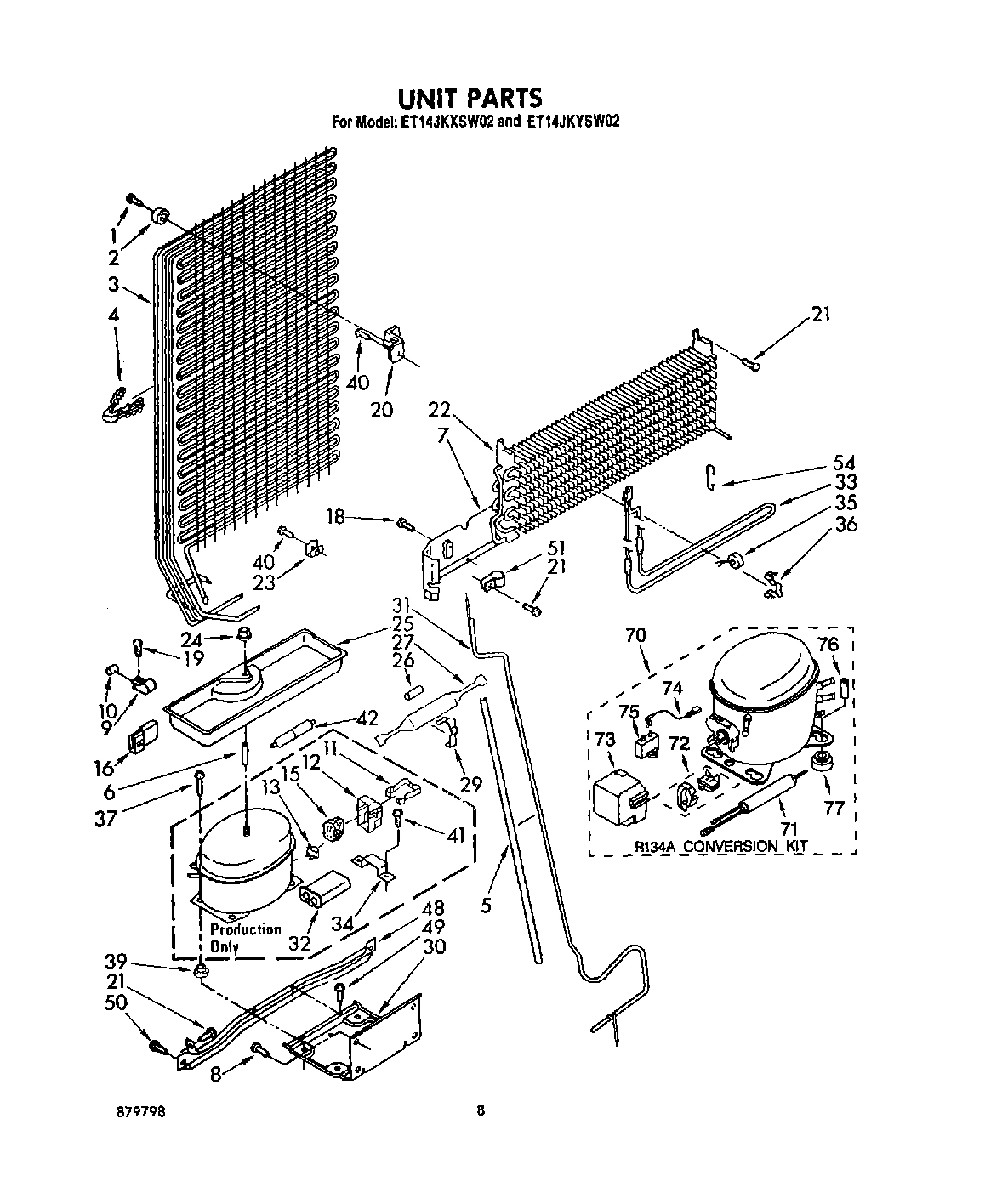

Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability

3

Screw (2) WPL 487888 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Clip Tube (2) WPL 942739 Contact Us For Availability

4

Filler, Rail Center WPL 1111531 Contact Us For Availability

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Roller (4) WPL 937216 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Spacer WPL 1105130 Contact Us For Availability

6

Screw (3) WPL 489167 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Top, Electric Shield WPL 946350 Contact Us For Availability

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

7

Heater, Mullion WPL 1108140 Contact Us For Availability

8

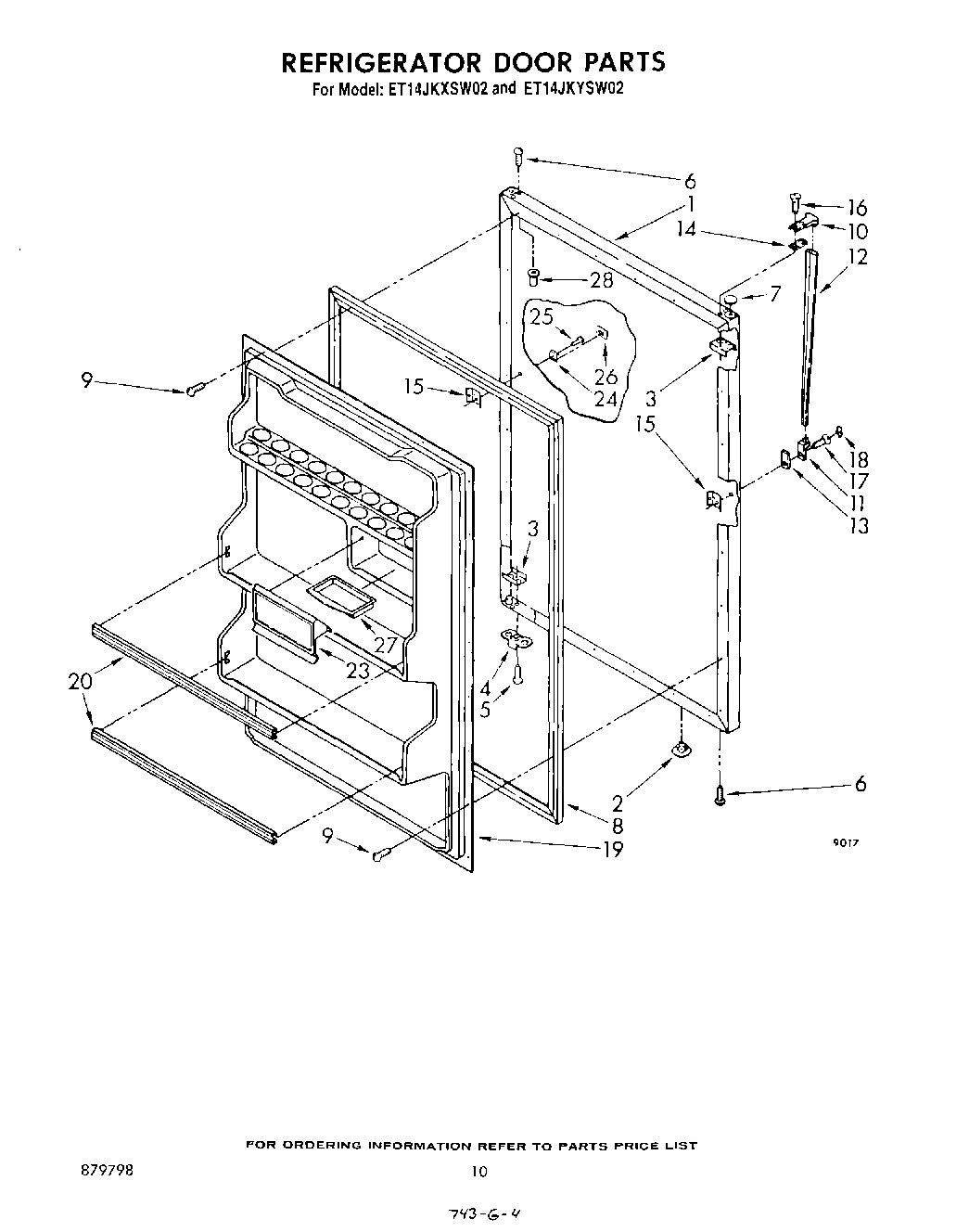

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $100.80

8

Pan, Crisper WPL 1116028 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Stud (2) WPL 939065 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

9

Ferrule, Center Rail WPL 942737 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

10

Dampener WPL 945593 Contact Us For Availability

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $30.71

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Knob, Thermostat WPL 1111759 Contact Us For Availability

Spring, Relay Case WPL 938384 Contact Us For Availability

Screw WPL 489183 Contact Us For Availability

Drain Pan WPL 1108170 Contact Us For Availability

Handle, Center WPL 1106194 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability

Case, Relay WPL 1108144 Contact Us For Availability

Tap Plate (2) WPL 944813 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Retainer, Knob WPL 1111792 Contact Us For Availability

Cover, Air Duct WPL 1108079 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

Center Rail (Toast) WPL 1111513 Contact Us For Availability

Center Rail (Platinum) WPL 1111514 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 1111760 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

Breaker, Trim Clip WPL 534365 Contact Us For Availability

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Gasket, Drain Pan WPL 1108171 Contact Us For Availability

Panel, Interior Door (Freezer) WPL 945701 Contact Us For Availability

Screw WPL 489184 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Rod, Connecting WPL 1111270 Contact Us For Availability

Center, Rail Shim WPL 939034 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Air Diffuser Assembly WPL 935721 Contact Us For Availability

Trim, Door Shelf WPL 1116038 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Gasket, Air Diffuser WPL 937225 Contact Us For Availability

Nameplate WPL 945119 Contact Us For Availability

Shim, Top Hinge WPL 1100509 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Cover, Air Diffuser WPL 937226 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability

Hinge, Center WPL 944788 Contact Us For Availability

Wiring Assembly WPL 937078 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 489042 Contact Us For Availability

22

Wiring, Assembly Control Box WPL 1118580 Contact Us For Availability

22

Evaporator WPL 1108180 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Gasket, Bottom Separator WPL 943733 Contact Us For Availability

Scroll, Fan WPL 942846 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

24

Evaporator Cover WPL 942847 Contact Us For Availability

25

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

25

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

25

Evaporator Tray WPL 1101002 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Insulation, Filler WPL 1108196 Contact Us For Availability

Restrictor Sleeve WPL 510446 Contact Us For Availability

Hinge Butt, Bottom (R.H) WPL 944783 Contact Us For Availability

27

Pin, Hinge WPL 654366 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1110242 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Pad (2) WPL 946367 Contact Us For Availability

29

Clamp, Drier WPL 547637 Contact Us For Availability

29

Shim, Bottom WPL 942812 Contact Us For Availability

30

Unit Mounting Plate WPL 942860 Contact Us For Availability

Exchanger, Heat WPL 1105103 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

Running Capacitor WPL 1118519 Contact Us For Availability

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability

Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability

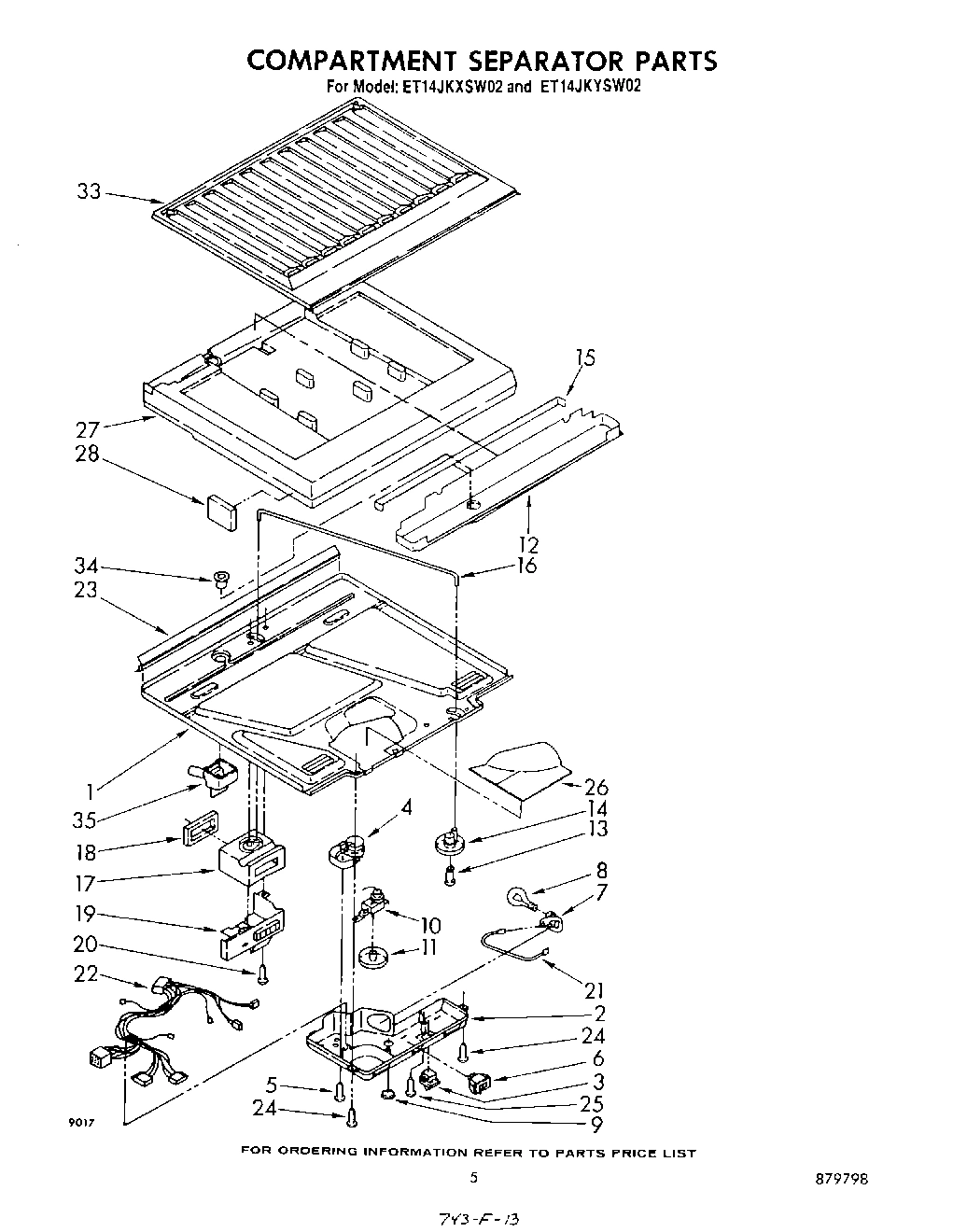

Separator, Compartment (Top) WPL 1119323 Contact Us For Availability

Heater, Defrost WPL 1105164 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability

Cover, Glider WPL 943552 Contact Us For Availability

WPL 944831 WPL 944831 Contact Us For Availability

WPL 944833 WPL 944833 Contact Us For Availability

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

Drain Insert, Separator WPL 942849 Contact Us For Availability

WPL 1110684 WPL 1110684 Contact Us For Availability

WPL 1110685 WPL 1110685 Contact Us For Availability

WPL 1110686 WPL 1110686 Contact Us For Availability

WPL 1110687 WPL 1110687 Contact Us For Availability

WPL 1110688 WPL 1110688 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

Cup, Drain WPL 939191 Contact Us For Availability

WPL 1100687 WPL 1100687 Contact Us For Availability

WPL 1100688 WPL 1100688 Contact Us For Availability

WPL 940086 WPL 940086 Contact Us For Availability

WPL 940087 WPL 940087 Contact Us For Availability

WPL 940089 WPL 940089 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

WPL 1100176 WPL 1100176 Contact Us For Availability

WPL 1100177 WPL 1100177 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WPL 942845 WPL 942845 Contact Us For Availability

40

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

41

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

41

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

42

Muffler WPL 1105136 Contact Us For Availability

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

44

WPL 937360 WPL 937360 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

48

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

48

Unit Mounting Rail WPL 942859 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

WPL 942854 WPL 942854 Contact Us For Availability

50

Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

Clamp WPL 489151 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

54

Support, Heater WPL 1108172 Contact Us For Availability

57

WPL 655411 WPL 655411 Contact Us For Availability

59

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

60

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

62

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

63

WPL 1106510 WPL 1106510 Contact Us For Availability

70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

70

Install Kit WPL 482801 Contact Us For Availability

70

Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability

71

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

72

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

73

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

74

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

76

Sleeve WPL 4387559 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
