Model Whirlpool ET14JKXMWR6 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

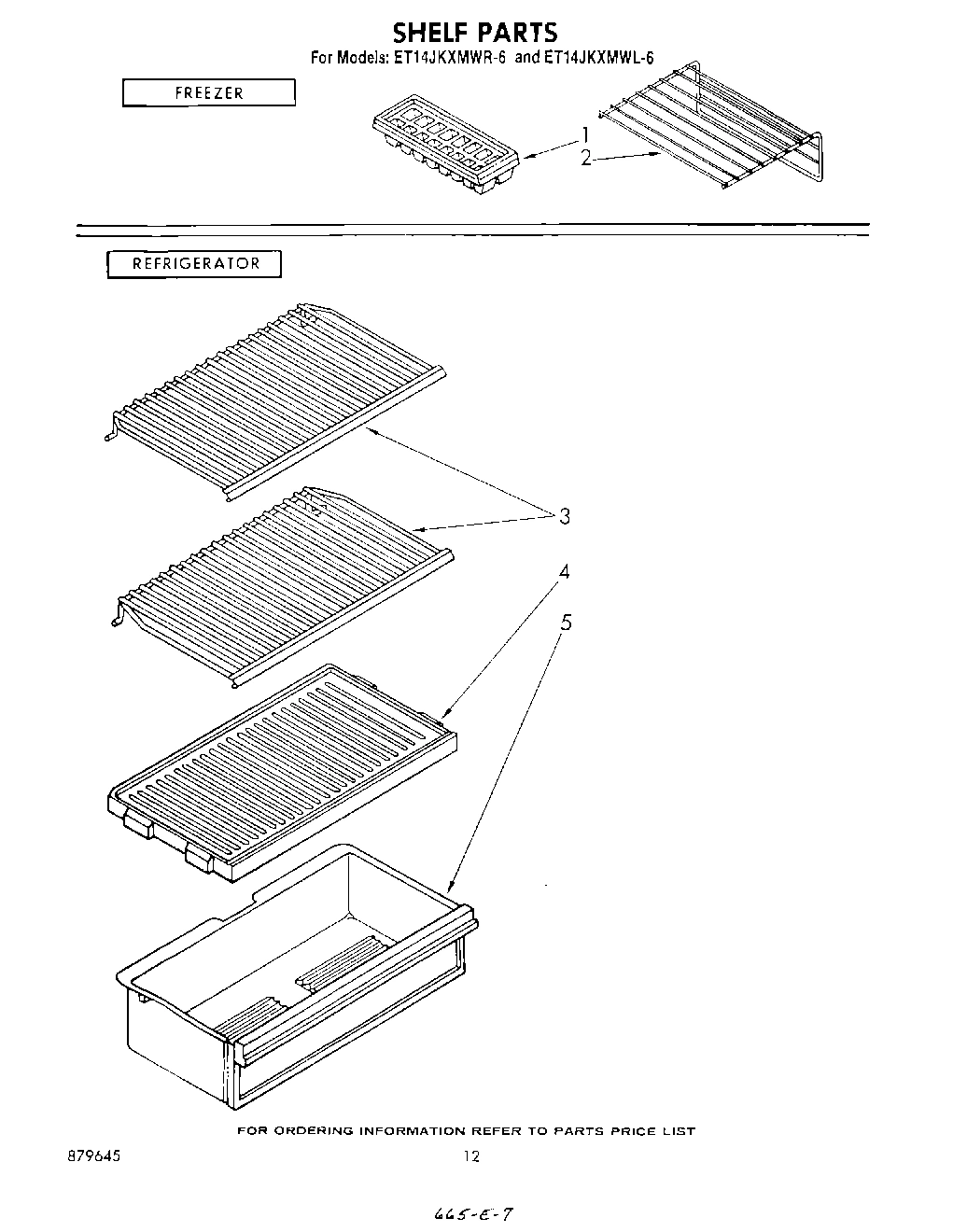

07 - SHELF

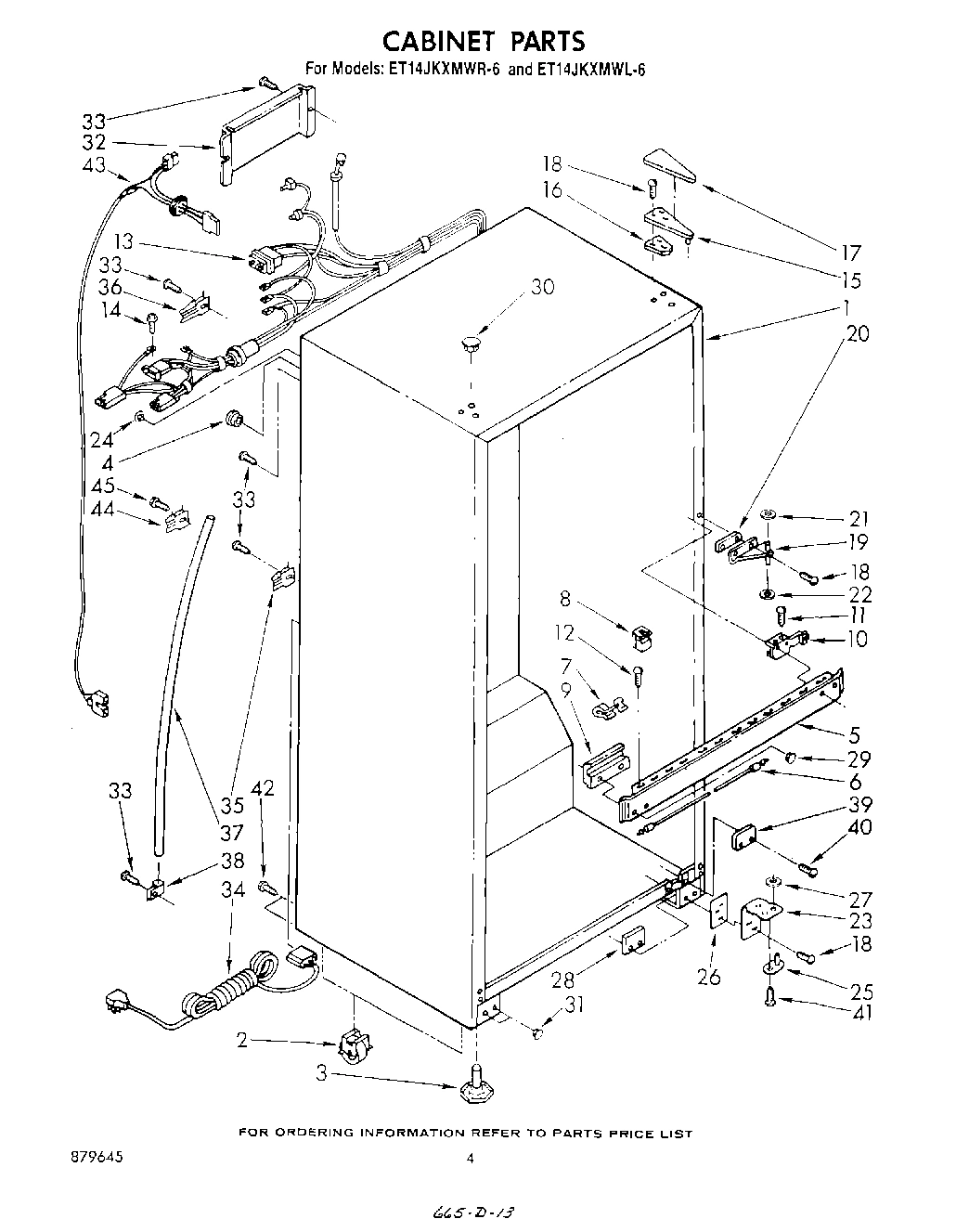

03 - CABINET

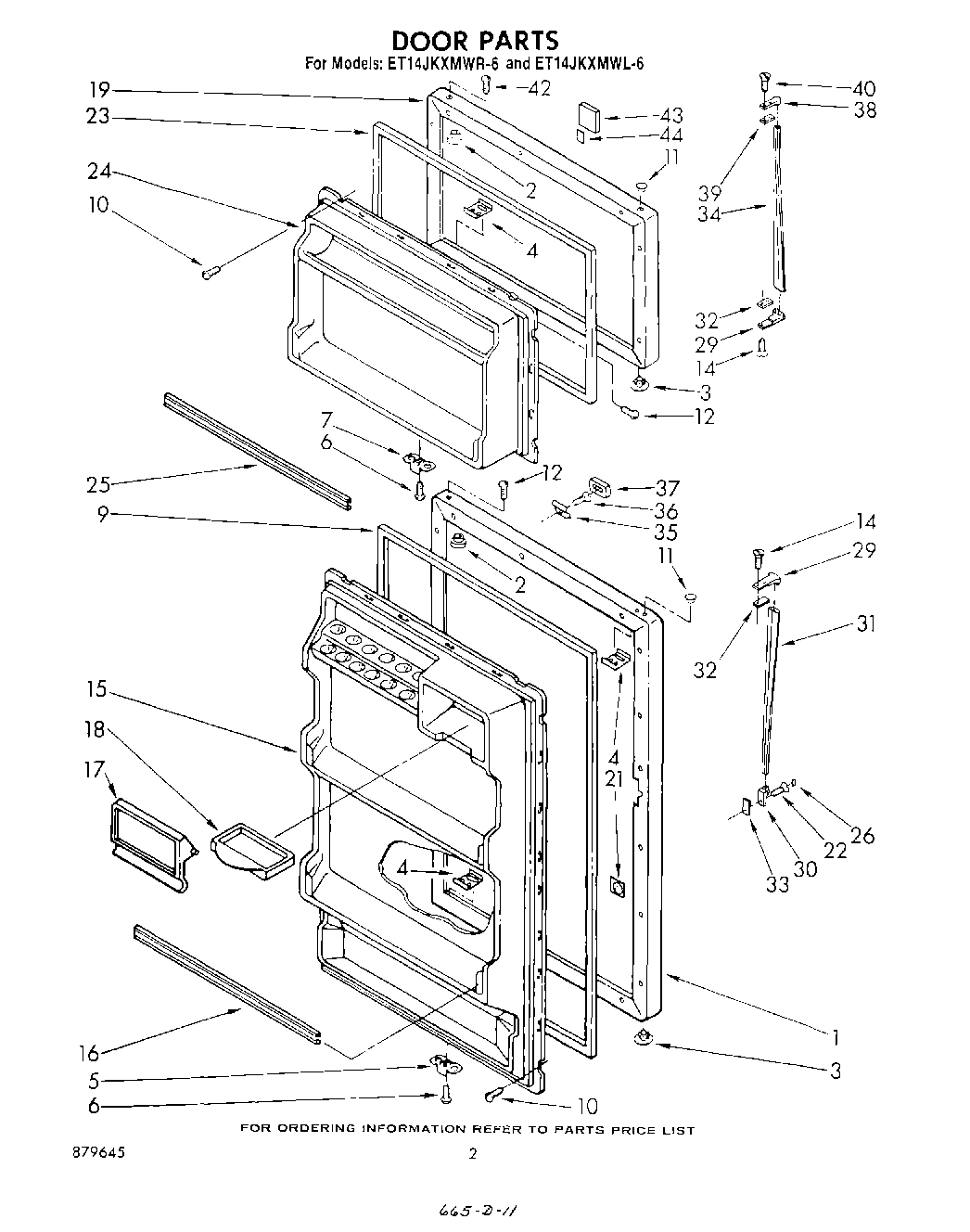

02 - DOOR

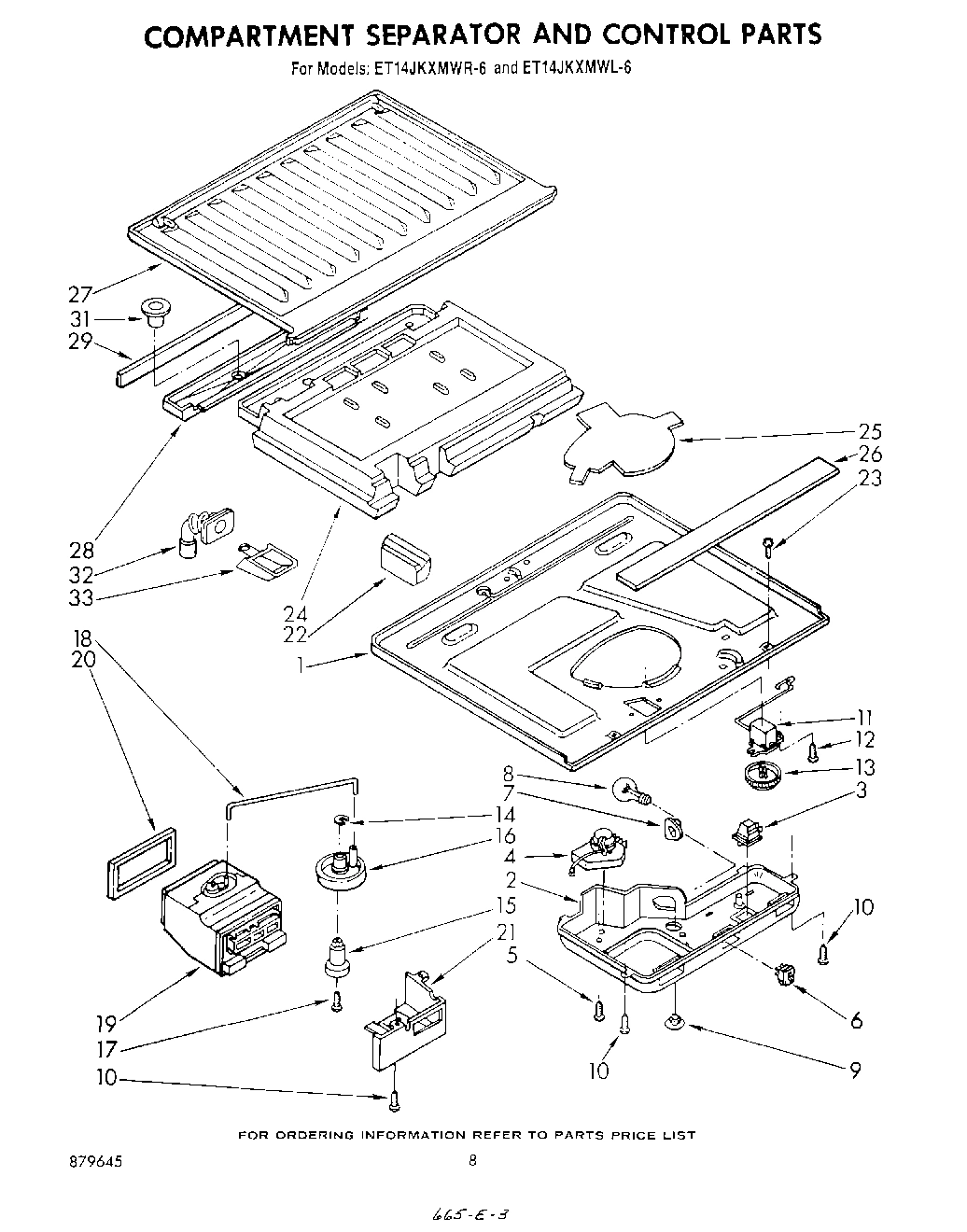

05 - COMPARTMENT SEPARATOR AND CONTROL

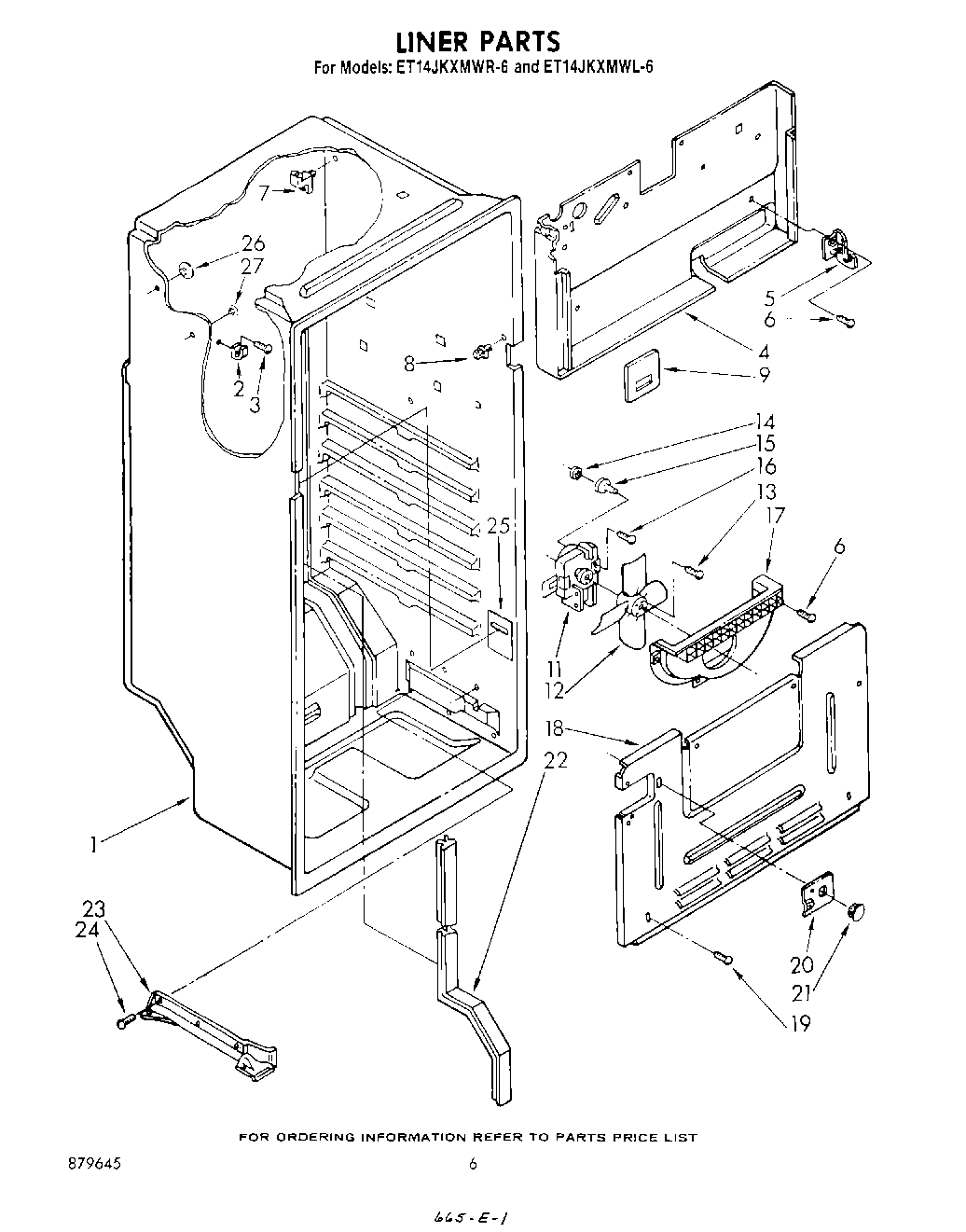

04 - LINER, LIT/OPTIONAL

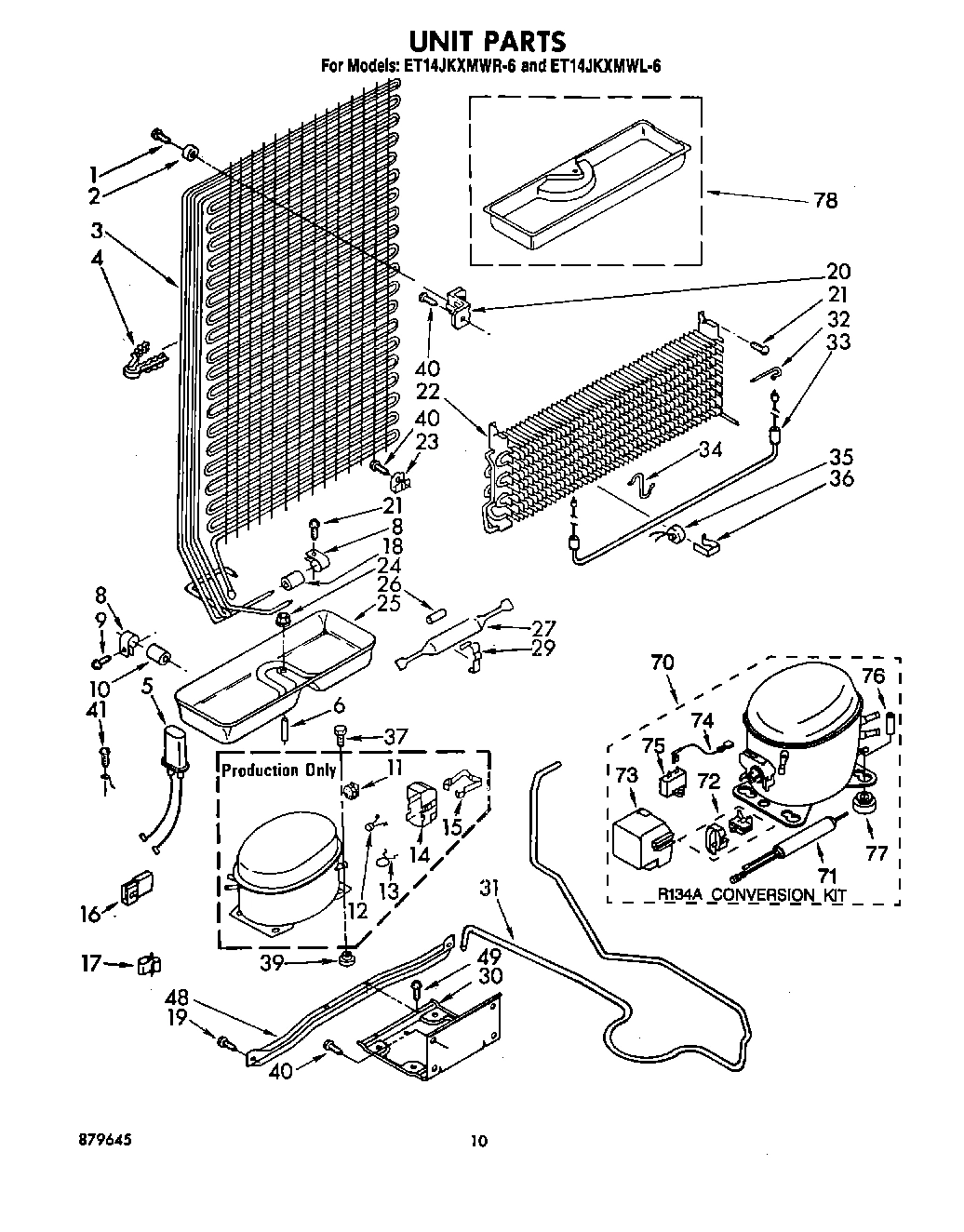

06 - UNIT
Common parts from model Whirlpool ET14JKXMWR6 TOP MOUNT REFRIGERATOR
WPL LIT1115440 WPL LIT1115440 Contact Us For Availability
WPL LIT1116007 WPL LIT1116007 Contact Us For Availability
WPL LIT879645 WPL LIT879645 Contact Us For Availability
WPL LIT942279 WPL LIT942279 Contact Us For Availability
1
Exterior, Door Panel (Toast) WPL 1100225 Contact Us For Availability
1
Exterior, Door Panel (Platinum) WPL 1100226 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Golden Harvest) WPL 944097 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 944099 Contact Us For Availability
1
Bottom, Compartment Separator WPL 935714 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42038A5 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
2
Cap, Hinge WPL 509929 Contact Us For Availability
2
Box, Control WPL 935726 Contact Us For Availability
2
Bracket, Wire Receptacle WPL 939050 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
3
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1115428 Contact Us For Availability
4
Defrost Timer, Mallory WPL 943435 Contact Us For Availability
4
Heat Shield WPL 935699 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
5
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
5
Running Capacitor WPL 1108074 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Bracket, Door Stop WPL 944035 Contact Us For Availability
8
Stud Hook WPL 939065 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Cover, Air Duct WPL 935696 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
11
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
11
Hole Plug (Almond) WPL 989196 Contact Us For Availability
12
Screw (Repair) WPL 488930 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
12
Overload WPL 1114272 Contact Us For Availability
13
Knob, Thermostat WPL 937144 Contact Us For Availability
13
Overload Spring WPL 1114190 Contact Us For Availability
14
Lockwasher WPL 489053 Contact Us For Availability
14
Grommet WPL 531933 Contact Us For Availability
14
Terminal Cover WPL 1108144 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100244 Contact Us For Availability
15
Spacer, Knob WPL 937105 Contact Us For Availability
15
Spacer, Fan Motor WPL 935701 Contact Us For Availability
15
Terminal Cover Strap WPL 938384 Contact Us For Availability
16
Trim, Door Shelf WPL 1110021 Contact Us For Availability
16
Knob, Air Control WPL 935727 Contact Us For Availability
16
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
17
Compartment Door, Butter WPL 1106187 Contact Us For Availability
17
Scroll Fan WPL 836179 Contact Us For Availability
18
Rod, Connecting WPL 1111438 Contact Us For Availability
18
Evaporator Cover WPL 946212 Contact Us For Availability
18
Dampener WPL 945593 Contact Us For Availability
19
Freezer Door Panel (Toast) WPL 1100227 Contact Us For Availability
19
Freezer Door Panel (Platinum) WPL 1100228 Contact Us For Availability
19
Freezer Door Panel (White) WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Golden Harvest) WPL 944103 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 944105 Contact Us For Availability
19
Air Diffuser WPL 935721 Contact Us For Availability
20
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Cover, Air Diffuser WPL 937226 Contact Us For Availability
21
Hole Plug WPL 1103725 Contact Us For Availability
22
Rear Corner, Block WPL 939056 Contact Us For Availability
22
Cover Tube, Rear WPL 935704 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
23
Cover Tube, Bottom WPL 941776 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100247 Contact Us For Availability
24
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
25
Hinge Pin WPL 654366 Contact Us For Availability
25
Trim, Door Shelf WPL 1110024 Contact Us For Availability
25
Heat Shield WPL 937227 Contact Us For Availability
25
Shield, Wiring WPL 946207 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Center Rail, Seal Strip WPL 937086 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
Top, Compartment Separator WPL 935717 Contact Us For Availability
27
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
27
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
27
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
27
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
27
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
WPL 72112 WPL 72112 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 799908 WPL 799908 Contact Us For Availability
27
WPL 944795 WPL 944795 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
28
Drain Pan WPL 935718 Contact Us For Availability
29
Gasket, Drain Pan WPL 937064 Contact Us For Availability
29
Drier Clamp WPL 547637 Contact Us For Availability
30
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
30
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
30
Hole Plug (3) (Golden Harvest) WPL 989876 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Hole Plug (Toast) WPL 1100223 Contact Us For Availability
31
Hole Plug (Platinum) WPL 1100224 Contact Us For Availability
31
Hole Plug (White) WPL 941416 Contact Us For Availability
31
Hole Plug (Almond) WPL 941417 Contact Us For Availability
31
Hole Plug (Golden Harvest) WPL 941419 Contact Us For Availability
31
Handle, Center WPL 1106189 Contact Us For Availability
31
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
31
Separator, Drain Insert WPL 937359 Contact Us For Availability
31
Exchanger, Heat WPL 1115429 Contact Us For Availability
32
Spacer WPL 943188 Contact Us For Availability
32
Cover, Wiring WPL 946218 Contact Us For Availability
32
Fitting, Drain WPL 937062 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
33
WPL 992872 WPL 992872 Contact Us For Availability
33
Cup, Drain WPL 937065 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
34
WPL 937360 WPL 937360 Contact Us For Availability
34
WPL 1106194 WPL 1106194 Contact Us For Availability
34
WPL 1109171 WPL 1109171 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
35
WPL 843213 WPL 843213 Contact Us For Availability
36
WPL 937357 WPL 937357 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
WPL 1100194 WPL 1100194 Contact Us For Availability
37
WPL 1100195 WPL 1100195 Contact Us For Availability
37
WPL 848382 WPL 848382 Contact Us For Availability
37
WPL 989903 WPL 989903 Contact Us For Availability
37
WPL 989904 WPL 989904 Contact Us For Availability
39
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 1100697 WPL 1100697 Contact Us For Availability
39
WPL 1100698 WPL 1100698 Contact Us For Availability
39
WPL 935707 WPL 935707 Contact Us For Availability
39
WPL 935709 WPL 935709 Contact Us For Availability
39
WPL 935711 WPL 935711 Contact Us For Availability
40
WPL 488895 WPL 488895 Contact Us For Availability
40
WPL 488923 WPL 488923 Contact Us For Availability
41
WPL 488714 WPL 488714 Contact Us For Availability
42
WPL 489112 WPL 489112 Contact Us For Availability
43
WPL 945119 WPL 945119 Contact Us For Availability
44
WPL 939009 WPL 939009 Contact Us For Availability
44
WPL 991259 WPL 991259 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
