Model Whirlpool ET14DCXRWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

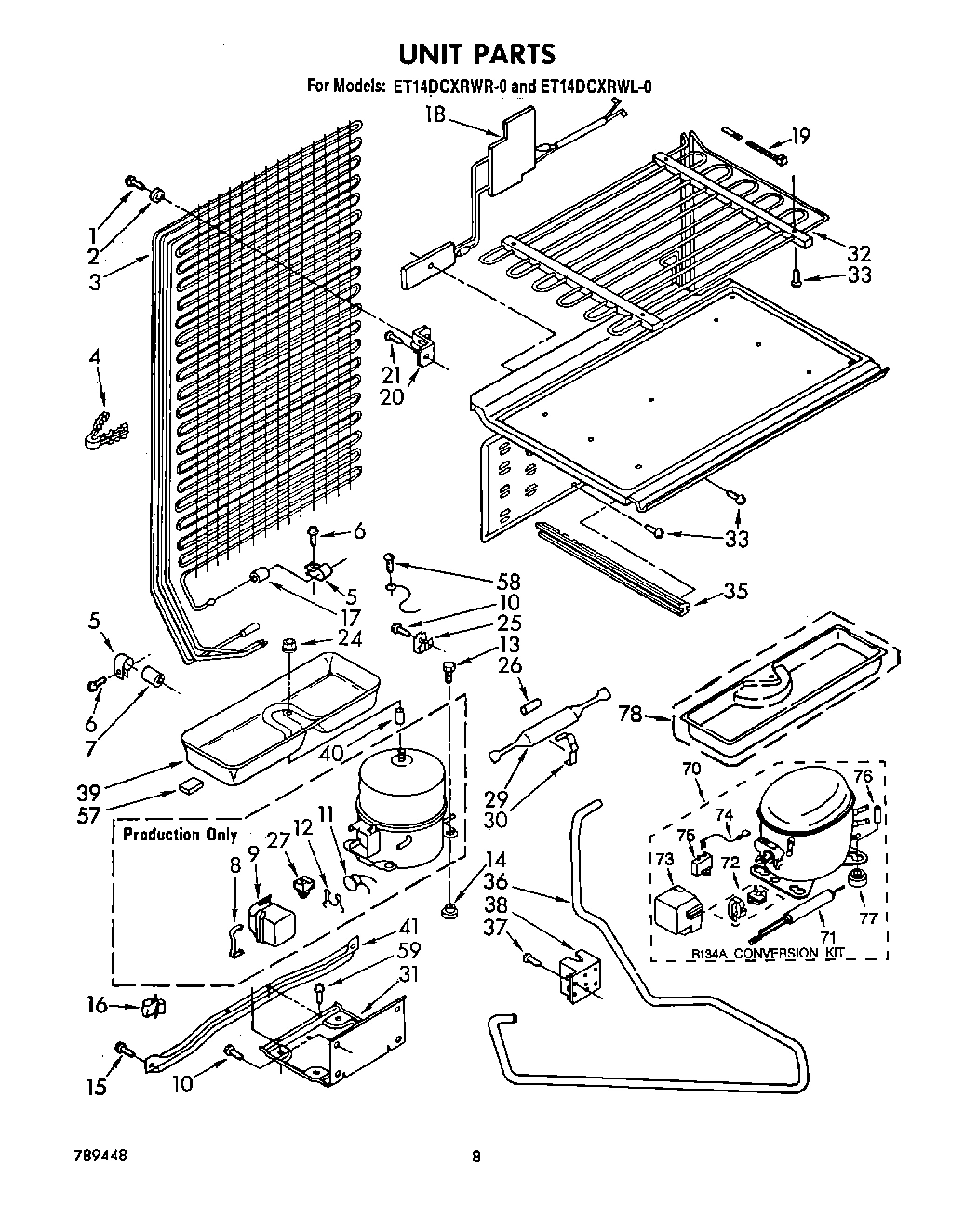

05 - UNIT

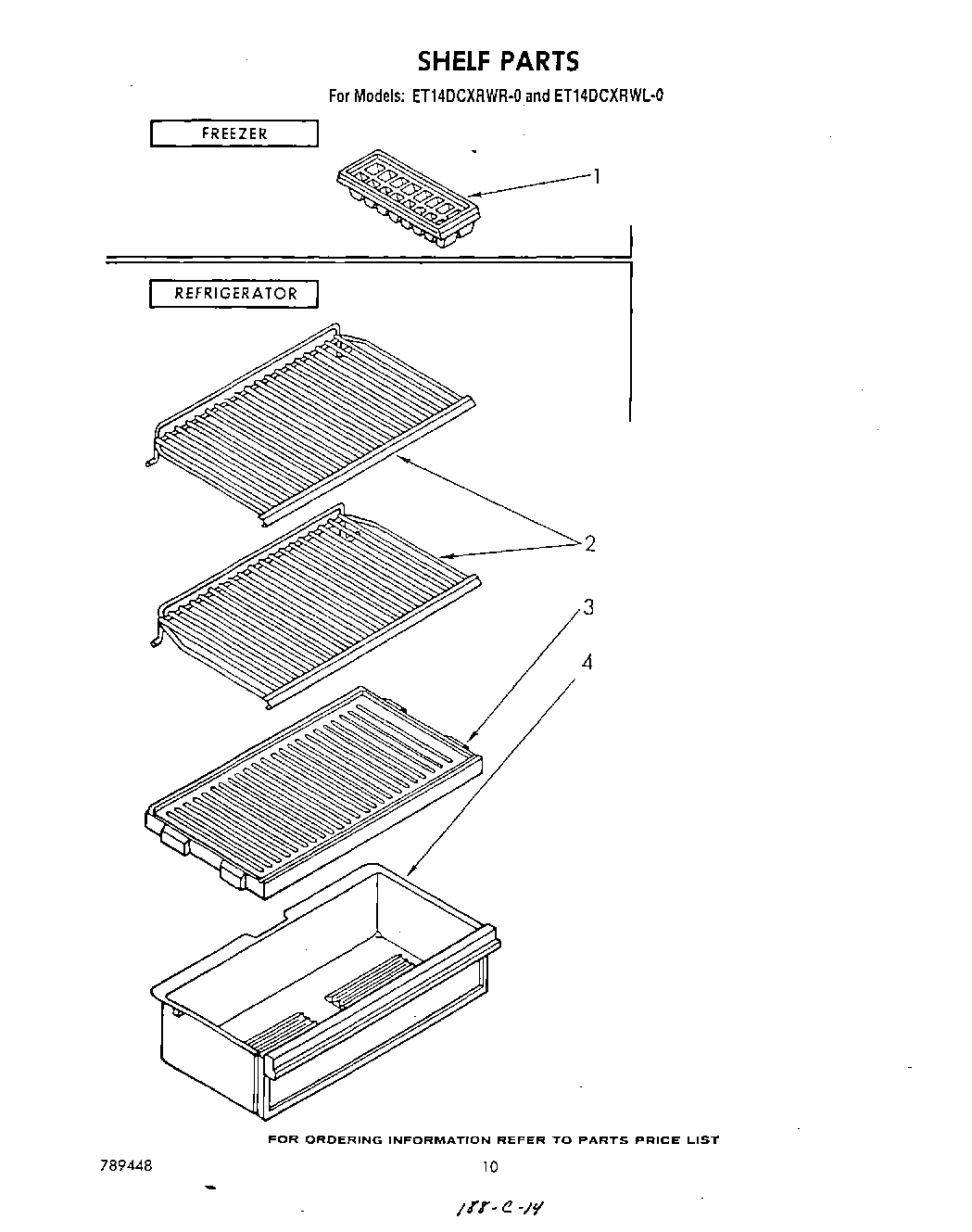

06 - SHELF

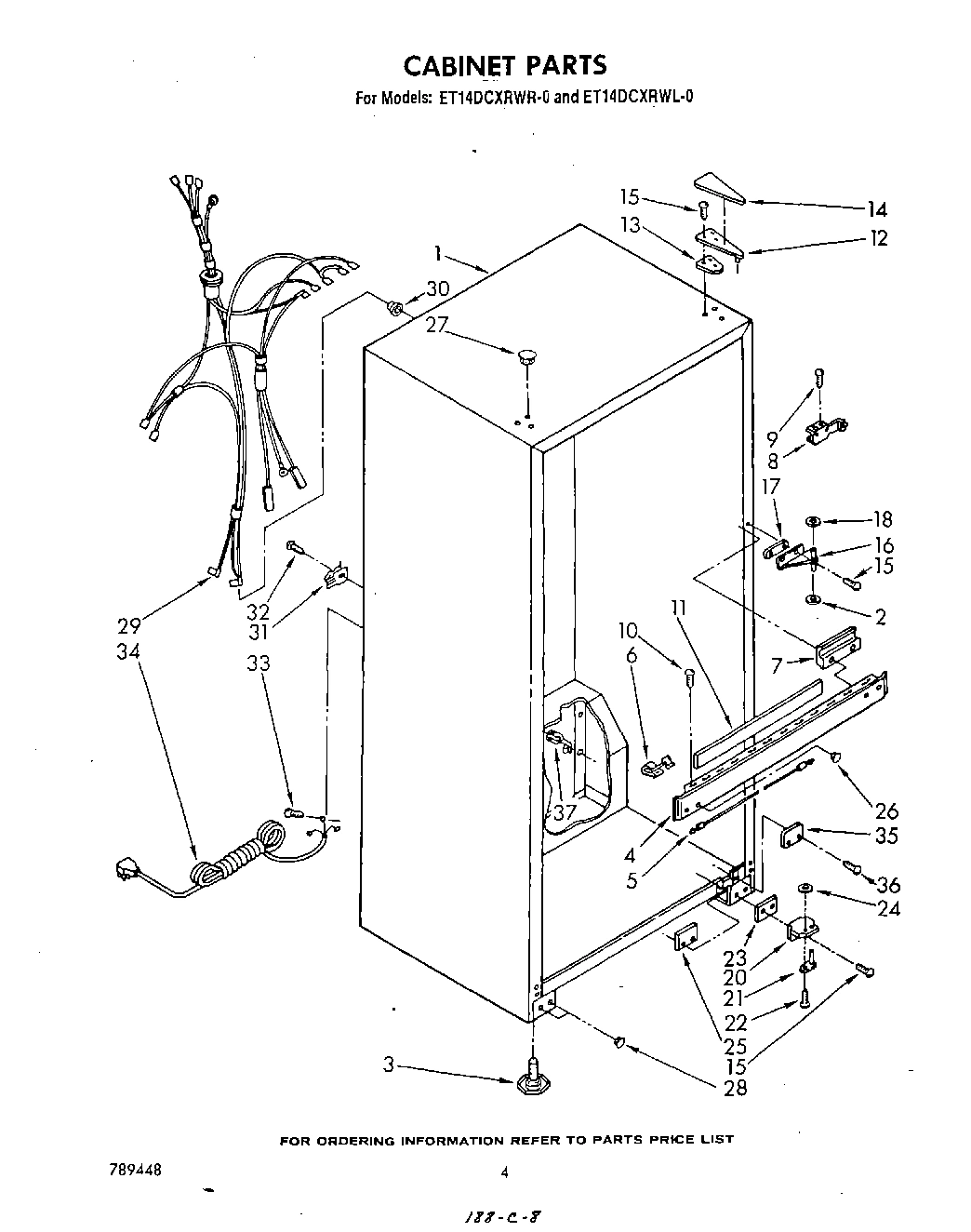

03 - CABINET

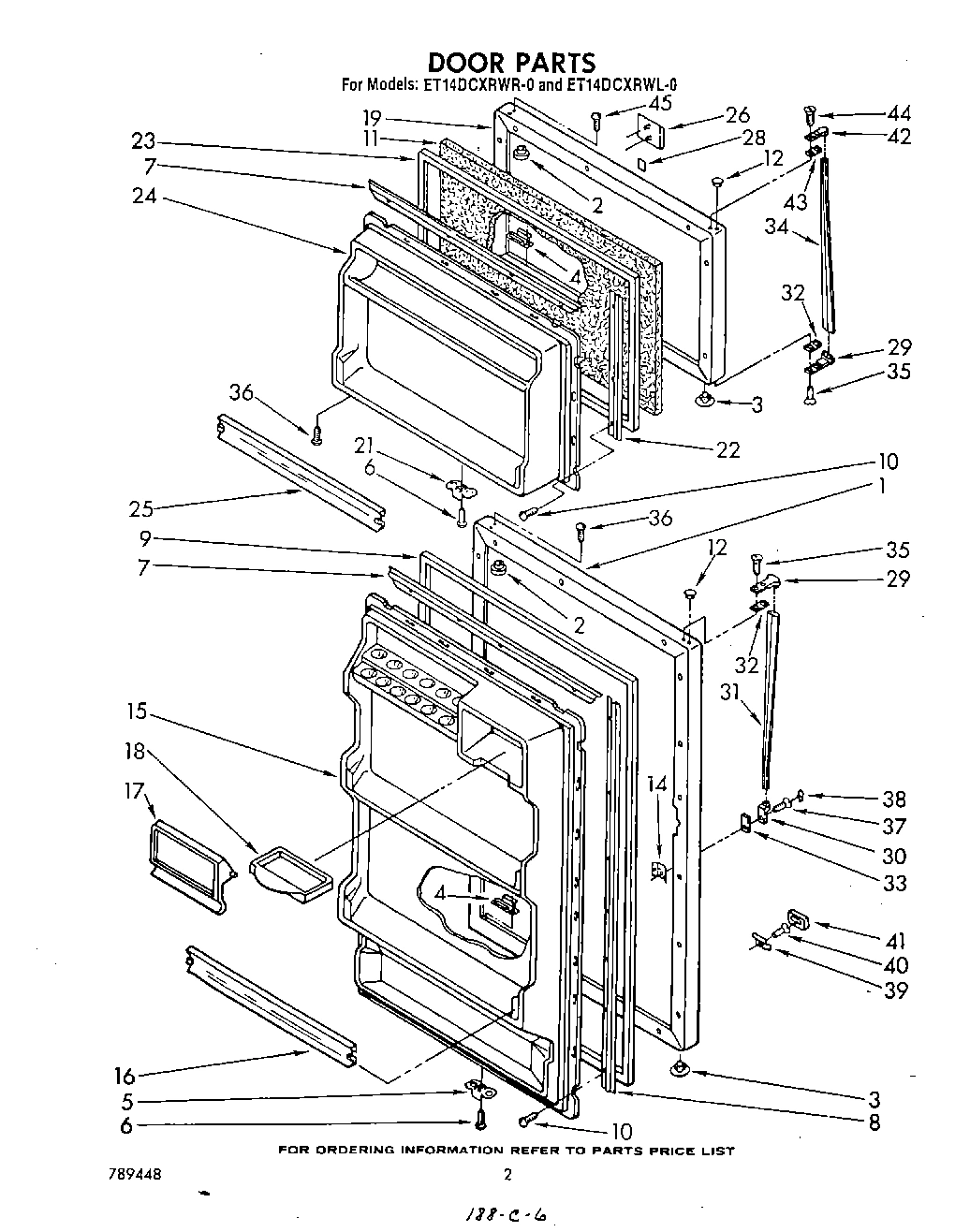

02 - DOOR
04 - LINER , LIT/OPTIONAL
Common parts from model Whirlpool ET14DCXRWR0 TOP MOUNT REFRIGERATOR
WPL LIT1101091 WPL LIT1101091 Contact Us For Availability
WPL LIT1109128 WPL LIT1109128 Contact Us For Availability
WPL LIT1110027 WPL LIT1110027 Contact Us For Availability
WPL LIT789448 WPL LIT789448 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41818A7 Contact Us For Availability
1
Exterior, Door Panel (Toast) WPL 1100225 Contact Us For Availability
1
Exterior, Door Panel (Platinum) WPL 1100226 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Harvest Gold) WPL 944097 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 944099 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI41819A1 Contact Us For Availability
2
Pullout Shelf (2) WPL 937017 Contact Us For Availability
2
Cap, Hinge WPL 509929 Contact Us For Availability
3
Crisper Cover WPL 935744 Contact Us For Availability
3
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Screw Anchor (4) WPL 939989 Contact Us For Availability
4
Pan, Crisper WPL 1110018 Contact Us For Availability
4
Center Rail (Toast) WPL 1100221 Contact Us For Availability
4
Center Rail (Platinum) WPL 1100222 Contact Us For Availability
4
Center Rail (White) WPL 935685 Contact Us For Availability
4
Center Rail (Harvest Gold) WPL 935687 Contact Us For Availability
4
Center Rail (Almond) WPL 935689 Contact Us For Availability
5
Heater, Mullion WPL 935691 Contact Us For Availability
5
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Speed Clip (3) WPL 533998 Contact Us For Availability
6
Clip, Mullion (3) WPL 534365 Contact Us For Availability
6
Electric Shield WPL 937228 Contact Us For Availability
7
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
7
Retainer Gasket, Top & Bottom (2) WPL 935759 Contact Us For Availability
7
Bottom, Compartment Separator WPL 937014 Contact Us For Availability
8
Bracket, Center Rail (2) WPL 935692 Contact Us For Availability
8
Retainer, Gasket Side (2) WPL 935760 Contact Us For Availability
9
Insulation, Compartment Separator WPL 937015 Contact Us For Availability
10
Insulation, Crossover Tube WPL 1100975 Contact Us For Availability
11
Seal, Strip WPL 940092 Contact Us For Availability
11
Breaker Trim, Mullion WPL 937016 Contact Us For Availability
12
Hinge, Top WPL 842039 Contact Us For Availability
12
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
12
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
12
Hole Plug (Almond) WPL 989196 Contact Us For Availability
12
Control Box WPL 939089 Contact Us For Availability
13
Shim, Hinge WPL 836192 Contact Us For Availability
13
Thermostat WPL 1101095 Contact Us For Availability
14
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
14
Hinge Cover (Harvest Gold) WPL 989896 Contact Us For Availability
15
Screw (Repair) WPL 488949 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100233 Contact Us For Availability
16
Hinge, Center WPL 836153 Contact Us For Availability
16
Trim, Door Shelf WPL 1110021 Contact Us For Availability
17
Shim, Hinge Center WPL 836155 Contact Us For Availability
17
Compartment Door, Butter WPL 1106187 Contact Us For Availability
18
Light Shield WPL 937230 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Toas WPL 1100227 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Plat WPL 1100228 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Harv WPL 944103 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944105 Contact Us For Availability
20
Hinge Butt, WPL 935735 Contact Us For Availability
21
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
21
Bracket, Door Stop WPL 944035 Contact Us For Availability
21
Cover, Control Box WPL 937028 Contact Us For Availability
22
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
22
Retainer, Gasket Side (Freezer) WPL 935775 Contact Us For Availability
22
Control Knob WPL 845233 Contact Us For Availability
23
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
23
Drain Trough WPL 1105059 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100131 Contact Us For Availability
25
Tap Plate WPL 935743 Contact Us For Availability
25
Trim, Door Shelf WPL 1110024 Contact Us For Availability
25
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
26
Hole Plug (2) (Platinum) WPL 1100687 Contact Us For Availability
26
Hole Plug (2) (Toast) WPL 1100688 Contact Us For Availability
26
Hole Plug (2) (White) WPL 940086 Contact Us For Availability
26
Hole Plug (2) (Almond) WPL 940087 Contact Us For Availability
26
Hole Plug (2) (Harvest Gold) WPL 940089 Contact Us For Availability
26
Nameplate WPL 945119 Contact Us For Availability
26
Tube Cover WPL 937021 Contact Us For Availability
27
Hole Plug (3) (Toast) WPL 1100176 Contact Us For Availability
27
Hole Plug (3) (Platinum) WPL 1100177 Contact Us For Availability
27
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
27
Hole Plug (3) (Harvest Gold) WPL 989876 Contact Us For Availability
27
Wire Cover (Rear) WPL 939957 Contact Us For Availability
28
Hole Plug (2) (Toast) WPL 1100223 Contact Us For Availability
28
Hole Plug (2) (Platinum) WPL 1100224 Contact Us For Availability
28
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
28
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
28
Hole, Plug (2) (Harvest Gold) WPL 941419 Contact Us For Availability
28
Tape Strip WPL 991259 Contact Us For Availability
28
Plastic, Rivet WPL 939961 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 937011 Contact Us For Availability
29
Wire Cover (Front) WPL 939960 Contact Us For Availability
30
Grommet, Wiring WPL 938284 Contact Us For Availability
30
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
31
Clamp WPL 939009 Contact Us For Availability
31
Handle, Center WPL 1106189 Contact Us For Availability
31
Handle Cente WPL 1109166 Contact Us For Availability
31
Tube Entry Cover (Rear) WPL 937032 Contact Us For Availability
32
WPL 943188 WPL 943188 Contact Us For Availability
32
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
33
WPL 992872 WPL 992872 Contact Us For Availability
33
WPL 488474 WPL 488474 Contact Us For Availability
34
WPL 850626 WPL 850626 Contact Us For Availability
34
WPL 1106194 WPL 1106194 Contact Us For Availability
34
WPL 1109171 WPL 1109171 Contact Us For Availability
34
Fitting, Drain WPL 842256 Contact Us For Availability
35
WPL 1100697 WPL 1100697 Contact Us For Availability
35
WPL 1100698 WPL 1100698 Contact Us For Availability
35
WPL 935707 WPL 935707 Contact Us For Availability
35
WPL 935709 WPL 935709 Contact Us For Availability
35
WPL 935711 WPL 935711 Contact Us For Availability
35
WPL 488923 WPL 488923 Contact Us For Availability
35
Clip, Thermostat WPL 510714 Contact Us For Availability
36
WPL 876029 WPL 876029 Contact Us For Availability
36
WPL 479502 WPL 479502 Contact Us For Availability
36
WPL 488895 WPL 488895 Contact Us For Availability
36
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
36
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
36
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
36
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
36
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
36
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
WPL 542639 WPL 542639 Contact Us For Availability
36
WPL 72112 WPL 72112 Contact Us For Availability
36
WPL 799832 WPL 799832 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 799908 WPL 799908 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
37
WPL 544108 WPL 544108 Contact Us For Availability
39
WPL 843213 WPL 843213 Contact Us For Availability
41
WPL 1100194 WPL 1100194 Contact Us For Availability
41
WPL 1100195 WPL 1100195 Contact Us For Availability
41
WPL 848382 WPL 848382 Contact Us For Availability
41
WPL 989903 WPL 989903 Contact Us For Availability
41
WPL 989904 WPL 989904 Contact Us For Availability
43
WPL 943187 WPL 943187 Contact Us For Availability
45
WPL 488930 WPL 488930 Contact Us For Availability
45
WPL 489112 WPL 489112 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
Start Kit WPL 482278 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
