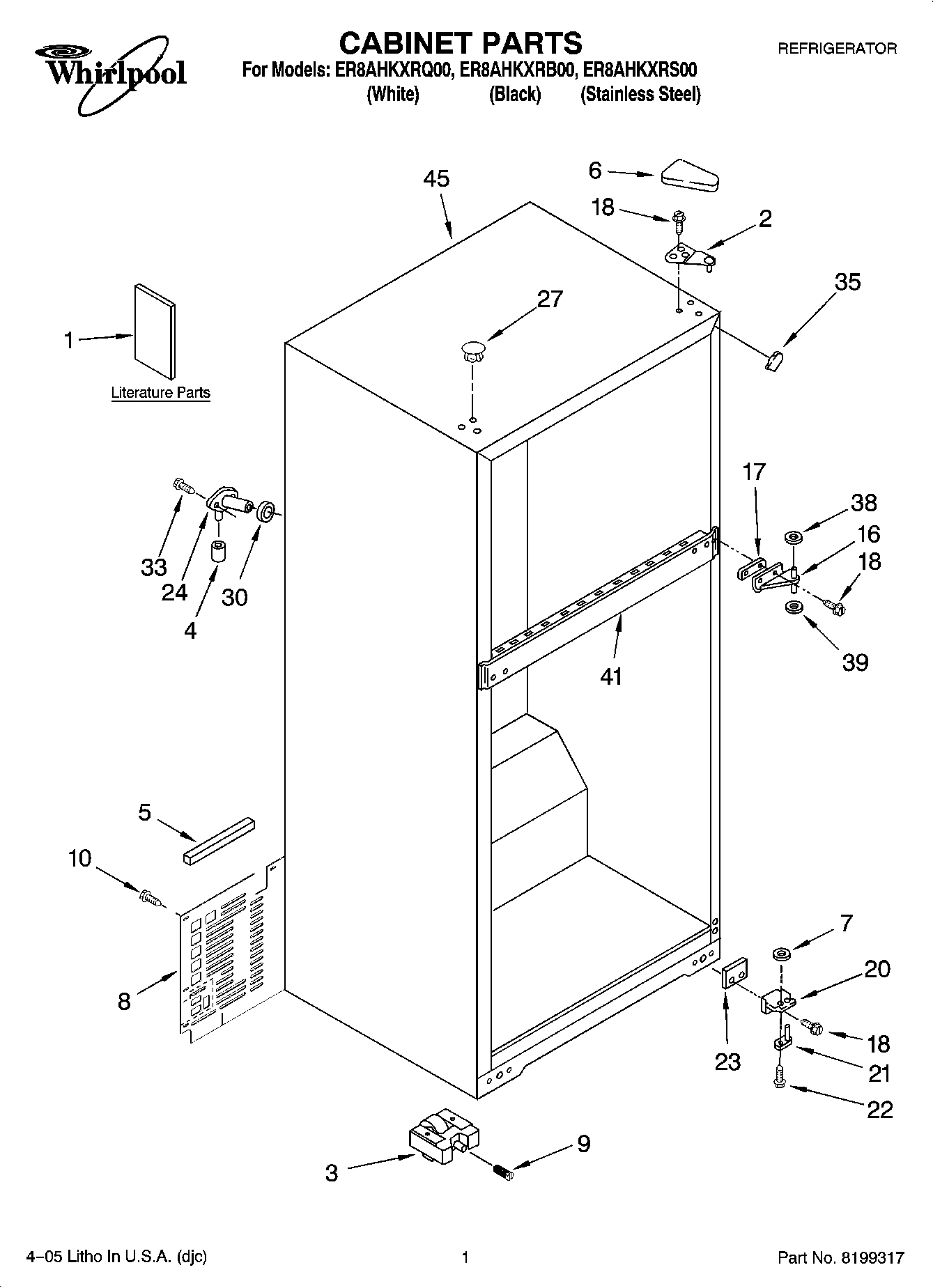

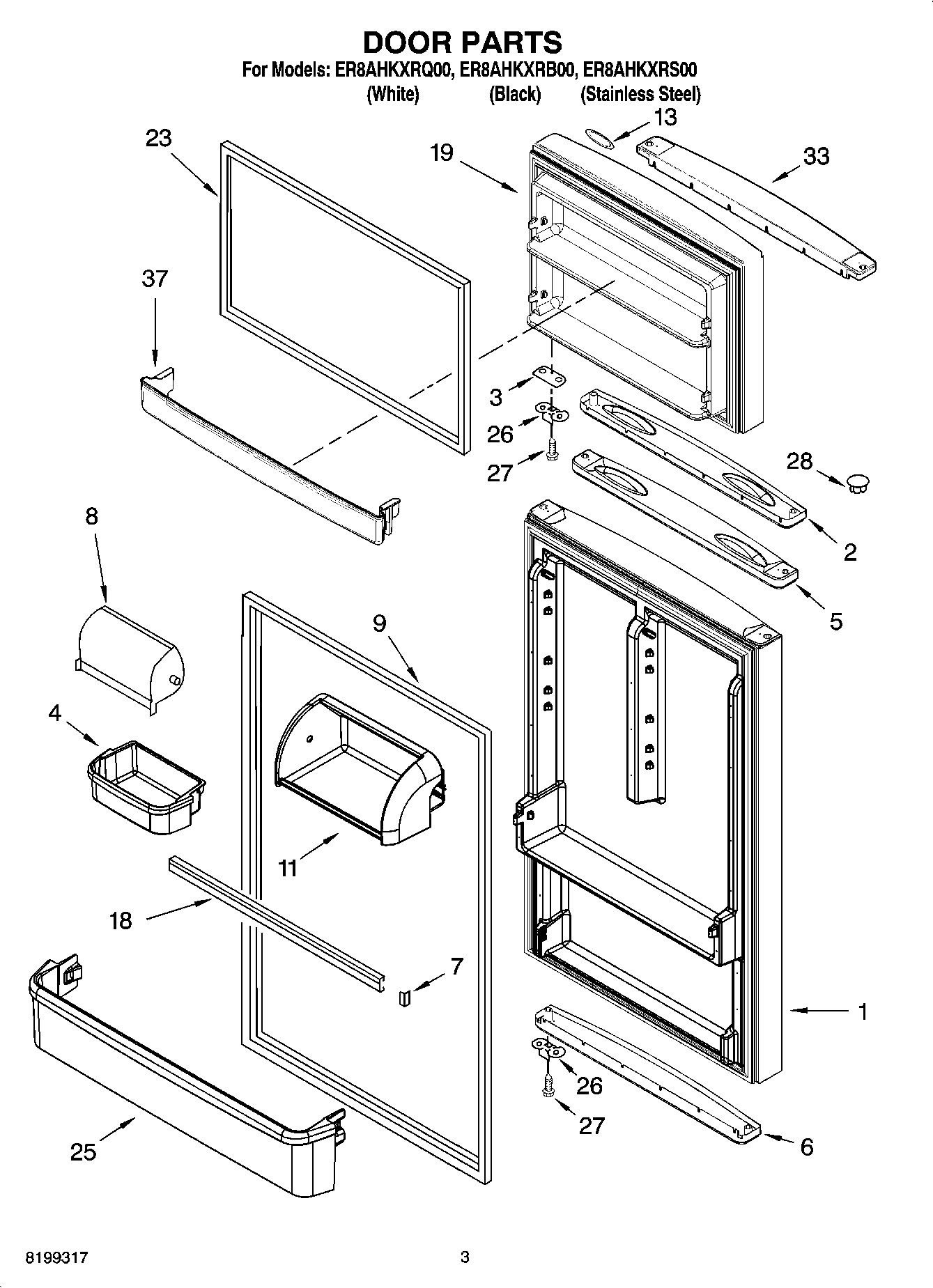

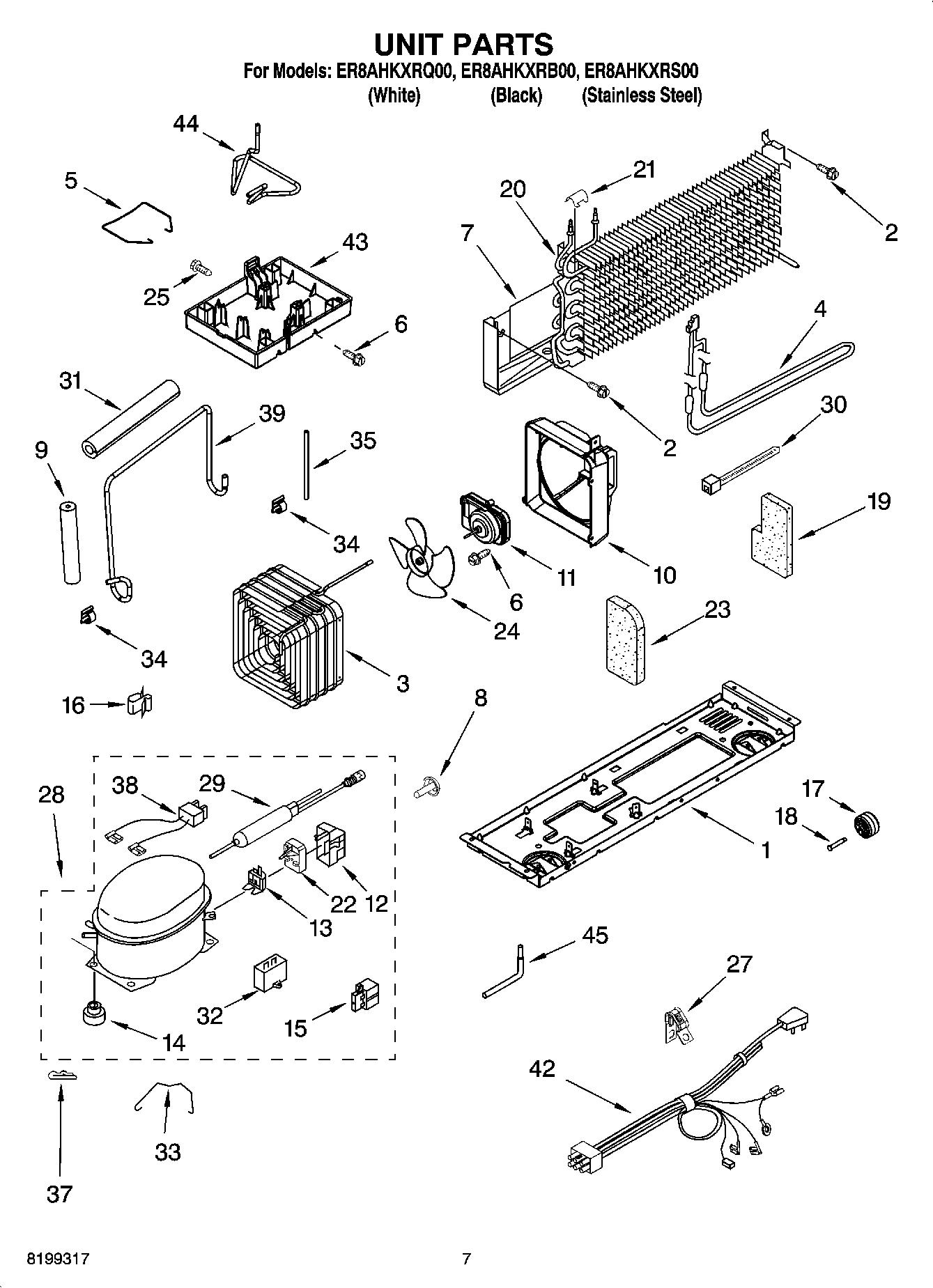

Model Whirlpool ER8AHKXRS00 REFRIGERATOR – Common Parts &amp; Diagrams

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Use & Care Guide WPL 2265301 Contact Us For Availability

1

Energy Guide WPL 2265304 Contact Us For Availability

1

Service & Wiring Sheet WPL 2265591 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI40423A4 Contact Us For Availability

2

W10837901 Whirlpool Refrigerator Glass Shelf Backorder WPL W10837901 $100.31

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

2258681B Whirlpool Refrigerator Shim Backorder WPL 2258681B $26.43

3

2324094 Whirlpool Refrigerator Cabinet Roller Backorder WPL 2324094 $240.80

3

WP2258681W Whirlpool Refrigerator Shim Backorder WPL WP2258681W $3.70

3

WP2262441 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2262441 $115.54

3

WP2264004 Whirlpool Refrigerator Condenser Backorder WPL WP2264004 $80.76

4

W11475670 Whirlpool Crisper Drawer In Stock WPL W11475670 $72.82

4

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

5

Foam Block WPL 2264535 Contact Us For Availability

6

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

6

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

7

2265572 Whirlpool Refrigerator Wire Harness Backorder WPL 2265572 $36.75

7

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

7

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

8

WP2222031 Whirlpool Refrigerator Cover In Stock WPL WP2222031 $99.97

8

WP2264132 Whirlpool Refrigerator Unit Cover Backorder WPL WP2264132 $53.60

8

Door, Compartment WPL 2264478 Contact Us For Availability

9

2222100 Whirlpool Refrigerator Screw Backorder WPL 2222100 $28.80

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

2264477 Whirlpool Refrigerator Housing Assemb Backorder WPL 2264477 $35.67

11

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $44.36

11

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

13

WP2256601 Whirlpool Refrigerator Holder Backorder WPL WP2256601 $64.35

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

15

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

16

WP2166037 Whirlpool Refrigerator Door Hinge In Stock WPL WP2166037 $49.36

16

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

2215385 Whirlpool Refrigerator Shim Backorder WPL 2215385 $28.80

17

2263085 Whirlpool Refrigerator Trim Pan Backorder WPL 2263085 $35.74

18

2215011 Whirlpool Refrigerator Shelf Trim Backorder WPL 2215011 $44.14

18

WP2264756 Whirlpool Refrigerator Rivet Backorder WPL WP2264756 $3.70

18

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

20

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

20

WP2325482 Whirlpool Bottom Hinge In Stock WPL WP2325482 $28.51

21

Hinge-Pin, Bottom WPL 9791682 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

22

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

23

Air Tower WPL 9790408 No Longer Available

23

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $3.70

24

2264129 Whirlpool Refrigerator Fan Blade Backorder WPL 2264129 $43.11

24

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

25

WP489489 Whirlpool Screw Backorder WPL WP489489 $2.38

25

Cover, Air Return WPL 2261978 Contact Us For Availability

26

Air Diffuser WPL 2256715 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

Compressor (Includes Items 12,13,14,15,29, 32 WPL 2217634 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

2264838 Whirlpool Refrigerator Sleeve Backorder WPL 2264838 $28.80

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

33

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

34

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $4.19

35

2264278 Whirlpool Refrigerator Extension Backorder WPL 2264278 $26.21

35

W10859322 Whirlpool Refrigerator Filler Backorder WPL W10859322 $3.70

35

W11500943 Whirlpool Refrigerator Filler Backorder WPL W11500943 $2.40

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

38

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

39

2264131 Whirlpool Refrigerator Tube Extension Backorder WPL 2264131 $9.81

39

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

41

Grill (4) WPL 2263082 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI40424A1 Contact Us For Availability

42

Wire Assy. Unit WPL 2263753 Contact Us For Availability

43

WP2263928 Whirlpool Refrigerator Evaporator T Backorder WPL WP2263928 $50.62

44

2316181 Whirlpool Tube Backorder WPL 2316181 $41.45

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11661102 Whirlpool Tube Backorder WPL W11661102 $11.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI40427A3 Contact Us For Availability

REFRIGERANT CHARGE 3.75 Ozs. (R WPL ARI40428A5 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI40425A1 Contact Us For Availability

49

2252831 Whirlpool Refrigerator Air Duct Backorder WPL 2252831 $34.24
