Model Whirlpool EL88TRRWS03 FREEZER, VERTICAL – Common Parts & Diagrams
03 - LINER PARTS
06 - OPTIONAL PARTS

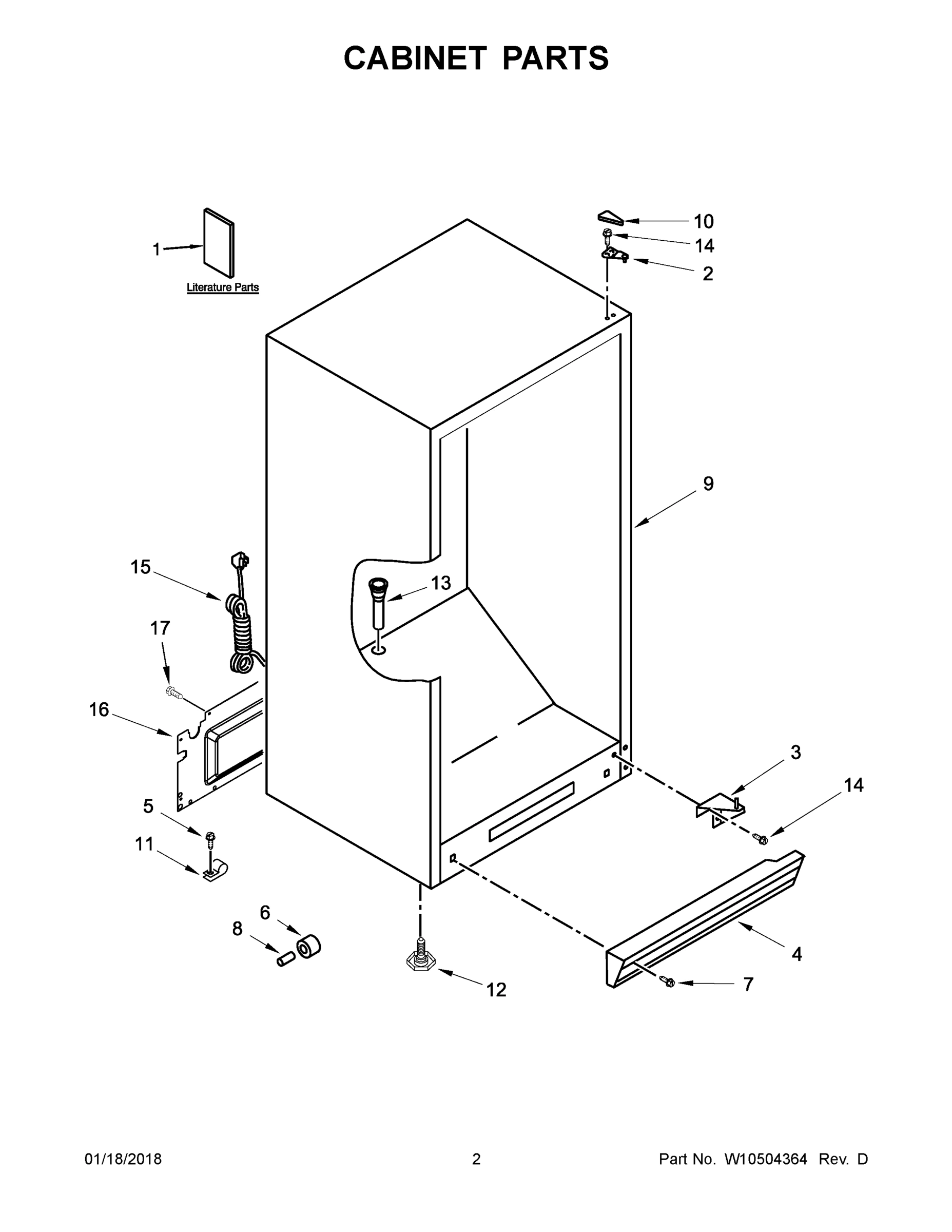

02 - CABINET PARTS

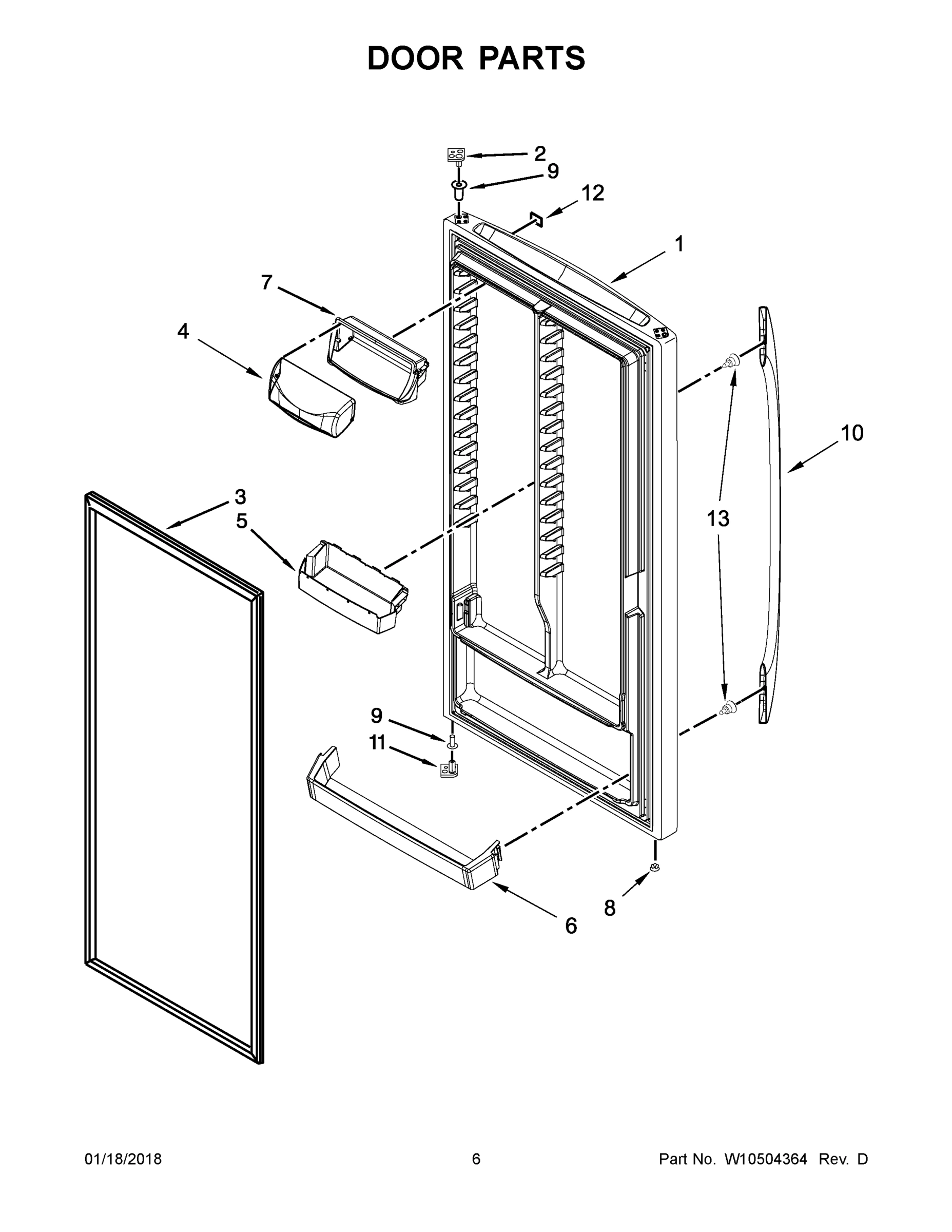

04 - DOOR PARTS

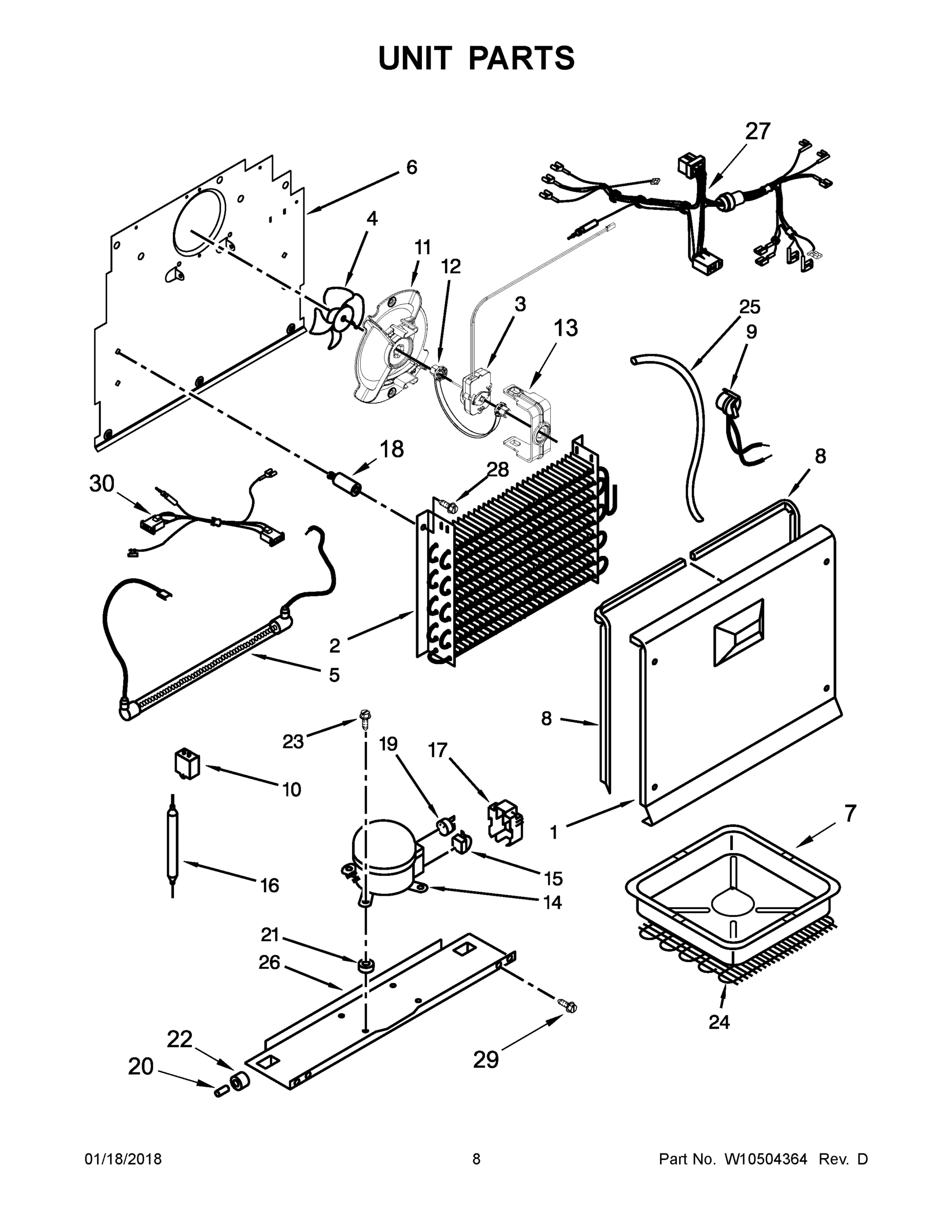

05 - UNIT PARTS
01 - COVER SHEET
Common parts from model Whirlpool EL88TRRWS03 FREEZER, VERTICAL
1
OWNERS MANUAL WPL W10326802 Contact Us For Availability
1
ASSEMBLY, DOOR (INCLUDES INTERIOR LINER) (WHI WPL 482827058 Contact Us For Availability
1
COVER, EVAPORATOR WPL W10452370 Contact Us For Availability
1A
ENERGY GUIDE WPL W10326815 Contact Us For Availability
1A
ASSEMBLY, DOOR (INCLUDES INTERIOR LINER) (STA WPL 482827059 Contact Us For Availability
2
EVAPORATOR WPL W10455863 Contact Us For Availability
2
HINGE, TOP (WHITE) WPL 281016105 Contact Us For Availability
2
STOP, DOOR (TOP) (NATURAL) WPL 281124001 Contact Us For Availability
2A
HINGE, TOP (SILVER) WPL 281016107 Contact Us For Availability
2A
STOP, DOOR (TOP) (SILVER) WPL 281124004 Contact Us For Availability
3
BOTTOM HINGE (WHITE) WPL 482693013 Contact Us For Availability
3
GASKET (WHITE) WPL 465151002 Contact Us For Availability
3A
BOTTOM HINGE (SILVER) WPL 482693011 Contact Us For Availability
3A
GASKET (SILVER) WPL 465151010 Contact Us For Availability
4
GRILLE (WHITE) WPL 460461005 Contact Us For Availability
4
DOOR, COMPARTMENT WPL 465429001 Contact Us For Availability
4A
GRILLE (SILVER) WPL 460461010 Contact Us For Availability
5
BIN, DOOR WPL 465454001 Contact Us For Availability
6
RAIL, DOOR (LOWER) WPL 465449001 Contact Us For Availability
7
SCREW WPL 324004107 Contact Us For Availability
7
HOUSING, DAIRY COMPARTMENT WPL 465430001 Contact Us For Availability
7
PAN, DRAIN WPL 482689001 Contact Us For Availability
8
PLUG, VENT WPL 324898007 Contact Us For Availability
8
GASKET, EVAPORATOR COVER (LEFT SIDE) WPL 360180002 Contact Us For Availability
8A
GASKET, EVAPORATOR COVER (RIGHT SIDE) WPL 360180001 Contact Us For Availability
9
BUSHING, HINGE (WHITE) WPL 360199001 Contact Us For Availability
9A
BUSHING, HINGE (SILVER) WPL 360199004 Contact Us For Availability
10
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
10
HANDLE (WHITE) WPL 382596002 Contact Us For Availability
10
CAPACITOR WPL 335956005 Contact Us For Availability
10A
COVER, HINGE (SILVER) WPL 380838007 Contact Us For Availability
10A
HANDLE (BRUSHED ALUMINUM) WPL 382596003 Contact Us For Availability
11
CLAMP WPL 325095021 Contact Us For Availability
11
STOP, DOOR (BOTTOM) (NATURAL) WPL 281125001 Contact Us For Availability
12
LEG, LEVELER WPL 382710001 Contact Us For Availability
13
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
13
GROMMET, DRAIN WPL W10558247 Contact Us For Availability
14
SCREW WPL 180271103 Contact Us For Availability
14
COMPRESSOR WPL 432972111 Contact Us For Availability
15
CORD, POWER WPL 482399001 Contact Us For Availability
15
RELAY, START WPL 235154012 Contact Us For Availability
16
COVER, UNIT WPL 482720001 Contact Us For Availability
17
SHROUD, CONDENSER MOTOR WPL 482690001 Contact Us For Availability
17
SCREW WPL 380732014 Contact Us For Availability
17
COVER WPL 335171001 Contact Us For Availability
18
PAN, UPPER CRISPER WPL 460040004 Contact Us For Availability
18
GROMMET WPL 180275101 Contact Us For Availability
19
SCREW WPL 180257102 Contact Us For Availability
19
OVERLOAD WPL 234286027 Contact Us For Availability
20
HOUSING, LIGHT SOCKET WPL 460185002 Contact Us For Availability
20
AXLE WPL 160316001 Contact Us For Availability
21
RAIL, DOOR SHELF WPL 334715004 Contact Us For Availability
22
MOTOR, CONDENSER WPL 482691001 Contact Us For Availability
22
ROLLER, FRONT WPL 360315001 Contact Us For Availability
23
DIFFUSER, SHORT AIR WPL 482573002 Contact Us For Availability
23
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
24
DIFFUSER, LONG AIR WPL 482556002 Contact Us For Availability
24
CONDENSER WPL 482683002 Contact Us For Availability
25
GLASS, SHELF WPL 360198003 Contact Us For Availability
26
TRIM, COVER CRISPER WPL W10380027 Contact Us For Availability
26
PAN, COMPRESSOR WPL W10470129 Contact Us For Availability
27
DAMPER, HUMIDITY CONTROL WPL 360212001 Contact Us For Availability
27
HARNESS, UNIT WPL 482890001 Contact Us For Availability
28
SCREW WPL 324004079 Contact Us For Availability
29
SCREW WPL 324838048 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.107 OZ. (R-134A) WPL NP Contact Us For Availability
× ![]()
